R4RAIRT22XQXKN2Tablet PC

i i Preface  Copyright 2007 All Rights Reserved. The information in this document is subject to change without prior notice in order to improve reliability, design and function and does not represent a commitment on the part of the manufacturer. In no event will the manufacturer be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use the product or documentation, even if advised of the possibility of such damages. This document contains proprietary information protected by copyright. All rights are reserved. No part of this manual may be reproduced by any mechanical, electronic, or other means in any form without prior written permission of the manufacturer. Safety Notices (1) Please read these safety instructions carefully. (2) All precautions and warnings on the equipment should be carefully noted. (3) Please disconnect the computer from the AC outlet before cleaning. (4) Never pour any liquids into any openings or directly onto the computer unit. This could result in fire or electrical shock. (5) Ensure the voltage range of the power outlet is between 100V and 240V before connecting the computer unit. Exceeding the maximum rated voltage may cause damage to the AC adapter or to the computer. This could result in fire or electrical shock. (6) Do not leave this equipment in a non-temperature controlled environment; storage temperatures below 4°C (39°F) or above 35°C (95°F) may damage the unit. ii To reduce the risk of an electric shock, which could cause personal injury, please follow all safety notices. The symbols shown are used in your documentation and on your equipment to indicate safety hazards. Lithium batteries can be dangerous. Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer’s instructions. Under no circumstances should the user attempt to disassemble the power supply. The power supply has no user-replaceable parts. Inside the power supply are hazardous voltages that can cause serious personal injury. A defective power supply must be returned to your dealer. Safety Notices for the Power Cord This equipment has a 2 or 3-wire power cord. Replace the power cord if it becomes damaged. Contact your dealer for an exact replacement. In the U.S.A. and Canada, the power cord must be a UL- listed detachable power cord (in Canada, CSA-certified). 2-wire cord SPT-2 18AWG 3-wire cord SVT or SJT, 18 AWG, 3-conductor Provided with a molded-on cord connector body at the other end. The cord length must not exceed 3 meters. Outside the U.S.A. and Canada, the plug must be rated for 250 VAC, 2.5 amp minimum, and must display an international agency approval marking. The cord must be suitable for use in the end-user’s country. iii Consult your dealer or the local electrical authorities if you are unsure of the type of power cord to use in your country. Voltage changes occur automatically in the power supply. Notice of EMC Compliance This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and if not installed and used in accordance with the instruction manual may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ƒ Reorient or relocate the receiving antenna. ƒ Increase the separation between the equipment and receiver. ƒ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ƒ Consult the dealer or an experienced technician for help. Use only shielded I/O cables to connect I/O devices to this equipment. You are cautioned the changes or modifications not expressly approved by the party responsible for compliance could void your authority to use the equipment. This device complies with Part 15 of the FCC Rules. Max. SAR Measurement (Body)(1g) 802.11b: 0.121 W/kg 802.11g: 0.132 W/kg 802.11n, 20MHz: 0.193 W/kg 802.11n, 40MHz: 0.140 W/kg iv Operation is subject to the following two conditions: (1) this device will not cause harmful interference, and (2) this device must accept any interference it receive including interference that may cause undesired operation. This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter. FCC Radiation Exposure Statement This Transmitter has been demonstrated co-location compliance requirements with (Bluetooth/Model No: GUBTCR42M).This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. (1) This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. To maintain compliance with FCC RF exposure compliance requirements, avoid direct contact to the transmitting antenna during transmitting. (2) Any changes or modifications (including the antennas) made to this device that are not expressly approved by the manufacturer may void the user’s authority to operate the equipment. Canadian EMI Compliance Statement This Class B digital apparatus meets all requirements of the Canadian Interference - Causing Equipment Regulations. European Union CE Marking Declaration This product has been tested and found to comply with the EMC requirement subject to the EU directive for CE marking. CE Declaration of Conformity For the following equipment: Ultra Mobile PC ! 0984 v Is herewith confi…

Text truncated - open the document above for the full version.

AMTEK SYSTEM CO., LTD. FCC ID.: R4RAIRT22XQXKN2 14F-11, No.79, Sec.1, Hsin Tai Wu Rd., His Chih City, Taipei Hsien, Taiwan. Tel : 886-2-26980909 Federal Communications Commission Dec. 17 , 2007 Authorization and Evaluation Division ATTESTATION FCC ID: R4RAIRT22XQXKN2 Product: Tablet PC Model: T22X (X=0~9, A~Z) We don't provide any controls or software to allow operation outside the USA frequency band when we sell this product in USA. Sincerely, Dick Lien / Manager AMTEK SYSTEM CO., LTD.

RF_160, Issue 01 Declaration of Authorization We Name: AMTEK SYSTEM CO., LTD. Address: 14F-11, No.79, Sec.1, Hsin Tai Wu Rd., His Chih City, Taipei Hsien, Taiwan City: Taipei .................................................................. . Country: Taiwan ..................................................................... . Declare that: Name: QuieTek Corp. Address: Fl.2, No.345, Xin-hu 2 nd Rd., Nei-hu District City: Taipei Country Taiwan R.O.C. is authorized to apply for Certification of the following product(s): Product description: Tablet PC ................................................... . Type designation: T22X (X=0~9, A~Z) ........................ . Trademark: iTablet on our behalf. Date: ...... 2007/12/17 ............... .. City: ...... Taipei .................. .. Name: ... ... Dick Lien / Manager... ... . Signature:

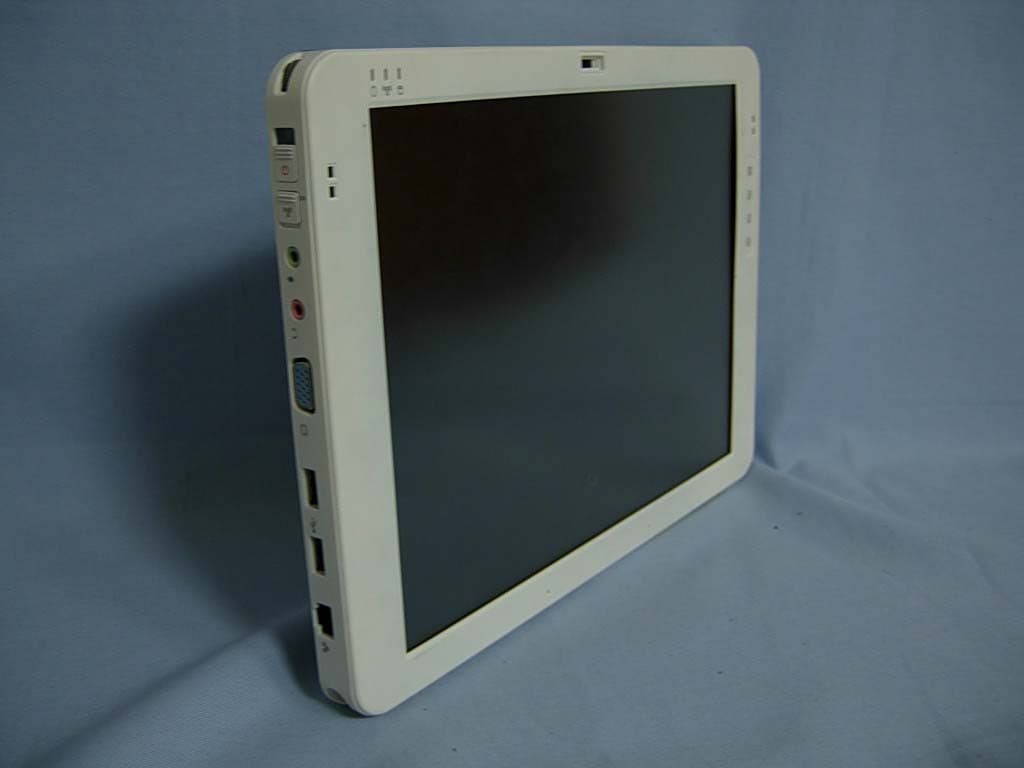

Report No.: 07A323R-RFUSP06V01 Page : 1 of 15 Version:1.0 Attachment 2 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo

AMTEK SYSTEM CO., LTD. FCC ID.: R4RAIRT22XQXKN2 14F-11, No.79, Sec.1, Hsin Tai Wu Rd., His Chih City, Taipei Hsien, Taiwan. Tel : 886-2-26980909 FCC ID Label The FCC ID will be placed on the equipment as shown in the photograph below.

Report No.: 07A323R-RFUSP05V01 Page : 2 of 16 Version:1.0 (3) EUT Photo (4) EUT Photo Report No.: 07A323R-RFUSP05V01 Page : 3 of 16 Version:1.0 (5) EUT Photo (6) EUT Photo Report No.: 07A323R-RFUSP05V01 Page : 4 of 16 Version:1.0 (7) EUT Photo (8) EUT Photo Report No.: 07A323R-RFUSP05V01 Page : 5 of 16 Version:1.0 (9) EUT Photo (10) EUT Photo WLAN Module Report No.: 07A323R-RFUSP05V01 Page : 6 of 16 Version:1.0 (11) EUT Photo (12) EUT Photo Report No.: 07A323R-RFUSP05V01 Page : 7 of 16 Version:1.0 (13) EUT Photo (14) EUT Photo Report No.: 07A323R-RFUSP05V01 Page : 8 of 16 Version:1.0 (15) EUT Photo (16) EUT Photo Report No.: 07A323R-RFUSP05V01 Page : 9 of 16 Version:1.0 (17) EUT Photo (18) EUT Photo Bluetooth Module Report No.: 07A323R-RFUSP05V01 Page : 10 of 16 Version:1.0 (19) EUT Photo (20) EUT Photo Report No.: 07A323R-RFUSP05V01 Page : 11 of 16 Version:1.0 (21) EUT Photo (22) EUT Photo Bluetooth Antenna Report No.: 07A323R-RFUSP05V01 Page : 12 of 16 Version:1.0 (23) EUT Photo (24) EUT Photo WLAN Antenna Report No.: 07A323R-RFUSP05V01 Page : 13 of 16 Version:1.0 (25) EUT Photo (26) EUT Photo Report No.: 07A323R-RFUSP05V01 Page : 14 of 16 Version:1.0 (27) EUT Photo (28) EUT Photo WLAN Antenna Report No.: 07A323R-RFUSP05V01 Page : 15 of 16 Version:1.0 (29) EUT Photo (30) EUT Photo Report No.: 07A323R-RFUSP05V01 Page : 16 of 16 Version:1.0 (31) EUT Photo (32) EUT Photo

Report No. 07A323R-RFUSP06V01 Page: 7 of 64 Version:1.0 1.2. Operational Description The EUT is a Table PC with built-in 2.4GHz BluetoothVer.2.0+EDR transceiver. The number of the channels is 79 in 2402-2480MHz. The device adapts the frequency hopping spread spectrum modulation. The antenna is connector-type and provides diversity function to improve the receiving function. This device provides wireless technology that revolutionizes personal connectivity. It is the solution for the seamless integration of Bluetooth technology into personal computer enabling short-range wireless connections between desktop/laptop computers, Bluetooth-enabled peripherals, and portable handheld devices.

Report No. 07A323R-RFUSP05V01 Page: 7 of 97 Version:1.0 1.2. Operational Description The EUT is a Table PC with a built-in 2.4GHz WLAN transceiver. The WLAN is 11 channels in 2412 – 2462MHz. The channels are separated by 5MHz. This device supports the data rates of 1, 2, 5.5, 11Mbps in 802.11b mode、 6, 9, 12, 18, 24, 36, 48, 54Mbps in 802.11g mode、 6.5,13,19.5,26,39,52,58.5,65Mbps in 802.11n(20BW) mode and 13,26,39,52,78,104,117,130 Mbps. The signals are modulated by DSSS in 802.11b mode and OFDM in 802.11g/n mode. The antenna type is IFA .

Report No：07A323R-HPUSP09V01 Page: 1 of 24 Version:1.0 SAR Test Report Product Name ：Tablet PC Model No. ：T22X (X=0~9, A~Z) Applicant： AMTEK SYSTEM CO., LTD. Address： 14F-11, No. 79, Sec. 1, Hsin Tai Wu Rd., Hsi Chih City, Taipei Hsien, Taiwan Date of Receipt：2007/10/23 Issued Date ：2007/12/12 Report No. ：07A323R-HPUSP09V01 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No：07A323R-HPUSP09V01 Page: 2 of 24 Version:1.0 Test Report Certification Issued Date: 2007/12/12 Report No.:07A323R-HPUSP09V01 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Product Name ： Tablet PC Applicant ： AMTEK SYSTEM CO., LTD. Address ： 14F-11, No. 79, Sec. 1, Hsin Tai Wu Rd., Hsi Chih City, Taipei Hsien, Taiwan Manufacturer ： Shandong Dong Hsin Electronics Co., Ltd. Model No. ： T22X (X=0~9, A~Z) FCC ID : R4RAIRT22XQXKN2 Trade Name ： iTablet Applicable Standard ： FCC Oet65 Supplement C June 2001 IEEE Std. 1528-2003 47CFR § 2.1093 Test Result ： Max. SAR Measurement (1g) 802.11b: 0.121 W/kg 802.11g: 0.132 W/kg 802.11n, 20MHz: 0.193 W/kg 802.11n, 40MHz: 0.140 W/kg Application Type ： Certification Documented By ： (Engineering Adm. Assistant/ Nicole Huang) Tested By ： (Engineer / Vorana Chen) Approved By ： (Deputy Manager /Vincent Lin) Report No：07A323R-HPUSP09V01 Page: 3 of 24 Version:1.0 TABLE OF CONTENTS Description Page 1. General Information .............................................................................. 5 1.1 EUT Description ............................................................................................................5 1.2 Test Environment ...........................................................................................................5 2. SAR Measurement System ................................................................... 6 2.1 ALSAS-10U System Description .................................................................................. 6 2.1.1 Applications ................................................................................................................ 6 2.1.2 Area Scans................................................................................................................... 6 2.1.3 Zoom Scan (Cube Scan Averaging)............................................................................ 7 2.1.4 ALSAS-10U Interpolation and Extrapolation Uncertainty......................................... 7 2.2 Isotropic E-Field Probe .................................................................................................. 7 2.2.1 Isotropic E-Field Probe Specification ......................................................................... 9 2.3 Boundary Detection Unit and Probe Mounting Device ................................................. 9 2.4 Daq-Paq (Analog to Digital Electronics) ..................................................................... 10 2.5 Axis Articulated Robot ................................................................................................ 10 2.6 ALSAS Universal Workstation.................................................................................... 11 2.7 Universal Device Positioner......................................................................................... 11 2.8 Phantom Types............................................................................................................. 11 2.8.1 APREL SAM Phantoms ........................................................................................... 12 2.8.2 APREL Laboratories Universal Phantom ................................................................. 12 3. Tissue Simulating Liquid .................................................................... 13 3.1 The composition of the tissue simulating liquid .......................................................... 13 3.2 Tissue Calibration Result ............................................................................................. 13 3.3 Tissue Dielectric Parameters for Head and Body Phantoms ....................................... 14 4. SAR Measurement Procedure ............................................................ 15 4.1 SAR System Validation................................................................................................ 15 4.1.1 Validation Dipoles..................................................................................................... 15 4.1.2 Validation Result ....................................................................................................... 15 4.2 SAR Measurement Procedure ...................................................................................... 16 5. SAR Exposure Limits .......................................................................... 17 6. Test Equipment List ............................................................................ 18 7. Measurement Uncertainty................................................................... 19 8. Test Results.......................................................................................... 20 8.1 SAR Test Results Summary ......................................................................................... 20 Appendix ............................................................................................................................ 24 Report No：07A323R-HPUSP09V01 Page: 4 of 24 Version:1.0 Appendix A. SAR System Validation Data Appendix B. SAR measurement Data Appendix C. Test Setup Photographs & EUT Photographs Appendix D. Probe Calibration Data Appendix E. Dipole Calibration Data Report No：07A323R-HPUSP09V01 Page: 5 of 24 Version:1.0 1. General Information 1.1 EUT Description Product Name Tablet PC Trade Name iTablet Model No. T22X (X=0~9, A~Z) FCC ID R4RAIRT22XQXKN2 IC ID 5745AT22XQXKN TX Frequenc…

Text truncated - open the document above for the full version.

Appendix - Probe Calibration Miniature Isotropic RF Probe M/N: ALS-E-020 S/N: 264 2450MHz Head Calibration 2450MHz Body Calibration Appendix - Dipole Calibration Validation Dipole 2450MHz P/N: ALS-D-2450-S-2 S/N: QTK-319

Report No. 07A323R-RFUSP05V01 Page: 1 of 97 Version:1.0 Test Report Product Name Table PC Model No. T22X (X=0~9, A~Z) FCC ID R4RAIRT22XQXKN2 Applicant AMTEK SYSTEM CO., LTD. Address 14F-11, No.79, Sec.1, Hsin Tai Wu Rd., His Chih City, Taipei Hsien, Taiwan Date of Receipt Oct. 23, 2007 Issued Date Nov. 28, 2007 Report No. 07A323R-RFUSP05V01 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 07A323R-RFUSP05V01 Page: 2 of 97 Version:1.0 Test Report Certification Issued Date: Nov. 28, 2007 Report No.: 07A323R-RFUSP05V01 Test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Product Name Table PC Applicant AMTEK SYSTEM CO., LTD. Address 14F-11, No.79, Sec.1, Hsin Tai Wu Rd., His Chih City, Taipei Hsien, Taiwan Manufacturer Shandong Dong Hsin Electronics Co., Ltd. Model No. T22X (X=0~9, A~Z) Rated Voltage AC 120V/60Hz Working Voltage AC 120V/60Hz Trade Name iTablet Applicable Standard FCC CFR Title 47 Part 15 Subpart C: 2006 ANSI C63.4: 2003 Test Result Complied Documented By : ( Adm. Specialist / Genie Chang ) Tested By : ( Engineer /Dino Chen ) Approved By : ( Deputy Manager /Vincent Lin ) Accredited by NIST (NVLAP) NVLAP Lab Code: 200347-0 Report No. 07A323R-RFUSP05V01 Page: 3 of 97 Version:1.0 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION .....................................................................................................5 1.1. EUT Description............................................................................................................................5 1.2. Operational Description ................................................................................................................7 1.3. Tested System Datails....................................................................................................................8 1.4. Configuration of Test System ........................................................................................................8 1.5. EUT Exercise Software .................................................................................................................8 1.6. Test Facility ...................................................................................................................................9 2. Conducted Emission..................................................................................................................10 2.1. Test Equipment............................................................................................................................10 2.2. Test Setup ....................................................................................................................................10 2.3. Limits ..........................................................................................................................................10 2.4. Test Procedure .............................................................................................................................11 2.5. Uncertainty ..................................................................................................................................11 2.6. Test Result of Conducted Emission.............................................................................................12 3. Peak Power Output ...................................................................................................................20 3.1. Test Equipment............................................................................................................................20 3.2. Test Setup ....................................................................................................................................20 3.3. Limits ..........................................................................................................................................20 3.4. Test Procedure .............................................................................................................................20 3.5. Uncertainty ..................................................................................................................................20 3.6. Test Result of Peak Power Output...............................................................................................21 4. Radiated Emission .....................................................................................................................25 4.1. Test Equipment............................................................................................................................25 4.2. Test Setup ....................................................................................................................................26 4.3. Limits ..........................................................................................................................................27 4.4. Test Procedure .............................................................................................................................28 4.5. Uncertainty ..................................................................................................................................28 4.6. Test Result of Radiated Emission................................................................................................29 5. Band Edge ..................................................................................................................................45 5.1. Test Equipment.........................................................................................................…

Text truncated - open the document above for the full version.

Report No. 07A323R-RFUSP06V01 Page: 1 of 64 Version:1.0 Test Report Product Name Table PC Model No. T22X (X=0~9, A~Z) FCC ID. R4RAIRT22XQXKN2 Applicant AMTEK SYSTEM CO., LTD. Address 14F-11, No.79, Sec.1, Hsin Tai Wu Rd., His Chih City, Taipei Hsien, Taiwan Date of Receipt Oct. 23, 2007 Issued Date Nov. 28, 2007 Report No. 07A323R-RFUSP06V01 The Test Results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 07A323R-RFUSP06V01 Page: 2 of 64 Version:1.0 Test Report Certification Issued Date: Nov. 28, 2007 Report No.: 07A323R-RFUSP06V01 Product Name Table PC Applicant AMTEK SYSTEM CO., LTD. Address 14F-11, No.79, Sec.1, Hsin Tai Wu Rd., His Chih City, Taipei Hsien, Taiwan Manufacturer Shandong Dong Hsin Electronics Co., Ltd. Model No. T22X (X=0~9, A~Z) FCC ID. R4RAIRT22XQXKN2 Rated Voltage AC 120V/60Hz Working Voltage AC 120V/60Hz Trade Name iTablet Applicable Standard FCC CFR Title 47 Part 15 Subpart C: 2006 ANSI C63.4: 2003 Test Result Complied The Test Results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Documented By : ( Adm. Specialist /Genie Chang ) Tested By : ( Engineer /Dino Chen ) Approved By : ( Deputy Manager /Vincent Lin ) Accredited by NIST (NVLAP) NVLAP Lab Code: 200347-0 Report No. 07A323R-RFUSP06V01 Page: 3 of 64 Version:1.0 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION ...............................................................................................................5 1.1. EUT Description......................................................................................................................................5 1.2. Operational Description...........................................................................................................................7 1.3. Tested System Details..............................................................................................................................8 2.1. Configuration of Tested System ..............................................................................................................8 2.2. EUT Exercise Software ...........................................................................................................................8 2.3. Test Facility .............................................................................................................................................9 3. CONDUCTED EMISSION ................................................................................................................10 3.1. Test Equipment ......................................................................................................................................10 3.2. Test Setup ..............................................................................................................................................10 3.3. Limits.....................................................................................................................................................11 3.4. Test Procedure .......................................................................................................................................11 3.5. Uncertainty ............................................................................................................................................11 3.6. Test Result of Conducted Emission .......................................................................................................12 4. PEAK POWER OUTPUT ..................................................................................................................16 4.1. Test Equipment ......................................................................................................................................16 4.2. Test Setup ..............................................................................................................................................16 4.3. Limit .....................................................................................................................................................16 4.4. Test Procedure .......................................................................................................................................16 4.5. Uncertainty ............................................................................................................................................16 4.6. Test Result of Peak Power Output .........................................................................................................17 5. RADIATED EMISSION .....................................................................................................................19 5.1. Test Equipment ......................................................................................................................................19 5.2. Test Setup ..............................................................................................................................................20 5.3. Limits.....................................................................................................................................................20 5.4. Test Procedure .......................................................................................................................................21 5.5. Uncertainty ............................................................................................................................................21 5.6. Test Result of Radiated Emission ...................................................................................................…

Text truncated - open the document above for the full version.

Report No.: 07A323R-RFUSP05V01 Page : 1 of 3 Version:1.0 Attachment 1: EUT Test Setup Photographs Front View of Conducted Test Back View of Conducted Test Report No.: 07A323R-RFUSP05V01 Page : 2 of 3 Version:1.0 Front View of Radiated Test Back View of Radiated Test Report No.: 07A323R-RFUSP05V01 Page : 3 of 3 Version:1.0 Front View of Radiated Test (Horn) Back View of Radiated Test (Horn)
