R5J60902Walkie Talkie

PAGE 1 OF 2 FACSIMILE To: MET Laboratories, Inc. Date: 2002-01-05 Attn. : Mr. Chris Harvey E-mail: [email protected] From: Alice Wong [EED Department] E-mail: [email protected] CC: Kitty Choy [EED Department] FCC ID: R5J60902 Subject : Apply one FCC Certificate DXX – Part 15 Low Power Communication Device NOT CONFIDENTIALITY Applicant: KIDZ FOCUS (HK) LTD. Address: Room 906, 9/F., Catic Building, 44 Tsun Yip Street, Kwun Tong, Kowloon, Hong Kong FRN: 0010-9053-70 Grantee Code: R5J FCC ID: R5J60902 Product: Hand Set Walkie Talkie (Two Way) Model: 6092 If you have any question, please free feel to contact me. Please see attached sheet and following! For and on behalf of The Hong Kong Standards & Testing Centre Ltd.: Alice Wong EED Dept. Hong Kong Standards and Testing Centre 10 Dai Wang Street, Taipo Industrial Estate, NT, Hong Kong Tel : (852) 2666 1888 Fax : (852) 2665 0848 Email : [email protected] PAGE 2 OF 2 Item Description 1 Service agreement 2 Purchase Order 3 Letter of appointment 4 Letter of attestation 5 Circuit Description 6 Circuit diagram 7 Block diagram 8 PCB Layout 9 Parts List 10 User’s manual 11 FCC ID label 12 Label Location 13 Internal Photo 14 External Photo 15 Setup Photo 16 Report and Equipment list 17 Bandwidth Measuring Procedure: The procedure used was based on ANSI STANDARD C63.4-1992. The spectrum was scanned from 30MHz to 1000MHz. When an emission was found, the table was rotated to produce the maximum signal strength. The antenna was placed in both the horizontal and vertical planes and the worse case emissions were reported. The EUT was tested in vertical and cylindrical dimension, thus the orthogonal plane in X, Y and Z axis were covered.

18 06 04 Kidz Focus (HK) Ltd. Room 906, 9/F., Catic Building, 44 Tsun Yip Street, Kwun Tong, Kowloon, Hong Kong Kowloon, Hong Kong KIDZ FOCUS (HK) LTD. KIDZ FOCUS (HK) LTD.

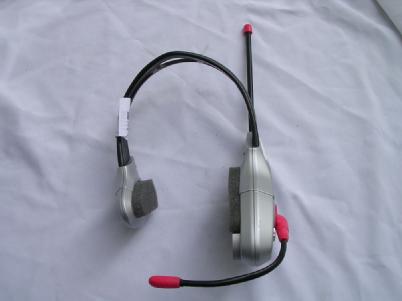

PHOTOGRAPH OF THE PRODUCT FRONT VIEW OF THE PRODUCT REAR VIEW OF THE PRODUCT

PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT TOP VIEW INNER CIRCUIT BOTTOM VIEW

FCC ID: R5J60902 Circuit Description The 49.86 and 49.4MHz crystal oscillator drives the base of Q1 the final/buffer amplifier. The modulation provided by Mic. The output of Q1 has the matching network consisting of L1, L5 and C30 that limit the harmonic content and effect the proper coupling of the antenna to the output stage. Antenna, Ground and Power Source The antenna consists of a 19cm long telescoping chrome over brass tubing. There is no external ground connection. The ground is only that of the printed circuit board. Electric current is supplied by a 9 Volt (“6F22” size battery x 1) primary battery

0 COSTED BILL OF MATERIAL MODEL: #60902(49.860MHZ) DESCRIPTION: Std Act New Part No.DescriptionQtyUM BOM RemarksCost ValueCost Value VAR% 010301690IC LS 30161PCSIC1 029014903TRANSISTOR 9014C 3PCSQ2.3.5 029015903TRANSISTOR 9015C 1PCSQ4 029018903TRANSISTOR 9018H 3PCSQ1.6.7 031414801DIODE IN4148 2PCSD1.2 043047014RESISTOR 1/4W 47 OHM 1PCSR15 043010114RESISTOR 1/4W 100 OHM 2PCSR6.10 043022114RESISTOR 1/4W 220 OHM 1PCSR17 043047114RESISTOR 1/4W 470 OHM 1PCSR13 043010214RESISTOR 1/4W 1 K OHM3PCSR2.4.16 043015214RESISTOR 1/4W 1.5K OHM2PCSR9.11 043033214RESISTOR 1/4W 3.3K OHM1PCSR7 043033214RESISTOR 1/4W 6.8K OHM1PCSR3 043010414RESISTOR 1/4W 10 K OHM1PCSR5 043022314RESISTOR 1/4W 22 K OHM2PCSR14.19 043068414RESISTOR 1/4W 680K OHM1PCSR12 043082414RESISTOR 1/4W 820K OHM2PCSR8.18 043068414RESISTOR 1/4W 1M OHM1PCSR1 050703025CERAMIC CAP.25V+-20% 3 PF 1PCSW1 050715025CERAMIC CAP.25V+-20% 15 PF 2PCSC3.24 050720025CERAMIC CAP.25V+-20% 20 PF 1PCSC28 050722025CERAMIC CAP.25V+-20% 22 PF 2PCSC22.23 050739025CERAMIC CAP.25V+-20% 39 PF 1PCSC30 050756025CERAMIC CAP.25V+-20% 50 PF 1PCSC2 050750025CERAMIC CAP.25V+-20% 500 PF 1PCSC7 050750125CERAMIC CAP.25V+80-20% 0.001 UF1PCSC25 050910225CERAMIC CAP.25V+80-20% 0.005 UF1PCSC18 050950225CERAMIC CAP.25V+80-20% 0.01 UF3PCSC19.21.27 050910325CERAMIC CAP.25V+80-20% 0.04 UF5PCSC5.9.10.13.16 050940325CERAMIC CAP.25V+80-20% 0.1 UF4PCSC8.12.17.20 0 COSTED BILL OF MATERIAL MODEL: #60902(49.860MHZ) DESCRIPTION: Std Act New Part No.DescriptionQtyUM BOM RemarksCost ValueCost Value VAR% 050910425ELECTROLYTIC CAP. 10V+80-20% 22 UF 1PCSC6 090922610ELECTROLYTIC CAP. 10V+80-20% 100 UF 4PCSC4.11.14.15 090910710IFT-7X10MM (3016A) 1PCST3 120000010OSC-7MM (3016B) 2PCST1.2 120000020CHOKE OCIL "NK8 W107R 7UH" 2PCSL6.7 161000010CHOKE OCIL "0.82 UH" 1PCSL1 161000010CHOKE OCIL "3.3 UH" (线径0.15MM 12T) 1PCSL2 161000010CHOKE OCIL "15 UH" 2PCSL3.4 161000010CRYSTAL "49.860MHZ" 1PCSXL1 174986010SWITCH-SLIDE 1P2T SK12F03-G7 1PCSSW1 2412F0307P.C.B. -MAIN "#60902-10" MM HB1.6MM 1PCSPCB 280000010P.C.B.(SHIELD PCB AS SHOWN)42X46X0.8MM 1PCSPCB 280000020SPEAKER 27MM外磁 8 OHM 0.25W 1PCSSP 297534110BATTERY SNAP #26(7X1.3MM)I型 L=120MM 1PCS 410100020JUMPER WIRE AWG #28(7X1.05MM) 40 MM 3/3 1PCS 432840019JUMPER WIRE AWG #30(5X0.8MM) 60 MM 3/3 1PCS 432880010JUMPER WIRE AWG #30(5X0.8MM) 60 MM 3/3 1PCS 432880012SHIELD WIRE D=2.6MM(2X#26) L=260MM 1PCS 453248000SPRING ANTENNAE 200X1MM 1PCS 750000010SPRING ANTENNAE 4.7X200X1.2MM 1PCS 750000030TAPPING SCREW PT2.6 X 3 MM D=4MM1PCS 762603210TAPPING SCREW PT2.6 X 5 MM D=5MM 3PCS 762606210TAPPING SCREW PT2.6 X 8 MM D=5MM 8PCS 762605210TAPPING SCREW PWT2.6X 8 MM W=6.5MM 2PCS 762005210MACHINE SCREW PM 2.6X 8 MM D=4MM1PCS 772604210SOLDERING LUG D=3MM X 8MM 1PCS 802301220EYELET DIA 2 X 3MM (PCBX7) 7PCS 801200410PLASTIC TUBE 6(外径) X 8 MM 1PCS 810120060PLASTIC TUBE 5(外径) X 125MM 1PCS 810120060PLASTIC TUBE 6(外径) X 200MM 1PCS 0 COSTED BILL OF MATERIAL MODEL: #60902(49.860MHZ) DESCRIPTION: Std Act New Part No.DescriptionQtyUM BOM RemarksCost ValueCost Value VAR% 810120060CONDENSER MIC CUSHION 58dB (D=6MM) 1PCS 832101500FELT PAPER DIA. 27 X 0.25MM BLACK 1PCS 842705600LABEL-QC PASSED 1PCS 878830011INSTRUCTION BOOK 1PCS 880000000ABSORD MODEL 1PCS 896090110CARTON BOX 1PCS 9200F0000SPONGE 1PCS 932020810SPONGE 1PCS 932020820PLASTIC 1PCS

香 港 標 準 及 檢 定 中 心 Hong Kong Standards and Testing Centre Date : 2004-06-16 TEST REPORT Page 1 of 18 No. : HM150650 This report shall not be reproduced unless with prior written approval from the Hong Kong Standards and Testing Centre. 香港新界大埔工業村大宏街10號 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of STC: www.hkstc.org (the section “Application and Quotation”). Applicant: KIDZ FOCUS (HK) LTD. Description of Samples: Model name: Hand set Walkie Talkie (Two-way) Model no.: 60902 Brand name: N/A FCC ID: R5J60902 FCC ID: R5J60902B Date Samples Received: 2004-04-12 Date Tested: 2004-06-02 Investigation Requested: FCC Part 15 Subpart C Conclusions: The submitted product COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Remarks: ---- K C Lee, EMC for Chief Executive 香 港 標 準 及 檢 定 中 心 Hong Kong Standards and Testing Centre Date : 2004-06-16 TEST REPORT Page 2 of 18 No. : HM150650 香港新界大埔工業村大宏街10號 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of STC: www.hkstc.org (the section “Application and Quotation”). CONTENT: Cover Page 1 of 18 Content Page 2-3 of 18 1.0 General Details 1.1 Test Laboratory Page 4 of 18 1.2 Applicant Details Page 4 of 18 Applicant HKSTC Code Number for Applicant Manufacturer 1.3 Equipment Under Test [EUT] Page 5 of 18 Description of EUT operation 1.4 Date of Order Page 5 of 18 1.5 Submitted Samples Page 5 of 18 1.6 Test Duration Page 5 of 18 1.7 Country of Origin Page 5 of 18 1.8 Additional Information of EUT Page 6 of 18 2.0 Technical Details 2.1 Investigations Requested Page 7 of 18 2.2 Test Standards and Results Summary Page 7 of 18 3.0 Test Results 3.1 Emission Page 8-13 of 18 3.2 Bandwidth Measurement Page 14-15 of 18 香 港 標 準 及 檢 定 中 心 Hong Kong Standards and Testing Centre Date : 2004-06-16 TEST REPORT Page 3 of 18 No. : HM150650 香港新界大埔工業村大宏街10號 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of STC: www.hkstc.org (the section “Application and Quotation”). Appendix A List of Measurement Equipment Page 16 of 18 Appendix B Photographs Page 17-18 of 18 香 港 標 準 及 檢 定 中 心 Hong Kong Standards and Testing Centre Date : 2004-06-16 TEST REPORT Page 4 of 18 No. : HM150650 香港新界大埔工業村大宏街10號 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of STC: www.hkstc.org (the section “Application and Quotation”). 1.0 General Details 1.1 Test Laboratory The Hong Kong Standards and Testing Centre Ltd. EMC Laboratory 10 Dai Wang Street, Taipo Industrial Estate New Territories, Hong Kong Telephone: 852 2666 1888 Fax: 852 2664 4353 1.2 Applicant Details Applicant KIDZ FOCUS (HK) LTD. ROOM 906, 9/F., CATIC BUILDING, 44 TSUN YIP STREET, KWUN TONG, KOWLOON HKSTC Code Number for Applicant KIF003 Manufacturer N/A 香 港 標 準 及 檢 定 中 心 Hong Kong Standards and Testing Centre Date : 2004-06-16 TEST REPORT Page 5 of 18 No. : HM150650 香港新界大埔工業村大宏街10號 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of STC: www.hkstc.org (the section “Application and Quotation”). 1.3 Equipment Under Test [EUT] Description of Sample Model Name: Head set Walkie Talkie (Two -way) Manufacturer: N/A Brand Name: N/A Model Number: 60902 Input Voltage: 9Vd.c 1.3.1 Description of EUT Operation The Equipment Under Test (EUT) is a KIDZ FOCUS (HK) LTD., Head set Walkie Talkie (Two-way). The EUT continues to transmit while button is being pressed. It is voice transmission, Modulation by Mic and type is frequency modulation. 1.4 Date of Order 2004-04-12 1.5 Submitted Sample(s): 4 Samples per model 1.6 Test Duration 2004-06-02 1.7 Country of Origin China 香 港 標 準 及 檢 定 中 心 Hong Kong Standards and Testing Centre Date : 2004-06-16 TEST REPORT Page 6 of 18 No. : HM150650 香港新界大埔工業村大宏街10號 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of STC: www.hkstc.org (the section “Application and Quotation”). 1.8 Additional Information of EUT Submitted Not Available User Manual Part List Circuit Diagram Printed Circuit Board [PCB] Layout Block diagram FCC ID Label 香 港 標 準 及 檢 定 中 心 Hong Kong Standards and Testing Centre Date : 2004-06-16 TEST REPORT Page 7 of 18 No. : HM150650 香港新界大埔工業村大宏街10號 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of STC: www.hkstc.org (the section “Application and Quotation”). 2.0 Technical Details 2.1 Investigations Requested Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15 and ANSI C63.4:2003 for FCC Certification. 2.2 Test Standards and Results Summary Tabl…

Text truncated - open the document above for the full version.

TEST SET UP PHOTOGRAPH OF THE PRODUCT MEASUREMENT OF RADIATED EMISSION TEST SET UP
