R5RUM906USB Drive

User manual INSTALLATION GUIDE AND WARRANTY INFO Congratulations on choosing the TRUS USB Drive . The following instructions provide general installation and handling information as complement to the Owner’s manual for your device or system. BASIC SPECIFICATLONS Size： Style A:56.3×19.5×10.5mm Style B:63.3×18.0×9.3mm Style C:43.0×21.0×10.0mm Operating Temp： 0°C～+70°C Capability: 4G, 8G, 16G, 32G, 64G Shock Resistance： 1500G,0.3ms Reading speed Up to 20MB/s Writing speed Up to 15MB/s Vibration： 15G peak, 10-2000HZ with 3axis MTBF： 1,000,000hours FEATURES x Fully compatible with USB1.1 , USB2.0. x Support Windows 2000,Windows XP SP2/SP3, Windows Vista SP1/SP2,Win7,MAC,Linux x Low power consumption PREPARATION BEFORE USE Keep your TRUS USB Drive away from direct sunlight, moisture and temperature extremes. Do not bend, flex or drop your USB Drive. INSTALLATION 1. The USB drive into the computer usb port . 2. USB drives will display a "Removable Disk" in my computer. 3. Open the removeable disk in my computer then you can use it. LIMITED WARRANTY TRUS Technology products epitomize the new vanguard of quality standards as part of our commitment to our customers. AII TRUS Technology, Inc. ("TRUS ") products are warranted and tested to be free from defects in material and workmanship and to conform to the published specifications. Should your TRUS product failure within the warranty period) fall under normal use in the recommended environ-ment due to improper workmanship or materials, TRUS will repair the product or replace it with a comparable or better unit. This warranty is subject to the conditions and limitations set forth herein. DURATION OF WARRANTY The TRUS product is covered by this warranty for 2years from the date of purchase. Proof of purchase including the date of purchase is required to collect on the warranty. TRUS will inspect product and decide whether to repair or replace it . TRUS reserves the right to provide a functional equivalent product, or a refurbished replacement product. LIMITAIONS This warranty does not apply to product failure caused by accidents, abuse, mishandling, improper installation, alteration, acts of nature, improper usage, or problems with electrical power. In addition, opening or tampering with the product casing, or any physical damage, abuse or alteration to the product’s surface, including all warranty or quality stickers, product serial or electronic numbers will also void the product warranty. TRUS is not responsible for recovering any data lost due to the failure of a Flash memory device. TRUS products must be used with devices that conform to the recommended industry standards. TRUS will not be liable for damages resulting from a third party device that causes the TRUS product to fail. TRUS shall in no event be liable for any consequential, indirect, or incidental damages, lost profits, lost business. investments, lost goodwill, or interference with business relationships as a result of lost data . TRUS is also not responsible for damage or failure of any third party equipment, even if TRUS has been advised of the possibility. This limitation does not apply to the extent making it illegal or unenforceable under applicable law. Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: † Reorient or relocate the receiving antenna. † Increase the separation between the equipment and receiver. † Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. † Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

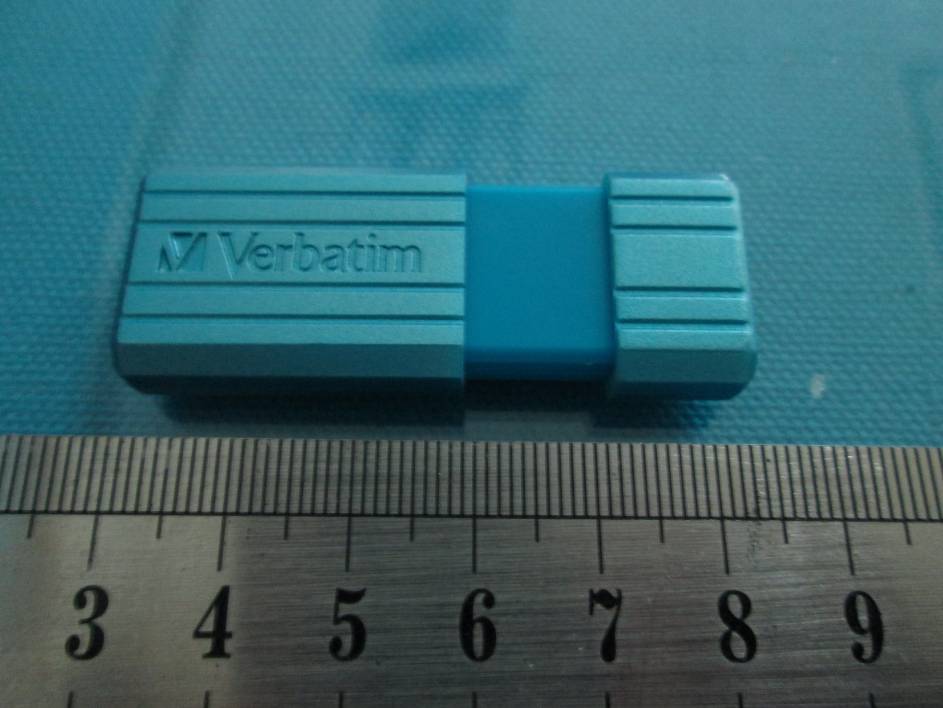

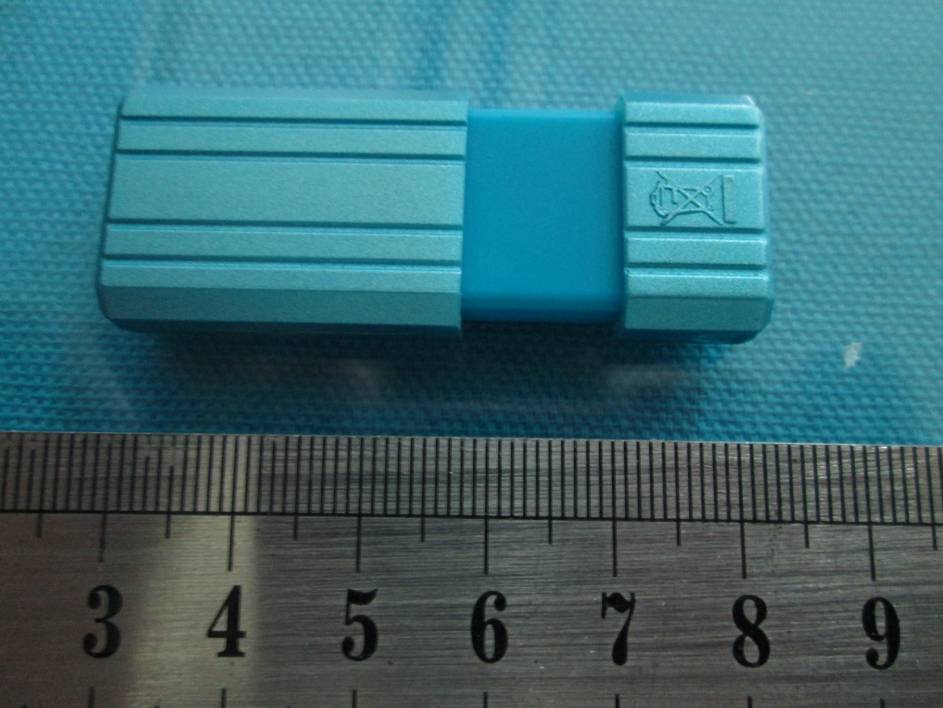

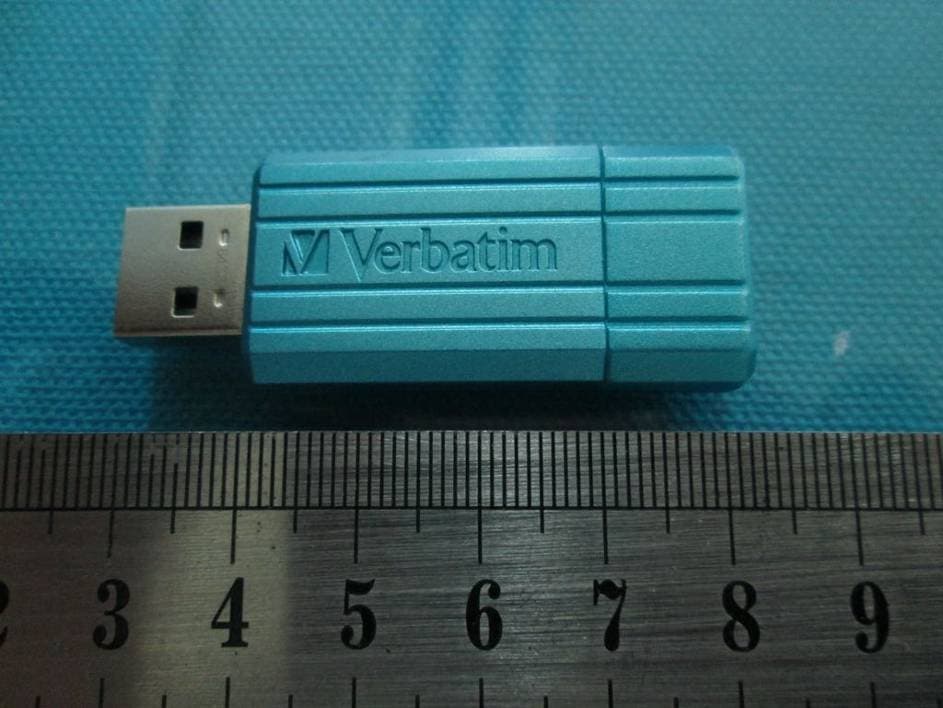

EXTERNAL PHOTOGRAPHS OF PRODUCT External View of Product-1 External View of Product-2 External View of Product-3

FCC ID : R5RUM906 NOTE: The statement is placed in the manual. Label Location Label Contents Label Size: L22mm*W3mm

INTERNAL PHOTOGRAPHS OF PRODUCT Internal View of Product-1 Internal View of Product-2

Report No. : EESZE11130001-1 Page 2 of 16 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION ..........................................................................................3 2. TEST SUMMARY .........................................................................................................3 3. MEASUREMENT UNCERTAINTY ...............................................................................4 4. PRODUCT INFORMATION AND TEST SETUP ..........................................................4 5. FACILITIES AND ACCREDITATIONS .........................................................................5 5.1 TEST FACILITY................................................................................................................................ 5 5.2 TEST EQUIPMENT LIST.................................................................................................................. 5 6. SYSTEM TEST CONFIGURATION..............................................................................5 6.1. JUSTIFICATION............................................................................................................................... 5 6.2. PRODUCT EXERCISING SOFTWARE........................................................................................... 6 7. CONDUCTED EMISSION TEST ..................................................................................6 7.1. LIMITS .............................................................................................................................................. 6 7.2. BLOCK DIAGRAM OF TEST SETUP .............................................................................................. 6 7.3. PROCEDURE OF CONDUCTED EMISSION TEST ....................................................................... 6 7.4. TEST GRAPHS AND TEST DATA .................................................................................................. 7 8. RADIATED EMISSION TEST.......................................................................................9 8.1. LIMITS .............................................................................................................................................. 9 8.2. BLOCK DIAGRAM OF TEST SETUP .............................................................................................. 9 8.3. PROCEDURE OF RADIATED EMISSION TEST ............................................................................ 9 8.4. TEST GRAPHS AND TEST DATA ................................................................................................ 10 APPENDIX 1 PHOTOGRAPHS OF TEST SETUP............................................................12 APPENDIX 2 EXTERNAL PHOTOGRAPHS OF PRODUCT............................................14 APPENDIX 3 INTERNAL PHOTOGRAPHS OF PRODUCT.............................................16 (Note: N/A means not applicable) Report No. : EESZE11130001-1 Page 3 of 16 1. GENERAL INFORMATION Applicant: Shenzhen Truth Digital Technology Co., Ltd Floor 8, building 3, jiaan Technology zone, liuxian Road 1, Baoan District Shenzhen China Manufacturer: Shenzhen Truth Digital Technology Co., Ltd Floor 8, building 3, jiaan Technology zone, liuxian Road 1, Baoan District Shenzhen China Equipment Authorization: Certification FCC ID: R5RUM906 Product: USB Drive Trade mark: N/A Model/Type reference: Verbatim Pinstripe USB drive (4GB, 8GB, 16GB, 32GB, 64GB), UM526(4GB, 8GB, 16GB, 32GB, 64GB), UM515(4GB, 8GB, 16GB, 32GB, 64GB) Serial Number: N/A Report Number: EESZE11130001-1 Sample Received Date: Nov. 13, 2012 Sample tested Date: Nov. 13, 2012 to Nov. 27, 2012 2. TEST SUMMARY The Product has been tested according to the following specifications: Standard Test Item Test FCC 15.107 Conducted Emission Yes FCC 15.109 Radiated Emission Yes Report No. : EESZE11130001-1 Page 4 of 16 3. MEASUREMENT UNCERTAINTY Where relevant, the following measurement uncertainty levels have been estimated for tests performed on the Product as specified in CISPR 16-4-2. This uncertainty represents an expanded uncertainty expressed at approximately the 95% confidence level using a coverage factor of k=2. Test item Value (dB) Conducted disturbance 3.2 Radiated disturbance (30MHz to 1GHz) 4.5 Radiated disturbance (1GHz to 6GHz) 4.8 4. PRODUCT INFORMATION AND TEST SETUP 4.1. PRODUCT INFORMATION Ratings: DC 5V by PC Model difference: All models are identical in all aspect except for appearance and capacity. 4.2. TEST SETUP CONFIGURATION See test photographs attached in Appendix 1 for the actual connections between Product and support equipment. 4.3. SUPPORT EQUIPMENT No. Device Type Brand ModelSeries No. Data Cable Power Cord FCC Approval 1. PC DELL 380MT 06054E N/A Unshielded 1.4m DOC 2. Monitor DELL 3100C CN-OHD5WY-74261 -167-14KC VGA: Unshielded Unshielded 1.4m DOC 3. Keyboard Lselection KB-101A B0829008487LEXLUnshielded N/A DOC 4. Mouse Lselection OP-200B0820010665DBDNUnshielded N/A DOC 5. Printer HP Q5911ACNCK766629 Unshielded 1.2m Unshielded 1.2m DOC Notes: 1. All the equipment/cables were placed in the worst-case configuration to maximize the emission during the test. 2. Grounding was established in accordance with the manufacturer’s requirements and conditions for the intended use. Report No. : EESZE11130001-1 Page 5 of 16 5. FACILITIES AND ACCREDITATIONS 5.1 TEST FACILITY All test facilities used to collect the test data are located at Hongwei Industrial Zone, Bao’an 70 District, Shenzhen, Guangdong, China. The site and apparatus are constructed in conformance with the requirements of ANSI C63.4, CISPR 16-1-1 and other equivalent standards. 5.2 TEST EQUIPMENT LIST Instrumentation: The following list contains equipments used at CTI for testing. The calibrations of the measuring instruments, including any accessories that may effect such calibration, are checked frequently to assure their accuracy. Adjustments are made and correction factors applied in accordance with instructions contained in t…

Text truncated - open the document above for the full version.

PHOTOGRAPHS OF TEST SETUP CONDUCTED EMISSION TEST SETUP-1 CONDUCTED EMISSION TEST SETUP-2 RADIATED EMISSION TEST SETUP-1 RADIATED EMISSION TEST SETUP-2
