R6CIGB1GIMBAL PROXIMITY BEACON

Gimbal™ Proximity Beacon User Guide The Gimbal Proximity Beacon is a Bluetooth™, low-energy (BLE) device that transmits its presence and other data of interest so that applications or receiver devices can discover it and acquire the data it has to communicate. BLE is designed to use considerab ly less power than traditional Bluetooth while still maintaining similar range and functionality.To use your beacon, you must first activate it. This can be done by visiting http://gimbal.com/ and following the instructions contained there to create and/or login to your account and associate this beacon with your account. To activate your beacon, y ou’ll need the activation code found either on the beacon’s box or on rear label of the beacon. (e.g. 1C34-5A789) Once activated, th e beacon is designed to be used with the Gimb al solution for various proximity applications. Once activated, to power your beacon, simply depress the tab on the outside of the beacon with your thumb in order to open it a nd insert the 4-AA alkaline batteries according to the markings on the battery holders within the beacon. The beacon is operatio nal within 30 seconds of installing all 4-AA batteries. To cease operation of the beacon, simply remove all 4-AA batteries. Remov ing and reinstalling all 4-AA batteries will also re start the beacon. Note that battery life under normal operating conditions should be at least 12 months though capacity of batteries does vary and will affect this estimate.Once batteries have been installed, and before closing the beacon, choose how you would like to mount it. The beacon includes double-sided tape within the box that is suitable to most appl ications. Alternately, three blac k drywall screws are also inclu ded and can be used in the three mounting holes provided but be sure to install these before closing the beacon. Finally, a standard ¼ ”-20 camera mount is provided on the back of the unit which can be used with standard off-the-shelf mounting brackets typically available for camera applications (bracket not included). CAUTION: Take care when installing the batteries to ensure the correct polarity in order to prevent possible damage or temporary loss of function to the Beacon.When mounting the unit, it’s best to ‘point’ the front, polished external face of the unit (which has no labels) toward whateve r device or receiver will be receiving the beacon’s transmissions. Once closed and mounted, the included silver-colored set scr ew can be used to secure the tab thereby preventing the unit from being opened. An additional label is also included should you wish to affix it to the beacon exterior at a place that is convenient for your intended purpose.For additional instructions and tips, please visit http://gimbal.com/ . WARNING - CHOKING HAZARD: Small parts. Not for children under 3 years. This product comes with alkaline batteries. To reduce risk of injury, do not disassemble, crush, puncture, short circuit external contacts , expose to temperatures above 100°C (212°F ), or dispose of in fire or water. If the battery leaks, do not allo w the leaking fluid to come in contact with skin or clothing. If contact has already occurred, flush the affected area im mediately with clean water and seek medica l advice. Do not allow the leaking fluid to come in contact with eyes. If contact has already occurred, DO NOT rub; rinse with clean water immediately and seek medical adv ice. Take extra precautions to keep a leaking battery away from fire, as there is a danger of ignition or explosion. Vapor generate d from burning batteries may irritate eyes, skin, and throat. If inhalation occurs, move to a well-ventilated area immediately and see k medical advice. Gimbal™ Proximity Beacon Software End User License Agreement This End User License EULA (this “ EULA ") is a legally binding agreement between you and Qualcomm Retail Solutions, Inc. (“QRS”) for the use of the software embedded in your Gimbal Proximity beacon device (the “ Beacon ”) and any Updates thereto (defined below) (collectively, the “ Beacon Software ”) as originally delivered by QRS. BY USING THE BEACON, YOU ACKNOWLEDGE THAT YOU HAVE READ THIS EULA, UNDERSTAND IT AND AGREE TO BE BOUND BY ITS TERMS AND CONDITIONSIf you do not agree with the following terms and conditions, you must refrain from using the Beacon. The term " You " in this EULA refers to the individual or business entity using the Beacon.1. License Grant. Subject to and conditioned upon Your compliance with the terms and conditions of this EULA, QRS hereby grants You a limited, nonexclusive, nontransferable, non-sublicensable, revocable license under QRS’s copyrights to disp lay the Beacon Software, only as embedded in the Beacon and as auth orized in this EULA, for your personal and non-commercial use, unless you are expressly authorized by QRS in writing to use the Beacon(s) for commercial purposes. Your limited right of use w ill automatically expire upon the termination or cancellation of this EULA, by either QRS or You, for any reason. 2. Updates. This EULA will govern any upgrades, updates, suppleme nts and add-on components (if any) to the Beacon Software that QRS may provide to You or make available to You after the date You obtain Your initial copy of the Beacon Softwar e (collectively, the “ Updates ”), unless we provide other terms along with such Updates. After upgrading, You may no longer use the older version of the Beacon Software. You acknowledge and agre e that QRS may automatically check the version of the Beacon Software and/or its components that You are utilizing and may provide Updates to the Beacon Software.3. Restrictions. You agree not to exceed the scope of the foregoing license, copy, create derivative works, reproduce, modify or distribute the Beacon Software. Subject to applicable law, you agree not to decompile, reverse engineer, disassemble or otherwise attempt to learn the source code, structure or algorithms underlying the Beacon Software…

Text truncated - open the document above for the full version.

Wednesday, September 04, 2013 UL Verification Services Inc. 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize UL Verification Services Inc. to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by UL Verification Services Inc. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing UL Verification Services Inc. as our representative, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Qualcomm Retail Solutions is a wholly owned subsidiary of Qualcomm Technologies, Inc. Sincerely Yours, Paul Guckian Qualcomm Technologies, Inc. Vice President, Engineering 5775 Morehouse Drive San Diego, CA 92121

Wednesday, September 04, 2013 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: R6CIGB1 To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. (Delete any of items which is not applicable to your device) Schematic Diagram Block Diagram Parts List (mandatory for licensed device) Operational Description Antenna Document Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments for 180 days. External Photos Internal Photos Test Setup Photos It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Qualcomm Retail Solutions is a wholly owned subsidiary of Qualcomm Technologies, Inc. Best Regards, Paul Guckian Qualcomm Technologies, Inc. Vice President, Engineering 5775 Morehouse Drive San Diego, CA 92121

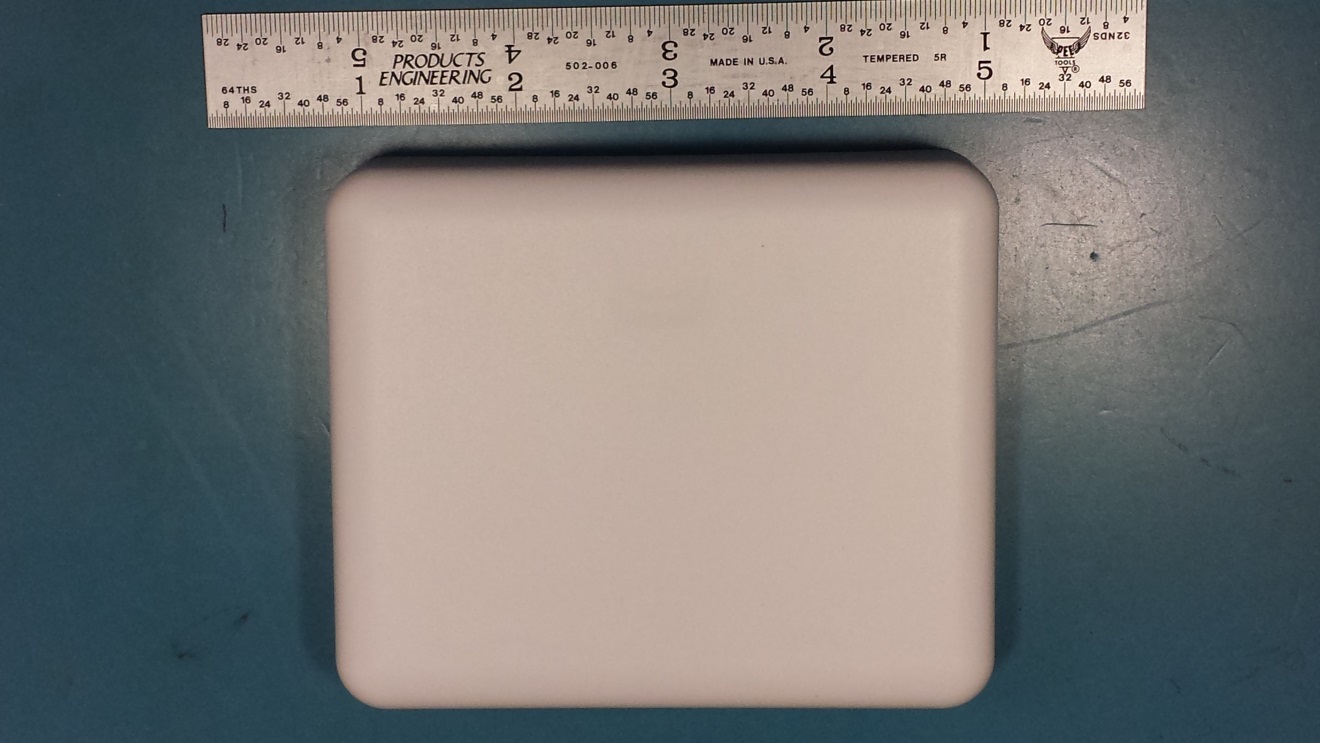

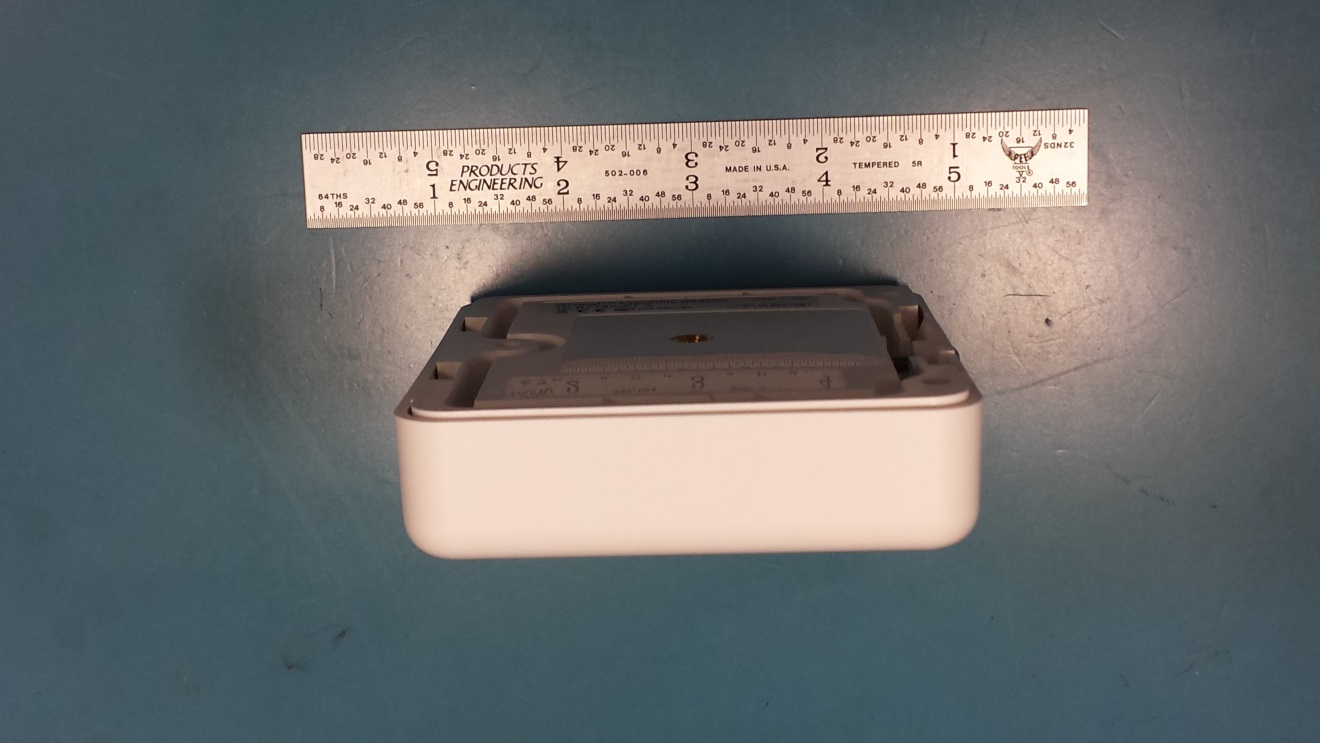

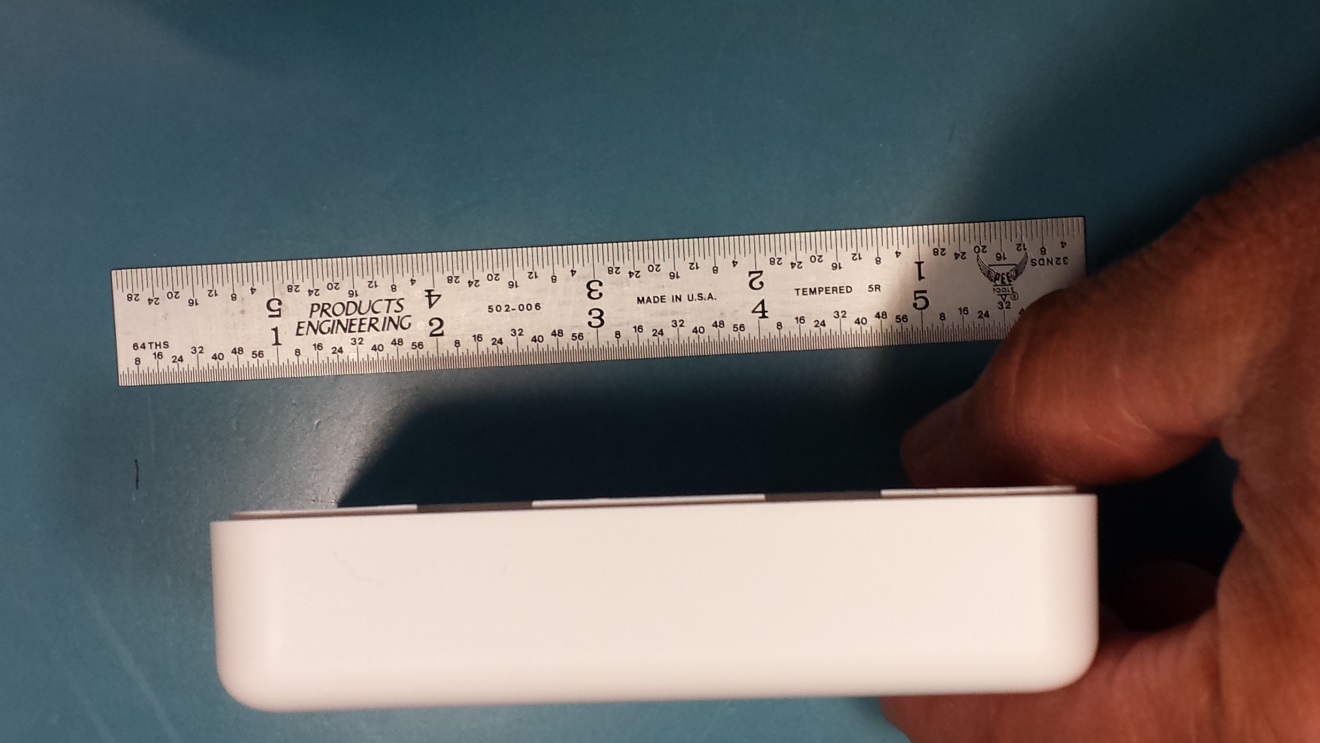

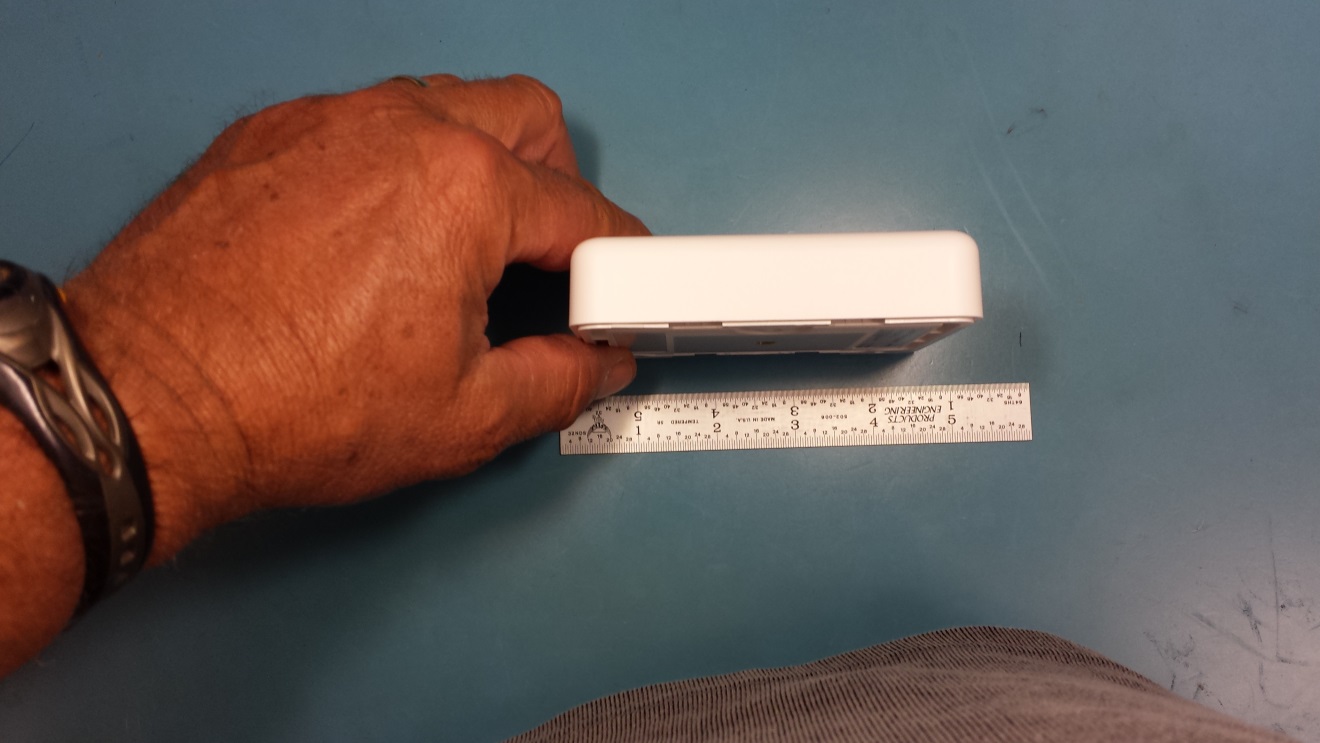

Exhibit 9 Gimbal Proximity Beacon External Photographs FCC Part 15 Certification FCC ID: R6CIGB1 Model: Gimbal Proximity Beacon STATEMENT OF CERTIFICATION The data, data evaluation and equipment configuration represented herein are a true and accurate representation of the measurements of the sample’s radio frequency interference emissions characteristics as of the dates and at the times of the test under the conditions herein specified. Report Prepared by: QUALCOMM Retail Solutions, Inc. 5775 Morehouse Drive San Diego, CA 92121-1714 Tamper proof screw Tamper proof screw

Exhibit 8 Gimbal Proximity Beacon Label FCC Part 15 Certification FCC ID: R6CIGB1 Model: Gimbal Proximity Beacon STATEMENT OF CERTIFICATION The data, data evaluation and equipment configuration represented herein are a true and accurate representation of the measurements of the sample’s radio frequency interference emissions characteristics as of the dates and at the times of the test under the conditions herein specified. Report Prepared by: QUALCOMM Retail Solutions, Inc. 5775 Morehouse Drive San Diego, CA 92121-1714 Device label on rear of device. Gimbal™ Proximity Beacon 10-B7182-P1 A FCC ID: R6CIGB1 Made in USA IC: 10756A-IGB1 007-AB0165 Actual: 5mm Gimbal™ Proximity Beacon 10-B7182-P1 A FCC ID: R6CIGB1 Made in USA IC: 10756A-IGB1 007-AB0165 100% 200% 100%

Exhibit 10 Gimbal Proximity Beacon Internal Photographs FCC Part 15 Certification FCC ID: R6CIGB1 Model: Gimbal Proximity Beacon STATEMENT OF CERTIFICATION The data, data evaluation and equipment configuration represented herein are a true and accurate representation of the measurements of the sample’s radio frequency interference emissions characteristics as of the dates and at the times of the test under the conditions herein specified. Report Prepared by: QUALCOMM Retail Solutions, Inc. 5775 Morehouse Drive San Diego, CA 92121-1714

FCC 47 CFR PART 15 SUBPART C INDUSTRY CANADA RSS-210 ISSUE 8 BLUETOOTH LOW ENERGY CERTIFICATION TEST REPORT FOR GIMBAL PROXIMITY BEACON MODEL NUMBER: 10-B7182 FCC ID: R6CIGB1 IC: 10756A-IGB1 REPORT NUMBER: 13U15158-6, Revision B ISSUE DATE: AUGUST 29, 2013 Prepared for QUALCOMM RETAIL SOLUTIONS, INC. 5775 MOREHOUSE DRIVE SAN DIEGO CA 92121 Prepared by UL VERIFICATION SERVICES INC. 47173 BENICIA STREET FREMONT, CA 94538, U.S.A. TEL: (510) 771-1000 FAX: (510) 661-0888 REPORT NO: 13U15158-6B DATE: AUGUST 29, 2013 FCC ID: R6CIGB1 IC: 10756A-IGB1 Page 2 of 74 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. Revision History Rev. Issue Date Revisions Revised By -- 08/23/13 Initial Issue T. LEE A 08/27/13 Changed FCC and IC IDs AAumentado B 8/28/13 Update KDB 558074 D01 reference from V02 to v03r01 F. de Anda C 8/29/13 Update – added duty cycle data F. de Anda REPORT NO: 13U15158-6B DATE: AUGUST 29, 2013 FCC ID: R6CIGB1 IC: 10756A-IGB1 Page 3 of 74 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS ................................................................................. 5 2. TEST METHODOLOGY ..................................................................................................... 6 3. FACILITIES AND ACCREDITATION ................................................................................. 6 4. CALIBRATION AND UNCERTAINTY ................................................................................ 6 4.1. MEASURING INSTRUMENT CALIBRATION .............................................................. 6 4.2. SAMPLE CALCULATION ............................................................................................ 6 4.3. MEASUREMENT UNCERTAINTY ............................................................................... 6 5. EQUIPMENT UNDER TEST ............................................................................................... 7 5.1. DESCRIPTION OF EUT .............................................................................................. 7 5.2. MAXIMUM OUTPUT POWER...................................................................................... 7 5.3. DESCRIPTION OF AVAILABLE ANTENNAS .............................................................. 7 5.4. SOFTWARE AND FIRMWARE .................................................................................... 7 5.5. WORST-CASE CONFIGURATION AND MODE .......................................................... 7 5.6. DESCRIPTION OF TEST SETUP ................................................................................ 8 6. TEST AND MEASUREMENT EQUIPMENT ......................................................................10 7. ANTENNA PORT TEST RESULTS ...................................................................................11 7.1. ON TIME AND DUTY CYCLE RESULTS ....................................................................11 7.2. 6 dB BANDWIDTH ......................................................................................................13 7.3. 99% BANDWIDTH ......................................................................................................16 7.4. OUTPUT POWER.......................................................................................................19 7.5. POWER SPECTRAL DENSITY ..................................................................................22 7.6. CONDUCTED SPURIOUS EMISSIONS .....................................................................25 8. RADIATED TEST RESULTS .............................................................................................29 8.1. LIMITS AND PROCEDURE ........................................................................................29 8.2. TRANSMITTER ABOVE 1 GHz ..................................................................................30 8.2.1. TX ABOVE 1 GHz FOR BLUETOOTH LOW ENERGY MODE IN THE 2.4 GHz BAND WITH DIPOLE ANTENNA .......................................................................................30 8.2.2. TX ABOVE 1 GHz FOR BLUETOOTH LOW ENERGY MODE IN THE 2.4 GHz BAND WITH PATCH ANTENNA ........................................................................................42 8.3. WORST-CASE BELOW 1 GHz WITH DIPOLE ANTENNA .........................................55 8.3.1. BELOW 1 GHz WITH DIPOLE ANTENNA ...........................................................55 8.3.2. BELOW 1 GHz WITH PATCH ANTENNA ............................................................58 9. MOBILE CONFIGURATION RF EXPOSURE ....................................................................61 9.1. FCC RULES ...............................................................................................................61 REPORT NO: 13U15158-6B DATE: AUGUST 29, 2013 FCC ID: R6CIGB1 IC: 10756A-IGB1 Page 4 of 74 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. 9.2. IC RULES ...................................................................................................................62 9.3. EQUATIONS ...............................................................................................................63 9.4. LIMITS ........................................................................................................................64 9.5. RESULTS ........................................................................…

Text truncated - open the document above for the full version.

REPORT NO: 13U15158-6B DATE: AUGUST 29, 2013 FCC ID: R6CIGB1 IC: 10756A-IGB1 Page 67 of 74 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. 11. SETUP PHOTOS ANTENNA PORT CONDUCTED RF MEASUREMENT SETUP ANTENNA PORT CONDUCTED PHOTO REPORT NO: 13U15158-6B DATE: AUGUST 29, 2013 FCC ID: R6CIGB1 IC: 10756A-IGB1 Page 68 of 74 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. RADIATED RF MEASUREMENT SETUP (BELOW 1 GHz) RADIATED FRONT PHOTO (BELOW 1 GHz) REPORT NO: 13U15158-6B DATE: AUGUST 29, 2013 FCC ID: R6CIGB1 IC: 10756A-IGB1 Page 69 of 74 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. RADIATED BACK PHOTO (BELOW 1 GHz) REPORT NO: 13U15158-6B DATE: AUGUST 29, 2013 FCC ID: R6CIGB1 IC: 10756A-IGB1 Page 70 of 74 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. RADIATED RF MEASUREMENT SETUP (ABOVE 1 GHz) RADIATED FRONT PHOTO (ABOVE 1 GHz) REPORT NO: 13U15158-6B DATE: AUGUST 29, 2013 FCC ID: R6CIGB1 IC: 10756A-IGB1 Page 71 of 74 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. RADIATED BACK PHOTO (ABOVE 1 GHz) REPORT NO: 13U15158-6B DATE: AUGUST 29, 2013 FCC ID: R6CIGB1 IC: 10756A-IGB1 Page 72 of 74 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. RADIATED RF MEASUREMENT SETUP FOR PORTABLE CONFIGURATION X-AXIS FRONT PHOTO REPORT NO: 13U15158-6B DATE: AUGUST 29, 2013 FCC ID: R6CIGB1 IC: 10756A-IGB1 Page 73 of 74 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. Y-AXIS FRONT PHOTO REPORT NO: 13U15158-6B DATE: AUGUST 29, 2013 FCC ID: R6CIGB1 IC: 10756A-IGB1 Page 74 of 74 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. END OF REPORT Z-AXIS FRONT PHOTO
