R6Y-VMCRWEvoluent VerticalMouse C Right Wireless

User's Manual FCC ID: R6Y-VMCRW Do things without moving the mouse or touching the keyboard with Evoluent Mouse Manager evoluent.com/support/download evoluent.com/support/download The Federal Communication Commission Statement This equipment has been tested and found to comply with the limits for a Class B Digital Device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction, may cause harmful interference to radio communication. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of more of the following measures: - - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced Radio/TV technician for help. Use only shielded cables to connect I/O devices to this equipment. You are cautioned that change or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment. THIS DEVICE COMPLIES WITH PART 15 OF FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: 1 This device may not cause harmful interference and 2 This device must accept any interference received, including interference that may cause undesired operation. The antenna used for this transmitter must not be collocated or operation in conjunction with any other antenna or transmitter. Notice : The changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. IMPORTANT NOTE: To comply with the FCC RF exposure compliance requirements, no change to the antenna or the device is permitted. Any change to the antenna or the device could result in the device exceeding the RF exposure requirements and void user’s authority to operate the device. Evoluent Vertical Mouse Install * * *Warning * * * Wet hand sanitizer may damage the finish on the mouse. Wait for the sanitizer to dry before touching the mouse. Do not use any chemical cleaner on the mouse. * * *Windows Install * * * 1. Before connecting Evoluent Vertical Mouse. go to Control Panel to remove any previous Evoluent Mouse Manager and any other existing mouse software, except touchpad driver, to avoid software conflict. 2. In Control Panel, Mouse: A. On the Buttons tab, uncheck the box for Switch Primary and Secondary Buttons. B. On the Pointer Options tab, uncheck the box for Enhance Pointer Precision and set the pointer speed slider to the middle position. 3. Connecting the Evoluent: Connect the receiver to a USB port directly on the computer. Insert the battery with the +side facing out. Slide the On/Off switch to the green position. The lights blink when the battery Is low. The Evoluent may not work with some external USB hubs, docking stations, and KVM switches. 4. Press the pointer speed button behind the wheel to light up 3 Indicator lights on top of the mouse for the best pointer control. 5. Evoluent Mouse Manager for Windows may be Installed to configure the buttons to do things without moving the mouse or touching the keyboard. Download Mouse Manager at evoluent.com/support/download. During software install, if a message appears about the driver not passing Windows Testing, click Continue Anyway. This message may appear multiple times. Click Continue Anyway each time. After Install is finished, button functions may be configured by double clicking the Eicon on the task bar to open Evoluent Mouse Manager. * * *Mac Install * * * 1. Before connecting Evoluent Vertical Mouse, go to the Applications folder to find and remove any existing Evoluent Mouse Manager and any other mouse software, except touchpad drivers, to avoid software conflict. 2. Connecting the Evoluent: Connect the receiver to a USB port directly on the computer. Insert the battery with the +side facing out. Slide the On/Off switch to the green position. The lights blink when the battery Is low. The Evoluent may not work with some external USB hubs, docking stations, and KVM switches. 3. Press the pointer speed button behind the wheel to light up three Indicator lights for the best pointer control. 4. Evoluent Mouse Manager for Mac may be installed to configure the buttons to do things without moving the mouse or touching the keyboard. Download Mouse Manager at evoluent.com/support/download After install is finished, button functions may be changed by clicking the Eicon in System Preferences to open Evoluent Mouse Manager. We want to make sura you are happy with your Evoluent! If you have any questions or problems with the Vertical Mouse, please contact us at: E-mail:[email protected] Phone:+1 650 871 1365 Comfort Tips 1.Sit close to the desk to reduce forward arm extension. 2.Horizontal puts the wrist in a neutral posture. (Lower desk, sit higher, or use keyboard tray.) 3.Wrist support reduces pressure points and puts 1he wrist in a neutral posture. 4.Compact Keyboard allows the mouse to sit closer to the keyboard and reduce lateral arm extension. 5.Mouse and keyboard close to the edge of the desk reduce forward arm extension. 6.Mouse close to the keyboard reduces lateral arm extension.

Evoluent 925 Linden Ave., Unit C, South San Francisco, CA 94080 USA Tel: +1 650 871 1365 Date: Jan. 07, 2016 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: R6Y-VMCRW Product Name: Evoluent VerticalMouse C Right Wireless Request for Short-Term Confidentiality Pursuant to Sections 0.457(d) and 0.459 of the commission rules, and in accordance with the FCC Public notice dated June 15, 2004 (DA 04-1705), we hereby request short-term confidentiality for the following items prior to marketing the device.:  Test Setup Photos  External Photos  Internal Photos  User Manual These documents contain detailed system and equipment description and related information about the product wh ich Evolu ent considers to be proprietar y, conf iden tial, and a cu stom desig n and, otherwise would not release to the general public. Since this design is a basis from which future technological products will evolve, Evoluent considers this information to be of benefit to its competitors, and that the disclosure of information in these documents would give competitors an unfair advantage in the market. This request is being made retroactively due to an over site on our part. We understand that the information has been publicly available 180 days after date of grant. Dated this 01/07/2016 By: Signature Printed Title: Owner On behalf of : Evoluent Telephone: +1 650 871 1365

Evoluent 925 Linden Ave., Unit C, South San Francisco, CA 94080 USA Tel: +1 650 871 1365 Date: Jan. 07, 2016 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: R6Y-VMCRW Product Name: Evoluent VerticalMouse C Right Wireless Dear Sir, Due to the business consideration, we have by declare that out product Model: VMCRW, VMCRWG Model Differences : All covered models have electrically identical on the circuitry to each other, except for different model numbers and appearance colour within the model designations for sales purposes only. Sincerely, By: Jack Lo Signature Printed Title: Owner Date: 2016-01-07

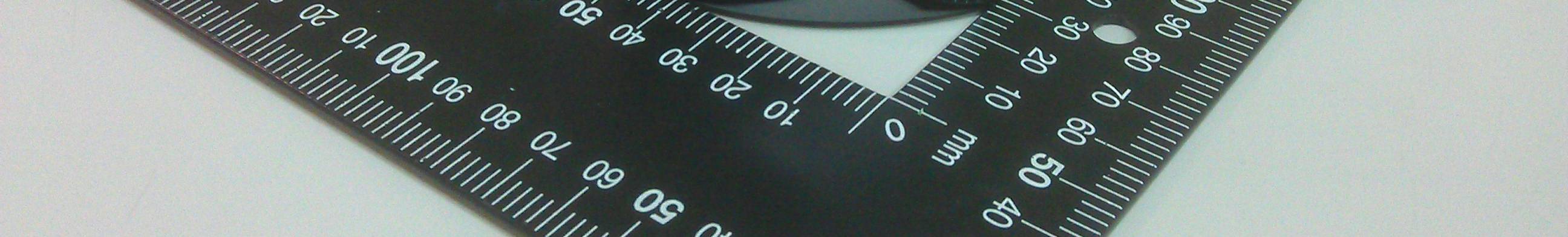

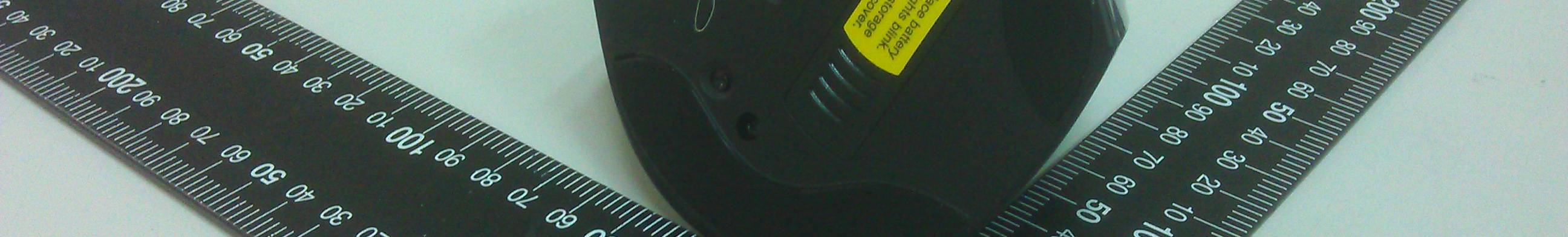

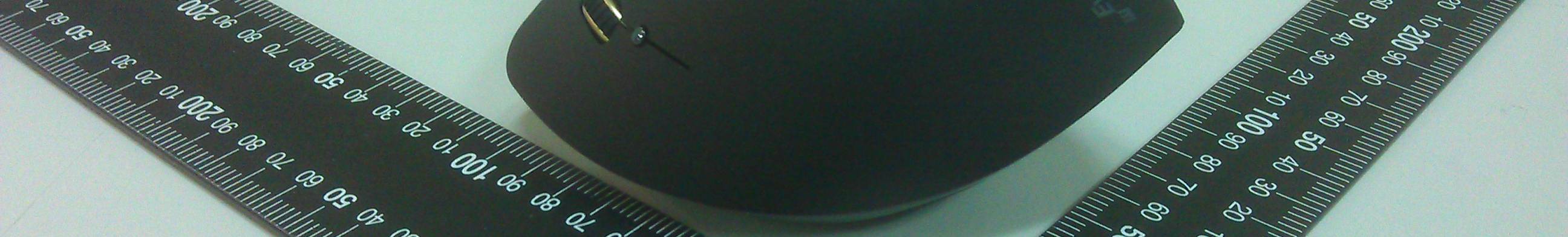

WEISHANG Certification Co., Ltd. Report No: WSCF1507031 Page44/52 < Front view of EUT > < Rear view of EUT > WEISHANG Certification Co., Ltd. Report No: WSCF1507031 Page45/52 < Top view of EUT > < Rear view of EUT > WEISHANG Certification Co., Ltd. Report No: WSCF1507031 Page51/52 < Front View of Series > < Front View of Series > WEISHANG Certification Co., Ltd. Report No: WSCF1507031 Page52/52 < Rear View of Series >

Label Location This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

WEISHANG Certification Co., Ltd. Report No: WSCF1507031 Page46/52 < Inside view of EUT > < PCB1-F > WEISHANG Certification Co., Ltd. Report No: WSCF1507031 Page47/52 < PCB1-R > < PCB2-F > WEISHANG Certification Co., Ltd. Report No: WSCF1507031 Page48/52 < PCB2-R > < PCB3-F > WEISHANG Certification Co., Ltd. Report No: WSCF1507031 Page49/52 < PCB3-R > < module close in > Antenna WEISHANG Certification Co., Ltd. Report No: WSCF1507031 Page50/52 < PCB4-F > < PCB4-R >

WEISHANG Certification Co., Ltd. Date of Issue: AUG. 31, 2015 Report No. : WSCF1507031 Page No. : 1 of 1 Radio Frequency Exposure EUT INFORMATION EUT Evoluent VerticalMouse C Right Wireless Frequency band (Operating) 2.405~2.475 GHz Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Field strength 80.20 dBuV/m @3m Antenna gain (Max) -8 dBi TEST RESULT According to KDB 447498 section 4.3.1, the 1-g SAR test exclusion thresholds at test separation distance ≤ 50 mm are determined by: The min. test separation distance (mm) is 5 mm, eirp = pt*gt = (E*d) 2 /30 where: pt = transmitter output power in watts, gt = numeric gain of the transmitting antenna (unitless), E = electric field strength in V/m, --- 10 ((dBuV/m)/20) /10 6 d = measurement distance in meters (m) --- 3m So pt = (E*d) 2 /(30*gt) Ant. numeric gain, Ant. = -8 dBi = 0.16 So pt = {[10 (80.20/20) /10 6 *3] 2 /(30*0.16)}*1000 = 0.0002 mW So ( 0.0002 mW/5 mm)* √2.475 GHz = 0.001 <3.0 for 1-g SAR Therefore, standalone SAR measurements are not required for both head and body.

WEISHANG Certification Co., Ltd. Report No: WSCF1507031M Page 1/60 FCC 47 CFR PART 15 SUBPART C TEST REPORT FOR Evoluent VerticalMouse C Right Wireless Model : VMCRW, VMCRWG Trade Name: Evoluent Issued to Evoluent 925 Linden Ave., Unit C, South San Francisco, CA 94080 USA Issued by WEISHANG Certification Co., Ltd. Xizhi Office 12F.-3, No.27-1, Ln. 169, Kangning St., Xizhi Dist., New Taipei City 221, Taiwan (R.O.C.) Test Site No. 74-1, Shibachong Xi, Shiding Shiang, New Taipei City 223, Taiwan (R.O.C.) Note: This test refers exclusively to the test presented test model and sample. This report shall not be reproduced except in full, without the written approval of WEISHANG Certification Co., Ltd. This document may be altered or revised by WEISHANG Certification Co., Ltd. Personnel only, and shall be noted in the revision section of the document. WEISHANG Certification Co., Ltd. Report No: WSCF1507031M Page 2/60 TABLE OF CONTENTS --------------------------------------------------------------------------------------------------- 2 1. GENERAL INFORMATION ------------------------------------------------------------------------------------------------------------------------- 3 2. REPORT OF MEASUREMENTS AND EXAMINATIONS ----------------------------------------------------------------------------------- 4 2.1 LIST OF MEASUREMENTS AND EXAMINATIONS ------------------------------------------------------------------------------------------------- 4 2.2 DESCRIPTION OF THE TESTED SAMPLES -------------------------------------------------------------------------------------------------------- 5 2.3 CARRIER FREQUENCY OF CHANNELS ----------------------------------------------------------------------------------------------------------- 6 3. TEST METHODOLOGY ------------------------------------------------------------------------------------------------------------------------------ 7 3.1 GENERAL TEST PROCEDURES ----------------------------------------------------------------------------------------------------------- 7 3.2 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS ----------------------------------------------------------------------- 8 3.3 DESCRIPTION OF TEST MODES----------------------------------------------------------------------------------------------------------- 8 3.4 MEASUREMENT UNCERTAINTY -------------------------------------------------------------------------------------------------------------------- 9 3.5 DESCRIPTION OF THE SUPPORT EQUIPMENTS ------------------------------------------------------------------------------------ 9 4. TEST AND MEASUREMENT EQUIPMENT --------------------------------------------------------------------------------------------------- 10 4.1 CALIBRATION -------------------------------------------------------------------------------------------------------------------------------------- 10 4.2 EQUIPMENT ---------------------------------------------------------------------------------------------------------------------------------------- 10 5. SECTION 15.249 REQUIREMENTS (FUNDAMENTAL/ HARMONICS) --------------------------------------------------------------- 11 5.1 TEST SETUP -------------------------------------------------------------------------------------------------------------------------------------- 11 5.2 LIMIT ----------------------------------------------------------------------------------------------------------------------------------------------- 11 5.3 RESULT: PASSED ---------------------------------------------------------------------------------------------------------------------------- 11 5.4 TEST DATA: --------------------------------------------------------------------------------------------------------------------------------------- 12 6. SECTION 15.205 REQUIREMENTS (BAND EDGE) ---------------------------------------------------------------------------------------- 27 6.1 TEST SETUP -------------------------------------------------------------------------------------------------------------------------------------- 27 6.2 LIMIT ----------------------------------------------------------------------------------------------------------------------------------------------- 27 6.3 RESULT: PASSED ---------------------------------------------------------------------------------------------------------------------------- 28 6.4 TEST DATA: --------------------------------------------------------------------------------------------------------------------------------------- 28 7. SECTION 15.249 REQUIREMENTS (GENERAL RADIATED EMISSION) ----------------------------------------------------------- 33 7.1 TEST SETUP -------------------------------------------------------------------------------------------------------------------------------------- 33 7.2 LIMIT ----------------------------------------------------------------------------------------------------------------------------------------------- 35 7.3 TEST PROCEDURE ------------------------------------------------------------------------------------------------------------------------------- 36 7.4 RESULT: PASSED ------------------------------------------------------------------------------------------------------------------------------ 36 7.5 TEST DATA: --------------------------------------------------------------------------------------------------------------------------------------- 37 8. SECTION 15.207 REQUIREMENTS (POWERLINE CONDUCTED EMISSIONS) -------------------------------------------------- 41 8.1 TEST SETUP -------------------------------------------------------------------------------------------------------------------------------------- 41 8.2 LIMIT ----------------------------------------------------------------------------------------------------------------------------------------------- 41 8.3 TEST PROCEDURE ------------------------------------------------------------------------------------------------------------------------------- 41 8.4 TEST SPECIFICATION -------------…

Text truncated - open the document above for the full version.

WEISHANG Certification Co., Ltd. Report No: WSCF1507031 Page41/52 Below 1G < RE Front View > < RE Rear View > WEISHANG Certification Co., Ltd. Report No: WSCF1507031 Page42/52 Above 1G < RE Front View > < RE Rear View >
