R74TC-980U1TWO-WAY RADIO

This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must except any interference received, including interference that may cause undesired operation. SAFETY TRAINING INFORMATION Your HYT radio generates RF electromagnetic energy during transmit mode. This radio is designed for and classified as “Occupational Use Only”, meaning it must be used only during the course of employment by individuals aware of the hazards, Warning and the ways to minimize such hazards. This radio is not intended for use by the “General Population” in an uncontrolled environment. This radio has been tested and complies with the FCC RF exposure limits for “Occupational Use Only.” In addition, your HYT radio complies with the following Standards and Guidelines with regard to RF energy and electromagnetic energy levels and evaluation of such levels for exposure to humans: • FCC OET Bulletin 65 Edition 97-01 Supplement C, Evaluating Compliance with FCC Guidelines for Human Exposure to Radio Frequency Electromagnetic Fields. • American National Standards Institute (C95.1–1992), IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. • American National Standards Institute (C95.3–1992), IEEE Recommended Practice for the Measurement of Potential y Hazardous Electromagnetic Fields— RF and Microwave. To ensure that your exposure to RF electromagnetic energy is within the FCC allowable limits for occupational use, always adhere to the following CAUTION guidelines: • DO NOT operate the radio without a proper antenna attached, as this may damage the radio and may also cause you to exceed FCC RF exposure limits. A proper antenna is the antenna supplied with this radio by the manufacturer or an antenna specifically authorized by the manufacturer for use with this radio. • DO NOT transmit for more than 50% of total radio use time (“50% duty cycle”). Transmitting more than 50% of the time can cause FCC RF exposure compliance requirements to be exceeded. The radio is transmitting when the “TX indicator” lights red. You can cause the radio to transmit by pressing the “PTT” switch. • ALWAYS use HYT authorized accessories (antennas, batteries, belt clips, speaker/mics, etc). Use of unauthorized accessories can cause the FCC RF exposure compliance requirements to be exceeded. Body-worn operations are restricted to belt-clips, holsters or similar accessories that have no metallic component in the assembly and that provide at least 1.5 cm separation between the device, including its antenna, and the user's body. To provide the recipients of your transmission the best sound quality, hold the antenna at least 5 cm (2 inches) from mouth, and slightly off to one side. The information listed above provides the user with the information needed to make him or her aware of RF exposure, and what to do to assure that this radio operates within the FCC RF exposure limits of this radio. Electromagnetic Interference/Compatibility During transmissions, your HYT radio generates RF energy that can possibly cause interference with other devices or systems. To avoid such interference, turn off the radio in areas where signs are posted to do so. DO NOT operate the transmitter in areas that are sensitive to electromagnetic radiation such as hospitals, aircraft, and blasting sites. FOREWORD Thank you for purchasing the HYT transceiver. READ ALL INSTRUCTIONS carefully and completely before using the transceiver. SAVE THIS INSTRUCTION MANUAL–This instruction manual contains important operating instructions for the transceiver. INSTALLATION NOTES • Body-worn operations are restricted to belt-clips, holsters or similar accessories that have no metallic component in the assembly and that provide at least 1.5 cm separation between the device, including its antenna, and the user's body • If you wear a portable two-way radio on your body, ensure that the antenna is at least 2.5 centimeters (1 in.) from your body when transmitting. IMPORTANT RF CAUTION! NEVER hold the transceiver so that the antenna is very close to, or touching exposed parts of the body, especially the face or eyes, while transmitting. The transceiver will perform best if the microphone is 2 to 4 in. (5 to 10 cm) away from the lips and the transceiver is vertical. RF CAUTION! NEVER operate the transceiver with a headset or other audio accessories at high volume levels. RF CAUTION! NEVER short the terminals of the battery pack. DO NOT push the PTT when not actually desiring to transmit. AVOID using or placing the transceiver in direct sunlight or in areas with temperatures below +14°F (–10°C) or above +122°F (+50°C). The basic operations, transmission and reception of the transceiver, are guaranteed within the specified operating temperature range (depending on version). However, the LCD display may not be operate correctly, or show an indication in the case of long hours of operation, or after being placed in extremely cold areas. DO NOT modify the transceiver for any reason. KEEP the transceiver from the heavy rain, and never immerse it in the water. The transceiver construction is water resistant, not waterproof. The use of non HYT battery packs/chargers may impair transceiver performance and invalidate the warranty. TC-980 Owner’s Manual 1 Contents Thank You！...............................................................................................................................................2 Safety and General Information..................................................................................................................3 Specifications..............................................................................................................................................4 Product Inspection.........................................................................................…

Text truncated - open the document above for the full version.

Shenzhen HYT Science & Technology Co., Ltd. Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter is to comply with Sections 0.457 and 0.459 pertaining to confidential material. Shenzhen HYT Science & Technology Co., Ltd. would like the following documents regarding this submission for FCC ID: R74TC-980U1 and IC: 5465A-TC980U1 to be kept confidential. 1. Circuit Diagram 2. Block Diagram 3. Circuit Description The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely yours Shenzhen HYT Science & Technology Co., Ltd. Xiong Lei / Sales Manager

Jan.09, 2008 Timco Engineering, Inc. 849 NW State Road 45 P.O. Box 370 Newberry, Florida 32669 Subject: FCC ID: R74TC-980U1 justification letter for expanded frequency range 400-470 MHz Gentlemen; You have asked Shenzhen HYT Science & Technology Co., Ltd. for justification to have the freq range 400-470 MHz appears on the face of the FCC Grant of Certification for a Part 90 Certification. This frequency range is regarded as usual & customary by United States Federal Government and its various departments, user organizations and the military to appear on the face of the equipment Grant of Certification. (1) Shenzhen HYT Science & Technology Co., Ltd.’s Marketing Department plans to ensure that USA users, other than those specifically identified in this letter, not operate within bands 400-406.1 MHz, as controlled by the users’ FCC station license. (2) This device will not be marketed to USA users, other than those identified in the letter, namely the US Government and its various departments & military, for operation in 400-406.1 MHz frequency range. Sincerely, Shenzhen HYT Science & Technology Co., Ltd. Xiong Lei / Sales Manager

FCC Label Location Justification Letter We hereby declare that Shenzhen HYT Science & Technology Co., Ltd. Two-way Radio of TC-980U1 which intended to bear the FCC ID: R74TC-980U1 & IC: 5465A-TC980U1 shall be marketed as following: 1) The device is handheld. 2) The FCC identifier is visible at the time of purchase. Marketing the device without the battery installed when the label is in the battery compartment is acceptable. The FCC identifier on the box or additional documentation directing the user as to where to find the FCC label also satisfies this requirement. 3) The user accessible area must not require any special tools for access and the FCC label must not be placed on a removable part. (i.e. not on battery cover) 4) The FCC identifier, model no. or FCC logo must be on the label and must meet all general labeling requirements or policies that apply for Certification, Verification or DOC; e.g. for Certification, for handheld devices, the identifier must go on the label but the two part warning statement in Section 15.19(a)3 can go in the manual. Sincerely yours Shenzhen HYT Science & Technology Co., Ltd. Xiong Lei / Sales Manager

Top View of EUT Bottom View of EUT Left View of EUT Right View of EUT Front View of EUT Back View of EUT

FCC ID Label Location FCC RF Warning Label

FCC ID LABEL FCC RF WARNING LABEL

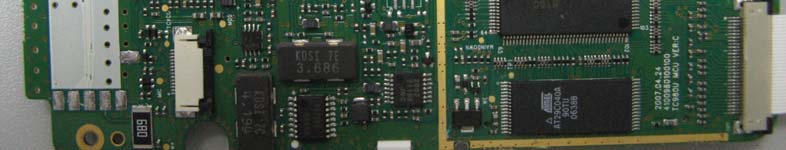

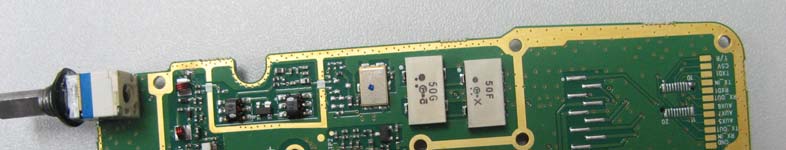

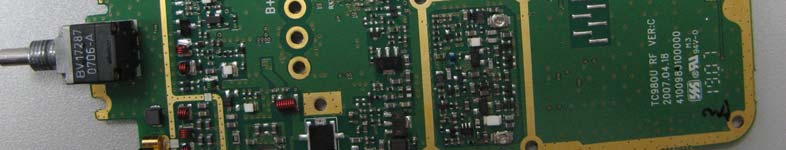

Report No.: SZAGC003070904E6 Page 1 of 49 Internal View-1 of EUT Internal View-2 of EUT Report No.: SZAGC003070904E6 Page 2 of 49 Internal View-3 of EUT Internal View-4 of EUT

序号物料编码 物料名称数量 位号位置 13001050000000 贴片电阻 0402 0Ω J 1/16W12 R107B2H R113B2H R409T2F R439B2E R442T3C R443T3C R444 B1F R452T3C R455T4C R458 T5C R472T4F R498T5E 23001060000000 贴片电阻 0603 0Ω J 1/10W2 L406T1F R412T2F 33001070000000 贴片电阻 0805 0Ω J 1/8W(1 R431T1C 43001051000000 贴片电阻 0402 10Ω J 1/167 R103B1H R104B2H R108B2I R116T1G R120T3G R128T1G R470B5F 53001051010000 贴片电阻 0402 100Ω J 1/12 R126T2G R441B2F 63001051020010 贴片电阻 0402 1KΩ J 1/163 R102B1I R118T2G R471B4G 73001061020010 贴片电阻 0603 1KΩ J 1/101 R479B4G 83001051030000 贴片电阻 0402 10KΩ J 1/110 R105B2I R112B3I R114B2H R421T1F R435B2F R482T4F R492B5F R638B4D R642B2F R687B4D 93001051040010 贴片电阻 0402 100KΩ J 1/8 R117T1G R440T3C R445T3C R446T3C R447T3C R456T5C R457T5C R491B5E 103001051050020 贴片电阻 0402 1MΩ J 1/164 R436B2F R641B3E R643B3F R688B3F 113001051220000 贴片电阻 0402 1.2KΩ J 1/1 R110B3H 123001051510000 贴片电阻 0402 150Ω J 1/11 R129T2H 133001051520000 贴片电阻 0402 1.5KΩ J 1/1 R406T3F 153001051540020 贴片电阻 0402 150KΩ J 1/2 R101B1I R429B1F 163001051540000 贴片电阻 0402 150KΩ F 1/5 R425B1F R426B1F R427B1F R428B1F R430B1F 173001051810010 贴片电阻 0402 180Ω J 1/11 R115T2H 193001051840000 贴片电阻 0402 180KΩ J 1/1 R438B2F 203001052200000 贴片电阻 0402 22Ω J 1/162 R404T3F R407T3F 213001052210000 贴片电阻 0402 220Ω J 1/11 R140B4H 223001052220000 贴片电阻 0402 2.2KΩ J 1/1 R434B2F 233001052230010 贴片电阻 0402 22KΩ J 1/17 R137B3H R139B3I R141B4H R474B4G R475B4G R476B4G R477B4G 243001052240000 贴片电阻 0402 220KΩ J 1/2 R127T2G R636B4D 253001052710010 贴片电阻 0402 270Ω J 1/16 R123T3G R432T2C R433T2C R459T5D R460T5D R480T4F 263001052720000 贴片电阻 0402 2.7KΩ J 1/3 R106B3H R414T2F R484B4F 273001052730000 贴片电阻 0402 27KΩ J 1/12 R135B3H R481T4F 283001053310010 贴片电阻 0402 330Ω J 1/14 R136B4H R403T3F R408T2F R449T4C 293001053320000 贴片电阻 0402 3.3KΩ J 1/10 R121T3G R122T3G R125T3G R401T3F R417B2E R486B4F R487B4E R488B4F R489B4E R490B4E 303001063330000 贴片电阻 0603 33KΩ D 1/11 R420T1E 313001053340000 贴片电阻 0402 330KΩ J 1/1 R468B5F 323099080398000 贴片电阻 1206 0.39Ω J 1/3 R422B3D R423B3D R424B3C 333001054320000 贴片电阻 0402 4.3KΩ J 1/1 R453T4C 343001054700000 贴片电阻 0402 47Ω J 1/162 R413T2F R493B5F 353001064700000 贴片电阻 0603 47Ω J 1/101 R419T1E 363001054720000 贴片电阻 0402 4.7KΩ J 1/9 R119T2G R134B4G R138B3I R473B4F R478B4F R633B4C R634B4C R640B3E R670B4E 373001054730000 贴片电阻 0402 47KΩ J 1/111 R130T3G R131T3H R402T3F R415T1F R437B2F R623B3E R630B4C R631B4C R632B4C R639B3E R644B3E 383003994730000 热敏电阻 0603 47KΩ J 1001 RT401 T2E 383001064740010 贴片电阻 0603 470KΩ J 1/10W(RoHS)1 R416B2E 383005054730010 电阻排 0402 47K*4 J 1/16W*4 1 RN101 B4A 393001055690000 贴片电阻 0402 5.6Ω F 1/11 R461T5D 403001055620000 贴片电阻 0402 5.6KΩ J 1/3 R124T3G R450T4C R451T4B 413001066810010 贴片电阻 0603 680Ω J 1/11 R405T3F 423001056840000 贴片电阻 0402 680KΩ J 1/2 R635B4D R637B4D 433001058210000 贴片电阻 0402 820Ω J 1/11 R111B2H 443001058230000 贴片电阻 0402 82KΩ J 1/12 R483B4F R485B4F 453101060100010 贴片电容 0603 1PF B 50V2 C434T1C C444T2B 463101051000020 贴片电容 0402 10PF J 50V6 C115B3I C116B3I C401T3F C459T3C C460T4C C469T5B 473101061000000 贴片电容 0603 10PF J 50V1 C148T3H 483102992000040 可调电容 3.2*2.5*1.25mm2 TC101 T1H TC102 T3H 493101051010030 贴片电容 0402 100PF J 5057 C101B2I C102B2I C103B2I C108B3H C141T2G C155T2G C173B2I C423B2D C427B1F C465T4C C489B5F C848B4K C849B4J C850B4J C851B4K C852B1K C853B1J C854B1K C855B1J C856B1K C857B5K C858B5K C859B5K C860B5J C861B5J C862B5K C864B3K C865B4K C867B5J C868B3K C869B4K C870B2K C871B3K C872B5K C873B4K C874B4K C875B4J C876B4K C877B2K C878B2J C879B2K C880B2K C881B2J C882B3K C883B3K C884B2K C885B2J C886B2J C887B2K C888B3K C889B2J C890B2K C891B2J C892B2K C893B2K C894B4K C895 B4J 503101061010010 贴片电容 0603 100PF J 502 C149T3H C437T2C 513101051020010 贴片电容 0402 1000PF K 529 C113B3I C114B3I C119T2H C150T2H C410T2F C416T1E C456T3C C468T4C C490B5G C511B4F C516T4F C518T4F C519 T3C C521T4E C615B4D C616B4D C617B4B C618B4C C620B3B C623B4D C625B4B C626B3C C630B2F C631B3E C633B3E C634B3E C638B5A C639B5A C675B4F 523101061020000 贴片电容 0603 1000PF K 51 C674B3F 533101051030020 贴片电容 0402 0.01UF K 25 C421T2D C425T1F C475T5D C496B4E C500B4E 543101061030010 贴片电容 0603 0.01UF K 22 C145T3G C635B3E 553101051040060 贴片电容 0402 0.1UF K 1623 C106B2H C109B3I C132T3G C407T3F C411T2E C412B2E C419T2D C462T4B C493B4G C494B4G C497B5E C502B5E C503B4F C505B4F C506B4F C507B4F C514B5E C529T2E C636B3F C637B3E C646 B4A C672B4B C677B3F 563101061040010 贴片电容 0603 0.1UF K 161 C678B4C 573101051050000 贴片电容 0402 1UF K 6.3V1 C619B3B 583101061050060 贴片电容 0603 1UF K 10V5 C422B2D C177 T3H C629B3F C632B3F C673B3F 593101051200020 贴片电容 0402 12PF J 50V3 C136T3G C477T4E C480T4E 603101051210000 贴片电容 0402 120PF J 502 C128T1G C499B5E 613101061300000 贴片电容 0603 13PF J 50V1 C143T2H 623101061590010 贴片电容 0603 1.5PF B 501 C445T1B 633101051500020 贴片电容 0402 15PF J 50V3 C151B3G C487T5F C515T4F 643101061500010 贴片电容 0603 15PF J 50V1 C138T2G 643101051510000 贴片电容 0402 150PF(±5%)(50V) GRM36C1 C140T1G 653101051800010 贴片电容 0402 18PF J 50V1 C472T5C 663101051820000 贴片电容 0402 1800PF K 51 C513B4E 673101050200010 贴片电容 0402 2PF B 50V3 C160B3H C166B4I C481T4E 683101060200010 贴片电容 0603 2PF B 50V3 C429T1D C435T1C C449T1B 693101062490000 贴片电容 0603 2.4PF B 501 C447T1B 693199052790000 贴片电容 0402 2.7PF B 50V Hi-Q[JOHANS1 C484 T4C 703101052000020 贴片电容 0402 20PF J 50V1 C452T3C 713101052200010 贴片电容 0402 22PF J 50V1 C492B5F 713101052210010 贴片电容 0402 220PF K 50V GRM155R71H21 C176 T3G 723101062210000 贴片电容 0603 220PF J 501 C414T1F 733101052230000 贴片电容 0402 0.022UF K1 C104B1I 743101062250000 贴片电容 0603 2.2UF K 101 C512B4E 753101052400010 贴片电容 0402 24PF J 50V1 C486T4E 763101062200010 贴片电容 0603 22PF J 50V1 C415T1F 773101050300000 贴片电容 0402 3PF B 50V6 C144T3G C157B3H C159B3H C169B4H C479T4E C522T5E 783101060300010 贴片电容 0603 3PF B 50V2 C443T2C C527T2F 793101053000010 贴片电容 0402 30PF J 50V1 C491B5G 803101053300000 贴片电容 0402 33PF J 50V1 C137T3G 813101053330000 贴片电容 0402 0.033UF K1 C485B2F 823101063900000 贴片电容 0603 39PF J 50V1 C428T1D 833101063910000 贴片电容 0603 390PF K 501 C442T2C 843101050400010 贴片电容 0402 4PF B 50V2 C167B4I C488B5F 853101060400010 贴片电容 0603 4…

Text truncated - open the document above for the full version.

TC-980 Adjustment Description 1 Adjustment Description Adjust the radio by PC programming software or by manual adjustment. In manual adjustment mode, the adjustment method is shown as follows: (Refer to “Software Specification” for the manual adjustment mode) Required Test Instrument Radio Communication Test Set 1 set Scanner 1 set 3A/10V Power Supply 1 set Digital Voltmeter 1 set 3A Ammeter 1 set Adjustment 1. Adjustment in user mode Firstly ground the SELF point, turn on the power by holding down TK for 2 seconds, and then the radio enters reset mode with green LED flashing twice. Turn the channel selector knob to the selected channel and press PTT, the radio data is all reset (All clone modes will be automatically activated when reset is completed). Refer to All Reset Mode in Software Specification for more details: VCO Measurement Adjustment Item Condition Test Instrument TerminalPartsMethod Specification /Remarks 1. Setting Power supply voltage 1. CH: TX high 3.9V±0.1V 2.Transmit VCO lock voltage 2. TX Low Check >0.5V 1. CH: RX high 3.9V±0.1V 3.Receive VCO lock voltage 2. RX low Digital Voltmeter CV TC301 TC302 Check >0.5V 2. Manual Adjust Mode Description (1) Enter the manual adjust mode Turn the power on by holding down TK and SK2 key simultaneously for 2 seconds, the radio enters manual adjust mode with red LED flashes twice. (TK: Top key; SK1: Side key1; SK2: Side key2) (2) Channel number on the channel selector knob Each channel number on the channel selector knob is defined a setting item. The bandwidth is 25 KHz and low frequency (F1) each time the channel selector knob is rotated. TC-980 Adjustment Description 1 (3) SK2 key Used to set the frequency. 1 point tuning is used to adjust center frequency, 3 point tuning adjusts F1, F3, F5 and 5 point tuning adjusts F1-F5. The frequency toggles from low frequency to high frequency. Green LED flashes once when F1 is selected. (4) TK key Use to toggle the channel bandwidth among 25 KHz, 20 KHz and 12.5 KHz. Red LED flashes once when the bandwidth is 25 KHz. (5) PTT/SK1 PTT→Increase SK1→Decrease PTT/SK1 is pressed to adjust upward/downward. Red LED glows indicating the maximum adjust value and green LED indicating the minimum value. Hold down the key to increase/decrease the adjust value continuously. Press PTT key to save the BATT LOW and SQL settings, then green LED glows once. (6) Select adjustment item group The first group of adjustment item is selected when the radio enters the manual adjust mode. Turn to CH16 and press PTT key to enter the next group. Press again to return to the first group. Orange LED flashes once when the first group is selected. Orange LED flashes twice when the second group is selected. (7) Frequency Setting (can be set via programming software) 5 point tuning（MHz） TX: { TX1,TX2,TX3,TX4,TX5} RX: { RX1,RX2,RX3,RX4,RX5} 3 point tuning（MHz） TX: { TX1, TX3, TX5} RX: { RX1, RX3, RX5} 1 point tuning（MHz） TX: { TX3} RX: { RX3} TC-980 Adjustment Description 1 3. Adjustment Method Turn the power on by holding down TK and SK2 key simultaneously for 2 seconds, the radio enters manual adjust mode with red LED flashes twice. Refer to Manual Adjust Mode in TC-700 Software Specification for more details. (1) Transmitter Item Condition Test InstrumentMethod Purpose Adjust a channel Enter the adjust mode; Turn to CH1; TX mode. Radio Communication Test Set; TX Test Adjust VR1 Frequency Error ≤100Hz 1. TX power Low Enter the adjust mode. Turn to CH1. Adjust at 5 point (wideband). PTT key (increase) SK1 key (decrease) Adjust power to: 1W±0.1W 2. CDCSS balance Enter the adjust mode. Turn to CH3. Adjust at 3 point (wideband), 1 point (medium band) and 1 point (narrowband) respectively. PTT key (increase) SK1 key (decrease) No adjustment 3. CDCSS deviation Enter the adjust mode. Turn to CH3. Adjust at 3 point (wideband), 1 point (medium band) and 1 point (narrowband) respectively. PTT key (increase) SK1 key (decrease) 4. CTCSS (67.0Hz) deviation Low Enter the adjust mode. Turn to CH4. Adjust at 3 point (wideband), 1 point (medium band) and 1 point (narrowband) respectively. PTT key (increase) SK1 key (decrease) Group 1 5. CTCSS (136.5Hz) deviation Center Enter the adjust mode. Turn to CH5. Adjust at 3 point (wideband), 1 point (medium band) and 1 point (narrowband) respectively. Radio Communication Test Set TX TEST HPF：20HZ LPF：300HZ PTT key (increase) SK1 key (decrease) Adjust deviation to 750Hz (wideband), 600Hz (medium band) and 400Hz (narrowband) respectively. TC-980 Adjustment Description 1 6. CTCSS (254.1Hz) deviation High Enter the adjust mode. Turn to CH6. Adjust at 3 point (wideband), 1 point (medium band) and 1 point (narrowband) respectively. PTT key (increase) SK1 key (decrease) 7. AK2346 Transmit Audio Deviation Enter the adjust mode. Turn to CH7. Adjust at 3 point (wideband), 1 point (medium band), 1 point (narrow band). Radio Communication Test Set HPF: 20Hz LPF: 15KHz 1KHz 120mV PTT key (increase) SK1 key (decrease) Adjust deviation to 4KHz (wideband), 3.2KHz (medium band) and 2KHz (narrowband) respectively. 8. 2 Tone deviation Enter the adjust mode. Turn to CH8. Adjust at 1 point (wideband), 1 point (medium band), 1 point (narrow band). PTT key (increase) SK1 key (decrease) Adjust deviation to 3.2KHz (wideband), 2.5KHz (medium band) and 1.8KHz (narrowband) respectively. 9. DTMF deviation Enter the adjust mode. Turn to CH9. Adjust at 1 point (wideband), 1 point (medium band), and 1 point (narrow band). PTT key (increase) SK1 key (decrease) Adjust deviation to 3.2KHz (wideband), 2.5KHz (medium band) and 1.8KHz (narrowband) respectively. Group 1 10. MSK deviation Enter the adjust mode. Turn to CH10. Adjust at 3 point (wideband), 1 point (medium band), 1 point (narrow band). Radio Communication Test Set TX Test HPF: 20Hz LPF: 15KHz No modulation signal. PTT key (increase) SK1 key (decrease) Adjust deviation to 3.2KHz (wideband), 2.5KHz (medium band) and 1.8KHz (narrowband) respectively. TC-980 Adjustment Descripti…

Text truncated - open the document above for the full version.

SAR TEST REPORT For Two Way Radio Model Name: TC-980U1 Trade Name: HYT FCC ID: R74TC-980U1, IC: 5465A-TC980U1 Report No.: SZAGC003070904E7 Date of Issue: Nov.12, 2007 Prepared For Shenzhen HYT Science & Technology Co., Ltd. HYT Tower, Shenzhen Hi-Tech Industrial Park North, Beihuan Rd., Nanshan District, Shenzhen, P.R.C. Tel: 86-755-2697 2999 Fax: 86-755-8613 7130 Prepared By Shenzhen Attestation of Global Compliance Science & Technology Co., Ltd Suite B11/B12, 4F, Huafeng Mall, Chuangye 2 nd Road, 25 District, Bao’an, Shenzhen Tel: 86-755-2974 2358 Fax: 86-755-2600 8484 Report No.:SZAGC003070904E7 Page 1 of 47 CONTENT 1. GENERAL SUMMARY ..........................................................................................................................2 2. ADMINISTRATIVE DATE ......................................................................................................................3 3. EQUIPMENT UNDER TEST (EUT) .......................................................................................................4 4 OPERATIONAL CONDITIONS DURING TEST .....................................................................................5 5. CHARACTERISTICS OF THE TEST ..................................................................................................18 6. LABORATORY ENVIRONMENT .........................................................................................................19 7. TEST RESULTS..................................................................................................................................20 8. MEASUREMENT UNCERTAINTIES ...................................................................................................22 9. MAIN TEST INSTRUMENTS ..............................................................................................................24 ANNEX A.................................................................................................................................................25 PHOTOS OF TEST SETUP ....................................................................................................................25 ANNEX B ................................................................................................................................................28 PHOTOGRAPHS OF TEST SAMPLE .....................................................................................................28 ANNEX C ................................................................................................................................................34 SAR TEST REPORT ...............................................................................................................................34 ANNEX D ................................................................................................................................................41 SYSTEM PERFORMANCE CHECK DATA .............................................................................................41 Report No.:SZAGC003070904E7 Page 2 of 47 1. GENERAL SUMMARY Product Name Tw o-w a y Ra d i o Standard(s) 47CFR §2.1093: Radiofrequency Radiation Exposure Evaluation: Portable Devices FCC OET Bulletin 65 (Edition 97-01), Supplement C (Edition 01-01): Evaluating Compliance with FCC Guidelines for Human Exposure to Radiofrequency Electromagnetic Fields ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. IEEE 1528–2003: Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Body Due to Wireless Communications Devices: Experimental Techniques. Conclusion Localized Specific Absorption Rate (SAR) of this portable wireless equipment has been measured in all cases requested by the relevant standards cited in Clause 5.2 of this test report. Maximum localized SAR is below exposure limits specified in the relevant standards cited in Clause 5.1 of this test report. General Judgment: Pass Comment TX Freq. Band: 400 MHz-470 MHz RX Freq. Band: 400 MHz-470 MHz Antenna Character: build outside The test result only responds to the measured sample. Prepared By: Tony Tian Nov.12, 2007 Checked By: Terry Yang Nov.12, 2007 Authorized By King Zhang Nov.12, 2007 Report No.:SZAGC003070904E7 Page 3 of 47 2. ADMINISTRATIVE DATE 2.1. Identification of the Responsible Testing Laboratory Company Name: ShenZhen Electronic Product Quality Testing Center Department: Testing Department Address: Electronic Testing Building, ShaHe Road, NanShan District, ShenZhen, P. R. China Responsible Test Lab Managers: Mr. Li’an Wu 2.2. Identification of the Responsible Testing Location(s) Company Name: ShenZhen Electronic Product Quality Testing Center Address: Electronic Testing Building, ShaHe Road, NanShan District, ShenZhen, P. R. China 2.3. Organization Item Report No.: SZAGC003070904E7 Project Leader: Mr. Terry Yang Responsible for Accreditation scope: Mr. King Zhang Start of Testing: 2007-11-06 End of Testing: 2007-11-12 2.4. Identification of Applicant Company Name: Shenzhen HYT Science & Technology Co., Ltd. Address: HYT Tower, Shenzhen Hi-tech Industrial Park North, Beihuan Rd., Nanshan District, Shenzhen, P.R.C. 2.5. Identification of Manufacture Company Name: Shenzhen HYT Science & Technology Co., Ltd. Address: HYT Tower, Shenzhen Hi-tech Industrial Park North, Beihuan Rd., Nanshan District, Shenzhen, P.R.C. Notes: This data is based on the information by the applicant. Report No.:SZAGC003070904E7 Page 4 of 47 3. EQUIPMENT UNDER TEST (EUT) 3.1. Identification of the Equipment under Test Brand Name: HYT Type Name: TC-980U1 Marking Name: TC-980U1 Main Test Mode: TC-980U1 Test frequency Two-way Radio 400-470MHz Development Stage Identical prototype Accessories N/A Battery Model N/A Battery specificationDC 7.4, 1300mAh Antenna type Build outside Operation mode PTT Modulation mode FM General description: Max. Power 4.79W NOTE: 1. The…

Text truncated - open the document above for the full version.

FCC Part 90 & RSS-119 TEST REPORT For Two Way Radio Model Name: TC-980U1 Trade Name: HYT FCC ID: R74TC-980U1, IC: 5465A-TC980U1 Report No.: SZAGC003070904E6 Date of Issue: Oct.26, 2007 Prepared For Shenzhen HYT Science & Technology Co., Ltd. HYT Tower, Shenzhen Hi-Tech Industrial Park North, Beihuan Rd., Nanshan District, Shenzhen, P.R.C. Tel: 86-755-2697 2999 Fax: 86-755-8613 7130 Prepared By Shenzhen Attestation of Global Compliance Science & Technology Co., Ltd Suite B11/B12, 4F, Huafeng Mall, Chuangye 2 nd Road, 25 District, Bao’an, Shenzhen Tel: 86-755-2974 2358 Fax: 86-755-2600 8484 Report No.: SZAGC003070904E6 Page 1 of 50 VERIFICATION OF COMPLIANCE Applicant: SHENZHEN HYT SCIENCE & TECHNOLOGY CO., LTD. HYT Tower, Shenzhen Hi-Tech Industrial Park North, Beihuan Rd., Nanshan District, Shenzhen, P.R.C. Manufacturer: SHENZHEN HYT SCIENCE & TECHNOLOGY CO., LTD. HYT Tower, Shenzhen Hi-Tech Industrial Park North, Beihuan Rd., Nanshan District, Shenzhen, P.R.C. Product Description: Two-way Radio Brand Name: HYT Model Number: TC-980U1 Serial Number: N/A File Number: SZAGC003070904E6 Date of Test: Oct.08, 2007 ~ Oct.25, 2007 We hereby certify that: The above equipment was tested by Shenzhen Attestation of Global Compliance Science & Technology Co., Ltd. The data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C 63.4:2003 and TIA/EIA 603. The sample tested as described in this report is in compliance with the FCC Rules Part 90. The test results of this report relate only to the tested sample identified in this report. Prepared By: Tony Tian Oct.25, 2007 Checked By: Randy He Oct.25, 2007 Authorized By King Zhang Oct.25, 2007 Report No.: SZAGC003070904E6 Page 2 of 50 CONTENTS 1. GENERAL INFORMATION ............................................................................................................................................. 4 1.1 PRODUCT DESCRIPTION ....................................................................................................................................... 4 1.2 RELATED SUBMITTAL(S) / GRANT (S) ................................................................................................................... 5 1.3 TEST METHODOLOGY ............................................................................................................................................ 5 1.4 TEST FACILITY......................................................................................................................................................... 5 1.5 SPE…
