通 商 發 展 有 限 公 司 REPIDTRADE (H.K.) CO., LTD. Flat F, 9/Fl., Valiant Ind. Centre, 12 Au Pui Wan St., Fotan, N.T., Tel.:(852)2332 4391 Fax.:(852)2388 2015 E-mail : [email protected] Statement of Sporty’s Model AIR SCAN V (FCC ID: R7ERTSP127) incapability to receive any Cell Phone Signals from Public Mobile Services Under FCC Part 22 The purpose of this statement is to clarify that the above equipment is incapable of operating (tuning) or readily being altered by the user to operate, within the frequency bands to the Cellular Radio telephone Service. Please also note that the Sporty’s AIRSCAN V is based on the same circuitry as of Sporty’s Model SP-125 (FCC ID: DY7RT2013) which has already gained compliance with FCC requirements. 1) Vulnerability of the Scanning Receiver to possible modifications The scanning receiver is designed to operate within the AM/FM and AIR band only. The tuning components and PLL components are not capable of receiving and generating local oscillator signal relevant to that of cellular phone frequency. The frequencies of question are not included in the CPU ROM during fabrication and cannot be restored through any readily available process or component such as installation of cuts, jumper wires, resistors, diodes, or plug in ICs. Reprogramming is not possible since there is no such feature. Moreover, the receiver is incapable of converting digital cellular transmission to analog voice audio. 2) Circuitry Inaccessibility The scanning receiver is designed to prevent any attempt for the user to modify the receiver to receive transmissions from and Cell Phone signals. All tuning parts are either sealed inside a shield can assembly or covered with epoxy to prevent user access. Any attempts to remove the shield can or epoxy will render the receiver inoperable. Furthermore, tuning components (i.e., especially inductors) are incapable of operating under the cellular phone frequency. 3) Compliance with 38dB Rejection Ratio The scanning receiver is designed in a way such that the two cascaded GFM-B3 filter in FM front end will only allows the FM broadcast band to pass and will provide the necessary attenuation at cellular radio frequency. The AIR front end is also equipped with a double tune LC filter that allows only AIR band frequency to pass. (Please refer to circuit schematic and component specification of GFM-B3 filter.) 4) Label requirement The Scanning receiver has a label affixed to the product shown on the attached drawing of the warning label which reads as follows: WARNING: MODIFICATION OF THIS DEVICE TO RECEIVE CELLULAR RADIOTELEPHONE SERVICE SIGNALS IS PROHIBITED UNDER FCC RULES AND FEDERAL LAWS. TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE AND MAINS ADAPTER TO RAIN OR MOISTURE. DO NOT REMOVE THIS CABINET COVER, NO USER USABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. Based on the above, we hereby attest that the equipment in question complies fully with the Provisions of 15.121 of FCC Rules.

PHOTOGRAPH OF THE PRODUCT FRONT VIEW OF THE PRODUCT REAR VIEW OF THE PRODUCT

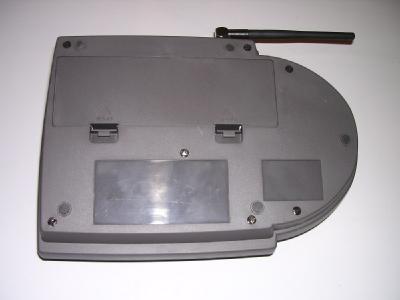

LABEL LOCATION BOTTOM VIEW OF THE DEVICE WITH FCC ID LABEL

Date: 2004-05-03 TEST REPORT Page 1 of 23 No.: HM150337 This report shall not be reproduced unless with prior written approval from the Hong Kong Standards and Testing Centre. Applicant: REPIDTRADE (HK) CO., LTD. Description of Samples: Model name: AM/FM/AIR Band Scanner Radio Model no.: Air-ScanV Brand name: Sporty’s FCC ID: R7ERTSP127 Date Samples Received: 2004-03-11 Date Tested: 2004-03-23 to 2004-04-13 Investigation Requested: FCC PART 15 SUBPART B Conclusions: See the attached sheets for details Remarks: ---- K C Lee, EMC for Chief Executive Date: 2004-05-03 TEST REPORT Page 2 of 23 No.: HM150337 CONTENT: Cover Page 1 of 23 Content Page 2-3 of 23 Conclusions Page 4 of 23 1.0 General Details 1.1 Test Laboratory Page 5 of 23 1.2 Applicant Details Page 5 of 23 Applicant HKSTC Code Number for Applicant Manufacturer 1.3 Equipment Under Test [EUT] Page 6 of 23 Description of EUT operation 1.4 Date of Order Page 6 of 23 1.5 Submitted Samples Page 6 of 23 1.6 Test Duration Page 6 of 23 1.7 Country of Origin Page 6 of 23 1.8 Additional Information of EUT Page 7 of 23 2.0 Technical Details 2.1 Investigations Requested Page 8 of 23 2.2 Test Standards and Results Summary Page 8 of 23 3.0 Test Results 3.1 Emission Page 9-15 of 23 Date: 2004-05-03 TEST REPORT Page 3 of 23 No.: HM150337 Appendix A List of Measurement Equipment Page 16 of 23 Appendix B Photographs Page 17-23 of 23 Date: 2004-05-03 TEST REPORT Page 4 of 23 No.: HM150337 CONCLUSIONS The submitted product was deemed to have COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Date: 2004-05-03 TEST REPORT Page 5 of 23 No.: HM150337 1.0 General Details 1.1 Test Laboratory The Hong Kong Standards and Testing Centre Ltd. EMC Laboratory 10 Dai Wang Street, Taipo Industrial Estate New Territories, Hong Kong Telephone: 852 2666 1888 Fax: 852 2664 4353 1.2 Applicant Details Applicant REPIDTRADE (HK) CO., LTD. Flat F, 9/F Valiant Ind. Centre, 12 Au Pui Wan St., Fotan, N.T., Hong Kong. HKSTC Code Number for Applicant REH002 Manufacturer GOLDEN WEALTH INDUSTRIAL LIMITED. Flat G, 9/F Valiant Ind. Centre, 12 Au Pui Wan St., Fotan, N.T., Hong Kong. Date: 2004-05-03 TEST REPORT Page 6 of 23 No.: HM150337 1.3 Equipment Under Test [EUT] Description of Sample Model Name: AM/FM/AIR Band Scanner Radio Manufacturer: Golden Wealth Industrial Ltd. Brand Name: Sporty’s Model Number: Air-ScanV Input Voltage: 9Vd.c.(“C” size battery x 6) with jack The AC/DC Adaptor used for the tests was provided by the applicant with the following details: Model Number: T3515-09D-300, Input: 120Va.c. 60Hz 5.3W, Output: 9Vd.c. 300mA 1.3.1 Description of EUT Operation The Equipment Under Test (EUT) is a Repidtrade (HK) Co., Ltd, AM/FM/AIR Band Scanner Radio. 1.4 Date of Order 2004-03-11 1.5 Submitted Sample(s): 4 samples per model 1.6 Test Duration 2004-03-23 to 2004-04-13 1.7 Country of Origin China Date: 2004-05-03 TEST REPORT Page 7 of 23 No.: HM150337 1.8 Additional Information of EUT Submitted Not Available User Manual Part List Circuit Diagram Printed Circuit Board [PCB] Layout Block diagram FCC DOC Label Date: 2004-05-03 TEST REPORT Page 8 of 23 No.: HM150337 2.0 Technical Details 2.1 Investigations Requested Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15 and ANSI C63.4: 2003 for FCC Certification. 2.2 Test Standards and Results Summary Tables EMISSION Results Summary Test Condition Test Requirement Test Method Class / Test Result Severity Pass Failed N/A Radiated Emissions, 30MHz to 1GHz FCC 47CFR 15.109 ANSI C63.4:2003 Class B Conducted Emissions on AC, 0.15MHz to 30MHz FCC 47CFR 15.107 ANSI C63.4:2003 Class B Note: N/A - Not Applicable Date: 2004-05-03 TEST REPORT Page 9 of 23 No.: HM150337 3.0 Test Results 3.1 Emission 3.1.1 Radiated Emissions (30 – 1000MHz) Test Requirement: FCC 47CFR 15.109 Test Method: ANSI C63.4:2003 Test Date: 2004-03-26 Mode of Operation: On Mode Test Method: The sample was placed 0.8m above the ground plane on the OATS *. Measurements in both horizontal and vertical polarities were performed. During the test, each emission was maximized by: having the EUT continuously working, investigated all operating modes, rotated about all 3 axis (X, Y & Z) and considered typical configuration to obtain worst position, manipulating interconnecting cables, rotating turntable, varying antenna height from 1m to 4m in both horizontal and vertical polarizations. The emissions worst-case are shown in Test Results of the following pages. *: OATS [Open Area Test Site] located at HKSTC with a metal ground plane filed with the FCC pursuant to section 2.948 of the FCC rules, with Registration Number: 90657. Test Setup: EUT Pre-Amplifier Distance = 3m Receiver Turn Table Computer Ground Plane Date: 2004-05-03 TEST REPORT Page 10 of 23 No.: HM150337 Limits for Radiated Emissions [FCC 47 CFR 15.109 Class B]: Frequency Range Quasi-Peak Limits [MHz] [μV/m] 30-88 100 88-216 150 216-960 200 Above960 500 The emission limits shown in the above table are based on measurement employing a CISPR quasi- peak detector and above 1000MHz are based on measurements employing an average detector. Results: On Mode (FM Radio) 0 10 20 30 40 50 60 70 30130230330430530630730830930 Level (dBμV/m) Frequency (MHz) Limit Results TunedEmissionMeasuredLimitMeasuredLimitE-Field FrequencyFrequencyLevel@3m.@3mLevel@3m.@3mPolarity MHzMHzdB μ V/mdB μ V/m μ V/m μ V/m 88.39933.543.547.3150Horizontal 88.39930.143.532.0150Vertical Radiated Emissions Quasi-Peak Remarks: IF = 10.70MHz Calculated measurement uncertainty: ±4.1dB Date: 2004-05-03 TEST REPORT Page 11 of 23 No.: HM150337 Limits for Radiated Emissions [FCC 47 CFR 15.109 Class B]: Frequency Range Quasi-Peak Limits [MHz] [μV/m] 30-88 100 88-216 150 216-960 200 Above960 500 The emission limits shown in the above ta…
