R8EVG-300LDOOR LOCK

VeilGuard tm RF Type Electronic Remote Access Door Lock Owner’s Manual and Installation Guide VeilGuard TM RF Type Remote Access Electronic Door Lock Product Outline (1) Background of Development This product has been developed on purpose to solve the awareness of security that has been dramatically increased recently. Especially our product complements extra concerns such as its high price but less- effective functions. It is targeted for apartments, individual residences and small offices that directly indicat ed to actual user who is looking for affordable high-tech product. We are very much sincere to create new value & way of thinking in security market. (2) Product Outline Obtained first Patent in the world by paten with Fusion type of digital door lock. VEILGUARD (1) Hidden RF type, operate & conf irm its conditions of security by remote controller in long distance using telephone (includes mobile phone) not only open & close, this pr oduct has remarkable utility. It will inform you if there is a trespassers when you are our of the place. (2) It’s easy to install or operate as It’s DIY type. Simply follow recorded voice guide. (3) Unlikely other unmanned security guard company, no need to pay any maintenance fee. Itself will se cure your life and property against various risks by most economical way. (4) The main demands; Everywhere needs a security; Apartments, individual residence, office, shop, laboratory, public office, public institution. As mentioned these wide rages of suitable demands will accelerate continuous marketability and its growth rate. (5) Marketing net-work; Construc tion & interior company, building material dealer, Key Smith, security device dealer, home shopping, Shopping mall, etc diverse sales source. Product Feature 1. Door Lock An outing/sleeping mode: It won t open if someone presses an open button through any crack or hole 2. Remote controller - Elders/children can easily open even at night. - In case of lost the key, easy to re-register new one and remove old key from the main set. - Maximum quantity to use; 30pcs/set - Convenience contro l, it will work properly in the distance of inside/outside. 3. Tel-cat – when you hav e lost or broke down the key, door can be opened by using Telephone or Mobile phone. - In emergency situation by intruder or forced opening, itself will report to the telephone number that has memorized by your selection simultaneously alarms distinct warning bell.(Pir Sensor) Per full set of unit (Lock, Controller, Sensor) gives you messages to inform you time to exchange the battery by voice mail. - It can memorize 5 Telephone number, you can change its priority of report or confirm recorded numbers. 4. Can be linked with built in Home automation system or unmanned security system in Apartment. (fire detection sensor, Door lock, Gas detection sensor etc) PRODUCT SPECIFICATION Door Lock Size(mm) : 190(W)x75(D)x43(H) Radio Frequency : 447.35MHz FM Power : DC 3V (AA size 4 ea) Battery Hour : Min. 1 year LED Display Remote Controller Size(mm) : 62(W)x37(D)x15(H) Power : 12V battery (A23) Battery Hour : Min. 1 year Remote distant : avg. 100M I.D Code method Tel-Cat Size(mm) :126(W)x103(D)x36(H) Power : AC220V/DC 9V Function : LED Display Siren : 95dB Your VeilGuard TM RF Type Electronic Door Lock Kit contains: • (1) RF Type Deadbolt Lock Assembly w/screws • (1) Door Frame Latch w/screws and spacers • (1) Motion Sensor w/screws • (1) Multi-function Control Unit • (2) Remote Controls • (1) AC Power Adapter • (1) Telephone Cord for Control Unit • (2) 9-volt Batteries • (4) AA Batteries • (1) Owner’s Manual • (1) VeilGuard TM Cover Plate Installation Instructions: (Please follow carefully) You can install your VeilGuard TM Electronic Door Lock by yourself or you can have a qualified locksmith install it for you. Deadbolt Assembly and Door Latch: • The VeilGuard TM Electronic Door Lock can be installed on doors opening from either the left or right. To change the side from which the lock operates, the main assembly screws (4) must be removed. Lift the cover and remove the screws holding the bolt mechanism. Turn the bolt mechanism around so the bolt points towards the side you need. Secure the bolt mechanism with the screws (4). • Position the main lock assembly at the required height. Mark the holes (8) for the mounting screws. Align the rubber door protector, metal plate, and lock as sembly with the marks. Attach with the mounting screws. • Replace lock assembly cover and secure with the screws (4). • Slide battery compartment cover down and insert the four (4) AA batteries. Insure batteries are installed according to the diagram in the battery holder. When the batteries are installed properly, the lock assembly will activate. • Place the door latch on the doorframe and align it with the deadbolt. Mark the screw holes. Two spacers are included to adjust the height of the door latch. After proper alignment, attached the latch to the doorframe with the screws provided. Setting Up the Tel-Cat Control Unit: • Move the switch to either Tone or Pulse mode • Connect power adapter to an electrical outlet • Slide open the battery compartment cover on the bottom of the control unit. Install one 9-volt battery and close the cover. • Connect telephone cord (provided) into a telephone jack and connect a telephone in the other port on the control unit. • Connect the power adapter plug to the control unit. • After following these steps, you will hear a beeping sound when you pick up your telephone receiver. Placement of the Motion Sensor: • Open the battery compartment cover on the side of the sensor and install one 9-volt battery. • Select the best location for placement of the sensor and attach with the mounting screws prov ided. For best results: o Do Not install on your porch or outside o Avoid places where pets or other moving objects are visible (including outside traffic) o The effective detection range for the sensor is 110 degrees to the left or …

Text truncated - open the document above for the full version.

“” “”

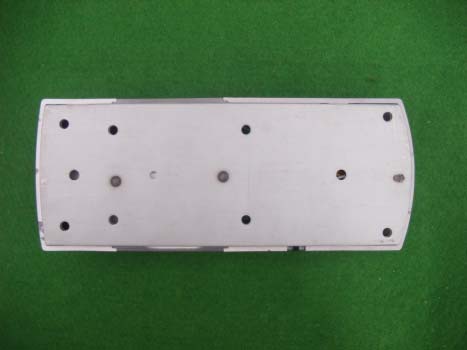

KTI04EF06002 FCC ID: R8EVG-300L Korea Technology Institute Co., Ltd. Page 1 of 2 External photo (front) KTI04EF06002 FCC ID: R8EVG-300L Korea Technology Institute Co., Ltd. Page 2 of 2 External photo (Rear)

KTI04EF06002 Model: R8EVG-300L Korea Technology Institute Co., Ltd. Page 1 of 1 Label location FCC Label Location

KTI04EF06002 FCC ID:R8EVG-300L Korea Technology Institute Co., Ltd. Page 1 of 8 Internal photo 1 (Front) KTI04EF06002 FCC ID:R8EVG-300L Korea Technology Institute Co., Ltd. Page 2 of 8 Internal photo 1 (Rear) KTI04EF06002 FCC ID:R8EVG-300L Korea Technology Institute Co., Ltd. Page 3 of 8 Internal photo 2 (Front) KTI04EF06002 FCC ID:R8EVG-300L Korea Technology Institute Co., Ltd. Page 4 of 8 Internal photo 2 (Rear) KTI04EF06002 FCC ID:R8EVG-300L Korea Technology Institute Co., Ltd. Page 5 of 8 Internal photo 3 (Front) KTI04EF06002 FCC ID:R8EVG-300L Korea Technology Institute Co., Ltd. Page 6 of 8 Internal photo 3 (Rear) KTI04EF06002 FCC ID:R8EVG-300L Korea Technology Institute Co., Ltd. Page 7 of 8 Internal photo 4 (Front) KTI04EF06002 FCC ID:R8EVG-300L Korea Technology Institute Co., Ltd. Page 8 of 8 Internal photo 4 (Rear)

KTI04EF06002 FCC ID: R8EVG-300L Korea Technology Institute Co., Ltd. Page 1 of 14 Test Report Test Report No.: KTI04EF06002 Registration No.: 99058 Applicant: Zilliontek Co., Ltd. Applicant Address: Suite 603, Magicplaza Bldg, 1009-6, Youngtong-Dong, Youngtong-Ku, Suwon-City, Kyungki-Do, Korea 442-813 Product: Door Lock FCC ID: R8EVG-300L Model No. VG-300L Receipt No.: 04-0313 Date of receipt:March 10, 2004 Date of Issue: June 22, 2004 Testing location Korea Technology Institute Co., Ltd. 51-19, Sanglim3-Ri, Docheok-Myeun, Gwangju-Shi, Gyeungki-Do, Korea Test Standards: FCC/ANSI. C63.4: 2001 Rule Parts: FCC Part 15, Subpart C Equipment Class: Remote Control/Security Device Transceiver Test Result: The above-mentioned product has been tested with compliance. Tested by: Hyun, Kim / Engineer Approved by: G. C. Min /President Signature Date Signature Date Other Aspects: Abbreviations: * OK, Pass=passed * Fail=failed * N/A=not applicable - This test report is not permitted to copy partly without our permission. - This test result is dependent on only equipment to be used. - This test result is based on a single evaluation of one sample of the above mentioned. - This test report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S Government. - We certify this test report has been based on the measurement standards that is traceable to the national or international standards. KTI04EF06002 FCC ID: R8EVG-300L Korea Technology Institute Co., Ltd. Page 2 of 14 Contents 1. 2. 3. 4. 5. 6. 7. 8. Annex1 Annex2 Contents List of Tables List of Figures List of Photographs General Test Site 2.1 Location 2.2 List of Test and Measurement Instruments 2.3 Test Date 2.4 Test Environment Description of the tested samples 3.1 Rating and Physical characteristics 3.2 Submitted documents Measurement conditions 4.1 Modes of operation 4.2 Additional Equipment 4.3 Uncertainty 4.4 Test Setup Definition and limit 5.1 Definition 5.2 Restricted Bands of Operation 5.3 Limitation 5.4 Labeling Requirement 5.5 User Information Conducted Emissions Measurement Radiated Emission Measurement Emission Bandwidth Measurement Bandwidth Ploted Data Photographs of the Test Set-up Label Photographs of EUT 2 2 2 2 3 3 3 4 4 4 5 5 5 6 6 6 6 7 8 8 8 8 9 9 10 11 13 14 14 15~16 17~26 List of Tables Table 1 List of test and measurement equipment Table 2 Test Data. Radiated Emissions List of Figures List of Photographs Photograph 1 Setup for Radiated Emissions 4 12 15 KTI04EF06002 FCC ID: R8EVG-300L Korea Technology Institute Co., Ltd. Page 3 of 14 1. General This equipment has been shown to be capable of compliance with the applicable technical standards and was tested in accordance with the measurement procedures as indicated in this report. We attest to the accuracy of data. Korea Technology Institute Co., Ltd. performed all measurements reported herein. And were made under Chief Engineer’s supervisor. We assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. 2. Test Site Korea Technology Institute Co., Ltd. 2.1 Location 51-19, Sanglim3-Ri, Docheok-Myeun, Gwangju-Shi, Gyeungki-Do, Korea The Test Site is in compliance with ANSI C63.4/2001 for measurement of radio Interference. KTI04EF06002 FCC ID: R8EVG-300L Korea Technology Institute Co., Ltd. Page 4 of 14 2.2 List of Test and Measurement Instruments Table 1: List of Test and Measurement Equipment - Conducted Emissions Kind of Equipment Type S/N Calibrated until Spectrum Analyzer R3261C 61720417 11.2004 Field Strength Meter ESPC 832827/011 9.2004 LISN KNW407 8-1157-2 10.2004 LISN EM-7823 115019 4.2005 Conducted Cable N/A N/A 11.2004 - Radiated Emissions Kind of Equipment Type S/N Calibrated until Field Strength Meter ESIB40 100093 3.2005 Spectrum Analyzer R3261C 61720417 11.2004 Pre Amplifier 8447D 2944A06874 11.2004 BiconiLog Antenna 3142B 1705 2.2005 Horn Antenna 3115 6443 6.2005 Open Site Cable N/A N/A 11.2004 Antenna Mast DETT-03 N/A N/A Antenna & Turntable controller DETT-04 91X519 N/A 2.3 Test Date Date of Application: March 10, 2004 Date of Test: June 7, 2004 2.4 Test Environment See each test item’s description. KTI04EF06002 FCC ID: R8EVG-300L Korea Technology Institute Co., Ltd. Page 5 of 14 3. Description of the tested samples The EUT is Door Lock. 3.1. Rating and Physical Characteristics operating Frequency : 447.35MHz FM Power : DC 3V (AA size 4 ea) Battery Hour : Min. 1 year LED Display Size(mm) : 190(W)x75(D)x43(H) 3.2. Submitted Documents - User’s Guide - Block Diagram KTI04EF06002 FCC ID: R8EVG-300L Korea Technology Institute Co., Ltd. Page 6 of 14 4. Measurement Conditions Testing Input Voltage: DC 3V battery 4.1 Modes of Operation The EUT was in the following operation mode during all testing; The EUT was operated continuously in its normal operating mode for the purpose of the measurements. In order to secure the continuous operation of the EUT, rewiring in the circuit was done by the manufacturer so as to affect its intended operation. 4.2 Additional Equipment DEVICE TYPE Manufacturer M/N S/N FCC ID - -. - - - 4.3 Uncertainty 1) Radiated disturbance Uc (Combined standard Uncertainty) = ± 1.8dB Expanded uncertainty U=KUc K = 2 U = ± 3.6dB 2) Conducted disturbance Uc = ± 0.88dB U = KUc=2 x Uc = ± 1.8dB KTI04EF06002 FCC ID: R8EVG-300L Korea Technology Institute Co., Ltd. Page 7 of 14 4.4 Test Setup EUT KTI04EF06002 FCC ID: R8EVG-300L Korea Technology Institute Co., Ltd. Page 8 of 14 5. Definition and Limits 5.1 Definition Intentional radiator: A device that intentionally generates and emits radio frequency energy by radiation or induction. 5.2 Restricted Bands of Operation Only spurious emissions are permitted in any of the frequency bands listed below: MHz MHz MHz GHz 0.090 – 0.110 0.495 – 0.505 ** 2.1735 – 21.1905 4.125 – 4.128 5.17725 – 4.17775 4.20725 – 4.20775 6.215 – 6.218 6.26775 – 6.26825 6.31175 – 6.31225 8.291 – 8.294 8.362 – 8.366 8.37625 – 8.38675…

Text truncated - open the document above for the full version.

KTI04EF06002 FCC ID: R8EVG-300L Korea Technology Institute Co., Ltd. Page 1 of 1 6. Photograph of the Test Set-Up Photograph 1 : Setup for radiated Emissions
