R8JTOT-1Text on Top transmitter

Text on Top User’s Manual © Velotype VOF - User Manual 2 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed or used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: 1. reorient or relocate the receiving antenna; 2. increase the separation between the equipment and the receiver; 3. connect the equipment to an outlet on a circuit different from that to which the receiver is connected; 4. consult the dealer or an experienced radio/TV technician for help. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Where shielded interface cables have been provided with the product or specified additional components or accessories elsewhere defined to be used with the installation of the product, they must be used in order to ensure compliance with FCC regulations. © Velotype VOF - User Manual 3 Version 1.0 10 January 2013 All rights reserved. No part of this publication may be reproduced or distributed in any form or by any means, or stored in a database or retrieval system, without the prior written permission of the publisher. © Velotype VOF - User Manual 4 INHOUD - CONTENTS - INHALT - TENEUR Nederlands Welkom 6 Operationele beschrijving 7 Aansluiten 9 Starten van de Text on Top software 10 Presentator / Beamer 12 Typist (Speech-to-text reporter) 13 Shortforms venster 14 Scriptspeler 16 Instellingen 17 Werkwijze 24 Mogelijke toepassingen 25 Sneltoetsen 27 Problemen oplossen 28 English Welcome 29 Operational description 30 Connecting 32 Starting of the Text on Top software 33 Presenter / Beamer 35 Speech-to-text reporter 36 Shortforms dock 37 Script player 39 Preferences 40 Way of working 45 Possible applications 47 Hotkeys 49 Troubleshooting 50 © Velotype VOF - User Manual 5 Deutsch Willkommen 51 Betriebsbeschreibung 52 Anschließen 54 Starten des Text on Top Softwares 55 Moderator / Beamer 57 Schreiber (Speech-to-text reporter) 58 Kurzformen Fenster (Shortforms dock) 59 Script-Spieler 61 Einstellungen 62 Betrieb 67 Einsatzmöglichkeiten 69 Tastatur Shortcuts 71 Fehlerbehebung 72 Français Bienvenue 73 Description opérationnelle 74 Connecter 76 Démarrer le Text on Top software 77 Présentateur / Beamer 79 Typist (Speech-to-text reporter) 80 Shortforms dock 81 Script joueur 83 Paramètres 84 Procédé 91 Applications possible 93 Raccourcis 95 Dépannage 95 Company information 97 © Velotype VOF - User Manual 6 Welkom Hartelijk dank voor de aankoop van Text on Top. Inhoud van de verpakking: Text on Top devices Gebruikershandleiding NEDERLANDS © Velotype VOF - User Manual 7 Operationele beschrijving Abstract Text on Top is een product dat een oplossing biedt om ondertitels op het scherm van een andere computer, of op ‘n projectiescherm laat zien, zonder invloed te hebben op actieve applicaties. Een typisch voorbeeld zijn ondertitels op een PowerPoint presentatie. Een minimale setup bestaat uit twee Text on Top apparaatjes: Een is de zender waar de tekst/ondertitels gemaakt worden door een schrijftolk; De tweede is de ontvanger en zorgt voor het zichtbaar maken van de ondertitels. Het is ook mogelijk om meerdere ontvangers te gebruiken, zodat de tekst zichtbaar wordt op meerdere computer systemen. Data transmissie De instellingen voor tekst en presentatie worden verstuurd door een draadloze radiografische verbinding in de 868/915MHz ISM band. Tekst wordt gewoonlijk woordelijk verstuurd, wat betekent dat ieder woord verzonden wordt in afzonderlijke kleine data pakketjes en dat zorgt ervoor dat de tekst real-time voor het publiek zichtbaar wordt. NEDERLANDS © Velotype VOF - User Manual 8 Computer interface Een text on Top device lijkt op een reguliere geheugen stick en wordt simpelweg bevestigd in de een standaard USB 2.0 compatible USB poort op een Microsoft Windows of Apple Macintosh computer. Het apparaat bevat een geintegreerde flash drive, die alle computer software bevat om te kunnen functioneren. De software werkt direct vanaf de flash drive: Het installeren van software of drivers is niet nodig en er kan dus direct begonnen worden! Extra kenmerken Om de gebruiker extra van dienst te zijn, is de USB poort die gebruikt wordt direct beschikbaar, door een USB ingang aan de achterkant van het apparaat. Sommige moderne notebooks heben weinig USB poorten en zodoende worden ongewenste situaties voorkomen. De interne flash drive zorgt bovendien voor voldoende ruimte aan de gebruiker om bestanden op te slaan. NEDERLANDS © Velotype VOF - User Manual 9 Aansluiten Text on Top is Plug & Play en werkt in principe op alle computersystemen. De software kan direct vanaf de Text on Top stick gestart worden, zonder dat er een installatieprocedure doorlopen hoeft te worden. Op moderne besturingssystemen werkt de Text on Top direct en kunt u meteen aan de slag. Werkt u echter op een wat ouder systeem, zoals Windows 98 of een vroege versie van Windows XP, dan kan het zijn dat het systeem vraagt om de originele Windows installatie CD. Volg dan de instructies op het scherm. Text on Top is getest …

Text truncated - open the document above for the full version.

FCC, Request for non-disclosure Date: 16-Jul-10 RF_501, Issue 6 Page 1 of 1 Company Name: Velotype VOF Address: Vlokhovenseweg 1 City: Eindhoven Country: The Netherlands To: Telefication B.V., Dept. FCC TCB Edisonstraat 12A 6902 PK ZEVENAAR The Netherlands Subject: Request for confidentiality FCC ID: R8JTOT-1 Reference number: ###### Dear FCC TCB, 1. Long-Term Confidentiality Pursuant to 47 CFR Section 0.459(a) & (b), we hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application: Bill(s) of Material Block Diagrams Operational Description Schematic Diagrams Tune-up Procedure Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. 2. Short-Term Confidentiality (STC) Pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, applicant hereby requests Short-Term Confidential treatment of the following materials (note 1): Internal Photos User’s Manual Test Set-up Photos External Photos Justification: Disclosure or publication or any portion of this material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. Planned Release Date STC: 01 June 2013 (notes 2, 3, 4, 5) Date: 01-09-2013 Name and signature of applicant: Sander Pasveer Notes: 1) A document or type of document can only have ONE type of confidentiality! 2) Short-Term confidentiality is in principle for 45 days from date of grant; it can be extended max 3 times (total time 180 days max.)! 3) FCC must be informed when marketing begins earlier. 4) Release takes place automatically thus extension must be requested in time. Telefication does not remind you of this! 5) Request for extension or for release must be received by Telefication at least 7 days before date of actual marketing or before expiration of the STC period

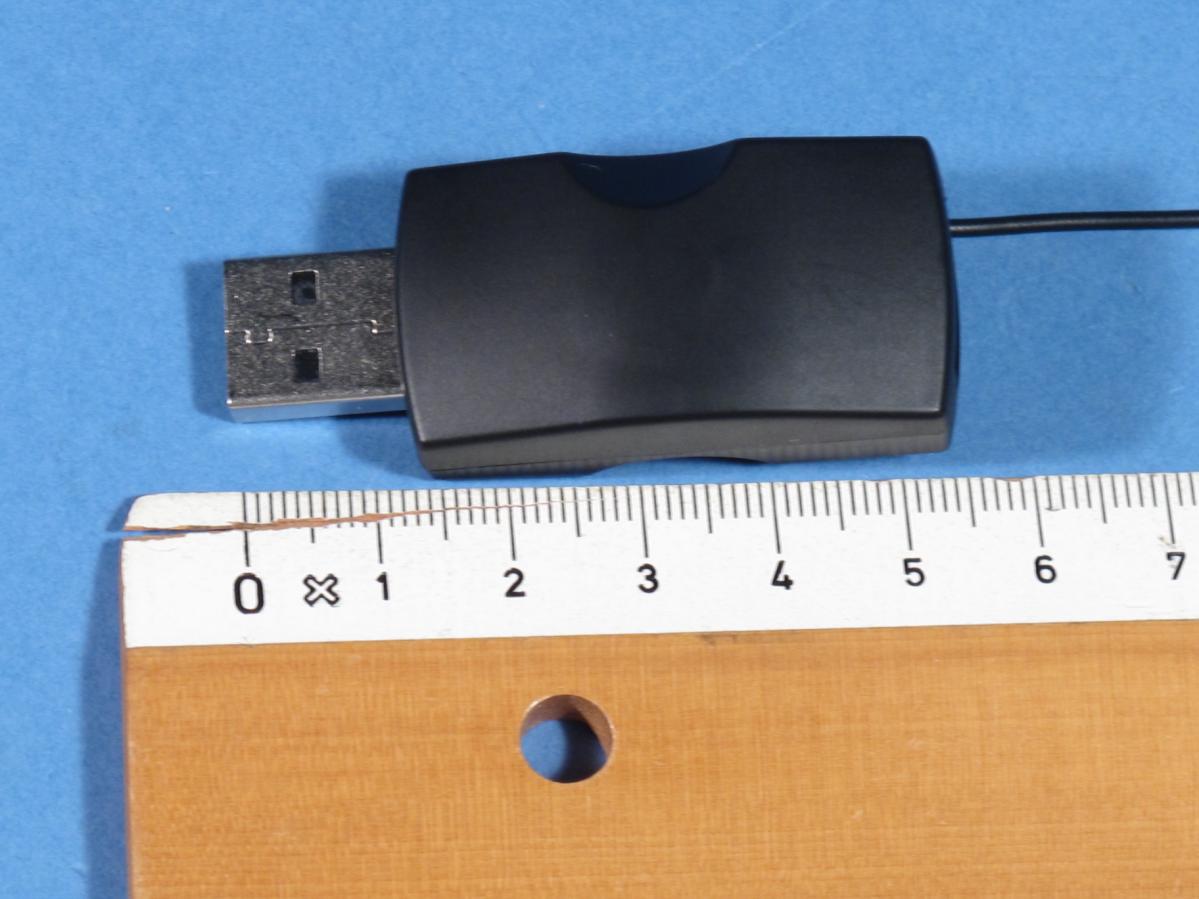

Photographs module 20124484300 External PHOTOGRAPH 1: TOP VIEW............................................................................................................................... 2 PHOTOGRAPH 2: BOTTOM VIEW ........................................................................................................................ 3 Page: 2 of 3 Report number:20124484300 Photograph 1: Top view Page: 3 of 3 Report number:20124484300 Photograph 2: Bottom view

Photographs module 20124484300 Internal PHOTOGRAPH 1: PCB BOTTOM VIEW ............................................................................................................... 2 PHOTOGRAPH 2: PCB TOP VIEW ....................................................................................................................... 3 Page: 2 of 3 Report number:20124484300 Photograph 1: PCB bottom view Page: 3 of 3 Report number:20124484300 Photograph 2: PCB top view

Radio test report 20124484300rev1.0 based on: - FCC part 15; subpart C; section 15.209 & 15.249 (10-1-11 edition) - FCC part 15, subpart B, section 15.109 (10-1-11 edition) Text on Top transmitter Text on Top TOT-1 Report number: 20124484300rev1.0 Contents MAIN MODULE .............................................................................................................................................. 3 1 ..... INTRODUCTION ...................................................................................................................................... 3 2 ..... PRODUCT ............................................................................................................................................... 4 3 ..... TEST SCHEDULE ..................................................................................................................................... 4 4 ..... PRODUCT DOCUMENTATION ................................................................................................................... 4 5 ..... OBSERVATIONS AND COMMENTS ........................................................................................................... 5 6 ..... MODIFICATIONS TO THE SAMPLE ............................................................................................................ 5 7 ..... SUMMARY.............................................................................................................................................. 5 8 ..... CONCLUSIONS ........................................................................................................................................ 6 TEST RESULTS MODULE ............................................................................................................................ 7 1 ..... GENERAL INFORMATION ........................................................................................................................ 7 2 ..... EMISSION TESTS ..................................................................................................................................... 8 2.1 Field strength of unwanted emissions < 30 MHz (Tx mode) ............................................................ 8 2.2 Field strength of intentional signal .................................................................................................. 10 2.3 Field strength of unwanted emissions 30 - 1000 MHz (Tx mode) .................................................. 11 2.4 20 dB bandwidth ............................................................................................................................. 16 2.5 Field strength of unwanted emissions 30 - 1000 MHz (Rx mode) .................................................. 18 2.6 Field strength of unwanted emissions > 1000 MHz (Tx mode) ...................................................... 23 2.7 Field strength of unwanted emissions > 1000 MHz (Rx mode) ...................................................... 29 USED TEST EQUIPMENT MODULE ........................................................................................................ 34 REVISION HISTORY ................................................................................................................................... 35 This report comprises of three modules. The total number of pages is: 35 Page: 3 of 35 Main module Report number: 20124484300rev1.0 Main module 1 Introduction This report contains the result of tests performed by: Telefication B.V. Edisonstraat 12a 6902 PK Zevenaar The Netherlands Telefication complies with the accreditation criteria for test laboratories as laid down in ISO/IEC 17025:2005. The accreditation covers the quality system of the laboratory as well as the specific activities as described in the authorized annex bearing the accreditation number L021 and is granted on 30 November 1990 by the Dutch Council For Accreditation (RvA: Raad voor Accreditatie). Telefication is designated by the FCC as an Accredited Test Firm for compliance testing of equipment subject to Certification under Parts 15 & 18. The Registration Number is: 282250. The Industry Canada number for the Open Area Test Site of Telefication is: 4173A-1. The contents of this test report, if reproduced, shall be copied in full, unless special consent in writing for reproduction in part is granted by Telefication. Copyright of this test report is reserved to Telefication. Ordering party: Company name : Velotype V.O.F. Address : Vlokhovenseweg 1 Zipcode : 5625 WT City/town : Eindhoven Country : The Netherlands Date of order : 20 November 2012 Page: 4 of 35 Main module Report number: 20124484300rev1.0 2 Product A sample of the following product was submitted for testing: Product description : Text on Top transmitter Manufacturer : Velotype V.O.F. Trade mark : Text on Top Type designation : TOT-1 FCC ID : R8JTOT-1 Hardware version : -- Serial number : -- Software release : -- 3 Test schedule Tests are carried out in accordance with the specification detailed in chapter 7 “Summary” of this report. Tests are carried out at the following location: Telefication, Zevenaar The samples of the product were received on: 12 November 2012 Tests are carried out between: 12 November and 13 December 2012 4 Product documentation For production of this report no product documentation was used. Page: 5 of 35 Main module Report number: 20124484300rev1.0 5 Observations and comments All measurements are performed with the antenna vertical and perpendicular to the printed circuit board (normal usage position). The power setting was set to 5, which means -7.5 dBm output powers. 6 Modifications to the sample No modifications were made to the sample. 7 Summary The product is intended for use in the following application area(s): INTENTIONAL RADIATOR OPERATING IN THE FREQUENCY BAND 902 – 928 MHz The sample is tested according to the following specification(s): FCC part 15; subpart C; section 15.209 & 15.249 (10-1-11 edition)…

Text truncated - open the document above for the full version.

Photographs module 20124484300 Test set up PHOTOGRAPH 1: RADIATED EMISSIONS TEST SET UP, 0.15 – 30 MHZ ................................................................. 2 PHOTOGRAPH 2: EUT ON RADIATED EMISSIONS TEST TABLE .............................................................................. 3 PHOTOGRAPH 2: TEST SETUP RADIATED EMISSIONS (0.03 - 1 GHZ) ................................................................... 4 PHOTOGRAPH 4: RADIATED EMISSIONS TEST SET UP > 1000 MHZ ..................................................................... 5 Page: 2 of 5 Report number:20124484300 Photograph 1: Radiated emissions test set up, 0.15 – 30 MHz Page: 3 of 5 Report number:20124484300 Photograph 2: EUT on radiated emissions test table Page: 4 of 5 Report number:20124484300 Photograph 3: Test setup radiated emissions (0.03 - 1 GHz) Page: 5 of 5 Report number:20124484300 Photograph 4: Radiated emissions test set up > 1000 MHz
