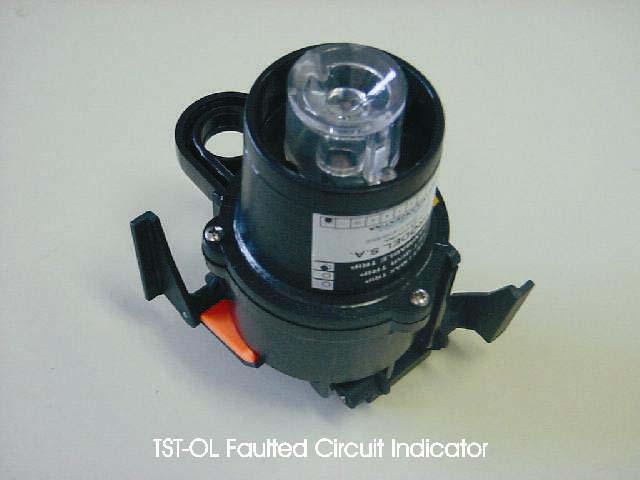

R8PTST-0H-1The Smart Tracer

Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: R8PTST-OH-1. Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: 1 - Schematic diagrams 2 - Detailed block diagrams 3 - Detailed operational descriptions The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, PRODEL S.A. Ing. Raúl A. Yuba President Franklin 456 - B1603BRJ - Villa Martelli - Pcia. de Buenos Aires - Argentina Telefax: ++54-11-4709-9300 Email: [email protected] http: www.prodel.com.ar

TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: PRODEL S.A. FCC ID: R8PTST-0H-1 REPORT #: P\PRODEL\349ZUT4\349ZUT4TestReport.doc COVER PAGE Test Report Product Name: THE SMART TRACER FCC ID: R8PTST-0H-1 Applicant: PRODEL S.A. FRANKLIN 456 1603 - VILLA MARTELLI PCIA. DE BUENOS AIRES ARGENTINA Date Receipt: MAY 18, 2004 Date Tested: JUNE 20, 2004 TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: PRODEL S.A. FCC ID: R8PTST-0H-1 REPORT #: P\PRODEL\349ZUT4\349ZUT4TestReport.doc TABLE OF CONTENTS TABLE OF CONTENTS APPLICANT: PRODEL S.A. FCC ID: R8PTST-0H-1 TEST REPORT CONTAINING: PAGE 1.............TEST EQUIPMENT LIST PAGE 2.............TEST PROCEDURE PAGE 3-4...........RADIATION INTERFERENCE TEST DATA PAGE 5.............CALCULATION OF DUTY CYCLE PAGE 6.............DUTY CYCLE PLOT PAGE 7.............OCCUPIED BANDWIDTH PAGE 8.............OCCUPIED BANDWIDTH PLOT EXHIBIT INCLUDING: BLOCK DIAGRAM SCHEMATICS INSTRUCTION MANUAL LABEL SAMPLE LABEL LOCATION EXTERNAL PHOTOGRAPHS INTERNAL PHOTOGRAPHS OPERATIONAL DESCRIPTION TEST SET UP PHOTOGRAPH TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: PRODEL S.A. FCC ID: R8PTST-OH-1 REPORT #: P\PRODEL\349ZUT4\349ZUT4TestReport.doc Page 1 of 8 EMC Equipment List Device Manufacturer Model Serial Number Cal/Char Date Due Date 3/10-Meter OATS TEI N/A N/A Listed 3/27/04 3/26/07 3-Meter OATS TEI N/A N/A Listed 1/13/03 1/13/06 Biconnical Antenna Eaton 94455-1 1057 CAL 3/18/03 3/18/05 Biconnical Antenna Eaton 94455-1 1096 CAL 10/1/01 10/1/03 Biconnical Antenna Electro- Metrics BIA-25 1171 CAL 4/26/01 4/26/03 Blue Tower Quasi-Peak Adapter HP 85650A 2811A01279 CAL 4/15/03 4/15/05 Blue Tower RF Preselector HP 85685A 2620A00294 out for Cal Blue Tower Spectrum Analyzer HP 8568B 2928A04729 2848A18049 CAL 4/15/03 4/15/05 Double- Ridged Horn Antenna Electro- Metrics RGA-180 2319 CAL 2/17/03 2/17/05 LISN Electro- Metrics ANS-25/2 2604 CAL 10/9/01 10/9/03 LISN Electro- Metrics EM-7820 2682 CAL 3/12/03 3/12/05 Log- Periodic Antenna Eaton 96005 1243 CAL 5/8/03 5/8/05 TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: PRODEL S.A. FCC ID: R8PTST-OH-1 REPORT #: P\PRODEL\349ZUT4\349ZUT4TestReport.doc Page 2 of 8 TEST PROCEDURE GENERAL: This report shall NOT be reproduced except in full without the written approval of TIMCO ENGINEERING, INC. RADIATION INTERFERENCE: The test procedure used was ANSI STANDARD C63.4-1992 using a HEWLETT PACKARD spectrum analyzer with a pre-selector. The bandwidth of the spectrum analyzer was 100 kHz with an appropriate sweep speed. The analyzer was calibrated in dB above a microvolt at the output of the antenna. The resolution bandwidth was 100kHz and the video bandwidth was 300kHz. The ambient temperature of the UUT was 98.3ºF with a humidity of 40%. FORMULA OF CONVERSION FACTORS: The Field Strength at 3m was established by adding the meter reading of the spectrum analyzer (which is set to read in units of dBuV) to the antenna correction factor supplied by the antenna manufacturer. The antenna correction factors are stated in terms of dB. The gain of the Preselector was accounted for in the Spectrum Analyzer Meter Reading. Example: Freq (MHz) METER READING + ACF = FS 33 20 dBuV + 10.36 dB = 30.36 dBuV/m @ 3m ANSI STANDARD C63.4-1992 10.1.7 MEASUREMENT PROCEDURES: The UUT was placed on a table 80 cm high and with dimensions of 1m by 1.5m. The UUT was placed in the center of the table. The table used for radiated measurements is capable of continuous rotation. The spectrum was scanned from 30 MHz to 10th harmonic of the fundamental. Peak readings were taken in three (3) orthogonal planes and the highest readings were converted to average readings based on the duration of "ON" time. When an emission was found, the table was rotated to produce the maximum signal strength. At this point, the antenna was raised and lowered from 1m to 4m. The antenna was placed in both the horizontal and vertical planes. Measurements were made by TIMCO ENGINEERING INC. at the registered open field test site located at 849 N.W. State Road 45, Newberry, Fl 32669. TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: PRODEL S.A. FCC ID: R8PTST-OH-1 REPORT #: P\PRODEL\349ZUT4\349ZUT4TestReport.doc Page 3 of 8 APPLICANT: PRODEL S.A. FCC ID: R8PTST-0H-1 NAME OF TEST: RADIATION INTERFERENCE RULES PART NO.: 15.231(e) REQUIREMENTS: Fundamental Field Strength Field Strength of Frequency of Fundamental Harmonics and Spurious MHz dBuV Emissions (dBuV/m @ 3m) 40.66 to 40.70 60 40 70 to 130 54 34 130 to 174 54-63.5 34 to 43.5 174 to 260 63.5 43.5 260 to 470 63.5-74 43.5 to 54 470 and above 74 54 THE LIMIT FOR AVERAGE FIELD STRENGTH dBuV/m FOR THE FUNDAMENTAL FREQUENCY = 72.86 dBuV/m. NO FUNDAMENTAL IS ALLOWED IN THE RESTRICTED BANDS. THE LIMIT FOR AVERAGE FIELD STRENGTH dBuV/m FOR THE HARMONICS AND SPURIOUS FREQUENCIES = 52.86 dBuV/m. SPURIOUS IN THE RESTRICTED BANDS MUST BE LESS THAN 54 dBuV/m OR 15.209. TEST DATA: Emission Frequency MHz Meter Reading dBuV Ant. Polarity Coax Loss dB Correction Factor dB Duty Cycle Factor dB Field Strength dBuV/m Margin dB 433.80 58.6 H 1.23 16.70 7.00 69.53 3.33 433.80 61.7 V 1.23 16.28 7.00 72.21 0.65 867.60 29.3 H 1.93 22.90 7.00 47.13 5.73 867.60 35.2 V 1.93 22.22 7.00 52.35 0.51 1,301.50 ** 23.7 H 2.34 26.23 7.00 45.27 8.73 1,301.50 ** 27.0 V 2.34 26.23 7.00 48.57 5.43 1,735.40 26.3 H 2.69 27.70 7.00 49.69 3.17 1,735.40 29.2 V 2.69 27.75 7.00 52.64 0.22 2,169.20 18.3 V 3.02 28.94 7.00 43.26 9.60 2,169.20 22.0 H 3.02 28.87 7.00 46.…
