R9RD227001Wireless AV Unit

R Home Theater System Owner's Manual Naka_00.book Page 1 Monday, April 5, 2004 4:46 PM Home Theater System 2 WARNING TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. CAUTION TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SER- VICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure; that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of impor- tant operating and maintenance (servicing) instruc- tions in the literature accompanying the appliance. RF Exposure Information: The antenna used for this trans- mitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or op- erating in conjunction with any other antenna or transmitter. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installa- tion. This equipment generates, uses and can radiate radio fre- quency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interfer- ence will not occur in a particular installation. If this equipment does cause harmful interference to radio or television recep- tion, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/ TV technician for help. WARNING The Federal Communications Commission does not allow any modifications or changes to the unit EXCEPT as that specified by Nakamichi in this manual. Failure to comply with this gov- ernment regulation could void your authority to operate the equipment. This digital apparatus does not exceed the CLASS B limits for radio noise emissions from digital apparatus set out in the Ra- dio Interference Regulations of the Canadian Department of Communications. Please record the serial number in the space provided below and retain this number. The serial number is located on the rear panel of the unit. RISK OF ELECTRIC SHOCK. DO NOT OPEN! CAUTION Model Number: SoundSpace 12 MK II Serial Number :

. . . . . . . ............................... 146 Robinson Road #01-01 Singapore 068909 Nakamichi Nakamichi Research (S) Pte Ltd 1 st July 2004 Reviewing Engineer Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 RE: Letter of Agent Authorization FCC ID : R9RD227001 To Whom It May Concern: We, the undersigned, hereby authorize MET LABORATORIES , INC to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988,21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Chan Kim Koon Assistant General Manager Audio R&D I Nakamichi Research (S) Pte Ltd

Marianne Bosley From: Jenny Chen [[email protected]] Sent: Wednesday, August 11, 2004 7:06 AM To: Chris Harvey Cc: [email protected] Subject: Fw: SS12MKII RF Information in owner manual 8/11/2004 Dear Chris Please find the enclosed user manual for your kind attention. The client had add the RF exposure. Thank you Warmest Regards Jenny Chen Compliance Manager Sibercert Pte Ltd (A Subsidiary of PSB Corporation) 3 Science Park Drive #01-03 PSB Annex Singapore 118223 DID *65 6885 1674 Fax *65 6779 2577 Mobile *65 9753 2510 ++++++++++++++++++++++++++++++++++++++++++++++++++++++++++ This message contains information from Sibercert Pte Ltd. - Singapore and it is intended for the use of the recipient only. The information is privileged, confidential and proprietary in nature. Any unauthorized use, copying, review or disclosure of this message is strictly prohibited. If you receive this message in error, please notify the sender immediately by tele phone at (65) 68851674 or by electronic mail. Thank you.

Shari Meyers From: Chris Harvey [[email protected]] Sent: Friday, July 23, 2004 2:19 PM To: [email protected] Cc: Shari Meyers; Christina Karlhoff; 'Marianne Bosley' Subject: Additional information needed Nakamichi MT#15846 Page 1 of 1 7/27/2004 Jenny, I have reviewed the above referenced applications for the AV Unit and Wireless Speakers and have the following questions that need to be addressed before the review can be completed. 1) I can not find the RF Transmitter parts in the Block Diagrams. Please provide Block Diagrams that include the RF Transmission portion and the signal paths and frequencies. 2) There were 19 PDF documents submitted for the Schematic Diagram exhibits for these devices. Many of these schematics are for portions of the system that are not the EUT’s. Please consolidate the schematics for the AV Unit into one file and the Wireless Speakers into one file, each containing the RF transmitter portion of the device. 3) Please provide the following items defining the FHSS operation of this device: a) Is the hopping sequence pseudorandom, based on the technical description? (Op Desc. states random but predictable) b) Is each channel used equally on average, based on the technical description? c) Does the associated system receiver have a compliant input bandwidth, based on the measured 20 dB emission bandwidth? d) Does the associated system receiver have the ability to hop in synchronization with the transmitter, based on the technical description? e) Does the frequency hopping system comply with the non-coordination requirement? 4) Please submit the required RF Exposure information in the users manual for these devices indicating the need to keep 20cm spacing from the transmitters. Here is an example of acceptable information: Manual info needed: RF Exposure Information: The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. Best regards, Chris Harvey [email protected]

Marianne Bosley From: Chris Harvey [[email protected]] Sent: Friday, August 13, 2004 2:01 PM To: 'Chris Harvey'; 'Jenny Chen' Cc: [email protected]; 'william chua'; Chris Harvey Subject: RE: Additional information needed Nakamichi MT#15846 8/13/2004 Jenny, per our phone conversation this morning I looked back into the technical information for this Nakamichi application and find that the Report seems to document Frequency Hopping capability. The information provided during the phone conversation seemed to imply that this device is not a FHSS system. You indicated that this device operates using Amplitude Shift Key (ASK) modulation. In FCC 15.247 for operation at 2.4GHz band you can either be a FHSS device or a Digital Transmission System (DTS). FHSS devices must comply with the following sections: 15.247(a)(1), 15.247(a)(1)(iii) , 15.247(b)(1, 2 & 4), 15.247(g), 15.247(h) DTS (Digitally Modulated Systems) must comply with the following sections: 15.247(a)(2), 15.247(b)(3), 15.247(c), 15.247(d) The original request was to show compliance with the 15.247(a)(1) and 15.247(a)(iii) and 15.247(h): 3) Please provide the following items defining the FHSS operation of this device: a) Is the hopping sequence pseudorandom, based on the technical description? (Op Description states random but predictable) b) Is each channel used equally on average, based on the technical description? c) Does the associated system receiver have a compliant input bandwidth, based on the measured 20 dB emission bandwidth? d) Does the associated system receiver have the ability to hop in synchronization with the transmitter, based on the technical description? e) Does the frequency hopping system comply with the non-coordination requirement? Please either address the questions above or show that this device complies with all the requirements for a Digitally Modulated System (DTS). If this is a DTS device, please amend the test report to show compliance with the DTS requirements listed earlier in this e-mail. I think the confusion in this application is that the test report seems to partially document compliance as an FHSS device and partially as a DTS device. I look forward to your reply to clarify the intent of this application and exhibits. Best regards, Chris Harvey -----Original Message----- From: Chris Harvey [mailto:[email protected]] Sent: Tuesday, August 10, 2004 10:37 AM To: 'Jenny Chen' Cc: '[email protected]'; 'william chua'; Chris Harvey ([email protected]) Subject: RE: Additional information needed Nakamichi MT#15846 Jenny, thank you for all the files. The response for Question #3 does not address the questions being asked. From the description provided this does not sound like Frequency Hoipping Spread Spectrum. Please ask the customer for assistance in providing full technical response to the specific questions to determine if this device operates using the FCC definitions of FHSS (by the way Bluetooth devices do meet the FCC definition, but I do not see in the documentation that this device meets the Bluetooth requirements). I am still awaiting the manual revision with the RF Exposure statements per question #4. Please note that each attachment must be uploaded. In the future, please try to submit one PDF file for each exhibit type. So for example, please submit one PDF document for the Schematic exhibit. When you submit 20 separate exhibits, even if they are zipped into a compressed folder, this causes much extra work when uploading these documents to the FCC. There is a 4MB file size restriction, so please make sure to reduce the resolution to that necessary to view the file correctly if file size is an issue. Best regards, Chris Harvey -----Original Message----- From: Jenny Chen [mailto:[email protected]] Sent: Wednesday, August 04, 2004 8:07 AM To: Chris Harvey Cc: [email protected]; william chua Subject: Re: Additional information needed Nakamichi MT#15846 Dear Chris Please see my red remark. Thank you Warmest Regards Jenny Chen Compliance Manager Sibercert Pte Ltd (A Subsidiary of PSB Corporation) 3 Science Park Drive #01-03 PSB Annex Singapore 118223 DID *65 6885 1674 Fax *65 6779 2577 Mobile *65 9753 2510 ++++++++++++++++++++++++++++++++++++++++++++++++++++++++++ This message contains information from Sibercert Pte Ltd. - Singapore and it is intended for the use of the recipient only. The imation is privileged, confidential and proprietary in nature. Any unauthorized use, copying, review or disclosure of this message is strictly prohibited. If you receive this message in error, please notify the sender immediately by telephone at (65) 68851674 or by electronic mail. Thank you. ----- Original Message ----- From: Chris Harvey To: [email protected] Cc: Shari Meyers ; Christina Karlhoff ; 'Marianne Bosley' Sent: Saturday, July 24, 2004 2:19 AM Sub ject: Additional information needed Nakamichi MT#15846 8/13/2004 Jenny, I have reviewed the above referenced applications for the AV Unit and Wireless Speakers and have the following questions that need to be addressed before the review can be completed. 1) I can not find the RF Transmitter parts in the Block Diagrams. Please provide Block Diagrams that include the RF Transmission portion and the signal paths and frequencies. Ans by JC : Refer to Wireless Transceiver Unit Block Diagram and Wireless Speaker Block Diagram 2) There were 19 PDF documents submitted for the Schematic Diagram exhibits for these devices. Many of these schematics are for portions of the system that are not the EUT’s. Please consolidate the schematics for the AV Unit into one file and the Wireless Speakers into one file, each containing the RF transmitter portion of the device. Ans by JC : Please refer to each zip file. 3) Please provide the following items defining the FHSS operation of this device: a) Is the hopping sequence pseudorandom, based on the technical description? (Op Desc. states random but predictable) b) Is each channel used equally…

Text truncated - open the document above for the full version.

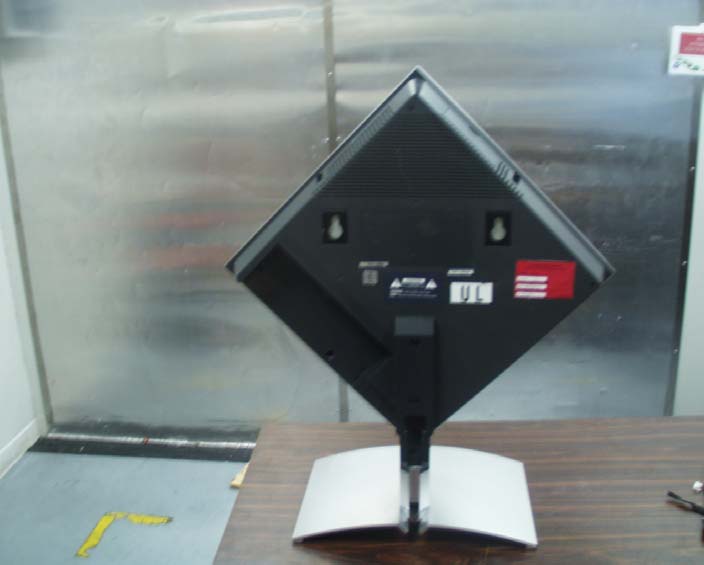

Product: DVD Home Entertainment System FCC ID: R9RD227001 & R9RD227002 Model : SS12MKII EUT PHOTOGRAPHS OF MAIN UNIT Front View Rear View 56S040195 56S040195

Physical Location of FCC Label on EUT – AV Unit Sample Label – Wireless Speaker (Left/Right) FCC ID Label Location

Product: DVD Home Entertainment System FCC ID: R9RD227001 & R9RD227002 Model : SS12MKII EUT PHOTOGRAPHS OF MAIN UNIT Front View Rear View 56S040195 56S040195 Product: DVD Home Entertainment System FCC ID: R9RD227001 & R9RD227002 Model : SS12MKII EUT PHOTOGRAPHS OF MAIN UNIT Main Unit – Internal Layout 56S040195 Product: DVD Home Entertainment System FCC ID: R9RD227001 & R9RD227002 Model : SS12MKII EUT PHOTOGRAPHS OF MAIN UNIT Main Unit – MainBoard Component Side 56S040195 Product: DVD Home Entertainment System FCC ID: R9RD227001 & R9RD227002 Model : SS12MKII EUT PHOTOGRAPHS OF MAIN UNIT Main Unit – MainBoard Trace Side 56S040195 Product: DVD Home Entertainment System FCC ID: R9RD227001 & R9RD227002 Model : SS12MKII EUT PHOTOGRAPHS OF MAIN UNIT Main Unit – LCD Display Component Side 56S040195 Product: DVD Home Entertainment System FCC ID: R9RD227001 & R9RD227002 Model : SS12MKII EUT PHOTOGRAPHS OF MAIN UNIT Main Unit – LCD Display Trace Side 56S040195 Product: DVD Home Entertainment System FCC ID: R9RD227001 & R9RD227002 Model : SS12MKII EUT PHOTOGRAPHS OF MAIN UNIT Main Unit – Video Board Component Side 56S040195 Product: DVD Home Entertainment System FCC ID: R9RD227001 & R9RD227002 Model : SS12MKII EUT PHOTOGRAPHS OF MAIN UNIT Main Unit – Video Board Trace Side 56S040195 Product: DVD Home Entertainment System FCC ID: R9RD227001 & R9RD227002 Model : SS12MKII EUT PHOTOGRAPHS OF MAIN UNIT Main Unit – Digital Board Component Side 56S040195 Product: DVD Home Entertainment System FCC ID: R9RD227001 & R9RD227002 Model : SS12MKII EUT PHOTOGRAPHS OF MAIN UNIT Main Unit – Digital Board Trace Side 56S040195 Product: DVD Home Entertainment System FCC ID: R9RD227001 & R9RD227002 Model : SS12MKII EUT PHOTOGRAPHS OF MAIN UNIT Main Unit – DVD Board Component Side 56S040195 Product: DVD Home Entertainment System FCC ID: R9RD227001 & R9RD227002 Model : SS12MKII EUT PHOTOGRAPHS OF MAIN UNIT Main Unit – DVD Board Trace Side 56S040195 TEST PHOTOGRAPHS / DIAGRAMS ANNEX B EUT PHOTOGRAPHS OF MAIN UNIT Main Unit – CD Board Component Side 56S040195 TEST PHOTOGRAPHS / DIAGRAMS ANNEX B EUT PHOTOGRAPHS OF MAIN UNIT Main Unit – CD Board Trace Side 56S040195 TEST PHOTOGRAPHS / DIAGRAMS ANNEX B EUT PHOTOGRAPHS OF MAIN UNIT Main Unit – Mega View 1 56S040195 TEST PHOTOGRAPHS / DIAGRAMS ANNEX B EUT PHOTOGRAPHS OF MAIN UNIT Main Unit – Mega View 2 56S040195 TEST PHOTOGRAPHS / DIAGRAMS ANNEX B EUT PHOTOGRAPHS OF AV UNIT Front View Rear View 56S040195 56S040195 RF Antenna TEST PHOTOGRAPHS / DIAGRAMS ANNEX B EUT PHOTOGRAPHS OF AV UNIT AV Unit Antenna Connector TEST PHOTOGRAPHS / DIAGRAMS ANNEX B EUT PHOTOGRAPHS OF AV UNIT AV Unit – Internal Layout 1 56S040195 TEST PHOTOGRAPHS / DIAGRAMS ANNEX B EUT PHOTOGRAPHS OF AV UNIT AV Unit – Internal Layout 2 56S040195 TEST PHOTOGRAPHS / DIAGRAMS ANNEX B EUT PHOTOGRAPHS OF AV UNIT AV Unit – Analog Component Side 56S040195 TEST PHOTOGRAPHS / DIAGRAMS ANNEX B EUT PHOTOGRAPHS OF AV UNIT AV Unit – Analog Trace Side 56S040195 TEST PHOTOGRAPHS / DIAGRAMS ANNEX B EUT PHOTOGRAPHS OF AV UNIT AV Unit – Power Supply Component Side 56S040195 TEST PHOTOGRAPHS / DIAGRAMS ANNEX B EUT PHOTOGRAPHS OF AV UNIT AV Unit – Power Supply Trace Side 56S040195 TEST PHOTOGRAPHS / DIAGRAMS ANNEX B EUT PHOTOGRAPHS OF AV UNIT AV Unit – Power Supply Sub-Board Component Side 56S040195 TEST PHOTOGRAPHS / DIAGRAMS ANNEX B EUT PHOTOGRAPHS OF AV UNIT AV Unit – Power Supply Sub-Board Trace Side 56S040195 TEST PHOTOGRAPHS / DIAGRAMS ANNEX B EUT PHOTOGRAPHS OF AV UNIT AV Unit – Power Transformer Board Component View 1 56S040195 TEST PHOTOGRAPHS / DIAGRAMS ANNEX B EUT PHOTOGRAPHS OF AV UNIT AV Unit – Power Transformer Board View 2 56S040195 TEST PHOTOGRAPHS / DIAGRAMS ANNEX B EUT PHOTOGRAPHS OF AV UNIT AV Unit – RF Board Component Side (With RF Shield) 56S040195 RF Shield TEST PHOTOGRAPHS / DIAGRAMS ANNEX B EUT PHOTOGRAPHS OF AV UNIT AV Unit – RF Board Component Side (With RF Shield Removed) 56S040195 TEST PHOTOGRAPHS / DIAGRAMS ANNEX B EUT PHOTOGRAPHS OF AV UNIT AV Unit – RF Board Trace Side 56S040195 Antenna Port

The Wireless Transceiver module. The wireless Transceiver module is a digital wireless audio module which operates in ISM Band. The module consists of a master and one or more slaves. The Master sends audio stream data and the slaves receive the audio stream data. Main Features : • 4: 1 Audio Compression and Decompression. • Supports 16/24-bit stereo audio format. • Supports 44.1 KHz/ 48KHz sampling frequency. • Modulation Mode : o Frequency Hopping Spread Spectrum (FHSS) o Adaptive Frequency Selection (AFS) • Use 2.4GHz ISM Band • Forward Error Correction • Device ID setting • Operation voltage: 4.5V to 7V. Modulation Mode : Frequency Hopping Spread Spectrum (FHSS) is a transmission technology used in WLAN transmissions where the data signal is modulated with a narrowband carrier signal that "hops" in a random but predictable sequence from frequency to frequency as a function of time over a wide band of frequencies. But device using this hopping method receives a lot of interference from other devices that use 2.4GHz range frequency such as WLAN, and also from other Bluetooth devices that resides near it. FHSS, being built to avoid interfering with other devices, rather interferes a lot with devices that has high output power using 2.4GHz frequency range and with other FHSS devices. Therefore, the wireless Transceiver module also has adopted improved frequency hopping method called Adaptive Frequency Selection (AFS). During the initialization, the module scans 79 channels and selects the clear, non-interfered, and reliable channel and starts the communication between the master and slave. During the channel link, if the channel becomes unreliable and the error detection from FEC block exceeds the preset error threshold value, the module executes setup scanning, as in initialization, and reselects new clear and reliable channel. Through this method, high quality wireless audio can be achieved by avoiding any interference from WLAN, and other 2.4GHz frequency range devices. Device ID Setting To establish communication channel properly, hopping frequency and Syncword of each packet should be determined by Device ID(Identification). Device ID is unique value of each device, master and slaves. Only master and slaves with same Device ID can communicate each other. Device ID can be set manually in case selected master and slaves do not communicate together. With this the security of the transceiver can be achieved. Block Diagram RF Chip BaseBand Chip EEPROM DIP Switch Antenna LED Power supply Noise Filter LDO DAC Or ADC Line Out or Line In Internal supply

56S040195/05A Nakamichi Research (S) Pte Ltd Page 2 of 18 DVD HOME ENTERTAINMENT SYSTEM [ MODEL : SS12MKII ] [ FCC IDs: R9RD227001 & R9RD227002 ] TABLE OF CONTENTS TEST SUMMARY PRODUCT DESCRIPTION SUPPORTING EQUIPMENT LIST EUT OPERATING CONDITION TEST RESULTS ANNEX A - TEST INSTRUMENTATION & GENERAL PROCEDURES ANNEX B - EUT PHOTOGRAPHS / DIAGRAMS ANNEX C - USER MANUAL, TECHNICAL DESCRIPTION, BLOCK & CIRCUIT DIAGRAMS ANNEX D - FCC LABEL & POSITION 56S040195/05A Nakamichi Research (S) Pte Ltd Page 3 of 18 DVD HOME ENTERTAINMENT SYSTEM [ MODEL : SS12MKII ] [ FCC IDs: R9RD227001 & R9RD227002 ] TEST SUMMARY The product was tested in accordance with the customer's specifications. Test Results Summary Test Standard Description Pass / Fail FCC Part 15B & C: 2003 15.107, 15.207 Conducted Emissions Pass 15.205 Radiated Emissions (Restricted Band Requirements) Pass 15.109, 15.209 Radiated Emissions (Spurious Emissions) Pass Radiated Emissions (Fundamental Field Strength @ 3m) Pass 15.249 (a) Radiated Emissions (Harmonics Field Strength @ 3m) Pass 1.1310 Maximum Permissible Exposure Pass Notes 1. Three channels as listed below, which respectively represent the lower, middle and upper channels of the equipment under test (EUT) were chosen and tested. For each channel, the EUT was configured to operate in the test mode. Transmit Channel Frequency (GHz) Channel 0 2.402 Channel 39 2.441 Channel 78 2.480 2. The EUT is a Class B device when in non-transmitting state and meets the FCC Part15B Class B requirements for broadcast receiver as stated under section 15.101. Modifications The EUT was brought to compliance with the radiated emissions with following modifications: 1. A ferrite core, FRC 16X28X9-M2 (P/N: 708D000001) was added respectively onto the power cable of the left and right of the rear speakers. 56S040195/05A Nakamichi Research (S) Pte Ltd Page 4 of 18 DVD HOME ENTERTAINMENT SYSTEM [ MODEL : SS12MKII ] [ FCC IDs: R9RD227001 & R9RD227002 ] PRODUCT DESCRIPTION Description : The Equipment Under Test (EUT) is a DVD HOME ENTERTAINMENT SYSTEM. The system consists of: - AV Unit - Main Unit - Left and right wireless speakers (satellite speakers) - Center speaker - Subwoofer Unit - Main Remote Control - Sub Remote Control Manufacturer : Nakamichi Malaysia Sdn. Bhd. Lot 4A., Jalan Sultan Mohamed 3 Kaw Perindustrian Bandar Sultan Suleiman 42000 Port Klang, Selangor Daru Ehsan, Malaysia Model Number : SS12MKII FCC IDs : R9RD227001 (AV Unit) R9RD227002 (Wireless Speaker - Left & Right) Serial Number : 3SNB 3S016 Microprocessor : Hitachi H8S/2238B NEC uPD78018F Operating / Transmitting Frequency : 2.402GHz to 2.480GHz 79 channels. Starting at 2.402MHz with subsequent channel at 1MHz interval from the preceding channel. Clock / Oscillator Frequency : 33.8688MHz (DVD Front end M5705) 27.0000MHz (DVD MPEG Decoder Ziva-5) 24.5760MHz (Surround DSP YSS932) 16.9344MHz (CD DSP CXD2587Q) 12.2880MHz (Main Controller H8S/2238B) 8.3800MHz ( CD Controller uPD78018F) Modulation : Gaussian Frequency Shift Keying (GFSK) Pulse Train Cycle : 1.25ms / 3.75ms / 6.25ms / Continuos signal (in testing) Port / Connectors : Refer to manufacturer’s user manual Rated Input Power : 120V 60Hz 110W (AV Unit) 120V 60Hz 110W (Subwoofer) 120V 60Hz 110W (Rear Left & Right Speakers) 56S040195/05A Nakamichi Research (S) Pte Ltd Page 5 of 18 DVD HOME ENTERTAINMENT SYSTEM [ MODEL : SS12MKII ] [ FCC IDs: R9RD227001 & R9RD227002 ] SUPPORTING EQUIPMENT DESCRIPTION The DVD Home Entertainment System was tested as a stand-alone system without having any supporting equipment used during the test. 56S040195/05A Nakamichi Research (S) Pte Ltd Page 6 of 18 DVD HOME ENTERTAINMENT SYSTEM [ MODEL : SS12MKII ] [ FCC IDs: R9RD227001 & R9RD227002 ] EUT OPERATING CONDITIONS The DVD Home Entertainment System was powered from 110V, 60Hz mains supply. Tests Description Of Operation 1. Conducted Emissions 2. Radiated Emissions 3. Maximum Permissible Exposure The EUT was exercised by operating in the test mode with maximum transmitting power during the tests. The test mode allows the EUT to have a continuous RF transmission at low (2.402GHz), mid (2.441GHz) and high (2.480GHz) channels respectively. 56S040195/05A Nakamichi Research (S) Pte Ltd Page 7 of 18 DVD HOME ENTERTAINMENT SYSTEM [ MODEL : SS12MKII ] [ FCC IDs: R9RD227001 & R9RD227002 ] TEST RESULTS FCC Part 15B (15.107 & 15.207) Class B Conducted Emission Results Frequency (MHz) Q-P Value (dBμV) Q-P Margin (dB) AV Value (dBμV) AV Margin (dB) Line Channel Mode 0.1512 26.3 -39.6 23.7 -32.2 Live / Right Speaker 0 DVD 0.1715 26.1 -39.6 23.4 -32.3 Live / Left Speaker 0 DVD 1.5710 41.5 -20.0 30.6 -20.9 Neutral / AV Unit 0 DVD 1.8327 35.1 -26.1 27.5 -23.7 Neutral / Subwoofer 0 DVD 3.3261 40.1 -20.0 29.8 -20.3 Neutral / AV Unit 0 DVD 3.9427 27.6 -32.2 26.1 -23.7 Neutral / Subwoofer 0 DVD Tested by: LCH Notes 1. All possible modes of operation were investigated from 150kHz to 30MHz. Only the 6 worst case emissions measured, using the correct CISPR detectors, are reported. All other emissions were relatively insignificant. 2. For tuner mode, the test was conducted with the tuner port terminated with 50Ω terminator as the power level output at the tuner port was less than 2nW. 3. A "-ve" margin indicates a PASS as it refers to the margin present below the limit line at the particular frequency. 4. EMI receiver Resolution Bandwidth (RBW) and Video Bandwidth (VBW) settings: 9kHz - 30MHz RBW: 10kHz VBW: 30kHz 5. Conducted Emissions Measurement Uncertainty All test measurements carried out are traceable to national standards. The uncertainty of the measurement at a confidence level of approximately 95%, with a coverage factor of 2, in the range 9kHz – 30MHz (Average & Quasi-peak) is ±2.4dB. 56S040195/05A Nakamichi Research (S) Pte Ltd Page 8 of 18 DVD HOME ENTERTAINMENT SYSTEM [ MODEL : SS12MKII ] [ FCC IDs: R9RD227001 & R9RD227002 ] TEST RESULTS Conducted Emissions Setup (Front View) Conducted Emissions Setup (Rear View) 5…

Text truncated - open the document above for the full version.

TEST PHOTOGRAPHS / DIAGRAMS ANNEX B ANNEX B TEST PHOTOGRAPHS / DIAGRAMS TEST PHOTOGRAPHS / DIAGRAMS ANNEX B EUT PHOTOGRAPHS OF MAIN UNIT Front View Rear View 56S040195 56S040195 TEST PHOTOGRAPHS / DIAGRAMS ANNEX B EUT PHOTOGRAPHS OF MAIN UNIT Main Unit – Internal Layout 56S040195 TEST PHOTOGRAPHS / DIAGRAMS ANNEX B EUT PHOTOGRAPHS OF MAIN UNIT Main Unit – MainBoard Component Side 56S040195 TEST PHOTOGRAPHS / DIAGRAMS ANNEX B EUT PHOTOGRAPHS OF MAIN UNIT Main Unit – MainBoard Trace Side 56S040195 TEST PHOTOGRAPHS / DIAGRAMS ANNEX B EUT PHOTOGRAPHS OF MAIN UNIT Main Unit – LCD Display Component Side 56S040195 TEST PHOTOGRAPHS / DIAGRAMS ANNEX B EUT PHOTOGRAPHS OF MAIN UNIT Main Unit – LCD Display Trace Side 56S040195 TEST PHOTOGRAPHS / DIAGRAMS ANNEX B EUT PHOTOGRAPHS OF MAIN UNIT Main Unit – Video Board Component Side 56S040195 TEST PHOTOGRAPHS / DIAGRAMS ANNEX B EUT PHOTOGRAPHS OF MAIN UNIT Main Unit – Video Board Trace Side 56S040195 TEST PHOTOGRAPHS / DIAGRAMS ANNEX B EUT PHOTOGRAPHS OF MAIN UNIT Main Unit – Digital Board Component Side 56S040195 TEST PHOTOGRAPHS / DIAGRAMS ANNEX B EUT PHOTOGRAPHS OF MAIN UNIT Main Unit – Digital Board Trace Side 56S040195 TEST PHOTOGRAPHS / DIAGRAMS ANNEX B EUT PHOTOGRAPHS OF MAIN UNIT Main Unit – DVD Board Component Side 56S040195 TEST PHOTOGRAPHS / DIAGRAMS ANNEX B EUT PHOTOGRAPHS OF MAIN UNIT Main Unit – DVD Board Trace Side 56S040195 TEST PHOTOGRAPHS / DIAGRAMS ANNEX B EUT PHOTOGRAPHS OF MAIN UNIT Main Unit – CD Board Component Side 56S040195 TEST PHOTOGRAPHS / DIAGRAMS ANNEX B EUT PHOTOGRAPHS OF MAIN UNIT Main Unit – CD Board Trace Side 56S040195 TEST PHOTOGRAPHS / DIAGRAMS ANNEX B EUT PHOTOGRAPHS OF MAIN UNIT Main Unit – Mega View 1 56S040195 TEST PHOTOGRAPHS / DIAGRAMS ANNEX B EUT PHOTOGRAPHS OF MAIN UNIT Main Unit – Mega View 2 56S040195 TEST PHOTOGRAPHS / DIAGRAMS ANNEX B EUT PHOTOGRAPHS OF AV UNIT Front View Rear View 56S040195 RF Antenna 56S040195 TEST PHOTOGRAPHS / DIAGRAMS ANNEX B EUT PHOTOGRAPHS OF AV UNIT AV Unit Antenna Connector TEST PHOTOGRAPHS / DIAGRAMS ANNEX B EUT PHOTOGRAPHS OF AV UNIT AV Unit – Internal Layout 1 56S040195 TEST PHOTOGRAPHS / DIAGRAMS ANNEX B EUT PHOTOGRAPHS OF AV UNIT AV Unit – Internal Layout 2 56S040195 TEST PHOTOGRAPHS / DIAGRAMS ANNEX B EUT PHOTOGRAPHS OF AV UNIT AV Unit – Analog Component Side 56S040195 TEST PHOTOGRAPHS / DIAGRAMS ANNEX B EUT PHOTOGRAPHS OF AV UNIT AV Unit – Analog Trace Side 56S040195 TEST PHOTOGRAPHS / DIAGRAMS ANNEX B EUT PHOTOGRAPHS OF AV UNIT AV Unit – Power Supply Component Side 56S040195

TEST PHOTOGRAPHS / DIAGRAMS ANNEX B EUT PHOTOGRAPHS OF AV UNIT AV Unit – Power Supply Trace Side 56S040195 TEST PHOTOGRAPHS / DIAGRAMS ANNEX B EUT PHOTOGRAPHS OF AV UNIT AV Unit – Power Supply Sub-Board Component Side 56S040195 TEST PHOTOGRAPHS / DIAGRAMS ANNEX B EUT PHOTOGRAPHS OF AV UNIT AV Unit – Power Supply Sub-Board Trace Side 56S040195 TEST PHOTOGRAPHS / DIAGRAMS ANNEX B EUT PHOTOGRAPHS OF AV UNIT AV Unit – Power Transformer Board Component View 1 56S040195 EUT PHOTOGRAPHS OF AV UNIT TEST PHOTOGRAPHS / DIAGRAMS ANNEX B AV Unit – Power Transformer Board View 2 56S040195 TEST PHOTOGRAPHS / DIAGRAMS ANNEX B EUT PHOTOGRAPHS OF AV UNIT AV Unit – RF Board Component Side (With RF Shield) RF Shield 56S040195 TEST PHOTOGRAPHS / DIAGRAMS ANNEX B EUT PHOTOGRAPHS OF AV UNIT AV Unit – RF Board Component Side (With RF Shield Removed) 56S040195 TEST PHOTOGRAPHS / DIAGRAMS ANNEX B EUT PHOTOGRAPHS OF AV UNIT AV Unit – RF Board Trace Side Antenna Port 56S040195 TEST PHOTOGRAPHS / DIAGRAMS ANNEX B EUT PHOTOGRAPHS OF SUBWOOFER Front View Rear View 56S040195 56S040195 TEST PHOTOGRAPHS / DIAGRAMS ANNEX B EUT PHOTOGRAPHS OF SUBWOOFER Subwoofer – Internal Layout 56S040195 TEST PHOTOGRAPHS / DIAGRAMS ANNEX B EUT PHOTOGRAPHS OF SUBWOOFER Subwoofer – Amplifier Board Component Side 56S040195 TEST PHOTOGRAPHS / DIAGRAMS ANNEX B EUT PHOTOGRAPHS OF SUBWOOFER Subwoofer – Amplifier Board Trace Side 56S040195 TEST PHOTOGRAPHS / DIAGRAMS ANNEX B EUT PHOTOGRAPHS OF SUBWOOFER Subwoofer – Power Supply Component Side 56S040195 TEST PHOTOGRAPHS / DIAGRAMS ANNEX B EUT PHOTOGRAPHS OF SUBWOOFER Subwoofer – Power Supply Trace Side 56S040195 TEST PHOT…
