OWNER'S MANUAL Cordless Telephone Caller ID with Call Waiting PLEASE READ BEFORE OPERATING THIS EQUIPMENT Model : TC590 Safety Instructions ................................................................................................... 3 HANDSET CONTROLS .......................................................................................... 5 BASE UNIT Controls ............................................................................................... 7 Getting Started ......................................................................................................... 8 Belt Clip Installation ............................................................................................ 9 Cordless Telephone Operation ................................................................................ 10 Preparing for Use ............................................................................................... 10 Receiving Calls .................................................................................................. 10 Placing Calls ...................................................................................................... 11 Redial Feature ................................................................................................... 11 Using the Headset Feature ................................................................................ 12 Caller ID System Operation ...................................................................................... 13 Caller ID System ................................................................................................ 13 Viewing Caller Information During Incoming Calls ............................................... 13 Caller ID with Call Waiting .................................................................................. 14 Message Waiting ............................................................................................... 14 One-Touch Voice Mail Dialing ............................................................................ 14 Caller List ........................................................................................................... 15 Viewing the Caller List .................................................................................. 15 Placing a Call from the Caller List ................................................................. 15 Storing Caller ID Records into the DIRECTORY (PHONE BOOK) ................. 16 Deleting a Single Record in the Caller List .................................................... 16 Deleting all Records in the Caller List ........................................................... 16 Name and Telephone Number DIRECTORY (PHONE BOOK) .......................... 17 Viewing the DIRECTORY (PHONE BOOK) ................................................. 17 Storing Phone Numbers ............................................................................... 17 Telephone Keypad Characters ..................................................................... 18 Placing Calls from the DIRECTORY (PHONE BOOK) .................................. 19 Editing a Stored Number in the DIRECTORY (PHONE BOOK) .................... 19 Deleting a Stored Number in the DIRECTORY (PHONE BOOK) .................. 20 Preferred Calls ............................................................................................. 20 Blocked Calls ............................................................................................... 20 Contents 2 Function Settings ...............................................................................................21 A. Setting the Ringer Level ..........................................................................22 B. Changing the Language ..........................................................................22 C. Turning the First Ring ON or OFF ............................................................23 D. Setting the Time and Date .......................................................................23 E. Adjusting the Contrast .............................................................................24 F. Setting the PBX Number .........................................................................24 G. Changing the Flash Time ........................................................................24 H. Changing the Pause Time .......................................................................25 I. Programming One-Touch Voice Mail Dialing ...........................................25 J. Deleting Message Waiting Indication .......................................................26 K. Setting the Area Code .............................................................................26 Security System ........................................................................................................27 Recharging the BATTERY PACK .............................................................................28 Changing the BATTERY PACK ................................................................................28 Problem Solving .......................................................................................................29 Technical I nformation ...............................................................................................31 FCC Requirements ...................................................................................................32 2 Contents Safety Instructions IMPORTANT SAFETY INSTRUCTIONS To reduce the risk of fire, electric shock and/or injury, always follow these basic safety precautions when using your cordless telephone equipment. 1. Read and understand all instructions. 2. Follow all warnings and instructions marked on the telephone. 3. Do not use this telephone near a bathtub, wash bowl, kitchen sink, or laundry tub, in a wet basement, near a swimming pool, or anywhere else where there is water. 4. Avoid using a telephone (other than a…

Text truncated - open the document above for the full version.

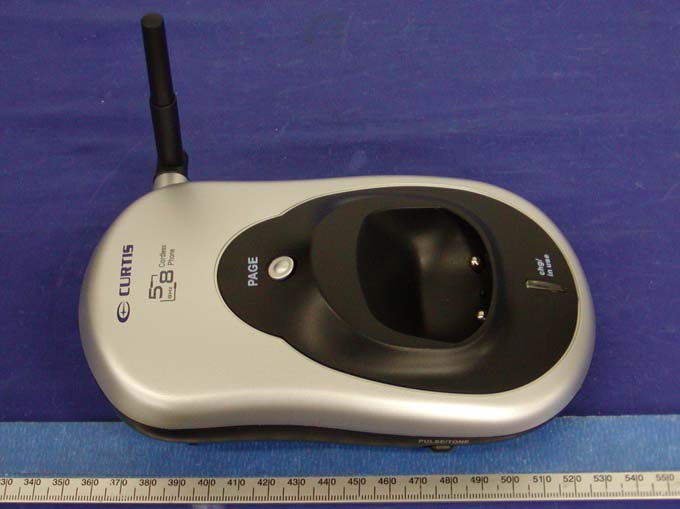

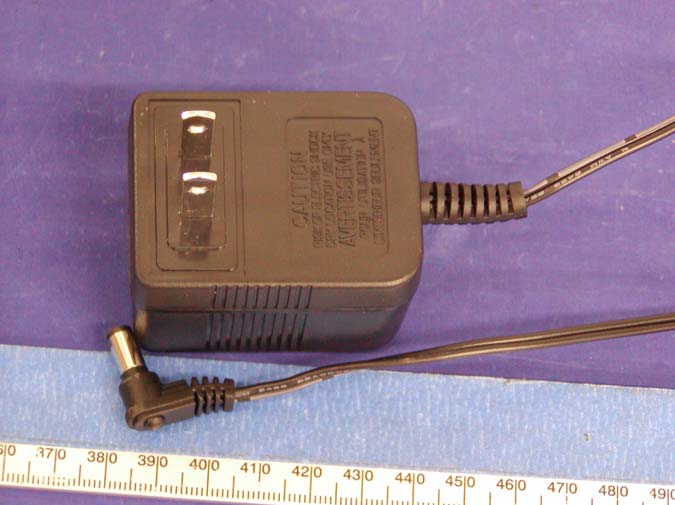

EXHIBIT C - EUT EXTERNAL PHOTOGRAPHS EUT – Chassis Top View EUT – Chassis Rear View Adapter View Top View Adapter View Bottom View

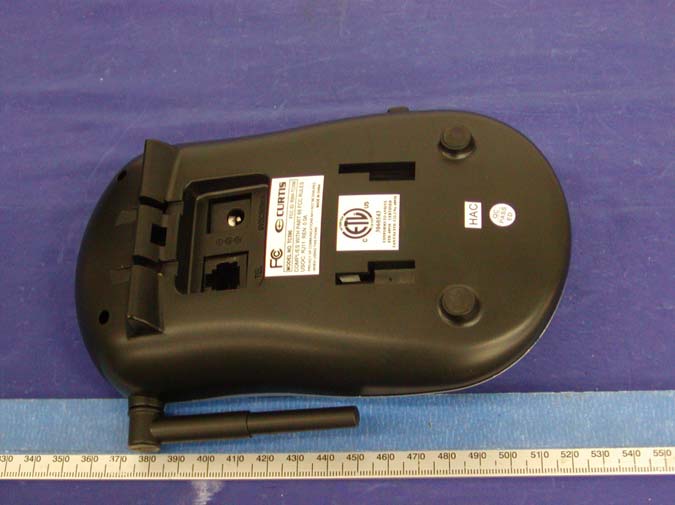

EXHIBIT A - FCC ID LABEL INFORMATION Proposed FCC ID Label Specifications : Text is black or white in color and is left justified. Labels are silk- screened and shall be “permanently affixed” at a conspicuous location on the EUT. Proposed Label Location on EUT Bottom View of EUT / FCC ID Label FCC ID: R9WTC-STC590-595 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 2.1875" 1.0"

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS EUT – Main Board Component View 1 EUT – Main Board Component View 2 EUT – Main Board Solder View 1 EUT – Main Board Solder View 2 Transceiver View

Model ： TC590/STC590/TC595/STC595 Short Description TX Part: Base unit receives MIC signals by Handset RF Frequency Modulation. These signals that RF part of base unit receives send to PSTN through TIP/RING after mixing and demodulation. RX Part: Sound signals Send to the both side of base unit TIP/RING by PSTN, and then, send to RF to modulation to transmit to handset. Handset will receive the returned signal and send to speaker after mixing and demodulation. Frequency modulation: Handset: MCU controls stably VCO oscillation frequency point on 903.94M Hz （ Channel 20 ） by PLLIC , after amplifying the frequency point : 5868.22 Mhz, transmitting signal by FM modulation. Base: MCU controls VCO circuit by PLL IC circuit to make the VCO oscillation frequency on 903.94Mhz(20 CH) stably. Transmit signal by FM modulation after amplify 903.94 Mhz frequency point.

5.8GHzHSRFV2.sch-1 - Wed Oct 20 14:12:42 2004 PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.com.cn 5g8hscid_02A.sch-1 - Wed Oct 20 14:15:32 2004 PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.com.cn

Note: The test report is specially limited to the above company and the product model only. It may not be duplicated without prior written consent of Bay Area Compliance Laboratory Corporation. This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST or any agency of the US Government. FCC PART 15.249 EMI MEASUREMENT AND TEST REPORT For Qiaoxing Telecom Industry Co., Ltd. Qiaoxing Science Zone, Tangquan Huizhou City, Guangdong, P.R.C. FCC ID: R9WTC-STC590-595 This Report Concerns: Original Report Equipment Type: 900 MHz Analog Cordless Phone - Base Test Engineer: Snell Leong Report No.: R0410223 Report Date: 2004-10-18 / 2004-10-20 Reviewed By: Ming Jing Prepared By: Bay Area Compliance Laboratory Corporation 230 Commercial Street Sunnyvale, CA 94085 Tel (408) 732-9162 Fax (408) 732-9164 Qiaoxing Telecom Industry Co., Ltd. FCC ID: R9WTC-STC590-595 Report # R0410223Rpt.doc Page 2 of 19 FCC Part 15.249 Test Report TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................................................3 OBJECTIVE...................................................................................................................................................................3 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................3 TEST METHODOLOGY..................................................................................................................................................3 TEST FACILITY.............................................................................................................................................................3 SYSTEM TEST CONFIGURATION ..........................................................................................................................5 DESCRIPTION OF TEST CONFIGURATION......................................................................................................................5 EQUIPMENT MODIFICATIONS.......................................................................................................................................5 LOCAL SUPPORT EQUIPMENT LIST AND DETAILS........................................................................................................5 EXTERNAL I/O CABLING LIST AND DETAILS...............................................................................................................5 CONFIGURATION OF TEST SYSTEM..............................................................................................................................5 TEST SETUP BLOCK DIAGRAM.....................................................................................................................................6 SUMMARY OF TEST RESULTS ...............................................................................................................................7 §15.203 - ANTENNA REQUIREMENT......................................................................................................................8 STANDARD APPLICABLE..............................................................................................................................................8 ANTENNA CONNECTED CONSTRUCTION......................................................................................................................8 § 15.249 (C) - CONDUCTED EMISSIONS TEST DATA .........................................................................................9 MEASUREMENT UNCERTAINTY....................................................................................................................................9 EUT SETUP..................................................................................................................................................................9 SPECTRUM ANALYZER SETUP......................................................................................................................................9 TEST EQUIPMENT LIST AND DETAILS...........................................................................................................................9 TEST PROCEDURE........................................................................................................................................................9 ENVIRONMENTAL CONDITIONS..................................................................................................................................10 SUMMARY OF TEST RESULTS.....................................................................................................................................10 CONDUCTED EMISSIONS TEST DATA.........................................................................................................................10 PLOT OF CONDUCTED EMISSIONS TEST DATA...........................................................................................................10 §15.209(A) - RADIATED EMISSION DATA ...........................................................................................................13 MEASUREMENT UNCERTAINTY..................................................................................................................................13 EUT SETUP................................................................................................................................................................13 SPECTRUM ANALYZER SETUP....................................................................................................................................13 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................1…

Text truncated - open the document above for the full version.

EXHIBIT B - TEST SETUP PHOTOGRAPHS Conducted Emission Radiated Emission
