RAMTX100Paging transmitter

FCC NOTICE WARNING : The antenna must be installed in a manner that ensures a minimum separation distance of 20 centimeters between the antenna and human beings. .RF Radiation Exposure This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment must be installed and operated with a minimum distance of 20 centimeters between the radiator and your body. .Warning ! No user serviceable parts Alteration or modification to any part of this equipment, without the prior written consent of the manufacturer, will invalidate all manufacturer approvals and warranty. No adjustments can be undertaken except by qualified and licensed persons as defined by the FCC Rules and Regulations. Operation of altered equipment can result in fines, imprisonment, and /or confiscation of such equipment. User Manual 1. Send message - individual LCD display = Enter Pager no. Press pager number and press "send" 2. Send message - to all pagers group LCD display = Enter Pager no. Press 9111 and press "send" 3. Set time Press "set up" LCD display = Set Current Time Press times and minutes, and press any numeric buttons to choose AM or PM. If everything is correct, press "select" to set up. If any mistakes, press "Enter" You can chage times, minutes and AM or PM. Once corrected, press "select" to set up. 4. Password LCD display = Input Password? Press password and pess "Enter" The master password is "0852". If new password, 'Type again' will appeare and you need to press the new password twice. 5. Adding new pager LCD display = Add New Pager Num > Cap code > Cnt Num = 1st pager you want to program Cap code = The cap code of the 1st pager you want to program. Cnt = Total number of pagers you want to program. After completion, press "select". 6. Erasing Pager LCD display = Erase Pager Num > Cap code > Cnt Num = 1st pager you want to erase Cap code = It skips because the cap codes are already programmed. After completion, press "select". 7. Setting Group Call LCD display = Set Group Call no. 9111 > 0010000 Press group number you want to use and press "enter". The group number has been changed now. If possible not to change it because it may create confusion unless you use the same Tx for very close two hospitals or churches. 8. Go to initial mode. Press "cancel" any time and you can go to the initial mode any time.

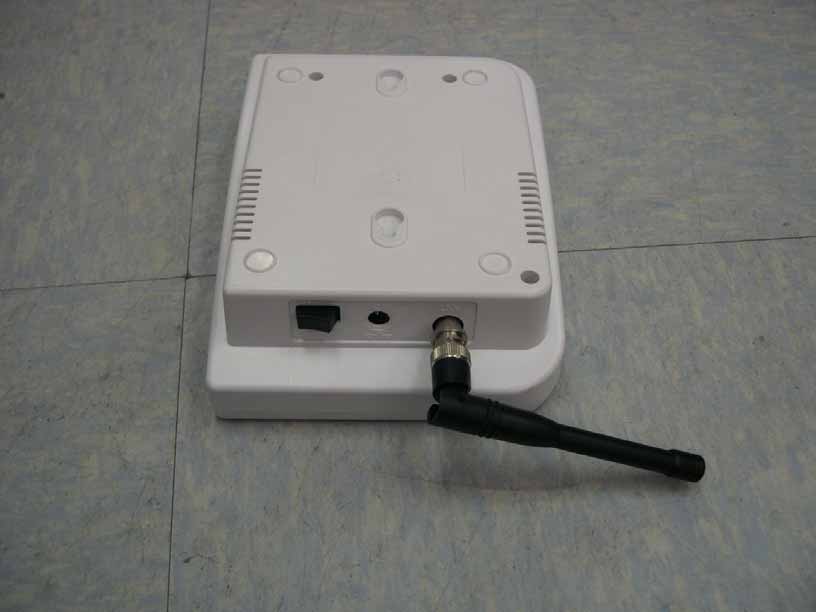

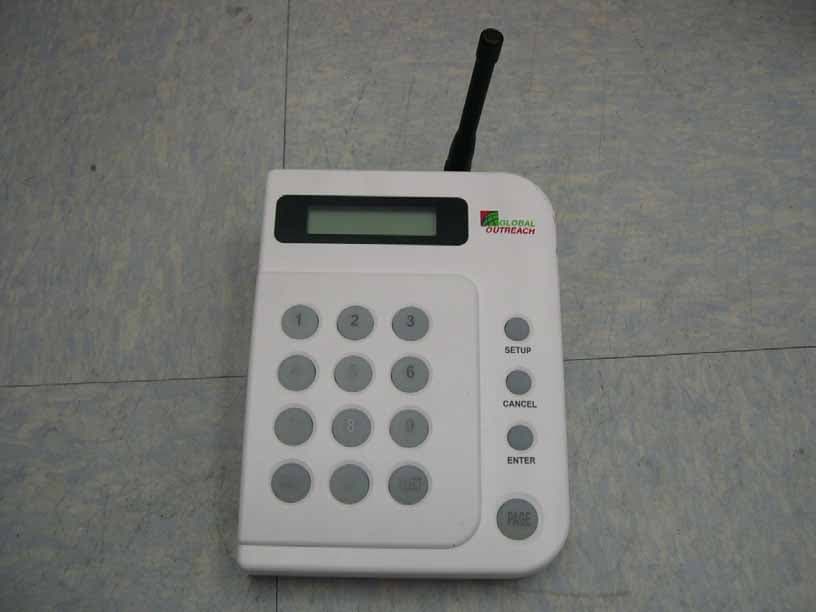

DSCN1242 (1280x960x16M jpeg) TX100 ExtPho (1280x960x16M jpeg)

TX100 Labal Loc (1280x960x16M jpeg)

FCC MARKING/LABEL FOR PART FCC ID : RAMTX100 Trade Name :Global outreach Model No. : TX100 THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS : (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.

P9240210 (1024x768x16M jpeg) P9240212 (1024x768x16M jpeg) P9240214 (1024x768x16M jpeg) P9240215 (1024x768x16M jpeg) P9240218 (1024x768x16M jpeg) TX 100 IntPho (1024x768x16M jpeg)

6/1/2005 Page 1 of 2 FCCID: RAMTX100 RF exposure exhibit FCC RF Exposure Requirements General information : FCCID: RAMTX100 Modulation: Device category: Mobile per Part 2.1091 Environment: General Population/Uncontrolled Exposure Otherwise, compliance with the power density limits of 1.1310 is required. Antenna: The device has a portable antenna to be used for the purpose of reading tags Configuration Antenna p/n Type Max. Gain (dBi) Indoor None - 1 Operating configuration and exposure conditions: The conducted output power is 0.331 W MPE Calculation : The minimum separation distance is calculated as follows: The limit for general population/uncontrolled exposure environment is 0.3mW/cm2* for a Channel Frequency: 457.5750 MHz (A) Antenna Gain (dBi) Separation Distance 1 Power Conducted (W) Duty Cycle (%) (in) (cm) 0.331 100 10.5 - - - - 6/1/2005 Page 2 of 2 FCCID: RAMTX100 (B) Max. Antenna Gain (dBi) Power Density at 20 cm distance 1 - - Freq (MHz) Power Coducted (W) Duty Cycle (%) (mW/cm 2 ) (mW/cm 2 ) (mW/cm 2 ) 457.5750 0.331 100 0.08 - - - - Conclusion: The device complies with the MPE requirements by providing a safe separation distance of 20 cm between the antenna, including any radiating structure, and any persons when normally operated . *

THRUlab & Engineering. RM302,BOKJO,29-15 , CHONGPA3-DONG YONGSAN-GU, SEOUL, KOREA 81221095059F81221095056 email [email protected] APPLICANT: NEXTEL FCC ID: RAMTX100 REPORT #: THRU-505030 COVER SHEET Test Report Product Name: Pager transmitter FCC ID: RAMTX100 Applicant: NEXTEL 1026-1,Hogye-Dong,Dongan-Gu, Anyang-City, Kyungki-Do KOREA Date Receipt:03/25/2005 Date Tested: 05/12/2005 THRUlab & Engineering. RM302,BOKJO,29-15 , CHONGPA3-DONG YONGSAN-GU, SEOUL, KOREA 81221095059F81221095056 email [email protected] APPLICANT: NEXTEL FCC ID: RAMTX100 REPORT #: THRU-505030 TABLE OF CONTENTS TABLE OF CONTENTS LIST FOR PART 90 UHF DEVICE APPLICANT: NEXTEL FCC ID: RAMTX100 TEST REPORT CONTAINING: PAGE 1.............GENERAL INFORMATION & TECHNICAL DESCRIPTION PAGE 2.............TECHNICAL DESCRIPTION CONTINUED & RF POWER OUTPUT PAGE 3.............RF POWER OUTPUT PLOT PAGE 4-6...........FIELD STRENGTH OF SPURIOUS EMISSIONS PAGE 7-8...........UNWANTED RADIATION PAGE 9.............RADIATION INTERFERENCE PAGE 10-11.........BANDWIDTH LIMITATION PAGE 12-13.........OCCUPIED BANDWIDTH PAGE 14............FREQUENCY STABILITY PAGE 15-16.........POWERLINE CONDUCTED INTERFERENCE PAGE 17-19.........TRANSIENT FREQUENCY BEHAVIOR PAGE 20............LIST OF TEST EQUIPMENT EXHIBITS CONTAINING: EXHIBIT 1............FCC ID LABEL SAMPLE AND SKETCH OF LOCATION EXHIBIT 2............SCHEMATIC EXHIBIT 3............BLOCK DIAGRAM EXHIBIT 4............EXTERNAL PHOTOGRAPHS EXHIBIT 5............INTERNAL PHOTOGRAPHS EXHIBIT 6............USERS MANUAL EXHIBIT 7............OPERATIONAL DESCRIPTION EXHIBIT 8............PARTS LIST EXHIBIT 9............TUNING PROCEDURE EXHIBIT 10...........TEST SETUP PHOTOGRAPH THRUlab & Engineering. RM302,BOKJO,29-15 , CHONGPA3-DONG YONGSAN-GU, SEOUL, KOREA 81221095059F81221095056 email [email protected] APPLICANT: NEXTEL FCC ID: RAMTX100 REPORT #: THRU-505030 1 of 20 GENERAL INFORMATION REQUIRED FOR TYPE ACCEPTANCE 2.1033 NEXTEL. will sell the (c)(1)(2) FCC ID: RAMTX100 VHF transceiver in quantity, for use under FCC RULES PART 90 . 2.1033 (C) TECHNICAL DESCRIPTION 2.1033 (3) User Manual See Exhibit 6 2.1033 (4) Type of Emission: 10K2F1D FOR 25kHz Bn = 2M + 2DK M = 1,200 Bits per second D = 4.5 kHz (Peak Deviation) K = 1 Bn = 2(1,200bps/2) + 2(4500)(1) = 10.2k ALLOWED AUTHORIZED BANDWIDTH = 10.2 kHz. 90.209(b) (5) 2.1033 (5) Frequency Range: 457.5750 MHz 2.1034 (6) Power Range and Controls: There are NO user Power controls. (7) Maximum Output Power Rating: see Next Page. (8) DC Voltages and Current into Final Amplifier: POWER INPUT FIANL AMPLIFIER ONLY Vce = 9 Volts IC = 100 mA (9) Tune-up procedure. The tune-up procedure is given in EXHIBIT 9. 2.1033 (10) Complete Circuit Diagrams: The circuit diagram is included as EXHIBIT 2. The block diagram is included as EXHIBIT 3. (11) Function of each electron tube or semiconductor device or other active circuit device: - SEE EXHIBIT 8. THRUlab & Engineering. RM302,BOKJO,29-15 , CHONGPA3-DONG YONGSAN-GU, SEOUL, KOREA 81221095059F81221095056 email [email protected] APPLICANT: NEXTEL FCC ID: RAMTX100 REPORT #: THRU-505030 2 of 20 (8) Instruction book. The instruction manual is included as EXHIBIT 6. (10) Description of all circuitry and devices provided for determining and stabilizing frequency is included in the circuit description in Exhibit #7. 2.1033(c)(11) A photograph or drawing of the equipment identification label is shown in Exhibit 1. 2.1033(c)(12) Photographs of the equipment of sufficient clarity to reveal equipment construction and layout and label location are shown in Exhibit 4-5. 2.1033(c)(13) For equipment employing digital modulation, a detail description of the modulation technique. This UUT uses FSK to modulate the transmitter. 2.1033(c)(14) Data required for 2.1046 to 2.1057 See Below 2.1046(a) RF power output. & 90.205 MAXIMUM PEAK OUTPUT POWER(CONDUCTED) Maximum peak output power(W) 457.568MHz (0.331w) 25.2dBm THRUlab & Engineering. RM302,BOKJO,29-15 , CHONGPA3-DONG YONGSAN-GU, SEOUL, KOREA 81221095059F81221095056 email [email protected] APPLICANT: NEXTEL FCC ID: RAMTX100 REPORT #: THRU-505030 3 of 20 PLOT THRUlab & Engineering. RM302,BOKJO,29-15 , CHONGPA3-DONG YONGSAN-GU, SEOUL, KOREA 81221095059F81221095056 email [email protected] APPLICANT: NEXTEL FCC ID: RAMTX100 REPORT #: THRU-505030 4 of 20 SPURIOUS EMISSIONS (Conducted) 2.1057 SPECTRUM RANGE TO BE INVESTIGATED Lowest radio frequency signal generated in the equipment, without going below 9kHz, up to at least the frequency shown below: (1) If the equipment operates below 10 GHz: to the tenth harmonic of the highest fundamental frequency or to 40GHz, whichever is lower. (2) If the equipment operates at or above 10GHz and below 30GHz: to the fifth harmonic of the highest fundamental frequency or to 100 GHz, whichever is lower. (3) If the equipment operates at or above 30GHz: to the fifth harmonic of the highest fundamental frequency or to 200GHz, whichever is lower. (b) Particular attention should be paid to harmonics and sub-harmonics of the carrier frequency as well as to those frequencies removed from the carrier by multiples of the oscillator frequency. Radiation at the frequencies of multiplier stages should also be checked. (c) The amplitude of spurious emissions, which are attenuated more than 20dB below the permissible value, need not be reported. (d) Unless otherwise specified,measurements above 40GHz shall be performed using a minimum resolution bandwidth of 1MHz. Method of Measuring Conducted Sprious Emissions THRUlab & Engineering. RM302,BOKJO,29-15 , CHONGPA3-DONG YONGSAN-GU, SEOUL, KOREA 81221095059F81221095056 email [email protected] APPLICANT: NEXTEL FCC ID: RAMTX100 REPORT #: THRU-505030 5 of 20 PLOT REQUIREMENTS : 43 + 10log(0.331) = 42.5198 dB THRUlab & Engineering. RM302,BOKJO,29-15 , CHONGPA3-DONG YONGSAN-GU, SEOUL, KOREA 81221095059F81221095056 email [email protected] APPLICANT: NEXTEL FCC ID: RAMTX100 REPORT #: THRU-505030 6 of 20 THRUlab & Engineeri…
