RAS-MT79272TX 11be (WiFi7) BW320 + BT/BLE Combo Card

© 2021 - 2022 MediaTek Inc. This document contains information that is proprietary to MediaTek Inc. Unauthorized reproduction or disclosure of this information in whole or in part is strictly prohibited. Specifications are subject to change without notice. Version: V0.3 Release Date: 2022-07-08 MT7927 Test-Mode Software Application Note Part-1: QA-Tool User Guideline MT7927 SW Tool AN: Part-I Confidential B MediaTek Confidential © 2021 - 2022 MediaTek Inc. Page 2 of 35 This document contains information that is proprietary to MediaTek Inc. Unauthorized reproduction or disclosure of this information in whole or in part is strictly prohibited. Document Revision History Version Date Author Change List V0.1 20220607 Jack Pan Initial draft release. V0.2 20220608 Leon Hsu Update Rx related test description. V0.3 20220708 Jack Pan Modify some description. MT7927 SW Tool AN: Part-I Confidential B MediaTek Confidential © 2021 - 2022 MediaTek Inc. Page 3 of 35 This document contains information that is proprietary to MediaTek Inc. Unauthorized reproduction or disclosure of this information in whole or in part is strictly prohibited. Table of Contents Document Revision History ........................................................................................................................ 2 Table of Contents ...................................................................................................................................... 3 1 System overview ............................................................................................................................. 5 1.1 General Description ................................................................................................................ 5 2 QA-Tool .......................................................................................................................................... 6 2.1 How to install QA-tool ............................................................................................................ 6 2.1.1 Install WinPcap ...................................................................................................... 7 2.1.2 Windows 10 install note ......................................................................................... 8 2.1.3 QA-Tool Windows driver ........................................................................................ 9 2.2 How to use QA-tool .............................................................................................................. 12 2.2.1 Launch QA-Tool ................................................................................................... 12 2.2.2 Start QA-Tool in BIN-file Mode .............................................................................. 13 2.2.3 Start QA-Tool in E-fuse Mode ................................................................................ 13 2.3 How to Use the QA-Tool ....................................................................................................... 14 2.3.1 WIFI Packets Transmitting –1 stream ..................................................................... 14 2.3.2 WIFI Packets Transmitting –2 stream ..................................................................... 16 2.3.3 WIFI Packets 11ax RU TX (HE TB (trigger based)) Transmitting setting ...................... 18 2.3.4 VSA Setting .......................................................................................................... 20 2.3.5 WIFI Packets Receiving –1 stream ......................................................................... 21 2.3.6 WIFI Packets Receiving –2 stream ......................................................................... 22 2.4 Read, Write E-fuse Table ....................................................................................................... 23 2.4.1 Read a Value from E-fuse...................................................................................... 23 2.4.2 Write a Value to E-fuse ......................................................................................... 24 2.5 Homologation suggest setting ............................................................................................... 25 MT7927 SW Tool AN: Part-I Confidential B MediaTek Confidential © 2021 - 2022 MediaTek Inc. Page 4 of 35 This document contains information that is proprietary to MediaTek Inc. Unauthorized reproduction or disclosure of this information in whole or in part is strictly prohibited. 2.6 RU Setting example ........................................................................................................... 26 3 General Information & Integration Instructions ..................................................................... 27 3.1 General Description of MT7927......................................................................................... 27 3.2 Antenna information .......................................................................................................... 29 3.3 Host Integration instructions .............................................................................................. 30 3.4 Host product testing guidance ........................................................................................... 30 3.5 FCC regulation requirements / installation restrictions ...................................................... 30 MT7927 SW Tool AN: Part-I Confidential B MediaTek Confidential © 2021 - 2022 MediaTek Inc. Page 5 of 35 This document contains information that is proprietary to MediaTek Inc. Unauthorized reproduction or disclosure of this information in whole or in part is strictly prohibited. 1 System overview 1.1 General Description MT7927 chip is highly integrated single chip which have built in 2x2 dual-band wireless LAN and Bluetooth combo radio. It can be configured in test-mode for performance validation, production testing and regulatory certification. There are two software tools, QA…

Text truncated - open the document above for the full version.

Date: July 15, 2022 We, MediaTek Inc. declare that the device does not support any non-US channels in all the operational mode(s) for the following product. FCC ID: RAS-MT7927 If you should have any question(s) regarding thi contact us. Thank you! ______________________________ Stella Chang/ Business Marketing Manager MediaTek Inc. Tel.: + 886-3-5600868 E-mail: [email protected]

Date: 2022-07-15 FCC ID: RAS-MT7927 To the attention of Federal Communications Commission Authorization and Evaluation Division Permanent Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Comm requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram Operational Description Software Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, ______________________________ Stella Chang/ Business Marketing Manager MediaTek Inc. Tel.: + 886-3-5600868 E-mail: [email protected]

Date: 2022-07-15 FCC ID: RAS-MT7927 To the attention of Federal Communications Commission Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the commissions rules, we request short-term confidential treatment for the following information until 180days after the Grant Date of Equipment Authorization) in order to ensure sensitive business information remains confidential until the actual marketing of the device: External photos Test Setup photos Users manual Internal Photos Sincerely yours, ______________________________ Stella Chang/ Business Marketing Manager MediaTek Inc. Tel.: + 886-3-5600868 E-mail: [email protected]

Date: 2022-07-15 FCC ID: RAS-MT7927 AUTHORIZATION LETTER To Whom It May Concern: MediaTek Inc.hereby authorizes Tilly Pan/Specialist of Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch BV CPS Taoyuan to act on its behalf in all matters relating to the FCC application for equipment authorization in connection with the FCC ID listed above, including signing of all documents relating to these matters. Any and all acts carried out by Tilly Pan/Specialist of BV CPS Taoyuan on MediaTek Inc. herein, shall have the same effect as acts of its own. If you have any questions regarding the authorizatio Sincerely yours, ______________________________ Stella Chang/ Business Marketing Manager MediaTek Inc. Tel.: + 886-3-5600868 E-mail: [email protected]

MediaTek Inc. No.1, Dusing 1st Rd., Hsinchu Science Park Date: 2020-01-09 A UTHORIZ A TION LETTER To whom it may concern: I, the undersigned Siegfried Chang of MediaTek Inc., hereby authorize Stella Chang of MediaTek Inc. to act on my behalf in all matters relating to all processes required in FCC and any communication needed with the national authority. Any and all acts carried out by Stella Chang on my behalf shall have the same effects as acts of our own. This agreement is valid until permanent. If you have any questions regarding the authorization, please don’t hesitate to contact us. Sincerely yours, ----------------------------------- Siegfried Chang/ Manager MediaTek Inc. Tel.: + 886-3-5600868 Fax: + 886-3-6662673 E-mail: [email protected]

FCC ID: RAS-MT7927 Modular Approval Request Letter Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch September 22, 2022 Dear Application Examiner, MediaTek Inc., 2TX 11be (WiFi7) BW320+BT/BLE Combo Card, FCC ID: RAS-MT7927 would like to have your authorization as a modular approval specific to the mobile RF exposure condition. The requirements of KDB996369 have been met and shown on the following statements. 1. “The modular transmitter must have its own RF shielding.” The radio portion of this module has been shielded, please see exhibition External Photo. 2. “The modular transmitter must have buffered modulation/data inputs.” The EUT has buffered data inputs, it is integrated in chip MT7927. 3. “The modular transmitter must have its own power supply regulation.” The part number of this regulator is MT7927. 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(C).” The EUT meets the FCC antenna requirements. The spurious emission, unique antenna connector and photo of antennas are shown in the test report. 5. “The modular transmitter must be tested in a stand-alone configuration” The EUT was tested in a stand-alone configuration via a USB extender. Please see section Photographs of Test Configuration in the test report, the EUT was plugged in this extender. 6. “The modular transmitter must be labeled with its own FCC ID number.” Please see exhibition Label Sample for the FCC ID of this module. And also in the exhibition Users Manual, there are instructions give to the OEM on how to label the end product. FCC ID: RAS-MT7927 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition. Please contact me if you have any further questions. Thanks for your attention. Best Regards, Tilly Pan Specialist Bureau Veritas Consumer Products Services (H.K.) Ltd., Hsinchu Branch

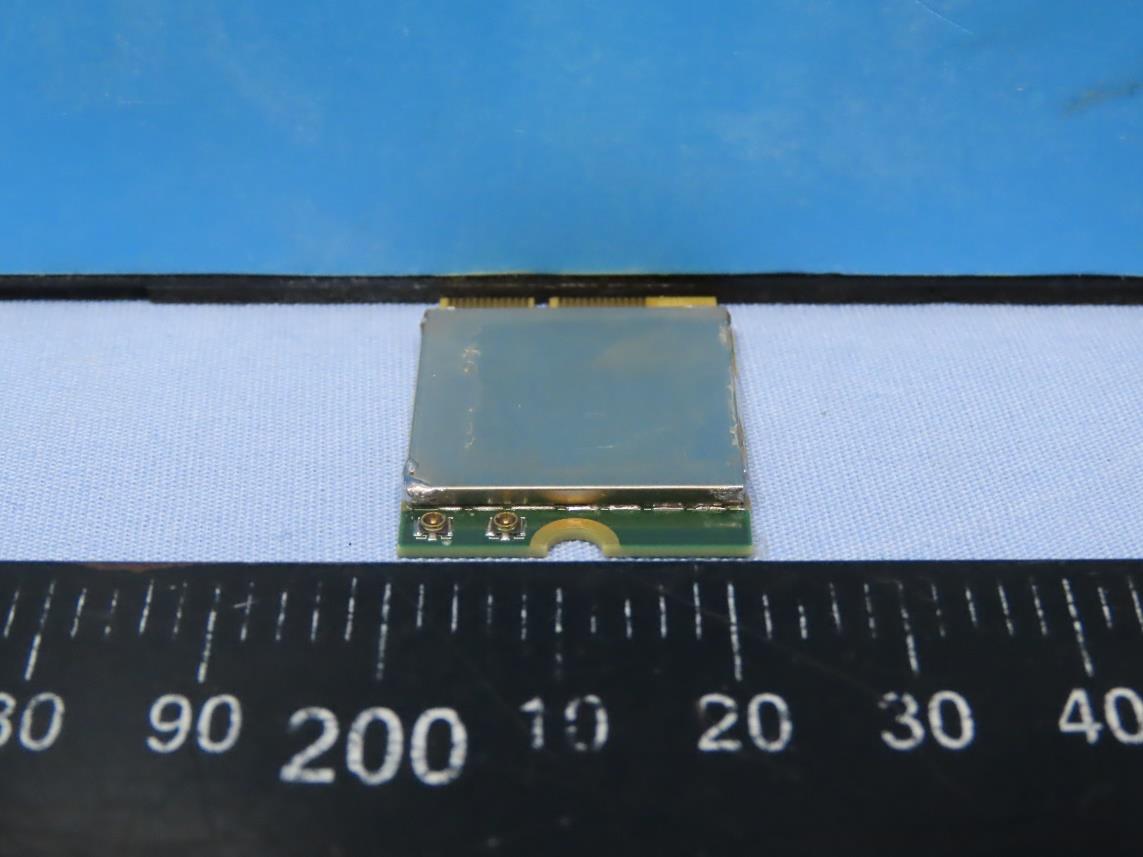

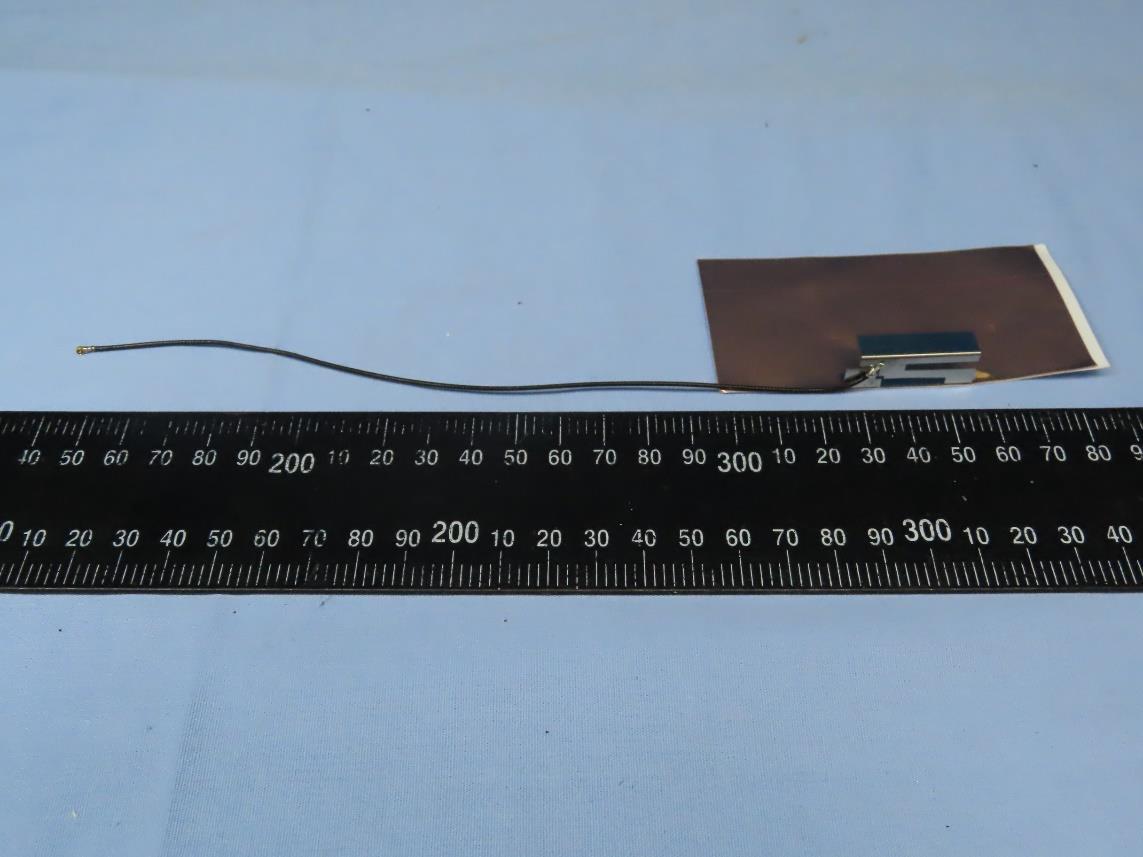

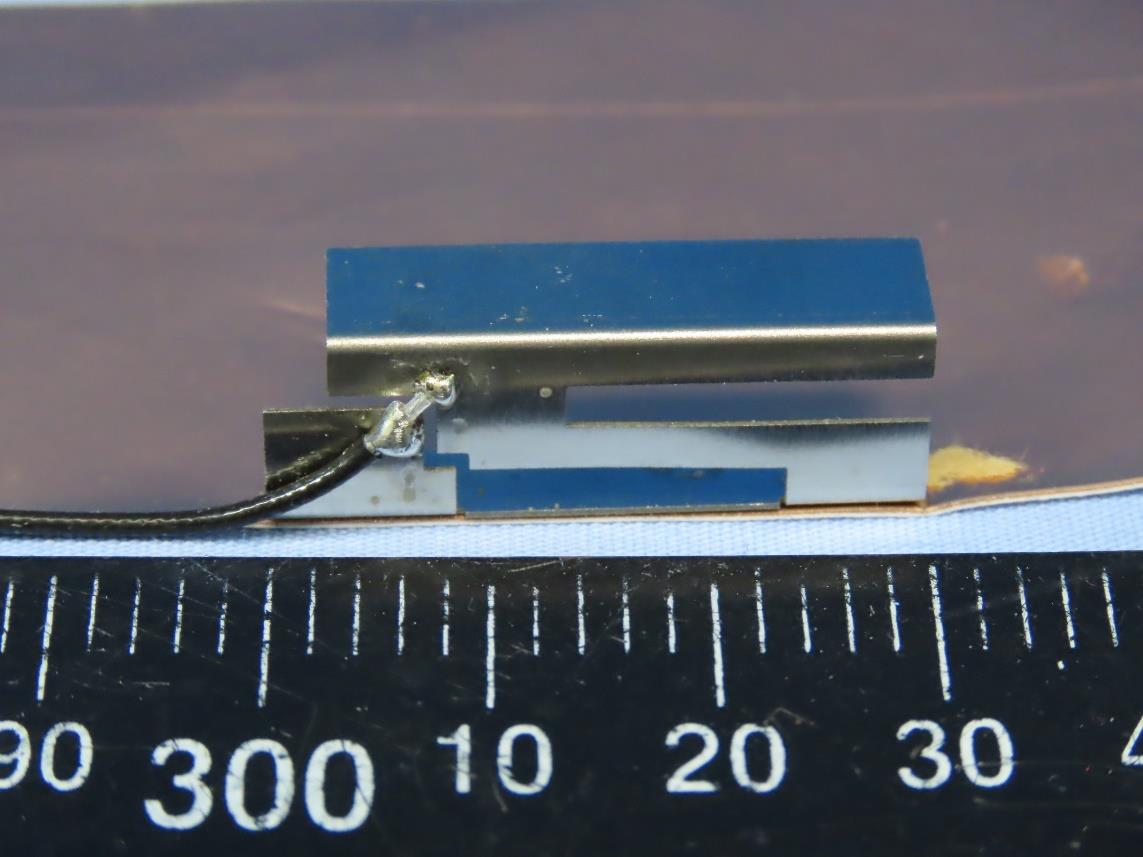

Reference No.: BARR-WTW-P22060042_EXT Page 1/7 CONSTRUCTION PHOTOS OF EUT Reference No.: BARR-WTW-P22060042_EXT Page 2/7 Reference No.: BARR-WTW-P22060042_EXT Page 3/7 Reference No.: BARR-WTW-P22060042_EXT Page 4/7 Antenna set. 1 Reference No.: BARR-WTW-P22060042_EXT Page 5/7 Antenna set. 2 Reference No.: BARR-WTW-P22060042_EXT Page 6/7 Reference No.: BARR-WTW-P22060042_EXT Page 7/7 Antenna set. 3

Label Location EuT Front side

Reference No.: BARR-WTW-P22060042_Int Page 1/3 CONSTRUCTION PHOTOS OF EUT Reference No.: BARR-WTW-P22060042_Int Page 2/3 Reference No.: BARR-WTW-P22060042_Int Page 3/3

Report No.: MFBARR-WTW-P22060042 Page No. 1 / 11 Report Format Version: 7.1.0 Reference No.: BARR-WTW-P22060042 RF EXPOSURE REPORT CERTIFICATE OF CONFORMITY FCC Rule Part: FCC Part 2 (Section 2.1091 & 2.1093) Report No.: MFBARR-WTW-P22060042 FCC ID: RAS-MT7927 Model No.: MT7927 Received Date: 2022/6/6 Test Date: 2022/8/30 Issued Date: 2022/9/8 Applicant: MediaTek Inc. Address: No. 1, Dusing 1st Rd., Hsinchu Science Park, Hsinchu City, 30078 Taiwan Issued By: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory Lab Address: E-2, No.1, Li Hsin 1st Road, Hsinchu Science Park, Hsinchu City 300, Taiwan Test Location: E-2, No.1, Li Hsin 1st Road, Hsinchu Science Park, Hsinchu City 300, Taiwan FCC Registration / Designation Number: 723255 / TW2022 Approved by: , Date: 2022/9/8 May Chen / Manager This test report consists of 11 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The test results in the report only apply to the tested sample. The test results in this report are traceable to the national or international standards. Prepared by : Vivian Huang / Specialist This report is governed by, and incorporates by reference, the Conditions of Testing as posted at the date of issuance of this report at http://www.bureauveritas.com/home/about-us/our- business/cps/about-us/terms-conditions/ and is intended for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. Measurement uncertainty is only provided upon request for accredited tests. Statements of conformity are based on simple acceptance criteria without taking measurement uncertainty into account, unless otherwise requested in writing. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence or if you require measurement uncertainty; provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Report No.: MFBARR-WTW-P22060042 Page No. 2 / 11 Report Format Version: 7.1.0 Reference No.: BARR-WTW-P22060042 Table of Contents Release Control Record ....................................................................................................................................................... 3 1 Certificate .................................................................................................................................................................... 4 2 Applicable RF Exposure Limit .................................................................................................................................. 5 3 Applicable Evaluation Criteria .................................................................................................................................. 6 4 Test Results ................................................................................................................................................................ 8 4.1 RF Exposure ............................................................................................................................................................. 8 5 Conclusion ................................................................................................................................................................ 10 6 Information of the Testing Laboratories ................................................................................................................ 11 Report No.: MFBARR-WTW-P22060042 Page No. 3 / 11 Report Format Version: 7.1.0 Reference No.: BARR-WTW-P22060042 Release Control Record Issue No. Description Date Issued MFBARR-WTW-P22060042 Original release. 2022/9/8 Report No.: MFBARR-WTW-P22060042 Page No. 4 / 11 Report Format Version: 7.1.0 Reference No.: BARR-WTW-P22060042 1 Certificate Product: 2TX 11be (WiFi7) BW320 + BT/BLE Combo Card Brand: MediaTek Test Model: MT7927 Sample Status: Engineering sample Applicant: MediaTek Inc. Test Date: 2022/8/30 FCC Rule Part: FCC Part 2 (Section 2.1091 & 2.1093) Standard: KDB 447498 D04 Interim General RF Exposure Guidance v01 The above equipment has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s RF characteristics under the conditions specified in this report. Report No.: MFBARR-WTW-P22060042 Page No. 5 / 11 Report Format Version: 7.1.0 Reference No.: BARR-WTW-P22060042 2 Applicable RF Exposure Limit § 1.1310 Radiofrequency radiation exposure limits. (a) Specific absorption rate (SAR) shall be used to evaluate the environmental impact of human exposure to radiofrequency (RF) radiation as specified in § 1.1307(b) of this part within the frequency range of 100 kHz to 6 GHz (inclusive). (b) The SAR limits for occupational/controlled exposure are 0.4 W/kg, as averaged over the whole body, and a peak spatialaverage SAR of 8 W/kg, averaged over any 1 gram…

Text truncated - open the document above for the full version.

Annex Z. Calibration Certificate for Probe and Dipole The SPEAG calibration certificates are shown as follows. Report No.: SFBARR-WTW-P22060042 Report No.: SFBARR-WTW-P22060042 Report No.: SFBARR-WTW-P22060042 Report No.: SFBARR-WTW-P22060042 Report No.: SFBARR-WTW-P22060042 Report No.: SFBARR-WTW-P22060042 Report No.: SFBARR-WTW-P22060042 Report No.: SFBARR-WTW-P22060042 Report No.: SFBARR-WTW-P22060042 Model：D5000V2S/N：1019Measurement Date：2022/3/18 Frequency (MHz) Type Item Previous Measurement Annual Check Deviation Accepted Tolerance Result Real Impedance 54.12650.625-3.501±5ΩPASS Imaginary Impedance -6.4286-1.52384.905±5ΩPASS Return Loss -22.708-21.152-6.85%±20%PASS Frequency (MHz) Type Item Previous Measurement Annual Check Deviation Accepted Tolerance Result Real Impedance 57.60253.069-4.533±5ΩPASS Imaginary Impedance -2.47611.19363.670±5ΩPASS Return Loss -22.582-22.463-0.53%±20%PASS Frequency (MHz) Type Item Previous Measurement Annual Check Deviation Accepted Tolerance Result Real Impedance 57.87653.895-3.981±5ΩPASS Imaginary Impedance 3.12310.0377-3.085±5ΩPASS Return Loss -22.102-21.278-3.73%±20%PASS 5750 Free Space 5000 MHz，Free Space Annual Confirmation of SAR Reference Dipole 5250 Free Space 5600 Free Space Report No.: SFBARR-WTW-P22060042 Report No.: SFBARR-WTW-P22060042 Report No.: SFBARR-WTW-P22060042 Report No.: SFBARR-WTW-P22060042 Report No.: SFBARR-WTW-P22060042 Report No.: SFBARR-WTW-P22060042 Report No.: SFBARR-WTW-P22060042 Report No.: SFBARR-WTW-P22060042 Report No.: SFBARR-WTW-P22060042 Report No.: SFBARR-WTW-P22060042 Report No.: SFBARR-WTW-P22060042 Report No.: SFBARR-WTW-P22060042 Report No.: SFBARR-WTW-P22060042 Report No.: SFBARR-WTW-P22060042 Report No.: SFBARR-WTW-P22060042 Report No.: SFBARR-WTW-P22060042 Report No.: SFBARR-WTW-P22060042 Report No.: SFBARR-WTW-P22060042 Report No.: SFBARR-WTW-P22060042 Report No.: SFBARR-WTW-P22060042 Report No.: SFBARR-WTW-P22060042 Report No.: SFBARR-WTW-P22060042 Report No.: SFBARR-WTW-P22060042 Report No.: SFBARR-WTW-P22060042 Report No.: SFBARR-WTW-P22060042 Report No.: SFBARR-WTW-P22060042 Report No.: SFBARR-WTW-P22060042 Report No.: SFBARR-WTW-P22060042 Report No.: SFBARR-WTW-P22060042 Report No.: SFBARR-WTW-P22060042 Report No.: SFBARR-WTW-P22060042 Report No.: SFBARR-WTW-P22060042 Report No.: SFBARR-WTW-P22060042 Report No.: SFBARR-WTW-P22060042 Report No.: SFBARR-WTW-P22060042 Report No.: SFBARR-WTW-P22060042 Report No.: SFBARR-WTW-P22060042 Report No.: SFBARR-WTW-P22060042 Report No.: SFBARR-WTW-P22060042 Report No.: SFBARR-WTW-P22060042 Report No.: SFBARR-WTW-P22060042

Plots of System Verification Report No. : SFBARR-WTW-P22060042 Page No. : 1 of 10 Annex A. Plots of SAR and Power Density System Verification The plots for system verification are shown as follows. Plots of System Verification Report No. : SFBARR-WTW-P22060042 Page No. : 2 of 10 Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2022/6/29 S01 System Check_H2450_220629 DUT: Dipole 2450 MHz; Type: D2450V2; SN: 737 Communication System: UID 0, CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: H19T27N1_0629 Medium parameters used: f = 2450 MHz; σ = 1.805 S/m; ε r = 38.071; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C ; Liquid Temperature：23.4 °C DASY5 Configuration: - Probe: EX3DV4 - SN3971; ConvF(7.98, 7.98, 7.98) @ 2450 MHz; Calibrated: 2022/1/25 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1590; Calibrated: 2021/9/20 - Phantom: ELI Phantom_1204; Type: QD OVA 002 Ax; - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7501) Pin=50mW/Area Scan (81x81x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 4.27 W/kg Pin=50mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 47.80 V/m; Power Drift = -0.02 dB Peak SAR (extrapolated) = 5.34 W/kg SAR(1 g) = 2.45 W/kg; SAR(10 g) = 1.14 W/kg (SAR corrected for target medium) Maximum value of SAR (measured) = 4.20 W/kg Plots of System Verification Report No. : SFBARR-WTW-P22060042 Page No. : 3 of 10 Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2022/6/28 S02 System Check_H5250_220628 DUT: Dipole 5 GHz; Type: D5GHzV2; SN: 1019 Communication System: UID 0, CW; Frequency: 5250 MHz;Duty Cycle: 1:1 Medium: H34T60N1_0628 Medium parameters used: f = 5250 MHz; σ = 4.833 S/m; ε r = 35.815; ρ = 1000 kg/m 3 Ambient Temperature：23.4 °C ; Liquid Temperature：23.3 °C DASY5 Configuration: - Probe: EX3DV4 - SN3971; ConvF(5.1, 5.1, 5.1) @ 5250 MHz; Calibrated: 2022/1/25 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1590; Calibrated: 2021/9/20 - Phantom: ELI Phantom_1204; Type: QD OVA 002 Ax; - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7501) Pin=50mW/Area Scan (91x91x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 9.95 W/kg Pin=50mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm Reference Value = 51.07 V/m; Power Drift = 0.00 dB Peak SAR (extrapolated) = 16.6 W/kg SAR(1 g) = 4.23 W/kg; SAR(10 g) = 1.23 W/kg (SAR corrected for target medium) Maximum value of SAR (measured) = 10.4 W/kg Plots of System Verification Report No. : SFBARR-WTW-P22060042 Page No. : 4 of 10 Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2022/6/28 S03 System Check_H5600_220628 DUT: Dipole 5 GHz; Type: D5GHzV2; SN: 1019 Communication System: UID 0, CW; Frequency: 5600 MHz;Duty Cycle: 1:1 Medium: H34T60N1_0628 Medium parameters used: f = 5600 MHz; σ = 5.217 S/m; ε r = 35.199; ρ = 1000 kg/m 3 Ambient Temperature：23.4 °C ; Liquid Temperature：23.3 °C DASY5 Configuration: - Probe: EX3DV4 - SN3971; ConvF(4.8, 4.8, 4.8) @ 5600 MHz; Calibrated: 2022/1/25 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1590; Calibrated: 2021/9/20 - Phantom: ELI Phantom_1204; Type: QD OVA 002 Ax; - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7501) Pin=50mW/Area Scan (91x91x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 10.8 W/kg Pin=50mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm Reference Value = 50.48 V/m; Power Drift = -0.01 dB Peak SAR (extrapolated) = 19.0 W/kg SAR(1 g) = 4.4 W/kg; SAR(10 g) = 1.26 W/kg (SAR corrected for target medium) Maximum value of SAR (measured) = 11.3 W/kg Plots of System Verification Report No. : SFBARR-WTW-P22060042 Page No. : 5 of 10 Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2022/6/28 S05 System Check_H5750_220628 DUT: Dipole 5 GHz; Type: D5GHzV2; SN: 1019 Communication System: UID 0, CW; Frequency: 5750 MHz;Duty Cycle: 1:1 Medium: H34T60N1_0628 Medium parameters used: f = 5750 MHz; σ = 5.381 S/m; ε r = 34.848; ρ = 1000 kg/m 3 Ambient Temperature：23.4 °C ; Liquid Temperature：23.3 °C DASY5 Configuration: - Probe: EX3DV4 - SN3971; ConvF(4.85, 4.85, 4.85) @ 5750 MHz; Calibrated: 2022/1/25 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1590; Calibrated: 2021/9/20 - Phantom: ELI Phantom_1204; Type: QD OVA 002 Ax; - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7501) Pin=50mW/Area Scan (91x91x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 9.81 W/kg Pin=50mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm Reference Value = 46.36 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 18.3 W/kg SAR(1 g) = 4.04 W/kg; SAR(10 g) = 1.15 W/kg (SAR corrected for target medium) Maximum value of SAR (measured) = 10.6 W/kg Plots of System Verification Report No. : SFBARR-WTW-P22060042 Page No. : 6 of 10 Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2022/6/29 S06 System Check_H2450_220629 DUT: Dipole 2450 MHz; Type: D2450V2; SN: 737 Communication System: UID 0, CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: H19T27N1_0629 Medium parameters used: f = 2450 MHz; σ = 1.805 S/m; ε r = 38.071; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C ; Liquid Temperature：23.4 °C DASY5 Configuration: - Probe: EX3DV4 - SN3971; ConvF(7.98, 7.98, 7.98) @ 2450 MHz; Calibrated: 2022/1/25 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1590; Calibrated: 2021/9/20 - Phantom: ELI Phantom_1204; Type: QD OVA 002 Ax; - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7501) Pin=50mW/Area Scan (81x81x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 4.27 W/kg Pin=50mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=…

Text truncated - open the document above for the full version.

SAR Test Report Report Format Version 5.0.0 Page No. : 1 of 34 Report No. : SFBARR-WTW-P22060042 Issued Date : Aug. 22, 2022 SAR & Power Density Test Report Report No. : SFBARR-WTW-P22060042 Applicant : MediaTek Inc. Address : No. 1, Dusing 1st Rd., Hsinchu Science Park Hsinchu City 30078, Taiwan Product : 2TX 11be (WiFi7) BW320 + BT/BLE Combo Card FCC ID : RAS-MT7927 Brand : MediaTek Model No. : MT7927 FCC Rule Part : CFR §2.1093 Standards : IEEE Std 1528:2013, IEC TR 63170:2018 KDB 865664 D01 v01r04, KDB 865664 D02 v01r02, KDB 248227 D01 v02r02, KDB 447498 D01 v06 Sample Received Date : Jun. 01, 2022 Date of Testing : Jun. 27, 2022 ~ Aug. 08, 2022 Lab Address : No. 47-2, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan Test Location : No. 19, Hwa Ya 2nd Rd., Wen Hwa Vil., Kwei Shan Dist., Taoyuan City, Taiwan CERTIFICATION: The above equipment have been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch–Lin Kou Laboratories, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s SAR characteristics under the conditions specified in this report. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval, or endorsement by TAF or any government agencies. Prepared By : Lena Wang / Specialist Approved By : Gordon Lin / Manager FCC Accredited No.: TW0003 This report is governed by, and incorporates by reference, the Conditions of Testing as posted at the date of issuance of this report at http://www.bureauveritas.com/home/about-us/our- business/cps/about-us/terms-conditions/ and is intended for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. Measurement uncertainty is only provided upon request for accredited tests. Statements of conformity are based on simple acceptance criteria without taking measurement uncertainty into account, unless otherwise requested in writing. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence or if you…
