RCEICELL1900P-1iCell1900P CDMA PCS Pico Base Station Subsystem

CDMA iCell PCS Pico Base Station Subsystem Hardware Overview Revision 1.0 TC-HO-0558 August 2003 Copyright © 2003 TELOS Technology (Canada) Inc. Printed in Canada. The information presented in this document is the confidential property of TELOS Technology and cannot be copied or disclosed without prior written authorization from TELOS Technology. TELOS Technology reserves the right to change specifications without notice. TELOS Technology is not liable for any technical or editorial errors or omissions contained herein or for incidental or consequential damages resulting from the performance, furnishing, or use of this material. Important Notice Due to the nature of wireless communications, transmission and reception of voice and data can never be fully guaranteed. Data may be delayed, corrupted (i.e. have errors) or be totally lost. Although significant delays or losses of data are rare in TELOS Technology, Inc. networks, these networks should not be relied upon in situations where failure to transmit or receive voice and data could result in damage of any kind to the user or any other party, including but not limited to personal injury, death, or loss of property. TELOS Technology, Inc. accepts no responsibility for damages of any kind resulting from delays or errors in transmission or reception of voice or data. Safety and Hazards Do not operate these network products when blasting is scheduled for any areas under network coverage or while blasting equipment, devices, or material transits through any areas under network coverage. Do not operate medical equipment, life support equipment, or any equipment which may be susceptible to any form of radio interference. TELOS Technology, Inc. radio transmission networks could interfere with this equipment. Regulatory This device complies with Part 15 of the FCC Rules. Operation of this device is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received including interference that may cause undesired operation. FCC ID: RCEICELL1900P-1 Where appropriate, the use of the equipment is subject to the following conditions: CAUTION! Unauthorized modifications or changes not expressly approved by TELOS Technology, Inc. could void compliance with regulatory rules, and thereby your authority to use this equipment. WARNING (EMI) - United States FCC Information - This equipment has been tested and found to comply with the limits persuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in an appropriate installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communication. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: •Reorient or relocate the receiving antenna •Increase the separation between the equipment and receiver •Connect the equipment into an outlet on a circuit different from that to which the receiver is connected •Consult a dealer or an experienced radio/TV technician for help Product names mentioned in this document are trademarks or registered trademarks of their respective companies and are hereby acknowledged. Please report any errors or omissions in this document to: TELOS Technology (Canada), Inc. Technical Communications Group 4600 Jacombs Road Richmond, B.C. V6V 3B1 Canada E-mail: [email protected] Telephone: 604.276.0055 Facsimile: 604.276.0501 Web site: www.telostechnology.com

TELOS Technology (Canada), Inc. 4600 Jacombs Road Richmond B.C. Canada V6V 3B1 Phone: 604 276-0055 Fax: 604 276-0501 www.telostechnology.com August 28, 2003 Federal Communications Commission 445 12th Street, SW Washington, DC 20554 Dear Sir or Madam: RE: Authorization of Intertek Testing Services to obtain grant for RCEICELL1900P-1. TELOS Technology (Canada), Inc. hereby authorizes Intertek Testing Services to act on our behalf in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters for proposed FCCID: RCEICELL1900P-1. Any and all acts carried out by Intertek Testing Services carried out on our behalf shall have the same effect as acts on our own. We further certify that no party to the applications authorization hereunder is subject to denial of benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853 (a). Please direct any questions or comments regarding this request to the undersigned. This agreement expires one year from the above date. Kind regards, Richard LaLau, P.Eng. Director, Base Station Development TELOS Technology (Canada), Inc.

TELOS Technology (Canada), Inc. 4600 Jacombs Road Richmond B.C. Canada V6V 3B1 Phone: 604 276-0055 Fax: 604 276-0501 www.telostechnology.com August 28, 2003 Federal Communications Commission 445 12th Street, SW Washington, DC 20554 Dear Sir or Madam: RE: Application for Confidentiality pursuant to 47 C.F.R. Section 0.459 for FCC ID RCEICELL1900P-1 TELOS Technology (Canada), Inc. (FRN 0009334160) requests that all the schematics, and the circuit description document which includes: the block diagram, the theory of operation, and the tuning instructions and all copies of these documents submitted for FCC ID RCEICELL1900P-1 remain confidential and withheld from routine public inspection due to the proprietary commercial information disclosed therein. These documents detail the exact nature of how our product is designed and would rapidly enable a competitor, without significant capital investment, to replicate our product. Please direct any questions or comments regarding this request to the undersigned. Kind regards, Richard LaLau, P.Eng. Director, Base Station Development TELOS Technology (Canada), Inc.

FCC ID: RCEICELL1900P-1 FCC ID: RCEICELL1900P-1 FCC ID: RCEICELL1900P-1 FCC ID: RCEICELL1900P-1

FCC ID: RCEICELL1900P-1

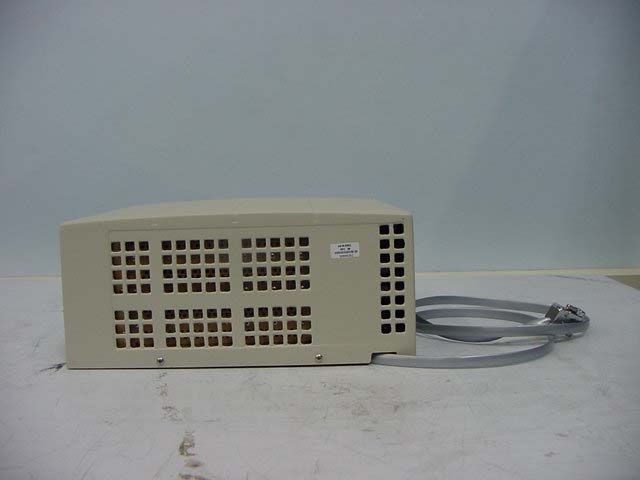

FCC ID: RCEICELL1900P-1 Top View - no cover FCC ID: RCEICELL1900P-1 Timing Card – top FCC ID: RCEICELL1900P-1 Timing Card – bottom FCC ID: RCEICELL1900P-1 Side View – no cover FCC ID: RCEICELL1900P-1 PCS RFM & Digitizer without shield FCC ID: RCEICELL1900P-1 Front View – no cover FCC ID: RCEICELL1900P-1 Front RFS FCC ID: RCEICELL1900P-1 Front RFS – no shield FCC ID: RCEICELL1900P-1 Front Power Supply Board FCC ID: RCEICELL1900P-1 Front Backplane Board FCC ID: RCEICELL1900P-1 Controller top FCC ID: RCEICELL1900P-1 Controller bottom FCC ID: RCEICELL1900P-1 Channel Card top FCC ID: RCEICELL1900P-1 Channel Card bottom FCC ID: RCEICELL1900P-1 Back view – no cover FCC ID: RCEICELL1900P-1 Back RFS FCC ID: RCEICELL1900P-1 Back Power Supply Board FCC ID: RCEICELL1900P-1 Back Backplane Board

RCEICELL1900P-1 Frequency Stability over Temperature Equipment Configuration Thermotron S-4C S/N: 30678 • unit was set to appropriate temperature manually via the control interface • temperature was verified to be within 2 degrees of set point temperature as verified by the oven’s internal thermocouples as well as 2 spatially diverse dry bulb thermometers • after reaching appropriate temperature the device was allowed to soak for 20-30 minutes as required Rohde&Schwarz FSQ26 S/N:1027369 Cal Due: 25-APR-2004 • personality option K82 was installed in order to make frequency measurements on a complete CDMA waveform • attenuation (45dB) and reference level settings (–2dBm) were adjusted so that the code domain channels could clearly be viewed • 25 power control groups were captured for each result provided by the instrument • several (more than 10) results were observed and the worst case frequency offset (greatest error) was recorded (DUT) Telos Technology iCell1900 Pico Base Station. S/N: 00000203 • unit was set to the center channel (675) which has a transmit frequency of 1963.75MHz • the frequency determining device is controlled by an OCXO • the unit is not able to transmit until the OCXO has stabilized and is within specification Procedure 1) with the DUT off, the oven was set to the appropriate temperature and sufficient time was allowed for the temperature of the DUT to stabilize (20 to 30 minutes) 2) DUT was turned on, configured and a frequency measurement was recorded immediately and then again 1 minute after power-up 3) Steps 1 and 2 were repeated for each set point shown in the table below Results Frequency Stability over Voltage Equipment Configuration as above Procedure 1) power supply was set to nominal voltage of 48.0V at room temperature and a reference error frequency was recorded 2) power supply was adjusted to +/- 15% (7.2V) and error frequencies were recorded again Results Temperature (degrees C) Transient Frequency Error (Hz) Transient Frequency Error (ppm) Frequency Error 1 minute after turn on (Hz) Frequency Error 1 minute after turn on (ppm) Frequency Error Limit (ppm) -30-3947-2.01-255-0.13+/- 2.5 -20-3653-1.86-216-0.11+/- 2.5 -10-3305-1.681380.07+/- 2.5 0-723-0.37-202-0.10+/- 2.5 105750.292300.12+/- 2.5 2027601.416900.35+/- 2.5 2522501.153930.20+/- 2.5 3022301.141270.06+/- 2.5 40-575-0.29-449-0.23+/- 2.5 50-552-0.28 -575-0.29+/- 2.5 Operating Voltage (V) Recorded Frequency (Hz) Frequency Error (Hz) Frequency Error (ppm) Frequency Error Limit (ppm) 40.81963749902-98-0.05+/- 2.5 481963749941 -59-0.03+/- 2.5 55.21963750079 790.04+/- 2.5

1365 Adams Court, Menlo Park, CA 94025 TEST REPORT Report Number: 30475761 Project Number: 3047576 Report Date: August 29, 2003 Testing performed on the PCS Base Station FCC ID: RCEICELL1900P-1 to FCC Part 24 for TELOS Technology Test Performed by: Test Authorized by: Intertek Testing Services 1365 Adams Court Menlo Park, CA 94025 TELOS Technology 4600 Jacombs Road Richmond, BC, V6V3B1 Tested by: Bruce Gordon, Test Engineer Reviewed by: David Chernomordik, EMC Technical Manager Review Date: 09/09/2003 All services undertaken are subject to the following general policy: Reports are submitted for exclusive use of the client to whom they are addressed. Their significance is subject to the adequacy and representative character of the samples and to the comprehensiveness of the tests, examinations or surveys made. This report shall not be reproduced except in full, without written consent of Intertek. This report must not be used to claim product endorsement by A2LA, NIST nor any other agency of the U.S. Government. 1365 Adams Court, Menlo Park, CA 94025 TELOS Technology, Inc. FCC ID: RCEICELL1900P-1 Report # 30475761 Page 2 of 78 FCC Part 24 TABLE OF CONTENTS 1.0 Job Description ............................................................................................................... 3 1.1 Applicant information ...................................................................................................... 3 1.2 Test Summary .................................................................................................................. 3 1.3 Product Description ......................................................................................................... 4 1.3 Test Configuration ........................................................................................................... 4 1.4 Justification ...................................................................................................................... 5 1.5 Mode of Operation........................................................................................................... 5 1.6 Related Submittal(s) Grants ............................................................................................. 5 2.0 RF Power Output ............................................................................................................ 6 2.1 Test Procedure .................................................................................................................6 2.2 Test Equipment ................................................................................................................ 6 2.3 Test Results...................................................................................................................... 6 3.0 Radiated Power ............................................................................................................. 10 4.0 Occupied Bandwidth .................................................................................................... 11 4.1 Test Procedure ............................................................................................................... 11 4.2 Test Equipment .............................................................................................................. 11 4.3 Test Results....................................................................................................................11 5.0 Out of Band Emissions at Antenna Terminals........................................................... 13 5.1 Test Procedure ............................................................................................................... 13 5.2 Test Equipment .............................................................................................................. 14 5.3 Test Results....................................................................................................................14 6.0 Field Strength of Spurious Radiation ......................................................................... 16 6.1 Test Procedure ............................................................................................................... 16 6.2 Test Equipment .............................................................................................................. 16 6.3 Test Results....................................................................................................................17 7.0 Frequency Stability vs Temperature and Voltage ..................................................... 18 8.0 RF exposure info ........................................................................................................... 19 9.0 List of test Equipment .................................................................................................. 20 10.0 Document History ....................................................................................................... 21 Appendix A ................................................................................................................. 22 1365 Adams Court, Menlo Park, CA 94025 TELOS Technology, Inc. FCC ID: RCEICELL1900P-1 Report # 30475761 Page 3 of 78 FCC Part 24 1.0 Job Description 1.1 Applicant information Applicant name & address TELOS Technology 4600 Jacombs Road Richmond, BC, V6V3B1, Canada Contact info Mr. Richard LaLau Telephone: 604-303-2353 Fax: 604=880-0957 Email [email protected] 1.2 Test Summary FCC Rule Description of Test Result Page 2.1046 RF Power Output Complies 49 mW - average 6 24.232 EIRP Complies 10 2.1047 Modulation Requirements Not Applicable - 2.1049 Occupied Bandwidth, Emission Designator 1M25F9W 11 2.1051, 24.238 Out of Band Emissions at Antenna Terminals Complies 13 2.1053 Field Strength of Spurious Radiation Complies 16 2.1055 Frequency Stability vs. Temperature and Voltage Complies, see separate file - 2.1091 RF Exposure Complies 19 The test results in this report pertain only to the item tested. 1…

Text truncated - open the document above for the full version.

1365 Adams Court, Menlo Park, CA 94025 TELOS Technology, Inc. FCC ID: RCEICELL1900P-1 Report # 30475761 Page 22 of 78 FCC Part 24 Appendix A 1365 Adams Court, Menlo Park, CA 94025 TELOS Technology, Inc. FCC ID: RCEICELL1900P-1 Report # 30475761 Page 23 of 78 FCC Part 24 1365 Adams Court, Menlo Park, CA 94025 TELOS Technology, Inc. FCC ID: RCEICELL1900P-1 Report # 30475761 Page 24 of 78 FCC Part 24 1365 Adams Court, Menlo Park, CA 94025 TELOS Technology, Inc. FCC ID: RCEICELL1900P-1 Report # 30475761 Page 25 of 78 FCC Part 24 1365 Adams Court, Menlo Park, CA 94025 TELOS Technology, Inc. FCC ID: RCEICELL1900P-1 Report # 30475761 Page 26 of 78 FCC Part 24 1365 Adams Court, Menlo Park, CA 94025 TELOS Technology, Inc. FCC ID: RCEICELL1900P-1 Report # 30475761 Page 27 of 78 FCC Part 24 1365 Adams Court, Menlo Park, CA 94025 TELOS Technology, Inc. FCC ID: RCEICELL1900P-1 Report # 30475761 Page 28 of 78 FCC Part 24 1365 Adams Court, Menlo Park, CA 94025 TELOS Technology, Inc. FCC ID: RCEICELL1900P-1 Report # 30475761 Page 29 of 78 FCC Part 24 1365 Adams Court, Menlo Park, CA 94025 TELOS Technology, Inc. FCC ID: RCEICELL1900P-1 Report # 30475761 Page 30 of 78 FCC Part 24 1365 Adams Court, Menlo Park, CA 94025 TELOS Technology, Inc. FCC ID: RCEICELL1900P-1 Report # 30475761 Page 31 of 78 FCC Part 24 1365 Adams Court, Menlo Park, CA 94025 TELOS Technology, Inc. FCC ID: RCEICELL1900P-1 Report # 30475761 Page 32 of 78 FCC Part 24 1365 Adams Court, Menlo Park, CA 94025 TELOS Technology, Inc. FCC ID: RCEICELL1900P-1 Report # 30475761 Page 33 of 78 FCC Part 24 1365 Adams Court, Menlo Park, CA 94025 TELOS Technology, Inc. FCC ID: RCEICELL1900P-1 Report # 30475761 Page 34 of 78 FCC Part 24 1365 Adams Court, Menlo Park, CA 94025 TELOS Technology, Inc. FCC ID: RCEICELL1900P-1 Report # 30475761 Page 35 of 78 FCC Part 24 1365 Adams Court, Menlo Park, CA 94025 TELOS Technology, Inc. FCC ID: RCEICELL1900P-1 Report # 30475761 Page 36 of 78 FCC Part 24 1365 Adams Court, Menlo Park, CA 94025 TELOS Technology, Inc. FCC ID: RCEICELL1900P-1 Report # 30475761 Page 37 of 78 FCC Part 24 1365 Adams Court, Menlo Park, CA 94025 TELOS Technology, Inc. FCC ID: RCEICELL1900P-1 Report # 30475761 Page 38 of 78 FCC Part 24 1365 Adams Court, Menlo Park, CA 94025 TELOS Technology, Inc. FCC ID: RCEICELL1900P-1 Report # 30475761 Page 39 of 78 FCC Part 24 1365 Adams Court, Menlo Park, CA 94025 TELOS Technology, Inc. FCC ID: RCEICELL1900P-1 Report # 30475761 Page 40 of 78 FCC Part 24 1365 Adams Court, Menlo Park, CA 94025 TELOS Technology, Inc. FCC ID: RCEICELL1900P-1 Report # 30475761 Page 41 of 78 FCC Part 24 1365 Adams Court, Menlo Park, CA 94025 TELOS Technology, Inc. FCC ID: RCEICELL1900P-1 Report # 30475761 Page 42 of 78 FCC Part 24 1365 Adams Court, Menlo Park, CA 94025 TELOS Technology, Inc. FCC ID: RCEICELL1900P-1 Report # 30475761 Page 43 of 78 FCC Part 24 1365 Adams Court, Menlo Park, CA 94025 TELOS Technology, Inc. FCC ID: RCEICELL1900P-1 Report # 30475761 Page 44 of 78 FCC Part 24 1365 Adams Court, Menlo Park, CA 94025 TELOS Technology, Inc. FCC ID: RCEICELL1900P-1 Report # 30475761 Page 45 of 78 FCC Part 24 1365 Adams Court, Menlo Park, CA 94025 TELOS Technology, Inc. FCC ID: RCEICELL1900P-1 Report # 30475761 Page 46 of 78 FCC Part 24 1365 Adams Court, Menlo Park, CA 94025 TELOS Technology, Inc. FCC ID: RCEICELL1900P-1 Report # 30475761 Page 47 of 78 FCC Part 24 1365 Adams Court, Menlo Park, CA 94025 TELOS Technology, Inc. FCC ID: RCEICELL1900P-1 Report # 30475761 Page 48 of 78 FCC Part 24 1365 Adams Court, Menlo Park, CA 94025 TELOS Technology, Inc. FCC ID: RCEICELL1900P-1 Report # 30475761 Page 49 of 78 FCC Part 24 1365 Adams Court, Menlo Park, CA 94025 TELOS Technology, Inc. FCC ID: RCEICELL1900P-1 Report # 30475761 Page 50 of 78 FCC Part 24

1365 Adams Court, Menlo Park, CA 94025 TELOS Technology, Inc. FCC ID: RCEICELL1900P-1 Report # 30475761 Page 51 of 78 FCC Part 24 1365 Adams Court, Menlo Park, CA 94025 TELOS Technology, Inc. FCC ID: RCEICELL1900P-1 Report # 30475761 Page 52 of 78 FCC Part 24 1365 Adams Court, Menlo Park, CA 94025 TELOS Technology, Inc. FCC ID: RCEICELL1900P-1 Report # 30475761 Page 53 of 78 FCC Part 24 1365 Adams Court, Menlo Park, CA 94025 TELOS Technology, Inc. FCC ID: RCEICELL1900P-1 Report # 30475761 Page 54 of 78 FCC Part 24 1365 Adams Court, Menlo Park, CA 94025 TELOS Technology, Inc. FCC ID: RCEICELL1900P-1 Report # 30475761 Page 55 of 78 FCC Part 24 1365 Adams Court, Menlo Park, CA 94025 TELOS Technology, Inc. FCC ID: RCEICELL1900P-1 Report # 30475761 Page 56 of 78 FCC Part 24 1365 Adams Court, Menlo Park, CA 94025 TELOS Technology, Inc. FCC ID: RCEICELL1900P-1 Report # 30475761 Page 57 of 78 FCC Part 24 1365 Adams Court, Menlo Park, CA 94025 TELOS Technology, Inc. FCC ID: RCEICELL1900P-1 Report # 30475761 Page 58 of 78 FCC Part 24 1365 Adams Court, Menlo Park, CA 94025 TELOS Technology, Inc. FCC ID: RCEICELL1900P-1 Report # 30475761 Page 59 of 78 FCC Part 24 1365 Adams Court, Menlo Park, CA 94025 TELOS Technology, Inc. FCC ID: RCEICELL1900P-1 Report # 30475761 Page 60 of 78 FCC Part 24 1365 Adams Court, Menlo Park, CA 94025 TELOS Technology, Inc. FCC ID: RCEICELL1900P-1 Report # 30475761 Page 61 of 78 FCC Part 24 1365 Adams Court, Menlo Park, CA 94025 TELOS Technology, Inc. FCC ID: RCEICELL1900P-1 Report # 30475761 Page 62 of 78 FCC Part 24 1365 Adams Court, Menlo Park, CA 94025 TELOS Technology, Inc. FCC ID: RCEICELL1900P-1 Report # 30475761 Page 63 of 78 FCC Part 24 1365 Adams Court, Menlo Park, CA 94025 TELOS Technology, Inc. FCC ID: RCEICELL1900P-1 Report # 30475761 Page 64 of 78 FCC Part 24 1365 Adams Court, Menlo Park, CA 94025 TELOS Technology, Inc. FCC ID: RCEICELL1900P-1 Report # 30475761 Page 65 of 78 FCC Part 24 1365 Adams Court, Menlo Park, CA 94025 TELOS Technology, Inc. FCC ID: RCEICELL1900P-1 Report # 30475761 Page 66 of 78 FCC Part 24 1365 Adams Court, Menlo Park, CA 94025 TELOS Technology, Inc. FCC ID: RCEICELL1900P-1 Report # 30475761 Page 67 of 78 FCC Part 24 1365 Adams Court, Menlo Park, CA 94025 TELOS Technology, Inc. FCC ID: RCEICELL1900P-1 Report # 30475761 Page 68 of 78 FCC Part 24 1365 Adams Court, Menlo Park, CA 94025 TELOS Technology, Inc. FCC ID: RCEICELL1900P-1 Report # 30475761 Page 69 of 78 FCC Part 24 1365 Adams Court, Menlo Park, CA 94025 TELOS Technology, Inc. FCC ID: RCEICELL1900P-1 Report # 30475761 Page 70 of 78 FCC Part 24 1365 Adams Court, Menlo Park, CA 94025 TELOS Technology, Inc. FCC ID: RCEICELL1900P-1 Report # 30475761 Page 71 of 78 FCC Part 24 1365 Adams Court, Menlo Park, CA 94025 TELOS Technology, Inc. FCC ID: RCEICELL1900P-1 Report # 30475761 Page 72 of 78 FCC Part 24 1365 Adams Court, Menlo Park, CA 94025 TELOS Technology, Inc. FCC ID: RCEICELL1900P-1 Report # 30475761 Page 73 of 78 FCC Part 24 1365 Adams Court, Menlo Park, CA 94025 TELOS Technology, Inc. FCC ID: RCEICELL1900P-1 Report # 30475761 Page 74 of 78 FCC Part 24 1365 Adams Court, Menlo Park, CA 94025 TELOS Technology, Inc. FCC ID: RCEICELL1900P-1 Report # 30475761 Page 75 of 78 FCC Part 24 1365 Adams Court, Menlo Park, CA 94025 TELOS Technology, Inc. FCC ID: RCEICELL1900P-1 Report # 30475761 Page 76 of 78 FCC Part 24 1365 Adams Court, Menlo Park, CA 94025 TELOS Technology, Inc. FCC ID: RCEICELL1900P-1 Report # 30475761 Page 77 of 78 FCC Part 24 1365 Adams Court, Menlo Park, CA 94025 TELOS Technology, Inc. FCC ID: RCEICELL1900P-1 Report # 30475761 Page 78 of 78 FCC Part 24
