RCI-SIGMA-S400Sigma Industrial remote controller

Sigma Industrial Remote Controller OPRATION GUIDE Sigma S300-6 single step buttons Sigma S302-6 Buttons, 2 double step buttons+4single step buttons Sigma S304-6 Buttons, 4 double step buttons+2single step buttons Sigma S306-6 double step buttons Sigma S400-8 single step buttons Sigma S402-8 Buttons, 2 double step buttons+6single step buttons Sigma S404-8 Buttons, 4 double step buttons+4single step buttons Sigma S406-8 Buttons, 6 double step buttons+2single step buttons Sigma S408-8 double step buttons Sigma S40xAB-8 Buttons + A/B select function STOP Button A/B indicatior Status indicator Function buttons Sigma makes convenience!! ΣΣ Transmitter specification- Frequence range: 419.2MHz Transmitting power: 10mW< Modulation mode:FSK Transmitting mode:F1D Security codes: 4.2billion sets Power source: 2 x AA (LR6) 1.5V alkaline batteries Power consumption: 8mA< Opration temperature: -10°C~+40°C SizeS30x / S40x S50x / S60x 230mm X 70mm X 43mm : 175mm X 70mm X 43mm WeightS30x / S40x 250g S50x / S60x 310g (batteries included) : ΣΣ Indicators of transmittor- 1. Red ON(2sec When STOP Button is pressed down, the Red LED would light on 2 secs. Now it is in the STOP Mode. ): 2. reen ONAfter clockwise turning ON the STOP button, press any button(or press the Start-up Button, it depends on the set up) then the Green LED would light on. It is in the Start-up Procedure. G: 3. reen flash During operation, the Green LED would flash every 2 secs. G: 4. ed flashDuring operation, if the Red LED flashes per sec., it is telling you that the battery power is low. Please renew 2 x AA alkaline batteries. R: 5. A/B indicator In the type S40xAB,S50xAB and S60xAB, this indicator can show which hoist (A and/or B) is controlled. : S30x/S40x Transmitter S50x/S60x Transmitter ΣΣ Enclosure rating: IP60 0.03mW Sigma makes convenience!! ΣΣ ΣΣ Receiver specification- Frequence range: 419.2MHz Receive Sensitivity: 115dBm<- Security codes: 4.2billion sets Power source:AC110V Power consumption:W<8 Opration temperature: -10°C~+40°C Size: S50x / S60x 240mm X 120mm X90mm S30x / S40x 220mm X 120mm X75mm Weight: S50x / S60x 950g (Cable excluded) S30x / S40x 760g Contacts ability: 5A @ 250VAC Enclosure rating: IP60 S30x/S40x Receiver S50x/S60x Receiver Current rating :0.5 A Sigma makes convenience!! ΣΣ ΣΣ Indicators of receiver- 1.(Green Power indicator. It lightens on when the power is fed in. PWR): 2.: Green ON - The Receiver got the Start-up command, and is in Working Mode, ready for the operation anytime. Green OFF - The Receiver is still in the Stand-by Mode, and it needs to receive the Start-up command to operate. Red Flash - The Receiver is in the Security Code Learning Mode. WORK 3. Red ON -The RF signal is received. Red OFF Non RF signal or low signal. RF: - 4.: Red ON- The Receiver is waiting for the RF signal. Red OFF- The RF signal received and decoded correctly. Red fast Flash 5 times/sec The RF Signal received, but the Security Code does not match with each other. Red slow Flash 1 times/sec The RF signal received, but it is not Sigma's Code. The receiver is interfered by other RF signals. DATA -, -, ΣΣ Opration ofSigma- Start up PWR LED STOPSTOP Start-upSet-up programGreen LED Start-up Start-upWORK LED Green LED - 1. Power on the receiver and check thelightening or not. 2. Turn theButton clockwise and release, thewill spring up. (Please placed batteries into the transmitters at first,if have't placed batteries) 3. Push any button, or theButton (if already set by ). Wait till the Transmitter indicatorlightenen, and the Transmitter will send thecommand to the Receiver. Mean time, if the Receiver got thecommand, its will lighten. Release the pressed button(s), and the transmitter's will be off. 4. It is ready, and you can operatenow.Sigma - 1. Push down theButton anytime, the transmitter will send out the command to the Receiver. The Receiver will cut down any output, and theshould be shut off. The transmitter'swill still lights on and sendingcommand 2 secs. 2. Now, you may power off the Receiver. Power off STOP STOP WORK LEDRED LED STOP Sigma makes convenience!! ΣΣ ΣΣ Cautions- ① ② .... If you are not a professional, please do not install or uninstall. The equipments (or/and) would be damaged from your errors. The equipments must have the,, , and other safety protecting equipments. To avoid the influence caused by electromagnetic wave, the location of receiver should be away from motor/converter/welding machine and so on which may bring it. The's receiver should not be mounted inside of any metal box. It will weaken the strength of the RF signals, and may cause bad receiving condition for your operation. The receiver should be mounted outside of any metal box or other safe places that wouldn't cause bad receiving condition. If you will not usefor a long time, about a week or more, the batteries should be taken off to prevent the batteries electrolyte leakage to etch the. For PERMANENTLY CONNECTED EQUIPMENT, a readily accessible disconnect device shall be incorporated external to the equipment Sigma Sigma Sigma Sigma . Main Power N.F.B. Main Power Relay Limits SW. PCB ③ ④ ⑤ ⑥ Sigma makes convenience!! ΣΣ ΣΣ SigmaFunctions- 1. Interlocked - Left/ right button is interlocked from each other. 3. ON/OFF - ON/ OFF FFON In this Function, you can set the Left/ Right Button asfunction. The Left Button as, and the Right Button as . (This function could be set by passing EMS.) O 2. Non_Interlocked - Left/ right button is not interlocked, and its Two kinds of movements as below. ① ② NormalONOFF ToggleON OFF - Push down is , and release to be. - Push down would output . Release and push down again, output. (This function could be set by passing EMS.) 5. A/B Selector - Button H Button LHoist A Hoist B OFF A A+B B OFF LED A/ B This Function only supportsin S40xAB, andin S60 x AB, as the A/B Selector to choose,, or A + (plus) B to work together. The moves in turns like this,-> -> -> ->(Repeatedly). At the transmitter, it has the corresp…

Text truncated - open the document above for the full version.

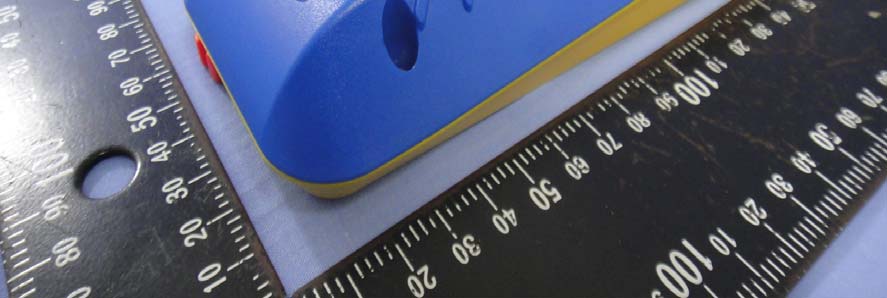

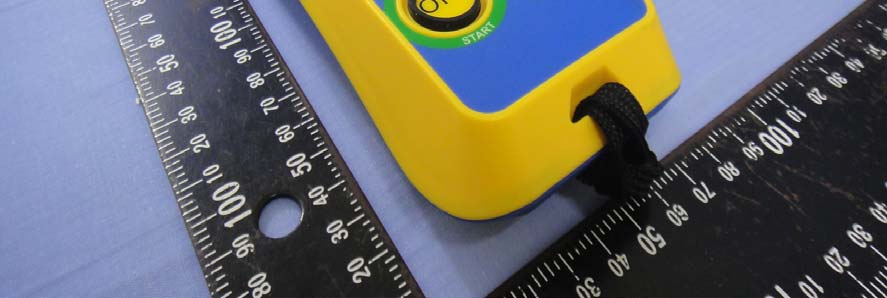

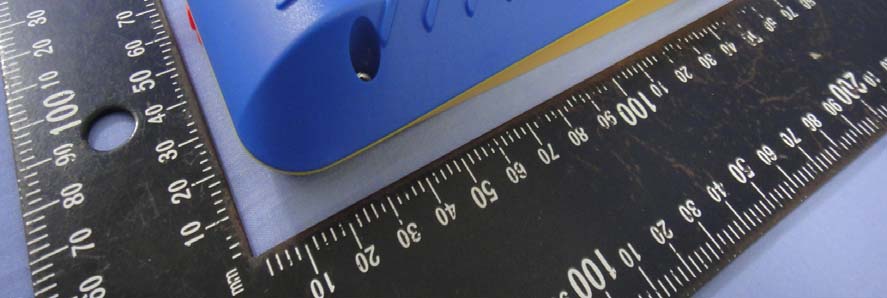

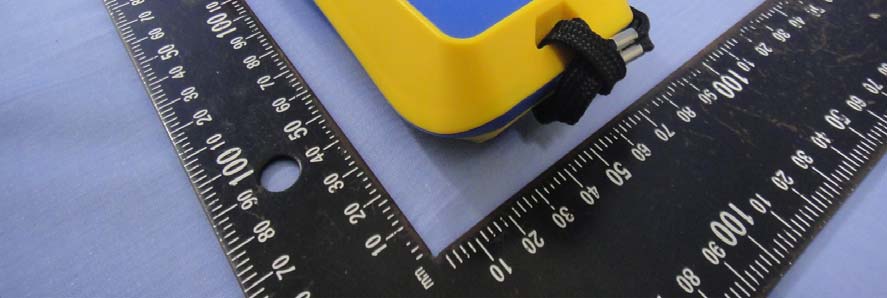

Compliance Certification Services Inc. Report No.: T121129W02 Date of Issue: December 19, 2012 A1 - 1 / 11 Rev. 00 APPENDIX 1 - PHOTOGRAPHS OF EUT EXTERNAL PHOTOGRAPHS OF EUT For Series Sigma S400 Compliance Certification Services Inc. Report No.: T121129W02 Date of Issue: December 19, 2012 A1 - 2 / 11 Rev. 00 Compliance Certification Services Inc. Report No.: T121129W02 Date of Issue: December 19, 2012 A1 - 3 / 11 Rev. 00 For Series Sigma S300

ΣΣ Sigma Industrial Remote Controller PWRRFDATAWORK Main Main 1 2 3 13 14 15 16 AC110V(0.5A) FUSE 0.5A A/BCom AStep 1 BStep 1 4 5 6 C/DCom CStep 1 DStep 1 18 C/DStep 2 7 8 9 E/FCom EStep 1 FStep 1 19 E/FStep 2 FUSE 5A 10 11 12 A/B2Com AStep 2 BStep 2 A B CD EF S300 Sigma S300 S/N : 12L0000106 ID: 1001 0138-A37 Caution !! High Voltage !! Do not open this box. Trained service personnel only. FCC ID:RCI-SIGMA-S400 This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions(1) This device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID:RCI-SIGMA-S400 Sigma S300 This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions(1) This device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID:RCI-SIGMA-S400 Sigma S400

Compliance Certification Services Inc. Report No.: T121129W02 Date of Issue: December 19, 2012 A1 - 6 / 11 Rev. 00 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T121129W02 Date of Issue: December 19, 2012 A1 - 7 Rev. 00 Compliance Certification Services Inc. Report No.: T121129W02 Date of Issue: December 19, 2012 A1 - 8 Rev. 00 Compliance Certification Services Inc. Report No.: T121129W02 Date of Issue: December 19, 2012 A1 - 9 Rev. 00 Helical Antenna Compliance Certification Services Inc. Report No.: T121129W02 Date of Issue: December 19, 2012 A1 - 10 Rev. 00 Compliance Certification Services Inc. Report No.: T121129W02 Date of Issue: December 19, 2012 A1 - 11 Rev. 00 Module

Compliance Certification Services Inc. FCC ID: RCI-SIGMA-S400 Report No.: T121129W02-RP Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 / 25 FCC 47 CFR PART 15 SUBPART C TEST REPORT For Sigma Industrial remote controller Model: Sigma S400, Sigma S300 Trade Name: Sigma Issued to Welltronic Technology CO. LTD. No.221, Shiahu St., Gueishan Township, Taoyuan County , Taiwan (R.O.C.) Issued by Compliance Certification Services Inc. No.11, Wu-Gong 6th Rd., Wugu Dist., New Taipei City 24891, Taiwan (R.O.C.) http://www.ccsrf.com [email protected] Issued Date: December 17, 2012 Compliance Certification Services Inc. FCC ID: RCI-SIGMA-S400 Report No.: T121129W02-RP Page 2 Revision History Rev. Issue Date Revisions Effect Page Revised By 00 December 17, 2012 Initial Issue ALL Rachel Wu Compliance Certification Services Inc. FCC ID: RCI-SIGMA-S400 Report No.: T121129W02-RP Page 3 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION............................................................................................. 4 2. EUT DESCRIPTION .................................................................................................................... 5 3. TEST METHODOLOGY ............................................................................................................. 6 3.1 EUT CONFIGURATION.............................................................................................................. 6 3.2 EUT EXERCISE......................................................................................................................... 6 3.3 GENERAL TEST PROCEDURES.................................................................................................. 6 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS .............................................. 7 3.5 DESCRIPTION OF TEST MODES................................................................................................. 7 4. INSTRUMENT CALIBRATION................................................................................................. 8 4.1 MEASURING INSTRUMENT CALIBRATION........................................................................... 8 4.2 MEASUREMENT EQUIPMENT USED .............................................................................. 8 4.3 MEASUREMENT UNCERTAINTY .................................................................................... 9 5. FACILITIES AND ACCREDITATIONS ................................................................................. 10 5.1 FACILITIES............................................................................................................................ 10 5.2 EQUIPMENT........................................................................................................................... 10 5.3 TABLE OF ACCREDITATIONS AND LISTINGS.......................................................................... 11 6. SETUP OF EQUIPMENT UNDER TEST ................................................................................ 12 6.1 SETUP CONFIGURATION OF EUT............................................................................................ 12 6.2 SUPPORT EQUIPMENT............................................................................................................ 12 7. FCC PART 15.231 REQUIREMENTS...................................................................................... 13 7.1 20DB BANDWIDTH ........................................................................................................... 13 7.2 LIMIT OF TRANSMISSION TIME.............................................................................................. 15 7.3 RADIATED EMISSIONS........................................................................................................... 17 7.4 POWERLINE CONDUCTED EMISSIONS.................................................................................... 22 APPENDIX I PHOTOGRAPHS OF TEST SETUP ....................................................................... 23 APPENDIX 1 - PHOTOGRAPHS OF EUT Compliance Certification Services Inc. FCC ID: RCI-SIGMA-S400 Report No.: T121129W02-RP Page 4 1. TEST RESULT CERTIFICATION Applicant: Welltronic Technology CO. LTD. No.221, Shiahu St., Gueishan Township, Taoyuan County , Taiwan (R.O.C.) Equipment Under Test: Sigma Industrial remote controller Tr a d e N a m e : Sigma Model: Sigma S400, Sigma S300 Date of Test: November 21 ~ December 14, 2012 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2009 and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.207, 15.209 and Part 15.231. The test results of this report relate only to the tested sample identified in this report. Approved by: Reviewed by: Miller Lee Gina Lo Section Manager Section Manager Compliance Certification Services Inc. Compliance Certification Services Inc. Compliance Certification Services Inc. FCC ID: RCI-SIGMA-S400 Report No.: T121129W02-RP Page 5 2. EUT DESCRIPTION Product Sigma Industrial remote controller Trade Name Sigma Model Number Sigma S400, Sigma S300 Model Number Model Difference Sigma S300 6 single step buttons Sigma S400 8 single step buttons Model Difference All the specification and layout are identical except they come with different button quality. Please refer to the EUT photos for detail descriptions. Received Date November 21, 2…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. FCC ID: RCI-SIGMA-S400 Report No.: T121129W02-RP Page 23 APPENDIX I PHOTOGRAPHS OF TEST SETUP CONDUCTED EMISSION SET UP PHOTO Compliance Certification Services Inc. FCC ID: RCI-SIGMA-S400 Report No.: T121129W02-RP Page 24 RADIATED EMISSION SET UP PHOTOS Below 1GHz Compliance Certification Services Inc. FCC ID: RCI-SIGMA-S400 Report No.: T121129W02-RP Page 25 Above 1GHz
