RCLTXPRO388FM Wireless Microphone

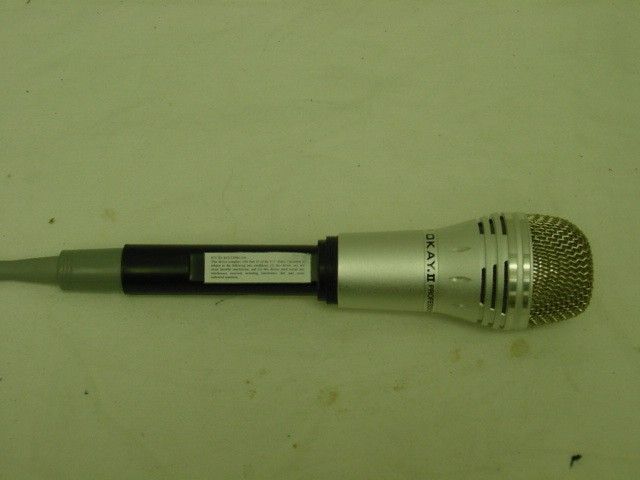

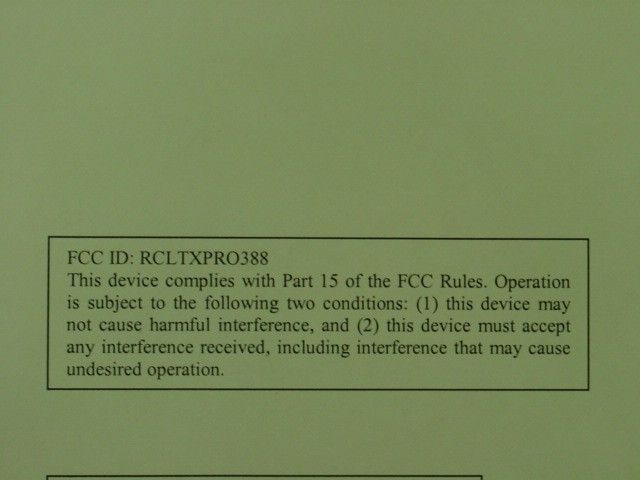

GPX, INC. 2122 CARR STREET, ST.LOUIS, MO 63106 MADE IN CHINA 09 4732301014 FCC WARNING / ADVERTENCIA FCC / AVERTISSEMENT FCC Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user authority to operate the equipment. This device generates and uses radio frequency energy and if not used properly may cause interference to radio and television reception. It has been tested and found to comply with the limits set by the FCC which are designed to provide resonate protection against such interference. Cambios y modificaciones a este aparato no expresamente aprobados por la parte responsable para conformidad pueden anular su autoridad para utilizar éste aparato. Éste aparato genera y utiliza energía de radiofrecuencia y si no se utiliza adecuadamente puede causar interferencias en la recepción de radio y televisión. Éste equipo ha sido probado y se ha encontrado que cumple con los límites establecidos por la FCC que son diseñados para proporcionar una protección razonable contra éstas interferencias. Changements et modifications de cet appareil non expressément approuvées par la part responsable pour conformité peuvent annuler votre autorité pour utiliser cet appareil. Cet appareil produit et utilise enérgie de radiofréquence et s' il n' est pas utilsé correctement peut causer interférences dans la réception de radio et télévision. Cet appareil a été essayé et trouvé observer avec les limites établies par la FCC qui sont désignées pour apporter une protection résonnée contre cettes interférences. OPERATION / FUNCIONAMIENTO / FONCTIONNEMENT 1 x "AA" Getting the receiver ready / Para poner el receptor en marcha / Pour mettre le récepteur en marche MIC INPUT P O W E R O N O F F a b c OPERATION / FUNCIONAMIENTO / FONCTIONNEMENT Getting the mic ready / Para poner el micrófono en marcha / Pour mettre le microphone en marche •ON •OFF 1 x "AA" a b c •For general operation, follow your Karaoke system's operating instructions. Para el funcionamiento general, siga las instrucciones de funcionamiento de su sistema de karaoke Pour fonctionnement général, suivez les instructions de fonctionnement de votre système de karaoké •To conserve battery life, remember to turn off the receiver and the microphone when not in use. Para conservar la vida de la pila, recuerde apagar el receptor y el micrófono cuando no los use. Pour conserver la vie de la pile, veuillez éteindre le récepteur et le microphone quand vous ne les utilisez pas. OPERATION / FUNCIONAMIENTO / FONCTIONNEMENT Using the microphone / Para utilizar el micrófono/ Pour utiliser le microphone

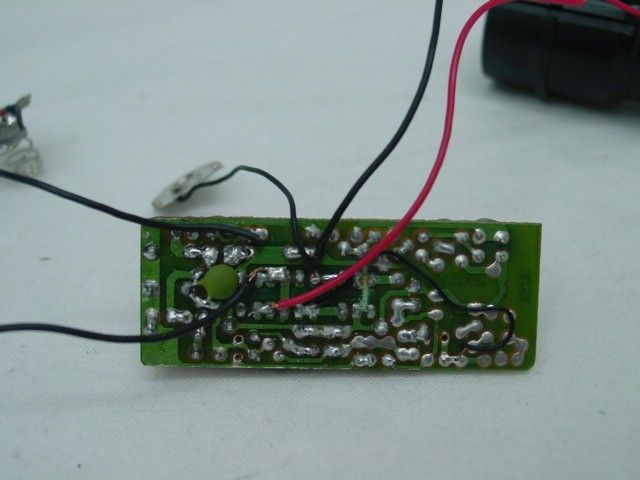

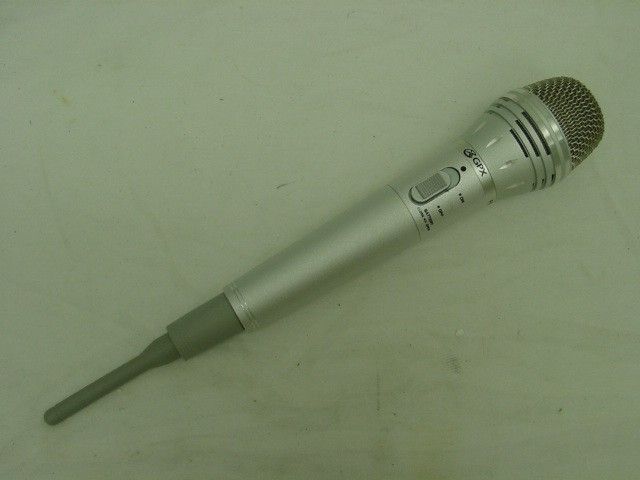

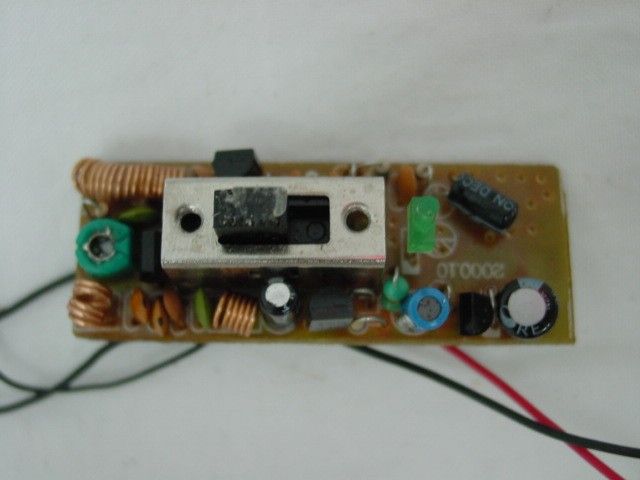

Operation Description of transmitter for FM Wireless Microphone The FM wireless microphone is a transmitter operating at 100 MHz by LC circuit (C3, L4). It is powered by 1 x 1.5 V AA size battery. There is an ON/OFF switch on the body of the mic. When it switches on, the LED lights up and it transmit signal to the receiver. Refer to the circuit design, the circuit description is listed as follows : - Q2 and associated circuit act as mixer - Q1 and associated circuit act as amplifier - Q3, Q4 and associated circuit act as regulator

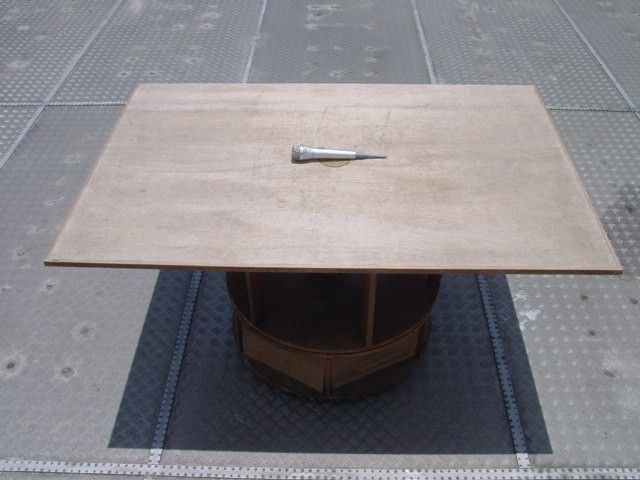

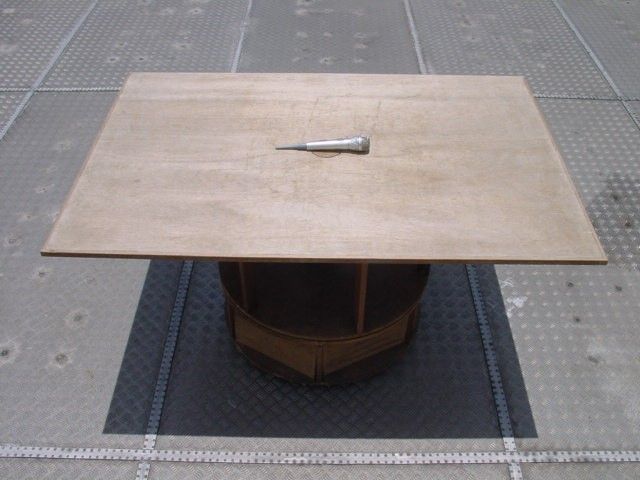

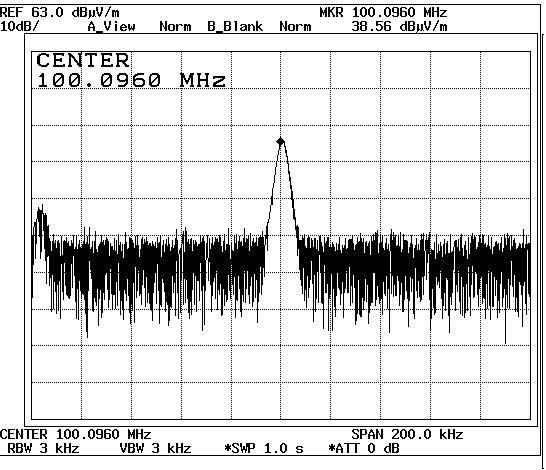

TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1401-3, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AD010663-1 Date : 2003 July 28 Applicant : iLike Electronics Co., Ltd. Unit 1209, 12/F., Siu Wai Industrial Centre, 29-33 Wing Hong Street, Kowloon, Hong Kong. Sample Description : One(1) submitted sample stated to be FM Wireless Microphone of Model No. PRO-388 . Rating : 1 x 1.5 V AA size battery No. of sample(s) : Three(3) pieces *** Date Received : 2003 June 11. Test Period : 2003 June 11 – 2003 June 18. 2003 July 12 – 2003 July 27. Test Requested : FCC Part 15 Certification Test Method : FCC Rules and Regulations Part 15 – May 2002 ANSI C63.4 – 1992 Test Result : See attached sheet(s) from page 2 to 10. Conclusion : The submitted sample was found to comply with requirement of FCC Part 15 Subpart C. For and on behalf of CMA Testing and Certification Laboratories Authorized Signature : Page 1 of 10 Danny Chui EMC Engineer - EL. Division FCC ID : RCLTXPR0388 TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1401-3, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AD010663-1 Date : 2003 July 28 Table of Contents 1 General Information........................................................................................................................ 3 1.1 General Description.................................................................................................................. 3 1.2 Related Submittal Grants.......................................................................................................... 3 1.3 Location of the test site............................................................................................................. 4 1.4 List of measuring equipment..................................................................................................... 5 2 Description of the radiated emission test.......................................................................................... 6 2.1 Test Procedure......................................................................................................................... 6 2.2 Test Result............................................................................................................................... 6 2.3 Radiated Emission Measurement Data....................................................................................... 7 3 Description of the Line-conducted Test............................................................................................ 8 3.1 Test Procedure......................................................................................................................... 8 3.2 Test Result............................................................................................................................... 8 3.3 Graph and Table of Conducted Emission Measurement Data...................................................... 8 4 Photograph..................................................................................................................................... 9 4.1 Photographs of the Test Setup for Radiated Emission and Conduction Emission.......................... 9 4.2 Photographs of the External and Internal Configurations of the EUT........................................... 9 5 Supplementary document................................................................................................................. 9 5.1 Bandwidth............................................................................................................................... 9 6 Appendices............................................................................................................................... 10 Page 2 of 10 FCC ID : RCLTXPR0388 TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1401-3, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AD010663-1 Date : 2003 July 28 1 General Information 1.1 General Description The equipment under test (EUT) is a transmitter for FM Wireless Microphone operating at 100 MHz. The EUT is powered by 1 x 1.5 V AA size battery. There is an ON/OFF switch on the body of the mic. When it switches on, the LED lights up and it transmit signal to the receiver. The brief circuit description is listed as follows : - Q2 and associated circuit act as mixer - Q1 and associated circuit act as amplifier - Q3, Q4 and associated circuit act as regulator 1.2 Related Submittal Grants This is a single application for certification of a transmitter. The receiver for this transmitter is authorized by Certification procedure. Page 3 of 10 FCC ID : RCLTXPR0388 TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1401-3, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AD010663-1 Date : 2003 July 28 1.3 Location of the test site Radiated emissions measurements are investigated and taken pursuant to the procedures of ANSI C63.4 – 1992. An Open Area Testing Site is set up for investigation and located at : Top of the Roof, Yan Hing Centre, 9 – 13 Wong Chuk Yeung Street, Fo Tan, Shatin, N…
