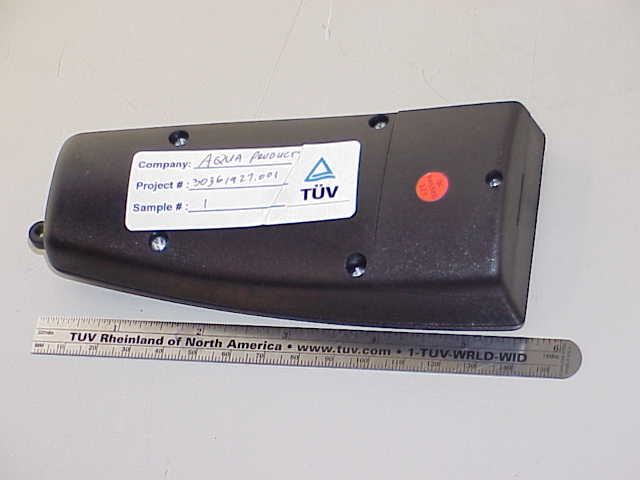

FCC ID: RCR G3779-E7542H TUV File: 30361927.001 External Product Photos Page 1 of 1 The test results contained in this report refer exclusively to the product(s) presented for testing. No liability may be assumed for models or products not referred to herein. This test report may not be published or duplicated in part without permission of the testing body. This test report by itself does not constitute authorization for the use of any TUV Rheinland test mark. This report must not be used by the applicant to claim product endorsement by TUV Rheinland, NVLAP or any agency of the U.S. Government. TÜV Rheinland of North America, Inc., North American Headquarters, 12 Commerce Road, Newtown, CT 06470 Tel (203)426-0888 - Fax (203)426-4009 Overall View of Transmitter module Bottom View of Transmitter module 9 volt battery compartment

Internal Photos

FCC ID: RCR G3779-E7542H TUV File: 30361927.001 Internal Product Photos Page 1 of 2 The test results contained in this report refer exclusively to the product(s) presented for testing. No liability may be assumed for models or products not referred to herein. This test report may not be published or duplicated in part without permission of the testing body. This test report by itself does not constitute authorization for the use of any TUV Rheinland test mark. This report must not be used by the applicant to claim product endorsement by TUV Rheinland, NVLAP or any agency of the U.S. Government. TÜV Rheinland of North America, Inc., North American Headquarters, 12 Commerce Road, Newtown, CT 06470 Tel (203)426-0888 - Fax (203)426-4009 Internal View of Transmitter Close Up Top View of Transmitter Circuit Board FCC ID: RCR G3779-E7542H TUV File: 30361927.001 Internal Product Photos Page 2 of 2 The test results contained in this report refer exclusively to the product(s) presented for testing. No liability may be assumed for models or products not referred to herein. This test report may not be published or duplicated in part without permission of the testing body. This test report by itself does not constitute authorization for the use of any TUV Rheinland test mark. This report must not be used by the applicant to claim product endorsement by TUV Rheinland, NVLAP or any agency of the U.S. Government. TÜV Rheinland of North America, Inc., North American Headquarters, 12 Commerce Road, Newtown, CT 06470 Tel (203)426-0888 - Fax (203)426-4009 Close up bottom view of transmitter circuit board Antenna

Schematics

1 2 34 A BCD 4 3 2 1 D CB A Title Number Revision Size A4 Date: 27-Nov-2003 Sheet of File: F:\°²×°ÎÄ¼þ\NEWZ\LASTpcb\ÎÞÏßÒ£¿Ø×ÜÍ¼2.ddb Drawn By: R1530K R16 3.6K R17 75 C3 1000pF C5 1pF C4 2.2pF C6 0.5pF C7 3.3pF C8 2.7pF C2 1000pF C1 1000pF V5 RED LED V6 KSP10 L1 1uH L2 3T A0 1 A1 2 A2 3 A3 4 A4 5 A5 6 A6 7 A7 8 GND 9 D3 10 D2 11 D1 12 D0 13 TE 14 OSC1 15 OSC2 16 DOUT 17 VCC 18 D1 PT2262 R1~R822K*8 R93M R10 22K R11 22K R12 22K R13 22K R14 3K V1 1N4148 V2 1N4148 V3 1N4148 V4 1N4148 BAT 9V K1K2K3 1 2 3 SAW1 433.92MHz Remote Controller Version1.0 2002-07-05 R18 47 2.6D0.6MM Width: 1.7mm Length: 50mm CN1 12345 67 V7 1N4148 V8 1N4148 R8R7 22K22K

Test Report

FCC ID: RCR G3779-E7542H TUV File: 30361927.001 Page 1 of 14 The test results contained in this report refer exclusively to the product(s) presented for testing. No liability may be assumed for models or products not referred to herein. This test report may not be published or duplicated in part without permission of the testing body. This test report by itself does not constitute authorization for the use of any TÜV Rheinland test mark. This report must not be used by the applicant to claim product endorsement by TÜV Rheinland, NVLAP or any agency of the U.S. Government. TÜV Rheinland of North America, Inc., North American Headquarters, 12 Commerce Road, Newtown, CT 06470 Tel (203) 426-0888 - Fax (203) 426-4009 Report of Measurements for Aquabot, Pulse-modulated Transmitter, P/N: 221016C Manufactured by Aqua Products, Inc. 25 Rutgers Avenue Cedar Grove, NJ 07009 Tested by TUV Rheinland of North America, Inc. Newtown, CT 06470 _________________________ Mark Ryan Senior Specialist, EMC Date of Test: 26, 27 AUG 2003 Date of Report: 12 SEP 2003 FCC ID: RCR G3779-E7542H TUV File: 30361927.001 Page 2 of 14 The test results contained in this report refer exclusively to the product(s) presented for testing. No liability may be assumed for models or products not referred to herein. This test report may not be published or duplicated in part without permission of the testing body. This test report by itself does not constitute authorization for the use of any TÜV Rheinland test mark. This report must not be used by the applicant to claim product endorsement by TÜV Rheinland, NVLAP or any agency of the U.S. Government. TÜV Rheinland of North America, Inc., North American Headquarters, 12 Commerce Road, Newtown, CT 06470 Tel (203) 426-0888 - Fax (203) 426-4009 Test Report Number: 30361189.001 Prübericht Nr. Test Report Summary Applicant: Auftraggeber Aqua Products, Inc. 25 Rutgers Avenue Cedar Grove, NJ 07009 Tel: (973) 857-2700 Fax: (973) 557-0532 Web page: http://www.aquaproducts.com Type of Equipment: Gegenstand der Prüfung Aquabot R/C Transmitter Ultra, Pulse-modulated Radio Remote Control Model Number: Bezeichnung: P/N: 220106C Trademark: Ursprungszeichen: Standards: Prufgrundlage: FCC Part 15 Subpart C Date of Test: 6-7 May, 2003 Standard Number Description Severity Level or Limit Minimum Acceptable Performance Criteria Summary Result FCC part 15, Subpart C Radiated Emissions Sections 15.33, 15.209 and 15.231 NA Complies FCC part 15, Subpart C Emission Bandwidth Sections 15.35 NA Complies FCC part 15, Subpart C Conducted Emissions Connection to AC Mains not possible NA NA Place of Test: Prüfort TUV Rheinland of North America 12 Commerce Road, Newtown, CT 06470 USA E-mail: [email protected] Web: http://www.tuv.com Phone: (203) 426-0888 Fax: (203) 270-8883 FOR THE SCOPE OF ACCREDITATION UNDER NVLAP LAB CODE 200111-0 Test Result: Prüfergebnis The unit presented for testing complied with criteria shown above. Additional Information is contained in the following pages. Tested By: Der Sachverständige Mark Ryan Checked By: geprüft Bruce Fagley 20 NOV 2003, 20 NOV 2003, Date, Signature Datum, Unterschrift Date, Signature Datum, Unterschrift FCC ID: RCR G3779-E7542H TUV File: 30361927.001 Page 3 of 14 The test results contained in this report refer exclusively to the product(s) presented for testing. No liability may be assumed for models or products not referred to herein. This test report may not be published or duplicated in part without permission of the testing body. This test report by itself does not constitute authorization for the use of any TÜV Rheinland test mark. This report must not be used by the applicant to claim product endorsement by TÜV Rheinland, NVLAP or any agency of the U.S. Government. TÜV Rheinland of North America, Inc., North American Headquarters, 12 Commerce Road, Newtown, CT 06470 Tel (203) 426-0888 - Fax (203) 426-4009 TABLE OF CONTENTS 1. GENERAL ................................................................................................................................................................... 4 1.1 EQUIPMENT TESTED ......................................................................................................................................... 4 1.2 APPLICANT / MANUFACTURER ........................................................................................................................ 4 1.3 FCCID ................................................................................................................................................................... 4 1.4 DESCRIPTION ...................................................................................................................................................... 4 1.4.1 Physical:......................................................................................................................................................... 4 1.4.2 Functional: ..................................................................................................................................................... 4 1.4.3 Electrical and EMC Related: ......................................................................................................................... 4 1.5 DESCRIPTION of CIRCUIT FUNCTION............................................................................................................. 5 1.6 BLOCK DIAGRAM SHOWING OSCILLATORS .................................................................................................. 5 2. MEASUREMENT EQUIPMENT USED .................................................................................................................. 5 3. REPORT OF MEASUREMENTS ............................................................................................................................. 6 3.1 TEST CONFIGURATION BLOCK DIAGRAM ..................................................................................................... 6 3.2 CONDUCTED…

Text truncated - open the document above for the full version.

Test Setup Photos

FCC ID: RCR G3779-E7542H TUV File: 30361927.001 Test Setup Photos Page 1 of 2 The test results contained in this report refer exclusively to the product(s) presented for testing. No liability may be assumed for models or products not referred to herein. This test report may not be published or duplicated in part without permission of the testing body. This test report by itself does not constitute authorization for the use of any TUV Rheinland test mark. This report must not be used by the applicant to claim product endorsement by TUV Rheinland, NVLAP or any agency of the U.S. Government. TÜV Rheinland of North America, Inc., North American Headquarters, 12 Commerce Road, Newtown, CT 06470 Tel (203)426-0888 - Fax (203)426-4009 View of Radiated Emissions Prescan test setup 30MHz – 1 GHz View of Radiated Emissions Prescan 1GHz to 5GHz FCC ID: RCR G3779-E7542H TUV File: 30361927.001 Test Setup Photos Page 2 of 2 The test results contained in this report refer exclusively to the product(s) presented for testing. No liability may be assumed for models or products not referred to herein. This test report may not be published or duplicated in part without permission of the testing body. This test report by itself does not constitute authorization for the use of any TUV Rheinland test mark. This report must not be used by the applicant to claim product endorsement by TUV Rheinland, NVLAP or any agency of the U.S. Government. TÜV Rheinland of North America, Inc., North American Headquarters, 12 Commerce Road, Newtown, CT 06470 Tel (203)426-0888 - Fax (203)426-4009 Radiated Emissions test setup in OATS Typical External View of Radiated Emissions test setup in OATS Antenna shown in 3m position
