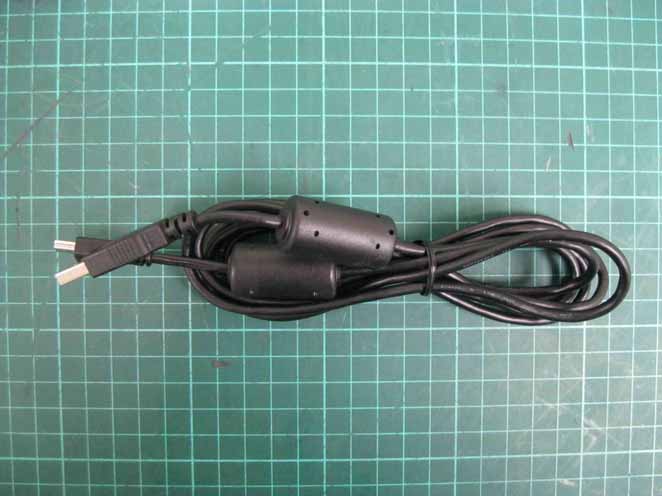

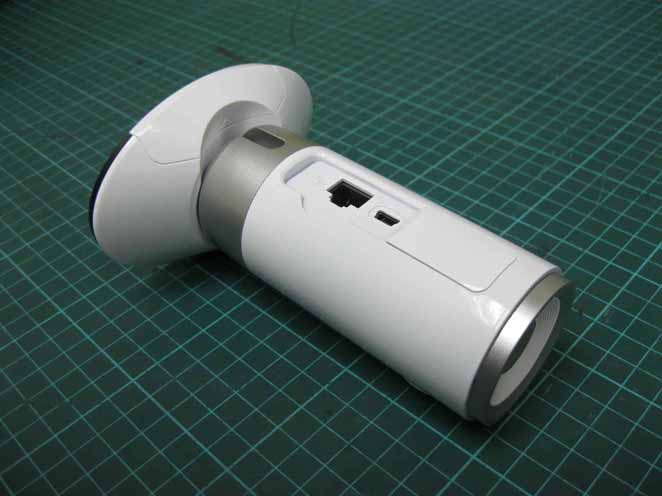

Report No.T140619D10 Page 1 of 5 External Photo Report No.T140619D10 Page 2 of 5 Report No.T140619D10 Page 3 of 5 Switching Adapter(Model : DSA-10PFG-05 FUS) Report No.T140619D10 Page 4 of 5 Report No.T140913S01 Page 5 of 5 Power Cable

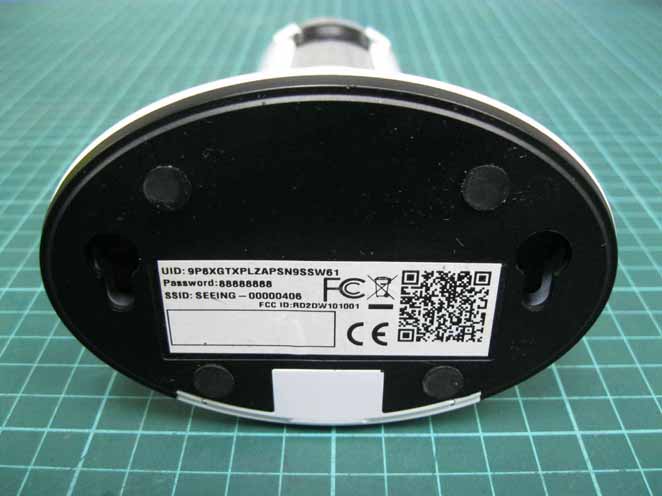

Label Location

Report No.T140619D10 Page 1 of 8 Internal Photo Report No.T140619D10 Page 2 of 8 Report No.T140619D10 Page 3 of 8 Report No.T140619D10 Page 4 of 8 Report No.T140619D10 Page 5 of 8 Report No.T140619D10 Page 6 of 8 Report No.T140619D10 Page 7 of 8 Report No.T140619D10 Page 8 of 8 Antenna

Compliance Certification Services Inc. Report No.: T140619D10-RP1-1 Date of Issue: November 12, 2014 Page 1 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. APPENDIX I RADIO FREQUENCY EXPOSURE LIMIT According to §15.247(i), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this chapter. EUT Specification EUT SmartCam Video Monitoring Model DVW116 Frequency band (Operating) 802.11b/g/gn HT20: 2.412GHz ~ 2.462GHz 802.11gn HT40: 2.422GHz ~ 2.452GHz Others Device category Portable (<20cm separation) Mobile (>20cm separation) Others Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna Specification 2.4GHz: Antenna Gain :1.51 dBi (Numeric gain 1.42) Maximum output power IEEE 802.11b Mode: 13.95 dBm (24.831 mW) IEEE 802.11g Mode: 26.76 dBm (474.242 mW) IEEE 802.11gn HT 20 Mode: 27.25 dBm (530.884 mW) IEEE 802.11gn HT 40 Mode: 26.95 dBm (495.450 mW) Evaluation applied MPE Evaluation* SAR Evaluation N/A Compliance Certification Services Inc. Report No.: T140619D10-RP1-1 Date of Issue: November 12, 2014 Page 2 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Revision History Rev. Issue Date Revisions Effect Page Revised By 00 2014/11/12 Initial Issue ALL Michelle Chiu Compliance Certification Services Inc. Report No.: T140619D10-RP1-1 Date of Issue: November 12, 2014 Page 3 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TEST RESULTS No non-compliance noted. Calculation Given d GP E ×× = 30 & 3770 2 E S= Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 3770 30 d GP S ×× = Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields () () 22 0796.0 100/3770 1000/30 d GP d GP S × ×= × ×× = Equation 1 Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Compliance Certification Services Inc. Report No.: T140619D10-RP1-1 Date of Issue: November 12, 2014 Page 4 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Maximum Permissible Exposure Substituting the MPE safe distance using d = 20 cm into Equation 1: GPS××=000199.0 Where P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 IEEE 802.11b mode: Frq.(MHz)P (mW) Gain (num.)D (cm) Power densit y in mW / cm 2 Limit (mW/cm2) 2412~2462 24.8311.42200.00701 IEEE 802.11g mode: Frq.(MHz)P (mW) Gain (num.)D (cm) Power densit y in mW / cm 2 Limit (mW/cm2) 2412~2462 474.241.42200.13401 IEEE 802.11gn HT20 mode: Frq.(MHz)P (mW) Gain (num.)D (cm) Power densit y in mW / cm 2 Limit (mW/cm2) 2412~2462 530.8841.42200.15001 IEEE 802.11gn HT40 mode: Frq.(MHz)P (mW) Gain (num.)D (cm) Power densit y in mW / cm 2 Limit (mW/cm2) 2422~2452 495.451.42200.14001

FCC IDRD2DW116001 Report No.T140619D10-RP1 Page 1 of 92 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. FCC 47 CFR PART 15 SUBPART C AND ANSI C63.10:2009 TEST REPORT For SmartCam Video Monitoring Model : DVW116 Trade Name : See.ing Issued for DXG Technology Corp. 15FL.,NO.4,SEC.3,MING-CHUAN EAST ROAD,TAIPEI,TAIWAN,R.O.C. Issued by Compliance Certification Services Inc. Hsinchu Lab. NO. 989-1 Wen Shan Rd., Shang Shan Village, Qionglin Shiang Hsinchu County 30741, Taiwan, R.O.C TEL: +886-3-5921698 FAX: +886-3-5921108 http://www.ccsrf.com E-Mail : [email protected] Issued Date: November 12, 2014 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF or any government agencies. The test results of this report relate only to the tested sample identified in this report. FCC IDRD2DW116001 Report No.T140619D10-RP1 Page 2 of 92 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. Revision History Rev. Issue Date Revisions Effect Page Revised By 00 11/12/2014 Initial Issue All Page 92 Michelle Chiu FCC IDRD2DW116001 Report No.T140619D10-RP1 Page 3 of 92 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. TABLE OF CONTENTS TITLE PAGE NO. 1. TEST REPORT CERTIFICATION ................................................................................ 4 2. EUT DESCRIPTION ..................................................................................................... 5 3. DESCRIPTION OF TEST MODES ............................................................................... 6 4. TEST METHODOLOGY ............................................................................................... 8 5. FACILITIES AND ACCREDITATION ........................................................................... 8 5.1 FACILITIES ............................................................................................................ 8 5.2 ACCREDITATIONS ................................................................................................ 8 5.3 MEASUREMENT UNCERTAINTY ......................................................................... 9 6. SETUP OF EQUIPMENT UNDER TEST ...................................................................... 10 7. FCC PART 15.247 REQUIREMENTS .......................................................................... 11 7.1 6dB BANDWIDTH .................................................................................................. 11 7.2 MAXIMUM PEAK OUTPUT POWER ..................................................................... 21 7.3 AVERAGE POWER ............................................................................................... 24 7.4 POWER SPECTRAL DENSITY ............................................................................. 27 7.5 CONDUCTED SPURIOUS EMISSION .................................................................. 38 7.6 RADIATED EMISSION ........................................................................................... 51 7.7 CONDUCTED EMISSION ...................................................................................... 85 APPENDIX I SETUP PHOTOS ........................................................................................ 90 FCC IDRD2DW116001 Report No.T140619D10-RP1 Page 4 of 92 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. 1. TEST REPORT CERTIFICATION Applicant DXG Technology Corp. Address 15FL.,NO.4,SEC.3,MING-CHUAN EAST ROAD,TAIPEI,TAIWAN,R.O.C. Equipment Under Test SmartCam Video Monitoring Model DVW116 Trade Name See.ing Tested Date June 19 ~ November 12, 2014 APPLICABLE STANDARD Standard Test Result FCC Part 15 Subpart C AND ANSI C63.10:2009 PASS WE HEREBY CERTIFY THAT: The above equipment has been tested by Compliance Certification Services Inc., and found compliance with the requirements set forth in the technical standards mentioned above. The results of testing in this report apply only to the product/system, which was tested. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Approved by: Reviewed by: Sb. Lu Gundam Lin Sr. Engineer Sr. Engineer FCC IDRD2DW116001 Report No.T140619D10-RP1 Page 5 of 92 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. 2. EUT DESCRIPTION Product Name SmartCam Video Monitoring Model Number DVW116 Identify Number T140619D10 Received Date June 19, 2014 Frequency Range IEEE 802.11b/g, 802.11gn HT20 : 2412MHz ~ 2462MHz IEEE 802.11gn HT40 : 2422MHz ~ 2452MHz Transmit Power IEEE 802.11b : 13.95dBm (0.0248W) IEEE 802.11g : 26.76dBm (0.4742W) IEEE 802.11gn HT20 : 27.25dBm (0.5309W) IEEE 802.11gn HT40 : 26.95dBm (0.4955W) Channel Spacing IEEE 802.11b/g, 802.11gn HT20/HT40 : 5MHz Channel Number IEEE 802.11b/g, 802.11gn HT20: 11 Channels IEEE 802.11gn HT40 : 7 Channels Transmit Data Rate IEEE 802.11b : 11, 5.5, 2, 1 Mbps IEEE 802.11g : 54, 48, 36, 24, 18, 12, 9, 6 Mbps IEEE 802.11gn HT20 : 72.2, 65, 58.5, 57.78, 52, 43.33, 39, 28.89, 26, 21.7, 19.5, 14.44, 13, 7.2, 6.5 Mbps IEEE 802.11gn HT40 : 150, 135, 121.5, 120, 108, 90, 81, 60, 54, 45, 40.5, 30, 27, 15, 13.5Mbps Type of Modulation IEEE 802.11b : DSSS (CCK, DQPSK, DBPSK) IEEE 802.11g : OFDM (64QAM, 16QAM, QPSK, BPSK) IEEE 802.11gn HT20/40 : OFDM (64QAM, 16QAM, QPSK, BPSK) Antenna Type PIFA Antenna × 1, Antenna Gain 1.51 dBi Power Rating 5Vdc Test Voltage 120Vac, 60Hz DC Power…

Text truncated - open the document above for the full version.

FCC IDRD2DW116001 Report No.T140619D10-RP1 Page 90 of 92 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. APPENDIX I SETUP PHOTOS RADIATED EMISSION SETUP FCC IDRD2DW116001 Report No.T140619D10-RP1 Page 91 of 92 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. CONDUCTED EMISSION SETUP FCC IDRD2DW116001 Report No.T140619D10-RP1 Page 92 of 92 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. CONDUCTED EMISSION SETUP
