RD60PW1P0010GSM Software Base Station

PORTER SQUARE GALLERIA ∑ ONE PORTER SQUARE, SUITE 18 ∑ CAMBRIDGE, MA 02140 ∑ 617 864 1711 ∑ WWW.VANU.COM Copyright
2004, Vanu, Inc. Vanu Software Radio GSM Base Station September 22, 2005 Vanu Software Radio GSM Base Station 2 Contents Vanu Software Radio GSM Base Station ..................................................................... 1 1. System Overview................................................................................................. 4 2. BTS Sites ................................................................................................................ 5 Routers ........................................................................................................................................... 6 Connections ............................................................................................................................. 6 Troubleshooting ........................................................................................................................ 7 BTS Servers ..................................................................................................................................... 7 Connections ............................................................................................................................. 7 Troubleshooting ........................................................................................................................ 8 Protium RF Front End.................................................................................................................... 8 Protium Front-End Indicators .................................................................................................. 9 Protium Rear View Connections - Duplexer ...................................................................... 10 Protium Rear View Connections – RF ................................................................................. 11 Troubleshooting ...................................................................................................................... 12 Powerwave Amplifier ................................................................................................................ 13 GPS Timing Source ..................................................................................................................... 16 Connections ........................................................................................................................... 16 Troubleshooting ...................................................................................................................... 16 3. BSC Site .............................................................................................................. 16 Routers ......................................................................................................................................... 17 Connections ........................................................................................................................... 18 Troubleshooting ...................................................................................................................... 18 BSC Servers.................................................................................................................................. 19 Troubleshooting ...................................................................................................................... 20 TRAU Server ................................................................................................................................. 20 Connections ........................................................................................................................... 20 Troubleshooting ...................................................................................................................... 21 Gigabit Ethernet Switch............................................................................................................ 21 Connections ........................................................................................................................... 21 Vanu Software Radio GSM Base Station 3 Troubleshooting ...................................................................................................................... 21 VPN Key Server ........................................................................................................................... 21 Description .............................................................................................................................. 21 Connections ........................................................................................................................... 22 Troubleshooting ...................................................................................................................... 22 VPN Router .................................................................................................................................. 22 Connections ........................................................................................................................... 22 Troubleshooting ...................................................................................................................... 23 4. Acronym Glossary ............................................................................................ 24 5. Index .................................................................................................................. 25 Figures Figure 1: System Diagram.......................................................................................................... 4 Figure 2: BTS with Protium Site .................................................................................................... 5 Figure 3: BTS Router and Connections ..................................................................................... 6 Figure 4: BTS Server C…

Text truncated - open the document above for the full version.

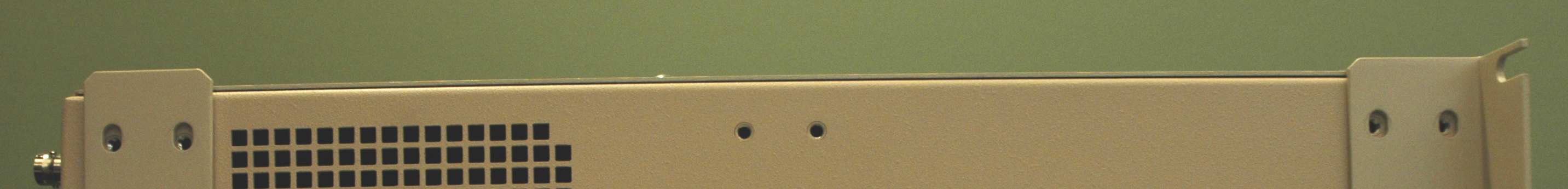

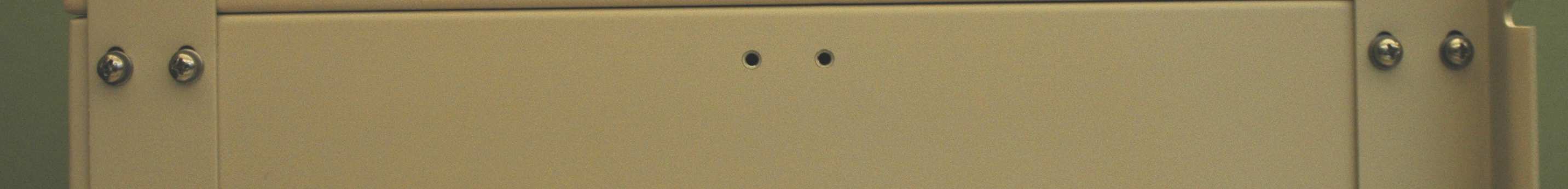

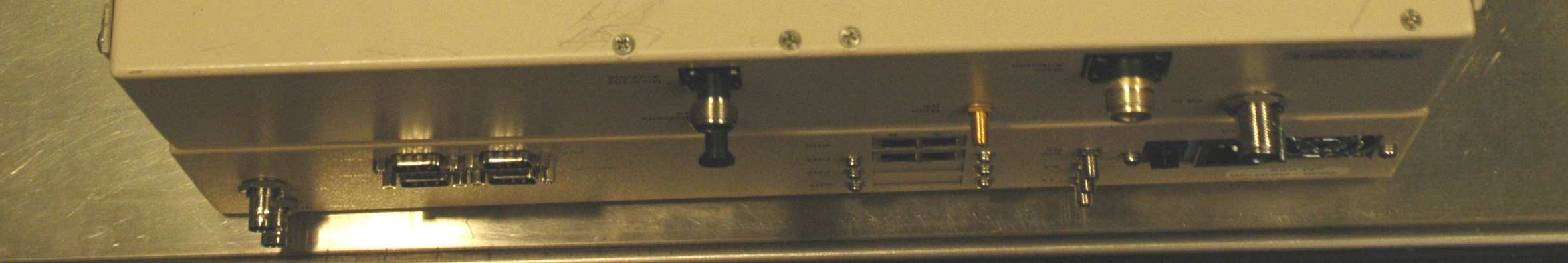

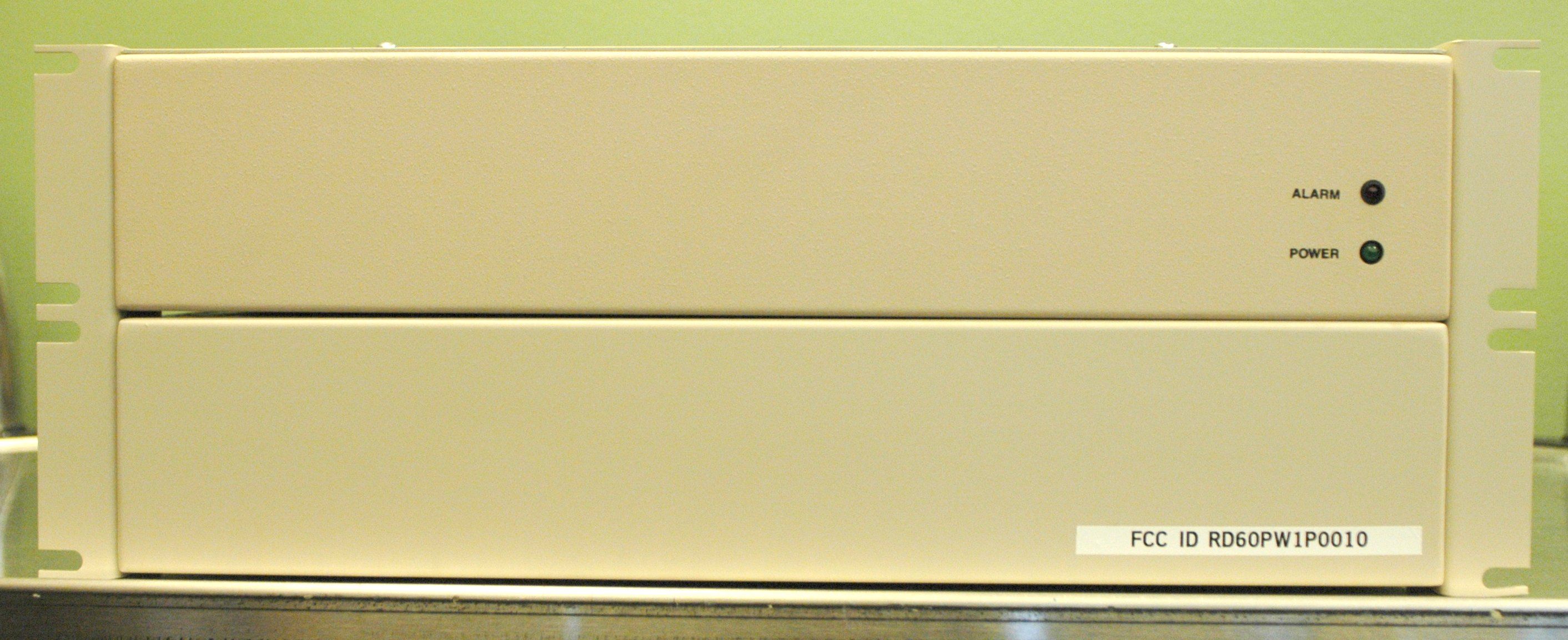

External Photos – Anywave 1900 Figure 1 - Front View of Anywave 1900 Figure 2 - Back View of Anywave 1900 Figure 3 - Right Side View of Anywave 1900 Figure 4 - Left Side View of Anywave 1900 Figure 5 - Top View of Anywave 1900 Figure 6 - Bottom View of Anywave 1900

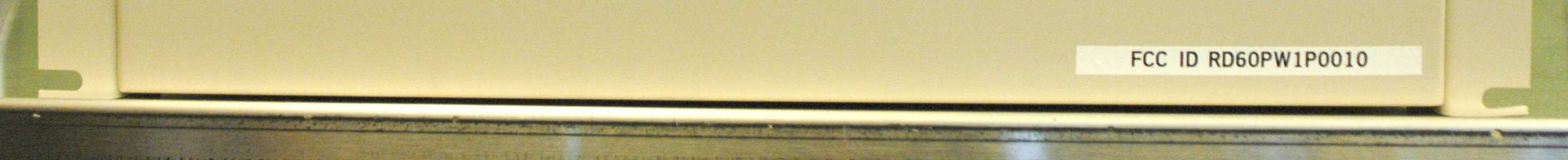

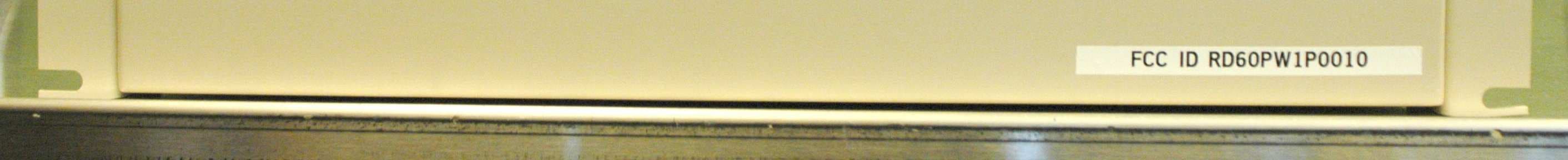

Instructions for Viewing System FCC ID Label 1. Connect the RS-232 port on a laptop or other computer to the RS-232 serial console port of the BTS using a null modem cable. On the HP Proliant servers, the serial console port is located in the rear center of the server surrounded by a green label. The two figures below show the null modem cable connected to the serial console port on the HP Proliant server. Figure 1: Null modem cable connected to the serial console port of the HP Proliant server Figure 2: Close-up of a null modem cable connected to the serial console port of the HP Proliant server. 2. Turn on power to the BTS Server if it was turned off. Wait at least one minute for the server to finish booting. 3. Run a serial communications program such as HyperTerminal, bundled for free in Microsoft Windows systems, on the client laptop. Select to use the RS-232 port for communications (in HyperTerminal under Windows, this corresponds to selecting COM3 or another COM port in the initialization dialog box). Set the RS- 232 port to 115200 bits per second, 8 data bits, no parity bits, 1 stop bit, and hardware flow control. 4. Press the Enter key in the active HyperTerminal session. The BTS will respond by printing out identifying information and prompting for a login. A screen shot of an example HyperTerminal session is shown below. Figure 3: Screenshot of HyperTerminal view of system FCC ID

Internal Anywave 1900 Photos Figure 1 – Main Board Back Figure 2 – Main Board Front Figure 3 – Daughter Card - Back Figure 4 – Daughter Card Front Figure 5 – RF Board Back Figure 6 – RF Board Front

Test Results: Pass Test Standard: FCC Part 24 Test : Occupied Bandwidth (26 dB Bandwidth) Maximum Test Disturbance Parameters: Emission must stay within assigned band of operation. Test Date: 08/20/2005 Test Engineer: Byron Kubert Test Equipment Used: ManufacturerModel Serial NumberCal Due HPHP89441AUS3931390612/17/05 Test Details: TestEUT Reading KHz Standard Limit No Limit Pass Fail COMMENT 1930.2 Mhz270.31No LimitPass 1989.8 Mhz275No LimitPass Notes: The RF power for these tests was measured after the duplexer. This measures the occupied bandwidth at the absolute ends of this devices's frequency range. The max frequency drift measured over temperature was 700Hz. This amount of deviation will not move the 20dB down point outside of the 1930 to 1990 band this device operates in. The frequency drift measurement can be found in the Intertek Test Report #3082207.EMI-A pg 40. Power in 1MHz band centered at 1930.2 Delta marker 26dB down from -7.67dBm Delta marker 26dB down from -7.67dBm Total power in 1MHz band centered at 1989.8 Delta marker 26dB down from -8.527 dBm Delta marker 26dB down from -8.527 dBm

Emissions Report for Vanu, Inc. on the Model GSM 1900 Basestation Report Number 3082207.EMI-A Page 2 of 95 1.0 Job Description 1.1 Client Information This EUT has been tested at the request of Company: Vanu, Inc. One Cambridge Center Cambridge, MA 02142 Contact: Byron Kubert Telephone: Fax: 617-864-1711 617-864-1697 1.2 Equipment Under Test Equipment Type: Cellular Basestation Model Number(s): GSM 1900 Basestation Serial number(s): 1526-1 Manufacturer: Protium Technologies, Inc. EUT receive date: 08/15/2005 EUT received condition: Good Test start date: 08/15/2005 Test end date: 09/09/2005 1.3 Test Plan Reference: Tested according to the standards listed. 1.4 Test Configuration 1.4.1 Block Diagram Turntable Remote Remote AC Location Mains DL 380 Server GSM 1900 Basestation 50-Ohm load AC Mains Ethernet, Serial Cables to DL 380 Server Coaxial Cable to Brandywine GPS8 Laptop Brandywin e GPS8 Ethernet Coaxial Cable to Basestation Ethernet and Serial Cable to Basestation Emissions Report for Vanu, Inc. on the Model GSM 1900 Basestation Report Number 3082207.EMI-A Page 3 of 95 1.4.2 Cable List: Cable Shielding Connector Length (m) Qty. DL380 Power Cable None Plastic 1.5 1 Serial Cable Braid Metal/360 (DB9) 3 1 Ethernet Cable Braid Metal 1.5 2 RF Section Power Cable None Plastic 2 1 Laptop Power Cable Braid Metal/Jack 2.5 1 Brandywine Power Cable None Plastic 2.5 1 Coaxial Cable Braid Metal/360 (BNC) 2 1 1.4.3 Support Equipment: Name: Model No.: Serial No.: Dell Latitude Laptop D505 1541 Name: Model No.: Serial No.: Brandywine Communications GPS8 1611 Name: Model No.: Serial No.: HP ProLiant DL 380 Server DL380 1205 Emissions Report for Vanu, Inc. on the Model GSM 1900 Basestation Report Number 3082207.EMI-A Page 4 of 95 1.5 Mode of Operation: The EUT was activated from 120V/60Hz power and transmitted on low, mid, and high channels across the EUT passband. Various types of data were fed to the modulator, as indicated in the list below and referenced elsewhere in this document. Unless otherwise indicated, bursts of random data were fed to the modulator. EUT passband: 1930 – 1990 MHz Channels Tested: Channel A: 1931 MHz Channel B: 1960 MHz Channel C: 1989 MHz BIT PATTERN TEST MODES (All Software Tests performed at Channel B – 1960 MHz) Software Test 1 Repeated GSM signal syncburst dropout filling every other page with zeros Software Test 2 GSM signal program suspended for seconds at a time every couple of seconds Software Test 3 GSM signal created from a sequence of all zeros (156 zeros) Software Test 4 Repeated GSM signal with 8 bursts of valid traffic channel data followed by 8 bursts of zeros Software Test 5 Repeated GSM signal with 1 timeslot of valid traffic channel data and remaining 7 timeslots filled with dummy bursts Software Test 6 Repeated GSM signal sequence with 4 timeslots of valid traffic channel data and the remaining 4 timeslots filled with dummy bursts Software Test 7 Repeated GSM signal sequence with 8 timeslots of valid traffic channel data Software Test 8 GSM signal created from a square wave with a period of four symbols Software Test 9 GSM signal created from a random sequence of 125000 symbols Software Test 10 GSM signal created from a sequence of all ones (156 ones) Software Test 11 Repeated GSM signal with 1 timeslot of valid control channel data and remaining 7 timeslots filled with dummy bursts Emissions Report for Vanu, Inc. on the Model GSM 1900 Basestation Report Number 3082207.EMI-A Page 5 of 95 2.0 Test Summary TEST STANDARD RESULTS FCC Part 24 SUB-TEST TEST PARAMETER COMMENT RF Output Power FCC 2.1046, 24.232 RF Output Power must not exceed 100 Watts (50 dBm) Pass Occupied Bandwidth FCC 2.1049 Emission must stay within assigned band of operation. Pass Spurious Conducted Emissions FCC 2.1051, 24.238 Emissions outside the passband must not exceed –13 dBm. Pass Spurious Radiated Emissions FCC 2.1053, 24.238 Emissions outside the passband must not exceed –13 dBm. Pass Frequency Stability FCC 2.1055, 24.235 Emission must stay within assigned band of operation. Pass Emissions Report for Vanu, Inc. on the Model GSM 1900 Basestation Report Number 3082207.EMI-A Page 6 of 95 3.0 Sample Calculations The field strength is calculated by adding the Antenna Factor and Cable Factor, and subtracting the Amplifier Gain (if any) from the measured reading. The basic equation with a sample calculation is as follows: FS = RA + AF + CF - AG Where FS = Field Strength in dBμV/m RA = Receiver Amplitude (including preamplifier) in dBμV CF = Cable Attenuation Factor in dB AF = Antenna Factor in dB AG = Amplifier Gain in dB In the following table(s), the reading shown on the data table reflects the preamplifier gain. An example for the calculations in the following table is as follows. Assume a receiver reading of 52.0 dBμV is obtained. The antenna factor of 7.4 dB and cable factor of 1.6 dB is added. The amplifier gain of 29 dB is subtracted, giving a field strength of 32 dBμV/m. This value in dBμV/m was converted to its corresponding level in μV/m. RA = 52.0 dBμV AF = 7.4 dB/m CF = 1.6 dB AG = 29.0 dB FS = 32 dBμV/m Level in μV/m = [10( 32 dBμV/m)/20] = 39.8 μV/m The following is how net line-conducted readings were determined: NF = RF + LF + CF + AF Where NF = Net Reading in dBμV RF = Reading from receiver in dBμV LF = LISN Correction Factor in dB CF = Cable Correction Factor in dB AF = Attenuator Loss Factor in dB To convert from dBμV to μV or mV the following was used: UF = 10 (NF / 20) where UF = Net Reading in μV Example: NF = RF + LF + CF + AF = 28.5 + 0.2 + 0.4 + 20.0 = 49.1 dBμV UF = 10 (48.1 dBμV / 20) = 254 μV/m Emissions Report for Vanu, Inc. on the Model GSM 1900 Basestation Report Number 3082207.EMI-A Page 7 of 95 3.1 Measurement Uncertainty Compliance of the product is based on the measured value. However, the measurement uncertainty is included for informational purposes. The expanded uncertainty (k = 2) for radiated emissions from 30 to 1000 MHz has been determined to be: ±…
