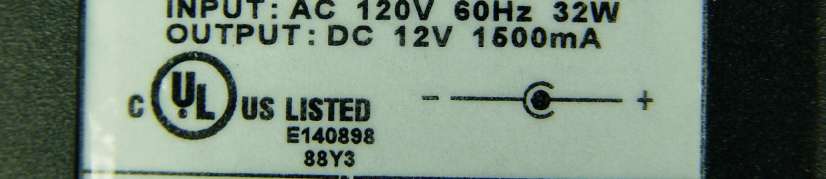

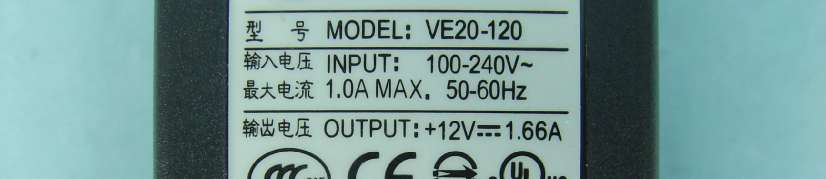

FCC ID: RD7-A5020 Report No.RF940629L08 Technical Description The transmitter of the EUT (AirMagnet SmartEdge Sensor) is powered by AC adapter and POE. The antennas used in this product are Omni-Directional and Dipole antenna with RP TNC antenna connector. Under normal use condition, the user has to keep at least 20cm separation distance between radiator and the body of the user. This device is a AirMagnet SmartEdge Sensor, which operates in both of the 5GHz and 2.4GHz bands and can not transmitting simultaneously, the maximum data rate could be 54Mbps. For more detailed instruction, please take a look at the user’s manual. FCC 15.407(c) states: The device shall automatically discontinue transmission in case of either absence of information to transmit or operational failure. These provisions are not intended to preclude the transmission of control or signaling information or the use of repetitive codes used by certain digital technologies to complete frame or burst intervals. Applicants shall include in their application for equipment authorization a description of hoe this requirement is met” Data transmission is always initiated by software, which is then pass down through the MAC, through the digital and analog baseband, and finally to the RF chip. Several special packets (ACKs, CTS, PSPoll, etc...) are initiated by the MAC. There are the only ways the digital baseband portion will turn on the RF transmitter, which it then turns off at the end of the packet. Therefore, the transmitter will be on only while one of the aforementioned packets are being transmitted.

FCC ID: RD7-A5020 Report No: SA940629L08 1 RF EXPOSURE REPORT REPORT NO.: SA940629L08 MODEL NO.: A5020 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: AirMagnet, Inc. ADDRESS: 1325 Chesapeake Terrace, Sunnyvale, CA 94089 U.S.A. ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. FCC ID: RD7-A5020 Report No: SA940629L08 2 RF Exposure Measurement (Mobile Device) 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: RD7-A5020 Report No: SA940629L08 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4 EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification This device is not fixed inside the host equipment, it is connected with host through wire. So it is easy to be re-located in the place where at least 20cm far away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. FCC ID: RD7-A5020 Report No: SA940629L08 4 6 Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 6dBi or 3.981 (numeric) (for 2.4GHz) 8dBi or 6.310 (numeric)(for 5GHz). 6.2 Output Power into Antenna & RF Exposure at Distance 20cm: 802.11b DSSS modulation Antenna gain: 5dBi Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241250.8160.0321.0 6243751.1680.0321.0 11246250.3500.0321.0 Antenna gain: 2.05dBi Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241250.8160.0161.0 6243751.1680.0161.0 11246250.3500.0161.0 Antenna gain: 6dBi Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241250.8160.0401.0 6243751.1680.0411.0 11246250.3500.0401.0 FCC ID: RD7-A5020 Report No: SA940629L08 5 802.11g OFDM modulation Antenna gain: 5dBi Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241225.2930.0161.0 6243725.5860.0161.0 11246225.4100.0161.0 Antenna gain: 2.05dBi Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241225.2930.0081.0 6243725.5860.0081.0 11246225.4100.0081.0 Antenna gain: 6dBi Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241225.2930.0201.0 6243725.5860.0201.0 11246225.4100.0201.0 FCC ID: RD7-A5020 Report No: SA940629L08 6 802.11a OFDM modulation Antenna gain: 7dBi Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 151808.2790.0081.0 4524014.4210.0141.0 5526013.3660.0131.0 8532013.1520.0131.0 9574531.7690.0321.0 11578531.9890.0321.0 13582032.1370.0321.0 Antenna gain: 2.27dBi Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 151808.2790.0031.0 4524014.4210.0051.0 5526013.3660.0041.0 8532013.1520.0041.0 9574531.7690.0111.0 11578531.9890.0111.0 13582032.1370.0111.0 Antenna gain: 8dBi Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 151808.2790.0101.0 4524014.4210.0181.0 5526013.3660.0171.0 8532013.1520.0171.0 9574531.7690.0401.0 11578531.9890.0401.0 13582032.1370.0401.0

FCC ID: RD7-A5020 Report No.: RF940629L081Report Format Version 2.0.3 FCC TEST REPORT (15.247) REPORT NO.: RF940629L08 MODEL NO.: A5020 RECEIVED: Jul. 14, 2005 TESTED: Jul. 14 ~ Aug. 20, 2005 ISSUED: Aug. 26, 2005 APPLICANT: AirMagnet, Inc. ADDRESS: 1325 Chesapeake Terrace, Sunnyvale, CA 94089 U.S.A. ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14 th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 170 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA No. 2177-01 FCC ID: RD7-A5020 Report No.: RF940629L082Report Format Version 2.0.3 Table of Contents 1.CERTIFICATION....................................................................................................6 2.SUMMARY OF TEST RESULTS............................................................................7 2.1 MEASUREMENT UNCERTAINTY..........................................................................8 3.GENERAL INFORMATION.....................................................................................9 3.1GENERAL DESCRIPTION OF EUT.......................................................................9 3.2DESCRIPTION OF TEST MODES.......................................................................11 3.2.1CONFIGURATION OF SYSTEM UNDER TEST...................................................12 3.2.2TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL........................13 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS.......................................16 3.4DESCRIPTION OF SUPPORT UNITS..................................................................16 4.TEST TYPES AND RESULTS (802.11b & g 2412~2462MHz BAND)....................17 4.1CONDUCTED EMISSION MEASUREMENT........................................................17 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT......................................17 4.1.2TEST INSTRUMENTS..........................................................................................17 4.1.3TEST PROCEDURES..........................................................................................18 4.1.4DEVIATION FROM TEST STANDARD.................................................................18 4.1.5TEST SETUP.......................................................................................................19 4.1.6EUT OPERATING CONDITIONS.........................................................................19 4.1.7TEST RESULTS...................................................................................................20 4.2RADIATED EMISSION MEASUREMENT.............................................................38 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT...........................................38 4.2.2TEST INSTRUMENTS..........................................................................................39 4.2.3TEST PROCEDURES..........................................................................................40 4.2.4DEVIATION FROM TEST STANDARD.................................................................40 4.2.5TEST SETUP.......................................................................................................41 4.2.6EUT OPERATING CONDITIONS.........................................................................41 4.2.7TEST RESULTS_ANTENNA SAA05-22063A (BELOW 1GHz TEST)...................42 4.2.8TEST RESULTS_ ANTENNA SDW0939A1 (BELOW 1GHz TEST)......................45 4.2.9TEST RESULTS_ ANTENNA SAA05-22056A (BELOW 1GHz TEST)...................48 4.2.10TEST RESULTS_ANTENNA SAA05-22063A (ABOVE 1GHz TEST)....................51 4.2.11TEST RESULTS_ ANTENNA SDW0939A1 (ABOVE 1GHz TEST).......................57 4.2.12TEST RESULTS_ ANTENNA SAA05-22056A (ABOVE 1GHz TEST)...................63 4.36dB BANDWIDTH MEASUREMENT....................................................................69 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT..................................................69 4.3.2TEST INSTRUMENTS..........................................................................................69 4.3.3TEST PROCEDURE.............................................................................................70 4.3.4DEVIATION FROM TEST STANDARD.................................................................70 4.3.5TEST SETUP.......................................................................................................70 FCC ID: RD7-A5020 Report No.: RF940629L083Report Format Version 2.0.3 4.3.6EUT OPERATING CONDITIONS.........................................................................70 4.3.7TEST RESULTS...................................................................................................71 4.4MAXIMUM PEAK OUTPUT POWER....................................................................77 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT.....................77 4.4.2INSTRUMENTS....................................................................................................77 4.4.1TEST PROCEDURES..........................................................................................78 4.4.2DEVIATION FROM TEST STANDARD.................................................................78 4.4.3TEST SETUP.......................................................................................................78 4.4.4EUT OPERATING CONDITIONS.........................................................................78 4.4.3TEST RESULTS...................................................................................................79 4.5POWER SPECT…

Text truncated - open the document above for the full version.

FCC ID: RD7-A5020 Report No.: RF940629L0888Report Format Version 2.0.3 4.6 BAND EDGES MEASUREMENT 4.6.1 LIMITS OF BAND EDGES MEASUREMENT Below –20dB of the highest emission level of operating band (in 100kHz Resolution Bandwidth). 4.6.2 TEST INSTRUMENTS Description & ManufacturerModel No.Serial No.Calibrated Until R&S SPECTRUM ANALYZERFSEK30100049Aug. 14, 2006 NOTE: The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. 4.6.3 TEST PROCEDURE The transmitter output was connected to the spectrum analyzer via a low lose cable. Set both RBW and VBW of spectrum analyzer to 100kHz with suitable frequency span including 100 MHz bandwidth from band edge. The band edges was measured and recorded. The spectrum plots (Peak RBW=VBW=100kHz ; Average RBW=1MHz, VBW=1kHz) are attached on the following pages. 4.6.4 DEVIATION FROM TEST STANDARD No deviation 4.6.5 EUT OPERATING CONDITION Same as Item 4.3.6 FCC ID: RD7-A5020 Report No.: RF940629L0889Report Format Version 2.0.3 4.6.6 TEST RESULTS The spectrum plots are attached on the following 12 images. D1 line indicates the highest level, and D2 line indicates the 20dB offset below D1. It shows compliance with the requirement in part 15.247(d). 802.11b DSSS modulation Antenna: SAA05-22063A NOTE 1: The band edge emission plot on page 92 shows 50.60dBc between carrier maximum power and local maximum emission in restrict band (2.3520GHz). The emission of carrier strength list in the test result of channel 1 at the item 4.2.10 is 114.60dBuV/m (Peak), so the maximum field strength in restrict band is 114.60-50.60=64.00dBuV/m which is under 74dBuV/m limit. The band edge emission plot of on page 92 shows 55.09dBc between carrier maximum power and local maximum emission in restrict band (2.3198GHz). The emission of carrier strength list in the test result of channel 1 at the item 4.2.10 is 106.37dBuV/m (Average), so the maximum field strength in restrict band is 106.37-55.09=51.28dBuV/m which is under 54dBuV/m limit. NOTE 2: The band edge emission plot on page 93 shows 50.49dBc between carrier maximum power and local maximum emission in restrict band (2.4899GHz). The emission of carrier strength list in the test result of channel 11 at the item 4.2.10 is 114.29dBuV/m (Peak), so the maximum field strength in restrict band is 114.29-50.49=63.80dBuV/m which is under 74dBuV/m limit. The band edge emission plot on page 94 shows 57.77dBc between carrier maximum power and local maximum emission in restrict band (2.4835GHz). The emission of carrier strength list in the test result of channel 11 at the item 4.2.10 is 105.92dBuV/m (Average), so the maximum field strength in restrict band is 105.92-57.77=48.15dBuV/m which is under 54dBuV/m limit. FCC ID: RD7-A5020 Report No.: RF940629L0890Report Format Version 2.0.3 802.11b DSSS modulation Antenna: SDW0939A1 NOTE 1: The band edge emission plot on page 92 shows 50.60dBc between carrier maximum power and local maximum emission in restrict band (2.3520GHz). The emission of carrier strength list in the test result of channel 1 at the item 4.2.11 is 112.43dBuV/m (Peak), so the maximum field strength in restrict band is 112.43-50.60=61.83dBuV/m which is under 74dBuV/m limit. The band edge emission plot of on page 92 shows 55.09dBc between carrier maximum power and local maximum emission in restrict band (2.3198GHz). The emission of carrier strength list in the test result of channel 1 at the item 4.2.11 is 104.20dBuV/m (Average), so the maximum field strength in restrict band is 104.20-55.09=49.11dBuV/m which is under 54dBuV/m limit. NOTE 2: The band edge emission plot on page 93 shows 50.49dBc between carrier maximum power and local maximum emission in restrict band (2.4899GHz). The emission of carrier strength list in the test result of channel 11 at the item 4.2.11 is 112.35dBuV/m (Peak), so the maximum field strength in restrict band is 112.35-50.49=61.86dBuV/m which is under 74dBuV/m limit. The band edge emission plot on page 94 shows 57.77dBc between carrier maximum power and local maximum emission in restrict band (2.4835GHz). The emission of carrier strength list in the test result of channel 11 at the item 4.2.11 is 104.22dBuV/m (Average), so the maximum field strength in restrict band is 104.22-57.77=46.45dBuV/m which is under 54dBuV/m limit. FCC ID: RD7-A5020 Report No.: RF940629L0891Report Format Version 2.0.3 802.11b DSSS modulation Antenna: SAA05-22056A NOTE 1: The band edge emission plot on page 92 shows 50.60dBc between carrier maximum power and local maximum emission in restrict band (2.3520GHz). The emission of carrier strength list in the test result of channel 1 at the item 4.2.12 is 115.52dBuV/m (Peak), so the maximum field strength in restrict band is 115.52-50.60=64.92dBuV/m which is under 74dBuV/m limit. The band edge emission plot of on page 92 shows 55.09dBc between carrier maximum power and local maximum emission in restrict band (2.3198GHz). The emission of carrier strength list in the test result of channel 1 at the item 4.2.12 is 107.34dBuV/m (Average), so the maximum field strength in restrict band is 107.34-55.09=52.25dBuV/m which is under 54dBuV/m limit. NOTE 2: The band edge emission plot on page 93 shows 50.49dBc between carrier maximum power and local maximum emission in restrict band (2.4899GHz). The emission of carrier strength list in the test result of channel 11 at the item 4.2.12 is 115.76dBuV/m (Peak), so the maximum field strength in restrict band is 115.76-50.49=65.27dBuV/m which is under 74dBuV/m limit. The band edge emission plot on page 94 shows 57.77dBc between carrier maximum power and local maximum emission in restrict band (2.4835GHz). The emission of carrier strength list in the test result of channel 11 at the item 4.2.9 is 107.50dBuV/m (Average), so the maximum field strength in restrict band is 107.50-57.77=49.73dBuV/m which is under 54dBuV/m limit. FCC ID: RD7-A5020 Report No.: RF940629L0892Report Forma…

Text truncated - open the document above for the full version.

FCC ID: RD7-A5020 Report No.: RF940629L081Report Format Version 2.0.3 FCC TEST REPORT (15.407) REPORT NO.: RF940629L08 MODEL NO.: A5020 RECEIVED: Jul. 14, 2005 TESTED: Jul. 14 ~ Aug. 20, 2005 ISSUED: Aug. 26, 2005 APPLICANT: AirMagnet, Inc. ADDRESS: 1325 Chesapeake Terrace, Sunnyvale, CA 94089 U.S.A. ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14 th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 95 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA No. 2177-01 FCC ID: RD7-A5020 Report No.: RF940629L082Report Format Version 2.0.3 Table of Contents 1.CERTIFICATION....................................................................................................4 2.SUMMARY OF TEST RESULTS............................................................................5 2.1 MEASUREMENT UNCERTAINTY..........................................................................6 3.GENERAL INFORMATION.....................................................................................7 3.1GENERAL DESCRIPTION OF EUT.......................................................................7 3.2DESCRIPTION OF TEST MODES.........................................................................9 3.2.1CONFIGURATION OF SYSTEM UNDER TEST...................................................10 3.2.2TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL........................11 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS.......................................13 3.4DESCRIPTION OF SUPPORT UNITS..................................................................13 4.TEST TYPES AND RESULTS (5150 ~ 5350MHz BAND).....................................14 4.1CONDUCTED EMISSION MEASUREMENT........................................................14 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT......................................14 4.1.2TEST INSTRUMENTS..........................................................................................14 4.1.3TEST PROCEDURES..........................................................................................15 4.1.4DEVIATION FROM TEST STANDARD.................................................................15 4.1.5TEST SETUP.......................................................................................................16 4.1.6EUT OPERATING CONDITIONS.........................................................................16 4.1.7TEST RESULTS...................................................................................................17 4.2RADIATED EMISSION MEASUREMENT.............................................................23 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT...........................................23 4.2.2LIMITS OF UNWANTED EMISSION OUT OF THE RESTRICTED BANDS..........24 4.2.3TEST INSTRUMENTS..........................................................................................25 4.2.4TEST PROCEDURES..........................................................................................26 4.2.5DEVIATION FROM TEST STANDARD.................................................................26 4.2.6TEST SETUP.......................................................................................................27 4.2.7EUT OPERATING CONDITION............................................................................27 4.2.8TEST RESULTS_ANTENNA SAA05-22063A (BELOW 1GHz TEST)...................28 4.2.9TEST RESULTS_ANTENNA SDW0939A1 (BELOW 1GHz TEST).......................31 4.2.10TEST RESULTS_ANTENNA SAA05-22056A (BELOW 1GHz TEST)...................34 4.2.11TEST RESULTS_ANTENNA SAA05-22063A (ABOVE 1GHz TEST)....................37 4.2.12TEST RESULTS_ANTENNA SDW0939A1 (ABOVE 1GHz TEST)........................41 4.2.13TEST RESULTS_ANTENNA SAA05-22056A (ABOVE 1GHz TEST)....................45 4.3PEAK TRANSMIT POWER MEASUREMENT......................................................49 4.3.1LIMITS OF PEAK TRANSMIT POWER MEASUREMENT....................................49 4.3.2TEST INSTRUMENTS..........................................................................................49 4.3.3TEST PROCEDURE...............................................................…
