RDCGTGC5401WLWLAN 802.11p mini-PCI Module GTGC5401WL

1 WLAN 802.11p mini-PCI Module GWP5401 User Manual 2 Copyright Statement No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, whether electronic, mechanical, photocopying, recording or otherwise without the prior writing of the publisher. All copyright reserved. 3 FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This module is intended for OEM integrator. The OEM integrator is still responsible for the FCC compliance requirement of the end product, which integrates this module. 20cm minimum distance has to be able to be maintained between the antenna and the users for the host this module is integrated into. Under such configuration, the FCC radiation exposure limits set forth for an population/uncontrolled environment can be satisfied. Any changes or modifications not expressly approved by the manufacturer could void the user's authority to operate this equipment. Wireless 5 GHz Band Statements: This module could only been operated at 5860­5920 MHz frequency band. This device is intended only for OEM integrators under the following conditions: The antenna must be installed such that 20 cm is maintained between the antenna and users, and The transmitter module may not be co-located with any other transmitter or antenna, As long as 2 conditions above are met, further transmitter test will not be required. However, the OEM integrator is still responsible for testing their end-product for any additional compliance requirements required with this module installed (for example, digital device emissions, PC peripheral requirements, etc.). IMPORTANT NOTE: In the event that these conditions can not be met (for example certain laptop configurations or co-location with another transmitter), then the FCC authorization is no longer considered valid and the FCC ID can not be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC authorization. USERS MANUAL OF THE END PRODUCT: In the users manual of the end product, the end user has to be informed to keep at least 20cm separation with the antenna while this end product is installed and operated. The end user has to be informed that the FCC radio-frequency exposure guidelines for an uncontrolled environment can be satisfied. The end user has to also be informed that any changes or modifications not expressly approved by the manufacturer could void the user's authority to operate this equipment. If the size of the end product is smaller than 8x10cm, then additional FCC part 15.19 statement is required to be available in the user’s manual: This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. LABEL OF THE END PRODUCT: The final end product must be labeled in a visible area with the following " Contains TX FCC ID: RDCGTGC5401WL ". If the size of the end product is larger than 8x10cm, then the following FCC part 15.19 statement has to also be available on the label: This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference 4 and (2) this device must accept any interference received, including interference that may cause undesired operation. Professional installation Section 15.204(b) states that an approved "transmission system" must always be marketed as a complete system including the antenna. Objection of DSRC Dedicated short-range communication (DSRC), also namely IEEE 802/11p, is a two-way wireless communication technology designed for automobile user improving load safety. DSRC is one of IEEE 802 family protocol. In order to improve load safety, DSRC can provide low transmission latency and high transmission frequency up to 10Hz. According to DSRC, an automobile user can acquire the up-to-date travel information and make a suitable activity to avoid the travel accident. Objection of DSRC-OBU An On-board Unit (OBU) is a unit which equipped with DSRC wireless technique. DSRC-OBU is responsible for gather travel status notifying to the driver. This equipment is strictly limit the usage to DSRCS-OBUs. To satisfy RF exposure, only dipole antenna(s) with a max gain of 0dBi or similar antenna(s) with equal or lesser gain may be used with this transmitter. Antenna General Information No. Ant. Cat. Ant. Type Gain (dBi) 1 External Dipole 0

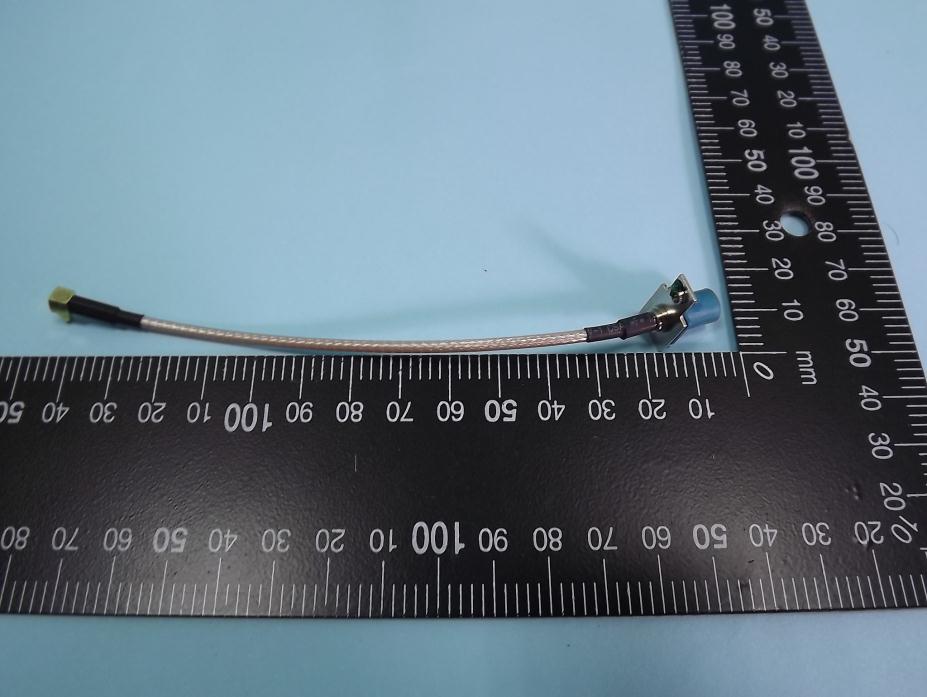

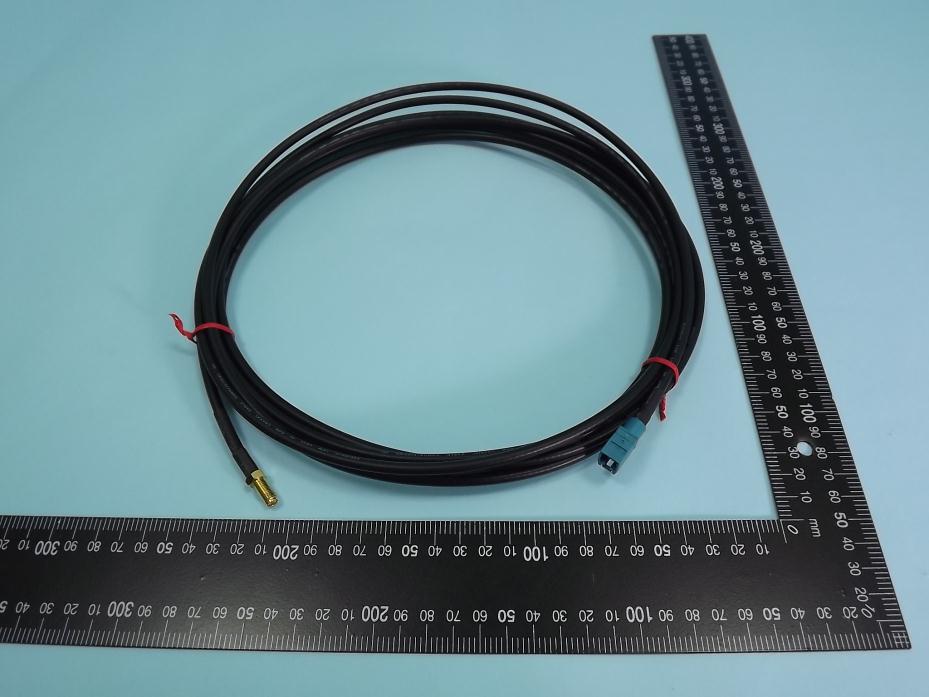

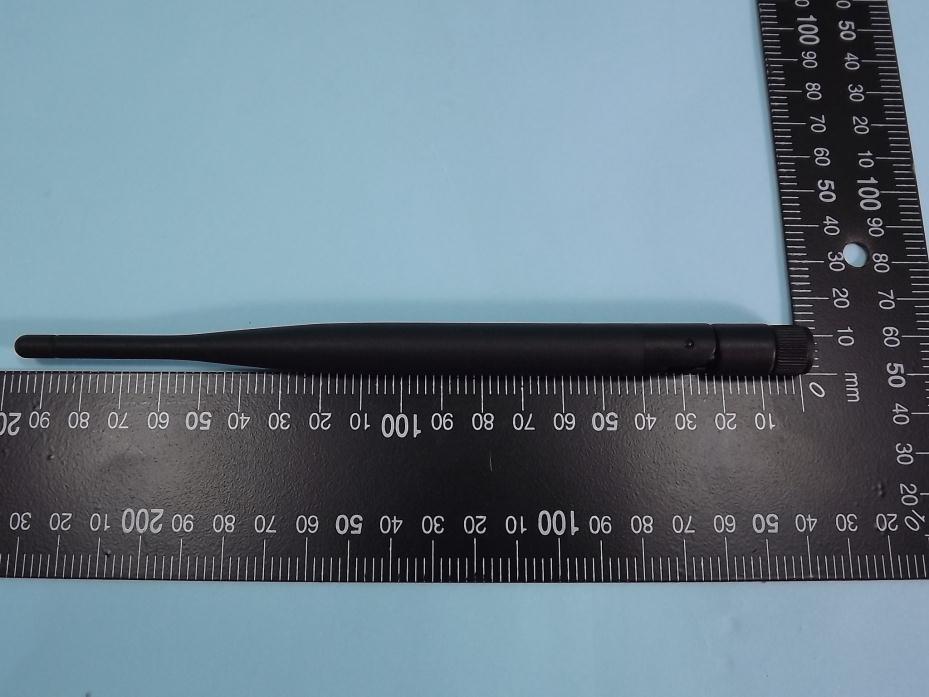

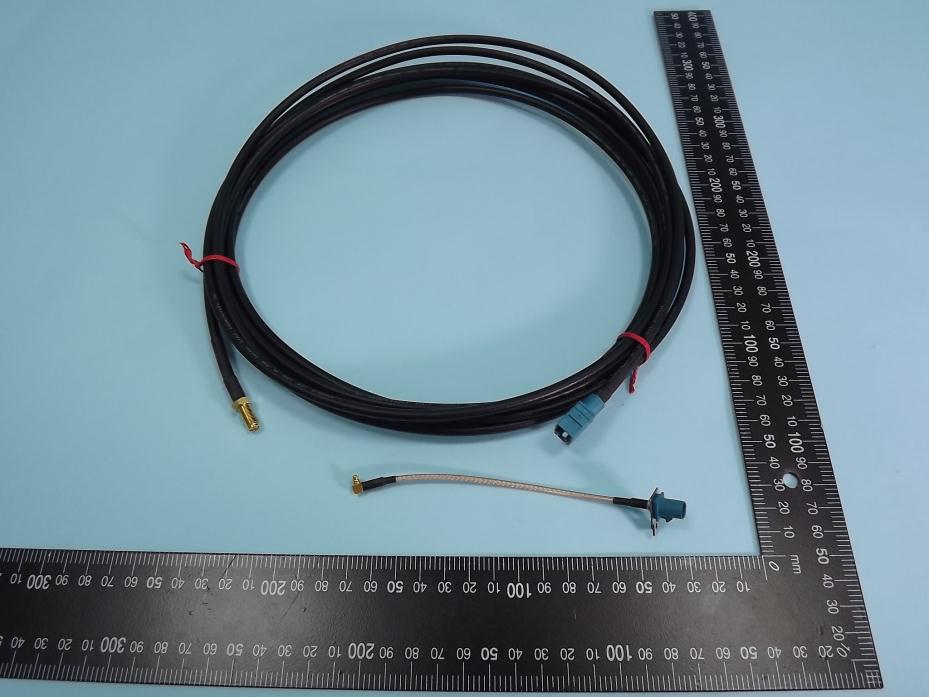

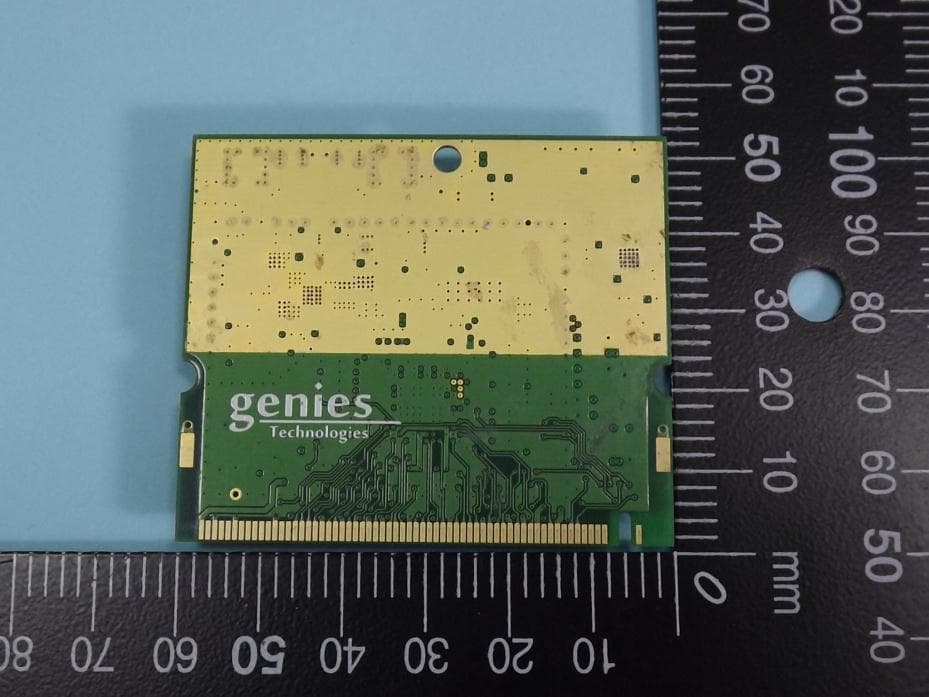

FCC Test Report Report No. : FR2N3002 SPORTON International Inc. PAGE NUMBER : B1 OF B8 TEL : 886-3-327-3456 ISSUED DATE : Dec. 28, 2012 FAX : 886-3-327-0973 APPENDIX B. Photographs of EUT FCC Test Report Report No. : FR2N3002 SPORTON International Inc. PAGE NUMBER : B2 OF B8 TEL : 886-3-327-3456 ISSUED DATE : Dec. 28, 2012 FAX : 886-3-327-0973 FCC Test Report Report No. : FR2N3002 SPORTON International Inc. PAGE NUMBER : B3 OF B8 TEL : 886-3-327-3456 ISSUED DATE : Dec. 28, 2012 FAX : 886-3-327-0973 FCC Test Report Report No. : FR2N3002 SPORTON International Inc. PAGE NUMBER : B4 OF B8 TEL : 886-3-327-3456 ISSUED DATE : Dec. 28, 2012 FAX : 886-3-327-0973 FCC Test Report Report No. : FR2N3002 SPORTON International Inc. PAGE NUMBER : B5 OF B8 TEL : 886-3-327-3456 ISSUED DATE : Dec. 28, 2012 FAX : 886-3-327-0973 FCC Test Report Report No. : FR2N3002 SPORTON International Inc. PAGE NUMBER : B6 OF B8 TEL : 886-3-327-3456 ISSUED DATE : Dec. 28, 2012 FAX : 886-3-327-0973 FCC Test Report Report No. : FR2N3002 SPORTON International Inc. PAGE NUMBER : B7 OF B8 TEL : 886-3-327-3456 ISSUED DATE : Dec. 28, 2012 FAX : 886-3-327-0973 FCC Test Report Report No. : FR2N3002 SPORTON International Inc. PAGE NUMBER : B8 OF B8 TEL : 886-3-327-3456 ISSUED DATE : Dec. 28, 2012 FAX : 886-3-327-0973

Label Location

FCC Test Report Report No. : FR2N3002 SPORTON International Inc. PAGE NUMBER : B1 OF B1 TEL : 886-3-327-3456 ISSUED DATE : Dec. 28, 2012 FAX : 886-3-327-0973 APPENDIX B. Photographs of EUT

RF Exposure Report Report No. : FR2N3002 SPORTON INTERNATIONAL INC. Page No. : 1 of 3 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1 Maximum Permissible Exposure 1.1 Maximum Permissible Exposure 1.1.1 Limit of Maximum Permissible Exposure Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note 1: f = frequency in MHz ; *Plane-wave equivalent power density Note 2: For the applicable limit, see FCC 1.1310 RF Exposure Report Report No. : FR2N3002 SPORTON INTERNATIONAL INC. Page No. : 2 of 3 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 RF Field Strength Limits for Controlled Use Devices (Controlled Environment) Frequency Range (MHz) Electric Field (V/m rms) Magnetic Field (A/m rms) Power Density (W/m2) Averaging Time (minutes) 0.003-1 600 4.9 - 6 1-10 600/ƒ 4.9/ƒ - 6 10-30 60 4.9/ƒ - 6 30-300 60 0.163 10* 6 300-1500 3.54 ƒ 0.5 0.0094 ƒ 0.5 ƒ/30 6 1500-15000 137 0.364 50 6 15000-150000 137 0.364 50 616000/ƒ 1.2 150000-300000 0.354 ƒ 0.5 9.4 x 10-4 ƒ 0.5 3.33 x 10-4 ƒ 616000/ƒ 1.2 RF Field Strength Limits for Devices Used by the General Public (Uncontrolled Environment) Frequency Range (MHz) Electric Field (V/m rms) Magnetic Field (A/m rms) Power Density (W/m2) Averaging Time (minutes) 0.003-1 280 2.19 - 6 1-10 280/ƒ 2.19/ƒ - 6 10-30 28 2.19/ƒ - 6 30-300 28 0.073 2* 6 300-1500 1.585 ƒ 0.5 0.0042 ƒ 0.5 ƒ/150 6 1500-15000 61.4 0.163 10 6 15000-150000 61.4 0.163 10 616000/ƒ 1.2 150000-300000 0.158 ƒ 0.5 4.21 x 10 -4 ƒ 0.5 6.67 x 10 -5 ƒ 616000/ƒ 1.2 Note 1: ƒ is frequency in MHz. Note 2: For the applicable limit, see IC RSS-102 1.1.2 MPE Calculation Method E (V/m) = d GP30uu Power Density: Pd (W/m 2 ) = 377 E 2 E = Electric field (V/m) P = RF output power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = 2 d377 GP30 u uu RF Exposure Report Report No. : FR2N3002 SPORTON INTERNATIONAL INC. Page No. : 3 of 3 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1.1.3 Result of Maximum Permissible Exposure RF General Information Frequency Range (MHz) IEEE Std. 802.11 Ch. Frequency (MHz) Channel Number Number of Transmit Chains (N TX ) RF Output Power (dBm) Co-location 5850-5925 p (10MHz) 5860-5920 172-184 [7] 1 18.64 N/A Note 1: RF output power specifies that Maximum Peak Conducted Output Power. Worst Maximum RF Output Power Result Exposure Environment General Population / Uncontrolled Exposure Separation Distance (cm) 20 Condition RF Output Power (dBm) Modulation Mode Chain- Port 1 Chain- Port 2 Chain- Port 3 Chain- Port 4 Sum Chain Gain (dBi) EIRP Power PD (S) (mW/cm²) p (10MHz) 18.64 - - - 18.64 0 18.64 0.0146 Maximum Permissible Exposure Limit (mW/cm²) 1

FCC Test Report Report No. : FR2N3002 SPORTON INTERNATIONAL INC. Page No. : 1 of 41 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 FCC Test Report Equipment : GTGC5401WL Brand Name : Genies Model No. : GWL5401 FCC ID : RDCGTGC5401WL Standard : 47 CFR FCC Part 95 Operating Band : 5850 MHz – 5925 MHz Equipment Class : TNB Applicant Manufacturer : Genies Technologies Global Co., Ltd. 4F., No.58, Xianzheng 6th Rd., Zhubei City, Hsinchu County 302, Taiwan (R.O.C.) The product sample received on Dec. 06, 2012 and completely tested on Dec. 19, 2012. We, SPORTON, would like to declare that the tested sample has been evaluated in accordance with the procedures given in ANSI/TIA-603-D-2010 and shown compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Wayne Hsu / Assistant Manager FCC Test Report Report No. : FR2N3002 SPORTON INTERNATIONAL INC. Page No. : 2 of 41 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Table of Contents 1 GENERAL DESCRIPTION ............................................................................................................... 5 1.1 Information ........................................................................................................................................ 5 1.2 Support Equipment ........................................................................................................................... 7 1.3 Testing Applied Standards ................................................................................................................ 7 1.4 Testing Location Information ............................................................................................................. 7 1.5 Measurement Uncertainty ................................................................................................................. 8 2 TEST CONFIGURATION OF EUT .................................................................................................... 9 2.1 The Worst Case Modulation Configuration ........................................................................................ 9 2.2 Test Channel Frequencies Configuration ........................................................................................... 9 2.3 The Worst Case Power Setting Parameter ........................................................................................ 9 2.4 The Worst Case Measurement Configuration .................................................................................. 10 2.5 Test Setup Diagram ........................................................................................................................ 11 3 TRANSMITTER TEST RESULT ..................................................................................................... 14 3.2 Emission Bandwidth ........................................................................................................................ 17 3.3 Maximum Transmitter Power ........................................................................................................... 19 3.4 Transmit Spectrum Mask ................................................................................................................ 22 3.5 Transmitter Conducted Unwanted Emissions .................................................................................. 26 3.6 Transmitter Radiated Unwanted Emissions ..................................................................................... 28 3.7 Frequency Stability.......................................................................................................................... 38 4 TEST EQUIPMENT AND CALIBRATION DATA ............................................................................. 40 APPENDIX A. TEST PHOTOS .................................................................................................................. A7 APPENDIX B. PHOTOGRAPHS OF EUT .................................................................................................. B9 FCC Test Report Report No. : FR2N3002 SPORTON INTERNATIONAL INC. Page No. : 3 of 41 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Summary of Test Result Conformance Test Specifications Report Clause Ref. Std. Clause Description Measured Limit Result 3.1.1 15.107 AC Power-line Conducted Emissions [dBuV]: 4.770MHz 38.65 (Margin 7.35dB) - AV 45.37 (Margin 10.63dB) - QP FCC 15.107 Class B Complied 1.1.1 95.631 Emission Types D1D (OFDM - BPSK,QPSK, 16QAM, 64QAM) ASTM E2213-03 Complied 1.1.1 95.637 Modulation Standard DSRC for IEEE 802.11p ASTM E2213-03 Complied 3.2 95.633 Emission Bandwidth Bandwidth [MHz] 10M:8.28 Information only Complied 3.3 95.639 Maximum Transmitter Power Power [dBm] Power Class C: 5860-5920MHz: 18.64 ASTM E2213-03 8.9.1 Power [dBm] 5860-5920MHz: 28.8 Complied 3.3 95.639 Effective Isotropic Radiated Power (EIRP) EIRP [dBm] Power Class C 5860-5920MHz: 18.64 ASTM E2213-03 8.9.1 EIRP [dBm] 5860-5920MHz: 33 Complied 3.4 95.635 Transmit Spectrum Mask Device complies with spectral mask – refer to test data ASTM E2213-03 8.9.2 Mask Class C Complied 3.5 2.1051 Transmitter Conducted Unwanted Emissions 9kHz-40GHz Band [dBm]: 592600.00MHz: -25.63 (Margin 0.63dB) ASTM E2213-03 8.9.2 9kHz-40GHz Bands: =< -25 dBm Complied 3.6 2.1053 Transmitter Radiated Unwanted Emissions 30MHz-40GHz Band [dBuV/m at 3m]: 11780.000MHz: 69.15 (Margin 1.05dB) ASTM E2213-03 8.9.2 30MHz-40GHz Bands: =< -25 dBm e.i.r.p. [70.2 dBuV/m at 3m] Complied 3.7 2.1055 Frequency Stability 3.40 ppm ASTM E2213-03 8.9.4 ±10 [ppm] Complied FCC Test Report Report No. : FR2N3002 SPORTON INTERNATIONAL INC. Page No. : 4 of 41 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Revision History Report No. Version Description Issued Date FR2N…

Text truncated - open the document above for the full version.

FCC Test Report Report No. : FR2N3002 SPORTON INTERNATIONAL INC. Page No. : A1 of A7 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Appendix A. Test Photos FCC Test Report Report No. : FR2N3002 SPORTON INTERNATIONAL INC. Page No. : A2 of A7 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1 Photographs of Conducted Emissions Test Configuration FRONT VIEW REAR VIEW FCC Test Report Report No. : FR2N3002 SPORTON INTERNATIONAL INC. Page No. : A3 of A7 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 SIDE VIEW FCC Test Report Report No. : FR2N3002 SPORTON INTERNATIONAL INC. Page No. : A4 of A7 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 2 Photographs of Radiated Emissions Test Configuration For radiated emissions 9kHz~30MHz FRONT VIEW REAR VIEW FCC Test Report Report No. : FR2N3002 SPORTON INTERNATIONAL INC. Page No. : A5 of A7 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 For radiated emissions 30MHz~1GHz FRONT VIEW REAR VIEW FCC Test Report Report No. : FR2N3002 SPORTON INTERNATIONAL INC. Page No. : A6 of A7 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 For radiated emissions above 1GHz FRONT VIEW REAR VIEW FCC Test Report Report No. : FR2N3002 SPORTON INTERNATIONAL INC. Page No. : A7 of A7 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 EUT take a close-up FRONT VIEW
