RDDT1055I-DRIVERIPOD FM Transmitter

User Manual 1. Power : Turn I- Drive On/OFF 2. Scan : Tunes in the desired FM Frequency 3. Memory : Set and Stores up to 9 Preset FM Frequencies 4. + or - : *Scan buttons to fine tune the frequency *Press and hold the + or – scan buttons to increment frequency at a faster frequencies 5. Memory : *Use the + or - Scan Buttons to set a frequency you want to save as a preset *Press and hold the memory button for 3 sec to activate the preset saving mode (flashing M) *To cancel preset saving mode wait 10 seconds for flashing “M” to disappear *Use the + or – Scan Buttons to select a preset number 1 throught 9 to be assigned *press the memory button one last time to save the preset Caution:changes or modifications not expressly approved by the party reponsible for compliance could void the user's authority to operate the equipment

˟˖˗ʳ˖̂́̇̅̂˿˿˸̅ ˠ˖˨ ˕̈̇̇̂́ʳ˖̂́̇̅̂˿˿˸̅ ˧˥˄˃˃˄ʳ ˣ˟˟ ˩˖ˢ ˥ ̇ʳ˔̀̃˿˼˹̌ ˠ˸̀˸̅̌ʳ ˖̂́̇̅̂˿˿˸̅ ˔́̇˸́́˴ʳ ˢ̈̇ ˟ʳ˥ʳ˔̈˷˼̂ʳʳ ̃́̃̈̇ʳ ˋˋˁ˄̑˄˃ˊˁˌʳˠ ̨˭ ̇ˠʳ˧˫ʳʳ˕˿̂˶˾ʳ˗˼˴˺̅˴̀

1 美商I-TEC科技股份有限公司東莞辦事處 HEADQUARTER: 5255,NW 159 th STREET Miami, Florida 33014 U.S.A. TEL: 305-908-5338 FAX: 305-908-5356 TAIWAN BRANCH OFFICE 7F-1, 317, SEC. 1, CHENG DE RD., DATONG DISTRICT 103 TAIPEI, TAIWAN, R.O.C. TEL: 886-2-2556-2845 FAX: 886-2-2556-2840 [email protected] DONGGUAN CHINA OFFICE #2, PUYUEN ROAD, SANG YUAN VILLAGE, SANG YUAN INDUSTRIAL ZONE, DONGCHEN AREA, DONGGUAN CITY,GUANGDONG CHINA TEL: 86-769-2655570 FAX: 86-769-2655576 [email protected] HANGZHOU CHINA OFFICE ROOM 201 UNIT 2 BLDG 8 JINGDU GARDEN, WENG SHAN WEST RD HANGZHOU, CHINA TEL: 86-571-88985318 FAX: 86-571-88980119 AGENCY AUTHORIZATION LETTER FCC ID: RDDT1055I-DRIVER Date:Aug. 10, 2006 To whom it may concern: We,the undersigned,hereby authorize NS Electromagnetic Technology Co.,Ltd (NS) of Dongguan to act on our behalf, as our agent, in the following matters related to the FCC approval of our products: report submittal, related correspondence, the signing of all documents relating to these matters, and any other lawful activity necessary to obtain such certification. Any act carried out by NS within the scope of this authorization shall have the same effects as our own. This authorization shall expire 6 months from original date. If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you. Sincerely, MAY HSU/ Gerneral Manager I-TEC TEL: +1-305-908-5338 FAX: +1-305-908-5356 e-mail: [email protected]

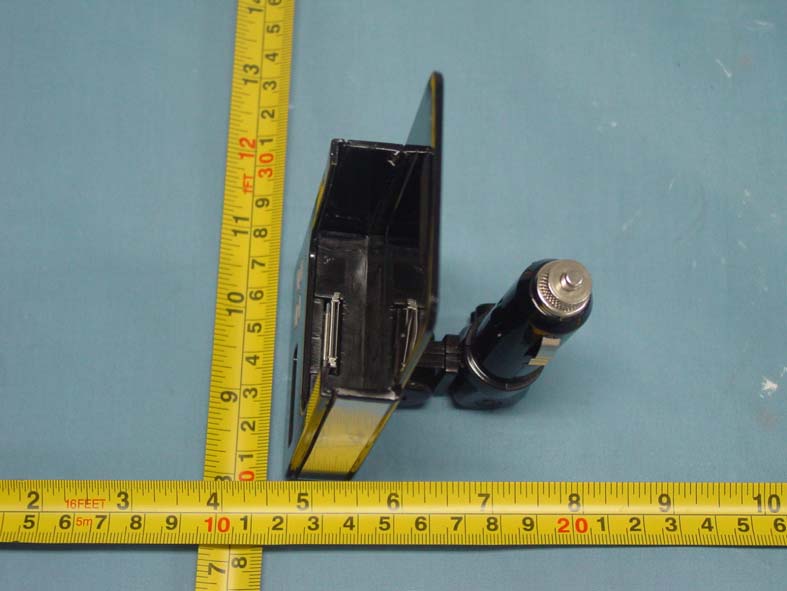

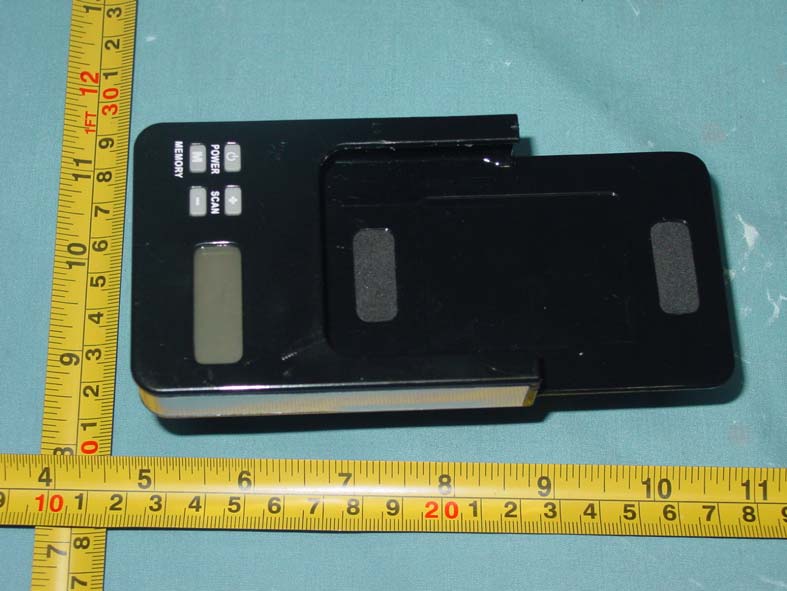

FCC ID：RDDT1055I-DRIVER External photo: Figure 1 Figure 2 Figure 3

FCC ID:RDDT1055I-DRIVER Label Location: Label: 86mm 20mm 20mm 36.5mm IPOD FM Transmiter Model No. : T1055 FCC ID: RDDT1055I-DRIVE THIS DEVICE COMPLIES WITH FCC RULES PART 15. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received Including interference that may cause undesired operation. Made in China 35m 20mm

FCC ID：RDDT1055I-DRIVER Internal photo: Figure 1 Figure 2 Figure 3 Figure 4

Operational Description Main SCH Description 1. IC1(MCU) : This is MCU controller , IC1 control FM transmitter and save frequency station and LCD driver and adjust frequency by button 2. IC2(AT24C02): It is memory IC ,It can save frequency if FM transmitter is Power OFF 3. U2(1117/3.3V): It is voltage regulate IC , input car voltage DC 12V , the IC can regulate 12V to 3.3V 4. Q1 S8550 : this is transistor , you can use MCU to reset ,if FM transmitter Power ON 5. Q3 S8550):This is transistor , control FM Module and LCD Backligh FM Module SCH : 1. U2 (TR3001):This PLL IC 2. U3(NJM2035): This is Stereo Audio Frequency modulation IC 3. Q1: This is Crystal 4. Q2: This is Amplifier 5. PCB: Layout is Antenna

FCC ID: RDDT1055I-DRIVER NS Electromagnetic Technology Co.,Ltd.. Report No. NSE-F0609169 Page 1 of 17 FCC CERTIFICATION TEST REPORT for I-TEC ELECTRONICS IPOD FM Transmiter Model Number : T1055 Prepared for : I-TEC ELECTRONICS Address : 5255,NW 159th STREET MIAMI,FL33014 U.S.A Prepared By : NS Electromagnetic Technology Co., Ltd. Address : Chenwu Industrial Zone, Houjie Town, Dongguan City, Guangdong, China Tel : 86-769-85935656 Fax: 86-769-85991080 Report Number : NSE-F0609169 Date of Test : Sep. 25, 2006 Date of Report : Sep. 28, 2006 FCC ID: RDDT1055I-DRIVER NS Electromagnetic Technology Co.,Ltd.. Report No. NSE-F0609169 Page 2 of 17 TABLE OF CONTENTS Test Report Declaration Page 1. GENERAL PRODUCT INFORMATION ................................................................... 4 1.1. Product Function ........................................................................................................................ 4 1.2. Description of Device (EUT) ..................................................................................................... 4 1.3. Operation Modes ........................................................................................................................ 4 2. TEST SITES...................................................................................................................... 5 2.1. Test Facilities ............................................................................................................................. 5 2.2. List of Test and Measurement Instruments ................................................................................ 6 3. TEST SET-UP AND OPERATION MODES ................................................................ 7 3.1. Principle of Configuration Selection ......................................................................................... 7 3.2. Block Diagram of Test Set-up ................................................................................................... 7 3.3. Test Operation Mode and Test Software ................................................................................... 7 3.4. Special Accessories and Auxiliary Equipment .......................................................................... 7 3.5. Countermeasures to Achieve EMC Compliance........................................................................ 7 4. EMISSION TEST RESULTS ........................................................................................ 8 4.1. Conducted Emission Test .......................................................................................................... 8 4.2. Radiated Emission Test ............................................................................................................. 9 4.3. Frequency Range Test ............................................................................................................. 14 4.4. Bandwidth Test........................................................................................................................ 15 FCC ID: RDDT1055I-DRIVER NS Electromagnetic Technology Co.,Ltd.. Report No. NSE-F0609169 Page 3 of 17 NS Electromagnetic Technology Co., Ltd. Applicant: Address: I-TEC ELECTRONICS 5255,NW 159th STREET MIAMI,FL33014 U.S.A Manufacturer: Address: STAR ORIENT #2 West Puyuan Road Sang Yuan Industrial Zone DongCheng Area, Dongguan City ,Guangdong ,China E.U.T: IPOD FM Transmiter Model Number: T1055 Trade Name: Serial No.: ------ Date of Receipt: Aug. 10, 2006 Date of Test: Sep. 25, 2006 Test Specification: FCC Part 15 Subpart C, 2005 ; ANSI C63.4:2003 Test Result: The equipment under test was found to be compliance with the requirements of the standards applied. Issue Date: Sep. 26, 2006 Tested by: Reviewed by: Approved by: Kelly / Engineer Chris Du / Supervisor Steven Lee / Manager Other Aspects: None. Abbreviations: OK/P=passed fail/F=failed n.a/N=not applicable E.U.T=equipment under tested This test report is based on a single evaluation of one sample of above mentioned products, It is not permitted to be duplicated in extracts without written approval of NS Electromagnetic Technology Co., Ltd.. FCC ID: RDDT1055I-DRIVER NS Electromagnetic Technology Co.,Ltd.. Report No. NSE-F0609169 Page 4 of 17 1. GENERAL PRODUCT INFORMATION 1.1. Product Function Refer to Technical Construction Form and User Manual. 1.2. Description of Device (EUT) Description : IPOD FM Transmiter Model No. : T1055 System Input Voltage : DC 12V Operational frequency 88.1MHz-107.9MHz 1.3. Operation Modes 1.3.1. TX: 88.1MHz 1.3.2. TX: 98MHz 1.3.3. TX: 107.9MHz FCC ID: RDDT1055I-DRIVER NS Electromagnetic Technology Co.,Ltd.. Report No. NSE-F0609169 Page 5 of 17 2. TEST SITES 2.1. Test Facilities EMC Lab : Certificated by TUV Rheinland, Germany. Date of registration: July 28, 2003 Certificated by FCC, USA Registration No.: 897109 Date of registration: October 10, 2003 Certificated by VCCI, Japan Registration No.: R-1798 & C-1926 Date of registration: January 30, 2004 Certificated by CNAL, CHINA Registration No.: L1744 Date of registration: November 25, 2004 Certificated by Intertek ETL SEMKO Registration No.: TMP-013 Date of registration: June 11, 2005 Certificated by TUV/PS, Hong Kong Date of registration: December 1, 2005 Certificated by Industry Canada Registration No.: 5936 Date of registration: March 24, 2006 Name of Firm : NS Electromagnetic Technology Co., Ltd. Site Location : Chenwu Industrial Zone, Houjie Town, Dongguan City, Guangdong, China FCC ID: RDDT1055I-DRIVER NS Electromagnetic Technology Co.,Ltd.. Report No. NSE-F0609169 Page 6 of 17 2.2. List of Test and Measurement Instruments 2.2.1. For conducted emission test Equipment Manufacturer Model No. Serial No. Last Cal. Next Cal. Test Receiver Rohde & Schwarz ESCS30 100199 Jun. 3,06 Jun. 3,07 L.I.S.N.#1 Rohde & Schwarz ESH2-Z5 100071 Jun. 3,06 Jun. 3,07 L.I.S.N.#2(AUX) Rohde & Schwarz ESH3-Z5 100317 Jun. 3,06 Jun. 3,07 2.2.2. For radiated emission test Equipment Manuf…

Text truncated - open the document above for the full version.

FCC ID：RDDT1055I-DRIVER Test setup photo: Figure 1

User Manual 1. Power : Turn I- Drive On/OFF 2. Scan : Tunes in the desired FM Frequency 3. Memory : Set and Stores up to 9 Preset FM Frequencies 4. + or - : *Scan buttons to fine tune the frequency *Press and hold the + or – scan buttons to increment frequency at a faster frequencies 5. Memory : *Use the + or - Scan Buttons to set a frequency you want to save as a preset *Press and hold the memory button for 3 sec to activate the preset saving mode (flashing M) *To cancel preset saving mode wait 10 seconds for flashing “M” to disappear *Use the + or – Scan Buttons to select a preset number 1 throught 9 to be assigned *press the memory button one last time to save the preset Caution:changes or modifications not expressly approved by the party reponsible for compliance could void the user's authority to operate the equipment
