RE813000-149RRC Toy

FCC ID: RE813000-149R Ophoto1 Ophoto2 FCC ID: RE813000-149R Ophoto3

FCC ID: RE813000-149R Iphoto1 Iphoto2 FCC ID: RE813000-149R Iphoto3 Iphoto4 FCC ID: RE813000-149R Iphoto5 Iphoto6 FCC ID: RE813000-149R Iphoto7 Iphoto8 FCC ID: RE813000-149R Iphoto9 Iphoto10 FCC ID: RE813000-149R Iphoto11 Iphoto12 FCC ID: RE813000-149R Iphoto13 Iphoto14

FCC ID: RE813000-149R Technical Description : The brief circuit description is listed as follows : - Q1 and associated circuit act as Pre-amplifier - Q18 and associated circuit act as Super-regenerative Receiver (49.860 MHz) - U1 SCRX6 and associated circuit act as Decoder - Q2~Q17, Q19~Q21 associated circuit act as Motor Drivers Antenna Used : A permanent wire antenna has been used.

• The test results reported in this report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report shall not be reproduced except in full without prior authorization from Intertek Testing Services Hong Kong Limited • The evaluation data of the report will be kept for 3 years from the date of issuance. FCC ID : RE813000-149R Fun Maker Limited Application For Certification (FCC ID: RE813000-149R) Superregenerative Receiver Sample Description : R/C Submarine Model : 13000 0421788 WN/at December 7, 2004 INTERTEK TESTING SERVICES FCC ID: RE813000-149R i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1: General Description EXHIBIT 2: System Test Configuration EXHIBIT 3: Emission Results EXHIBIT 4: Equipment Photographs EXHIBIT 5: Product Labelling EXHIBIT 6: Technical Specifications EXHIBIT 7: Instruction Manual EXHIBIT 8: Miscellaneous Information INTERTEK TESTING SERVICES FCC ID: RE813000-149R ii MEASUREMENT/TECHNICAL REPORT Fun Maker Limited - MODEL: 13000 FCC ID: RE813000-149R December 7, 2004 This report concerns (check one:) Original Grant X Class II Change Equipment Type: Superregenerative Receiver (example: computer, printer, modem, etc.) Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart B for intentional radiator Report prepared by: Wilbur Ng Intertek Testing Services 2/F., Garment Center, 576, Castle Peak Road, HONG KONG Phone: 852-2173-8502 Fax: 852-2742-9149 INTERTEK TESTING SERVICES FCC ID: RE813000-149R iii Table of Contents 1.0 General Description.............................................................................................................2 1.1 Product Description..........................................................................................................2 1.2 Related Submittal(s) Grants............................................................................................2 1.3 Test Methodology.............................................................................................................3 1.4 Test Facility.......................................................................................................................3 2.0 System Test Configuration................................................................................................5 2.1 Justification........................................................................................................................5 2.2 EUT Exercising Software.................................................................................................5 2.3 Support Equipment List and Description........................................................................5 2.4 Equipment Modification....................................................................................................6 2.5 Special Accessories.........................................................................................................6 3.0 Emission Results..................................................................................................................8 3.1 Field Strength Calculation................................................................................................9 3.2 Radiated Emission Configuration Photograph............................................................10 3.3 Radiated Emission Data................................................................................................11 4.0 Equipment Photographs...................................................................................................14 5.0 Product Labelling...............................................................................................................16 6.0 Technical Specifications...................................................................................................18 7.0 Instruction Manual.............................................................................................................20 8.0 Miscellaneous Information...............................................................................................22 8.1 Stabilization Waveform...................................................................................................23 8.2 Emissions Test Procedures...........................................................................................24 8.2 Emissions Test Procedures (cont'd).............................................................................25 INTERTEK TESTING SERVICES FCC ID: RE813000-149R iv List of attached file Exhibit type File Description filename Test Report Test Report report.pdf Operation Description Technical Description descri.pdf Test Setup Photo Radiated Emission radiated photos.doc Test Report Stabilization Waveform superreg.pdf External Photo External Photo external photos.doc Internal Photo Internal Photo internal photos.doc Block Diagram Block Diagram block.pdf Schematics Circuit Diagram circuit.pdf ID Label/Location Label Artwork and Location label.pdf User Manual User Manual manual.pdf INTERTEK TESTING SERVICES FCC ID: RE813000-149R 1 EXHIBIT 1 GENERAL DESCRIPTION INTERTEK TESTING SERVICES FCC ID: RE813000-149R 2 1.0 General Description 1.1 Product Description The equipment under test (EUT) is a receiver for a RC Submarine operating at 49.860 MHz. The EUT is powered by four AA batteries. The EUT has a power button on the bottom side. After switching “ON” the EUT, it can be controlled to drive forward, backward with turning left and right directions, ascending and diving by the corresponding controller. The brief circuit description is saved with filename: descri.pdf 1.2 Related Submittal(s) Grants This is a single application …

Text truncated - open the document above for the full version.

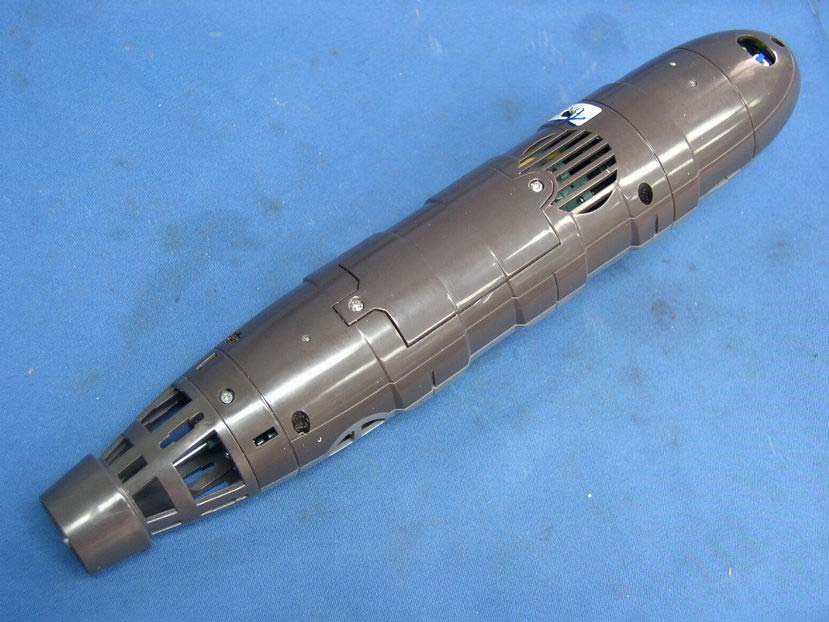

INTERTEK TESTING SERVICES Front View Back View
