RECWCRVS-02Remote Controller
Megascape Technology Co., Ltd.
Click to zoom
Application Details
- Equipment Class
- DSC - Part 15 Security/Remote Control Transmitter
- Date of Grant
- Dec 22, 2003
- Application Purpose
- Original Equipment
- Date of Application
- Dec 22, 2003
- Equipment Note
- Remote Controller
- Frequency Range
- 433.89000000 - 433.89000000
- Country
- Taiwan
Documents & Files
Document Text
Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.
Cover Letter(s)
1 Mike Kuo From: S. S. Liou [[email protected]] Sent: November272003Thursday 1:35 AM To: Mike Kuo Subject: Re: Megascape FCC ID:RECWCRVS-02, AN03T3346 Exhibit-C-Test_Rep ort(New).pdf... Exhibit-E-User_Man ual(New).pdf... Exhibit-J-O_D(New) .pdf Dear Mike, Ans. #1: Please refer to attached revised test report. Ans. #2: Please refer to attached user manual. The information required is added on page 7 of the file. Ans. #3: This device is a transmitter only. The former operational description is misleading. Please refer to attached revised operational description. Best regards, ================================ S. S. Liou Engineer / EMC Dep. II ETC ----- Original Message ----- From: "Mike Kuo" <[email protected]> To: "ETC/Iris (E-mail)" <[email protected]>; "Liou, S. S. (E-mail)" <[email protected]> Sent: Tuesday, November 25, 2003 10:33 AM Subject: Megascape FCC ID:RECWCRVS-02, AN03T3346 > Question #1: The max allowed Pulse train allowed is 0.1second. In the > calculation of duty factor, 1346mSecond was used. Please make necessary > correction on the radiated spurious emission test data. > > Question #2: User manual does not contain information required per section > 15.21 of FCC rules. Please provide revised user manual to comply this > requirement. > > Question #3: Per the operational description, this remote control is > transceiver. Please provide description on the receiver portion is worked. > > For your information : Since this device will be worked with RECWCRVS-01, no > grant can be issued before the issues of RECWCRVS-01 has been resolved. > > Best Regards > > Mike Kuo > Compliance Certification Services > 561F Monterey Road > Morgan Hill CA 95037 > Tel: (408)463-0885 x: 105 > Fax: (408)463-0888 > http://www.ccsemc.com >
External Photos

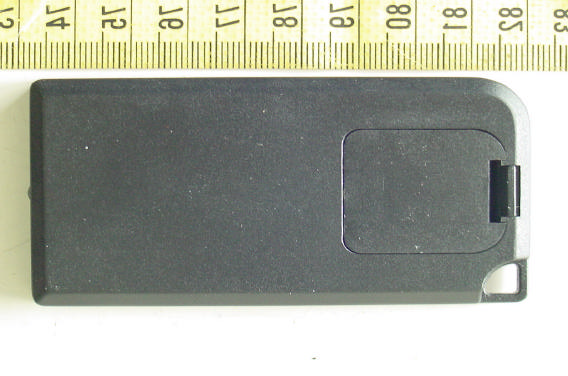

ETC Report No.:ET92R-07-111-05 FCC ID.: RECWCRVS-02 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Top View of Transmitter Bottom View of Transmitter ETC Report No.:ET92R-07-111-05 FCC ID.: RECWCRVS-02 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Side View of Transmitter
Internal Photos
ETC Report No.:ET92R-07-111-05 FCC ID.: RECWCRVS-02 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Internal View of Transmitter ETC Report No.:ET92R-07-111-05 FCC ID.: RECWCRVS-02 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Component View of Transmitter Solder View of Main PCB (Transmitter)
Test Report
Rev. No 1.0 FCC PART 15 EMI TEST REPORT of E.U.T. : Remote Control FCC ID. : RECWCRVS-02 MODEL : CCDXK01_433 for APPLICANT : MEGASCAPE TECHNOLOGY CO., LTD. ADDRESS : No.7, Lane 26, Gangcian Rd., Neihu District. Taipei 114, Taiwan. Test Performed by ELECTRONICS TESTING CENTER, TAIWAN NO. 34, LIN 5, DING FU TSUN, LINKOU HSIANG TAIPEI HSIEN, TAIWAN, R.O.C. Tel:(02)26023052 Fax:(02)26010910 http://www.etc.org.tw ; e-mail : [email protected] Report Number : ET92R-07-111-05 ETC Report No.:ET92R-07-111-05 FCC ID.: RECWCRVS-02 Rev. No 1.0 TEST REPORT CERTIFICATION Applicant : MEGASCAPE TECHNOLOGY CO., LTD. No.7, Lane 26, Gangcian Rd., Neihu District. Taipei 114, Taiwan. Manufacturer : MEGASCAPE TECHNOLOGY CO., LTD. No.7, Lane 26, Gangcian Rd., Neihu District. Taipei 114, Taiwan. Description of EUT : a) Type of EUT : Remote Control b) Trade Name : ---- c) Model No. : CCDXK01_433 d) FCC ID : RECWCRVS-02 e) Power Supply : DC3V f) Frequency Range : 433.890MHz Regulation Applied : FCC Rules and Regulations Part 15 Subpart B & C (2002) I HEREBY CERTIFY THAT; The data shown in this report were made in accordance with the procedures given in ANSI C63.4 and the energy emitted by the device was founded to be within the limits applicable. I assume full responsibility for accuracy and completeness of these data. Note : 1. The results of the testing report relate only to the items tested. 2. The testing report shall not be reproduced except in full, without the written approval of ETC. Issued Date : Sep. 23, 2003 Test Engineer : ( Vincent Chang) Approve & Authorized Signer : Will Yauo, Manager EMC Dept. II of ELECTRONICS TESTING CENTER, TAIWAN ETC Report No.:ET92R-07-111-05 FCC ID.: RECWCRVS-02 Rev. No 1.0 Table of Contents Page 1. GENERAL INFORMATION ............................................................................................................................... 1 1.1 PRODUCT DESCRIPTION.......................................................................................................................................... 1 1.2 CHARACTERISTICS OF DEVICE: ...............................................................................................................................1 1.3 TEST METHODOLOGY............................................................................................................................................. 1 1.4 TEST FACILITY........................................................................................................................................................ 1 2. DEFINITION AND LIMITS ................................................................................................................................ 2 2.1 DEFINITION............................................................................................................................................................. 2 2.2 RESTRICTED BANDS OF OPERATION....................................................................................................................... 2 2.3 LIMITATION............................................................................................................................................................ 3 2.4 LABELING REQUIREMENT....................................................................................................................................... 4 2.5 USER INFORMATION................................................................................................................................................ 4 3 SYSTEM TEST CONFIGURATION ................................................................................................................... 5 3.1 JUSTIFICATION........................................................................................................................................................ 5 3.2 DEVICES FOR TESTED SYSTEM................................................................................................................................5 4. RADIATED EMISSION MEASUREMENT ...................................................................................................... 6 4.1 APPLICABLE STANDARD......................................................................................................................................... 6 4.2 MEASUREMENT PROCEDURE................................................................................................................................... 6 4.3 TEST DATA............................................................................................................................................................. 8 4.3.1 TX Portion...................................................................................................................................................... 8 4.3.2 Other Emissions .............................................................................................................................................. 9 4.4 FIELD STRENGTH CALCULATION.......................................................................................................................... 10 4.5 ACTIVATE TIME.................................................................................................................................................... 10 4.6 CALCULATION OF DUTY FACTOR.......................................................................................................................... 10 4.7 RADIATED TEST EQUIPMENT................................................................................................................................11 4.8 MEASURING INSTRUMENT SETUP......................................................................................................................... 11 4.9 RADIATED MEASUREMENT PHOTOS...................................................................................................................... 12 5. BANDWIDTH OF EMISSION............................................…
Text truncated - open the document above for the full version.
Test Setup Photos
ETC Report No.:ET92R-07-111-05 FCC ID.: RECWCRVS-02 Rev. No 1.0 Radiated Measurement Photos
