REI001Zodiac Bluetooth Handheld PDA

Using Your Zodiac™ Handheld Copyright Copyright © 2003, Tapwave, Inc. All rights reserved. Portions copyright © 1996 - 2003, PalmSource, Inc. and its affiliates. All rights reserved. This documentation may be printed and copied solely for use in using the Zodiac handheld. In addition, two (2) copies of this documen- tation may be made for archival and backup purposes. Except for the foregoing, no part of this documentation may be reproduced or transmitted in any form or by any means or used to make any derivative work (such as translation, transformation or adaptation) without express written consent from Tapwave, Inc. and PalmSource, Inc. Tapwave, Inc.reserves the right to revise this documentation and to make changes in content from time to time without obligation on the part of Tapwave, Inc. to provide notification of such revision or changes. TAPWAVE, INC. AND ITS SUPPLIERS MAKE NO REPRESENTATIONS OR WARRANTIES THAT THE DOCUMENTATION IS FREE OF ERRORS OR THAT THE DOCUMENTATION IS SUITABLE FOR YOUR USE. THE DOCUMENTATION IS PROVIDED ON AN “AS IS” BASIS. TAPWAVE, INC. AND ITS SUPPLIERS MAKE NO WARRANTIES, TERMS OR CONDITIONS, EXPRESS OR IMPLIED, EITHER IN FACT OR BY OPERATION OF LAW, STAT- UTORY OR OTHERWISE, INCLUDING WARRANTIES, TERMS, OR CONDITIONS OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, AND SATISFACTORY QUALITY. TO THE FULL EXTENT ALLOWED BY LAW, TAPWAVE, INC. ALSO EXCLUDES FOR ITSELF AND ITS SUPPLIERS ANY LIABILITY, WHETHER BASED IN CONTRACT OR TORT (INCLUDING NEGLIGENCE), FOR DIRECT, INCIDENTAL, CONSEQUENTIAL, INDI- RECT, SPECIAL, OR PUNITIVE DAMAGES OF ANY KIND, OR FOR LOSS OF REVENUE OR PROFITS, LOSS OF BUSINESS, LOSS OF INFORMATION OR DATA, OR OTHER FINANCIAL LOSS ARISING OUT OF OR IN CONNECTION WITH THIS DOCUMENTATION, EVEN IF TAPWAVE, INC. OR ITS SUPPLIERS HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. Tapwave, the stylized Tapwave logo, and Zodiac are trademarks of Tapwave, Inc. in the United States and/or other countries. Palm OS, Graffiti, HotSync, and PalmSource are registered trademarks of PalmSource, Inc. or its affiliates. Palm, the Palm logo, the HotSync logo, Palm Powered, the Palm trade dress, are trademarks of PalmSource, Inc. or its affiliates. All other product and brand names may be trade- marks or registered trademarks of their respective owners. IF THIS DOCUMENTATION IS PROVIDED ON A COMPACT DISC, THE OTHER SOFTWARE AND DOCUMENTATION ON THE COMPACT DISC ARE SUBJECT TO THE LICENSE AGREEMENT AC- COMPANYING THE COMPACT DISC. MPEG Layer-3 audio decoding technology is licensed from Fraunhofer IIS and Thomson Licensing S.A. P/N: Using Your Zodiac Handheld 3 Table of Contents About This Guide10 1 Introduction to your Zodiac Handheld11 System requirements . . . . . . . . . . . . . . . . . . . . . . 11 Connecting the cable or cradle . . . . . . . . . . . . . . . . . . 12 Charging the battery. . . . . . . . . . . . . . . . . . . . . . . 13 Charging tips . . . . . . . . . . . . . . . . . . . . . . . . . 14 Battery life . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Starting your handheld for the first time . . . . . . . . . . . . . 15 Palm Desktop software . . . . . . . . . . . . . . . . . . . . . 15 Installing Palm Desktop software . . . . . . . . . . . . . . . 16 Using your handheld with another desktop organizer . . . . . 17 Zodiac components . . . . . . . . . . . . . . . . . . . . . . . 17 About the front panel . . . . . . . . . . . . . . . . . . . . . 17 About the back panel . . . . . . . . . . . . . . . . . . . . . 19 Removing the stylus . . . . . . . . . . . . . . . . . . . . . 20 Connecting the headphones . . . . . . . . . . . . . . . . . 20 Adjusting the screen orientation . . . . . . . . . . . . . . . 21 Adjusting the speaker volume and screen brightness . . . . . 21 Opening applications . . . . . . . . . . . . . . . . . . . . . . 22 Learning to navigate . . . . . . . . . . . . . . . . . . . . . . . 23 Status Bar . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 Input Area . . . . . . . . . . . . . . . . . . . . . . . . . . 25 Entering data . . . . . . . . . . . . . . . . . . . . . . . . . 26 Navigation controls . . . . . . . . . . . . . . . . . . . . . . 27 Menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 Command toolbar . . . . . . . . . . . . . . . . . . . . . . 28 Tips. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 Using Your Zodiac Handheld 4 2 Entering Data in Your Zodiac Handheld30 Entering data using Graffiti 2 handwriting software . . . . . . . . 30 Learning to write Graffiti 2 characters . . . . . . . . . . . . . 30 General Guidelines for Graffiti 2 Writing . . . . . . . . . . . . 31 Graffiti 2 tips . . . . . . . . . . . . . . . . . . . . . . . . . 32 The Graffiti 2 alphabet . . . . . . . . . . . . . . . . . . . . 33 Writing punctuation marks and other special characters . . . . 34 Using Graffiti 2 Gestures . . . . . . . . . . . . . . . . . . . . . 36 Using Graffiti 2 ShortCuts . . . . . . . . . . . . . . . . . . . . 36 Using the onscreen keyboard . . . . . . . . . . . . . . . . . . 37 Using your computer keyboard . . . . . . . . . . . . . . . . . 38 Using an external keyboard . . . . . . . . . . . . . . . . . . . 39 Importing data . . . . . . . . . . . . . . . . . . . . . . . . . 39 3 Managing Applications41 Using the Home screen . . . . . . . . . . . . . . . . . . . . . 41 Customizing the Home screen display . . . . . . . . . . . . . . 43 Arranging icons on the radial menus. . . . . . . . . . . . . . 43 Organizing applications . . . . . . . . . . . . . . . . . . . . 43 Setting Home screen preferences . . . . . . . . . . . . . . . 45 Viewing information on an application . . . . . . . . . . . . . . 46 Installing add-on applications . . . . . . . . . . . . . . . . . . 47 Removing add-on applications . . . . . . . . . . . . . . . . . . 48 Removing Palm Desktop software . . . . . . . . . . . . . . . . 49 4 Using Music50 Opening Music . . . . . . . . . . . . . . . . . . . . . . . . . 50 …

Text truncated - open the document above for the full version.

Tapwave, Inc. August 13, 2003 Federal Communications Commission Authorization and Evaluation Division FCC ID: REI001 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: 1. Schematic RF circuitry diagram 2. Function block diagram 3. Operational Description 4. Antenna Spectification The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Yannick Bertolus / Sr. Manager, Quality Assurance

TCB Q and A.txt From: [email protected] Sent: September052003Friday 2:09 AM To: Mike Kuo Cc: Eric (E-mail); Jonson Lee (E-mail); Lucy (E-mail); Mike Kuo; Ting (E-mail) Subject: RE: FW: Tapwave, Inc., FCC ID:REI001, NA03T3210 Hi Mike, We've performed the 20dB bandwidth and please refer to the revised test report, page 20-21. Best Regards, Lucy Mike Kuo <[email protected]> 2003/09/03 02:52 AM "'[email protected]'" <[email protected]>, Mike Kuo <[email protected]> "Eric (E-mail)" <[email protected]>, "Jonson Lee (E-mail)" <[email protected]>, "Lucy (E-mail)" <[email protected]>, "Ting (E-mail)" <[email protected]> RE: FW: Tapwave, Inc., FCC ID:REI001, NA03T3210 Hi Lucy : Question #1: Below is the FCC Part 15.247 (a)(1) requirements: (1) Frequency hopping systems shall have hopping channel carrier frequencies separated by a minimum of 25 kHz or the 20 dB bandwidth of the hopping channel, whichever is greater. The system shall hop to channel frequencies that are selected at the system hopping rate from a pseudorandomly ordered list of hopping frequencies. Each frequency must be used equally on the average by each transmitter. The system receivers shall have input bandwidths that match the hopping channel bandwidths of their corresponding transmitters and shall shift frequencies in synchronization with the transmitted signals. You have to provide 20dB bandwidth measurement to be used for frequency separation compliance. Please provide 20dB bandwidth measurement. Best Regards Mike Kuo -----Original Message----- From: [email protected] [mailto:[email protected]] Sent: Monday, September 01, 2003 1:24 AM To: Mike Kuo Cc: Eric (E-mail); Jonson Lee (E-mail); Lucy (E-mail); Ting (E-mail) Subject: FW: Tapwave, Inc., FCC ID:REI001, NA03T3210 Hi Mike, Page 1 TCB Q and A.txt Please refer to the below for the reply for Q1-3. For Q1, we don't think it's necessary to measure 20dB bandwidth because it has been taken off in the version of FCC Part 15, 2003. 3, 13. So please check if it's still required. For Q2, we totally did have verified four modes: PDA itself with three orthogonal axes and PDA with cradle, and recorded the worst one: PDA with cradle. Please refer to the page 6 of revised test report for test modes description. For Q3, we have revised it and please refer to the revised test report for details. Best Regards, Lucy Mike Kuo <[email protected]> 2003/08/29 02:36 AM "Eric (E-mail)" <[email protected]>, "Lucy (E-mail)" <[email protected]>, "Ting (E-mail)" <[email protected]> "Jonson Lee (E-mail)" <[email protected]> FW: Tapwave, Inc., FCC ID:REI001, NA03T3210 -----Original Message----- From: CERTADM Sent: Thursday, August 28, 2003 10:34 AM To: '[email protected]' Subject: Tapwave, Inc., FCC ID:REI001, NA03T3210 Notice_content ------------- Question #1: Please provide 20dB Bandwidth plots . Question #2: The EUT is handheld device, per ANSI C63.4 section 13.1.4.1 requirement, handheld device shall be investigated with the device rotated through three orthogonal axes during radiated emission tests. In the test report, there is no indication that such procedure was performed. Please confirm the test procedrues and/or provide additional test data. Question #3: Please modify section 7.7 of test report. Basically, the information presented in section 7.7 provide enough information address RF exposure requirement. However, this device is handheld PDA which is classified as portable device per section 2.1093 of FCC rules. For portable device, if the output power is below the low threhold, SAR evaluation is not required. MPE estimate can not be used to address portable RF exposure compliance. Once you determine the SAR evaluation is not applicable for portable device, you do not need to provide any additional information to address RF exposure compliance. Please delete MPE estimate from the test report. Best Regards Mike Kuo The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note Page 2 TCB Q and A.txt that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender. Page 3

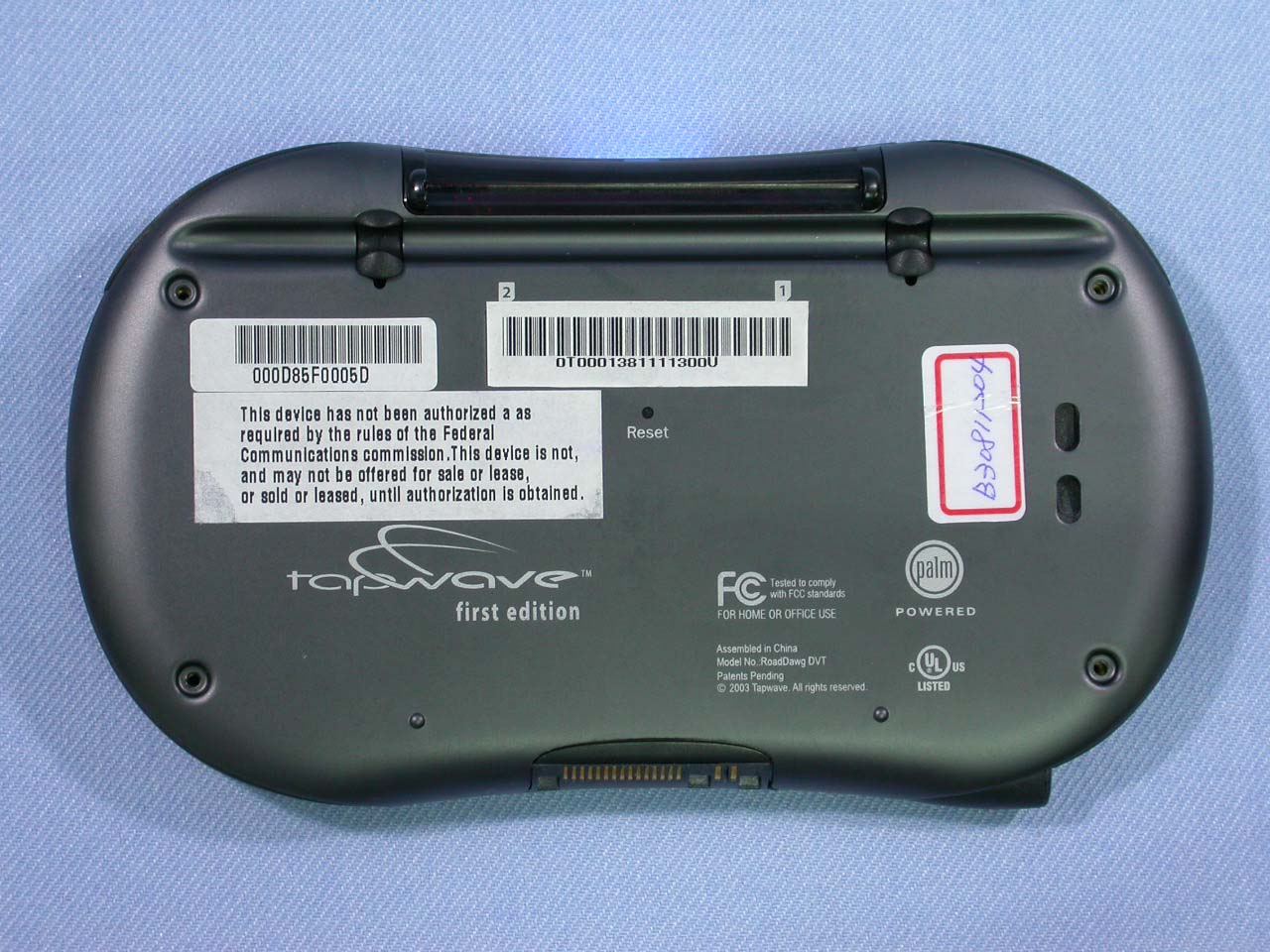

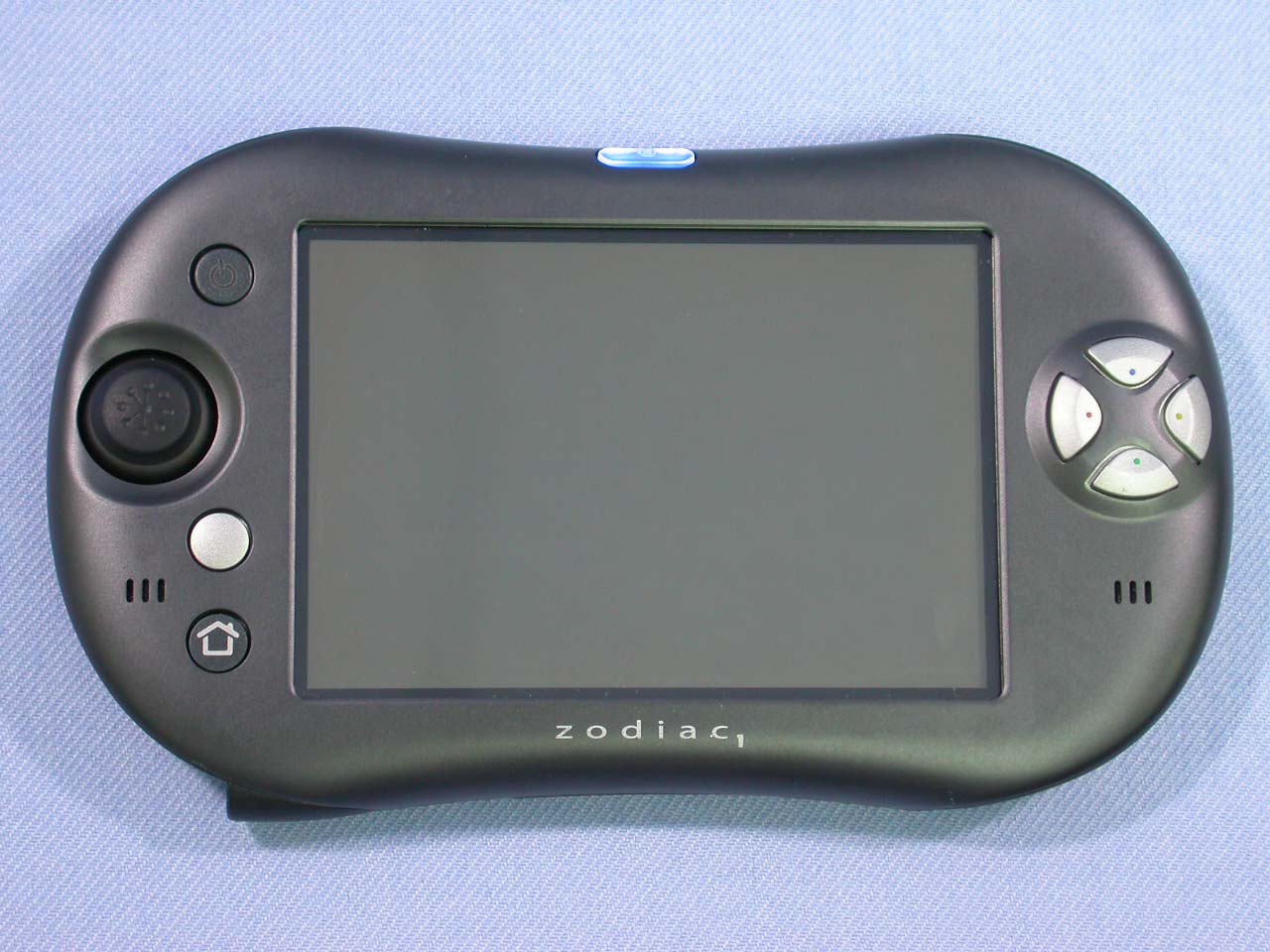

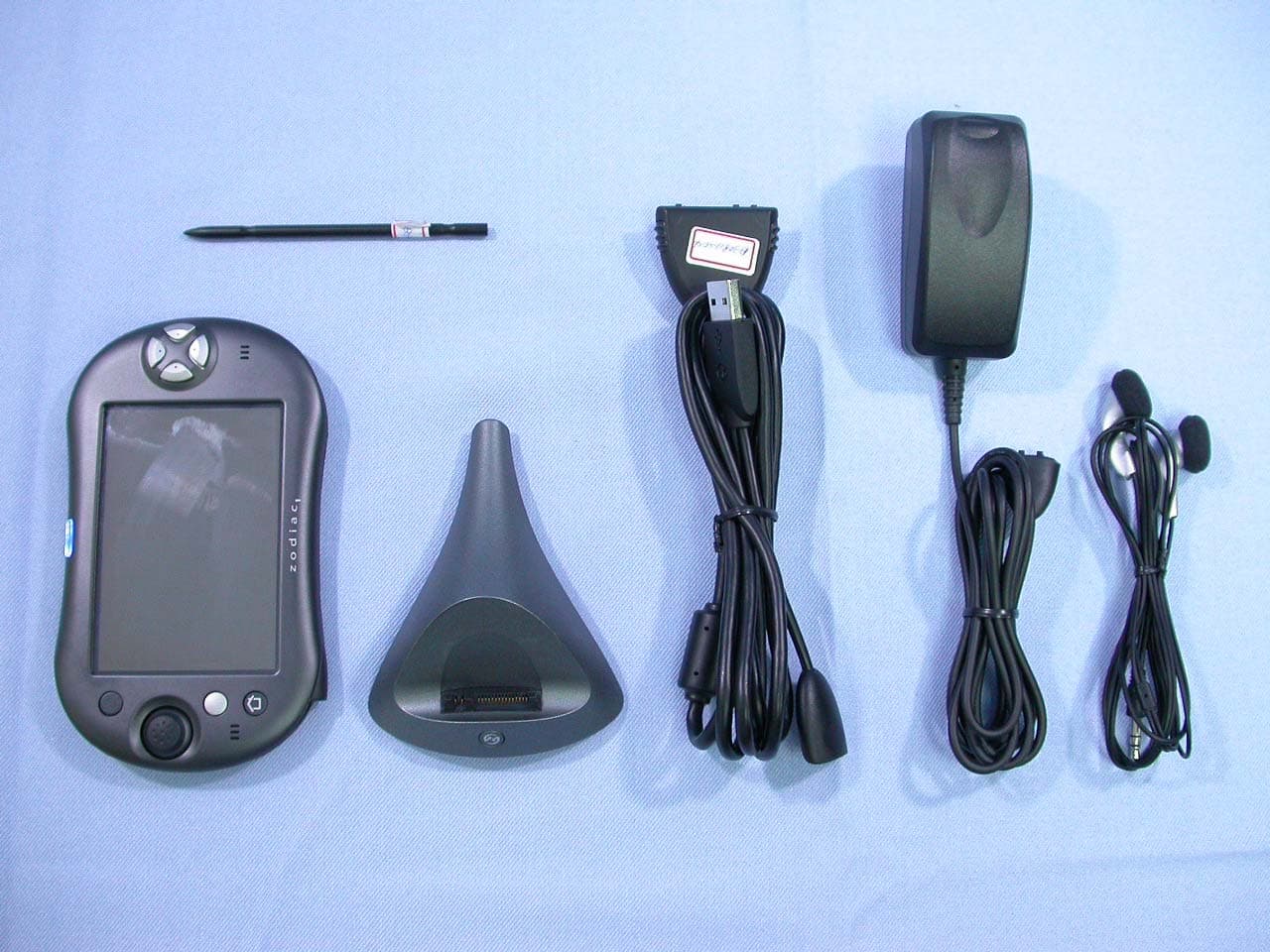

Compliance Certification Services Inc. Report No: B30811204-RP FCC ID: REI001 Date of Issue: August 22, 2003 Page 48 APPENDIX 2 EXTERNAL PHOTOGRPHS OF EUT Front view of EUT Back view of EUT Compliance Certification Services Inc. Report No: B30811204-RP FCC ID: REI001 Date of Issue: August 22, 2003 Page 49 All view of EUT Label view of Adaptor

Reset Patents Pending ©2003 Tapwave. All rights reserved. Assembled in China

Compliance Certification Services Inc. Report No: B30811204-RP FCC ID: REI001 Date of Issue: August 22, 2003 Page 50 APPENDIX 3 INTERNAL PHOTOGRPHS OF EUT Internal of EUT --- 1 Internal of EUT --- 2 Compliance Certification Services Inc. Report No: B30811204-RP FCC ID: REI001 Date of Issue: August 22, 2003 Page 51 Internal of EUT --- 3 Internal of EUT --- 4 Compliance Certification Services Inc. Report No: B30811204-RP FCC ID: REI001 Date of Issue: August 22, 2003 Page 52 Internal of EUT --- 5 Internal of EUT --- 6 Compliance Certification Services Inc. Report No: B30811204-RP FCC ID: REI001 Date of Issue: August 22, 2003 Page 53 Internal of EUT --- 7 Internal of EUT --- 8 Compliance Certification Services Inc. Report No: B30811204-RP FCC ID: REI001 Date of Issue: August 22, 2003 Page 54 Internal of EUT --- 9 Internal of EUT --- 10 Compliance Certification Services Inc. Report No: B30811204-RP FCC ID: REI001 Date of Issue: August 22, 2003 Page 55 Internal of EUT --- 11

Compliance Certification Services Inc. Report No: B30811204-RP FCC ID: REI001 Date of Issue: August 22, 2003 Page 1 of 55 FCC 47 CFR PART 15 SUBPART C TEST REPORT For Tapwave, Inc. Handheld Model: Zodiac Trade Name: Tapwave Prepared for Tapwave, Inc. 1901 Landings Drive, Building G Mountain View, CA 94043 Prepared by Compliance Certification Services Inc. No. 81-1, Lane 210, Bade Rd. 2, Luchu Hsiang, Taoyuan Hsien, (338) Taiwan, R.O.C. TEL: 886-3-324-0332 FAX: 886-3-324-5235 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Compliance Certification Services Inc. Report No: B30811204-RP FCC ID: REI001 Date of Issue: August 22, 2003 Page 2 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION............................................................................................. 3 2. EUT DESCRIPTION..................................................................................................................... 4 3. TEST METHODOLOGY ............................................................................................................. 5 3.1 EUT CONFIGURATION.............................................................................................................. 5 3.2 EUT EXERCISE......................................................................................................................... 5 3.3 GENERAL TEST PROCEDURES.................................................................................................. 5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS ............................................. 6 3.5 DESCRIPTION OF TEST MODES................................................................................................. 6 4. INSTRUMENT CALIBRATION ................................................................................................. 7 5. FACILITIES AND ACCREDITATIONS ................................................................................... 8 5.1 FACILITIES...............................................................................................................................8 5.2 EQUIPMENT............................................................................................................................. 8 5.3 LABORATORY ACCREDITATIONS AND LISTING....................................................................... 8 5.4 TABLE OF ACCREDITATIONS AND LISTINGS............................................................................ 9 6. SETUP OF EQUIPMENT UNDER TEST ................................................................................ 10 6.1 SUPPORT EQUIPMENT............................................................................................................ 10 7. FCC PART 15.247 REQUIREMENTS...................................................................................... 11 7.1 PEAK POWER......................................................................................................................... 11 7.2 BAND EDGES MEASUREMENT...................................................................................... 12 7.3 PEAK POWER SPECTRAL DENSITY......................................................................................... 17 7.4 FREQUENCY SEPARATION ............................................................................................ 20 7.5 NUMBER OF HOPPING FREQUENCY............................................................................ 22 7.6 TIME OF OCCUPANCY (DWELL TIME) ........................................................................ 24 7.7 RADIO FREQUENCY EXPOSURE.............................................................................................. 28 7.8 RADIATED EMISSIONS........................................................................................................... 29 7.9 POWERLINE CONDUCTED EMISSIONS.................................................................................... 41 Compliance Certification Services Inc. Report No: B30811204-RP FCC ID: REI001 Date of Issue: August 22, 2003 Page 3 1. TEST RESULT CERTIFICATION Applicant: Tapwave Computer Inc. 1901 Landings Drive, Building G Mountain View, CA 94043 Equipment Under Test: Handheld Trade Name: Tapwave Model: Zodiac Report Number: B30611204-RP Date of Test: August 18 - 19, 2003 APPLICABLE STANDARDS STANDARD TEST RESULT FCC Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (1992) and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.247. The test results of this report relate only to the tested sample identified in this report. Approved by: Reviewed by: Jonson Lee Eric Wong Director of Linkou Laboratory Section Manager Compliance Certification Services Inc. Compliance Certification Services Inc. Compliance Certification Services Inc. Report No: B30811204-RP FCC ID: REI001 Date of Issue: August 22, 2003 Page 4 2. EUT DESCRIPTION Product Handheld Trade Name Tapwave Model Number Zodiac Model Discrepancy N/A Power Supply Input: Vac 100~120V, 50-60 Hz; 0.3A Output: Vdc 15V, 1.1A Frequency Range 2402 – 2480MHz Modulation Technique Frequency Hopping Spread Spectrum (FHSS) Number of Channels 79 Antenna Designation PIFA Antenna Note: This submittal(s) (test report) is intended for FCC ID: REI001 filing to comply with Section 15.247 of the FCC Part 15, Subpart C Rules. The composite system (digital device) is compliance with Subpart B is authorized under a DoC procedure. Compliance Certif…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No: B30811204-RP FCC ID: REI001 Date of Issue: August 22, 2003 Page 46 APPENDIX 1 PHOTOGRPHS OF TEST SETUP Radiated Emission Set up Photos Compliance Certification Services Inc. Report No: B30811204-RP FCC ID: REI001 Date of Issue: August 22, 2003 Page 47 Conducted Emission Set Up Photos
