REKFF27Remote Control Toy Transmitter

Switoy Limited

Click to zoom

Application Details

Equipment Class: DXX - Part 15 Low Power Communication Device Transmitter
Date of Grant: Sep 21, 2003
Application Purpose: Original Equipment
Date of Application: Sep 21, 2003

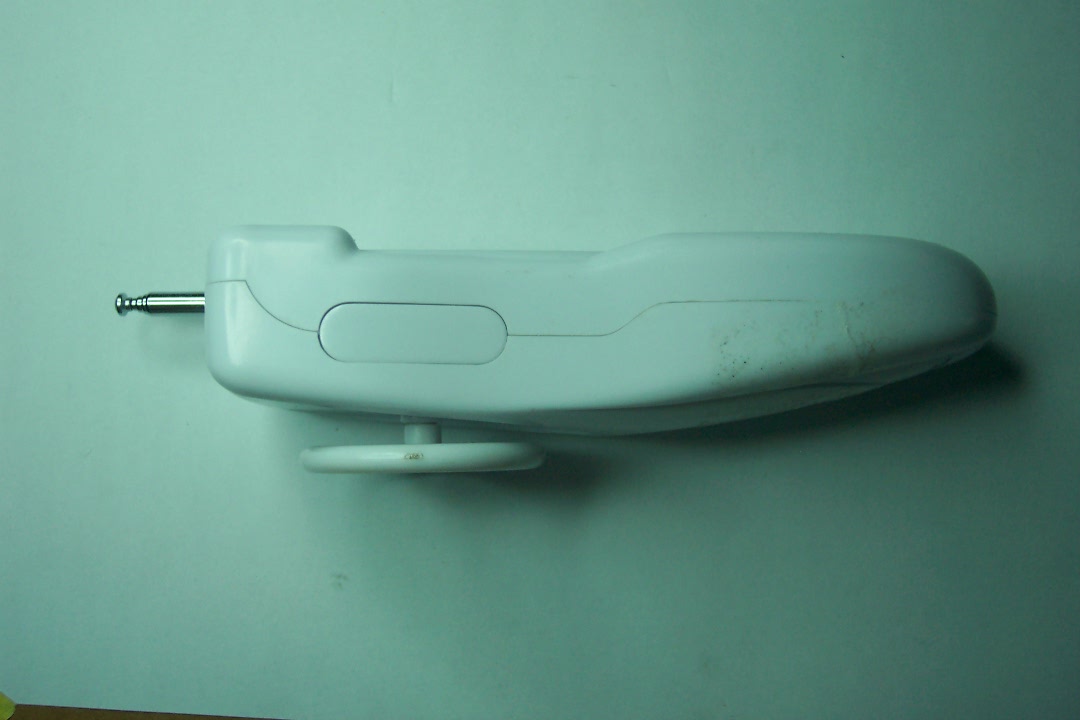

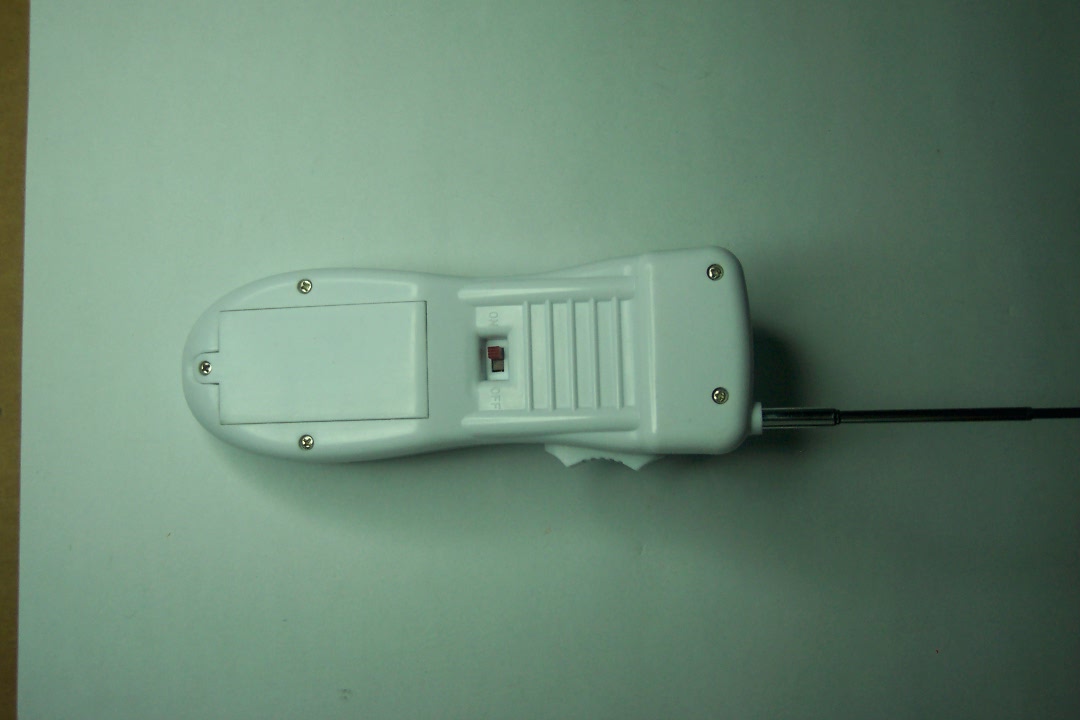

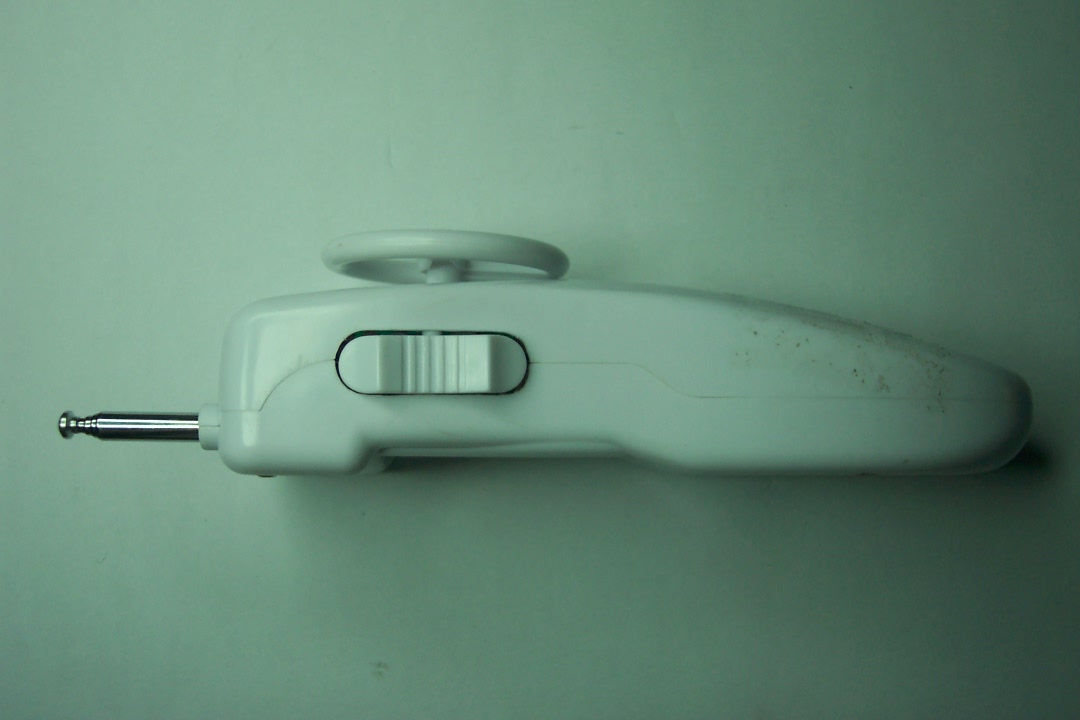

Equipment Note: Remote Control Toy Transmitter
Frequency Range: 27.14500000 - 27.14500000
Company: Switoy Limited
Country: Hong Kong

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

ID Label/Location Info

FCC ID Location FCC ID Label Sample FCC ID: REKFF49 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Operational Description

Uni-Fortune Toys Industrial Limited 21-2721A-C FLAT A-C, 21/F., CHEUNG HING SHING CENTRE, TEL: (852) 2413 0983 21-27 SH A TSUI R O A D, TSU EN WA N, FA X: (852) 2414 4183 N.T., HONG KONG E-mail: sales @ u ni-fortune.co m 1 Project Name:RC Vehicle Model No.:3301 - 3310 Contact:Raymond Yuen Date:21-Aug-03 Description:Introduction R/C transmitter: Operation: 9V battery Drawing Ref.: RC Vehicle - TX U1 (TX2) is a 5 functional remote encoder IC, with transistor Q1, Q2 and other components combined as RF transmitter circuit. The IC Pin 14, 1, 4 and 5 control left, right, backward, forward and encoding signal output respectively. Data output from Pin 8 and modulate with 27.145MHz oscillator that achieved by Q2, Y1, R3, C2, and L1. RF power amplifier Q1, L2, C3, C4, R8 is use to enlarge the transmission range, the output frequency through LC filter C3, C4 and L3, to eliminate the harmonic frequency then transmitted signal by aerial A1. R/C receiver: Operation: 6V AA Size battery Drawing Ref.: RC Vehicle - RX Superregenerative receiver use a special type of detector, in a straight regenerative circuit, the input signal couples to the detector, and some of the output signal is fed back to its input, in phase. This repeatedly amplifies the input signal. The result is very high gain in a single stage. Q1 provides RF gain and helps prevent the receiver from radiating its signal out the antenna. The data signal obtained by detector then couples to RX2 (U1) pin 14 through the LPF circuit (R19, C17). The IC provides two high effective amplifiers and enhances signal input recognition capacity to enhance remote control distance. The signal input to the decoding circuit by pin3 and then the latch circuit separates the function to pin 6, 7, 10, 11 to order the motors circuit. Uni-Fortune Toys Industrial Limited 21-2721A-C FLAT A-C, 21/F ., CHEUNG HING SHING CENTRE, TEL: (852) 2413 0983 21-27 SH A TSUI R O A D, TSU EN WA N, FA X: (852) 2414 4183 N.T ., HONG KONG E-mail: sales @ u ni-fortune.co m 2 Specification of RC Vehicle Model No: 3301 - 3310 Description: (Front, Back, Left, Right, Stop) Full function radio control car Radio Freq.: 27.145MHz 30PPM at 25 Control Range: Over 10m control radius from R/C transmitter at open site Transmitter:9V (6F22 battery) Power Supply Receiver:6V (R6P/ SIZE AA x 4 battery) Transmitter:7.2V Min. operation voltage: Receiver:4.8V Standby-170mW approx.Transmitter: Operating-260mW approx. Standby-280mW approx. Power consumption: Receiver: Operating-12W approx.

Test Report

Report No.: 03.08.1399EF Page: 1 of 11 FCC ID: REKFF27 Authorized Signature: Kent Hsu Laboratory Manager SGS-CSTC Co.,Ltd. This report refers to the General Conditions for Inspection and Testing Services, printed overleaf This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product and does not permit the use of the SGS PRODUCT CERTIFICATION MARK.. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. SGS-CSTC Standards Technical Services Ltd. 1/F., Building No. 1 Building, Agriculture Machinery Materials Co. Wushan Road, Shipai, Tianhe District,Guangzhou, China Telephone: +86 (0) 20 3848 1001Fax: +86 (0) 20 3848 1006 [email protected] FEDERAL COMMUNICATIONS COMMISSION Registration number: 282399 FCC TEST REPORT Application No.: 03.08.1399EF Applicant: Switoy Limited FCC ID: REKFF27 Fundamental Frequency : 27.145 MHz Equipment under Test (EUT): Name: R/C Vehicle Model: 3301, 3302, 3303, 3304, 3305, 3306, 3307, 3308, 3309, 3310♣ ♣ Please refer to section 3.1 of this report which indicates which model was actually tested and which models are electrically identical Standards: FCC PART 15, SUBPART C : 2002 Date of Receipt: 07 August 2003 Date of Test: 11 August 2003 Date of Issue: 14 August 2003 Test Result :PASS * *In the configuration tested, the EUT complied with the standards specified above. FCC ID No.: REKFF27 Report No.:03.08.1399EF Page:2 of 11 SGS-CSTC Standards Technical Services Ltd. 2 Contents Page 1COVER PAGE..............................................................................................................................................................................1 2CONTENTS...................................................................................................................................................................................2 3GENERAL INFORMATION.......................................................................................................................................................3 3.1CLIENT INFORMATION............................................................................................................................................................3 3.2DETAILS OF E.U.T.....................................................................................................................................................................3 3.3DESCRIPTION OF SUPPORT UNITS........................................................................................................................................3 3.4TEST LOCATION........................................................................................................................................................................3 3.5OTHER INFORMATION REQUESTED BY THE CUSTOMER..................................................................................................3 3.6TEST FACILITY.........................................................................................................................................................................4 4TEST RESULTS............................................................................................................................................................................5 4.1TEST INSTRUMENTS.................................................................................................................................................................5 4.2E.U.T. OPERATION...................................................................................................................................................................5 4.3TEST PROCEDURE & MEASUREMENT DATA.......................................................................................................................5 4.3.1Radiated Emissions......................................................................................................................................................5 4.3.2Occupied Bandwidth...................................................................................................................................................7 4.3.3Photographs - Radiated Emission Test Setup in Chamber...................................................................................8 5PHOTOGRAPHS - EUT CONSTRUCTIONAL DETAILS.............................................................................................9-11 FCC ID No.: REKFF27 Report No.:03.08.1399EF Page:3 of 11 SGS-CSTC Standards Technical Services Ltd. 3 General Information 3.1 Client Information Applicant:Switoy Limited Address of Applicant:Rm1009, 10f/F Austin Tower, 22-26A Austin Avenue, T.S.T Kowloon, Hong Kong 3.2 Details of E.U.T. Product Name:R/C Vehicle (Transmitter Part) Model: 3301, 3302, 3303, 3304, 3305, 3306, 3307, 3308, 3309, 3310♣ ♣Only one item was tested since the above 30 Items were electrically identical. They are the same samples with different item no. and description, the outer decorations, IC sound only. Power Supply:9V DC (1 x ‘6F22’ Battery) Power Cord:N/A- 3.3 Description of Support Units The EUT was tested as an independent unit: a 27MHz radio transmitter. 3.4 Test Location All tests were performed at:- SGS-CSTC Standards Technical Services Ltd., Guangzhou Safety & EMC Laboratory, 1/F, Building No. 1, Agriculture Machinery Materials Company Wareh…
