RENFC-AL2011PWADSL MODEM ROUTER

ADSL MODEM ROUTER Single / 4 Port & Plus Wireless Installation Guide F300000013 FEDERAL COMMUNICATIONS COMMISSION This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection. This equipment generates, uses and can radiated radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. Shielded interface cables must be used in order to comply with emission limits. Changes or modifications not expressly approved by the party responsible for compliance could void the user‘s authority to operate the equipment. FCC Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. In order to avoid the possibility of exceeding the FCC radio frequency exposure limits, human proximity to the antenna shall not be less than 20cm (8 inches) during normal operation. Proposed RF exposure safety information to include in User’s Manual. Table of Contents Chapter 1 check and prepare 1.1 Package checklist............................................................... 1 1.2 Hardware Requirement. ........................................................1 1.3 Data Requirement.................................................................1 1.3.1 For Static IP Address User................................................. .1 1.3.2 For Dynamic IP Address (PPPoE / PPPoA) User................. ...1 Chapter 2 Introduction 2.1 Wireless ADSL Router 2.1.1 Features...........................................................................2 2.1.2 ADSL Compliance.............................................................3 2.1.3 ATM Protocols and Encapsulations......................................3 2.1.4 Bridge/Router Protocols......................................................3 2.1.5 Management.....................................................................4 2.2 ADSL Modem Route 2.2.1 Features...........................................................................5 2.2.2 ADSL Compliance..............................................................6 2.2.3 ATM Protocols and Encapsulations......................................6 2.2.4 Bridge/Router Protocols......................................................6 2.2.5 Management.....................................................................7 2.3 LED Indicators.................................................................7 2.3.1 ADSL Modem Router / Wireless...................................... .........8 2.3.2 4-port ADSL Modem Router / Wireless.........................................8 Chapter 3 Installation 3.1 Hardware Connection.........................................................9 3.1.1 4-PORT Wireless ADSL Modem Router / Switch HUB.............9 3.1.2 Wireless ADSL Modem Router / Switch HUB......................10 3.1.3 4-PORT ADSL Modem Router / Switch HUB.......................11 3.1.4 ADSL Modem Router / Switch HUB...................................12 3.2 USB Installation...............................................................12 Chapter 4 Configuration Setting 4.1 LAN Card Setting...............................................................13 4.2 ADSL Modem Router Parameter Setting................................13 4.2.1 Router mode for static IP with DHCP function....................15 4.2.2 Bridge mode with DHCP function .......................................16 4.2.3 Wireless Introduction function ..................................... 19 4.3 Wireless Setup ...................... .......................................... 20 Chapter 1 Check and Prepare 1.1 Package Checklist One Ethernet ADSL Router One Power Adapter One RJ45 Cable One USB Cable One RJ11 phone cable One CD driver for USB interface One 2.4G Antenna ( Wireless only ) One Installation Guide 1.2 Hardware Requirement ADSL Line from your telephone company LAN Card inside your PC or Uplink port on Switch HUB IEEE 802.11b compliant PCMA Wireless LAN card ( Wireless only ) 1.3 Data Requirement Please get the following data information from your ISP or phone company before setting up this ADSL Modem Router. 1.3.1 For Static IP address user: IP address Gateway Address Subnet mask DNS VPI / VCI value Encapsulation mode (example: RFC 1483,1577...etc.) 1.3.2 For Dynamic IP address (PPPoE/PPPoA) user: VIP value VCI value Encapsulation mode (example: RFC 2516, 2364...etc.) User name &Password 1 Chapter 2 Introduction 2.1.1 Features The ADSL Router providing fast and reliable Internet access over the existing copper wires is an ideal solution for SOHO users. Using the existing phone lines to deliver data at rates up to 8Mbps-140 times faster than traditional analogue modem. Meanwhile, you can share a single IP account within your entire network to enjoy internet convenience at the same time. In order to bring the most convenience to users, this Wireless ADSL Modem router builds in three kind of interfaces: IEEE 802.11b…

Text truncated - open the document above for the full version.

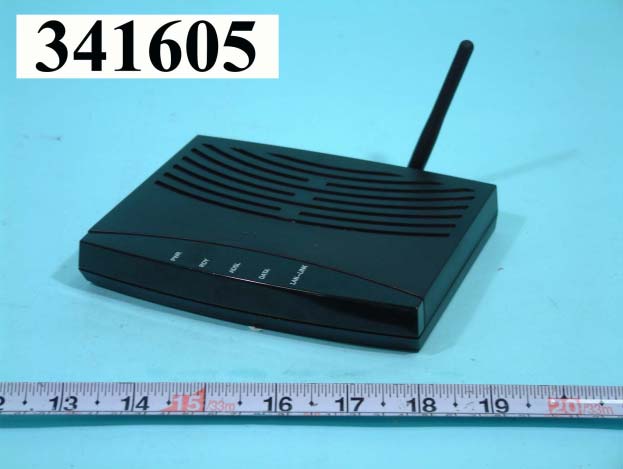

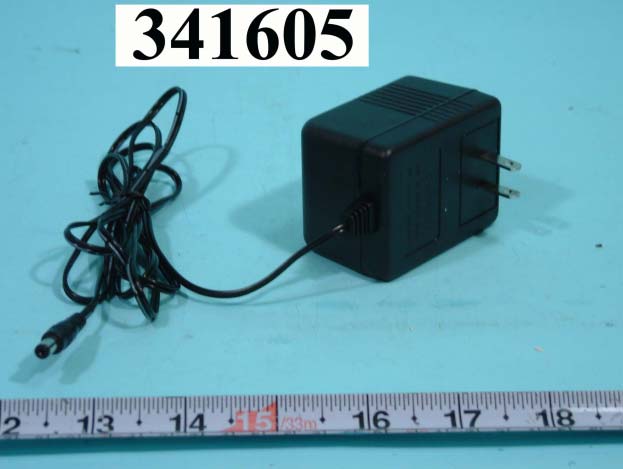

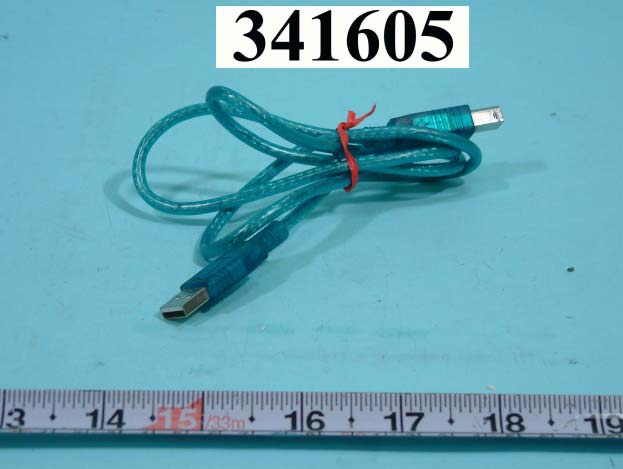

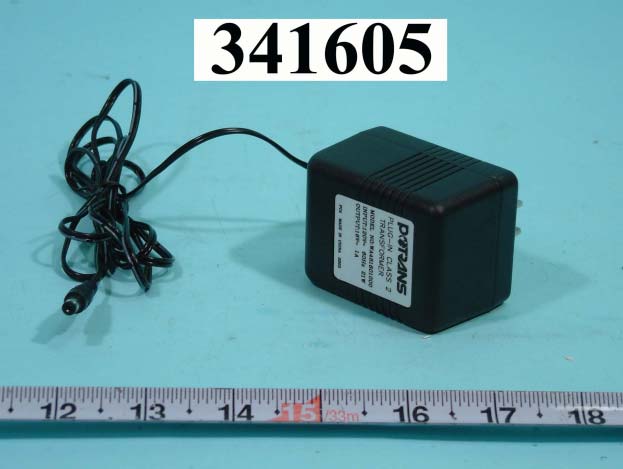

FCC ID: RENFC-AL2011PW Number1 FRONT SIDE OF EUT FCC ID: RENFC-AL2011PW Number2 REAR SIDE OF EUT FCC ID: RENFC-AL2011PW Number3 FRONT SIDE OF ADAPTOR FCC ID: RENFC-AL2011PW Number4 REAR SIDE OF ADAPTOR FCC ID: RENFC-AL2011PW Number5 FRONT SIDE OF ADAPTOR FCC ID: RENFC-AL2011PW Number6 USB CABLE

FCC ID: RENFC-AL2011PW

FCC ID: RENFC-AL2011PW Number 1 Mechanical construction FCC ID: RENFC-AL2011PW Number 2 Mechanical construction FCC ID: RENFC-AL2011PW Number 3 Mechanical construction FCC ID: RENFC-AL2011PW Number 4 Front side of main board 1 1 FCC ID: RENFC-AL2011PW Number 5 Rear side of main board 2 2 FCC ID: RENFC-AL2011PW Number 6 Mechanical construction of module board FCC ID: RENFC-AL2011PW Number 7 Mechanical Construction of module board FCC ID: RENFC-AL2011PW Number 8 Front side of module board FCC ID: RENFC-AL2011PW Number 9 Rear side of module board

FCC ID: RENFC-AL2011PW Wireless ADSL Modem working theorem divided into two parts: Wireless and ADSL. Wireless working theorem: the frequency of Wireless is 2.4GHz ISM (Industrial- Scientific-Medical) band, working frequency is 2.400GHz to 2.4835GHz and use Direct Sequence Spread Spectrum technology to reduce interference of data transmission and receiving, and increase security of information transferring. Data was transmitting and receiving during 11 channels by DSSS technology. The data signal transmitted and received through wireless module and antenna between ADSL Modem and each working station.

Sporton Customer’s Product Specification Form FCC ID: RENFC-AL2011PW Product Feature & Specification 1. Host/Radio Interface Direct Sequence Spread Spectrum 2. Type of Modulation CCK, DQPSK, DBPSK USA/Canada: 11 European: 13 V 3. Number of Channels Japan: 13, 14 Other: 4. Frequency Band 2.4~2.4835 GHz 5. Carrier Frequency of each channel 2412+(n-1)*5, n= Channel NO. 6. Bandwidth of each channel 11MHz 7. Maximum Output Power to Antenna 12dBm~15dBm 8. IF & L.O. frequency IF: 374MHz, LO.: 2036MHz 9. Type of Antenna Connector (Ex: SMA,TNC, MCX, MMCX, UFC..........etc) Reverse SMA 10. Antenna Type / Class and Gain Dipole Antenna / 2.0dBi 11. Function Type Transceiver 12. Power Rating (DC/AC, Voltage) DC 3.3 V 5% (WA481601000) 13. Duty Cycle 100% 14. Basic function of product Data Transmission

1.1. 6dB Bandwidth Plot1(Channel 1) Plot2(Channel 6) Plot3(Channel 11) 1.2. Power Spectral Density Plot1(Channel 1): Plot2(Channel 6): Plot3(Channel 11): 1.3. Band Edges Measurement Plot1 (Channel 1) Plot2 (Channel 11)

FCC TEST REPORT Report No. : F341605 SPORTON International Inc. TEL : 886-2-2696-2468 FAX : 886-2-2696-2255 FCC TEST REPORT for 47 CFR, Part 15, Subpart C Equipment : ADSL MODEM ROUTER/ ADSL MODEM ROUTER plus Wireless Model No. : FC-AL2011P/FC-AL2011PW FCC ID. : RENFC-AL2011PW Filing Type : Certification Applicant : FU CHAN HIGH PILE CO., LTD FL. 1, NO. 1, LANE 89, LIEN-CHEN RD., CHUNG-HO CITY, TAIPEI HSIEN, TAIWAN, R.O.C. ‚ The test result refers exclusively to the test presented test model / sample. ‚ Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. ‚ Certificate or Test Report must not be used by the applicant to claim the product in this test report endorsement by NVLAP or any agency of U.S. government. SPORTON International Inc. 6F, No.106, Sec. 1, Hsin Tai Wu Rd., Hsi Chih, Taipei Hsien, Taiwan, R.O.C. FCC TEST REPORT Report No. : F341605 SPORTON International Inc. FCC ID. : RENFC-AL2011PW TEL : 886-2-2696-2468 Page No. : i FAX : 886-2-2696-2255 Issued Date : Jun. 24, 2003 Table of Contents History of this test report..................................................................................................................ii CERTIFICATE OF COMPLIANCE........................................................................................................................1 1. General Description of Equipment under Test.............................................................................................2 1.1. Applicant..........................................................................................................................................................................................2 1.2. Manufacturer ...................................................................................................................................................................................2 1.3. Basic Description of Equipment under Test ....................................................................................................................................2 1.4. Feature of Equipment under Test ...................................................................................................................................................3 2. Test Configuration of Equipment under Test ...............................................................................................4 2.1. Test Manner ....................................................................................................................................................................................4 2.2. Description of Test System .............................................................................................................................................................4 2.3. Connection Diagram of Test System ..............................................................................................................................................6 3. Test Software ...................................................................................................................................................7 4. General Information of Test............................................................................................................................8 4.1. Test Voltage ....................................................................................................................................................................................8 4.2. Standard for Methods of Measurement...........................................................................................................................................8 4.3. Test in Compliance with ..................................................................................................................................................................8 4.4. Frequency Range Investigated .......................................................................................................................................................8 4.5. Test Distance ..................................................................................................................................................................................8 5. Report of Measurements and Examinations ................................................................................................9 5.1. List of Measurements and Examinations ........................................................................................................................................9 5.2. 6dB Bandwidth ..............................................................................................................................................................................10 5.3. Peak Output Power .......................................................................................................................................................................13 5.4. Power Spectral Density .................................................................................................................................................................14 5.5. Test of Conducted Emission .........................................................................................................................................................17 5.6. Test of Radiated Emission ............................................................................................................................................................21 5.7. Band Edges Measurement............................................................................................................................................................33 5.8. Antenna Requirements .................................................................................................................................................................35 5.9. RF Exposure .....................................................…

Text truncated - open the document above for the full version.

FCC TEST REPORT Report No. : F341605 SPORTON International Inc. FCC ID : RENFC-AL2011PW TEL : 886-2-2696-2468 Page No. : 1 of 3 FAX : 886-2-2696-2255 Issued Date : Jun. 24, 2003 1.1. Photographs of Conducted Emission Test Configuration „ The photographs show the configuration that generates the maximum emission. FRONT VIEW REAR VIEW FCC TEST REPORT Report No. : F341605 SPORTON International Inc. FCC ID : RENFC-AL2011PW TEL : 886-2-2696-2468 Page No. : 2 of 3 FAX : 886-2-2696-2255 Issued Date : Jun. 24, 2003 SIDE VIEW FCC TEST REPORT Report No. : F341605 SPORTON International Inc. FCC ID : RENFC-AL2011PW TEL : 886-2-2696-2468 Page No. : 3 of 3 FAX : 886-2-2696-2255 Issued Date : Jun. 24, 2003 1.2. Photographs of Radiated Emission Test Configuration „ The photographs show the configuration that generates the maximum emission. FRONT VIEW REAR VIEW
