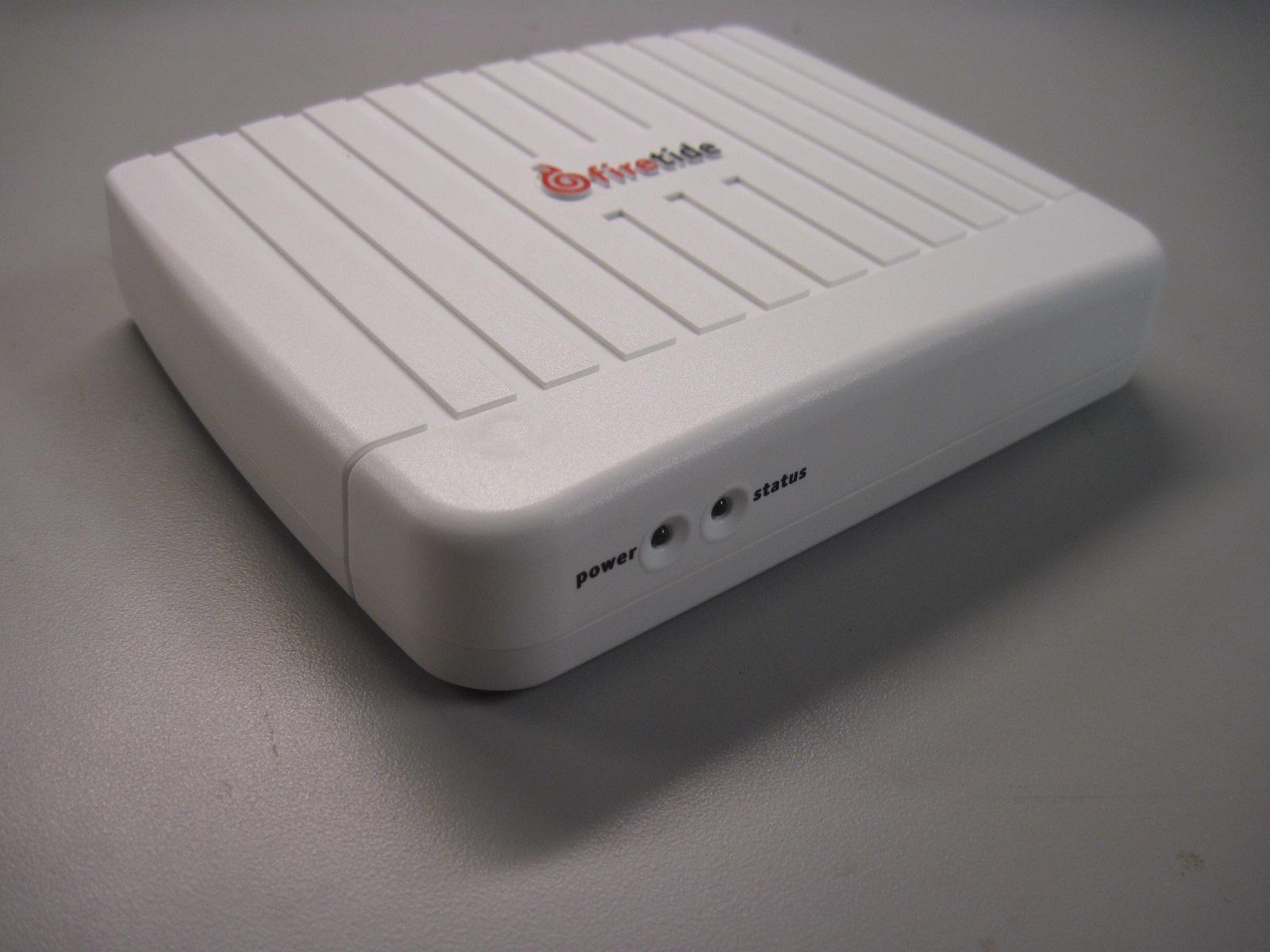

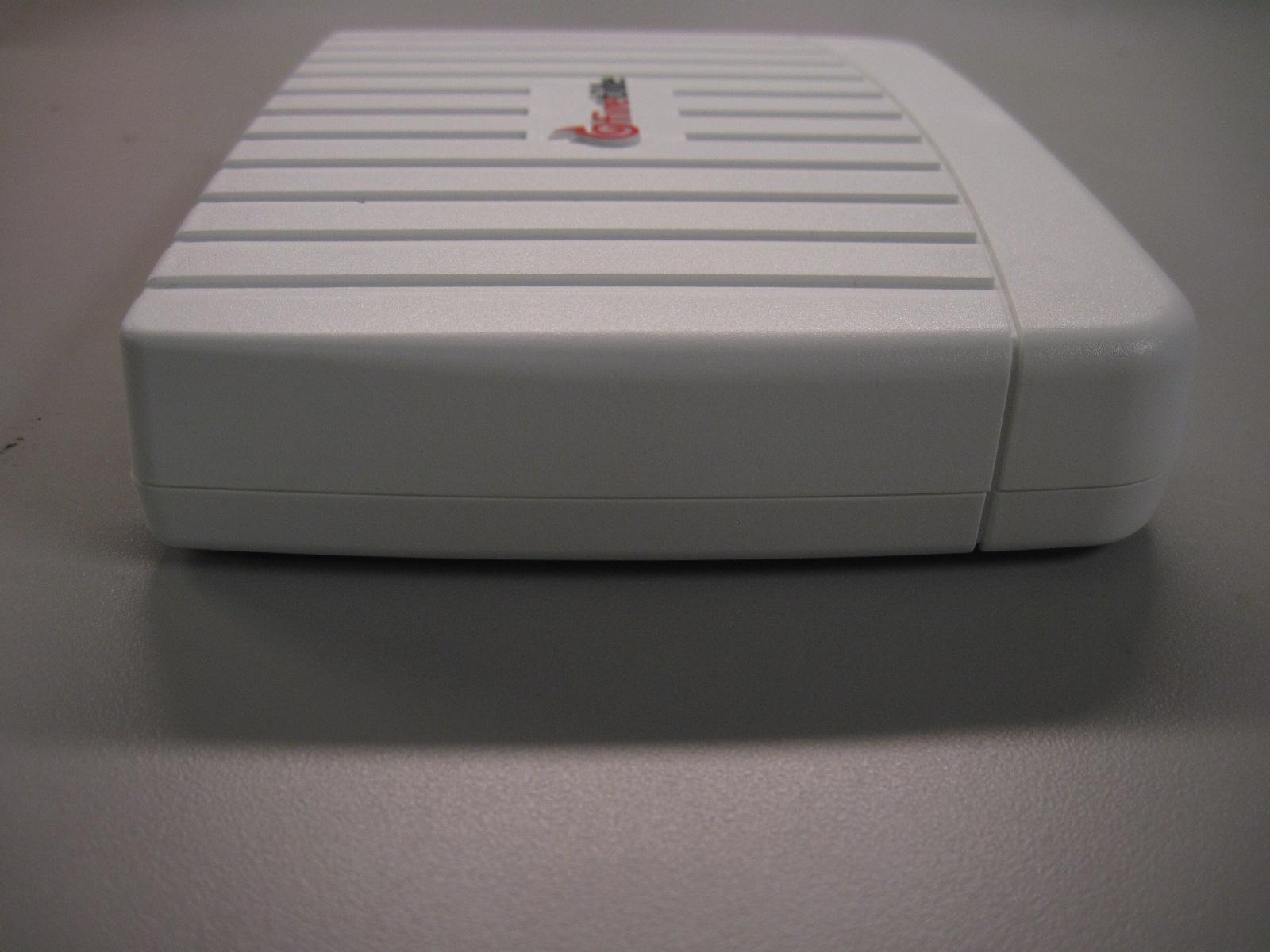

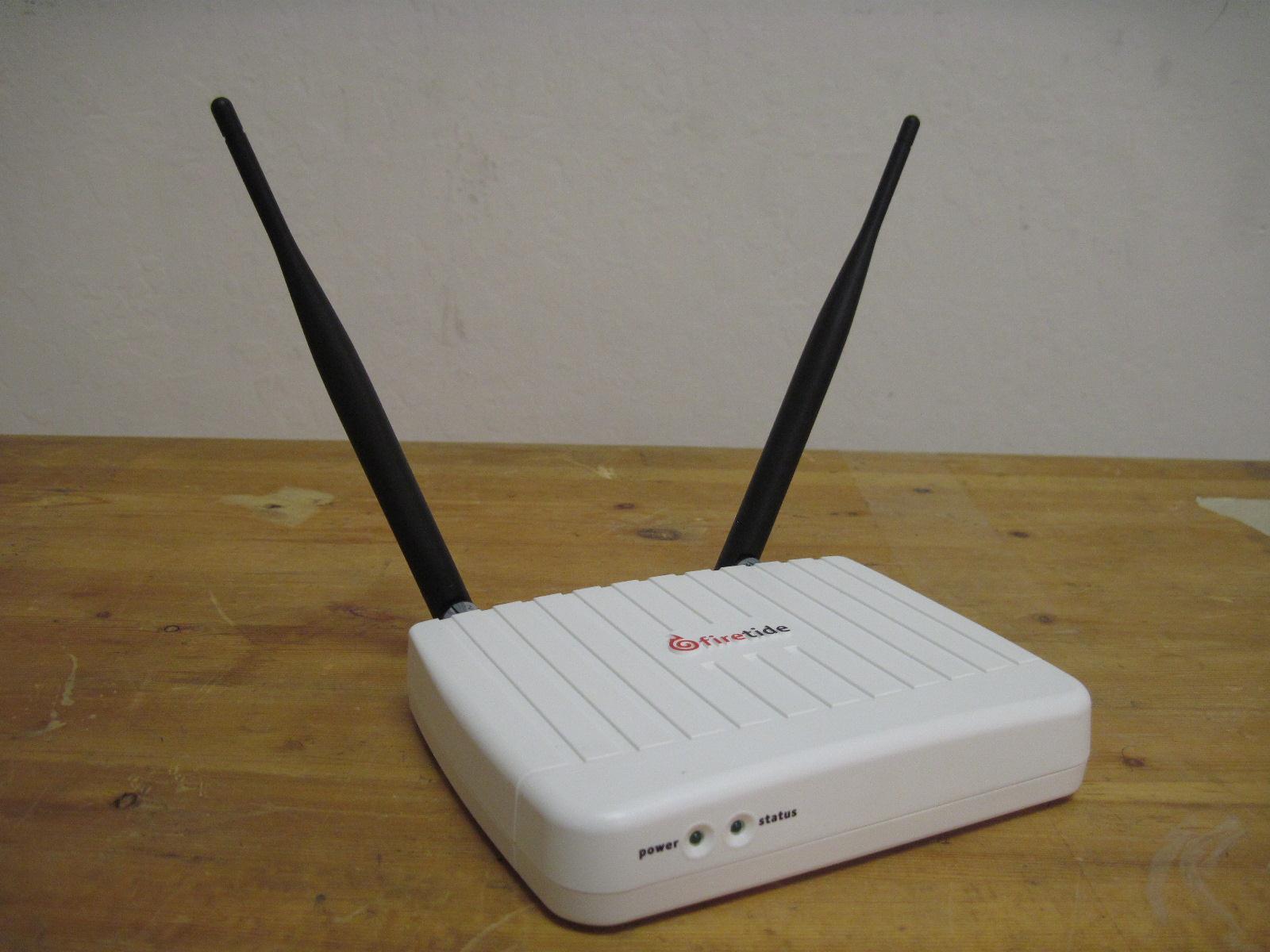

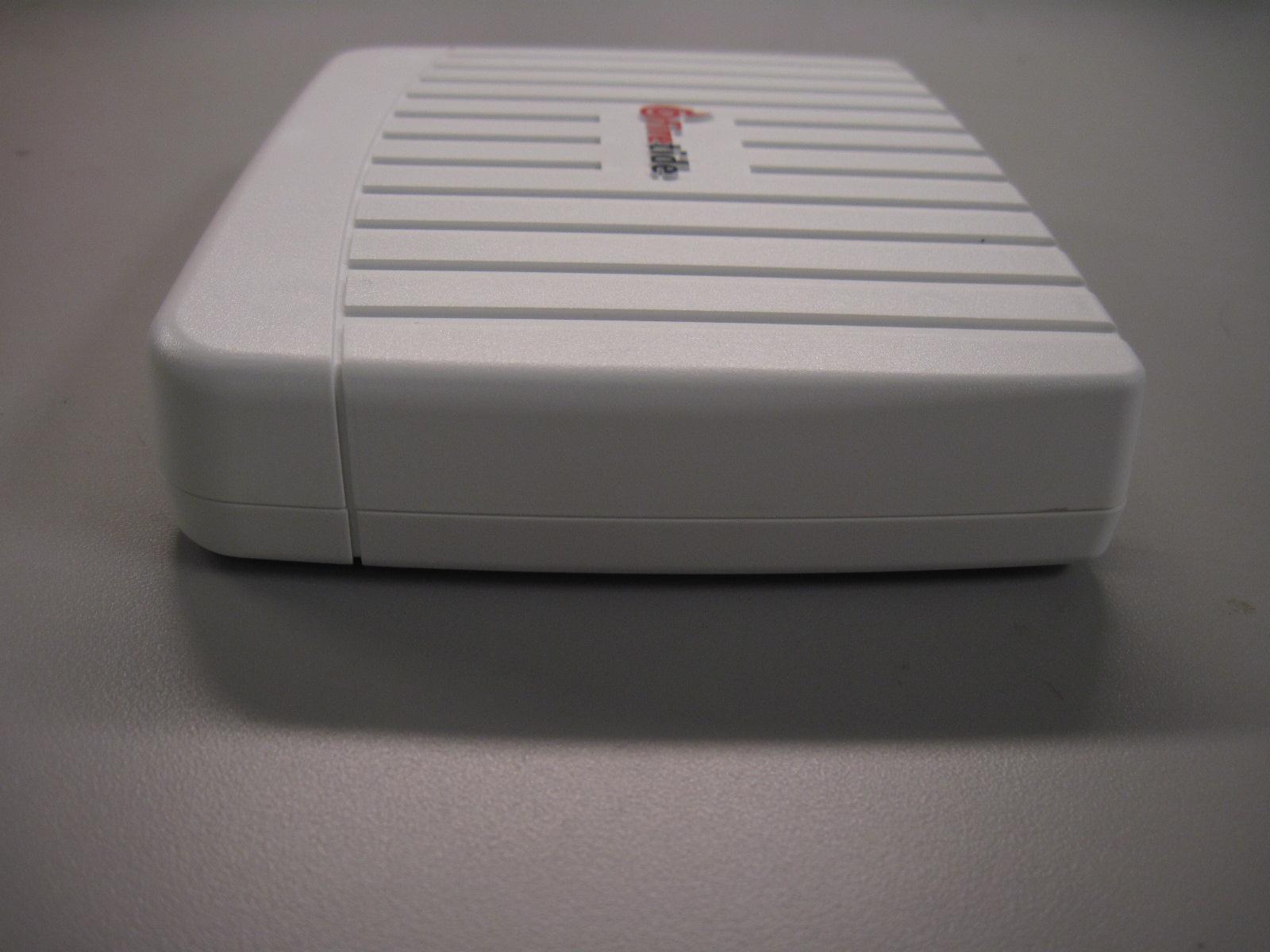

REP-4100-1Hotpoint 4100 Access Point

HotPoint Manual Revision 1.0 020809 The contents of this Installation Guide are subject to change without notice. Please refer to the Firetide partners web site, partners.firetide.com, for current versions. Installation & Setup Guide HotPoint 4000 Family Wireless Access Points HotPoint 4600 Outdoor Access Point HotPoint 4100 Indoor Access PointHotPoint 4500 Indoor Access Point HotPoint 4200 Outdoor Access Point 2 AP User Guide February 2009 This symbol alerts the user to the presence of non-insulated dangerous voltage that may be of sufficient magnitude to constitute a risk of lethal electric shock to persons. This symbol alerts the user to important operating, maintenance, and servicing instruc- tions. Failing to comply with instructions may result in electrical shock. This symbol alerts the user to the presence of important operating, maintenance, and servicing instructions. Failing to comply with this instruction may result in a hazard. Do not open the cover Dangerous voltages inside.• No serviceable parts inside.• Refer to qualified service personnel.• Unit has tamper-evident labeling that indicates when the cover has been removed.• Safety Instructions Outdoor HotPoint APs must be installed by a qualified professional. Failure to install this equipment prop- erly may result in equipment damage, personal injury, or death. Explanation of Graphic Symbols Caution! Risk of electric shock! POWER LINES CAN BE LETHAL Do not install Firetide products where possible contact with power lines can be made. Antennas, poles, towers, guy wires, or cables may lean or fall and contact these lines. People may be injured or killed if they are touching or holding any part of equipment when it contacts electric lines. Make sure there is NO possibility that equipment or personnel can come in contact directly or indirectly with power lines. ASSUME ALL OVERHEAD LINES ARE POWER LINES The horizontal distance from a tower, pole or antenna to the nearest power line should be at least twice the total length of the pole/antenna combination. This will ensure that the pole will not contact power if it falls either during or after installation. SURVEY THE SITE Look over the entire site before beginning any installation and anticipate possible hazards. Never assume anything without checking it out for yourself! Don’t take shortcuts! TO AVOID FALLING, USE SAFE PROCEDURES WHEN WORKING AT HEIGHTS ABOVE GROUND Select equipment locations that will allow safe and simple installation.• Don’t work alone. A friend or co-worker can save your life if an accident happens.• Don’t attempt repair work when you are tired. Not only will you be more careless, but your primary diagnostic tool - deduc-• tive reasoning - will not be operating at full capacity. Use approved non-conducting ladders, shoes, and other safety equipment. Make sure all equipment is in good repair.• If a tower or pole begins falling, don’t attempt to catch it. Stand back and let it fall. • If anything such as a wire or pole does come in contact with a power line, DON’T TOUCH IT OR ATTEMPT TO MOVE IT. In-• stead, save your life by calling the power company. Don’t attempt to erect antennas or towers on windy days.• MAKE SURE ALL TOWERS AND POLES ARE SECURELY GROUNDED, AND ELECTRICAL CABLES CONNECTED TO ANTENNAS HAVE • LIGHTNING ARRESTORS. This will help prevent fire damage or human injury in case of lightning, static build-up, or short circuit within equipment connected to the antenna. The HotPort outdoor node has built-in lightning protection. Be sure that any other equipment connected to the HotPort node also has the same level of protection. The base of the antenna pole or tower must be connected directly to the building protective ground or to one or more • approved grounding rods, using 10 AWG ground wire and corrosion-resistant connectors. Refer to the National Electrical Code for grounding details.• IF AN ACCIDENT SHOULD OCCUR WITH THE POWER LINES DON’T TOUCH THAT PERSON, OR YOU MAY BE ELECTROCUTED.• Use a non-conductive dry board, stick, or rope to push or drag them so they no longer are in contact with electrical • power. Once they are no longer contacting electrical power, administer CPR if you are certified.• Immediately have someone call for medical help.• Firetide - Reliable Connectivity Anywhere 3 February 2009 Firetide Limited End User Product Warranty Pursuant to all provisions described herein, Firetide hardware products and Firetide antennas are warranted for one (1) year from the date of purchase against defects in the build materials and workmanship. Firetide does not warrant that the Products will meet any requirements or specifications of any End User Customer. This warranty applies to the entire Firetide product, including the AC power adapter. Pursuant to all provisions described herein, Firetide software products are warranted for ninety (90) days from the date of purchase against defects in the build materials and workmanship. Firetide also warrants that the Software will materially conform to the documentation supplied by Firetide with the Software. In the event that the Software fails to materially conform to the documentation and an authorized Firetide reseller is notified in writing of such failure within the warranty period, Firetide or its reseller shall use commercially reasonable efforts to promptly correct the noncon- formity. Firetide does not warrant that the use of the Software will be uninterrupted or error free. The above warranties are void if the alleged defect cannot be verified by Firetide or if, as determined by Firetide, the product failure was due to tampering, abuse, misuse, accident, shipping, handling, or storage; or if the product has been installed, used, or maintained in a manner not described in the product user manual; or if the product has been altered in any way; or if product serialization has been altered. Any attempt to disassemble or repair the product by anyone other than Firetide immediately voids this w…

Text truncated - open the document above for the full version.

www.firetide.com 140 Knowles Drive, Los Gatos, CA 95032, Tel: 408-399-7771, Fax: 408-317-1777 Jan 3, 2010 MET Laboratories, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Confidentiality Request for the Firetide Hotpoint Model 4100, REP-4100-1 To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the schematics, bill of materials, and system block diagram required to be submitted with this application be permanently withheld from public review. Firetide considers the documents listed above as containing confidential, proprietary information which should not be disclosed to the public. Please contact me if there is any information you may need. Sincerely, Bharath Channakeshava Software Technical Manager Firetide Inc. 140 Knowles Drive Los Gatos, CA 95032

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions : (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. L'opération est soumise aux deux conditions suivantes : (1) Cet artifice peut ne pas provoquer l'interférence malfaisante et, (2) Cet artifice doit accepter n'importe quelle interférence reçue, en incluant l'interférence qui peut provoquer l'opération indésirable. 01-12-11

Firetide Model Hot Point 4100 Theory of Operation The 4100 Series HotPoint is comprised of two printed circuit assemblies; a Support Board and a Radio. The boards are connected together via a 2 x 10 pin connector and are mounted inside a cast aluminum enclosure. The HotPoint is powered by POE using an external AC/DC wall adapter (48V out, 0.35 A rating). The Support Board accepts the 48 VDC input through a RJ-45 connector. The Support Board converts the the 48 VDC into the supply voltages used by the the Radio Card (3.3 and 5.0 VDC) and internal circuitry (8.0 VDC). The support board also contains three LED’s that indicate in the unit is powered and two SW controlled LED’s that are used to display unit status and relative RSSI. The Radio Card runs from 3.3 and 5.0 volts, which is provided by the Support Board. The output TX stage of the radio is powered from +5.0 VDC and has a supply current of 350 mA. The 4100 series uses a Firetide proprietary radio card design, which incorporates an Atheros Communications chipset. The Radio operates from 2412 MHz to 2462 MHz, 4.9 GHz and 5.725-5.850 GHz, according to the IEEE 802.11a/b/g specification. The data rates supported are 1 Mbit (DBPSK), 2 Mbit (DQPSK), 5.5 Mbit (CCK), and 11 Mbit (CCK) for .11b and 6, 9, 12, 18, 24, 36, and 54 MBit OFDM for .11a/g. The HotPoint uses external 5/8 dBi Omni directional antenna in 2.4 GHz band and 5 Omni directional antenna in 4.9-5.8 GHz band. Only proprietary software written and distributed by Firetide Inc. can be installed on the HotPoint . “Source code” is controlled solely by Firetide Inc and is not distributed to end users.

Specification 1. Electrical Properties : 1.1 Frequency Range............ 1.2 Impedance .................. 1.3 VSWR ..................... ... 1.4 Return Loss.................. 1.5 Electrical Wave............... 1.6 Gain(peak)................... 5dBi 1.7 Admitted Power............ 2. Physical Properties : 2.1 Cable...........................RG-178 Coaxial Cable 2.2 Antenna Cover............ ...TPE 2.3 Antenna Base............... PC 2.4 Antenna Base............... PBT 2.5 Operating Temp. ......... ...-20 ~ +65 2.6 Storage Temp. ............ ...-30 ~ +75 2.7 Color ........................ .Black 2.8 Connector.................. ...SMA Plug Reverse RF Antenna Cable Assembly 1/2ȜDipole 1W 2.4GHz ~ 2.5GHz 50ȍ Nominal 1.92 Max. -10 dB Maximum 2 RF Antenna Assembly P/NO :C812-510010-A SPEC : 2.4GHz 6/24/2005 6/24/2005 0 345 330 315 300 285 270 255 240 225 210 195 180 165 150 135 120 105 90 75 60 45 30 15 -20-100 dB Far-field amplitude of 2.4GHz-5dBi-V5.nsi 2.400000 GHz2.450000 GHz2.500000 GHz C812-510010-A.nsi 6/24/2005 0 345 330 315 300 285 270 255 240 225 210 195 180 165 150 135 120 105 90 75 60 45 30 15 -20-100 dB Far-field amplitude of 2.4GHz,5dBi-H-5.nsi 2.400000 GHz2.450000 GHz2.500000 GHz C812-510010-A.nsi

Electromagnetic Compatibility Criteria for Intentional Radiators § 15.247(b) RF Exposure RF Exposure Requirements: §1.1307(b)(1) and §1.1307(b)(2): Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission’s guidelines. RF Radiation Exposure Limit: §1.1310: As specified in this section, the Maximum Permissible Exposure (MPE) Limit shall be used to evaluate the environmental impact of human exposure to radiofrequency (RF) radiation as specified in Sec. 1.1307(b), except in the case of portable devices which shall be evaluated according to the provisions of Sec. 2.1093 of this chapter. MPE Limit Calculation: EUT’s operating frequencies @ 2412-2462 MHz; highest conducted power = 26.5dBm (peak) therefore, Limit for Uncontrolled exposure: 1 mW/cm 2 or 10 W/m 2 EUT maximum antenna gain = 5 dBi (Omni Antenna) Equation from page 18 of OET 65, Edition 97-01 S = PG / 4R 2 or R = √PG / 4S where, S = Power Density (1 mW/cm 2 ) P = Power Input to antenna (446.7mW) G = Antenna Gain (3.16 numeric) S = (446.7*3.16/ 4*3.14*20 2 ) = (1411.5 / 5024) = 0.28 mW/cm 2 MPE Limit Calculation: EUT’s operating frequencies @ 2412-2462 MHz; highest conducted power = 26.5dBm (peak) therefore, Limit for Uncontrolled exposure: 1 mW/cm 2 or 10 W/m 2 EUT maximum antenna gain = 8 dBi (Panel Antenna) Equation from page 18 of OET 65, Edition 97-01 S = PG / 4R 2 or R = √PG / 4S where, S = Power Density (1 mW/cm 2 ) P = Power Input to antenna (446.7mW) G = Antenna Gain (3.16 numeric) S = (446.7*6.30/ 4*3.14*20 2 ) = (2818.383/ 5024) = 0.56 mW/cm 2 MPE Limit Calculation: EUT’s operating frequencies @ 5745-5825MHz; highest conducted power = 29.57dBm (peak) therefore, Limit for Uncontrolled exposure: 1 mW/cm 2 or 10 W/m 2 EUT maximum antenna gain = 5 dBi (Omni Antenna) where, S = Power Density (1 mW/cm 2 ) P = Power Input to antenna (905.7326mW) G = Antenna Gain (3.16 numeric) S = (905.7*3.16/ 4*3.14*20 2 ) = (2864.178 / 5024) = 0.57 mW/cm 2

e-mail: [email protected] • tel: 561-995-2256 • fax: 561-995-2432 2.4 GHz 8 dBi Wireless LAN Flat Patch Antenna Applications and Features Applications: • 2.4 GHz ISM Band • IEEE 802.11b and 802.11g Wireless LAN • Bluetooth® • Public Wireless Hotspot • WiFi Features: • Superior performance • Compact size, 4.5" Square • Durable UV-stable, UL flame rated radome • Low loss solid brass element • DC Short lightning protecting • 12 inch coax lead • Can be installed for either vertical or horizontal polarization • Optional mounting brackets available Model: HG2409P Description This very compact flat patch Wi-Fi antenna provides 8 dBi gain with very broad coverage. It is suitable for both indoor and outdoor applications in the 2.4GHz ISM band, including IEEE 802.11b and 802.11g, Bluetooth® and for public wireless hotspot applications. This WiFi antenna is lightweight and features an aesthetic UV-stable, UL flame rated white plastic radome which can also be painted to match the room or building structure. The HG2409P can be installed for horizontal or vertical polarization. It can be wall or ceiling mounted, as well as mast-mounted using U-bolts. web: www.hyperlinktech.com • 1201 Clint Moore Road • Boca Raton FL 33487 e-mail: sales@hyperli ktech.com • tel: 561-995-2256 • fax: 561-995-2432 web: www.hyperlinktech.com • 1201 Clint Moore Road • Boca Raton FL 33487 Specifications Electrical Specifications Frequency 2400-2500 MHz Gain 8 dBi Horizontal Beam Width 75 degrees Vertical Beam Width 65 degrees Impedance 50 Ohm VSWR < 1.5:1 avg. Lightning Protection DC Short Mechanical Specifications Weight 0.4 lbs. (.18 Kg) Dimensions 4.5 x 4.5 x .9 inches 114 x 114 x 23 mm Radome Material UV-inhibited Polymer Flame Rating UL 94HB Operating Temperature -40° C to to 85° C (-40° F to 185° F) Mounting Four ¼ in. (6.3 mm) Holes Polarization Horizontal or Vertical Wind Survival >150 MPH (241 KPH) Antenna Gain Patterns n e-mail: [email protected] • tel: 561-995-2256 • fax: 561-995-2432 Mounting Options Hyperlink's patch antennas offer several unique mounting options. They can be mounted flat against a wall, or to a mast using a pair of 2 inch U-bolts. The antennas also accept most tilt-and-swivel security camera brackets equipped with standard 1/4-20 threads. Description Part Number Small Metal Tilt-and-Swivel Mounting Bracket for indoor wall mounting. Includes wall-mounting hardware. HGX-PMT02 Medium Plastic Tilt-and-Swivel Mounting Bracket for indoor wall mounting. Includes wall-mounting hardware. HGX-PMT03 Large Metal Tilt-and-Swivel Mounting Bracket for indoor and outdoor wall or mast mounting. Includes wall-mounting hardware. Can be mast-mounted using U-Bolt Kit (sold separately). HGX-PMT04 Universal Antenna Mount powder coated galvanized steel “DSS-style” arm for outdoor wall mounting. Requires a pair of 2 inch U-bolts (sold separately). HGX-UMOUNT Stationary Mounting Kit for mounting to 1-1/4" to 2" dia. masts. Includes U- Bolts, nuts and mast clamp. HGX-PMT07 60 Degree Tilt-and-Swivel Mounting Kit for mounting to 1-1/4" to 2" dia. masts. Mounting hardware included. HGX-PMT06 Ceiling/Wall Universal Antenna Mount can be used with HyperLink's 4.5" sq and 8.5" sq. patch antennas as well as N-Type bulkhead and TNC/BNC bulkhead omni directional antennas. Includes ceiling/wall mounting hardware. HGX-UMOUNT02 Universal Corner Mounting Bracket: This bracket is designed to mount to an outside corner of a structure. It can be used with HyperLink's 4.5" and 8.5" sq. patch antennas, radome enclosed Yagi antennas, the HGX-PMT02 tilt & swivel bracket and can also accommodate the SC2402N and SC5802N 2- Way signal splitters as well as HyperAmp outdoor amplifiers. HGX-UMOUNT03 Window Mounting Kit Includes suction cups and mounting hardware. HGX-PMT08 web: www.hyperlinktech.com • 1201 Clint Moore Road • Boca Raton FL 33487

MET Laboratories, Inc. Safety Certification - EMI - Telecom Environmental Simulation 914 WEST PATAPSCO AVENUE ! BALTIMORE, MARYLAND 21230-3432 ! PHONE (410) 354-3300 ! FAX (410) 354-3313 33439 WESTERN AVENUE ● UNION CITY, CALIFORNIA 94587 ● PHONE (510) 489-6300 ● FAX (510) 489-6372 3162 BELICK STREET ● SANTA CLARA, CALIFORNIA 95054 ● PHONE (408 748-3585 ● FAX (510) 489-6372 The Nation’s First Licensed Nationally Recognized Testing Laboratory February 8, 2011 Firetide 140 Knowles Drive Los Gatos, CA 95032 Dear Bharath Channakeshava, Enclosed is the EMC Wireless test report for compliance testing of the Firetide, HotPoint 4100 and FWB-102 as tested to the requirements of Title 47 of the CFR, Ch. 1 (10-1-06 ed.), Part 15, Subpart B, ICES-003, Issue 4 February 2004 for a Class B Digital Device and FCC Part 15 Subpart C, RSS-210, Issue 7, June 2007 for Intentional Radiators. Thank you for using the services of MET Laboratories, Inc. If you have any questions regarding these results or if MET can be of further service to you, please feel free to contact me. Sincerely yours, MET LABORATORIES, INC. Jennifer Warnell Documentation Department Reference: (\Firetide\EMCS81960A-FCC247 Rev. 1) Certificates and reports shall not be reproduced except in full, without the written permission of MET Laboratories, Inc. Electromagnetic Compatibility Firetide Cover Page HotPoint 4100 and FWB-102 CFR Title 47, Part 15B, 15.247; RSS-210, Issue 7, June 2007 & ICES-003 MET Report: EMCS81960A-FCC247 © 2011, MET Laboratories, Inc. Page i of viii DOC-EMC702 6/18/2009 Electromagnetic Compatibility Criteria Test Report for the Firetide HotPoint 4100 and FWB-102 Tested under the FCC Certification Rules contained in Title 47 of the CFR, Parts 15 Subpart B & ICES-003 for Class B Digital Devices & 15.247 Subpart C & RSS-210, Issue 7, June 2007 for Intentional Radiators MET Report: EMCS81960A-FCC247 Rev. 1 February 8, 2011 Prepared For: Firetide 140 Knowles Drive Los Gatos, CA 95032 Prepared By: MET Laboratories, Inc. 3162 Belick St. Santa Clara, CA 95054 Electromagnetic Compatibility Firetide Cover Page HotPoint 4100 and FWB-102 CFR Title 47, Part 15B, 15.247; RSS-210, Issue 7, June 2007 & ICES-003 MET Report: EMCS81960A-FCC247 © 2011, MET Laboratories, Inc. Page ii of viii DOC-EMC702 6/18/2009 Electromagnetic Compatibility Criteria Test Report for the Firetide HotPoint 4100 and FWB-102 Tested under the FCC Certification Rules contained in Title 47 of the CFR, Parts 15 Subpart B & ICES-003 for Class B Digital Devices & 15.247 Subpart C & RSS-210, Issue 7, June 2007 for Intentional Radiators Minh Ly, Project Engineer Jennifer Warnell Electromagnetic Compatibility Lab Documentation Department Engineering Statement: The measurements shown in this report were made in accordance with the procedures indicated, and the emissions from this equipment were found to be within the limits applicable. I assume full responsibility for the accuracy and completeness of these measurements, and for the qualifications of all persons taking them. It is further stated that upon the basis of the measurements made, the equipment tested is capable of operation in accordance with the requirements of the FCC Rules Parts 15B, 15.247 and Industry Canada standards ICES-003, Issue 4 February 2004, RSS-210, Issue 7, June 2007 under normal use and maintenance. Shawn McMillen, Wireless Manager, Electromagnetic Compatibility Lab Electromagnetic Compatibility Firetide Report Status HotPoint 4100 and FWB-102 CFR Title 47, Part 15B, 15.247; RSS-210, Issue 7, June 2007 & ICES-003 MET Report: EMCS81960A-FCC247 © 2011, MET Laboratories, Inc. Page iii of viii DOC-EMC702 6/18/2009 Report Status Sheet Revision Report Date Reason for Revision  February 17, 2010 Initial Issue. 1 February 8, 2011 Revised to reflect engineer corrections and add additional model number. Electromagnetic Compatibility Firetide Table of Contents HotPoint 4100 and FWB-102 CFR Title 47, Part 15B, 15.247; RSS-210, Issue 7, June 2007 & ICES-003 MET Report: EMCS81960A-FCC247 © 2011, MET Laboratories, Inc. Page iv of viii DOC-EMC702 6/18/2009 Table of Contents I. Executive Summary ................................................................................................................................................. 1 A. Purpose of Test ................................................................................................................................................... 2 B. Executive Summary ............................................................................................................................................ 2 II. Equipment Configuration ....................................................................................................................................... 3 A. Overview ............................................................................................................................................................. 4 B. References ........................................................................................................................................................... 5 C. Test Site .............................................................................................................................................................. 5 D. Description of Test Sample ................................................................................................................................. 5 E. Equipment Configuration .................................................................................................................................... 7 F. Support Equipment ............................................................................................................................................. 7 G. Ports and Cabling Information ............................................................................................................................ 7 H. Mode of Operation ...............…

Text truncated - open the document above for the full version.

Photograph 1. Conducted Emissions, Test Setup Photograph 2. Radiated Emission, Test Setup 30MHz – 1GHz Photograph 3. Test Equipment and setup for various Radiated Measurements Photograph 4. Test Equipment and setup for various Radiated Measurements (Panel Antenna)
