RF3ET300ATwo Way Car Alarm System

.. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Caution : Any changes or modifications in construction of this device which are not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. 2 WAY REMOTE STARTER & ALARM SYSTEM MODEL: ECHO User’s Manual ECHO Rev A INSTALLATION MANUAL I 2 INNOSYS ECHO Rev A INSTALLATION MANUAL I 3 INNOSYS Table of Contents SECTION 1: SYSTEM CONNECTION.........................................................................4 1.1 ANTENNA CONNECTION.......................................................................................................4 1.2 MOUNTING THE CONTROL MODULE.........................................................................................4 1.3 POWER AND GROUND CONNECTION.........................................................................................4 1.4 REPROGRAM FACTORY CODE..................................................................................................4 SECTION 2: SYSTEM MODE & OPERATION................................................................................5 2.1 SYSTEM MODE....................................................................................................................5 2.2 REMOTE LCD SCREEN............................................................................................................5 SECTION 3: SYSTEM OPERATION (BASIC FUNCTION)................................................................6 3.1 REMOTE SYSTEM ARM (ON)......................................................................................................6 3.2 REMOTE SYSTEM DISARM (OFF).................................................................................................6 3.3 TRUNK RELEASE (OPTION)......................................................................................................6 3.4 PERSONAL PROTECTION ALARM (EMERGENCY PANIC).................................................................7 3.5 REMOTE ENGINE START...........................................................................................................7 3.6 REMOTE ENGINE STOP............................................................................................................7 SECTION 4: SYSTEM OPERATION (ENHANCED FUNCTION).........................................................7 4.1 ONE TIME SOFT CHIRP............................................................................................................7 4.2 EMERGENCY DISARM WITH A KEY (IF YOU LOST A REMOTE AND CAN NOT SHUT OFF THE ALARM SYSTEM)..............7 4.3 3RD CHANNEL CONTROL (OPTIONAL)..........................................................................................8 4.4 TURBO COOL DOWN MODE (IF REMOTE START IS INSTALLED.)..............................................................8 4.5 REMOTE START RESERVATION...................................................................................................8 4.6 STATUS CHECK....................................................................................................................8 SECTION 5: USER PROGRAMMABLE FEATURES........................................................................9 5.1 PERMANENT SIREN CHIRP ENABLE/DISABLE (FACTORY DEFAULT SETTING: SIREN CHIRP ENABLE).....................9 5.2 PASSIVE/ACTIVE MODE (FACTORY DEFAULT SETTING: ACTIVE MODE)....................................................9 5.3 DRIVE LOCK MODE (FACTORY DEFAULT SETTING: DRIVE LOCK MODE OFF).............................................9 5.4 SHOCK SENSOR ADJUSTMENT....................................................................................................9 SECTION 6: DEALER PROGRAMMABLE FEATURES..................................................................10 SECTION 7: RESET DEALER PROGRAMMABLE FEATURES TO FACTORY DEFAULT SETTING:.........12 SECTION 9: THE TRANSMITTER BATTERY REPLACEMENT INSTURCTIONS..............................12 SECTION 10: WIRING DIAGRAM.............................................................................................14 ECHO Rev A INSTALLATION MANUAL I 4 INNOSYS SECTION 1: SYSTEM CONNECTION IMPORTANT NOTE BEFORE YOU BEGIN • Read through the manual completely BEFORE beginning the installation procedure. • Remove the courtesy light fuse to avoid running down the battery during installation. • Roll down the driver's side window to avoid locking the ignition keys in the vehicle. • Use fender aprons and seat covers to protect the vehicle during installation. • Verify the system contents 1.1 Antenna Connection 1. Mount the Antenna at the front windshield. 2. Antenna should not obstruct the driving view. Since the tinted portion of the glass can affect the range, do not place antenna on a tinted portion of the glass for maximum operating range. 3. Plug the antenna into the white 7-pin antenna connector. The operating range of the alarm is approximately 2000 feet. (Maximum 3000 feet) However, the operating range can change depending upon the vehicle, placement of the antenna, transmitter battery condition, and environmental condition. 1.2 Mounting the Control Module 1. The control module must be attached to an under dash surface that is flexible, such as a thick wire loom. Allow access to the sensitivity adjustment knobs for the internal dual stage shock sensor. It is important that the module has some freedom of movement. Unit should not bind. 2. Mount the control module using tie wrap. 1.3 Power and Ground Connection 1. Remove the fuses, and connect Red wires to constant source of +12VDC. 2. Choose a good chassis ground location. Connect Black wire to constant ground. 3. Upon verification of all other connections, plug in fuses. 1.4 Reprogram Factory…

Text truncated - open the document above for the full version.

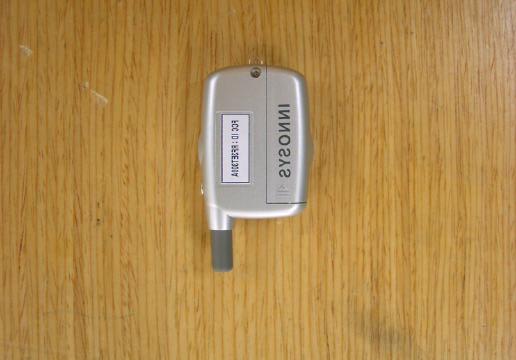

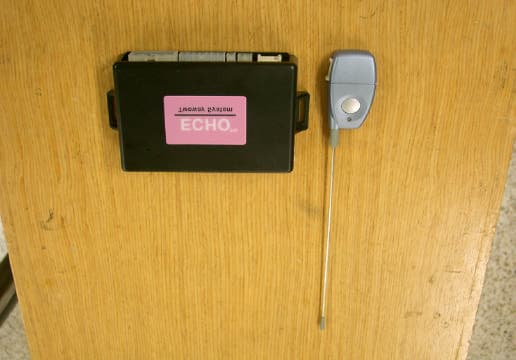

External Photos

Internal Photos

Circuit description of ET300A – RF Remote Unit 1). RF Board When the voltage of TX-B+ terminal which is connected to the MCU control board is applied to high, the transmitter is activated and the RF signal is radiated through Antenna. The Encoded Data from MCU control board is applied to the stage of FM MOD OSC (Q10,L17,C49,L18,C51,L19,C53,D3), and Modulated to FSK signal which frequency is 49.7444 MHz, and converted to the triple frequency of 149.233 MHz. The signal is fed to the LC tuning circuit (L16,C46) and filtered the unwanted signals, and fed to the Tripler Amp Stage (Q9,L15,C43). The final frequency is converted to 447.700 MHz and also tuned through the LC tuning circuit (L14,C41) and fed to the final Power Amplifier Stage (Q8,L13,CT3). The signal is filtered and matched there Impedance by the Antenna Matching circuit (L1,C1,L2,C38) and radiated from the Antenna. When the voltage of Battery-save terminal is applied to high, the receiver circuit is activated. The FSK modulated RF signal induced from the antenna and amplified by the receiver RF amplifier stage (Q1,Q2), also this signal is mixed by the 1 st Mixer amplifier stage (Q3), and converted the 1 st LO frequency to the 1 st IF frequency (21.4MHz). The 1 st LO stage is consisted of the 2-stage, the X-tal OSC/Tripler stage (Q7,L10,C34,L11,C35) is directly oscillated the frequency of 47.3666 MHz, and tripled to the frequency of 142.099 MHz. The signal is tuned by the LC tuning circuit (L9,C31), and fed to the triple amplifier stage (Q6,L8,C29). The 1 st LO frequency is 426.300 MHz. The 1 st IF signal from the 1 st Mixer stage is compensated the loss of the IF filter by the compensated amplifier stage (Q4), is fed to the FM IF IC (U1). This signal is mixed with the 2 nd LO frequency (20.945 MHz) and converted to the 2 nd IF frequency of 455 KHz. The signal is filtered by the Ceramic BPF (FL2), and amplified by the internal Limiter/amplifier stage of the FM IF IC, and demodulated the AF signal by the Discriminator (DS1). The signal is wave-shaped through the LPF stage (R10,R11,R12,C17,C18,C19) and fed to the internal Data Amp stage and converted to the digital data. The Data is fed to the MCU control board through the RX-Data terminal. 2). Control/Display Board When the voltage is supplied from the Battery (1.5V), the voltage is converted to 3V by the DC/DC converter stage (L1,D1,U1) and applied to the MCU (U3) stage. Simultaneously, test mode of the LCD is processed, the receiver and transmitter is turned to standby the mode. In order to reducing the operating times, we adopted to the Key Touch Wake-up function and the Watch-dog Sleep functions. When you pressed any button, the MCU wake up the Sleep mode, the operating will be started, and performed the functions of operating according to the button, and displayed the icon to the LCD panel, When the button is depressed, the mode is directly turned to the receiver mode and waited the data signal during any times, When the data is received well, then analyzed the status code and displayed to the LCD panel, and beeped to the Buzzer according to the status. The LCD is display the various icon and the status of remote conditions.

KTL Korea Testing Laboratory Page 1 of 11 TEST REPORT This test report only responds to the tested sample and shall not be reproduced except in full without written approval of the Korea Testing Laboratory. Tested and reported by Reviewed by Jeong-Min Kim, Senior Engineer Hee-Soo Kim , Telecommunication Team Manager Ref. Report No. 03-341-032-1 Name and address of the applicant INNOSYS Co., Ltd. 2FL, WonKwang B/D, 742-12, KwangMyung shi, Geonggi-do, 423-016, Korea Standard / Test regulation FCC Part 15, Subpart C Test result Pass Incoming date : September 28, 2003 Test item(s) ; Remote Control/ Security Device Transceiver (Two Way Car Alarm System) Model/type ref. ; ET300A Manufacturer ; INNOSYS Co., Ltd. Additional information ; -Required Authorization : Certification -FCC ID. : RF3ET300A -Note : Test report(Verification) of Receiver portion of this unit is issued on Ref. Report No. 03-341-032-02. Test date : October 8, 2003 Issue date : October 9, 2003 KOREA TESTING LABORATORY FG101-01-02-00 222-13, Guro-Dong Guro-Gu Seoul Korea 152-053 http://www.ktl.re.kr Ref. Report No. 03 - 341 – 032-1 Page 3 of 14 Korea Testing Laboratory Telecommunication Team 222-13, Guro3-dong, Guro-gu, Seoul Korea 152-848 TABLE OF CONTENTS I. GENERAL INFORMATION 3 1. Grantee’s Name and Mailing Address 2. Manufacturer's Name and Mailing Address 3. Equipment Descriptions 4. Rules and Regulations 5. Measuring Procedure 6. Place of Measurement 7. Date of Measurement ?. GENERAL REQUIREMENTS OF THE EUT 4 1. Labeling Requirement (Section 15.19) 2. Information to User (Sections 15.21) 3. Special Accessories (Section 15.27) 4. Compliant Conditions (Section 15.231) ?. RADIATED EMISSION MEASUREMENT (Section 15.231) 6 1. Test Procedure 2. Photograph of the test configuration 3. Sample Calculation 4. Measurement Data ?. OCCUPIED BANDWIDTH MEASUREMENT (Section 15.231) 13 ?. TEST EQUIPMENTS USED FOR MEASUREMENT 14 Ref. Report No. 03 - 341 – 032-1 Page 4 of 14 Korea Testing Laboratory Telecommunication Team 222-13, Guro3-dong, Guro-gu, Seoul Korea 152-848 ?. GENERAL INFORMATION 1. Grantee’s Name and : INNOSYS Co., Ltd. Mailing Address 2FL WonKwang B/D, 742-12, KwangMyung-shi, Geonggi-do, 423-016, Korea 2. Manufacturer's Name and : INNOSYS Co., Ltd. Mailing Address 2FL WonKwang B/D, 742-12, KwangMyung-shi, Geonggi-do, 423-016, Korea 3. Equipment Descriptions 3.1 Operating Frequency : 447.7 MHz 3.2 Type of Emission : Pulse Code Signal 3.3 Power Supply : DC 1.5 V (Battery) 4. Rules and Regulations : FCC Part 15, Subpart C 5. Measuring Procedure : ANSI C63.4-2001 6. Place of Measurement : Absorber-lined Room (KTL) 7. Date of Measurement 7.1 Conducted Emission : Not Applicable 7.2 Radiated Emission : October 8, 2003 Ref. Report No. 03 - 341 – 032-1 Page 5 of 14 Korea Testing Laboratory Telecommunication Team 222-13, Guro3-dong, Guro-gu, Seoul Korea 152-848 ?. GENERAL REQUIREMENTS OF THE EUT 1. Labeling Requirement (Section 15.19) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interface, and (2) this device must accept any interference received, including interference that may cause undesired operation. 1.1 Location of Label : User’s Guide Manual 1.2 How Applied : Printed 2. Information to User (Section 15.21) The following or similar statements were provided in the manual for user instruction. Please refer page 1 of the attached manual for details. CAUTION : Any changes or modifications in construction of this device which are not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. 3. Special Accessories (Section 15.27) 3.1 Were the special Accessories provided? [ ] yes, [ x ] no 3.2 If yes, details for the special accessories are as follows : 3.3 If yes, were the appropriate instructions provided on the first page of the text concerned with the installation of the device? [ ] yes, [ ] no 3.4 Are these accessories provided of the type which can be readily obtained from multiple retail outlets ? [ ] yes, [ ] no And therefore does the manual specify what additional components or accessories are required to used in order to comply with the Rules? [ ] yes, [ ] no Ref. Report No. 03 - 341 – 032-1 Page 6 of 14 Korea Testing Laboratory Telecommunication Team 222-13, Guro3-dong, Guro-gu, Seoul Korea 152-848 4. Compliant Conditions (Section 15.231) 4.1 Was the EUT used for continuous transmissions, such as voice or video, and data transmission ? [ ] yes, [ x ] no 4.2 Was the EUT manually operated ? [ x ] yes, [ ] no If yes, did the EUT employ a switch that would automatically deactivate the transmitter within not more than 5 seconds of being released ? [ x ] yes, [ ] no 4.3 Was the EUT automatically activated ? [ ] yes, [ x ] no If yes, did the EUT cease transmission within 5 seconds after deactivation ? [ ] yes, [ ] no 4.4 Was the EUT used for periodic transmissions at regular predetermined intervals ? [ ] yes, [ x ] no Ref. Report No. 03 - 341 – 032-1 Page 7 of 14 Korea Testing Laboratory Telecommunication Team 222-13, Guro3-dong, Guro-gu, Seoul Korea 152-848 ?. RADIATED EMISSION MEASUREMENT (Section 15.231) 1. Test Procedure 1.1 Preliminary Testing for Reference Preliminary testing was performed in a KTL absorber-lined room to determine the emission characteristics of the EUT. The EUT was placed on the wooden table which has dimensions of 0.8 meters in height, 1 meter in length and 1.5 meters in width. Receiving antenna (Biconi-Log antenna : 26 to 2000 MHz or Horn Antenna : 1 to 18 GHz) was placed at the distance of 1 meter from the EUT. An attempt was made to maximize the emission level with the various configurations of the EUT. Emission levels from the EUT with various configurations were examined on a spectrum analyzer connected with a RF amplifier and graphed by a plotter. 1.2 Final Radiated Emission Test at an Absorber-Lined Room The final measurement of radiated field st…

Text truncated - open the document above for the full version.

Ref. Report No. 03 - 341 – 032-1 Page 8 of 14 Korea Testing Laboratory Telecommunication Team 222-13, Guro3-dong, Guro-gu, Seoul Korea 152-848 2. Photograph of the test configuration 3. Sample Calculation The measured field strength was determined by averaging one complete pulse train including blanking interval because the pulse repetition time of the EUT(=94.0ms) does not exceeds 0.1 seconds (15.35(c)). See graphs of page 12 . With the resolution bandwidth set at 3 kHz, the EUT produces a pulse spectrum on the spectrum analyzer because the bandwidth of the analyzer is greater than or equal to the PRF (=454.5 Hz ). Therefore, as mentioned in HP Application Note 150-2 (page 11), the pulse desensitization(a p ) equals zero and the display amplitude is essentially a peak level. .
