RFG410FMPotable Low Power FM Transmitter (410FM)

Cut line Do Not Prin t! 1) Choose your method of powering your Bea mitô (a. AAA Batteries or b.12V DC Auto Adapter) a. Remove the battery cover from the back of the unit by gently pressing down the tab and pulling out. Install 2 ìAAAî batteries with the positive end facing down. Replace the battery cover. b. Insert the small connector of the 12V DC Auto Adapter into the Bea mitô's 3V DC jack, located at the bottom of the unit, and plug the adapter into the cigarette lighter jack of your car. 2) Plug the 3.5mm stereo cable into the lineout jack or the headphone jack of the audio source you wish to transmit. * 3) Select the FM frequency that you wish to transmit to with the selector on the side of the Bea mitô(88.1, 88.3, 88.5, 88.7, 88.9, 107.1, 107.3, 107.5, 107.7 or 107.9 MHz) NO T E : for bes t res ults , s elect a frequency tha t ha s the wea k es t or no s igna l from a ra dio s ta tion. 4) Press the Power button on the front of the unit (LED will be lit up when powered properly) 5) Tune your FM stereo to the same frequency as selected in step #4. 6) Adjust the volume on your audio player and stereo for maximum enjoyment. * Some audio device's output level is either too high or too low at the lineout jack. If it is too high, the sound might be distorted. If it is too low, the sound might be too noisy. If this happens, connect the transmitterís plug to the headphone jack and adjust the volume level on your audio device. B ea mitô E a s y S etup Ins tructions Frequently A s ked Q ues tions about the irock! Æ 410FM B eamitô Q: What is the B eamitô? A: The B eamitô is a wireless music adapter that connects to any audio source and broadcasts that audio to any radio or stereo within 10-30 feet. Q: How can I achieve maximum performance and sound quality from my B eamitô? A: 1) Maintain fresh batteries. (Batteries are not required if you are using the B eamitô with the 12V DC auto adapter.) 2) Turn the B eamitô off when not in use. 3) Keep the B eamitô within 10 feet of the radio that it is transmitting to. 4) Keep the cord that connects the B eamitô to the audio player straight, positioning the player as far from the B eamitô as possible. 5) Before using the B eamitô, listen to 88.1, 88.3, 88.5, 88.7, 88.9, 107.1, 107.3, 107.5, 107.7 or 107.9 MHz FM on your radio and select the frequency with the weakest radio station. Q: Should I connect my Bea mitô to the Audio Line Output or Headphone Output of my player? A: For best results, connect the Bea mitô to Headphone Output and adjust the volume levels on your source and stereo for maximum enjoyment. Q: When I press the power button the LED blinks on and off, yet nothing works, how do I fix this? A: The flickering on and off or dimming of the LED is a low battery indication. Replace both ìAAAî batteries, or use the 12VDC Auto Adapter, and continue normal use. Modulation: FM Stereo Modulation Frequencies: 88.1~88.9, 107.1~107.9 MHz Audio Input Connector: 1/8-inch (3.5mm) Stereo Plug Power Requirement: 2 ìAAAî Alkaline Batteries or 12V DC Auto Adapter Battery Life: >13 hours typical Size: 2.0î x 3.0î x 1.0î Signal Distortion: Less than .5% Frequency Response: 50 Hz to 15 kHz Operating Range: 10-30 feet {Depending on the quality of the FM radio receiver (limited by FCC regulations)} FCC Information:This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, S pecifica tions including interference that may cause undesired operation. In order to maintain compliance with FCC regulations shielded cables must be used with this equipment. Operation with non-approved equipment or unshielded cables is likely to result in interference to radio & television reception. C A U T IO N : Changes or modifications not expressly approved by First International Digital may void the userís authority to operate this equipment. N O T E : This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and the receiver. - Consult the dealer or an experienced radio/TV technician for help. 4

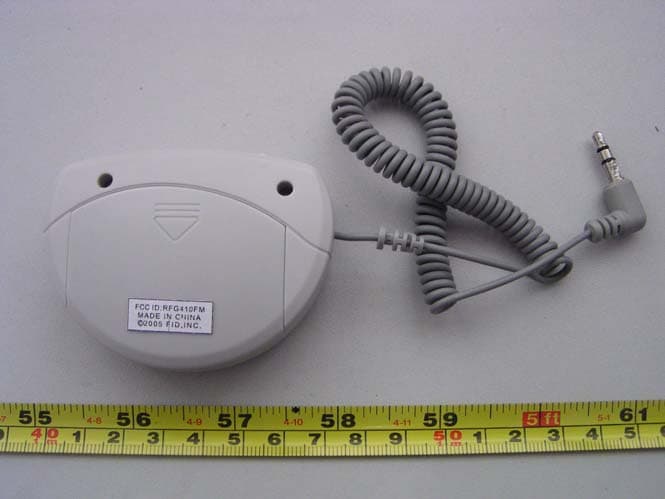

External Photos

ID Label Label FCC ID: RFG410FM

ID Label/Location Label Location Information Specifications: Text is Black or white in color and is left justified. Labels are printed in indelible ink on permanent adhesive backing or silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Refer to the below arrow.

Internal Photos

Note: The test report is specially limited to the above company and the product model only. It may not be duplicated without prior written consent of Bay Area Compliance Laboratory Corporation. This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST or any agency of the US Government. FCC PART 15.239 EMI MEASUREMENT AND TEST REPORT For First International Digital , Inc. 135 W. Central Rd , Schaumburg IL, USA FCC ID: RFG410FM January 20, 2005 This Report Concerns: Original Report Equipment Type: Portable low power FM Transmitter (410FM) Test Engineer: Jandy Su Report No.: RSZ05011201 Test Date: January 18, 2005 Reviewed By: Chris Zeng Prepared By: Bay Area Compliance Lab Corp. (ShenZhen) 6/F, the 3nd Phase of WanLi Industrial Building, ShiHua Road, FuTian Free Trade Zone, ShenZhen, Guangdong 518038, P.R.China Tel: +86-755-33320018 Fax: +86-755-33320008 First International Digital , Inc. FCC ID: RFG410FM Report # RSZ05011201.doc Page 2 of 12 FCC Part 15.239 Test Report TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................................................3 OBJECTIVE...................................................................................................................................................................3 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................3 TEST METHODOLOGY..................................................................................................................................................3 TEST FACILITY.............................................................................................................................................................3 LOCAL SUPPORT EQUIPMENT LIST AND DETAILS........................................................................................................4 EXTERNAL I/O CABLE.................................................................................................................................................4 SYSTEM TEST CONFIGURATION ..........................................................................................................................5 DESCRIPTION OF TEST CONFIGURATION......................................................................................................................5 EQUIPMENT MODIFICATIONS.......................................................................................................................................5 CONFIGURATION OF TEST SYSTEM..............................................................................................................................5 TEST SETUP BLOCK DIAGRAM.....................................................................................................................................5 SUMMARY OF TEST RESULTS ...............................................................................................................................6 §15.209/§15.35/§15.239- RADIATED EMISSION......................................................................................................7 STANDARD APPLICABLE..............................................................................................................................................7 MEASUREMENT UNCERTAINTY....................................................................................................................................7 EUT SETUP..................................................................................................................................................................7 SPECTRUM ANALYZER SETUP......................................................................................................................................8 TEST EQUIPMENT LIST AND DETAILS...........................................................................................................................8 CORRECTED AMPLITUDE & MARGIN CALCULATION...................................................................................................8 TEST DATA..................................................................................................................................................................9 §15.239 –FREQUENCY RANGE...............................................................................................................................11 MEASUREMENT UNCERTAINTY..................................................................................................................................11 TEST PROCEDURE......................................................................................................................................................11 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................11 PLOT(S) OF TEST DATA..............................................................................................................................................11 First International Digital , Inc. FCC ID: RFG410FM Report # RSZ05011201.doc Page 3 of 12 FCC Part 15.239 Test Report GENERAL INFORMATION Product Description for Equipment Under Test (EUT) The First International Digital, Inc. ’s product, model X268 or the "EUT" as referred to in this report is a Portable low power FM Transmitter (410FM), the frequency range is 88 MHz to 108 MHz, which measures approximately 7.0cm L x 5.0cm W x 2.0cm H, rated input voltage: DC 3V battery. * The test data gathered are from an engineering sample, serial number: 0501006, provided by the manufacturer. Objective This document is a test report based on the Electromagnetic Interference (EMI)…
