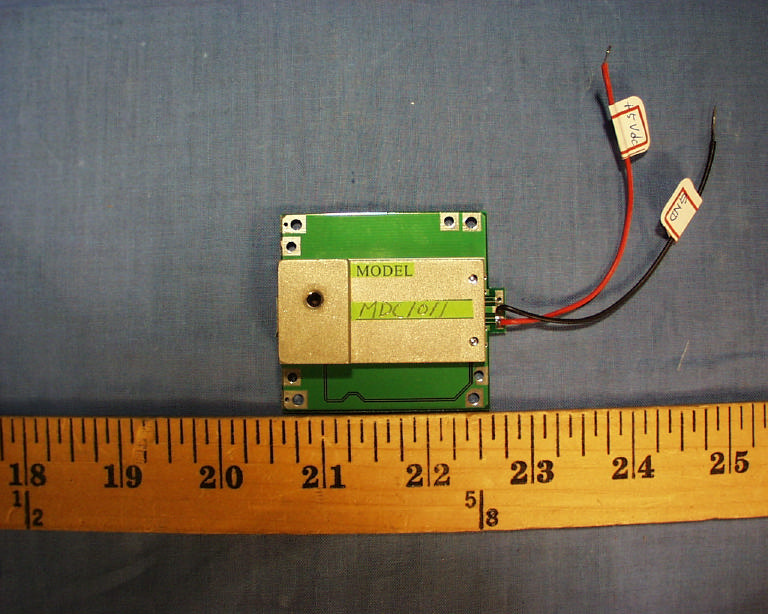

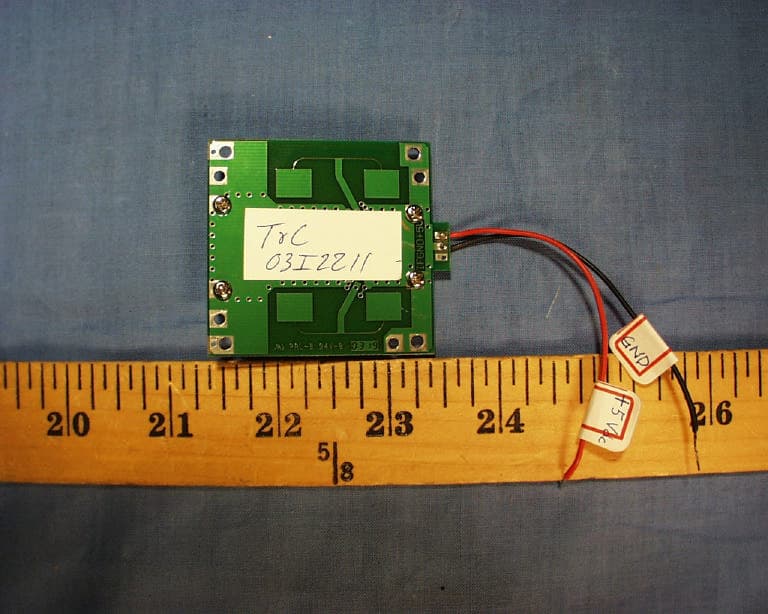

RG7MRO8700Microwave Motion Sensor

6F, 48, KEELUNG ROAD, SEC. 2, TAIPEI 110, TAIWAN, R.O.C. TEL: 886-2-2758-6911FAX:886-2-2758-7342E-MAIL: [email protected] T & C INTERNATIONAL MRO8700 USER MANUAL MRO8700 6F, 48, KEELUNG ROAD, SEC. 2, TAIPEI 110, TAIWAN, R.O.C. TEL: 886-2-2758-6911FAX:886-2-2758-7342E-MAIL: [email protected] T & C INTERNATIONAL MRO8700 General Description Microwave motion sensor is applying Doppler radar phenomenon to sense motion. It transmits a low power microwave and receives energy reflected by objects. If the movement of the object is detected by the microwave motion sensor, the reflected microwave frequency is shifted away from the transmit frequency. The shifted microwave is mixed with the transmit microwave and results a low frequency voltage at the output of the sensor. MRO8700 is a reliable and low cost solution with compact size that can be integrated in smaller products. Features - Environmentally insensitive - Un-affected by heat, ambient noise, humidity, airflow, dust. Suitable for harsh environment - Non-intrusive “See-through” non-metallic material, e.g. wood, plastic, glass, brick. It can be concealed or totally enclosed to prevent vandalism - Long range Applications - Automatic door activation - Intrusion alarms - Non-contact measurement - Obstruction warning systems - Sensor lights 6F, 48, KEELUNG ROAD, SEC. 2, TAIPEI 110, TAIWAN, R.O.C. TEL: 886-2-2758-6911FAX:886-2-2758-7342E-MAIL: [email protected] T & C INTERNATIONAL MRO8700 Electrical Characteristics ParametersMin.Ty p .Max.UnitCondition Frequency10525 +/- 12.5MHzOver temp. Power Output101214dbm Operating Voltage4.7555.25V Operating Current305065mAcw Sensitivity (10dB S/N ratio)-85dbm3Hz to 80Hz Noise10μV3Hz to 80Hz Antenna Gain8db Size55×49×12.5mm Power/Temp. Coefficient3dbmOver operating Operating Temperature Range-20 to +55 Storage Temperature Range-30 to +70 Pulse Operation: Average Current @5Duty Cycle2mA Pulse Width5 μ sec. min. Duty Cycle1min. 6F, 48, KEELUNG ROAD, SEC. 2, TAIPEI 110, TAIWAN, R.O.C. TEL: 886-2-2758-6911FAX:886-2-2758-7342E-MAIL: [email protected] T & C INTERNATIONAL MRO8700 Caution: The changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

6F, 48, KEELUNG ROAD, SEC. 2, TAIPEI 110, TAIWAN, R.O.C. TEL: 886-2-2758-6911FAX:886-2-2758-7342E-MAIL: [email protected] T & C INTERNATIONAL MRO8700 FCC ID Label

FCC CFR47 PART 15 SUBPART C CERTIFICATION TEST REPORT FOR MICROWAVE MOTION SENSOR MODEL NUMBER: MRO8700 FCC ID: RG7MRO8700 REPORT NUMBER: 03U2211-1 ISSUE DATE: SEPTEMBER 08, 2003 Prepared for T & C INTERNATIONAL CORP. 6 F, 48, KEELUNG RD., SEC. 2, TAIPEI TAIWAN Prepared by COMPLIANCE CERTIFICATION SERVICES 561F MONTEREY ROAD, MORGAN HILL, CA 95037, USA TEL: (408) 463-0885 FAX: (408) 463-0888 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION................................................................................................3 2. EUT DESCRIPTION.....................................................................................................................4 3. TEST METHODOLOGY...............................................................................................................5 4. FACILITIES AND ACCREDITATION.........................................................................................5 FACILITIES AND EQUIPMENT..........................................................................................................5 TABLE OF ACCREDITATIONS AND LISTINGS...................................................................................6 5. CALIBRATION AND UNCERTAINTY........................................................................................7 5.1 MEASURING INSTRUMENT CALIBRATION............................................................................7 5.2 MEASUREMENT UNCERTAINTY.............................................................................................7 5.3 TEST AND MEASUREMENT EQUIPMENT...............................................................................8 6. SETUP OF EQUIPMENT UNDER TEST......................................................................................9 7. APPLICABLE LIMITS AND TEST RESULTS...........................................................................11 7.1 EQUIPMENT TYPE................................................................................................................11 7.2 FIELD STRENGTH................................................................................................................12 7.2.1 APPLICABLE RULES.....................................................................................................12 7.2.2 LIMITS...........................................................................................................................15 7.2.3 SETUP AND PROCEDURE.............................................................................................16 7.2.4 TEST RESULTS..............................................................................................................18 7.3 RECEIVER SPURIOUS EMISSIONS.......................................................................................23 7.4 POWERLINE CONDUCTED EMISSIONS...............................................................................24 8. SETUP PHOTOS.........................................................................................................................27 REPORT NO: 03T2211-1 DATE: SEP. 8, 2003 EUT: MICROWAVE MOTION SENSOR FCC ID: RG7MRO8700 Page 3 of 32 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 1. TEST RESULT CERTIFICATION COMPANY NAME: T & C INTERNATIONAL CORP. 6 F, 48, KEELUNG RD., SEC. 2, TAIPEI TAIWAN EUT DESCRIPTION: MICROWAVE MOTION SENSOR MODEL: MRO8700 DATE TESTED: SEPTEMBER 02 – SEPTEMBER 05, 2003 APPLICABLE STANDARDS STANDARD TEST RESULTS FCC PART 15 SUBPART C NO NON-COMPLIANCE NOTED Compliance Certification Services, Inc. tested the above equipment in accordance with the requirements set forth in the above standards. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Note: This document reports conditions under which testing was conducted and results of tests performed. This document may not be altered or revised in any way unless done so by Compliance Certification Services and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by Compliance Certification Services will constitute fraud and shall nullify the document. Approved & Released For CCS By: Tested By: THU CHAN VIEN TRAN EMC SUPERVISOR EMC ENGINEER COMPLIANCE CERTIFICATION SERVICES COMPLIANCE CERTIFICATION SERVICES REPORT NO: 03T2211-1 DATE: SEP. 8, 2003 EUT: MICROWAVE MOTION SENSOR FCC ID: RG7MRO8700 Page 4 of 32 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 2. EUT DESCRIPTION Microwave motion sensor is a 10.525 GHz device that is applying Doppler radar phenomenon to sense motion. It transmits a low power microwave and receives energy reflected by objects. REPORT NO: 03T2211-1 DATE: SEP. 8, 2003 EUT: MICROWAVE MOTION SENSOR FCC ID: RG7MRO8700 Page 5 of 32 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 3. TEST METHODOLOGY The tests documented in this report were performed in accordance with ANSI C63.4:2001, FCC CFR 47 Part 2 and FCC CFR 47 Pa…

Text truncated - open the document above for the full version.

REPORT NO: 03T2211-1 DATE: SEP. 8, 2003 EUT: MICROWAVE MOTION SENSOR FCC ID: RG7MRO8700 Page 27 of 30 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 8. SETUP PHOTOS RADIATED EMISSIONS MEASUREMENT SETUP FRONT REPORT NO: 03T2211-1 DATE: SEP. 8, 2003 EUT: MICROWAVE MOTION SENSOR FCC ID: RG7MRO8700 Page 28 of 30 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. BACK REPORT NO: 03T2211-1 DATE: SEP. 8, 2003 EUT: MICROWAVE MOTION SENSOR FCC ID: RG7MRO8700 Page 29 of 30 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. CONDUCTED EMISSIONS MEASUREMENT SETUP FRONT REPORT NO: 03T2211-1 DATE: SEP. 8, 2003 EUT: MICROWAVE MOTION SENSOR FCC ID: RG7MRO8700 Page 30 of 30 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. BACK END OF REPORT
