RGCCARBONX2206205Tablet

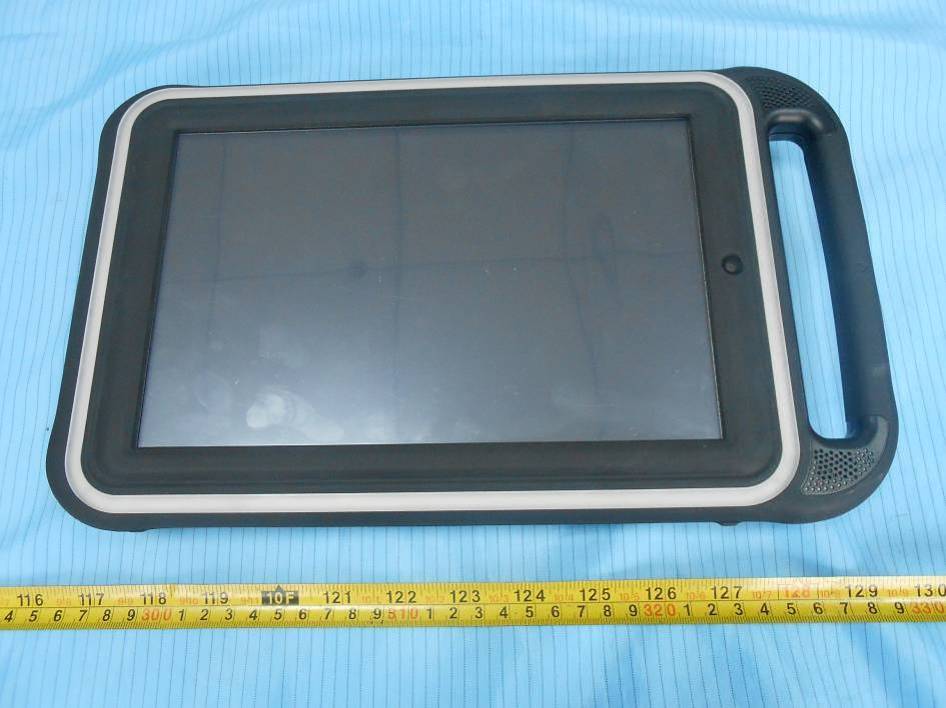

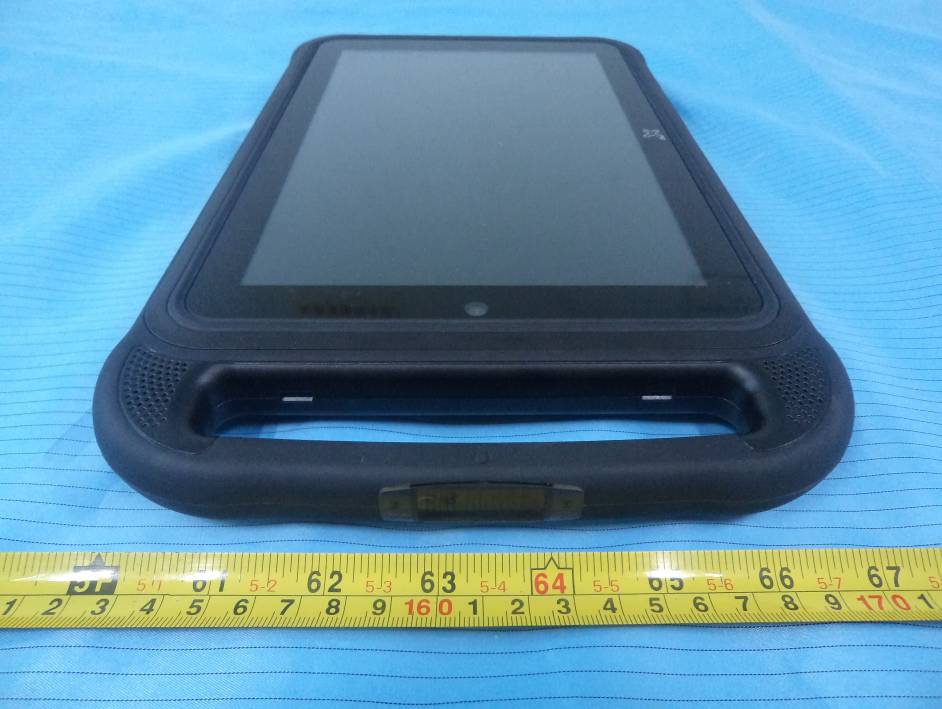

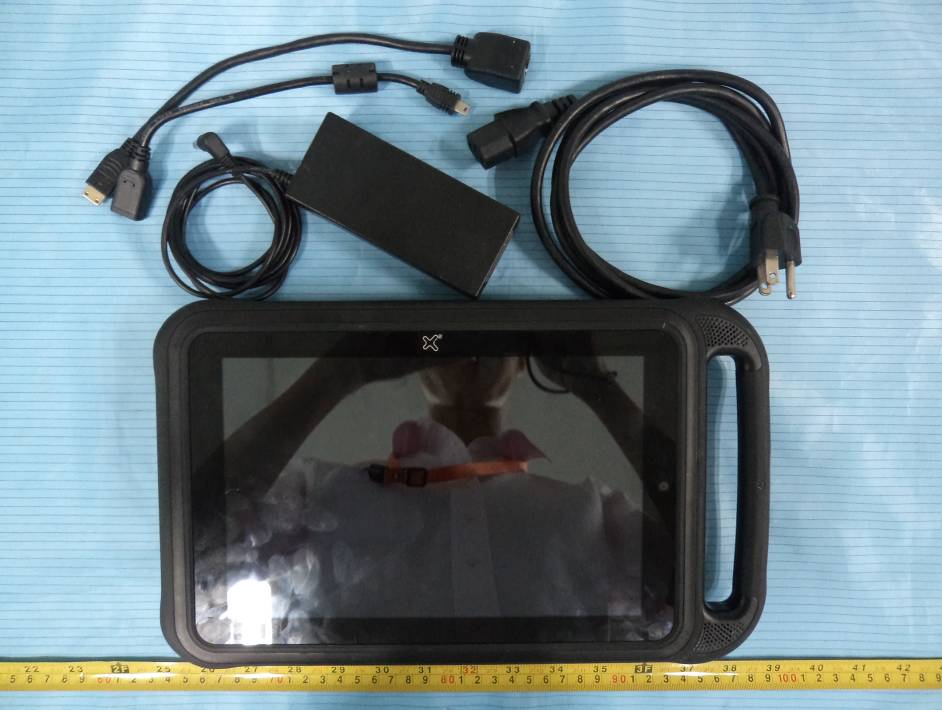

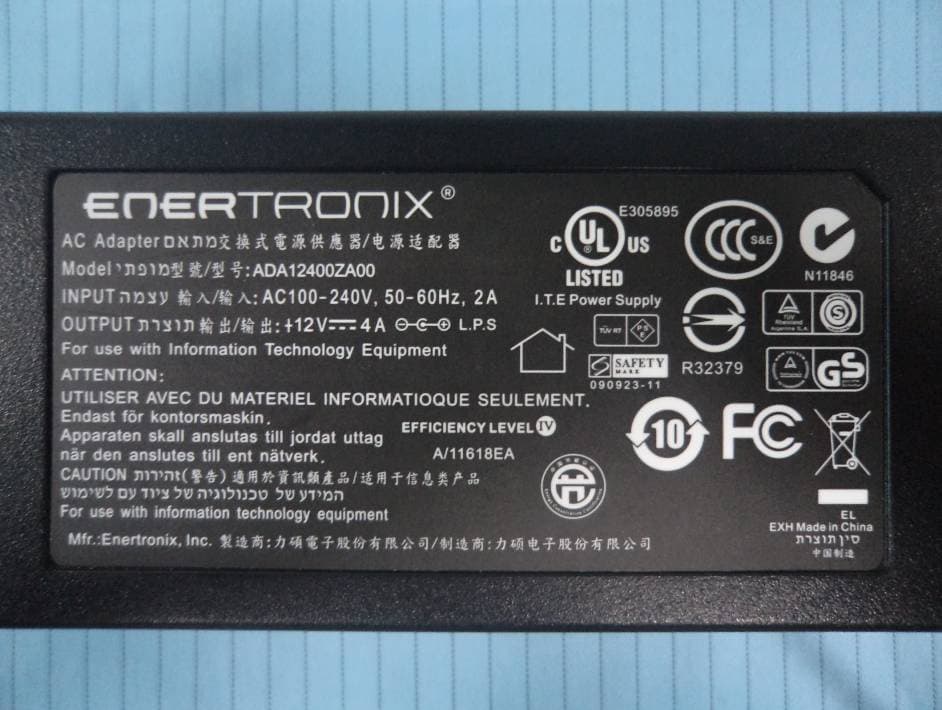

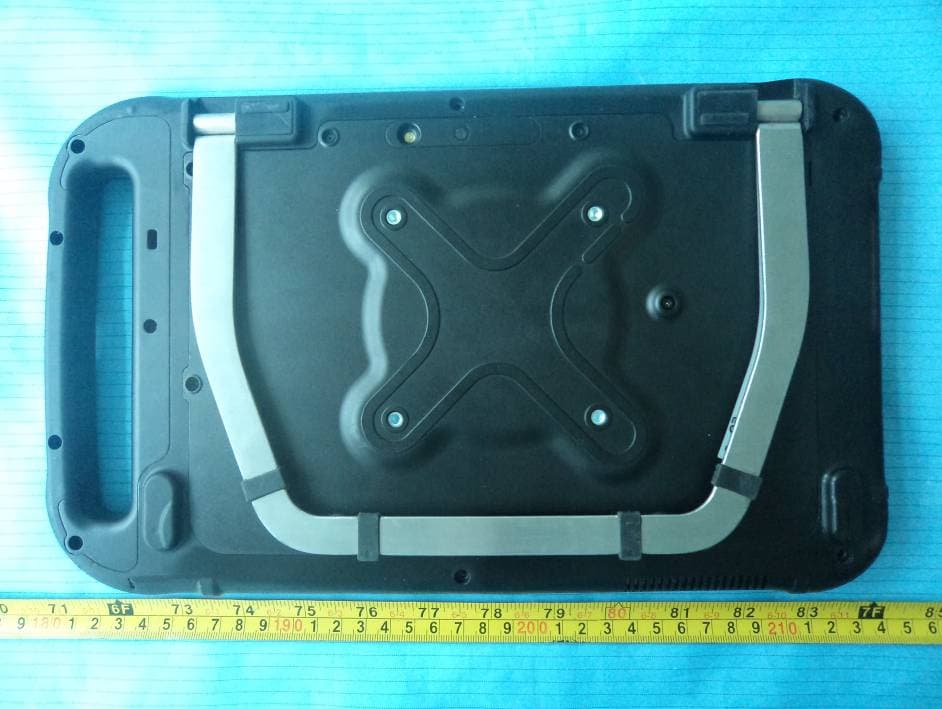

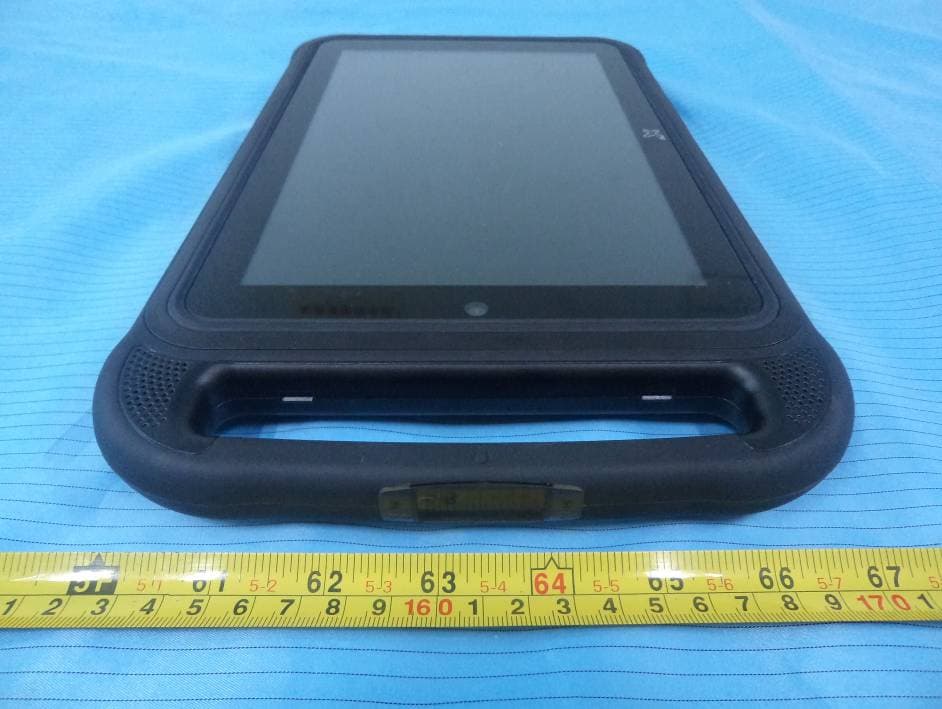

1 Carbon X220 User Manual 2 Table of contents First Steps ....................................................... ......... 3 Introduction .......................................................... 4 Getting to know your tablet ............................. 5 View and interface......................................................... 5 Packing List ................................................. ...... 13 Optional Accessories ........................................ 14 Getting Started .................................................... 16 Connecting the AC Power................................ .. 16 Turning the tablet on and off........................ ... 17 The optimised use for sunlight readable touch screen................................................18 Specifications ....................................................... 19 3 First Steps This manual will help you get the most from y our tablet. Please read it carefully before starting Let your tablet acclimatise itself Do not power up your tablet immediately if it has been exposed to hot or cold cond itions. Instead, allow it to adjust gradually to room temperature ov er a three to four hour period. Please note that you must fully charge the battery before using your tablet. Where to use your tablet Your tablet will run well under most conditions but avoid extreme te mperatures and humidity levels. Allow sufficient air circulation around the computer when you are work ing indoors to prev ent overheating. Do not block the ventilation opening or place your tablet in direct sunlight. There are some things you can tolerate that your tablet can’t – things like static electricity, dust, water, steam and oil. 4 WARNING - Never try to disassemble or back engineer your tablet as we will not be responsible for any damage caused if you do so and this ac tion would void your warranty Introduction Your tablet features the latest advanc es in portable computing technology wi th a modular design that provides maximum expandability without compromising portability. Please note that some of the features mentioned in this manual might not be includ ed on your tablet or may vary slightly. Unpacking your tablet Your tablet comes securely packaged in a shipping carton. Please contact your supplier if you find that anything is missing or damaged after examining the contents. Do not throw the packaging materials away. You may ne ed them later if you have to ship the computer. What is in the box Tablet PC 5 Power adaptor and cord (12v --- 4.16A) LAN adaptor cable Getting to know your tablet Front View with Capacitive touch panel 6 Front View with Resistive touch panel 7 1. LCD Panel This tablet is equipped with a 10.1” LCD di splay with a resolution of up to 1280 x 800 2. Speaker Two Piezoelectric speaker 3. Front Camera 200MP, USB interface 4. Reset Function Hall IC switch on handle(EC Control) – External magnet action 8 Right Side View 5. Wi-Fi Indicator & Power LED 5.1 WIFI Indicator Lights up Green when the Wi-Fi device is turned on. Light will flicking when data transferring No light when Wi-Fi stops operation 5.2 Power Indicator Blue: Connect to DC Power No Light: No DC Power Flash: System standby 6. Lock LED: Controlled by Power Crate Device location U30 change of status White LED Slid in to Power Crate Magnet in locking arm moving into detection range of U30 2 second pulse white LED Locked in Power Crate Magnet still in det ected range OFF Unlocked from Power Crate Magnet in locking arm Leaving detection range of U30 Flashing(1 second on/1 second off) for 10 seconds Removed Power Crate No Magnet detected OFF Slid in to Power Crate the most of charging On Note: When Device removed from Power Crate, EC must set PCA9555 PIN4 to “High” 9 7. Battery Indicator Status Red Amber GREEN Charge(S0,S3,S5) 0%-40% Flash OFF OFF 41%-80% OFF Flash OFF 81%-100% OFF OFF Flash No Charge (S0) 0%-40% ON OFF OFF 41%-80% OFF ON OFF 81%-100% OFF OFF ON No Charge (S3,S5) 0%-40% OFF OFF OFF 41%-80% OFF OFF OFF 81%-100% OFF OFF OFF Note: Battery charge current had 3 level can be selected. Low voltage charge: 0.368A; Normal Charge: 2A; Fast charge: 4A. And the charge current behavi ors selected base on customer requirement. 10 Rear View with 8000mAh battery 11 Rear View with 16000mAh battery 8. Lock hole For Kingston locker 12 9. Rear Camera Rear facing 5Mega Pixel with auto flash and LED flash 10. VESA Mounting 11. WIFI Logo IEEE 802.11b/g/n/ Wireless card with WIFI Antenna 12. Kick stand Integrated rear friction grip kickstand for use in both land scape & portrait orientation, with Indexing for portrait. 13 13. SIM Card Slot (not supported with Carbon X220 device) Slot for fitting a SIM Card 14. Micro-SD Slot Slot for fitting a Micro-SD card 15. DC Jack DC jack port for charging the tablet (12V --- 4A). 16. Pogo connector (not sup ported with Carbon X220 device) For changing the tablet when used with a docking station 17. HDMI / LAN Mini HDMI for fast earth net (10/ 100) via HDMI to LAN cable. 18. USB 2.0 port Mini USB 2.0 hidden port 19. 3.5mm audio Jack For headphone insert. 20. Power Button Power button to turn the tablet on 14 Packaging list This product is shipped with the items list belo w. Please make sure that all are in Gift box. ¾ 1 piece of Rugged Tablet PC user manual ¾ 1 CD for Recovery CD for Operation System (Windows em bedded standard 7) ¾ 1 piece of 12V Adapt er w/ Standard Power Cord ¾ 1 piece of Mini HDMI to RJ45 (female) Adapter cable ¾ 1 piece of Mini USB to standard USB(female) adapter cable 15 Optional accessories ¾ Hand strap 16 Getting Started This chapter guides you to get the X2 Carbon ready for operating. Connecting the AC Power Our tablet PC can operate either on t he external AC power adapter or inte rnal battery power. It is suggested that you use AC power when you star t up the tablet PC first time. 1. Plug the DC cord of the AC adapter to th e power connector of the tablet PC. 2. Plug the female end of the AC power cord to the AC adap…
