RGDLW5XLLabel maker

User Guide LabelWriter® 550 LabelWriter® 550 Turbo LabelWriter® 5XL Copyright © 2020 Newell Office Brands All rights reserved. Rev: 1/21 No part of this document or the software may be reproduced or transmitted in any form or by any means or translated into another language without the prior written consent of Newell Office Brands. Trademarks DYMO and LabelWriter are registered marks in the US and other countries. All other trademarks are the property of their respective holders. Hereby, [NWL Belgium Services b.v.b.a.] declares that the radio equipment type [LabelWriter 550, LabelWriter 550 Turbo, LabelWriter 5XL] are in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following Internet address: www.fdsafdsafdsa.com FCC Statement Caution: The user is cautioned that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. IC Statement This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada's licence-exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device. This equipment complies with Industry Canada radiation exposure limits set forth for an uncontrolled environment. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. Cet équipement est conforme à l'exposition aux rayonnements Industry Canada limites établies pour un environnement non contrôlé. http://download.dymo.com/dymo/user-guides/LabelWriter/LW550Series/UG/LabelWriter_UserGuide_en-US.pdf Contents 4 About Your New Label Printer 4Registering Your Product 4 Getting to Know the LabelPrinter 6Power 6Label Feed buttons 7Label Release Lever 7Label Guide 7 About Labels 8 Designing and Printing Labels 8System Requirements 9 Getting Started 9Installing the Software 9Connecting the Power 9Loading Labels 11Connecting the Printer to your Computer 11Connecting the Printer Directly to your Computer 11Connecting the Printer to a Local Area Network 12Setting a Static IP Address 13 Caring for Your Printer 14 Safety Precautions 16 Getting Help 16Power Status Light 16Printer Issues 18Performing a Printer Self-Test 19Obtaining Customer Support 20 Technical and Environmental Information 20Technical Specifications 21Environmental Information 21Device Certification 4 DYMO LabelWriter 550 User Guide About Your New Label Printer Congratulations on purchasing a DYMO LabelWriter ® label printer. Your LabelWriter printer will give you years of reliable label printing. We encourage you to take a few minutes to review how to use and care for your printer. This user guide provides information about the following LabelWriter models: LabelWriter ® 550 LabelWriter ® 550 Turbo LabelWriter ® 5XL Visit www.dymo.com for information about obtaining labels and accessories for your label printer. Registering Your Product Visit www.dymo.com/register to register your label printer. During the registration process, you will need the serial number, which is located on the bottom of the label printer. Register your label printer to receive these benefits: Email notification of free software upgrades Special offers and new product announcements Getting to Know the LabelPrinter Your LabelWriter printer is a direct thermal printer that does not use ink or toner. Instead, the printer uses heat from a thermal print head to print on specially treated, heat-sensitive labels. Labels are the only supplies you will ever need to buy. Become familiar with the features shown in the following figures. Serial number on bottom of printer 5 DYMO LabelWriter 550 User Guide LabelWriter 550 and 550 Turbo 1Cover6USB status light 11Label guide 2Label roll7Power (On/Off) Printer status light 12Power port 3Label spool8LAN status light (LabelWriter 550 Turbo) 13LAN port (LabelWriter 550 Turbo) 4Label release lever9Label forward feed14USB port 5Label reverse feed10Label exit slot and tear bar 1 2 3 4 10 5 9 7 8 (LabelWriter 550 Turbo) 6 11 12 13 14 (LabelWriter 550 Turbo) 6 DYMO LabelWriter 550 User Guide LabelWriter 5XL Power The power button turns the label printer power on and off. After five minutes of inactivity, the printer will enter power-saving mode and the power status light will dim. While printing labels, pressing the power button will cancel printing. Refer to Power Status Light on page 22 for more information. La…

Text truncated - open the document above for the full version.

QF094234 Page 1 of 1 Revision 0 Authority to Act as Agent Date: TUV Rheinland Group 762 Park Avenue Youngsville, NC 27596 To Whom It May Concern: I appoint TUV Rheinland (Shenzhen) Co., Ltd. to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the FCC or Industry Canada’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for Certification, as specified by TUV Rheinland Group, still resides with / For TCB applications, We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b) to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you, Agency Agreement Expiration Date: By : () (Print Name) Title : Telephone : On behalf of : (Company Name) January 7, 2021 Sanford, L.P. dba Dymo 3 Glenlake Parkway, NE Atlanta GA 30328, USA January 6, 2022 Benny Suy 0032 37788539 Sanford, L.P. dba Dymo Sr. Regulatory and ompliance Manager C Signature

Confidentiality Letter Date: Subject: Confidentiality Request for : Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, the applicant requests that a part of the subject FCC/IC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term External Photos Short Term Permanent Internal Photos Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Part List/Tune-Up Procedure Short Term Permanent Schematics Short Term Test Setup Photos Short Term Permanent User’s Manual has spent substantial effort in developing this pro duct and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of days from the date of the Grant of Equipment Author ization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify TUV Rheinland in the event information regarding the product or the product is made available to the public. TUV Rheinland will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04- 1705. Sincerely, Sr. Regulatory and Compliance Manager By: () (Print name) January 7, 2021 FCC ID RGDLW5XL and IC: 11034A-LW5XL Sanford, L.P. dba Dymo 180 Signature/Title Benny Suy

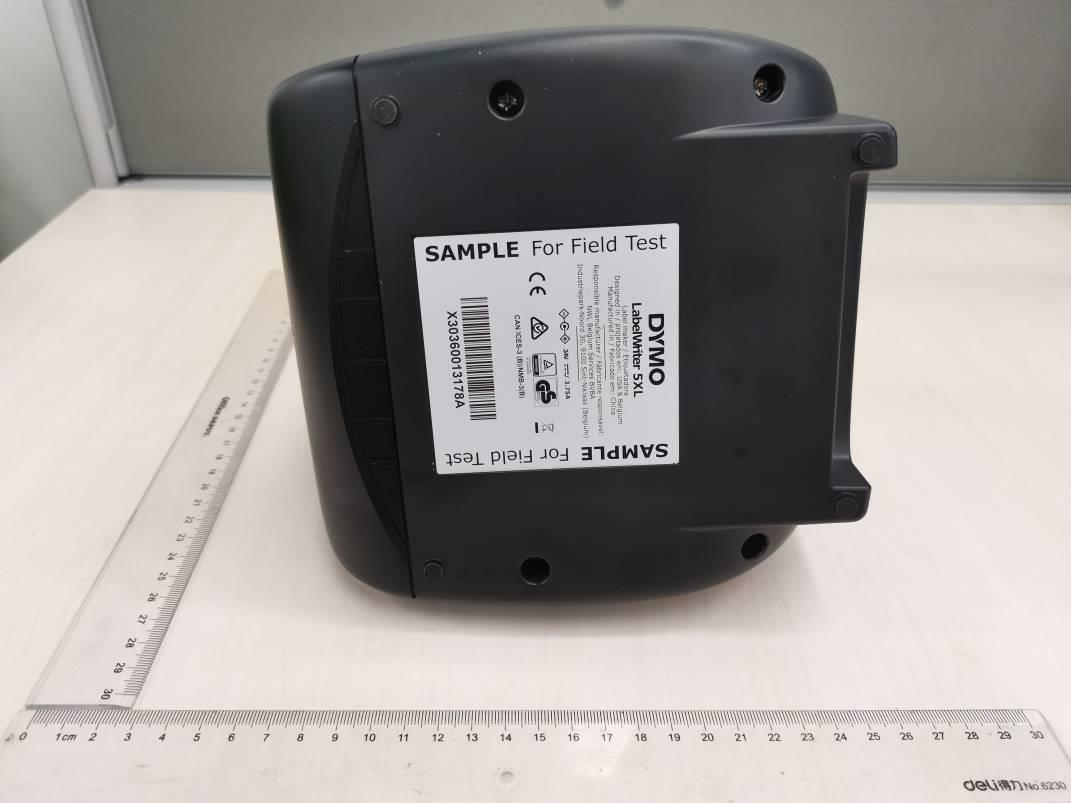

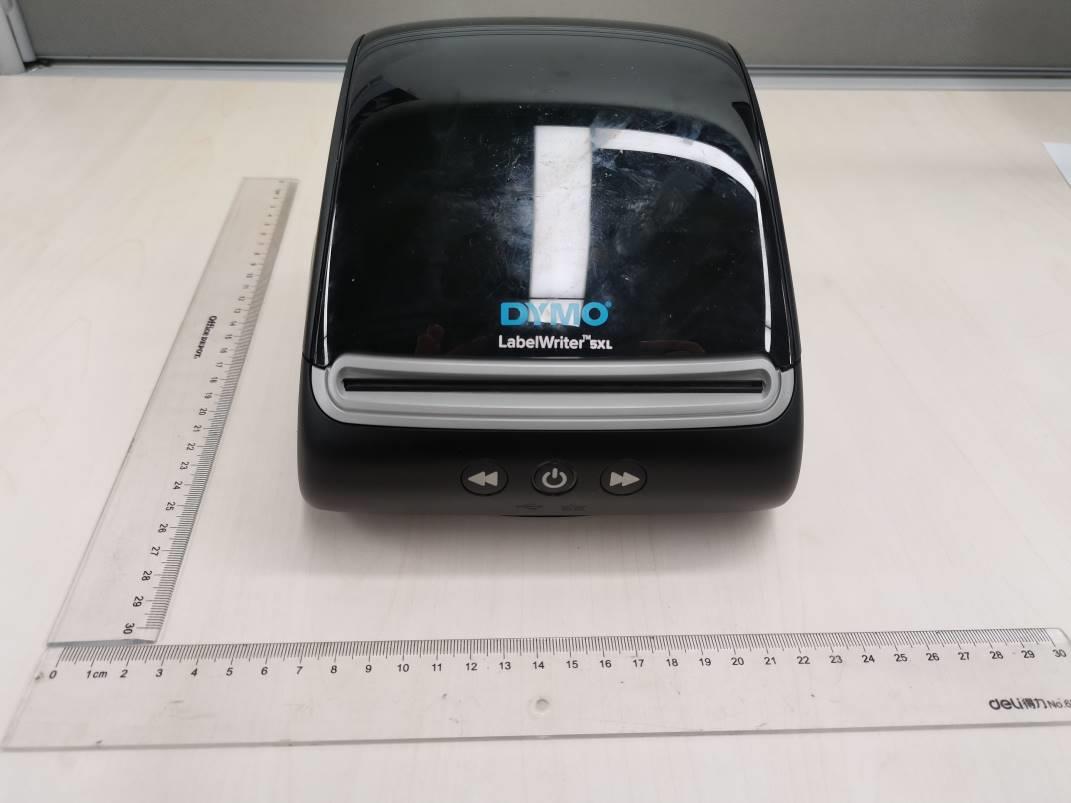

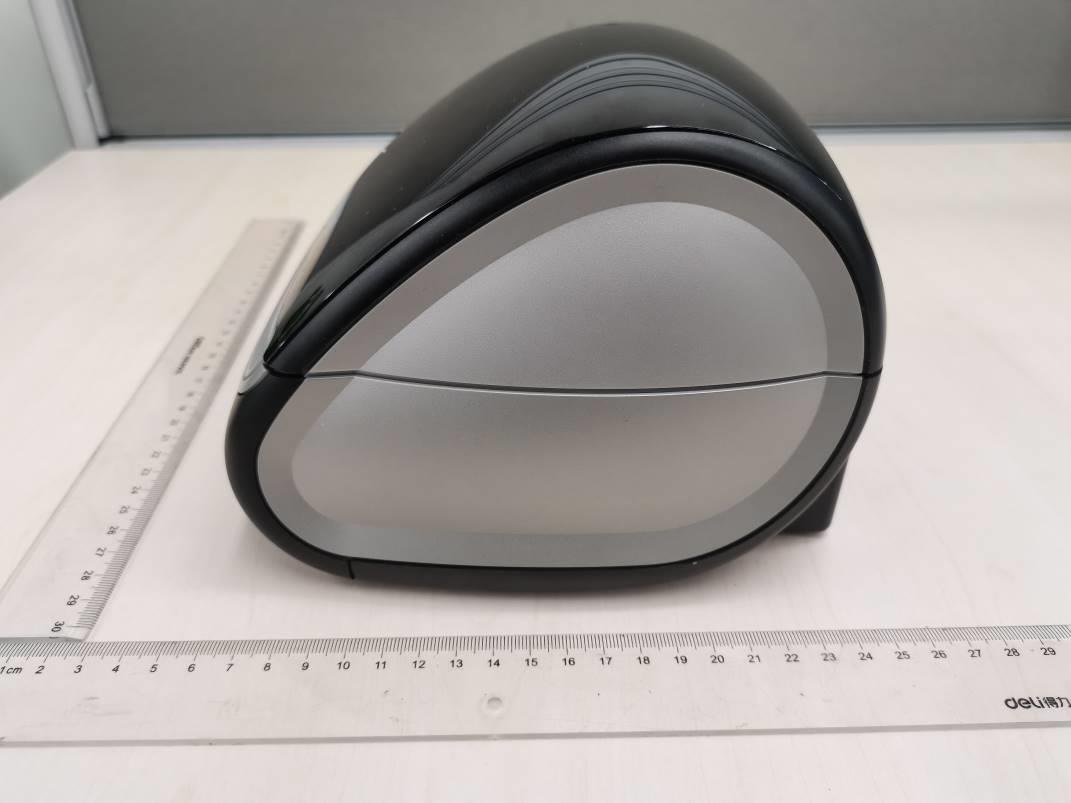

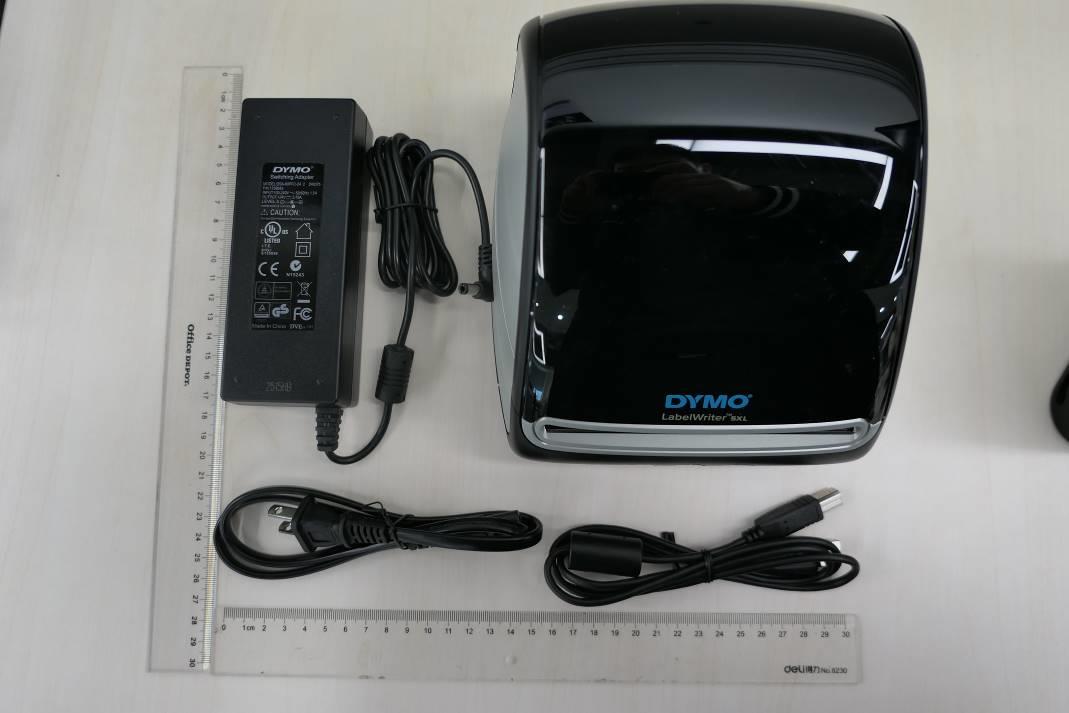

Photo Documentation Page 1 of 4 Product: Label maker Type Designation: LabelWriter 5XL Rev. 0 Fig. 1: Overall view Fig. 2: Top view of adaptor Photo Documentation Page 2 of 4 Product: Label maker Type Designation: LabelWriter 5XL Rev. 0 Fig. 3: Front view Fig. 4: Side view Photo Documentation Page 3 of 4 Product: Label maker Type Designation: LabelWriter 5XL Rev. 0 Fig 5: Rear view (DC jack, RJ45 connector and USB connector view) Fig 6: Side view Photo Documentation Page 4 of 4 Product: Label maker Type Designation: LabelWriter 5XL Rev. 0 Fig 7: Bottom view

Photo Documentation Page 1 of 6 Product: Label maker Type Designation: LabelWriter 5XL Rev. 0 Fig 8: Internal view-1 Fig 9: Internal view-2 Photo Documentation Page 2 of 6 Product: Label maker Type Designation: LabelWriter 5XL Rev. 0 Fig 10: Internal view-3 Fig 11: Internal view-4 Photo Documentation Page 3 of 6 Product: Label maker Type Designation: LabelWriter 5XL Rev. 0 Fig 12: Main PCB top view Fig 13: Main PCB bottom view Photo Documentation Page 4 of 6 Product: Label maker Type Designation: LabelWriter 5XL Rev. 0 Fig 14: NFC PCB top view Fig 15: NFC PCB bottom view Photo Documentation Page 5 of 6 Product: Label maker Type Designation: LabelWriter 5XL Rev. 0 Fig 16: Print header top view Fig 17: Print header bottom view Photo Documentation Page 6 of 6 Product: Label maker Type Designation: LabelWriter 5XL Rev. 0 Fig 18: Button PCB top view Fig 19: Button PCB bottom view

Prüfbericht - Produkte Test Report - Products Prüfbericht-Nr.: Test report no.: 60434186 001 Auftrags-Nr.: Order no.: 168292741 Seite 1 von 16 Page 1 of 16 Kunden-Referenz-Nr.: Client reference no.: N/A Auftragsdatum: Order date: 2020-11-30 Auftraggeber: Client: Sanford, L.P.dba Dymo 3 Glendale Parkway, NE Atlanta GA 30328, United States Of America Prüfgegenstand: Test item: Label maker Bezeichnung / Typ-Nr.: Identification / Type no.: LabelWriter 5XL Auftrags-Inhalt: Order content: Test Report Prüfgrundlage: Test specification: CFR47 FCC Part 15: Subpart C Section 15.225 CFR47 FCC Part 15: Subpart C Section 15.205 CFR47 FCC Part 15: Subpart C Section 15.207 CFR47 FCC Part 15: Subpart C Section 15.209 RSS-210 Issue 10 December 2019 RSS-Gen Issue 5 March 2019 Wareneingangsdatum: Date of sample receipt: 2020-12-04 Prüfmuster-Nr.: Test sample no: A002960663-002~003 Prüfzeitraum: Testing period: 2020-12-05 – 2021-01-08 Ort der Prüfung: Place of testing: TÜV Rheinland (Shenzhen) Co., Ltd. Prüflaboratorium: Testing laboratory: TÜV Rheinland (Shenzhen) Co., Ltd. Prüfergebnis*: Test result*: Pass Please refer to photo documents geprüft von: tested by: genehmigt von: authorized by: Datum: Date:2021-01-08 Ausstellungsdatum: Issue date:2021-01-08 Stellung / Position: Senior Project ManagerStellung / Position:Technical Certifier Sonstiges / Other: FCC ID: RGDLW5XL IC: 11034A-LW5XL HVIN: LabelWriter 5XL Zustand des Prüfgegenstandes bei Anlieferung: Condition of the test item at delivery: Prüfmuster vollständig und unbeschädigt Test item complete and undamaged * Legende:1 = sehr gut2 = gut3 = befriedigend4 = ausreichend5 = mangelhaft P(ass) = entspricht o.g. Prüfgrundlage(n)F(ail) = entspricht nicht o.g. Prüfgrundlage(n) N/A = nicht anwendbarN/T = nicht getestet * Legend:1 = very good2 = good3 = satisfactory4 = sufficient5 = poor P(ass) = passed a.m. test specification(s)F(ail) = failed a.m. test specification(s)N/A = not applicableN/T = not tested Dieser Prüfbericht bezieht sich nur auf das o.g. Prüfmuster und darf ohne Genehmigung der Prüfstelle nicht auszugsweise vervielfältigt werden. Dieser Bericht berechtigt nicht zur Verwendung eines Prüfzeichens. This test report only relates to the a. m. test sample. Without permission of the test center this test report is not permitted to be duplicated in extracts. This test report does not entitle to carry any test mark. TÜV Rheinland (Shenzhen) Co., Ltd. 1601 R&D Room, 1602-1604, 17-18F, Building 7 Site C, Vanke Cloud City Phase I, Xingke First Street, Xili Street, Xili Community, Nanshan District, Shenzhen 518052, P.R. China Mail: [email protected] · Web: www.tuv.com Lin Lin Winni e Hou Prüfbericht - Produkte Test Report - Products Prüfbericht - Nr.: Test Report No. 60434186 001 Seite 2 von 16 Page 2 of 16 Test Summary 5.1.1ANTENNA REQUIREMENT RESULT:Pass 5.1.299% & 20DB BANDWIDTH RESULT:Pass 5.1.3FREQUENCY STABILITY RESULT:Pass 5.1.4RADIATED SPURIOUS EMISSION (IN-BAND & OUT-BAND EMISSIONS) RESULT:Pass 5.1.5CONDUCTED EMISSIONS ON AC MAINS RESULT:Pass Prüfbericht - Produkte Test Report - Products Prüfbericht - Nr.: Test Report No. 60434186 001 Seite 3 von 16 Page 3 of 16 Contents 1GENERAL REMARKS..........................................................................................................................4 1.1COMPLEMENTARY MATERIALS............................................................................................................4 2TEST SITES........................................................................................................................................5 2.1TEST FACILITIES................................................................................................................................5 2.2LIST OF TEST AND MEASUREMENT INSTRUMENTS................................................................................5 2.3TRACEABILITY...................................................................................................................................6 2.4CALIBRATION.....................................................................................................................................6 2.5MEASUREMENT UNCERTAINTY............................................................................................................6 2.6LOCATION OF ORIGINAL DATA............................................................................................................6 2.7STATUS OF FACILITY USED FOR TESTING............................................................................................6 3GENERAL PRODUCT INFORMATION.....................................................................................................7 3.1PRODUCT FUNCTION AND INTENDED USE............................................................................................7 3.2RATINGS AND SYSTEM DETAILS..........................................................................................................7 3.3INDEPENDENT OPERATION MODES......................................................................................................7 3.4NOISE GENERATING AND NOISE SUPPRESSING PARTS........................................................................7 3.5SUBMITTED DOCUMENTS....................................................................................................................8 4TEST SET-UP AND OPERATION MODES................................................................................................9 4.1PRINCIPLE OF CONFIGURATION SELECTION.........................................................................................9 4.2TEST OPERATION AND TEST SOFTWARE.............................................................................................9 4.3SPECIAL ACCESSORIES AND AUXILIARY EQUIPMENT...........................................................................9 4.4COUNTERMEASURES TO ACHIEVE EMC COMPLIANCE.........................................................................9 4.5…

Text truncated - open the document above for the full version.

Prüfbericht - Produkte Test Report - Products Appendix B 60434186 001 Page 1 of 10 Appendix B: Test Results of NFC APPENDIX B: TEST RESULTS OF NFC.............................................................................................................................1 APPENDIX B.1: TEST RESULTS OF 99% & 20DB BANDWIDTH.......................................................................................................2 APPENDIX B.3: TEST RESULTS OF FREQUENCY STABILITY..............................................................................................................3 APPENDIX B.4: TEST RESULTS OF RADIATED SPURIOUS EMISSIONS................................................................................................4 9 KHz to 30 MHz............................................................................................................................................................4 30 MHz to 1GHz............................................................................................................................................................8 APPENDIX B.4: TEST RESULTS OF CONDUCTED EMISSIONS ON AC MAINS.....................................................................................10 Prüfbericht - Produkte Test Report - Products Appendix B 60434186 001 Page 2 of 10 Appendix B.1: Test Results of 99% & 20dB Bandwidth Test Frequency (MHz) 20dB Bandwidth (Hz) 99% Bandwidth (Hz) 13.5668.147437.678 Prüfbericht - Produkte Test Report - Products Appendix B 60434186 001 Page 3 of 10 Appendix B.2: Test Results of Frequency Stability Test Conditions Test Frequency (MHz) Temp(°C)Volt(V AC) Test Results (KHz) Deviation (Hz) Limit (%) Result -2012013560.102102Pass -1012013560.09393Pass 012013560.09898Pass 1012013560.124124Pass 2012013560.163163Pass 3012013560.148148Pass 4012013560.181181Pass 5012013560.213213Pass 10213560.205205Pass 13.56 20 13813560.276276 ±0.01 (1356Hz) Pass Note: Deviation (kHz) = (Test Result-13.56MHz)*1000 Prüfbericht - Produkte Test Report - Products Appendix B 60434186 001 Page 4 of 10 Appendix B.3: Test Results of Radiated Spurious Emissions 9 KHz to 30 MHz EUT Information EUT Name:Label maker Model:LabelWriter 5XL Test Mode:13.56MHz Test Voltage::120V/60Hz Remark:Temp 23 Humi:45% Test Standard:FCC Part 15C Tested By:Alano Qu Reviewed By:Terry Yin -20 0 20 40 60 80 100 120 140 150 9k203050100k2003005001M2M3M5M10M2030M L e v e l i n d B μ V / m Frequency in Hz Critical_Freqs Frequency (MHz) Max Peak (dBμV/m) Limit (dBμV/m) Margin (dB) Height (cm) PolAzimuth (deg) Corr. (dB/m) 0.01826640.07122.3682.29100.0X35.020.0 13.56055251.47100.0X189.020.0 Prüfbericht - Produkte Test Report - Products Appendix B 60434186 001 Page 5 of 10 EUT Information EUT Name:Label maker Model:LabelWriter 5XL Test Mode:13.56MHz Test Voltage::120V/60Hz Remark:Temp 23 Humi:45% Test Standard:FCC Part 15C Tested By:Alano Qu Reviewed By:Terry Yin -20 0 20 40 60 80 100 120 140 150 9k203050100k2003005001M2M3M5M10M2030M L e v e l i n d B μ V / m Frequency in Hz Critical_Freqs Frequency (MHz) Max Peak (dBμV/m) Limit (dBμV/m) Margin (dB) Height (cm) PolAzimuth (deg) Corr. (dB/m) 0.01836641.10122.3181.21100.0Y331.020.0 13.56055265.35100.0Y148.020.0 25.00451530.4769.5039.03100.0Y225.020.0 Prüfbericht - Produkte Test Report - Products Appendix B 60434186 001 Page 6 of 10 EUT Information EUT Name:Label maker Model:LabelWriter 5XL Test Mode:13.56MHz Test Voltage::120V/60Hz Remark:Temp 23 Humi:45% Test Standard:FCC Part 15C Tested By:Alano Qu Reviewed By:Terry Yin -20 0 20 40 60 80 100 120 140 150 9k203050100k2003005001M2M3M5M10M2030M L e v e l i n d B μ V / m Frequency in Hz Critical_Freqs Frequency (MHz) Max Peak (dBμV/m) Limit (dBμV/m) Margin (dB) Height (cm) PolAzimuth (deg) Corr. (dB/m) 0.01836642.86122.3179.44100.0Z63.020.0 13.56055248.45100.0Z211.020.0 25.00012529.2669.5040.24100.0Z106.020.0 Prüfbericht - Produkte Test Report - Products Appendix B 60434186 001 Page 7 of 10 30 MHz to 1GHz EUT Information EUT Name:Label maker Model:LabelWriter 5XL Test Mode:13.56MHz Test Voltage::120V/60Hz Remark:Temp 23 Humi:45% Test Standard:FCC Part 15C Tested By:Alano Qu Reviewed By:Terry Yin 0 10 20 30 40 50 60 70 80 30M 5060 80100M200300400500 8001G L e v e l i n d B μ V / m Frequency in Hz Critical_Freqs Frequency (MHz) Max Peak (dBμV/m) Limit (dBμV/m) Margin (dB) Height (cm) PolAzimuth (deg) Corr. (dB/m) 49.98200023.2140.0016.79100.0H132.0-18.3 174.96650030.1643.5013.34100.0H46.0-20.9 324.97700030.1346.0015.87100.0H46.0-15.6 845.33350034.0546.0011.95100.0H54.0-5.6 Prüfbericht - Produkte Test Report - Products Appendix B 60434186 001 Page 8 of 10 EUT Information EUT Name:Label maker Model:LabelWriter 5XL Test Mode:13.56MHz Test Voltage::120V/60Hz Remark:Temp 23 Humi:45% Test Standard:FCC Part 15C Tested By:Alano Qu Reviewed By:Terry Yin 0 10 20 30 40 50 60 70 80 30M 5060 80100M200300400500 8001G L e v e l i n d B μ V / m Frequency in Hz Critical_Freqs Frequency (MHz) Max Peak (dBμV/m) Limit (dBμV/m) Margin (dB) Height (cm) PolAzimuth (deg) Corr. (dB/m) 32.86150028.2940.0011.71100.0V183.0-22.5 42.90100026.6640.0013.35100.0V6.0-19.3 175.01500021.5243.5021.98100.0V355.0-20.9 324.97700024.9246.0021.08100.0V6.0-15.6 Prüfbericht - Produkte Test Report - Products Appendix B 60434186 001 Page 9 of 10 Appendix B.4: Test Results of Conducted Emissions on AC Mains EUT Information EUT Name:Label maker Order No.:168292741 Item Model:LabelWriter 5XL Test Mode:ON Test Voltage:AC 120V/60Hz Test By:Ouyang Wang Review By:Gary Chen Remark:SR1 Critical_Freqs Frequency (MHz) MaxPeak (dBμV) Average (dBμV) Limit (dBμV) Margin (dB) LineCorr. (dB) 0.166000---31.6655.1623.50L19.6 0.16600045.90---65.1619.26L19.6 0.476500---32.9546.1713.22L19.7 0.50000044.31---56.1711.86L19.7 2.65200037.22---56.0018.78L19.8 2.664000---21.3146.0024.69L19.8 15.22800038.61---60.0021.39L110.3 15.232000---28.3250.0021.68L110.3 17.004000---25.6950.0024.31L110.3 17.00400036.12---60.0023.88L110.3 17.596000---25.8550.0024.15L110.4 17.60800035.…

Text truncated - open the document above for the full version.

Prüfbericht - Produkte Test Report - Products Appendix A 60434186 001 Page 1 of 3 Appendix A: Photographs of the Test Set-Up APPENDIX A: PHOTOGRAPHS OF THE TEST SET-UP.......................................................................................................1 PHOTOGRAPH 1: SET-UP PHOTO FOR RADIATED SPURIOUS EMISSION, BELOW 30MHZ.......................................................................2 PHOTOGRAPH 2: SET-UP PHOTO FOR RADIATED SPURIOUS EMISSION, 30MHZ - 1GHZ......................................................................2 PHOTOGRAPH 3: SET-UP PHOTO FOR CONDUCETD EMISSIONS ON AC MAINS....................................................................................3 Prüfbericht - Produkte Test Report - Products Appendix A 60434186 001 Page 2 of 3 Photograph 1: Set-up photo for Radiated Spurious Emission, Below 30MHz Photograph 2: Set-up photo for Radiated Spurious Emission, 30MHz - 1GHz Prüfbericht - Produkte Test Report - Products Appendix A 60434186 001 Page 3 of 3 Photograph 3: Set-up photo for Conducetd Emissions on AC Mains
