RH2-HR-116RChromebook

LCD Platform Video Audio Memory Storage I/O Ports Camera Wireless Battery Power OS Dimensions Weight 11.6" HD (1366*768) LCD ARM based Quad-Core, up to 1.8GHz ARM Mali-T764 GPU Two internal speakers One microphone on the camera 3.5mm Audio combo jack (Headphone & Microphone) 2GB DDR3L 16GB eMMC Two USB 2.0 ports One HDMI port One 2-in-1 memory card reader ( SD/MMC) One Audio jack (Headphone-out & Microphone-in) One DC-in jack for power adapter connection 720p HD resolution camera WiFi dual band with intergrated bluetooth 4.0 802.11 a/b/g/n/ac 2*2 31WH Lithium battery 12V 2A Chrome OS 293*210*24mm 1.16kg Connects to USB devices. Accepts Micro Secure Digital(TF) cards. DC-in LED lights HDMI port USB port TF card Connects to the charger. Indicates the Chromebook's power/charger. Supports hight-definition video connections. Connects to audio devices (e.g., speakers, headphones), or a headset with microphone. #ItemDescription 1 2 3 4 5 6 Audio jack #ItemDescription USB portConnects to USB devices.1 Kensington lock slot Connects to a Kensington-compatible computer security lock. 2 #ItemDescription SpeakersLeft and right speakers deliver stereo audio output. 1 Batter lockSlide to remove the battery. Note: when you reload the battery, you need to connect the charger first to power on your Chrombook. 2 #ItemDescription 1Keyboard For entering data into your computer. 2 Touchpad / cli ck button Touch-sensitive pointing device which functions like a computer mouse. Pressing down anywhere on the pad functions like the left button of a mouse. Pressing down anywhere with two fingers functions like the right button of a mouse. 3Power key Turns the computer on and off. #ItemDescription MicrophoneInternal microphone. 1 WebcamWeb camera for video communication. A light next to the webcam indicates that the webcam is active. 2 Screen Displays computer output. English(United States) US No network Continue Welcome! Select your language: Select your keyboard: Select a network: Accessibility Enable debugging features Sign in Email Password If you don’t have a Google Account you can create a Google Account now. You may also skip signing in and browse as Guest. At least one account must exist on this device before creating a supervised user. Supervised user Sign in Checking for updates... > update HAIER CHROMEBOOK 11 User Manual Please read carefully before use. 1 2 2.Your Chromebook tour Now that you are done setting it up, let us show you around your new Chromebook. Front vi ew 3 Keyboard view 4 5 Touchpad When you're using a Chromebook, use the touchpad to move the pointer and select items on the screen. Here are some gestures and actions supported by the touchpad: Move the poin te r: S imply move your finger across t he touchpad. Click: Press down on the lower half of the touchpad. Since tap-to-click is on by default, you can quickly t ap the touchpad to click. Right-click: Click the touchpad with two fingers, or holdAlt while doing a single click. Middle-click: Click the touchpad with three fingers. Scroll: Place two fingers on the touchpad and mov e them up and down to scroll vertically, left and right to scroll horizontally. If you have Australian scrolling enabled, move two fingers up to scroll down. (It works in the same way as say, your smartphone or tablet.) If you have multiple browse r tabs open, you can also swipe left and right with three fingers to quickly move between tabs. Swip e: Quickly move two finger s left or right to go backwar d or forward on web pages or while using apps. You can also swipe up with three fingers to see all of your open windows. Drag and drop: Click the item y ou want t o mov e with one finger. With a second finger, move the it em. Release both fingers to drop the item at it s new locat ion. 6 Left side view 7 Right side view 8 Bottom view 9 3. Specification 10 FCC Compliance Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following tw o co nditions: (1) this device may not cause harmful interference, and (2 ) th is device must accept any interference received,including interference that may cause undesired operation. Please Note: This equipment ha s be en te sted and found to comply with the li mits fo r a Class B digital device, pursuant to part 15 of th e FCC Rules. These limits are designed to provide reason able protecti on ag ainst harmful interference in a residential installation. This equipment ge nerates uses and can radiate rad io frequency energy and, if no t installed and used in accordance with the instructions, may cause harmful in terference t o ra dio co mmunications. Howev er, there is no guarantee that in terference will no t occur in a particular in stallation. If this equipment does cause harmful interference to radio or television re ception, which can be de termined by turning the equipment off and on, the user is en co uraged to try to correct the interference by one or more of the following measures: Reorient or relocate th e re ceiving an te nna. Increase the separ ation between the equipment and the receiver. Connect the equipment in to an outlet on a cir cui t different from that to which the receiv er is connected. Caution: To comply with the limits for an FCC Class B computing device, always use the signal cord and power cord supplied with this unit. The Federal communications Commission warns that changes or modifica tio ns to the unit not ex pressly approved by the party re sponsible fo r compliance could void the user’ s authority to operate the equipment. European Notice Products with the CE marking comply with both the EMC Directive (89/336/E EC), (93/68/EEC) and the Low Voltage Directive (72/23 /EEC) issued by th e Commission of the European Community. 11 Li-Polymer Battery Warning This Chromebook contains a Li-polymer battery to power the clock and calendar circuitry. Caution: Danger of explosion if battery is replaced incorrectly. Only qualified service technicians Should replace and discard t…

Text truncated - open the document above for the full version.

DATE : April 2, 2015 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 F CC ID: RH2-HR-116R Product Name: Chromebook Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: •Schematics •Block diagram •Operational Description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this April 2, 2015 Agency agreement expiration date: Usually Give 8 - 12 Months By: Guofeng Wang Sig nature Printed T itle: Manager On behalf of : Haier International(hk) Limited Tel ephone: 0532-88937841

Statement We Haier International(hk) Limited Hereby that The product Chromebook, models no. HR-116R, Xolo Chromebook are all identical in interior structure, electrical circuits and components, and just model names are different for the marketing requirement. Yours sincerely, Dated this April 2, 2015 Agency agreement expiration date: Usually Give 8 - 12 Months By: Guofeng Wang Signature Printed Title: Manager On behalf of : Haier International(hk) Limited Telephone: 0532-88937841

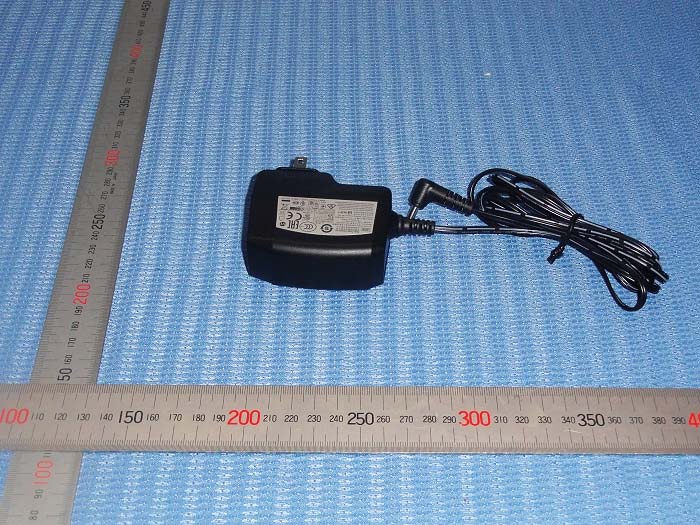

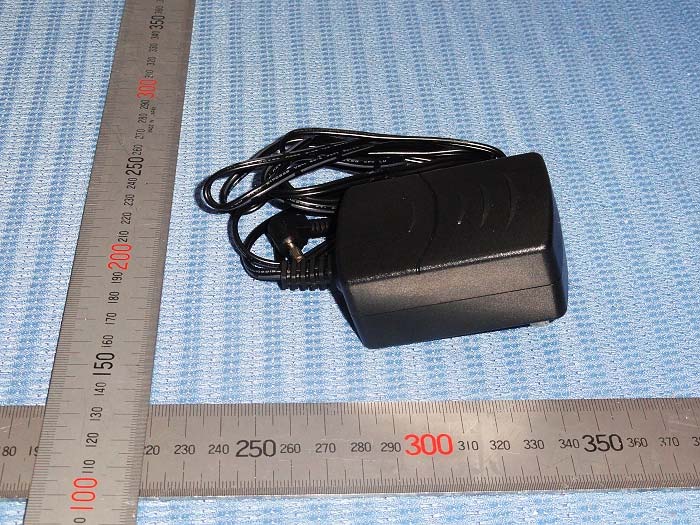

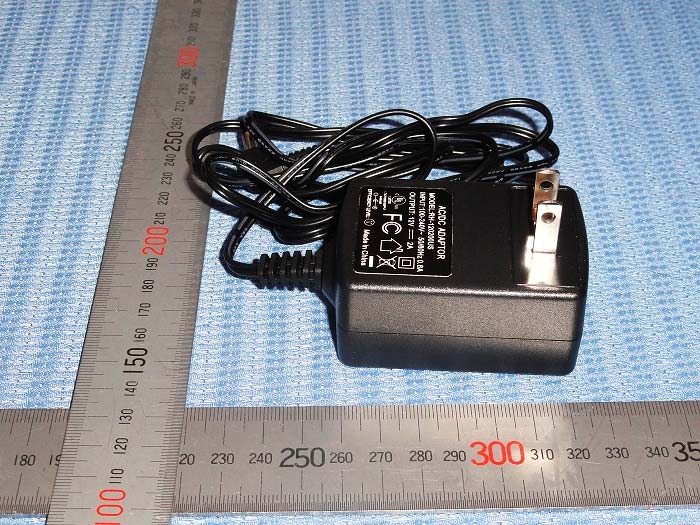

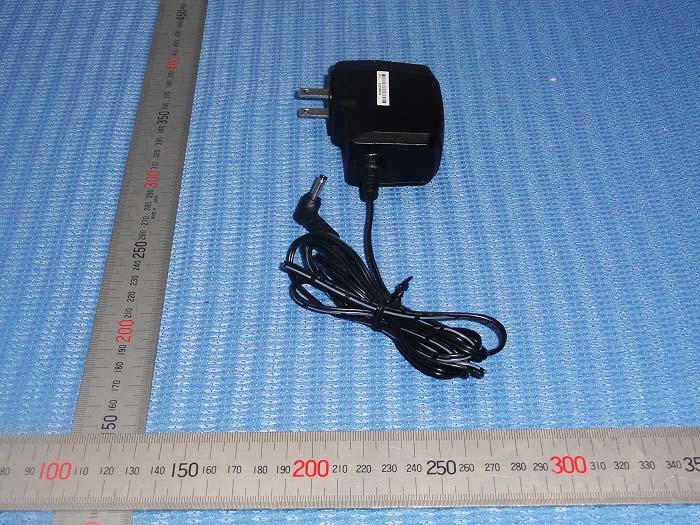

Photos of EUT Photos of EUT Photos of EUT Photos of EUT Photos of EUT Photos of EUT Photos of EUT Photos of EUT

40mm 60mm 消银龙 消银龙 底色灰色，印刷色黑色。 Chromebook This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept an interference received. including interference that may cause undesired operation. Made in China Input: 12V 2A MODEL NO.:HR-116R FCC ID:RH2-HR-116R Contains FCC ID:TLZ-CM389NF CONFORMS TO UL STD.60950-1 CERTIFIED TO CAN STD.C22.2 No.60950-1 xxxxxxx Chromebook This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept an interference received. including interference that may cause undesired operation. Made in China Input: 12V 2A MODEL NO.:HR-116R FCC ID:RH2-HR-116R Contains FCC ID:TLZ-CM389NF CONFORMS TO UL STD.60950-1 CERTIFIED TO CAN STD.C22.2 No.60950-1 xxxxxxx

Photos of EUT Photos of EUT Photos of EUT Photos of EUT Photos of EUT Photos of EUT Photos of EUT Photos of EUT Photos of EUT Photos of EUT Photos of EUT Antenna Antenna Photos of EUT Photos of EUT Photos of EUT Photos of EUT

ISO/IEC17025 Accredited Lab. Report No: FCC 1503136 File reference No: 2015-04-01 Applicant: Haier international(hk) limited Product: Chromebook Model No: HR-116R (Brand is Haier) , Xolo Chromebook (Brand is Xolo) Trademark: Haier, Xolo Test Standards: FCC Part 15 Subpart B: 2012 Test result: It is herewith confirmed and found to comply with the requirements set up by ANSI C63.4&FCC Part 15 regulations for the evaluation of electromagnetic compatibility Approved By Jack Chung Manager Dated: April 01, 2015 Results appearing herein relate only to the sample tested The technical reports is issued errors and omissions exempt and is subject to withdrawal at SHENZHEN TIMEWAY TESTING LABORATORIES Room 512-519, 5/F., East Tower, Building 4, Anhua Industrial Zone, Futian District, Shenzhen, Guangdong, China Tel (755) 83448688, Fax (755) 83442996, E-Mail:[email protected] Report No: FCC1503136 Page 2 of 68 Date: 2015-04-01 The report refers only to the sample tested and does not apply to the bulk. This report is issued in confidence to the client and it will be strictly treated as such by the SHENZHEN TIMEWAY TESTING LABORATORIES. It may not be reproduced rather in its entirety or in part and it may not be used for adverting. The client to whom the report is issued may, however, show or send it . or a certified copy there of prepared by the SHENZHEN TIMEWAY TESTING LABORATORIES. to his customer. Supplier or others persons directly concerned. SHENZHEN TIMEWAY TESTING LABORATORIES. will not, without the consent of the client enter into any discussion of correspondence with any third party concerning the contents of the report. In the event of the improper use of the report. The SHENZHEN TIMEWAY TESTING LABORATORIES. reserves the rights to withdraw it and to adopt any other remedies which may be appropriate. Special Statement： The testing quality ability of our laboratory meet with "Quality Law of People's Republic of China" Clause 19. The testing quality system of our laboratory meet with ISO/IEC-17025 requirements, which is approved by CNAS. This approval result is accepted by MRA of APLAC. Our test facility is recognized, certified, or accredited by the following organizations: CNAS-LAB Code: L2292 The EMC Laboratory has been assessed and in compliance with CNAS-CL01 accreditation criteria for testing Laboratories (identical to ISO/IEC 17025:2005 General Requirements) for the Competence of testing Laboratories. FCC-Registration No.: 899988 The EMC Laboratory has been registered and fully described in a report filed with the (FCC) Federal Communications commission. The acceptance letter from the FCC is maintained in our files. Registration No.: 899988. IC- Registration No.: IC5205A-02 The EMC Laboratory has been registered and fully described in a report filed with the (IC) Industry Canada. The acceptance letter from the IC is maintained in our files. Registration IC No.: 5205A-02. Report No: FCC1503136 Page 3 of 68 Date: 2015-04-01 The report refers only to the sample tested and does not apply to the bulk. This report is issued in confidence to the client and it will be strictly treated as such by the SHENZHEN TIMEWAY TESTING LABORATORIES. It may not be reproduced rather in its entirety or in part and it may not be used for adverting. The client to whom the report is issued may, however, show or send it . or a certified copy there of prepared by the SHENZHEN TIMEWAY TESTING LABORATORIES. to his customer. Supplier or others persons directly concerned. SHENZHEN TIMEWAY TESTING LABORATORIES. will not, without the consent of the client enter into any discussion of correspondence with any third party concerning the contents of the report. In the event of the improper use of the report. The SHENZHEN TIMEWAY TESTING LABORATORIES. reserves the rights to withdraw it and to adopt any other remedies which may be appropriate. Test Report Conclusion Content 1.0 General Details ................................................................................................ 4 1.1 Test Lab Details................................................................................................ 4 1.2 Applicant Details.............................................................................................. 4 1.3 Description of EUT ............................................................................................4 1.4 Test Uncertainty................................................................................................ 4 1.5 Submitted Sample............................................................................................. 4 1.6 Test Duration.................................................................................................. 4 2.0 List of Measurement Equipment........................................................................ 5 2.1 Conducted Emission Test..................................................................................... 5 2.2 Radiated electromagnetic disturbance test................................................................. 5 2.3 Auxiliary Equipment.......................................................................................... 5 3.0 Technical Details............................................................................................. 6 3.1 Investigations Requested..................................................................................... 6 3.2 Test Standards.................................................................................................. 6 3.3 Description of Test Modes................................................................................... 6 4.0 Power line Conducted Emission Test..................................................................... 8 5.0 Radiated Disturbance Test................................................................................... 16 6.0 FCC ID Label ......................................................................................................…

Text truncated - open the document above for the full version.

Conducted test View-- Radiated emission test view--
