RHFDWNMOKABLUEBluetooth Phone Companion

Manual Book Product Specification One key download What is MokaBlueII? Search MokaBlueII MokaBlueII is a small type of communication product, Users can insert SIM card of any GSM, it can make all IOS and Android equipment to increase the language speaking, message transceiver and internet access function. Main Advantages: 1. Can make the iTouch in Tel function; 2. iPhone and Android can become double card mobile; 3. iPhone and Android pads can call and enjoy internet at anytime and anywhere; 4. MokaBlueII is small and easy to portable; separate with other equipment inside 10m will not be affected. MokaBlueII Quick Start Keyboard and Parts Forcing Shutdown Key Earphone Hole SIM Card Slot Sling Hole Power Key Charge Hole Charge, Install SIM Card 1. Use charger or charging by USB with DC 5V 2. Insert the SIM card by notch-in, metal touching-down then start to use. Switch On, Switch Off 1. Under switch off, hold down power key in 3 seconds, the equipment will be inside the on- processing with vibration; 2. Under switch on, hold down power key in 3 seconds, the equipment will be inside the off- processing with vibration; Indicator light Hold down power key in 3 seconds to switch on, LED light will appear red, yellow and green colors alternating twinkle, it means it’s in searching the signal. If SIM card is normal, the LED light will twinkle one time by six seconds, now the machine can be used; If the SIM card is useless or not be inserted, LED light will twinkle one time by one second, now the machine can not be used, then please check the SIM card. LED Indicator Light Color Meaning 1. Green when the power in 66% - full; 2. Blue when the power in 33%-66%; 3. Red when the power under 33%; 4. Red twinkle urgently when the power under 10%. Attention Switch on the machine after inserted the SIM card. It will be recognized useless card to insert the SIM card under switching on and can not be read the card effetely, will need to switch off and restart it again then can be used in normally. More detail please go on our website to check: www.DIWEINUO.com Guarantee Card Model: Bought Date: Invoice No.: Technical Support: Customer Signature (Stamp): Distributor Signature (Stamp): Contact: (No distributor’s signature or stamp will not in guarantee service) User Instructions 1. The guarantee card is the most important certificate for after-sale service under guarantee time, the users need to write the guarantee card details completely in buying and please keep it well. 2. The bought date is according to the distributor’s invoice or reception date. 3. Service Promise: If the machine in problem after sale in 7 days under the outside looking is not be damaged, users can choose return it back or change the goods, we will service in free repairing under the outside looking damaged; After sale in one year from bought date happened function problems or the user not satisfied with free changeable and free repairing, our company will do the paid service and just collect the parts costing. 4. Our company will do the paid service under guarantee(Include “Three pack” validity period) and in the same time not enjoy “Three pack” service; ① Can not show the effective guarantee card, invoice ,reception or the machine code damaged; ② The bought date or the distributor(effective stamp) etc. didn’t wrote or altered the guarantee card; ③ Cause of force majeure(Fire,Thunder,Earthquake.obnormal electric pressure) caused problems or damaged; ④ Under transporting or the loading caused the problems or damaged; ⑤ Human causing damaged and include using under abnormal work surrounding, not follow the use instructions or attention matter, connect not properly, connect to not suitable power or not follow the user instructions mentioned of under the computer environment caused the problems or damaged; ⑥ No company’s authorized then unload, repair and refit; ⑦ Under normal using damaged, old or other reason caused broken, rust or dip; ⑧ Not belong to our company’s products(Fake goods); ⑨ Outside looking damaged, face scratched not belong to guarantee 5. Please take the guarantee card, invoice or reception to our company’s directed repair station to repair. If the problems can not be solved properly, please call or send letter to our service department, we will solve it for you in the shortest time. 6. Please use the origin or vibration protection packing to send to our repair station to repair, if damaged under the transporting cause of not using the protection packing will not in the guarantee range, the charges for the transportation will be paid by the user. 7. This guarantee promise paid range just limit under change, repair the damaged products, not include production problem caused the other indirect damage. 8. Above final interpretation power is belong to FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter. NOTE: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interferenc…

Text truncated - open the document above for the full version.

Model Difference Bluetooth phone companion Model Name Color MokaBlue White/Black MokaBlue2 White/Black MokaBlue3 White/Black MokaBlue4 White/Black MokaBlue5 White/Black MokaBlue6 White/Black D4-S2 White/Black D4-C White/Black D5-C White/Black D5-C2 White/Black Note:All model is same just OEM different,identical HW/SW Client’s signature Signature Date:2012/12/05 Name: Yansheng Zheng T itle: Manger Tel: 0755-83281708-268

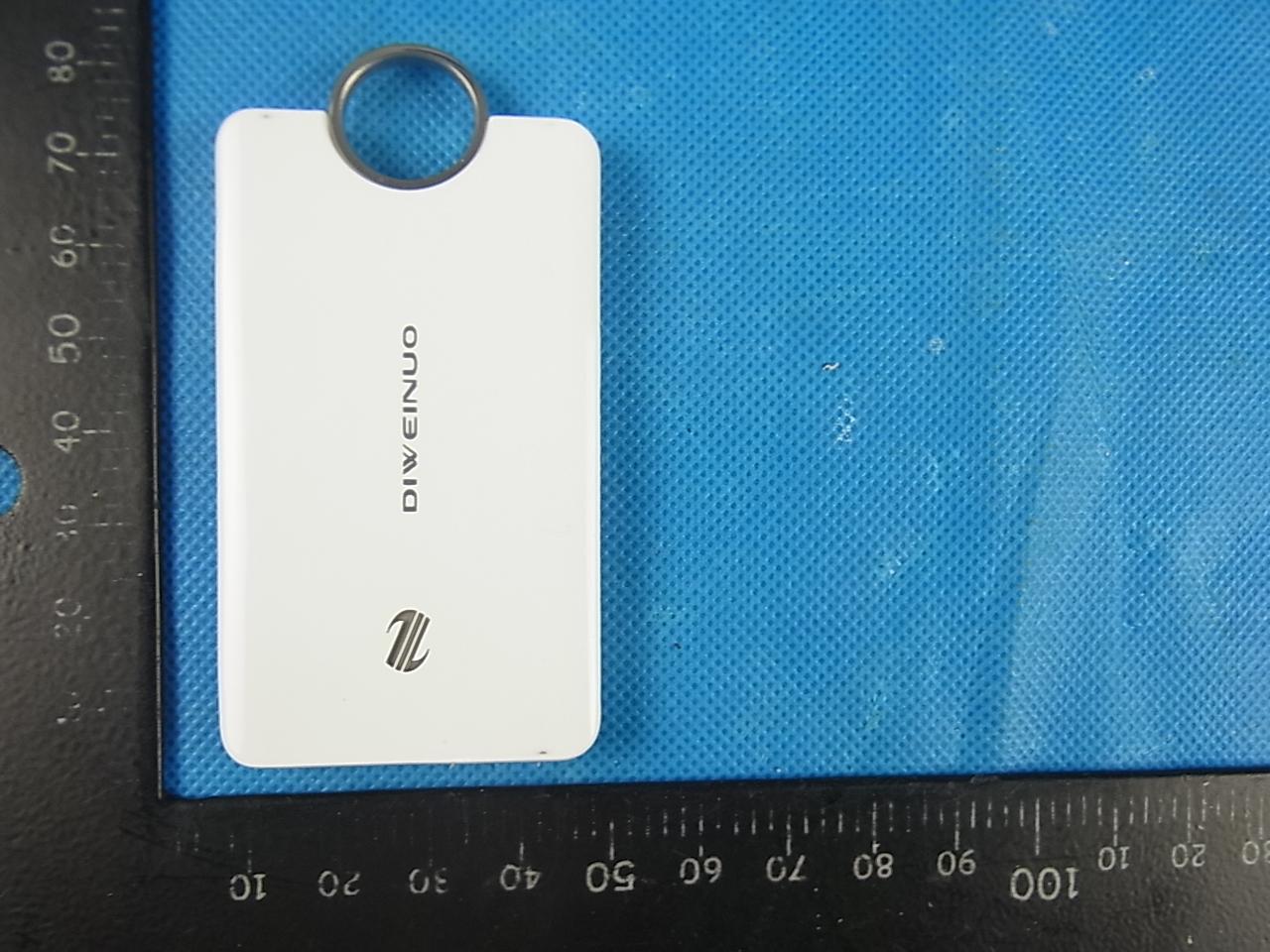

APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2 Label Photo 3 Photo 4 Photo 5 Photo 6

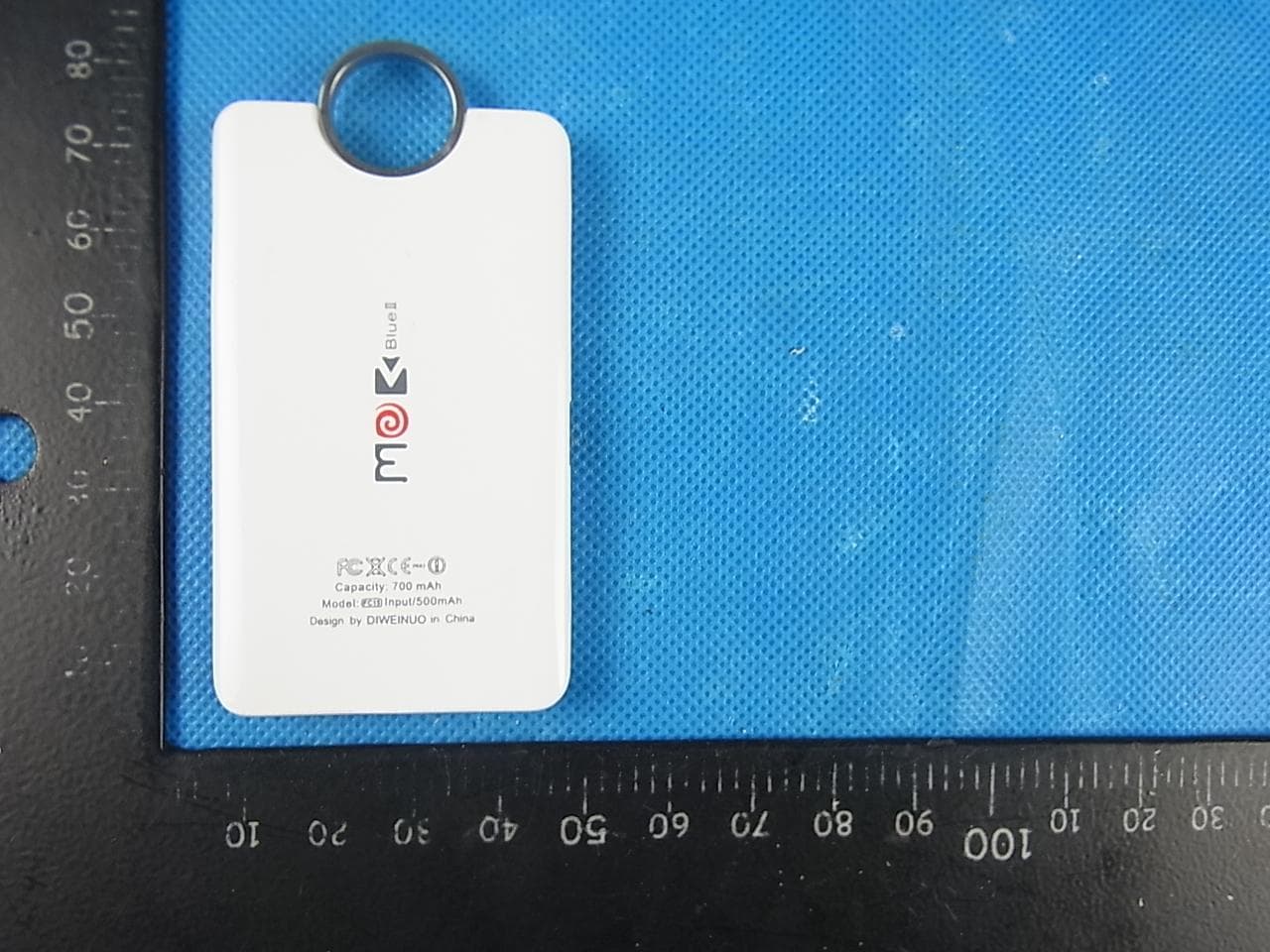

W*h=3*2 cm Label FCC ID: RHFDWNMOKABLUE Model: MokaBlue Capacity 700 mAh Design by DIWEINUO in china

Photo 7 Photo 8 Photo 9 Photo 10 Photo 11 Photo 12 Photo 13

Letter of Certification This is to formally certify that: The tune up procedures of Bluetooth phone companion (MokaBlue)is not open to end user. The end user is not allowed to perform finaltune. All the power and frequency set up were finished at the manufacturer stage. GSM850 ： max possible output power ：32±1dbm PCS1900: max possible output power ：30±1dbm Yours sincerely, Signature Client’s signature Signature Date:2012/12/05 Name: Yansheng Zheng Title: Manger Tel: 0755-83281708-268

Compliance Certification Services Inc. Reference No .: C121228E01-SE Date of Issue: January 11, 2013 Report No .: C121228E01-SE Page 1 of 9 GSM 850-Body Up Middle CH190..................................................................................................... 2 GSM 850-Body Down Middle CH190................................................................................................ 3 GSM 850-Body Right Middle CH190................................................................................................. 4 GSM 850-Body Left Middle CH190................................................................................................... 5 PCS1900-Body Up Middle CH661..................................................................................................... 6 PCS1900-Body Down Middle CH661................................................................................................ 7 PCS1900-Body Right Middle CH661................................................................................................ 8 PCS1900-Body Left Middle CH661................................................................................................... 9 Compliance Certification Services Inc. Reference No .: C121228E01-SE Date of Issue: January 11, 2013 Report No .: C121228E01-SE Page 2 of 9 Test Laboratory: Compliance Certification Services Inc. January 9, 2013 GSM 850-Body Up Middle CH190 DUT: Bluetooth phone companion; Type: MokeBlue; Serial: N/A Communication System: Generic GSM; Communication System Band: GSM 850 (824.0 - 849.0 MHz); Frequency: 836.6 MHz;Duty Cycle: 1:7.99834 Room Ambient Temperature: 23.0°C; Liquid Temperature: 22.5°C Phantom section: Flat Section Measurement Standard: DASY5 (IEEE/IEC/ANSI C63.19-2007) DASY Configuration: • Probe: EX3DV4 - SN3798; ConvF(9.12, 9.12, 9.12); Calibrated: 7/25/2012; • Sensor-Surface: 2mm (Mechanical Surface Detection) • Electronics: DAE4 Sn1245; Calibrated: 7/20/2012 • Phantom: Twin SAM Phantom; Type: QD 000 P40 CD; Serial: 1609 • DASY52 52.8.2(969); SEMCAD X 14.6.6(6824) GSM 850/GSM850 Body Up Middle CH190/Area Scan (6x7x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.826 W/kg GSM 850/GSM850 Body Up Middle CH190/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 19.457 V/m; Power Drift = -0.09 dB Peak SAR (extrapolated) = 1.855 mW/g SAR(1 g) = 0.730 mW/g; SAR(10 g) = 0.379 mW/g Maximum value of SAR (measured) = 0.718 W/kg Compliance Certification Services Inc. Reference No .: C121228E01-SE Date of Issue: January 11, 2013 Report No .: C121228E01-SE Page 3 of 9 Test Laboratory: Compliance Certification Services Inc. January 9, 2013 GSM 850-Body Down Middle CH190 DUT: Bluetooth phone companion; Type: MokeBlue; Serial: N/A Communication System: Generic GSM; Communication System Band: GSM 850 (824.0 - 849.0 MHz); Frequency: 836.6 MHz;Duty Cycle: 1:7.99834 Room Ambient Temperature: 23.0°C; Liquid Temperature: 22.5°C Phantom section: Flat Section Measurement Standard: DASY5 (IEEE/IEC/ANSI C63.19-2007) DASY Configuration: • Probe: EX3DV4 - SN3798; ConvF(9.12, 9.12, 9.12); Calibrated: 7/25/2012; • Sensor-Surface: 2mm (Mechanical Surface Detection) • Electronics: DAE4 Sn1245; Calibrated: 7/20/2012 • Phantom: Twin SAM Phantom; Type: QD 000 P40 CD; Serial: 1609 • DASY52 52.8.2(969); SEMCAD X 14.6.6(6824) GSM 850/GSM850 Body Down Middle CH190/Area Scan (6x7x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.358 W/kg GSM 850/GSM850 Body Down Middle CH190/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 17.062 V/m; Power Drift = -0.19 dB Peak SAR (extrapolated) = 0.504 mW/g SAR(1 g) = 0.282 mW/g; SAR(10 g) = 0.194 mW/g Maximum value of SAR (measured) = 0.366 W/kg Compliance Certification Services Inc. Reference No .: C121228E01-SE Date of Issue: January 11, 2013 Report No .: C121228E01-SE Page 4 of 9 Test Laboratory: Compliance Certification Services Inc. January 9, 2013 GSM 850-Body Right Middle CH190 DUT: Bluetooth phone companion; Type: MokeBlue; Serial: N/A Communication System: Generic GSM; Communication System Band: GSM 850 (824.0 - 849.0 MHz); Frequency: 836.6 MHz;Duty Cycle: 1:7.99834 Room Ambient Temperature: 23.0°C; Liquid Temperature: 22.5°C Phantom section: Flat Section Measurement Standard: DASY5 (IEEE/IEC/ANSI C63.19-2007) DASY Configuration: • Probe: EX3DV4 - SN3798; ConvF(9.12, 9.12, 9.12); Calibrated: 7/25/2012; • Sensor-Surface: 2mm (Mechanical Surface Detection) • Electronics: DAE4 Sn1245; Calibrated: 7/20/2012 • Phantom: Twin SAM Phantom; Type: QD 000 P40 CD; Serial: 1609 • DASY52 52.8.2(969); SEMCAD X 14.6.6(6824) GSM 850/GSM850 Body Right Middle CH190/Area Scan (5x7x1): Measurement grid: dx=15mm, dy=15mmMaximum value of SAR (measured) = 0.385 W/kg GSM 850/GSM850 Body Right Middle CH190/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 15.424 V/m; Power Drift = -0.12 dB Peak SAR (extrapolated) = 0.877 mW/g SAR(1 g) = 0.278 mW/g; SAR(10 g) = 0.158 mW/g Maximum value of SAR (measured) = 0.349 W/kg Compliance Certification Services Inc. Reference No .: C121228E01-SE Date of Issue: January 11, 2013 Report No .: C121228E01-SE Page 5 of 9 Test Laboratory: Compliance Certification Services Inc. January 9, 2013 GSM 850-Body Left Middle CH190 DUT: Bluetooth phone companion; Type: MokeBlue; Serial: N/A Communication System: Generic GSM; Communication System Band: GSM 850 (824.0 - 849.0 MHz); Frequency: 836.6 MHz;Duty Cycle: 1:7.99834 Room Ambient Temperature: 23.0°C; Liquid Temperature: 22.5°C Phantom section: Flat Section Measurement Standard: DASY5 (IEEE/IEC/ANSI C63.19-2007) DASY Configuration: • Probe: EX3DV4 - SN3798; ConvF(9.12, 9.12, 9.12); Calibrated: 7/25/2012; • Sensor-Surface: 2mm (Mechanical Surface Detection) • Electronics: DAE4 Sn1245; Calibrated: 7/20/2012 • Phantom: Twin SAM Phantom; Type: QD 000 P40 CD; Serial: 1609 • DASY52 52.8.2(969); SEMCAD X 14.6.6(68…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No: C121228E01-SF FCCID: RHFDWNMOKABLUE Date of Issue : January 11, 2013 Page 1 of 8 5 Rev. 01 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. ANSI/IEEE Std. C95.1-1999 In accordance with the requirements of FCC Report and Order: ET Docket 93-62, and OET Bulletin 65 Supplement C FCC SAR TEST REPORT For Product Name: Bluetooth phone companion Brand Name: N/A Model No.: MokaBlue Series Model: MokaBlue2,MokaBlue3 Test Report Number: C121228E01-SF Issued for Shenzhen Di Weinuo Technology Co., Ltd. O-P Room,31Floor,Modern Window Huaqiang North ,Futian District, Shenzhen, China Issued by Compliance Certification Services Inc. Kun shan Laboratory No.10 Weiye Rd., Innovation park, Eco&Tec, Development Zone, Kunshan City, Jiangsu, China TEL: 86-512-57355888 FAX: 86-512-57370818 Note: This report shall not be reprod uced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by A2LA or any government agencies. The test results in the report only apply to the tested sample. MokaBlue4, MokaBlue5, MokaBlue6,D4-S2,D4-C,D5-C,D5-C2 Compliance Certification Services Inc. Report No: C121228E01-SF FCCID: RHFDWNMOKABLUE Date of Issue : January 11, 2013 Page 2 of 85 Rev. 01 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TABLE OF CONTENTS 1. CERTIFICATE OF COMPLIANCE (SAR EVALUATION) ........................................................... 3 2. EUT DESCRIPTION....................................................................................................................4 3. REQUIREMENTS FOR COMPLIANCE TESTING DEFINED BY THE FCC................................ 4 4. TEST METHODOLOGY.............................................................................................................. 4 5. TEST CONFIGURATION ............................................................................................................ 5 6. DOSIMETRIC ASSESSMENT SETUP........................................................................................ 5 6.1 MEASUREMENT SYSTEM DIAGRAM ...........................................................................................................6 6.2 SYSTEM COMPONENTS...............................................................................................................................7 7. EVALUATION PROCEDURES ................................................................................................. 10 8. MEASUREMENT UNCERTAINTY............................................................................................ 13 9. EXPOSURE LIMIT .................................................................................................................... 14 10. EUT ARRANGEMENT .............................................................................................................. 15 10.1 ANTHROPOMORPHIC HEAD PHANTOM .................................................................................................15 10.2 DEFINITION OF THE “CHEEK/TOUCH” POSITION...................................................................................16 10.3 DEFINITION OF THE “TILTED” POSITION ................................................................................................17 11. MEASUREMENT RESULTS..................................................................................................... 18 11.1 TEST LIQUIDS CONFIRMATION ...............................................................................................................18 11.2 LIQUID MEASUREMENT RESULTS ..........................................................................................................19 11.3 PROBE CALIBRATION PROCEDURE .......................................................................................................20 11.4 SYSTEM PERFORMANCE CHECK...........................................................................................................25 11.5 EUT TUNE-UP PROCEDURES AND TEST MODE....................................................................................28 11.6 SAR HANDSETS MULTI XMITER ASSESSMENT.....................................................................................30 11.7 EUT SETUP PHOTOS ................................................................................................................................31 11.8 SAR MEASUREMENT RESULTS...............................................................................................................32 12. EUT PHOTO ............................................................................................................................. 34 13. EQUIPMENT LIST & CALIBRATION STATUS........................................................................ 37 14. FACILITIES............................................................................................................................... 37 15. REFERENCES.......................................................................................................................... 38 16. ATTACHMENTS ....................................................................................................................... 39 Appendix A: Plots of Performance Check..................................................................................... 40 Appendix B: DASY Calibration Certificate .................................................................................... 43 Appendix C: Plots of SAR Test Result .......................................................................................... 85 Compliance Certification Services Inc. Report No: C121228E01-SF FCCID: RHFDW…

Text truncated - open the document above for the full version.

FCC RADIO TEST REPORT FCC ID: RHFDWNMOKABLUE Product： Bluetooth phone companion Trade Name： N/A Model Name： MokaBlue Serial Model： MokaBlue2,MokaBlue3,MokaBlue4, MokaBlue5, MokaBlue6,D4-S2,D4-C,D5-C,D5-C2 Report No.： NTEK-2013NT0118569F1 Prepared for Shenzhen Di Weinuo Technology Co., Ltd. O-P Room,31Floor,Modern Window Huaqiang North ,Futian District, Shenzhen, China Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community,Xixiang Street Bao’an District, Shenzhen P.R. China Tel.: +86-0755-61156588 Fax.: +86-0755-61156599 Website:www.ntek.org.cn Page 2 of 40 Report No.: NTEK-2013NT0118569F1 ` TEST RESULT CERTIFICATION Applicant’s name ................. : Shenzhen Di Weinuo Technology Co., Ltd. Address ................................. : O-P Room,31Floor,Modern Window Huaqiang North ,Futian District, Shenzhen, China Manufacture's Name ............ : Shenzhen Di Weinuo Technology Co., Ltd. Address ................................. : O-P Room,31Floor,Modern Window Huaqiang North ,Futian District, Shenzhen, China Product description Product name............................ : Bluetooth phone companion Model and/or type reference : MokaBlue Serial Model： MokaBlue2,MokaBlue3,MokaBlue4, MokaBlue5, MokaBlue6,D4-S2,D4-C,D5-C,D5-C2 Standards ............................. : FCC Part 22H and 24E Test procedure ............................... : ANSI C63.4-2003 This device described above has been tested by NTEK, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of NTEK, this document may be altered or revised by NTEK, personal only, and shall be noted in the revision of the document. Date of Test ........................................... : Date (s) of performance of tests ............. : 27 Dec. 2012 ~04 Jan. 2013 Date of Issue .......................................... : 05 Jan. 2013 Test Result.............................................. : Pass Testing Engineer : (Apple Huang) Technical Manager : (Tom Zhang) Authorized Signatory : (Bovey Yang) Page 3 of 40 Report No.: NTEK-2013NT0118569F1 ` Table of Contents Page 1 . SUMMARY OF TEST RESULTS 4 1.1 TEST FACILITY 5 1.2 MEASUREMENT UNCERTAINTY 5 2 . GENERAL INFORMATION 6 2.1 GENERAL DESCRIPTION OF EUT 6 2.2 DESCRIPTION OF TEST MODES 7 2.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 8 2.4 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 9 2.5 EQUIPMENTS LIST FOR ALL TEST ITEMS 10 3 . TEST RESULT 11 3.1 OUTPUT POWER 11 3.1.1 CONDUCTED OUTPUT POWER 11 3.1.2 RADIATED OUTPUT POWER 12 3.2 SPURIOUS EMISSION 15 3.2.1 CONDUCTED SPURIOUS EMISSION 15 3.2.2 RADIATED SPURIOUS EMISSION 17 3.3 FREQUENCY STABILITY 21 3.3.1 MEASUREMENT METHOD 21 3.3.2 PROVISIONS APPLICABLE 21 3.4 OCCUPIED BANDWIDTH 24 3.4.1 MEASUREMENT METHOD 24 3.4.2 PROVISIONS APPLICABLE 24 3.4.3 MEASUREMENT RESULT 24 3.5 EMISSION BANDWIDTH 25 3.5.1 MEASUREMENT METHOD 25 3.5.2 PROVISIONS APPLICABLE 25 3.5.3 MEASUREMENT RESULT 25 3.6 BAND EDGE 26 3.6.1 MEASUREMENT METHOD 26 3.6.2 PROVISIONS APPLICABLE 26 3.6.3 MEASUREMENT RESULT 26 APPENDIX I 27 APPENDIX II 33 APPENDIX III 37 APPENDIX IV 39 4 . EUT TEST PHOTO 40 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Page 4 of 40 Report No.: NTEK-2013NT0118569F1 ` 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: Item Number Item Description FCC Rules Result 1 Output Power Conducted Output Power 22.913(a) / 24.232 (b) Pass Radiated Output Power 2 Spurious Emission Conducted Spurious Emission 2.1051 / 22.917 / 24.238 Pass Radiated Spurious Emission 3 Frequency Stability 2.1055 /24.235 Pass 4 Occupied Bandwidth 2.1049 (h)(i) Pass 5 Emission Bandwidth 22.917(b) / 24.238 (b) Pass 6 Band Edge 22.917(b) / 24.238 (b) Pass Page 5 of 40 Report No.: NTEK-2013NT0118569F1 ` 1.1 TEST FACILITY NTEK Testing Technology Co., Ltd Add. : 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street, Bao’an District, Shenzhen P.R. China. FCC FRN Registration Nombre:238937; IC Registration Nombre:9270A-1 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U，where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 No. Item Uncertainty 1 Conducted Emission Test ±1.38dB 2 Radiated Emission Test ±3.17dB 3 RF power,conducted ±0.16dB 4 Spurious emissions,conducted ±0.21dB 5 All emissions,radiated(<1G) ±4.68dB 6 All emissions,radiated(>1G) ±4.89dB Page 6 of 40 Report No.: NTEK-2013NT0118569F1 ` 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT Equipment Bluetooth phone companion Trade Name N/A Model Name MokaBlue, MokaBlue2,MokaBlue3,MokaBlue4, MokaBlue5, MokaBlue6,D4-S2,D4-C,D5-C,D5-C2 Model Difference All model are the same circuit and RF module, except the model name. All test base on MokaBlue Frequency: GSM 850 MHz; PCS 1900 MHz Output Power: GSM850(Class 4) : 1.702 W (32.31dBm) GSM1900 (Class 1) : 1.044 W (30.19dBm) SIM card: Onlyone card Type of Modulation GMSK Antenna Type PCB Antenna Power Source DC Voltage supplied from battery Power Rating DC 3.7V -4.2V Connecting I/O Port(s) Please refer to the User's Manual Products Covered N/A EUT Modification(s) N/A Note: 1. For a more detailed features description, please refer to the manufacturer’s specifications or the User's Manual. Page 7 of 40 Report No.: NTEK-2013NT0118569F1 ` 2.2 DESCRIPTION OF TEST MODES To investigate the maximum EMI emission characteristics generates from EUT, the test system was pre-scanning tested base on the consideration of following EUT operation mode or test configuration mode which possible have effect on EMI emission level. Each of these EUT operation mode(s) or test configuration mode(s) mentioned above was evaluated respectively. For Radiated Emission Final Test Mode Des…

Text truncated - open the document above for the full version.

Page 49 of 50 Report No.: NTEK-2013NT0118569F 10. EUT TEST PHOTO Radiated Measurement Photos Page 50 of 50 Report No.: NTEK-2013NT0118569F Conducted Measurement Photos
