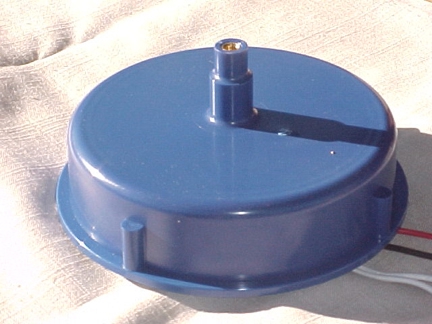

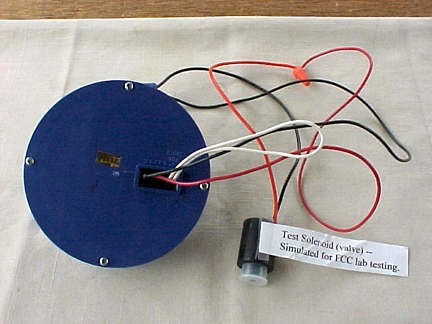

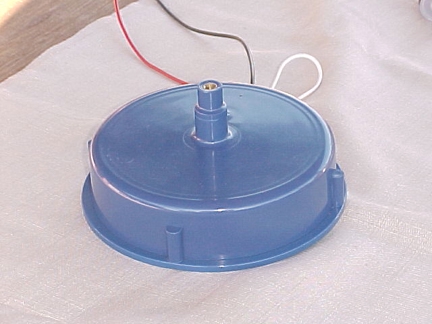

RHISACONTValve Box Controller

Report Number: B31001A3 FCC Part 15 Subpart B and FCC Section 15.231 Test Report Transceiver Model: Smart Alex Controller 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 1 of 15 FCC PART 15, SUBPART B and C TEST REPORT for TRANSCEIVER MODEL: SMART ALEX CONTROLLER Prepared for ALEX-TRONIX 4761 WEST JACQUELYN AVENUE FRESNO, CA 93722 Prepared by:_____________________ MICHAEL CHRISTENSEN Approved by:____________________ KYLE FUJIMOTO COMPATIBLE ELECTRONICS INC. 114 OLINDA DRIVE BREA, CALIFORNIA 92823 (714) 579-0500 DATE: OCTOBER 16, 2003 REPORT APPENDICES TOTAL BODY A B C D E PAGES 15 2 2 2 10 18 49 This report shall not be reproduced except in full, without the written approval of Compatible Electronics. Report Number: B31001A3 FCC Part 15 Subpart B and FCC Section 15.231 Test Report Transceiver Model: Smart Alex Controller 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 2 of 15 TABLE OF CONTENTS Section / Title PAGE GENERAL REPORT SUMMARY 4 SUMMARY OF TEST RESULTS 4 1. PURPOSE 5 2. ADMINISTRATIVE DATA 6 2.1 Location of Testing 6 2.2 Traceability Statement 6 2.3 Cognizant Personnel 6 2.4 Date Test Sample was Received 6 2.5 Disposition of the Test Sample 6 2.6 Abbreviations and Acronyms 6 3. APPLICABLE DOCUMENTS 7 4. DESCRIPTION OF TEST CONFIGURATION 8 4.1 Description Of Test Configuration - EMI 8 4.1.1 Cable Construction and Termination 9 5. LISTS OF EUT, ACCESSORIES AND TEST EQUIPMENT 10 5.1 EUT and Accessory List 10 5.2 EMI Test Equipment 11 6. TEST SITE DESCRIPTION 12 6.1 Test Facility Description 12 6.2 EUT Mounting, Bonding and Grounding 12 7. TEST PROCEDURES 13 7.1 Radiated Emissions (Spurious and Harmonics) Test 13 7.2 Bandwidth of the Fundamental 14 8. CONCLUSIONS 15 Report Number: B31001A3 FCC Part 15 Subpart B and FCC Section 15.231 Test Report Transceiver Model: Smart Alex Controller 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 3 of 15 LIST OF APPENDICES APPENDIX TITLE A Laboratory Recognitions B Modifications to the EUT C Additional Models Covered Under This Report D Diagrams, Charts, and Photos • Test Setup Diagrams • Radiated Emissions Photos • Antenna and Effective Gain Factors E Data Sheets LIST OF FIGURES FIGURE TITLE 1 Plot Map And Layout of Radiated Site Report Number: B31001A3 FCC Part 15 Subpart B and FCC Section 15.231 Test Report Transceiver Model: Smart Alex Controller 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 4 of 15 GENERAL REPORT SUMMARY This electromagnetic emission test report is generated by Compatible Electronics Inc., which is an independent testing and consulting firm. The test report is based on testing performed by Compatible Electronics personnel according to the measurement procedures described in the test specifications given below and in the "Test Procedures" section of this report. The measurement data and conclusions appearing herein relate only to the sample tested and this report may not be reproduced without the written permission of Compatible Electronics, unless done so in full. This report must not be used to claim product endorsement by NVLAP, NIST or any other agency of the U.S. Government. Device Tested: Transceiver Model: Smart Alex Controller S/N: N/A Product Description: See Expository Statement Modifications: The EUT was not modified in order to meet the specifications. Manufacturer: Alex-Tronix 4761 Jacquelyn Avenue Fresno, CA 93722 Test Date: September 17 and October 1, 3 and 7, 2003 Test Specifications: EMI requirements CFR Title 47, Part 15 Subpart B; and Subpart C, Sections 15.205, 15.209 and 15.231 Test Procedure: ANSI C63.4: 2001 Test Deviations: The test procedure was not deviated from during the testing. SUMMARY OF TEST RESULTS TEST DESCRIPTION RESULTS 1 Conducted RF Emissions, 150 kHz - 30 MHz This test was not performed because the EUT operates on DC power only and cannot be plugged into the AC public mains. 2 Radiated RF Emissions, 10 kHz - 4180 MHz Complies with the Class B limits of CFR Title 47, Part 15, Subpart B; and Subpart C, sections 15.205, 15.209, and 15.231. Report Number: B31001A3 FCC Part 15 Subpart B and FCC Section 15.231 Test Report Transceiver Model: Smart Alex Controller 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 5 of 15 1. PURPOSE This document is a qualification test report based on the Electromagnetic Interference (EMI) tests performed on the Transceiver Model: Smart Alex Controller. The EMI measurements were performed according to the measurement procedure described in ANSI C63.4: 2001. The tests were performed in order to determine whether the electromagnetic emissions from the equipment under test, referred to as EUT hereafter, are within the Class B specification limits defined by CFR Title 47, Part 15, Subpart B; and Subpart C, sections 15.205, 15.209, and 15.231. Report Number: B31001A3 FCC Part 15 Subpart B and FCC Section 15.231 Test Report Transceiver Model: Smart Alex Controller 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 6 of 15 2. ADMINISTRATIVE DATA 2.1 Location of Testing The EMI tests described herein were performed at the test facility of Compatible Electronics, 114 Olinda Drive, Brea, California 92823. 2.2 Traceability Statement The calibration certificates of all test equipment used during the test are on file at the location of the test. The calibration is traceable to the National Institute of Standards and Technology (NIST). 2.3 Cognizant Personnel Alex-Tronix George Alexanian Owner Compatible Electronics, Inc. Benigno Chavez Test Technician Kyle Fujimoto Test Engineer James Ross Test Engineer Michael Christensen Sr. Test Engineer 2.4 Date Test Sample was Received The test sample was received on August 20, 2003. 2.5 Disposition of the Test Sample The sample has not yet been returned to Alex-Tronix as of October 14, 2003. 2.6 Abbrev…

Text truncated - open the document above for the full version.

Ref Lvl 92 dB  V Ref Lvl 92 dB  V RBW 1 MHz VBW 1 MHz RF Att 20 dB A IN1 Unit dB  V TRG SWT 250 ms Center 417.9602605 MHz25 ms/ 2VIEW2AP Time of the Largest Pulse 0 10 20 30 40 50 60 70 80 -8 92 1 1 Delta 1 [T2] 0.39 dB 23.547094 ms 1 [T2] 41.17 dB  V 27.054108 ms 1 [T2] 0.39 dB 23.547094 ms D1 60 dB  V Date: 3.OCT.2003 18:51:21 Time of Extra Large Pulse = 23.547094 mSec Ref Lvl 92 dB  V Ref Lvl 92 dB  V RBW 1 MHz VBW 1 MHz RF Att 20 dB A IN1 Unit dB  V TRG SWT 200 ms Center 417.9602605 MHzTrigger 250 ns20 ms/ Time of Small Pulse 2VIEW T 2AP 0 10 20 30 40 50 60 70 80 -8 92 1 1 Delta 1 [T2] -0.44 dB 2.004006 ms 1 [T2] 41.42 dB  V 20.841657 ms 1 [T2] -0.44 dB 2.004006 ms D1 60 dB  V TRG 53 dB  V Date: 3.OCT.2003 19:28:29 Time of Special Pulse Next to Extra Large Pulse = 2.00400511 mSec Ref Lvl 92 dB  V Ref Lvl 92 dB  V RBW 1 MHz VBW 1 MHz RF Att 20 dB A IN1 Unit dB  V TRG SWT 50 ms Center 417.9602605 MHz5 ms/ 2VIEW2AP Time of 2nd Largest Pulse 0 10 20 30 40 50 60 70 80 -8 92 1 1 Marker 1 [T2] 40.10 dB  V 6.713427 ms 1 [T2] 40.10 dB  V 6.713427 ms 1 [T2] 1.02 dB 3.106212 ms D1 60 dB  V Date: 3.OCT.2003 18:57:51 Time of Large Pulse = 3.106212 mSec Ref Lvl 92 dB  V Ref Lvl 92 dB  V RBW 1 MHz VBW 1 MHz RF Att 20 dB A IN1 Unit dB  V TRG SWT 50 ms Center 417.9602605 MHz5 ms/ 2VIEW2AP Time of 3rd Largest Pulse 0 10 20 30 40 50 60 70 80 -8 92 1 1 Marker 1 [T2] 41.11 dB  V 21.342685 ms 1 [T2] 41.11 dB  V 21.342685 ms 1 [T2] -0.82 dB 2.304609 ms D1 60 dB  V Date: 3.OCT.2003 18:59:03 Time of Medium Sized Pulse = 2.304609 mSec Ref Lvl 92 dB  V Ref Lvl 92 dB  V RBW 1 MHz VBW 1 MHz RF Att 20 dB A IN1 Unit dB  V TRG SWT 50 ms Center 417.9602605 MHz5 ms/ 2VIEW2AP Time of Small Pulse 0 10 20 30 40 50 60 70 80 -8 92 1 1 Delta 1 [T2] -1.04 dB 1.202405 ms 1 [T2] 40.14 dB  V 42.885772 ms 1 [T2] -1.04 dB 1.202405 ms D1 60 dB  V Date: 3.OCT.2003 19:00:15 Time of Small Pulse = 1.202405 mSec Ref Lvl 92 dB  V Ref Lvl 92 dB  V RBW 1 MHz VBW 1 MHz RF Att 20 dB A IN1 Unit dB  V TRG SWT 200 ms Center 417.9602605 MHzTrigger 250 ns20 ms/ Time of Small Pulse 2VIEW T 2AP 0 10 20 30 40 50 60 70 80 -8 92 1 1 Delta 1 [T2] -31.59 dB 101.001878 ms 1 [T2] 73.59 dB  V 0.000000 s 1 [T2] -31.59 dB 101.001878 ms D1 60 dB  V TRG 53 dB  V Date: 3.OCT.2003 19:08:52 Number of Pulses over worst case 100 mS The Extra Large Pulse at the beginning (1 * 23.547094) = 23.547094 mSec The Special Pulse Next to the Very Large Pulse (1 * 2.00400511)= 2.00400511 mSec Two Large Pulses (2 * 3.106212) = 6.212424 mSec Eleven Medium Pulses (11* 2.304609) = 25.350699 mSec Seven Small Pulses (7 * 1.202405) = 7.1416835 mSec Total: 64.25590561 mSec = 64.25590561% Duty Cycle
