RI3-0000-01-49Remote Control Toy Transmitter

Kentoys Ltd.

Click to zoom

Application Details

Equipment Class: DXX - Part 15 Low Power Communication Device Transmitter
Date of Grant: Dec 13, 2004
Application Purpose: Original Equipment
Date of Application: Dec 13, 2004
Equipment Note: Remote Control Toy Transmitter
Frequency Range: 49.86000000 - 49.86000000
Company: Kentoys Ltd.
Country: Hong Kong

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

BRAKE BRAKE BRAKE

External Photos

PHOTOGRAPH OF THE PRODUCT FRONT VIEW OF THE PRODUCT REAR VIEW OF THE PRODUCT

Internal Photos

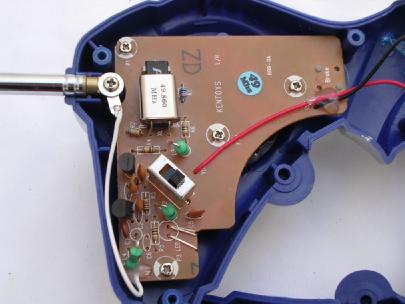

PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT TOP VIEW INNER CIRCUIT BOTTOM VIEW

Operational Description

FCC ID: RI3-0000-01-49 Circuit Description The 49.86MHz crystal oscillator drives the base of Q2 the final/buffer amplifier. The modulation provided by IC. The output of Q2 has the matching network consisting of L4 and C6 that limit the harmonic content and effect the proper coupling of the antenna to the output stage. Antenna, Ground and Power Source The antenna consists of a 47.2cm long metal antenna. There is no external ground connection. The ground is only that of the printed circuit board. Electric current is supplied by a 4.5 Volt (“AA” size battery x 3) primary battery

Schematics

Test Report

香港標準及檢定中心 Hong Kong Standards and Testing Centre Date : 2004-11-26 TEST REPORT Page 1 of 18 No. : HM152819 This report shall not be reproduced unless with prior written approval from the Hong Kong Standards and Testing Centre. 香港新界大埔工業村大宏街10號 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of STC: www.hkstc.org (the section “Application and Quotation”). Applicant: Kentoys Ltd. Rm. 2303-6 23/F., Grandtech Centre, 8 On Ping Street, Siu Lek Yuen, Shatin, N.T., Hong Kong. Description of Samples: Model name: Compact Pistol Transmitter Model no.: 0000-01 Brand name: N/A FCC ID: RI3-0000-01-49 Date Samples Received: 2004-11-05 Date Tested: 2004-11-11 Investigation Requested: FCC Part 15 Subpart C Conclusions: The submitted product COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Remarks: ---- K C Lee, EMC for Chief Executive 香港標準及檢定中心 Hong Kong Standards and Testing Centre Date : 2004-11-26 TEST REPORT Page 2 of 18 No. : HM152819 香港新界大埔工業村大宏街10號 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of STC: www.hkstc.org (the section “Application and Quotation”). CONTENT: Cover Page 1 of 18 Content Page 2-3 of 18 1.0 General Details 1.1 Test Laboratory Page 4 of 18 1.2 Applicant Details Page 4 of 18 Applicant HKSTC Code Number for Applicant Manufacturer 1.3 Equipment Under Test [EUT] Page 5 of 18 Description of EUT operation 1.4 Date of Order Page 5 of 18 1.5 Submitted Samples Page 5 of 18 1.6 Test Duration Page 5 of 18 1.7 Country of Origin Page 5 of 18 1.8 Additional Information of EUT Page 6 of 18 2.0 Technical Details 2.1 Investigations Requested Page 7 of 18 2.2 Test Standards and Results Summary Page 7 of 18 3.0 Test Results 3.1 Emission Page 8-11 of 18 3.2 Bandwidth Measurement Page 12-13 of 18 香港標準及檢定中心 Hong Kong Standards and Testing Centre Date : 2004-11-26 TEST REPORT Page 3 of 18 No. : HM152819 香港新界大埔工業村大宏街10號 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of STC: www.hkstc.org (the section “Application and Quotation”). Appendix A List of Measurement Equipment Page 14 of 18 Appendix B Duty Cycle Correction During 100 msec Page 15-16 of 18 Appendix C Photographs Page 17-18 of 18 香港標準及檢定中心 Hong Kong Standards and Testing Centre Date : 2004-11-26 TEST REPORT Page 4 of 18 No. : HM152819 香港新界大埔工業村大宏街10號 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of STC: www.hkstc.org (the section “Application and Quotation”). 1.0 General Details 1.1 Test Laboratory The Hong Kong Standards and Testing Centre Ltd. EMC Laboratory 10 Dai Wang Street, Taipo Industrial Estate New Territories, Hong Kong 1.2 Applicant Details Applicant Kentoys Ltd. Rm. 2303-6 23/F., Grandtech Centre, 8 On Ping Street, Siu Lek Yuen, Shatin, N.T., Hong Kong. HKSTC Code Number for Applicant GLT001 Manufacturer Kentoys Ltd. Rm. 2303-6 23/F., Grandtech Centre, 8 On Ping Street, Siu Lek Yuen, Shatin, N.T., Hong Kong. 香港標準及檢定中心 Hong Kong Standards and Testing Centre Date : 2004-11-26 TEST REPORT Page 5 of 18 No. : HM152819 香港新界大埔工業村大宏街10號 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of STC: www.hkstc.org (the section “Application and Quotation”). 1.3 Equipment Under Test [EUT] Description of Sample Model Name: Compact Pistol Transmitter Manufacturer: Kentoys Ltd. Brand Name: N/A Model Number: 0000-01 Input Voltage: 4.5Vd.c (“AA” size battery x 3) 1.3.1 Description of EUT Operation The Equipment Under Test (EUT) is a Kentoys Ltd., Compact Pistol Transmitter . The transmitter is a 1 trigger transmitter. The EUT continues to transmit while button is being pressed, Modulation by IC. and type is pulse modulation. 1.4 Date of Order 2004-11-05 1.5 Submitted Sample(s): 1 Sample per model 1.6 Test Duration 2004-11-11 1.7 Country of Origin China 香港標準及檢定中心 Hong Kong Standards and Testing Centre Date : 2004-11-26 TEST REPORT Page 6 of 18 No. : HM152819 香港新界大埔工業村大宏街10號 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of STC: www.hkstc.org (the section “Application and Quotation”). 1.8 Additional Information of EUT Submitted Not Available User Manual Part List Circuit Diagram Printed Circuit Board [PCB] Layout Block diagram FCC ID Label 香港標準及檢定中心 Hong Kong Standards and Testing Centre Date : 2004-11-26 TEST REPORT Page 7 of 18 No. : HM152819 香港新界大埔工業村大宏街10號 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of STC: www.hkstc.org (the section “Application and Quotation”). 2.0 Technical Det…

Text truncated - open the document above for the full version.

Test Setup Photos

TEST SET UP PHOTOGRAPH OF THE PRODUCT MEASUREMENT OF RADIATED EMISSION TEST SET UP
