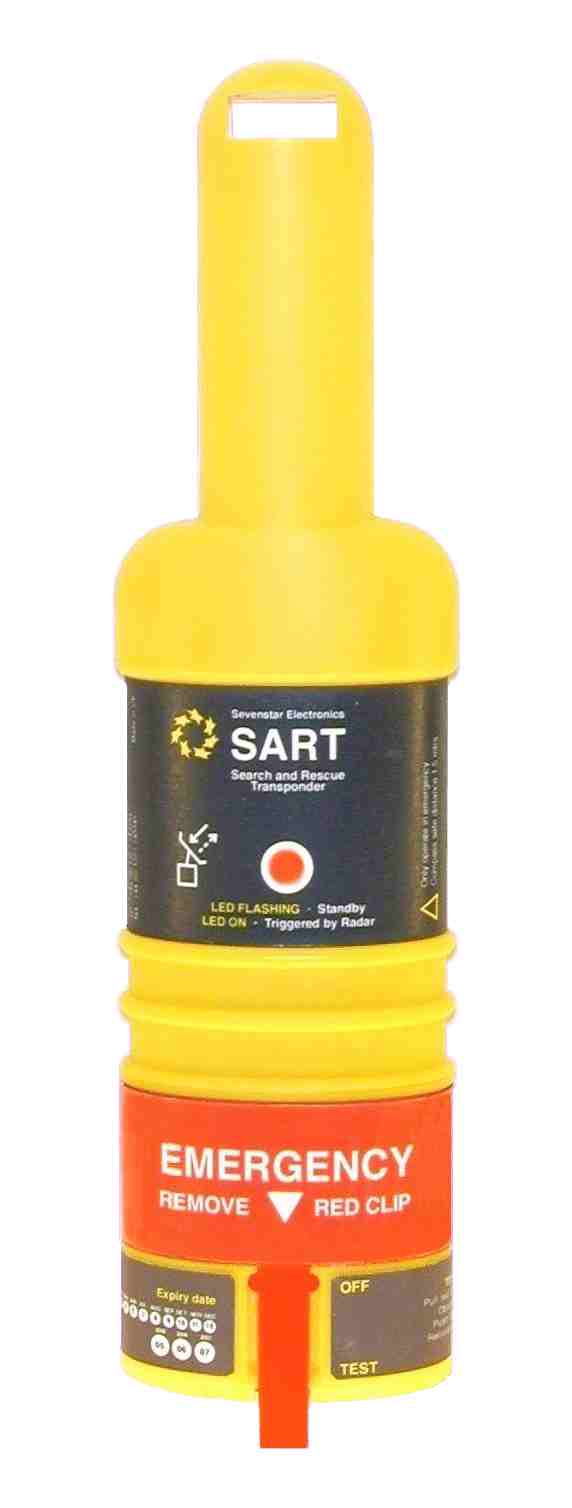

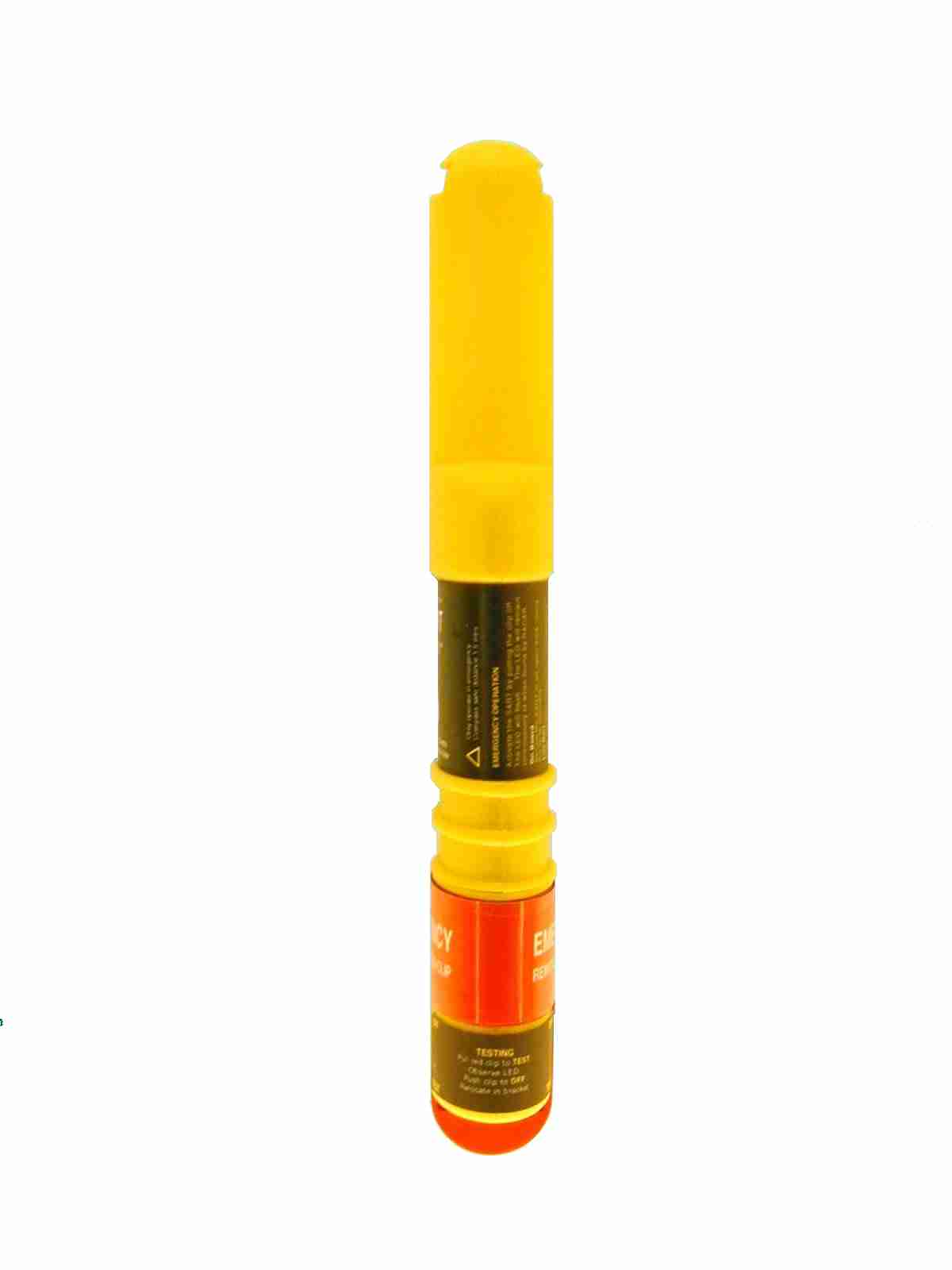

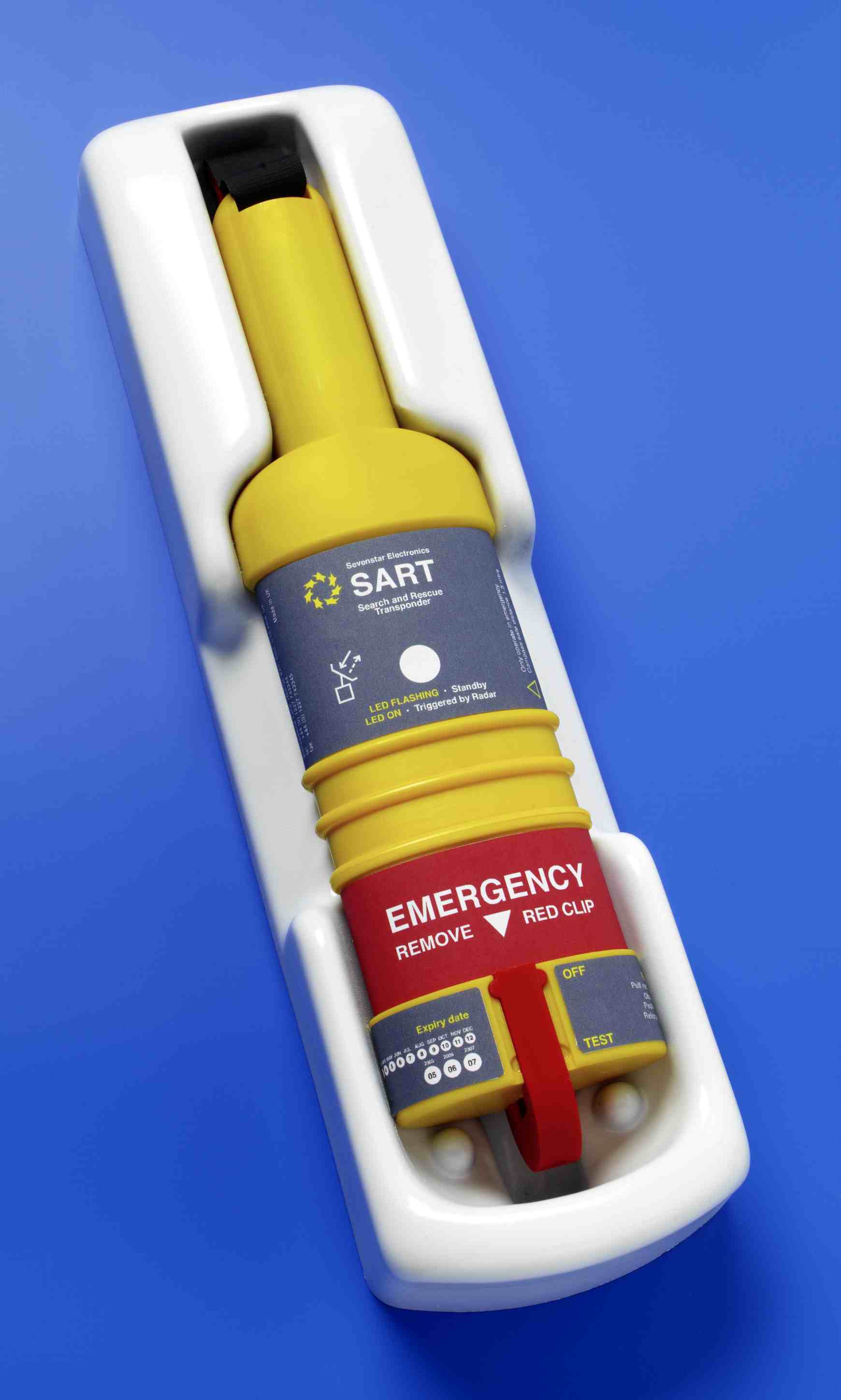

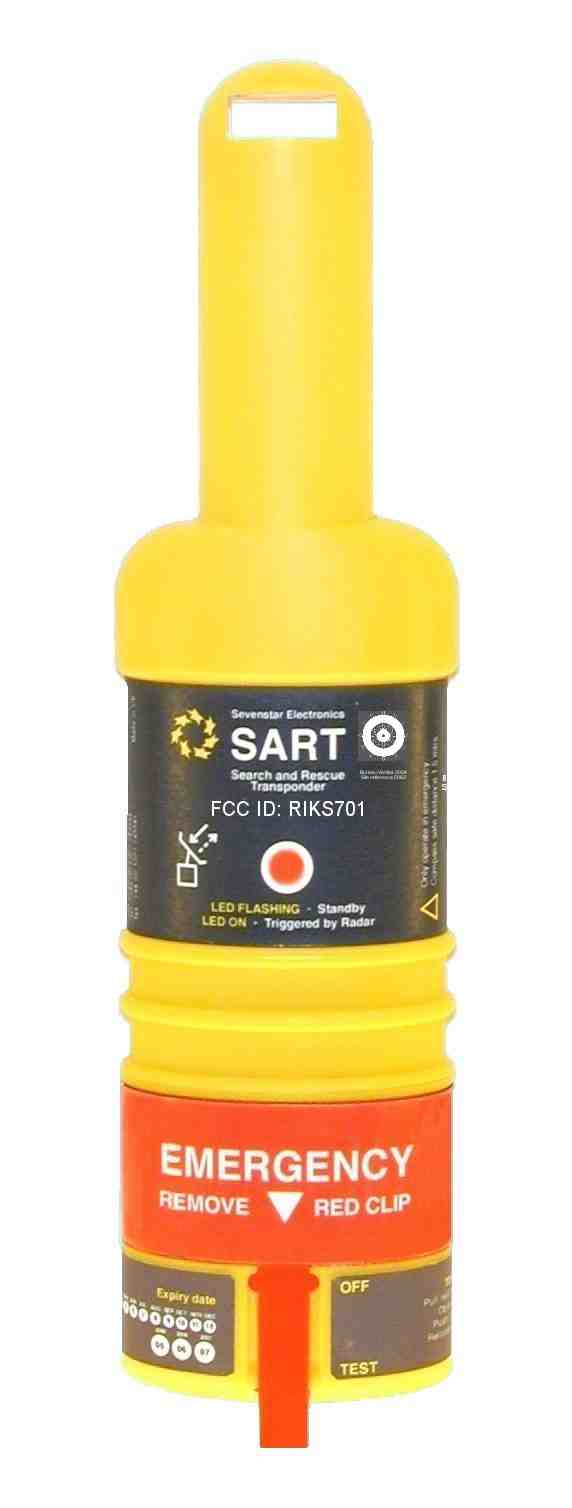

RIKS701Search and Rescue Transponder

For your nearest distributor contact SevenStar Electronics Limited on: Tel: (+44) (0) 1793 852829 Email: sales@SevenStarElectronics. com The S.701 SART has been designed to comply with Ma-rine Equipment Directive and USCG requirements. Slim, modern, lightweight unit for carry-off use or permanent in- stallation in life rafts Manual or auto activation Non-hazardous , field-changeable battery pack Fully complies with: IEC 1097-1 IEC 90645 ITU-R M.628-3 IMO A.802 (19) IMO A.694 (17) Optional mount-ing pole S.701 SART User Guide THE UNIQUE BENEFITS OF OWNING A SEVENSTAR SART SevenStar Electronics Ltd has beenassessed and approved to BS EN ISO9001:2000. T he information in this User Guide is accurate at the time of printing, anddoes not form a contract betweenSevenStar and any other party.  SevenStar Electronics Ltd 2003 ™ Ergonomic, lightweight design ™ Easy to handle and operate ™ Designed for ‘carry-off’ OR for permanent liferaft installation ™ The only SART that uses non- hazardous batteries – safer andmuch cheaper to replace when necessary ™ Manual OR auto activation ™ Compact, modern design also excellent for leisure craft ™ Field-replaceable battery minimises cost of ownership ™ Digital design guarantees excellent lifetime performance under all conditions TO ACTIVATE THE SART IN AN EMERGENCY: WITHDRAW SART FROM BRACKET PULL DOWN ON THE RED CLIP TO ACTIVATE MAKE YOUR WAY TO LIFERAFT FIT TO LIFERAFT AS SHOWN INSTALLATION Mounting Bracket Fix the mounting bracket to a secure section of wall orbulkhead, away from any directsource of heat, oil, water, fuel,etc. Check that all straps are clear of sharp edges orcontamination. Two SARTs canoften be mounted one on eitherside of the bridge wing oncommercial vessels. Install the SART into thebracket, ensuring the b lack hanging strap is located into itsrecess behind the SART ( main label facing you ) . Secure the SART with the red Velcro fastening strap. Permanent installation on Survival Craft (option) T he S.701 SART from SevenStar Electronics has beenspecifically designed for eas y installation into liferafts, andcan be arranged for manual orautomatic activation. Automaticactivation can be achieved b y securing the hanging strap andthe activation clip to theappropriate parts of the liferaft. Leisure Craft Stowage (option) Store in a safe location where y ou can reach it easily if needed. MAINTENENCE Regular Maintenance T he S.701 SART has been designed for minimalmaintenance. Simply check it iscorrectly fitted into its bracketand that the red activating clipremains in the OFF ( closed ) position. If necessary, wipe theunit and its bracket with a plain cloth and soapy water.SOLVENTS MUST NOT BE USED to clean the unit, asdamage may result. A SAR T should be tested annually b y removing the SART from itsbracket, pulling the red clipdownwards, and holding theSART so an X-band radar settriggers it. The radar displa y should show concentric rings,and the SART LED should flashrapidly. Battery Replacement T his unit contains special batteries in a sealed pack, partnumber S.701B . The batter y pack is marked with its expir y date, which is usually 5 yearsfrom purchase. Replacementpacks are available fromSevenStar, or from theirappointed agents worldwide.Battery pack replacement canbe performed by any competentservice agent, or by ourappointed distributors ( see web site). USE Release the red Velcro strap, then pull the SART from the mounting bracket. Make your way to the liferaft. Pull down firmly on the red activation clip to turn the SART ‘ON’. The LED will flash slowly. When in range of a radar signal, the LED will flash rapidly. Pass one end of the blac k hanging strap over the top o f the support tube, and tie thestrap to allow the SART tohang in the centre of the craft.Alternatively, you can mountthe SART on the telescopicpole if provided (option).

Co. Registration No: 4482935 1 VAT Registration No: 824 5627 23 Unit 7, Richards Close Wootton Bassett Wiltshire SN4 7LE United Kingdom (+44) (0) 1793 852829 S S S e e e v v v e e e n n n S S S t t t a a a r r r E E E l l l e e e c c c t t t r r r o o o n n n i i i c c c s s s Email: [email protected] Web: www.sevenstarelectronics.com To Whom It May Concern Date: 20 th Jan 2004 Regarding: The properties of Styrosun thermoplastic mouldings, as used in the S.701 SART from SevenStar Electronics Ltd., with respect to the requirements of IEC 61097-1 and IEC 90645 4 th edition, as repeated hereunder: 1. IEC 61097-1 para 3.2.11 states that the unit shall “ be not unduly affected by seawater or oil”. Under Methods of Testing, para 6.2.11 states that it “shall comply with 16.9 of IEC 945. In addition, shall comply with SOLAS Chap III, Regulation 30.2.4”. IEC60945 states in para’s 8.11.1 and 8.12.1, that the requirement for oil and salt mist tests “shall be waived for portable equipment where the manufacturer is able to provide evidence that the components, materials and finishes employed in the equipment would satisfy the test”. 2. IEC 61097-1 para 3.2.12 states that the unit shall “be resistant to deterioration in prolonged exposure to sunlight”. Under Methods of Testing, para 6.2.12 states this shall be done “By inspection. The manufacturer shall be required to produce evidence that the materials used ... are unlikely to be affected adversely by prolonged exposure to sunlight”. IEC 60945 states in para 8.10.1 that the requirement for solar radiation testing “shall be waived where the manufacturer is able to produce evidence that the components, materials and finishes employed in the equipment would satisfy the test”. Text: I. SevenStar has specifically chosen ‘Styrosun’ high impact polystyrene from Nova Chemicals because of its excellent properties in external environments. I quote: “Nova Chemical’s Styrosun resins are weatherable, high-impact styrenic polymers specifically designed for use in outdoor applications. Resistant to the effects of sunlight, Styrosun resins maintain significant physical properties after weathering. The weather resistant properties of Styrosun resins are achieved by combining proprietary UV-stabilization technology with inherently UV-stable impact modifier.” II. In addition to its excellent physical properties, Styrosun resins offer low dielectric loss that also recommends its use for radio and radar equipment, satellite antennas, and other items for an external environment. Co. Registration No: 4482935 2 VAT Registration No: 824 5627 23 Unit 7, Richards Close Wootton Bassett Wiltshire SN4 7LE United Kingdom (+44) (0) 1793 852829 S S S e e e v v v e e e n n n S S S t t t a a a r r r E E E l l l e e e c c c t t t r r r o o o n n n i i i c c c s s s Email: [email protected] Web: www.sevenstarelectronics.com III. “STYROSUN is an EPDM rubber-modified, high-impact polystyrene that exhibits higher resistance to ultraviolet (UV) rays and oxidative deterioration than traditional styrenic polymers. STYROSUN is currently used in numerous outdoor applications including telecommunications equipment, transportation and recreational vehicles, household appliances, placards and billboards and building and construction elements.” IV. SUN LIGHT. “Data collected from an extensive alpine outdoor weathering test revealed that UV-stabilized ABS and UV-stabilized high-impact polystyrene experienced twice as much yellowing from UV rays as STYROSUN. In addition, the impact property retention of STYROSUN was much better than other styrenic polymers such as UV-stabilized high-impact polystyrene and UV- stabilized ABS, and similar to acrylonitrile styrene acrylate (ASA).” Data from alpine weathering tests is reproduced in the data that accompanies this statement. V. SALT WATER. With the exception of a single A4 grade stainless steel socket- head bolt head, which is itself recessed some 30mm upwards in a cavity; there is no exposed metal outside the body of the S.701 SART. It is therefore unaffected by the corrosive action of salt water. (Most of the properties of a thermoplastic resin are set by the basic polymer properties. Thermoplastics in general, including polystyrenes, exhibit excellent resistance to salt water. “Styrosun exhibits standard polystyrene resistance to salt water, and would be expected to perform equal to regular HIPS (high impact polystyrene) in any salt water applications.”) No salt spray testing was therefore deemed necessary. VI. OIL. Virtually all thermoplastics can be affected by long-term immersion in oil or petroleum derivatives. However, in this environment, as specified within IEC 61097-1 and IEC 60945, the SART will NOT be continuously immersed in petroleum or its derivatives. Styrosun will perform more than adequately for occasional contact in a maritime environment. TEST PERFORMED: As per IEC 60945 para 8.11, a sample SART was immersed in mineral oil ‘ISO no 1’ at 20 °C for 3 hours. The sample was then cleaned and inspected. The unit showed no sign of staining, shrinking, crazing, swelling or cracking, or other physical degradation whatsoever. It passed the performance check with no detectable change from before the test. By inspection, there was no noticeable change in the physical properties of the plastic. (Test performed on 15.1.2004 at SevenStar premises by Quality Manager, witnessed by Internal Quality Auditor.) Test Passed. Co. Registration No: 4482935 3 VAT Registration No: 824 5627 23 Unit 7, Richards Close Wootton Bassett Wiltshire SN4 7LE United Kingdom (+44) (0) 1793 852829 S S S e e e v v v e e e n n n S S S t t t a a a r r r E E E l l l e e e c c c t t t r r r o o o n n n i i i c c c s s s Email: [email protected] Web: www.sevenstarelectronics.com SUMMARY In view of the above, SevenStar believes that Styrosun is an excellent choice for use in a Marine Search & Rescue Transponder as specified by IEC 61097-1. Its re…

Text truncated - open the document above for the full version.

Confidential STYRO STYRO SUN SUN ® ® Weather Resistant High Impact PS For The Tough Outdoors For The Tough Outdoors Confidential STYRO STYRO SUN SUN ® ® General Characteristics: • High Toughness Material. • UV Resistant. • Easy Processing, Injection Molding and (co-)Extrusion, like HIPS.• Recyclable. • Coloring. Confidential STYRO STYRO SUN SUN ® ® Properties S.I. Units STYROSUN 3600 STYROSUN 4400 STYROSUN 4600 STYROSUN 5400 STYROSUN 6600 ISO Standard MVR (200,5) ccm/10min 5.5 2.5 3.2 2.5 1.7 1133 H MFR (200,5) g/10min 6 2.6 3.3 2.6 1.7 1133 H Vicat (B/50) C8386748984306 B50 HDT (A 1.8MPa) C 74 70 76 75 75 -1& -2Af Charpy Unnotched @ 23C kJ/m No Break 112 No Break 120 No Break 179/1eU Charpy Notched @ 23C kJ/m 18 14 25 14 23 179/1eA Flexural Modulus MPa 2050 2300 1800 2200 2000 178 Flexural Strength MPa3843334539 178 Tensile Modulus MPa 1950 2100 1800 2100 1900 527 -1& -2/1A/1 Tensile stress at yield MPa 28 31 24 35 29 527 -1& -2/1A/50 Tensile strain at yield % 1.8 1.9 1.8 2.3 2.1 527 -1& -2/1A/50 Tensile stress at break MPa 40 40 40 35 50 527 -1& -2/1A/50 Tensile strain at break % 21 24 19 27 23 527 -1& -2/1A/50 Density at 23 C kg/m 1.02 1.03 1.02 1.02 1.01 1183 Moulding shrinkage % 0.3 0.3 0.3 0.4 0.3 294-4 - Properties were determined on injection molded specimens at 23C and 50% R.H. unless otherwise specified- Typical Values represent average laboratory values and are intended as guides only, not as specific specification limits Confidential STYRO STYRO SUN SUN ® ® ExcellentAcceptable MinorMinor MinorMinor GoodGood PROPERTIES Color stability Aging 2-4 h (80°C)GoodGoodGoodGoodExtra drying 2-4 h (80°C)AcceptableAcceptableGoodGoodExtra drying NoExcellentGoodGoodExcellentGood NoGoodGoodGoodExcellentGood PROCESSING Pre-drying Injection moldingExtrusionCo-extrusionThermoforming Recycling ASA ABS (UV) HIPS Styro sun ® Confidential STYRO STYRO SUN SUN ® ® UV-HIPS ABS HIPS STYRO STYRO SUN SUN ® ® QUV Color Stability 05 10152025303540 0 100 200 300 400 500 600 700 800 900 QUV Exposure (hours) delta E Color Retention Confidential STYRO STYRO SUN SUN ® ® Impact as function of Light Exposure 0 20406080 100120 0 100 200 300 400 500 600 700 Exposure (hours) Notched Izod Impact (kJ/m2) STYRO STYRO SUN SUN ® ® ASA QUV WOM Toughness Retention Confidential STYRO STYRO SUN SUN ® ® Alpine Outdoor Weathering Test Confidential STYRO STYRO SUN SUN ® ® Effect Color on QUV Stability 05 10152025303540 0 200 400 600 800 1000 1200 1400 1600 1800 2000 QUV Exposure (hours) delta E Natural White Beige Grey Green Black ASA Red Effect Color on QUV Stability Confidential STYRO STYRO SUN SUN ® ® HIPS ABS STYROSUN ASA 60 120240480360720 Days Confidential STYRO STYRO SUN SUN ® ® 1.E-04 1.E-03 1.E-02 1.E-01 1.E+00 PS STYROSUN SB-Elastomers PC SANAB S AS A PMMA PA Dielectric Loss Factor Confidential STYRO STYRO SUN SUN ® ® Applications Applications Automotive Automotive • • Truck spoilers Truck spoilers • • Translucent ski Translucent ski - - light covers light covers Recreation Recreation • • Small boats Small boats • • Caravan body parts Caravan body parts • • Ski boxes, Model airplanes Ski boxes, Model airplanes • • Recreational vehicles Recreational vehicles • • Golf parts Golf parts Construction Construction • • Post and profile doors Post and profile doors • • Windows, Windows, Synthetic wood Synthetic wood • • Roof ventilation ducts Roof ventilation ducts • • Signs and billboards Signs and billboards • • Cupboards Cupboards Appliances Appliances • • Rain gauges for weather stations Rain gauges for weather stations • • Satellite telephone housings Satellite telephone housings • • Satellite receiving dishes Satellite receiving dishes • • Pump housings Pump housings • • Solariums Solariums 80% Extrusion20% Injection Molding Confidential STYRO STYRO SUN SUN ® ® Synthetic Wood Applications Synthetic Wood Applications Confidential STYRO STYRO SUN SUN ® ® Antenna Covers Antenna Covers U.K. Customer RACAL has plant in Texas !! Confidential STYRO STYRO SUN SUN ® ® Mobile Home Components Mobile Home Components Confidential STYRO STYRO SUN SUN ® ® Window Profiles and Ventilation Covers Window Profiles and Ventilation Covers Confidential STYRO STYRO SUN SUN ® ® Chimney cover Solarium components

Co. Registration No: 4482935 1 VAT Registration No: 824 5627 23 Unit 7, Richards Close Wootton Bassett Wiltshire SN4 7LE United Kingdom (+44) (0) 1793 852829 S S S e e e v v v e e e n n n S S S t t t a a a r r r E E E l l l e e e c c c t t t r r r o o o n n n i i i c c c s s s Email: [email protected] Web: www.sevenstarelectronics.com ATTESTATION STATEMENT FOR SEVENSTAR SART S.701 APPLICATION FOR FCC APPROVAL Ref FCC ID: RIKS 701 I hereby attest that the technical parameters of the above named equipment conform to the performance standards as specified in Section 80.1101 for 9GHz radar transponders. Specifically, the S.701 SART complies with IMO Resolution A694 (17), A.802 (19), ITU-R Recommendation M.628-3 (1994), IEC 1097-1 (1992), IEC 60945 (1996), IMO Resolution A.604 (15) and CCIR Recommendation 628-1 (1990) EC Declaration of Conformity (Bureau Veritas – 16/3/2004): This product has been certified as having passed the EU Marine Equipment Directive Type Approval requirements, in compliance with the International Instruments and testing standards of Council Directive 96/98/EC, as amended by Commission Directive 2002/75/EC, including the SOLAS 74 Convention, as amended by 2000 SOLAS Amendments, Regs III/6.2.2 & IV/7.1.3 – 2000 HSC Code, IMO Resolution MSC.97 (93) 14.7.1.3 – IMO Resolutions A.530 (13), A694 (17), A802 (19), A813 (19), IUT-R Rec. M628- 3 – IEC 61097-1 (1992) – IEC 60945 (1996). C.R.WATTS Managing Director SevenStar Electronics Ltd 25 th May 2005

Co. Registration No: 4482935 1 VAT Registration No: 824 5627 23 Unit 7, Richards Close Wootton Bassett Wiltshire SN4 7LE United Kingdom (+44) (0) 1793 852829 S S S e e e v v v e e e n n n S S S t t t a a a r r r E E E l l l e e e c c c t t t r r r o o o n n n i i i c c c s s s Email: [email protected] Web: www.sevenstarelectronics.com March 5 th 2004 Dear sir/madam I believe you now have a complete set of documents supporting our application form 731, covering a 9GHz Search & Rescue Transponder (SART) for marine applications. Our colleague and US agent, Robert Negron of Negron Marine Consultants, lodged this application on our behalf. Our FCC ID is RIKS701. Our application for EU Marine Equipment Directive ‘Wheelmark’ approval is nearing completion with Bureau Veritas – we have been told to expect our Wheelmark certificate in the next week. I will upload a copy of the certificate into the ‘Test Results’ section of the FCC submission website unless I receive instructions to the contrary. Please copy any further correspondence regarding the approval to myself as well as to Mr Negron, and please let me know if there is any further information I can supply to further support our application. Please accept my thanks for your guidance and assistance during this application. Yours faithfully C R Watts Managing Director SevenStar Electronics Ltd

Co. Registration No: 4482935 1 VAT Registration No: 824 5627 23 Unit 7, Richards Close Wootton Bassett Wiltshire SN4 7LE United Kingdom (+44) (0) 1793 852829 S S S e e e v v v e e e n n n S S S t t t a a a r r r E E E l l l e e e c c c t t t r r r o o o n n n i i i c c c s s s Email: [email protected] Web: www.sevenstarelectronics.com 6 th April 2004 Ref: RIKS701/EA327923 Dear Mr Leimer I have today submitted some more internal photos of our SART PCB, and also circuit diagrams, as requested in your correspondence ref 26615 – my apologies for their omission. In response to your comments on confidentiality, I submit the following: The S.701 SART is indeed sealed for life – the electronics ‘payload’ is welded into its plastic case during manufacture, and is NOT accessible even during battery change. The case would have to be physically broken apart to gain access to the circuit board and antenna. We would therefore request that the internal photographs, operational descriptions, circuit diagrams and parts lists are marked as confidential to protect our Intellectual Property from inadvertent or intentional disclosure to third parties. As per your guidance, we agree with removing the ‘confidential’ marking from the other items. Please let me know if there is anything else you require for your consideration. Yours faithfully C R Watts

This document remains the property of SevenStar Electronics Limited. The contents are provided solely for the purpose of Type Approval, and shall not be used for any other purpose without written authorisation. SevenStar Electronics Ltd 2003 1 DOC.701/TF1/230903 SEVENSTAR ELECTRONICS LIMITED S.701 Search And Rescue Transponder Contents ™ Introduction ™ General Type Description ™ Applicable Specifications & Standards ™ SevenStar S.701 Search & Rescue Transponder ™ Compliance ™ Appendices 1-8 This document remains the property of SevenStar Electronics Limited. The contents are provided solely for the purpose of Type Approval, and shall not be used for any other purpose without written authorisation. SevenStar Electronics Ltd 2003 2 DOC.701/TF1/230903 Introduction The S.701 Search & Rescue Transponder (SART) from SevenStar Electronics Limited has been designed to fulfil and exceed the requirements of X-band Marine Search & Rescue Radar Transponders as specified for use within the GMDSS community. It has been designed and built using the most modern components available, and offers several features which give it significant advantages over first and second generation SARTs. SevenStar Electronics Limited has been examined and accredited to ISO BS EN 9001:2000 (Copy of certificate in Appendix 6). General Type Description Search & Rescue Transponders are mandatory carriage safety devices as part of the Global Maritime Distress Signalling System (GMDSS). SARTs are active radar transponders, and operate exclusively in the X-band, receiving and transmitting at nominally 9,200 MHz to 9,500 MHz. In brief, they are deployed during maritime emergencies as an aid to locating either vessels, or survivors who may be adrift in a life raft. Once activated, a SART ‘looks’ for an incoming radar signal from a passing vessel – note that this can be from ANY vessel equipped with a standard X-band radar set, and is not restricted to specific Search & Rescue craft. When the SART receives a valid signal, it switches into Transmit mode, and transmits a series of twelve (12) sweeps through the band 9,200 to 9,500 MHz lasting just over 100 microseconds in total. This signal is seen on the passing vessel’s radar screen as a line of twelve dots, with the SART position being given by the closest dot. This is an unmistakable signal and clearly shows the presence AND location of a vessel, survivor or life raft with an active SART. This document remains the property of SevenStar Electronics Limited. The contents are provided solely for the purpose of Type Approval, and shall not be used for any other purpose without written authorisation. SevenStar Electronics Ltd 2003 3 DOC.701/TF1/230903 SARTs within the GMDSS have to meet a number of International Maritime specifications and conventions, and these are detailed in the following section. Applicable Specifications and Standards Marine Equipment Directive: Commission Directive 2002/75/EC of 2 September 2002 amending Council Directive 96/98/EC on marine equipment Regulations referenced by 2001/53/EC (Annex A.1/4.18): SOLAS 74 as amended, Regulation III/6.2.2, Regulation IV/7.1.3 IMO Resolution MSC.36 (63) 8.2.1.2 (1994 HSC Code) IMO Resolution A.530 (13) IMO Resolution A.802 (19) IMO Resolution A.694 (17) ITU-R M.628-3 (11/93) Technical Characteristics of SARTs Standards referenced by 2001/53/EC (Annex A.1/4.18): IEC 61097-1 (1992), EN 61097-1 (1993): SART Operational & Performance Requirements, Methods of Testing & Required Test Results. IEC 60945 (1996), EN 60945 (1997): General Requirements for Maritime Equipment – Methods of Testing & Required Test Results. This document remains the property of SevenStar Electronics Limited. The contents are provided solely for the purpose of Type Approval, and shall not be used for any other purpose without written authorisation. SevenStar Electronics Ltd 2003 4 DOC.701/TF1/230903 SevenStar S.701 Search & Rescue Transponder The SevenStar S.701 SART is the result of many years collective experience in a number of key areas. The key stakeholders all have highly relevant backgrounds in Marine Equipment Design, Consultancy or Manufacture. In particular, SevenStar Electronics Ltd has brought together the following invaluable areas of expertise highly relevant to this marketplace: ™ We have had access to leading industry consultants and experts during the research, specification and mechanical design stages ™ We have intimate knowledge of the specifications, and also contribute to the various working parties and ongoing improvement process ™ We have significant in-house microwave and RF design experience, with particular expertise in the design of cost- effective equipment suitable for high volume manufacture. Specifically, this experience includes a number of Marine Radar Transponders and Enhancers, and also EPIRBs. ™ We have direct, personal experience of the design, pre- production and volume manufacturing requirements of both first and second-generation market leading SARTs. ™ As a result, the S.701 SART: • Is physically small and light (only 40mm thick, and 400gm) • Is easy to carry-off and deploy (easy shape to hold, light) • Is easy to install permanently in life rafts (low profile) • Has electronics that are sealed for life • Has a field-changeable, NON-HAZARDOUS battery • Uses digital technology to guarantee lifetime performance • Uses state-of-the art, high reliability manufacturing This document remains the property of SevenStar Electronics Limited. The contents are provided solely for the purpose of Type Approval, and shall not be used for any other purpose without written authorisation. SevenStar Electronics Ltd 2003 5 DOC.701/TF1/230903 Figure 1 - SevenStar S.701 SART ‘Emergency’ label removed to show tether wound around body. Activation clip ‘Eye’ for hanging strap High visibility LED indicator, behind clear window 332mm 40mm 80mm See Appendix 3 for actual label details This document remains the property of SevenStar Elect…

Text truncated - open the document above for the full version.

ГП ИЦ "Омега"/PE TC "Omega"Отчет / Report No04/22стр. из 50 Приложение 1 Annex 1 Проверка РЛО на соответствие комплектности и требованиям к эксплуатационной документации (п.8 Резолюции IMO А.694 (17) Check of SART to compliance request complete and service documentation §8 Resolution IMO А.694 (17) Зав. No РЛОNo1, No2, No3Температура окружающего воздуха 20°C Serial Number No SARTAmbient temperature Зав. номер отсека питанияNo4, No5, No6Влажность окружающего воздуха61% Serial Number power supply unitAmbient humidity Предъявленная документация ООО Севен стар электроникс.Аварийный Спасательный Ответчик. Общее описание типа. Техническая спецификация (на англ.языке) Submitted documantationSevenstar electronics limited. Search and Rescue Transponder.General type discription. Technical specification. Комплект составных частей РЛО Set of SART 1.Радиоблок РЛО соединенный с отсеком питания и намотанным линем 1 Radioblock SART within power supply block and buoyant floatable lanyard coiled on body SART 2.Кассета для крепления РЛО на судне1 Mounting bracket 3.Телескопический шток для установки РЛО на высоту 1 метр 1 Pole 1 meter 4.Ремешок для крепления РЛО к конструкции надувного спасательного плотика 1 Webbing strap Представленная документация -"Общее описание типа .."содержит информацию об устройстве РЛО, технические характеристики, инструкцию по эксплуатации и порядок технического обслуживания. Ремонт РЛО не предусмотрен. Документация выполнена на английском языке. Объем информации достаточен для правильной эксплуатации и обслуживания РЛО. Требования к документации (п.8 Резолюции IMO А.694 (17) Должна быть предоставлена соотвествующая информация, с тем чтобы позволить осуществить надлежащую эксплуатацию, техническое обслуживание и ремонт. Требования к комплектности Комплектность РЛО должна соответствовать перечню, указанному в сопроводительной эксплуатационной документации Вывод Эксплуатационная документация соотвествует требованиям п.8 Резолюции IMO А.694 (17) Комплектность РЛО соотвествует требованиям эксплуатационной документации Conclusion Service documentation compliance request p.8 Resolution IMO А.694 (17) Complete SART compliance Service documentation ГП ИЦ "Омега"/PE TC "Omega"Отчет / Report No04/22стр. из 50 Приложение 2Annex 2 Проверка маркировки РЛО на соответствие требованиям стандарта IEC 61097-1, п.9 Резолюции IMO А.694 (17) Labelling SART to compliance Standard IEC 61097-1, Resolution IMO A.497 (17) Зав. No РЛОNo1, No2, No3Температура окружающего воздуха 20°C Serial Number No SARTAmbient temperature Зав. номер отсека питанияNo4, No5, No6Влажность окружающего воздуха61% Serial Number power supply unitAmbient humidity Требование стандарта (Резолюции)стандарта IEC 61097-1 Резолюции ИМО A.497 (17) Исполнение требования в РЛО Request StandardIEC (Resolution IMO):IEC 61097-1IMO A.497 (17)Realization requests Маркировка В дополнение к положениям, изло- женным в Резолюции IMO A.694 (17), на внешней стороне оборудования должно быть ясно указано следующее Labelling In addition to the items specified in IMO Resolution A.694(17), the following shall be clearly indicated on the exterior of the equipment: : Краткая инструкция по работе (на английском) brief operating instructions (in English) 4.1- Yes Имеется Срок годности (на английском) для первичных используемых батарей (срок годности является датой замены). expiry date (in English) for the primary battery used ( battery replacement date). 4.2- Yes Имеется На каждом приборе оборудования должна находиться с внешней стороны следующая информация, ясно различимая при нормальном положении установленного оборудования: Each unit of the equipment should be marked externally with the following information which should be clearly visible in the normal installation position : -9 Сведения об изготовителе identification of the manufacturer -9.1 Yes Имеется Год выпуска Date of manufactured - Yes Имеется ГП ИЦ "Омега"/PE TC "Omega"Отчет / Report No04/22стр. из 50 Требование стандарта (Резолюции)стандарта IEC 61097-1 Резолюции ИМО A.497 (17) Исполнение требования в РЛО Request StandardIEC (Resolution IMO):IEC 61097-1IMO A.497 (17)Realization requests Номер типа радиооборудования и его наименование, под которым радиооборудование прошло типовые испытания equipment type number or model identification under which it was type tested -9.2 Yes Имеется Серийный номер serial number of the unit -9.3 Yes Имеется Дата замены батареи date of battery replacement - Yes Имеется Вывод Марrировка РЛО соотвествует требованиям п.9 Резолюции IMO А.694 (17), стандарта IEC 61097-1 Conclusion Labelling SART compliance request § 9 Resolution IMO А.694 (17), Standard IEC 61097-1 ГП ИЦ "Омега"/PE TC "Omega"Отчет / Report No04/22стр. из 50 Приложение 3 Annex 3 Проверка РЛО на соответствие требованиям к исполнению и эксплуатационным характеристикам (по п.п.3.2.1, 3.2.2, 3.2.3, 3.2.4, 3.2.5, 3.2.10, 3.2.13, 3.2.14 Стандарта IEC 61097-1 и п.п. 2.1.1, 2.1.2, 2.1.3, 2.1.4, 2.1.5, 2.1.10, 2.1.13, 2.1.14, 2.1.15 Резолюции IMO A.802 (19) Test of SART to compliance Operational Perfomance requirements (§§ 3.2.1, 3.2.2, 3.2.3, 3.2.4, 3.2.5, 3.2.10, 3.2.13, 3.2.14 Standard IEC 61097-1, §§ 2.1.1, 2.1.2, 2.1.3, 2.1.4, 2.1.5, 2.1.10, 2.1.13, 2.1.14, 2.1.15 Resolution IMO A.802 (19)) Зав. No РЛОNo1, No2, No3Температура окружающего воздуха 20°C Serial Number No SARTAmbient temperature Зав. номер отсека питанияNo4, No5, No6Влажность окружающего воздуха61% Serial Number power supply unitAmbient humidity Требование стандарта (Резолюции)Стандарта IEC 61097-1 Резолюции ИМО А.802(19) Исполнение требования Request of Standard (Resolution)IEC 61097-1IMO A.802 (19)Realization of requests Иметь…
