RJ2TUPDJN-232049RRC Car

JN23 2 MAIN RECEIVER Super-Regenerative receiver STEERINGDRIVER RACINGDRIVER DECODER IC Q1 Q4,Q 5,Q 6,Q 7,Q 12,Q 13 Q2,Q3,Q8,Q9,Q10,Q11, U1 (49.860MHz) ANT 49.860MHz UTC-RCR02 MOTOR MOTOR Steering Motor Racing Motor Model Name: 1:32 SCALE D. I. Y. R/C KIT Model No: JN232 Team Up Product Development Co , Ltd .

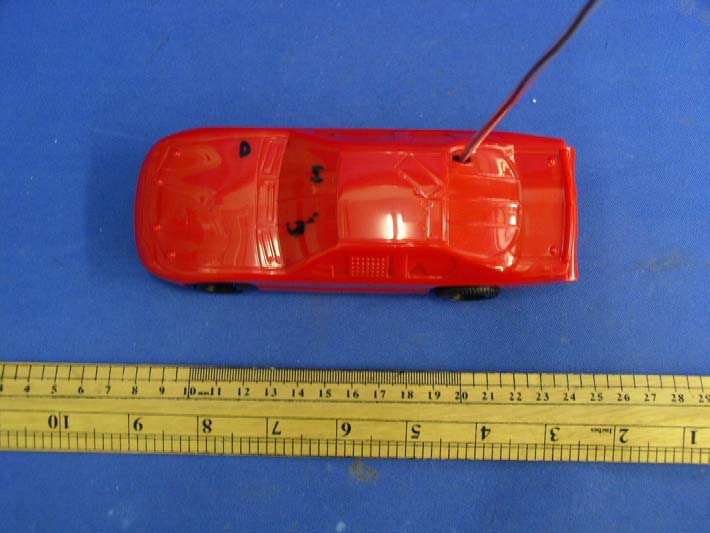

FCC ID: RJ2TUPDJN-232049R Ophoto1 Ophoto2 FCC ID: RJ2TUPDJN-232049R Ophoto3 Ophoto4 FCC ID: RJ2TUPDJN-232049R Ophoto5

FCC ID: RJ2TUPDJN-232049R Iphoto1 Iphoto2 FCC ID: RJ2TUPDJN-232049R Iphoto3 Iphoto4 FCC ID: RJ2TUPDJN-232049R Iphoto5 Iphoto6 FCC ID: RJ2TUPDJN-232049R Iphoto7 Iphoto8 FCC ID: RJ2TUPDJN-232049R Iphoto9 Iphoto10

FCC ID: RJ2TUPDJN-232049R Technical Description : The brief circuit description is listed as follows : - Q1 and associated circuit act as 49.860 MHz Super- regenerative Receiver. - U1 (UTC-RCR02) acts as Decoder IC. - Q2, Q3, Q8, Q9, Q10, Q11 associated circuit act as Steering Motor Driver. - Q4, Q5, Q6, Q7, Q12, Q13 associated circuit act as Racing Motor Driver. Antenna Used : An integral antenna has been used.

1 2 3 4 56 ABCD 6 5 4 3 2 1 D CBA Team Up Product Development Co , Ltd . DWG. No. Rev. Date : Size Model No.: Model Name: Drawn: Checked: Approved: Title: A/0 A FM-RD-20A PAGE :DOC. No: C5 100uF ANT1 49.860MHZ C6 4.7UF L1 3.3UH R14 680R OHM Q1QY 1:32 SCALE D.I.Y. R/C KIT 2006-9-22 Q7 C1815Y Q128050D Q4 C1815Y Q13 8050D Q6 8550D Q58550D R12 22 OHM R1322 OHM C120.0047UF C15PF C7 18PF C3 0.047UF R1 300K OHM C2 10PF T1 1.5UH R33.9K OHM R22.2K OHM C40.1UF C90.1UF C10 470PF R8 2.2M OHM C8 0.1UF R72.2K OHM R15 2.2M OHM R16 2.2K OHM C14 0.001UF R17 180K OHM R4100 OHM Q11 C1815Y Q88050D Q9 C1815Y Q10 8050D Q3 8550D Q28550D R9 22 OHM R1122 OHM R52.2K OHMR102.2K OHM R18 2.2K OHM R19 2.2K OHM JN232 D14148 VO2 1 GND 2 SI 3 OSCI 4 OSCO 5 RIGHT 6 LEFT 7 RD 8 LD 9 BACK 10 FORW 11 TURBO 12 VDD 13 V11 14 VOI 15 V12 16 UTC-RCR02 U1 UTC-RCR02 C150.1UF R6 1R OHM/1W D2 2.4V R211R OHM/1W C11 104 C13 104 L*1 10UH L*2 10UH L*3 10UH L*4 10UH Steering motor driving motor BT1 DC3V S1 1P2T motor motor 49.860MHZ RX

• The test results reported in this report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report shall not be reproduced except in full without prior authorization from Intertek Testing Services Hong Kong Limited • The evaluation data of the report will be kept for 3 years from the date of issuance. FCC ID : RJ2TUPDJN-232049R Team Up Product Development Co., Ltd. Application For Certification (FCC ID: RJ2TUPDJN-232049R) Superregenerative Receiver Sample Description : 1:32 Scale D.I.Y. R/C Kit Model : JN-232 0620955 AC/at October 12, 2006 INTERTEK TESTING SERVICES FCC ID: RJ2TUPDJN-232049R i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1: General Description EXHIBIT 2: System Test Configuration EXHIBIT 3: Emission Results EXHIBIT 4: Equipment Photographs EXHIBIT 5: Product Labelling EXHIBIT 6: Technical Specifications EXHIBIT 7: Instruction Manual EXHIBIT 8: Miscellaneous Information INTERTEK TESTING SERVICES FCC ID: RJ2TUPDJN-232049R ii MEASUREMENT/TECHNICAL REPORT Team Up Product Development Co., Ltd. - MODEL: JN-232 FCC ID: RJ2TUPDJN-232049R October 12, 2006 This report concerns (check one:) Original Grant X Class II Change Equipment Type: Superregenerative Receiver Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart B for intentional radiator Report prepared by: Chan Kar Ming, Anthony Intertek Testing Services 2/F., Garment Center, 576, Castle Peak Road, HONG KONG Phone: 852-2173-8517 Fax: 852-2742-9149 INTERTEK TESTING SERVICES FCC ID: RJ2TUPDJN-232049R iii Table of Contents 1.0 General Description................................................................................................. 2 1.1 Product Description............................................................................................... 2 1.2 Related Submittal(s) Grants .................................................................................. 2 1.3 Test Methodology................................................................................................. 3 1.4 Test Facility .......................................................................................................... 3 2.0 System Test Configuration ...................................................................................... 5 2.1 Justification ........................................................................................................... 5 2.2 EUT Exercising Software ...................................................................................... 5 2.3 Support Equipment List and Description................................................................ 5 2.4 Equipment Modification......................................................................................... 6 2.5 Special Accessories.............................................................................................. 6 3.0 Emission Results ..................................................................................................... 8 3.1 Field Strength Calculation ..................................................................................... 9 3.2 Radiated Emission Configuration Photograph ..................................................... 10 3.3 Radiated Emission Data...................................................................................... 11 4.0 Equipment Photographs ........................................................................................ 14 5.0 Product Labelling................................................................................................... 16 6.0 Technical Specifications........................................................................................ 18 7.0 Instruction Manual ................................................................................................. 20 8.0 Miscellaneous Information.................................................................................... 22 8.1 Stabilization Waveform........................................................................................ 23 8.2 Emissions Test Procedures................................................................................. 24 8.2 Emissions Test Procedures (cont'd) .................................................................... 25 INTERTEK TESTING SERVICES FCC ID: RJ2TUPDJN-232049R iv List of attached file Exhibit type File Description filename Test Report Test Report report.pdf Operation Description Technical Description descri.pdf Test Setup Photo Radiated Emission radiated photos.doc Test Report Stabilization Waveform superreg.pdf External Photo External Photo external photos.doc Internal Photo Internal Photo internal photos.doc Block Diagram Block Diagram block.pdf Schematics Circuit Diagram circuit.pdf ID Label/Location Label Artwork and Location label.pdf User Manual User Manual manual.pdf INTERTEK TESTING SERVICES FCC ID: RJ2TUPDJN-232049R 1 EXHIBIT 1 GENERAL DESCRIPTION INTERTEK TESTING SERVICES FCC ID: RJ2TUPDJN-232049R 2 1.0 General Description 1.1 Product Description The equipment under test (EUT) is a receiver for a RC Car operating at 49.860 MHz. The EUT is powered by 2 AA batteries. The EUT has an ON/OFF switch. After switched ON the EUT, it can be controlled to move forward, backward, turning left and right directions by the corresponding controller. The brief circuit description is saved with filename: descri.pdf 1.2 Related Submittal(s) Grants This is a single application for certification of a receiver. The transmitter for this receiver is authorized by Certification procedure with FCC ID: RJ2TUPDJN-232049T. INTERTEK TESTING SERVICES FCC ID: RJ2TUPDJN-232049R 3 1.3 Test Methodol…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICES Front View Back View
