RJ8ASSY-000244Wireless Footswitch

User Manual for Wireless Footswitch ASSY-000244 REVISION HISTORY OF THE INSTRUCTION Originator Document ID Date Description of changes Radinger N.A. 02 October 2003 Initial Radinger 15 October 2003 Added hint to separation distances Radinger 29 October 2003 Added FCC statements Document Control Drawn Radinger Checked Approved -CONFIDENTIAL- Page: 1 of 3 T3004 Instruction regarding development, testing or manufacturing Last printed 29.10.2003 User Manual for Wireless Footswitch ASSY-000244 User Manual Wireless Footswitch The Wireless footswitch ASSY-000244 can be used with the OraMetrix Scanning Station to control the SureSmile Application program. 1.1 Technical Data: Operating Range: 3m from Scanning Station Battery Lifetime: At least 5 Years Used Frequency and Modulation: 916.5MHz AM Encoding/Decoding: 12Bit Key 1.2 Service/Battery replacement: The wireless footswitch shall only be serviced by Orametrix personnel. The user should never open the device. In case of a malfunction, the device should be sent to OraMetrix for service. 1.3 Encoding/Decoding: All wireless footswitches/receivers are coded with a unique 12Bit code. See serial number of the device for your code. It is not possible to interchange the wireless footswitches between two scanning stations. 1.4 Use with other electrical components Do not co-locate (<200mm distance) or operate the device in conjunction with any other antenna or transmitter. 1.4.1 Minimum separation distances to user Please provide a minimum separation distance of 200mm from the transmitter to the users body. 1.4.2 Minimum separation distances between footswitch transmitter and receiver Please provide a minimum separation distance of 200mm from the footswitch transmitter to the receiver. 1.5 RF Exposure This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter. -CONFIDENTIAL- Page: 2 of 3 T3004 Instruction regarding development, testing or manufacturing Last printed 29.10.2003 User Manual for Wireless Footswitch ASSY-000244 Declaration of Conformity with FCC Rules for Electromagnetic Compatibility This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 1.6 Federal Communications Commission (FCC) Notice This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy. If not installed and used in accordance with the instructions, it may cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on. The user is encouraged to try to correct the interference by one or more of the following measures: * Reorient or relocate the receiving antenna. * Increase the distance between the equipment and the receiver. * Connect the equipment to an outlet on a circuit different from the outlet where the receiver is connected. * Consult the dealer or an experienced radio/TV technician for assistance. 1.7 Modifications The FCC requires the user to be notified that any changes or modifications to this device that are not expressly approved by Orametrix GmbH may void the user's authority to operate the equipment. -CONFIDENTIAL- Page: 3 of 3 T3004 Instruction regarding development, testing or manufacturing Last printed 29.10.2003

__________________________________________________________________________________ ETSHandelsregister:Bankverbindung: Electronic Technology Systems Dr. Genz GmbHAmtsgericht Frankfurt/Oder HRB 5151Sparkasse Oder-Spree Storkower Strasse 38cGeschäftsführung: Dr. Dietmar GenzBLZ 170 550 50 D-15526 Reichenwalde b. Berlin Norbert KasparKto. Nr. 3105165974 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH - ETS - STORKOWER STRASSE 38c, D-15526 REICHENWALDE B. BERLIN Tel: 033631 888 000 FAX: 033631 888660 BZT ETS Certification GmbH Storkower Str. 38c 15526 Reichenwalde b. Berlin GERMANY IHR ZEICHEN / YOUR REF.IHR SCHREIBEN / YOUR INFORM.UNSER ZEICHEN / OUR REF. DATUM / DATE 30.10.2003 Subject:Application for Certification OraMetrix Inc. FCC ID: RJ8ASSY-000244 Dear Sirs, Submitted herewith, on behalf of OraMetrix Inc. is an application for certification of the following Wireless Footswitch device: FCC ID: RJ8ASSY-000244 A SAR test has been carried out for the headset. Attached are the 731 form, authorization letter, confidentiality request letter, technical description, test report (TestRp1=test data and TestRpt2 = test plots), RFExposure, FCC ID label and label location information, test setup photographs, internal and external photographs, operational description, part’s list, block diagram, schematics and the user manual. In accordance with 0.459 of CFR 47 OraMetrix Inc.. hereby requests confidentiality of all Technical Specifications, Block Diagrams, Circuit diagrams, Circuit Description, Part lists, and Operational description attached for the subject application (see Confidentiality request letter). Please review the report and documents and submit them to the FCC for Certification as a single application. Should you have any questions or comments concerning the above, please contact the undersigned. Best Regards Jenifer Täubert Electronic Technology Systems Dr. Genz GmbH Storkower Str. 38c 15526 Reichenwalde Germany P.: +49 33631 888 480 F.: +49 33631 888 640 E.: [email protected]

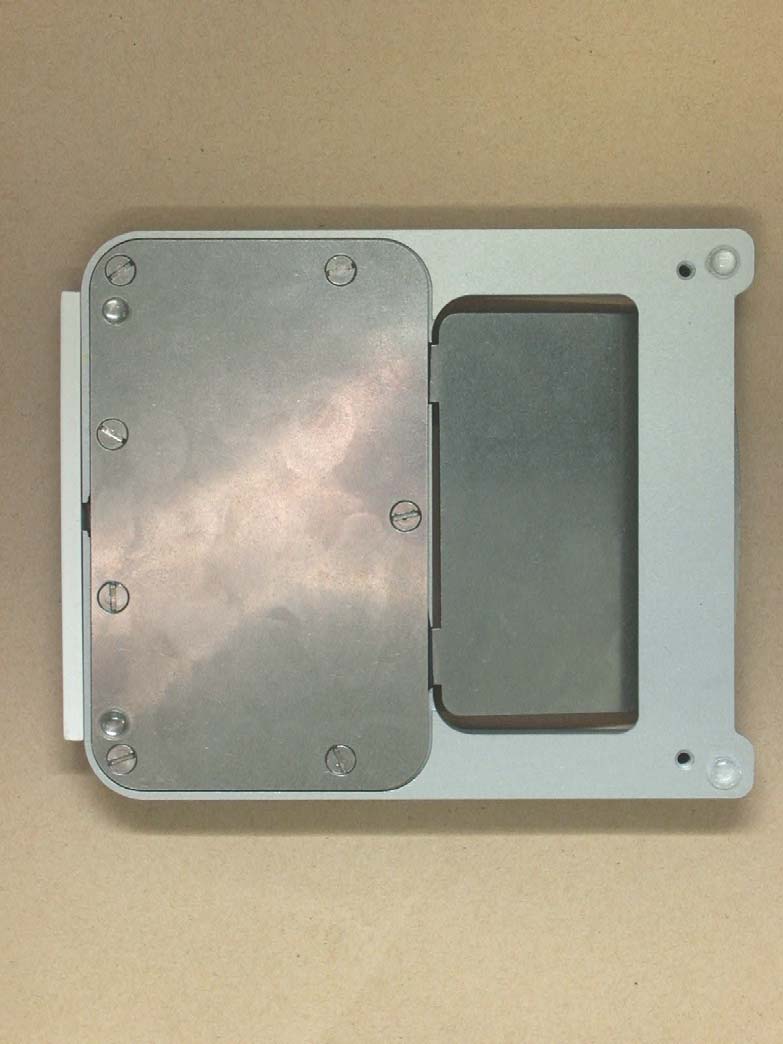

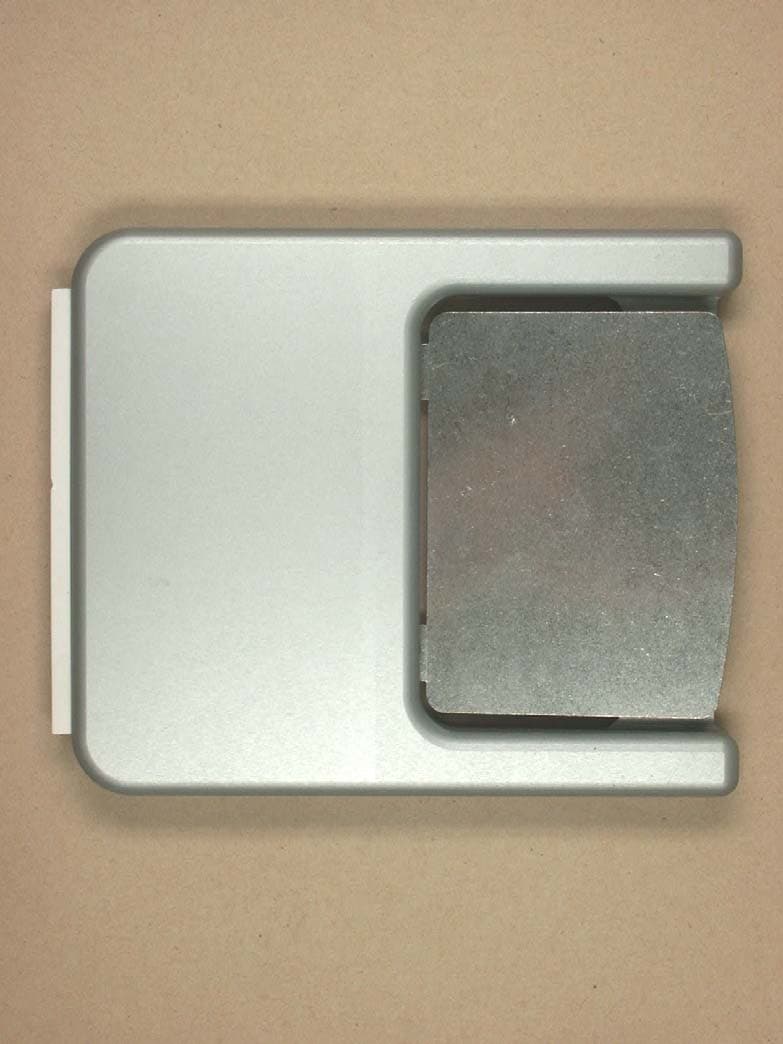

ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G0M20307-7995-P-15Page 1 of 8 Appendix A. Pictures ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G0M20307-7995-P-15Page 2 of 8

Label for the Wireless footswitch WIRELESS FOOTSWITCH ASSY-000244 TX FCC ID: RJ8ASSY-000244 FOR HOME AND OFFICE USE Serial No.:4095 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G0M20307-7995-P-15Page 3 of 8 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G0M20307-7995-P-15Page 4 of 8 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G0M20307-7995-P-15Page 5 of 8

Antenna Specification WIRELESS FOOTSWITCH ASSY-000244 1 Antenna Specification A λ/4 (80mm) length antenna designed from an 0.5mm² Cu cable is used for the transmitter as for the receiver. The Antenna of the transmitter (footswitch) is covered by a plasic pipe outside the metal case of the footswitch. The receiver antenna is placed inside the plastic box of the footswitch receiver. T0000 Cover Sheet, Rev. 1.3 Created on 27.05.2002 -CONFIDENTIAL- Page: 1 of 1 T3004 Instruction regarding development, testing or manufacturing Last printed 27.08.2003

ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH TEST - REPORT FCC RULES PART 15 / SUBPART C § 15.249 FCC ID: RJ8ASSY-000244 Test report no.: G0M20307-7995-P-15 FCC ELECTRONIC TECHNOLOGY SYSTEMSSTORKOWER STRASSE 38C, D-15526 REICHENWALDE B. BERLIN DR. GENZ GMBHPHONE +49-33631-888 00 FAX +49-33631-888 66 ETS Dr. Genz GmbH, GermanyRegistration number: G0M20307-7995-P-15Page 1 of 21 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH TABLE OF CONTENTS 1General information 1.1Notes 1.2Testing laboratory 1.3Details of approval holder 1.4Application details 1.5Test item 1.6Test standards 2Technical test 2.1Summary of test results 2.2Test environment 2.3Test equipment utilized 2.4Test Procedure 3Test Results ETS Dr. Genz GmbH, GermanyRegistration number: G0M20307-7995-P-15Page 2 of 21 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1General Information 1.1Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has Passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH. Tester: 18.07.2003N. Kaspar DateETS-Lab.NameSignature Technical responsibility for area of testing: 18.07.2003Dr. Genz DateETSNameSignature ETS Dr. Genz GmbH, GermanyRegistration number: G0M20307-7995-P-15Page 3 of 21 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.2 Testing laboratory 1.2.1Location ELECTRONIC TECHNOLOGY SYSTEM DR. GENZ GMBH (ETS) Storkower Straße 38c D-15526 Reichenwalde b. Berlin Germany Telephone : +49 33631 888 00 Telefax: +49 33631 888 66 1.2.2Details of accreditation status A CCREDITED TESTING LABORATORY DAR-REGISTRATION NUMBER: TTI-P-G 126/96 ACCREDITED COMPETENT BODY DAR-REGISTRATION NUMBER: BPT-ZE-026/96 FCC FILED TEST LABORATORY REG. NO. 96970 BLUETOOTH QUALIFICATION TEST FACILITY (BQTF) ACCREDITED BY: BLUETOOTH QUALIFICATION REVIEW BOARD (BQRF) I NDUSTRY CANADA FILED TEST LABORATORY REG. NO. IC 3470 A2LA A CCREDITEDCertificate Number: 1983-01 1.3Details of approval holder Name: OraMetrix Inc. Street: 12740 Hillcrest Road, Suite 100 Town: Dallas, Texas Country: U.S.A. Telephone: +1-972-728-5500 Fax: +1-972-728-5501 Contact: Herr Michael Lenko E-Mail: [email protected] ETS Dr. Genz GmbH, GermanyRegistration number: G0M20307-7995-P-15Page 4 of 21 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.4Application details Date of receipt of application: 21.06.2003 Date of receipt of test item: 21.06.2003 Date of test: 09.07.2003 1.5Test item Description of test item: Wireless Footswitch Type identification: ASSY-000244 Serial number: Test model without serial number. Photos: See annex A. Technical data Frequency band: 902 – 928MHz Operating Frequency: 916.5 MHz Antenna transmitter: integralAntenna gain : 0 dBi Antenna receiver: integral Power supply tx: 3,0 V DC battery Power supply rx: 5.0 V DC powered by P/S2-port Operating mode: simplex Type of modulation: FSK ETS Dr. Genz GmbH, GermanyRegistration number: G0M20307-7995-P-15Page 5 of 21 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH Manufacturer: (if applicable) Name: OraMetrix GmbH Street: Rungestrasse 19 Town: 10179 Berlin Country: Germany Additional information: For the test report of the receiver please refer to G0M20307- 7995-C-1. ETS Dr. Genz GmbH, GermanyRegistration number: G0M20307-7995-P-15Page 6 of 21 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.6Test standards Technical standard : FCC RULES PART 15 / SUBPART C § 15.249 2Technical test 2.1Summary of test results No deviations from the technical specification(s) were ascertained in the course
of the tests performed. or The deviations as specified in 2.5 were ascertained in the course of the tests  performed. 2.2Test environment Temperature: 23 o C Relative humidity content: 20 ...75 % Air pressure: 86 ...103 k Pa Details of power supply: 3,0 V DC battery Extreme conditions parameters:: test voltage - extrememin :-- V max:-- V ETS Dr. Genz GmbH, GermanyRegistration number: G0M20307-7995-P-15Page 7 of 21 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 2.3Test equipment utilized No.Measurement device:Type:Manufacturer: ETS 0001Test receiverESHS 10Rohde&Schwarz ETS 0002Test receiverESVPRohde&Schwarz ETS 0003Test receiverESVS 10Rohde&Schwarz ETS 0004Spectrum- and Network-AnalyzerFSMS 26Rohde&Schwarz ETS 0005Test receiverSMV 11MEB ETS 0006Test receiver systemSME 12MEB ETS 0007Spectrum analyzerPSA-65AAvcom ETS 0008AntennaLoop antennaSiemens ETS 0009AntennaLoop antennaMEB ETS 0010AntennaLoop antennaMEB ETS 0011Antennavan Veen/ FrameETS ETS 0012AntennaHK 116Rohde&Schwarz ETS 0013AntennaHL 223Rohde&Schwarz ETS 0014AntennaHL 025Rohde&Schwarz ETS 0015AntennaHL 025Rohde&Schwarz ETS 0016AntennaVHAPSchwarzbeck ETS 0017AntennaVHAPSchwarzbeck ETS 0018AntennaUHAPSchwarzbeck ETS 0019AntennaUHAPSchwarzbeck ETS 0020AntennaDP 21MEB ETS 0021AntennaDP 3MEB ETS 0022AntennaSAS-200/ 521A.H. Systeme / USA ETS 0023AntennaDP 1MEB ETS 0024Antenna mastAF 2MEB ETS 0025Antenna mastAF 2MEB ETS 0026TripodHeinrich Deisel ETS 0027TripodHeinrich Deisel ETS 0028TripodSTA 2C. Lorenz AG ETS 0029TripodBerlebach ETS 0030Turn tableTT 1ETS ETS 0031Turn tableDS 412Heinrich Deisel ETS 0032ControllerHD 050Heinrich Deisel ETS 0033RF generator…

Text truncated - open the document above for the full version.

ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G0M20307-7995-P-15Page 6 of 8 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G0M20307-7995-P-15Page 7 of 8 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G0M20307-7995-P-15Page 8 of 8
