RKE-SYNC0310M2-Way Vehicle Security
Altech Auto Security Co., Ltd.
Click to zoom
Application Details
- Equipment Class
- DSR - Part 15 Remote Control/Security Device Transceiver
- Date of Grant
- Apr 14, 2004
- Application Purpose
- Original Equipment
- Date of Application
- Apr 14, 2004
- Equipment Note
- 2-Way Vehicle Security
- Frequency Range
- 433.92000000 - 433.92000000
- Country
- Taiwan
Documents & Files
Document Text
Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.
Users Manual
APA-3000F FCC ID: RKE-SYNC0310M FCC ID: RKE-SYNC0310T 2-Way with LCD Remote Engine Starter Vehicle Security System Operation Manual NOTE This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiated radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the userβs authority to operate the equipment. The antenna(s) used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter 1 General: It is so smart that you can communicate with your vehicle through our 2-Way LCD System. SYNC PAGE APA-3000F is an entirely new approach to vehicle security. Imagine a two-way communication between you and your vehicle. It is designed to report the real time status of your vehicle whenever you want or to notify the alert situation to you through LCD panel Remote automatically. With its complete functions, it can protect your vehicle thoroughly from any unexpected situation and you can control or response to your vehicle with the LCD panel Remote. If it is in trouble, it contacts you immediately by sending a signal to your LCD panel Remote. If you need to know whether it is inside your range, you can push the Remote button to send a signal to your vehicle. If it is inside the range, it will receive the signal and send a signal back to your LCD panel Remote to confirm your call. Remote start systems are one of the most popular vehicle accessories. They start your vehicle before you enter, to warm it on a cold day, or cool it down in the summer heat. APA-3000F enhances the convenience of your remote starter. 2 SYNCPAGE APA-3000F 2-Way LCD System Buttons and Definitions: Button #1 : Arm/Disarm / Hold2sec:3 rd ChO/P Button #2 ;X Arm/Disarm (without Chirp) Hold2sec:2 nd ChO/P Button #3 Engine Start / Reset warm-up countdown (while warming-up) Hold 2 sec: IDLE mode (when started) Reset IDLE countdown (when in IDLE mode) Button #4 Car finder / Engine stop (when started) Hold 2 sec: PANIC / Anti-Hijack (when started) Button #5 Function key Simultaneously: Hold 2 sec: 4 th Ch O/P Simultaneously: Remote engine start / stop (without chirp) Press Button #1 or #2 > confirm chirp > press Button #2 within 2 sec: System alarm only for Pager Press Button #5 then Button #4 within 2 sec: Remote key Lock / Unlock Simultaneously hold 2 sec: Programming mode Simultaneously: Function bypass Smart Chirp Sound Indication Number of Chirps System Status Description 1 Arm, 2 (Ignition Off) Disarm 2 (Ignition On) Exited Valet Mode 3 Door Ajar warning when arming / Sensor bypassed 4 Last event memory 5 Shock Sensor triggered while in arming 6 Car Finder S mart LED Indicator LED Mode System Status Description Slowly blinking (Ignition Off) ARMED Quickly blinking (Ignition Off) Passive Arm is activating Slowly blinking (Ignition On) Anti-Hijack feature is TRIGGERED Lights βOnβ Solid In the VALET mode Blinking 2 times then pause Alarm has been TRIGGERED by Door trigger Blinking 3 times then pause Alarm has been TRIGGERED by Sensor A trigger Blinking 4 times then pause Alarm has been TRIGGERED by Hood trigger Blinking 5 times then pause Alarm has been TRIGGERED by Trunk trigger Stops blinking and lights Off Disarm ( No Passive Arm is programmed) 3 Standard Functions / Features: Programmable Features: One 5-Button FM 2-Way Remote with color LCD display FM to FM 2-Way communication with the vehicle Visual feature activation confirmation via LCD display Tachless required High-frequency at 433.92MHz Remote start Car finder Panic Anti hijack Apply to Diesel engine with timer delay Passive arming Auto rearming Ignition with door Lock / Unlock by Brake pedal Silent Arm / Disarm mode Silent Alarm for Pager 45 seconds arming delay Passive engine disable Valet mode Remote Valet mode Channel 3 and Channel 4 for more options CODE override when armed / anti hijack only Arming by-pass Shock Sensor by-pass Automatically by-pass and reset Range check Time display Countdown timer Idle mode timer Engine warm up timer RPM learning and setting Safety RPM sensing No false alarm function High gain receiver to get more range Dual-zone with two adjustment shock sensor Starter disable relay with socket High sensitivity 6 Tone / 20 Watts siren Smart Blue LED Smart Chirp sound 1-1 Passive arming on/off 1-2 Passive arming door lock on/off 1-3 Ignition on with door lock 1-4 Ignition off with door unlock 1-5 Silent arming on/off 1-6 Auto rearming on/off 1-7 45 seconds arming delay on/off 1-8 Passive engine disable 2-1 No false alarm circuit on/off 2-2 Anti hijack circuit on/off 2-3 Horn output enable on/off 2-4 Sensor defective warning chirp on/off 2-5 Engine disable when door lock ( Valet mode ) 2-6 Actuator active time on/off ( on = 0.7 sec / off = 4 sec ) 2-7 Dome light & Channel 3 on/off ( on = Dome light / off = Channel 3 ) 2-8 Channel 4 output setting on/off ( on = Alarm disable / off = Channel 4 ) 3-1 CODE override on/off ( armed / anti hijack only ) 3-2 Unlock double pulse on/off 3β¦
Text truncated - open the document above for the full version.
Block Diagram
Model No. AP A-3000F-MU 2-W ay V e hicle Secu rity System AP A-3000F TRANSCEIVER BLOCK DIAGRAM C i r c u l a t o r 2 1 . 5 M H z ( 4 ) ( 5 ) ( 6 ) ( 8 ) ( 9 ) R F M I X B P F F M I F D e t e c t i o n I C OSC ( 7 ) D A T A t o C P U ( 3 ) ( 2 ) ( 1 ) F r e q u e n c y m u l t i p l i e r B u f f e r V C X O D A T A f r o m C P U & A m p l i f i e r A m p l i f i e r M o d u l a t i o n Description: 1. Block (1), (2), (3) are us ed for transmitting circuit. 2. Block (5), (6), (7), (8), (9 ) are used for receiving circuit. 3. Block (1): VCXO (Voltage Controlled Crystal Oscilla tor) circuit is used fo r frequency modulation. 4. Block (2): Buffer amplifier is used to amplif y the signal from VCXO. 5. Block (3): Frequency multiplier with power amplifier is used to multiply the frequency from 48.2133MHz to 433.92MHz. 6. Block (4): Circulator is used for TX/RX interface. 7. Block (5): RF signal Amplifier. 8. Block (6): Frequency mixer. It mixe s the RF signal with OSC frequency. 9. Block (7): Oscillator. fo=45.8355MHz 9fo=412.52MHz 10. Block (8): Band Pass Filter (BPF) for IF. 11. Block (9): FM IF amplificat ion, detection, demodulation, FSK signal output to CPU.
External Photos

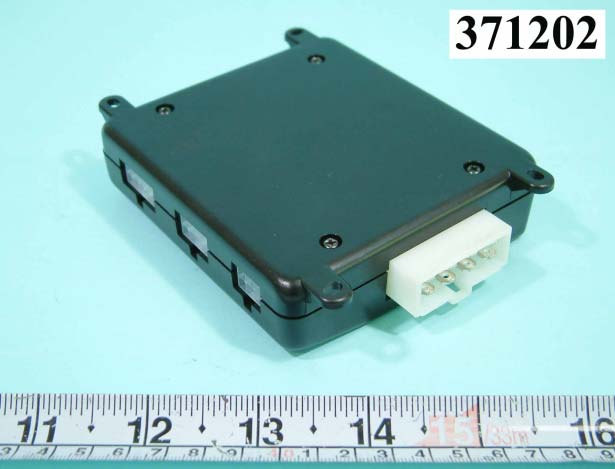

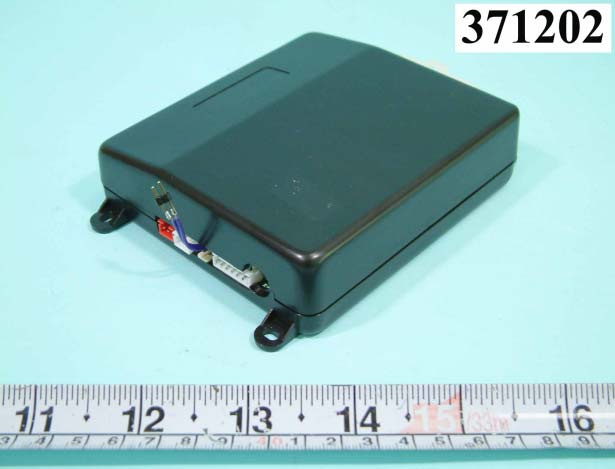

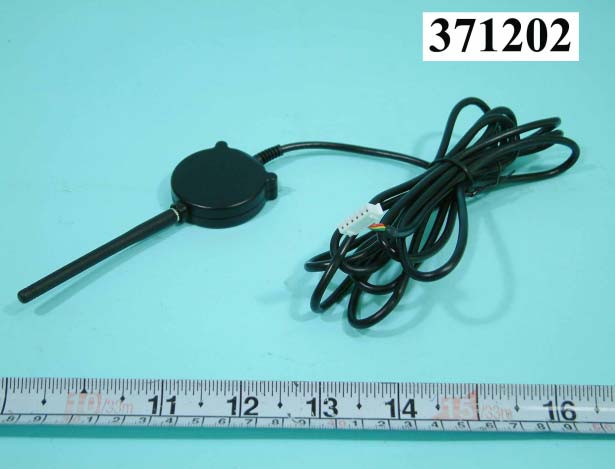

FCC ID: RKE-SYNC0310M Number 1 FRONT SIDE OF EUT FCC ID: RKE-SYNC0310M Number 2 REAR SIDE OF EUT FCC ID: RKE-SYNC0310M Number 3 FRONT SIDE OF TRANSCEIVER FCC ID: RKE-SYNC0310M Number 4 REAR SIDE OF TRANSCEIVER FCC ID: RKE-SYNC0310M Number 5 DATA CABLE
ID Label/Location Info
ALTECH AUTO SECURITY CO., LTD. FCC ID LABEL : ALTECH AUTO SECURITY CO., LTD. FCC ID : RKE-SYNC0310M This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Silver White background with Black lettering Material PET with self adhesive Size 50 X 22 mm Thickness 0.15 mm
ID Label/Location Info
FCC ID: RKE-SYNC0310M Label Location
Internal Photos
FCC ID : RKE-SYNC0310M Number 1 MECHANICAL CONSTRUCTION OF EUT FCC ID : RKE-SYNC0310M Number 2 FRONT SIDE OF MAIN BOARD OF EUT FCC ID : RKE-SYNC0310M Number 3 REAR SIDE OF MAIN BOARD OF EUT FCC ID : RKE-SYNC0310M Number 4 MECHANICAL CONSTRUCTION OF TRANSCEIVER FCC ID : RKE-SYNC0310M Number 5 MECHANICAL CONSTRUCTION OF TRANSCEIVER FCC ID : RKE-SYNC0310M Number 6 FRONT SIDE OF MAIN BOARD OF TRANSCEIVER FCC ID : RKE-SYNC0310M Number 7 REAR SIDE OF MAIN BOARD OF TRANSCEIVER
Operational Description
Model No. AP A-3000F-MU 2-W ay V e hicle Secu rity System AP A-3000F TRANSCEIVER BLOCK DIAGRAM C i r c u l a t o r 2 1 . 5 M H z ( 4 ) ( 5 ) ( 6 ) ( 8 ) ( 9 ) R F M I X B P F F M I F D e t e c t i o n I C OSC ( 7 ) D A T A t o C P U ( 3 ) ( 2 ) ( 1 ) F r e q u e n c y m u l t i p l i e r B u f f e r V C X O D A T A f r o m C P U & A m p l i f i e r A m p l i f i e r M o d u l a t i o n Description: 1. Block (1), (2), (3) are us ed for transmitting circuit. 2. Block (5), (6), (7), (8), (9 ) are used for receiving circuit. 3. Block (1): VCXO (Voltage Controlled Crystal Oscilla tor) circuit is used fo r frequency modulation. 4. Block (2): Buffer amplifier is used to amplif y the signal from VCXO. 5. Block (3): Frequency multiplier with power amplifier is used to multiply the frequency from 48.2133MHz to 433.92MHz. 6. Block (4): Circulator is used for TX/RX interface. 7. Block (5): RF signal Amplifier. 8. Block (6): Frequency mixer. It mixe s the RF signal with OSC frequency. 9. Block (7): Oscillator. fo=45.8355MHz 9fo=412.52MHz 10. Block (8): Band Pass Filter (BPF) for IF. 11. Block (9): FM IF amplificat ion, detection, demodulation, FSK signal output to CPU.
Schematics
12VA R3456K R41620K UNLOCK C12104 R361K R481.2M DC SENSOR ZNR6ZNR7D D181N48 VCC 12VA R9 15 R147 ZD2 ZD5.1V ZNR4ZNR7D R491K Q4 3906 IGN2 K1 TR-90 C20104 R46 10K VCC R1533K U5E ULN2003A 12 5 DOOR +TRIGGER TACH SENSOR BLOWER D2 1N4002 U3E ULN2003A 12 5 R53 4.7K R54220 R4 220 U3G ULN2003A 10 7 ZD3 ZD5.1V Q9 C945 X14MHZ BLW U3CULN2003A 14 3 R44 1K R30330K R52 100K TRUNKDOME LIGHT C26 104 C3 104 U6PIC16C65 234567 33343536373839401516171823242526 1314192021222728293010981231 11 1 32 RA0RA1RA2RA3RA4RA5RB0RB1RB2RB3RB4RB5RB6RB7RC0RC1RC2RC3RC4RC5RC6RC7 OSC1OSC2 RD0RD1RD2RD3RD4RD5RD6RD7 RE2RE1RE0VSSVSS VDD MCLR VDD R2 2.2K C13103 U293LC46B 1234 5678 CSSKDIDO GND NCNC VCC C5104 U3A ULN2003A 16 1 JP1 5569-NA1-6P 123456 C21104 VB D31N4002 ZD1ZD27V JP5SWTICH12 R13 15 12V C6104 C9 104 R6 1.5K C15104 IGN2 12VR U5B ULN2003A 15 2 R4310K LIGHT C24 2.2U ST1 U5GULN2003A 10 7 U3F ULN2003A 11 6 R3756K DOOR -TRIGGER ZNR1 ZNR15D R39 100 Q7 FET U3D ULN2003A 13 4 D14LED EXT. START R29100K C4104 BLW R51 4.7K Q8FET 12VA VCC VCC R20 1K 12V R10 15 K3 TR-90 R471K D151N4002 HAND BRAKE LED U5C ULN2003A 14 3 R62 100 KILLER JP3SIP\2PL 12 R24 100 IGN1 D1 1N4002 Q2 3904 Q53904 R281K VCC JP6 5569-NA1-10P 12345678910 U5D ULN2003A 13 4 IGN1 C17102 JP4SOP\8P 12345678 HOOD -TRIGGER ZNR3ZNR7D D171N48 START1 R? 27K 1/8W VCC ST1 U5A ULN2003A 16 1 U5FULN2003A 11 6 PASS KEY D51N4002 X2 4MHZ C23 47U/6V +- U4A358 32 1 84 VCC R18 1K C7 104 R35 47K Q33904 TRUNK -TRIGGER VE D111N4148 Q6 3906 R1433K HORN R27 1K JP8SIP\6PL 1 2 3 4 5 6 VS D161N48 APA3KFM.SCH 01 MAIN UNIT OF APA-3000F SYSTEM ALTECH AUTO SECURITY CO., LTD. B 1 1 Tuesday, October 07, 2003 TitleSize Document Number Rev Date: Sheet of C10104 C22104 R8 4.7K JP25569-NA1-8P 12345678 R12 15 R401K R42 2.2K U3BULN2003A 15 2 C11103 R45 68K D7 1N4002 C14 104 R5010K WARNING R25 1K C2 220U Q1TIP32C R32 47K D12 1N4148 D6 1N4148 R5 15 R22 47K VE U178L0513 2 ZD4ZD5.1V R17 1K R3 15 12VR SIREN C25 470U DESLE ENGINE VCC R11 15 12VR ZNR2ZND7D LP LP VCC U7 PIC12C508 1234 5678 VCC GP5GP4 GP3/I GP2GP1GP0GND D4 1N4148 ZNR5ZNR7D LOCK D9 1N4002 12VR JP7 SHOCK SENSOR 123 C16104 IGN1 VCC VCC IGN2 R313.3K +- U4B 358 56 7 D101N4002 C1104 R21 100 LEG BRAKE 12VR K2 TR-90 R19 1K ALARM INHIBIT K5 RAS-1220M R26 1K C8 104 K4 TR-90 R16 33K TRIGGER C18 224/63V C19104 R33 100K R38 47K D13 1N4148 D81N4148 Model No. AP A-3000F-MU 2-W a y V e hicle Security System C59 1.5P C19102 C443P C34 103 L8 100nH F1 CF455E X5 48.21333MHz C1430P L1218nH R26 47K C25 18P C18102 VCC C16 33P X2 20.945MHz C5010u/6V L6R82 C33103 C55 1.5P C4611P R20 51K R63.9K C53 10u/6V R9 0 APA3KFMT.SCH 01 2-WAY ALARM TRANSCEIVER ALTECH AUTO SECURITY CO., LTD. B 1 1 Tuesday, October 07, 2003 TitleSize Document Number Rev Date: Sheet of C8220P C6112P C49VC 10P R2330 C47 11P R43.3K C111.5P C230.5P VD C2027P Q73356 C64 1U/6V C7220P R28 1.5K R1433K C424P R151.2K R29 470 L16 18nH R24100 C63VC 6P L14 3.3uH VCC C37 103 R27 33K D2 BAP64-05 C17104 Q12N3906 R17 1.5K ANT1ANTENNA C60 102 C65102 L7 18nH Q3 3356 C3633P Q4 3356 R32200 C571.8P L2 18nH C66 220P C2839P JP1SIP\6P123456 L10 10nH Q83356 C6 3.9P R13 15K C45 103 C32 103 C62VC 30P R1068K X4 45.83555MHz L17 100nH C300.5P C5122u/6V C1C C38152 VCC VD L18R68 R3047 C52 10u/6V C436P C48C R2151K C2220P L3 R82 Q5 3356 C24220P C2739P L118nH D1 BAP64-05 X3 21.5MHz L5R82 C58C R347K D3BB135 L9 10nH R868K C21 18P R115K C56 VC 30P R1815K VCC C39103 VCC C12 39P C26 24P R2547K C31 1P R19 3.3K C5220P R2051K R747K C223P 412.52MHz C44P C13103 R23 4.7K VCC C40 39P VD X1 C28 C35103 L4 R82 R1115K C10 10P R12R C3C Q63356 Q2 3356 C54 560P U1TA31142FN 12345678910 11121314151617181920 OSC1OSC2 MO VCC LI LD FSKI IFO QD RAO LPFILPFOBSCQCFSKOAOREGCREGOGNDMI R5 390K L1518nH 433.92MHZ C298P C15 56P R1647K L13 15nH C41104 L11 15nH C9220P Model No.: AP A-3000F-MU 2-W a y V e hicle Security System
Test Report
FCC TEST REPORT Report No. : F371202 SPORTON International Inc. TEL : 886-2-2696-2468 FAX : 886-2-2696-2255 FCC TEST REPORT for 47 CFR Part 15 Subpart C Equipment : 2-Way Vehicle Security Model No. : APA-3000F-MU FCC ID : RKE-SYNC0310M Filing Type : Certification Applicant : ALTECH AUTO SECURITY CO., LTD. 6F-2, NO. 31, LANE 169, KANG-NING ST., HIS-CHIH CITY, TAIPEI HSIEN, TAIWAN, R.O.C. Β The test result refers exclusively to the test presented test model / sample. Β Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. Β Certificate or Test Report must not be used by the applicant to claim the product in this test report endorsement by NVLAP or any agency of U.S. government. SPORTON International Inc. 6F, No.106, Sec. 1, Hsin Tai Wu Rd., Hsi Chih, Taipei Hsien, Taiwan, R.O.C. FCC TEST REPORT Report No. : F371202 SPORTON International Inc. FCC ID : RKE-SYNC0310M TEL : 886-2-2696-2468 Page No. : i FAX : 886-2-2696-2255 Issued Date : Feb. 13, 2004 Table of Contents History of this test report........................................................................................................................................ii CERTIFICATE OF COMPLIANCE ............................................................................................................................1 1. General Description of Equipment under Test .............................................................................................2 1.1. Applicant...............................................................................................................................................................................................2 1.2. Manufacturer ........................................................................................................................................................................................2 1.3. Basic Description of Equipment under Test .........................................................................................................................................2 1.4. Feature of Equipment under Test ........................................................................................................................................................2 2. Test Configuration of Equipment under Test ...............................................................................................3 2.1. Test Manner .........................................................................................................................................................................................3 2.2. Description of Test System ..................................................................................................................................................................3 2.3. Connection Diagram of Test System ...................................................................................................................................................4 2.4. A plot shows the EUT meet the requirement of 15.231(c) ...................................................................................................................5 3. Test Software ...................................................................................................................................................6 4. General Information of Test............................................................................................................................7 4.1. Test Facility ..........................................................................................................................................................................................7 4.2. Test Voltage .........................................................................................................................................................................................7 4.3. Standard for Methods of Measurement................................................................................................................................................7 4.4. Test in Compliance with .......................................................................................................................................................................7 4.5. Frequency Range Investigated ............................................................................................................................................................7 4.6. Test Distance .......................................................................................................................................................................................7 5. Test of Conducted Powerline .........................................................................................................................8 6. Test of Radiated Emission..............................................................................................................................9 6.1. Major Measuring Instruments...............................................................................................................................................................9 6.2. Test Procedures .................................................................................................................................................................................10 6.3. Typical Test Setup Layout of Radiated Emission...............................................................................................................................11 6.4. Test Result of Radiated Emission ......................................................................................................................................................12 7. Antenna Factor & Cable Loss ......................................................................................................................17 8. EMI Suppression Component List.................................β¦
Text truncated - open the document above for the full version.
Test Setup Photos
FCC TEST REPORT Report No. : F371202 SPORTON International Inc. FCC ID : RKE-SYNC0310M TEL : 886-2-2696-2468 Page No. : 1 of 1 FAX : 886-2-2696-2255 Issued : Feb. 13, 2004 1.1. Photographs of Radiated Emission Test Configuration z The photographs show the configuration that generates the maximum emission. FRONT VIEW REAR VIEW
Contact Information
Applicant
Caesar Lei(Sales Manager)
Test Firm
SPORTON International IncKathy Lin
Technical Specifications
| # | Rule Parts | Frequency Range | Power Output |
|---|---|---|---|
| 1 | 15.231 | 433.92 MHz - 433.92 MHz | - |
