RKIC51-B606-XXBluetooth Headset

www.tuv.com Test Report No.: 14023051 001 Appendix 4 page 12 of 17 1.5 User Manual www.tuv.com Test Report No.: 14023051 001 Appendix 4 page 13 of 17 www.tuv.com Test Report No.: 14023051 001 Appendix 4 page 14 of 17 www.tuv.com Test Report No.: 14023051 001 Appendix 4 page 15 of 17 www.tuv.com Test Report No.: 14023051 001 Appendix 4 page 16 of 17 www.tuv.com Test Report No.: 14023051 001 Appendix 4 page 17 of 17

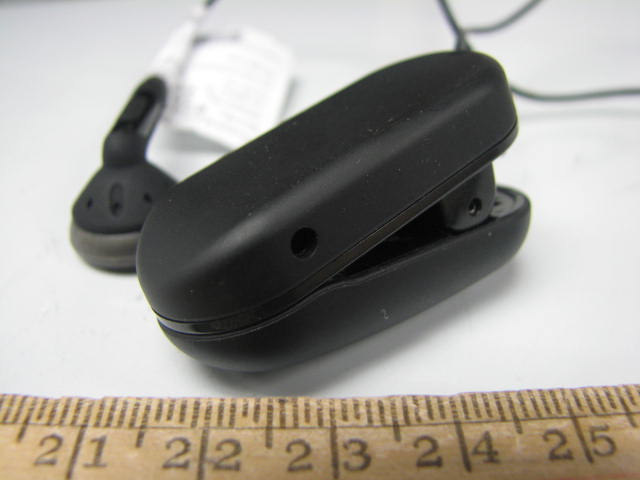

www.tuv.com Test Report No.: 14023051 001 Appendix 3 page 1 of 4 Appendix 3 Construction Photos www.tuv.com Test Report No.: 14023051 001 Appendix 3 page 2 of 4 1.1 External view 1.1.1 Front view 1.1.2 Rear view

www.tuv.com Test Report No.: 14023051 001 Appendix 4 page 1 of 17 Appendix 4 Technical Documents www.tuv.com Test Report No.: 14023051 001 Appendix 4 page 2 of 17 1.1 FCCID Label Artwork The yellow oval shows the location of the Rating Label.

www.tuv.com Test Report No.: 14023051 001 Date: 22.03.2010 page 2 of 17 Table of Content Page Cover Page .................................................................................1 Table of Content ..........................................................................2 Product information.......................................................................................................4 Manufacturers declarations ....................................................................................................................... 4 Product function and intended use ........................................................................................................... 5 Submitted documents................................................................................................................................. 5 Remark ......................................................................................................................................................... 5 Special accessories and auxiliary equipment .......................................................................................... 5 List of Test and Measurement Instruments.................................................................6 Results FCC Part 15 – Subpart C .................................................................................7 Subclause 15.203 – Antenna Information ....................................................................... Pass................. 7 Subclause 15.204 – Antenna Information ....................................................................... Pass................. 7 Subclause 15.207 – Disturbance Voltage on AC Mains................................................. Pass................. 7 Subclause 15.247 (a)(1) – Carrier Frequency Separation .............................................. Pass................. 9 Subclause 15.247 (a)(1)(iii) – Number of hopping channels ......................................... Pass................. 9 Subclause 15.247 (a)(1)(iii) – Time of Occupancy (Dwell Time) ................................... Pass............... 10 Subclause 15.247 (a) – 20 dB Bandwidth........................................................................ Pass............... 10 Subclause 15.247 (a) – Hopping Sequence .................................................................... Pass............... 11 Subclause 15.247 (a) – Equal Hopping Frequency Use................................................. Pass............... 12 Subclause 15.247 (a) – Receiver Input Bandwidth......................................................... Pass............... 13 Subclause 15.247 (a) – Receiver Hopping Capability .................................................... Pass............... 13 Subclause 15.247 (b)(1) – Peak Output Power ............................................................... Pass............... 13 Subclause 15.247 (d) – Band edge compliance of conducted emissions ................... Pass............... 14 Subclause 15.205 – Band edge compliance of radiated emissions ............................ Pass............... 14 Subclause 15.247 (d) – Spurious Conducted Emissions .............................................. Pass............... 15 Subclause 15.247 (c) – Spurious Radiated Emissions .................................................. Pass............... 16 Appendix 1 – Test protocols 26 pages Appendix 2 – Test setup 2 pages www.tuv.com Test Report No.: 14023051 001 Date: 22.03.2010 page 3 of 17 Appendix 3 – Photo documentation 4 pages Appendix 4 – Product documentation 17 pages www.tuv.com Test Report No.: 14023051 001 Date: 22.03.2010 page 4 of 17 Product information Manufacturers declarations Transceiver Operating frequency range 2402 - 2480 MHz Type of modulation GFSK; Pi/4 DQPSK; 8 DPSK Number of channels 79 Channel separation 1 MHz Type of antenna Integral Antenna gain (dBi) 2 Power level fix Type of equipment stand alone, plug-in radio device Connection to public utility power line No Nominal voltage V nor : 3.7 V Independent Operation Modes Page scan Inquiry scan Connection state - ACL Link Connection state - SCO Link www.tuv.com Test Report No.: 14023051 001 Date: 22.03.2010 page 5 of 17 Product function and intended use The test item is a Bluetooth Headset based on the Bluetooth technology. Bluetooth is a short-range radio link intended to be a cable replacement between portable and/or fixed electronic devices. Bluetooth operates in the unlicensed ISM Band at 2.4GHz. With the introduction of the enhanced data rate (EDR) feature, the data rates can be up to 3 Mb/s. An increase in the peak data rate beyond the basic rate of 1 Mb/s is achieved by modulating the RF carrier using phase shift keying (PSK) techniques, resulting in an increase of two to three times the number of bits per symbol. The 2 Mb/s EDR packets use a Pi/4-DQPSK modulation and the 3 Mb/s EDR packets use 8DPSK modulation. Submitted documents Circuit Diagram Block Diagram Bill of material User manual Remark Preliminary tests were performed in different data rate to find the worst radiated emission. The data rate shown in the table below is the worst-case rate with respect to the specific test item. Investigation has been done on all the possible configurations for searching the worst cases. Special accessories and auxiliary equipment The product has been tested together with the following additional accessory: Adaptor 1: AC/DC Power adaptor Model number: SSA-5W-05 UK 050035F Input: 100-240VAC, 50/60Hz, 0.2A Output: 5.0VDC 350mA Adaptor 2: AC/DC Power adaptor Model number: CP050040 Input: 100-240VAC, 50/60Hz, 0.12A Output: 5.0VDC 400mA www.tuv.com Test Report No.: 14023051 001 Date: 22.03.2010 page 6 of 17 List of Test and Measurement Instruments Equipment used Manufacturer Model No. S/N Due Date Semi-anechoic Chamber Frankonia Nil Nil 27-Feb-10 Test Receiver R & S ESU8 100141 08-Sep-10 Bi-conical Antenna R & S HK116 100242 22-May-10 Log Periodic Antenn…

Text truncated - open the document above for the full version.

www.tuv.com Test Report No.: 14023051 001 Appendix 1 page 1 of 26 Appendix 1 Test Results www.tuv.com Test Report No.: 14023051 001 Appendix 1 page 2 of 26 Disturbance Voltage on AC Mains www.tuv.com Test Report No.: 14023051 001 Appendix 1 page 3 of 26 www.tuv.com Test Report No.: 14023051 001 Appendix 1 page 4 of 26 www.tuv.com Test Report No.: 14023051 001 Appendix 1 page 5 of 26 www.tuv.com Test Report No.: 14023051 001 Appendix 1 page 6 of 26 Carrier Frequency Separation A 2.441012 GHz RBW 100 kHz 2.441012 GHzVBW 300 kHz 2.441012 GHz SWT 2.5 ms 2.441012 GHz Ref 20 dBm 2.441012 GHz Center 2.441 GHz 2.441012 GHz Span 3 MHz 2.441012 GHz 300 kHz/ 2.441012 GHz Att 50 dB 2.441012 GHz * 2.441012 GHz 1 PK 2.441012 GHz MAXH 2.441012 GHz 2.441012 GHz 2.441012 GHz 2.441012 GHz 2.441012 GHz 2.441012 GHz 2.441012 GHz 2.441012 GHz 2.441012 GHz 2.441012 GHz -80 -70 -60 -50 -40 -30 -20 -10 0 10 20 2.441012 GHz 1 Marker 1 [T1 ] -1.47 dBm 2.441012000 GHz 2 Delta 2 [T1 ] 0.13 dB 990.000000000 kHz 3 Delta 3 [T1 ] 0.10 dB -1.020000000 MHz MARKER 1 2.441012 GHz Date: 8.FEB.2010 16:32:44 www.tuv.com Test Report No.: 14023051 001 Appendix 1 page 7 of 26 Number of hopping channels A 30 dB Ref 20 dBm 30 dB 4.1 MHz/ 30 dB Start 2.4 GHz 30 dB Stop 2.441 GHz 30 dB RBW 1 MHz 30 dBVBW 3 MHz 30 dB SWT 2.5 ms 30 dB MAXH 30 dB 1 PK 30 dB Att 30 dB 30 dB * 30 dB -80 -70 -60 -50 -40 -30 -20 -10 0 10 20 30 dB RF ATTENUATION 30 dB Date: 8.FEB.2010 16:35:13 www.tuv.com Test Report No.: 14023051 001 Appendix 1 page 8 of 26 Ref 20 dBm 2.483 GHz Att 30 dB 2.483 GHz * 2.483 GHz A 2.483 GHz 1 PK 2.483 GHz MAXH 2.483 GHz 4.2 MHz/ 2.483 GHz Start 2.441 GHz 2.483 GHz Stop 2.483 GHz 2.483 GHz RBW 1 MHz 2.483 GHzVBW 3 MHz 2.483 GHz SWT 2.5 ms 2.483 GHz -80 -70 -60 -50 -40 -30 -20 -10 0 10 20 2.483 GHz STOP FREQUENCY 2.483 GHz Date: 8.FEB.2010 16:36:49 www.tuv.com Test Report No.: 14023051 001 Appendix 1 page 9 of 26 Dwell Time Ref 20 dBm 31.6 s Att 30 dB 31.6 s * 31.6 s A 31.6 s RBW 1 MHz 31.6 sVBW 3 MHz 31.6 s Center 2.441 GHz 31.6 s 3.16 s/ 31.6 s SWT 31.6 s 31.6 s SGL 31.6 s CLRWR 31.6 s 1 PK 31.6 s * 31.6 s -80 -70 -60 -50 -40 -30 -20 -10 0 10 20 31.6 s SWEEP TIME 31.6 s Date: 8.FEB.2010 16:40:31 www.tuv.com Test Report No.: 14023051 001 Appendix 1 page 10 of 26 Ref 20 dBm 2.904 ms Att 30 dB 2.904 ms * 2.904 ms A 2.904 ms RBW 1 MHz 2.904 msVBW 3 MHz 2.904 ms CLRWR 2.904 ms TRG 2.904 ms Center 2.441 GHz 2.904 ms 400 μs/ 2.904 ms SWT 4 ms 2.904 ms * 2.904 ms 1 PK 2.904 ms 2.904 ms 2.904 ms 2.904 ms 2.904 ms 2.904 ms 2.904 ms 2.904 ms 2.904 ms 2.904 ms -80 -70 -60 -50 -40 -30 -20 -10 0 10 20 2.904 ms 1 Marker 1 [T1 ] -1.45 dBm -4.000000 μs 2 Delta 2 [T1 ] 0.10 dB 2.904000 ms TRG -2.7 dBm DELTA MARKER 2 2.904 ms Date: 8.FEB.2010 16:42:38 www.tuv.com Test Report No.: 14023051 001 Appendix 1 page 11 of 26 20dB Bandwidth Modulation: 8 DPSK Tx frequency: 2402MHz Ref 20 dBm 2.401988 GHz Att 30 dB 2.401988 GHz * 2.401988 GHz A 2.401988 GHz Center 2.402 GHz 2.401988 GHz Span 3 MHz 2.401988 GHz 300 kHz/ 2.401988 GHz * 2.401988 GHz RBW 30 kHz 2.401988 GHzVBW 100 kHz 2.401988 GHz SWT 5 ms 2.401988 GHz 1 PK 2.401988 GHz MAXH 2.401988 GHz 2.401988 GHz 2.401988 GHz 2.401988 GHz 2.401988 GHz 2.401988 GHz 2.401988 GHz 2.401988 GHz 2.401988 GHz 2.401988 GHz -80 -70 -60 -50 -40 -30 -20 -10 0 10 20 2.401988 GHz 1 Marker 1 [T1 ] 1.25 dB m 2.401988000 GHz 2 Delta 2 [T1 ] -19.40 dB -636.000000000 kHz 3 Delta 3 [T1 ] -20.00 dB 630.000000000 kHz MARKER 1 2.401988 GHz Date: 8.FEB.2010 16:46:04 Modulation: 8 DPSK Tx frequency: 2441MHz Ref 20 dBm 2.440988 GHz Att 30 dB 2.440988 GHz * 2.440988 GHz A 2.440988 GHz Center 2.441 GHz 2.440988 GHz Span 3 MHz 2.440988 GHz 300 kHz/ 2.440988 GHz * 2.440988 GHz RBW 30 kHz 2.440988 GHzVBW 100 kHz 2.440988 GHz SWT 5 ms 2.440988 GHz 1 PK 2.440988 GHz MAXH 2.440988 GHz 2.440988 GHz 2.440988 GHz 2.440988 GHz 2.440988 GHz 2.440988 GHz 2.440988 GHz 2.440988 GHz 2.440988 GHz 2.440988 GHz -80 -70 -60 -50 -40 -30 -20 -10 0 10 20 2.440988 GHz 1 Marker 1 [T1 ] 1.48 dBm 2.440988000 GHz 2 Delta 2 [T1 ] -19.34 dB -636.000000000 kHz 3 Delta 3 [T1 ] -20.27 dB 624.000000000 kHz MARKER 1 2.440988 GHz Date: 8.FEB.2010 16:47:28 www.tuv.com Test Report No.: 14023051 001 Appendix 1 page 12 of 26 Modulation: 8 DPSK Tx frequency: 2480MHz Ref 20 dBm 2.479988 GHz Att 30 dB 2.479988 GHz * 2.479988 GHz A 2.479988 GHz Center 2.48 GHz 2.479988 GHz Span 3 MHz 2.479988 GHz 300 kHz/ 2.479988 GHz * 2.479988 GHz RBW 30 kHz 2.479988 GHzVBW 100 kHz 2.479988 GHz SWT 5 ms 2.479988 GHz 1 PK 2.479988 GHz MAXH 2.479988 GHz 2.479988 GHz 2.479988 GHz 2.479988 GHz 2.479988 GHz 2.479988 GHz 2.479988 GHz 2.479988 GHz 2.479988 GHz 2.479988 GHz -80 -70 -60 -50 -40 -30 -20 -10 0 10 20 2.479988 GHz 1 Marker 1 [T1 ] 0.34 dBm 2.479988000 GHz 2 Delta 2 [T1 ] -19.44 dB -642.000000000 kHz 3 Delta 3 [T1 ] -20.04 dB 636.000000000 kHz MARKER 1 2.479988 GHz Date: 8.FEB.2010 16:49:06 Modulation: GFSK Tx frequency: 2402MHz Ref 20 dBm 2.401988 GHz Att 30 dB 2.401988 GHz * 2.401988 GHz A 2.401988 GHz Center 2.402 GHz 2.401988 GHz Span 3 MHz 2.401988 GHz 300 kHz/ 2.401988 GHz * 2.401988 GHz RBW 30 kHz 2.401988 GHzVBW 100 kHz 2.401988 GHz SWT 5 ms 2.401988 GHz 1 PK 2.401988 GHz MAXH 2.401988 GHz 2.401988 GHz 2.401988 GHz 2.401988 GHz 2.401988 GHz 2.401988 GHz 2.401988 GHz 2.401988 GHz 2.401988 GHz 2.401988 GHz -80 -70 -60 -50 -40 -30 -20 -10 0 10 20 2.401988 GHz 1 Marker 1 [T1 ] 3.90 dBm 2.401988000 GHz 2 Delta 2 [T1 ] -20.06 dB -396.000000000 kHz 3 Delta 3 [T1 ] -20.03 dB 408.000000000 kHz MARKER 1 2.401988 GHz Date: 8.FEB.2010 16:54:52 www.tuv.com Test Report No.: 14023051 001 Appendix 1 page 13 of 26 Modulation: GFSK Tx frequency: 2441MHz Ref 20 dBm 2.440988 GHz Att 30 dB 2.440988 GHz * 2.440988 GHz A 2.440988 GHz Center 2.441 GHz 2.440988 GHz Span 3 MHz 2.440988 GHz 300 kHz/ 2.440988 GHz * 2.440988 GHz RBW 30 kHz 2.440988 GHzVBW 100 kHz 2.440988 GHz SWT 5 ms 2.440988 GHz 1 PK 2.440988 GHz MAXH 2.440988 GHz 2.440988 GHz 2.440988 GHz 2.440988 GHz 2.440988 GHz 2.440988 GHz 2.440988…

Text truncated - open the document above for the full version.

www.tuv.com Test Report No.: 14023051 001 Appendix 2 page 1 of 3 Appendix 2 Test Setup Photos www.tuv.com Test Report No.: 14023051 001 Appendix 2 page 2 of 3 Set-up for Radiation Emission (Transceiver) Set-up for Radiation Emission (Transceiver) www.tuv.com Test Report No.: 14023051 001 Appendix 2 page 3 of 3 Set-up for AC wireline conducted emissions
