RKWTX0201The wireless receiving controller

The wireless remote controller Manual（TX0201） 1. Main technical specifications: Voltage: DC6V Working Current: ≤3mA Quiescent Current: <1.0uA Transmission Frequency: 433.776±0.075MHZ 2. How to use: Press “Start” to switch on generator Press “Stop” to switch off generator 3. Notes： Do not let the wireless remote controller suffer violent vibration. Do not expose the wireless remote controller to liquid or other moist environment. Keep it away from direct sunshine. The wireless remote controller will twist under heat. FCC STATEMENT 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. 2. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 4.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (obsolete) 2.0 3.0 Jan-31-2012 Updated letter information (current) 3.0 4.0 May-23-2014 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 4.0 SHAOXING SIYUAN KEJI CO.,LTD ______________________________________________________ 2014.6.26 To: SIEMIC, Inc. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, _____ SHAOXING SIYUAN KEJI CO.,LTD _____hereby authorize SIEMIC, Inc. to act as Certification Body for certifying for the following project(s): Product Name: The wireless receiving controller Model name: TX0201 FCC ID: RKWTX0201 We affirm that between SIEMIC, Inc. and ____ SHAOXING SIYUAN KEJI CO.,LTD ___, any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Client’s signature ： Client’s name / title ：Chen Huan/ electronic engineer Contact information / address ：SHAOXING SIYUAN KEJI CO.,LTD/ The cross of yueying road and qisheng road, paojiang industrial commercial park,

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 3.0 SHAOXING SIYUAN KEJI CO.,LTD ______________________________________________________ 2014.6.26 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: RKWTX0201 We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematics - Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature : Client’s name / title : Chen Huan/ electronic engineer Contact information / address: SHAOXING SIYUAN KEJI CO.,LTD/ The cross of yueying road and qisheng road, paojiang industrial commercial park,

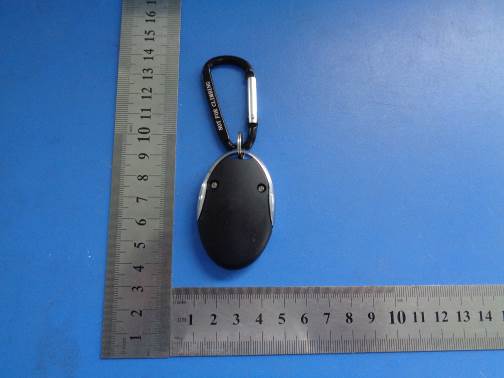

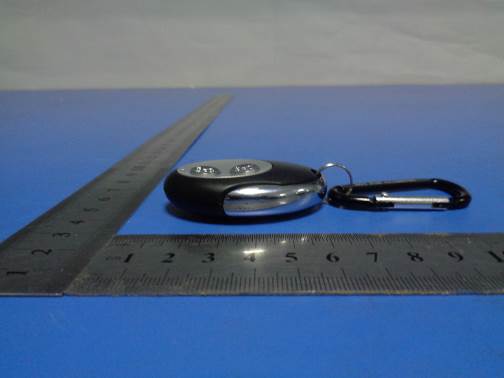

Title: RF Test Report for The wireless remote controller Main Model: TX0201 Serial Model: N/A To: FCC 15.231:2013, ANSI C63.4:2009 Report No.: 14020563-FCC-R1 Issue Date: June 25, 2014 Page: 19 of 30 www.siemic.com.cn Annex B. EUT AND TEST SETUP PHOTOGRAPHS Annex B.i. Photograph : EUT External Photo Front View of EUT Rear View of EUT Title: RF Test Report for The wireless remote controller Main Model: TX0201 Serial Model: N/A To: FCC 15.231:2013, ANSI C63.4:2009 Report No.: 14020563-FCC-R1 Issue Date: June 25, 2014 Page: 20 of 30 www.siemic.com.cn Top View of EUT Bottom View of EUT Title: RF Test Report for The wireless remote controller Main Model: TX0201 Serial Model: N/A To: FCC 15.231:2013, ANSI C63.4:2009 Report No.: 14020563-FCC-R1 Issue Date: June 25, 2014 Page: 21 of 30 www.siemic.com.cn Left View of EUT Right View of EUT

Model: TX0201 FCC ID:RKWTX0201 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation SHAOXING SIYUAN KEJI CO.,LTD

Title: RF Test Report for The wireless remote controller Main Model: TX0201 Serial Model: N/A To: FCC 15.231:2013, ANSI C63.4:2009 Report No.: 14020563-FCC-R1 Issue Date: June 25, 2014 Page: 22 of 30 www.siemic.com.cn Annex B.ii. Photograph : EUT Internal Photo EUT – Uncover Front View EUT –PCB Front View Title: RF Test Report for The wireless remote controller Main Model: TX0201 Serial Model: N/A To: FCC 15.231:2013, ANSI C63.4:2009 Report No.: 14020563-FCC-R1 Issue Date: June 25, 2014 Page: 23 of 30 www.siemic.com.cn EUT –PCB Rear View Antenna

SHAOXING SIYUAN KEJI CO.,LTD The wireless remote controller Main Model: TX0201 Serial Model: N/A June 25, 2014 Report No.: 14020563-FCC-R1 (This report supersedes NONE) Modifications made to the product : None This Test Report is Issued Under the Authority of: Ray Zhao Compliance Engineer Alex Liu Technical Manager This test report may be reproduced in full only. Test result presented in this test report is applicable to the representative sample only. Title: RF Test Report for The wireless remote controller Main Model: TX0201 Serial Model: N/A To: FCC 15.231:2013, ANSI C63.4:2009 Report No.: 14020563-FCC-R1 Issue Date: June 25, 2014 Page: 2 of 30 www.siemic.com.cn Laboratory Introduction ATION SIEMIC, headquartered in the heart of Silicon Valley, with superior facilities in US and Asia, is one of the leading independent testing and certification facilities providing customers with one-stop shop services for Compliance Testing and Global Certifications. In addition to testing and certification, SIEMIC provides initial design reviews and compliance management through out a project. Our extensive experience with China, Asia Pacific, North America, European, and international compliance requirements, assures the fastest, most cost effective way to attain regulatory compliance for the global markets. Accreditations for Conformity Assessment Country/Region Scope USA EMC , RF/Wireless , Telecom Canada EMC, RF/Wireless , Telecom Taiwan EMC, RF, Telecom , Safety Hong Kong RF/Wireless ,Telecom Australia EMC, RF, Telecom , Safety Korea EMI, EMS, RF , Telecom, Safety Japan EMI, RF/Wireless, Telecom Singapore EMC , RF , Telecom Europe EMC, RF, Telecom , Safety Title: RF Test Report for The wireless remote controller Main Model: TX0201 Serial Model: N/A To: FCC 15.231:2013, ANSI C63.4:2009 Report No.: 14020563-FCC-R1 Issue Date: June 25, 2014 Page: 3 of 30 www.siemic.com.cn This page has been left blank intentionally. Title: RF Test Report for The wireless remote controller Main Model: TX0201 Serial Model: N/A To: FCC 15.231:2013, ANSI C63.4:2009 Report No.: 14020563-FCC-R1 Issue Date: June 25, 2014 Page: 4 of 30 www.siemic.com.cn CONTENTS 1 EXECUTIVE SUMMARY & EUT INFORMATION .......................................................................................... 5 2 TECHNICAL DETAILS ......................................................................................................................................... 6 3 MODIFICATION ..................................................................................................................................................... 7 4 TEST SUMMARY .................................................................................................................................................... 8 5 MEASUREMENTS, EXAMINATION AND DERIVED RESULTS .................................................................. 9 ANNEX A. TEST INSTRUMENT & METHOD ........................................................................................................ 18 ANNEX B. EUT AND TEST SETUP PHOTOGRAPHS ........................................................................................... 19 ANNEX C. TEST SETUP AND SUPPORTING EQUIPMENT ................................................................................ 25 ANNEX D. USER MANUAL / BLOCK DIAGRAM / SCHEMATICS / PART LIST ............................................ 29 ANNEX E. DECLARATION OF SIMILARITY ........................................................................................................ 30 Title: RF Test Report for The wireless remote controller Main Model: TX0201 Serial Model: N/A To: FCC 15.231:2013, ANSI C63.4:2009 Report No.: 14020563-FCC-R1 Issue Date: June 25, 2014 Page: 5 of 30 www.siemic.com.cn 1 EXECUTIVE SUMMARY & EUT INFORMATION The purpose of this test programmed was to demonstrate compliance of the SHAOXING SIYUAN KEJI CO.,LTD. The The wireless remote controller and model: TX0201 against the current Stipulated Standards. The The wireless remote controller has demonstrated compliance with the FCC 15.231:2013, ANSI C63.4:2009. EUT Information EUT Description The wireless remote controller Main Model TX0201 Serial Model N/A Antenna Gain 2 dBi Input Power 3*2V DC battery of power supply Classification Per Stipulated Test Standard FCC 15.231:2013, ANSI C63.4:2009 Title: RF Test Report for The wireless remote controller Main Model: TX0201 Serial Model: N/A To: FCC 15.231:2013, ANSI C63.4:2009 Report No.: 14020563-FCC-R1 Issue Date: June 25, 2014 Page: 6 of 30 www.siemic.com.cn 2 TECHNICAL DETAILS Purpose Compliance testing of The wireless remote controller with stipulated standard Applicant / Client SHAOXING SIYUAN KEJI CO.,LTD The Cross Of Yueying Road And Qisheng Road,Paojiang Industrial Commercial Park,ShaoXing City Manufacturer SHAOXING SIYUAN KEJI CO.,LTD The Cross Of Yueying Road And Qisheng Road,Paojiang Industrial Commercial Park,ShaoXing City Laboratory performing the tests SIEMIC (Nanjing-China) Laboratories NO.2-1,Longcang Dadao, Yuhua Economic Development Zone, Nanjing, China Tel:+86(25)86730128/86730129 Fax:+86(25)86730127 Email: [email protected] Test report reference number 14020563-FCC-R1 Date EUT received June 17, 2014 Standard applied FCC 15.231:2013, ANSI C63.4:2009 Dates of test June 23 to June 27, 2014 No of Units: 1# Equipment Category: DSC Trade Name : N/A RF Operating Frequency (ies) Tx: 433.776MHz Number of Channels : 1 CH Modulation : ASK FCC ID: RKWTX0201 Title: RF Test Report for The wireless remote controller Main Model: TX0201 Serial Model: N/A To: FCC 15.231:2013, ANSI C63.4:2009 Report No.: 14020563-FCC-R1 Issue Date: June 25, 2014 Page: 7 of 30 www.siemic.com.cn 3 MODIFICATION NONE Title: RF Test Report for The wireless remote controller Main Model: TX0201 Serial Model: N/A To: FCC 15.231:2013, ANSI C63.4:2009 Report No.: 14020563-FCC-R1 Issue Date: June 25, 2014 Page: 8 of 30 www.siemic.com.cn 4 TEST SUMMARY The product was tested in a…
