RLI-MB79003G/4G Wireless Router

Connect the Wi-Fi Antenna(SMA Female) FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. MB7900 Only has a 3G/4G module(optional) and WAN port for internet connection optional 3G/4G Module determined by FCC regulations. When operating your router, please be sure to maintain a separation distance of at least 20cm between your body (excluding fingers, hands, wrists, ankles and feet) and the antenna to meet RF exposure safety requirements as determined by FCC regulations.

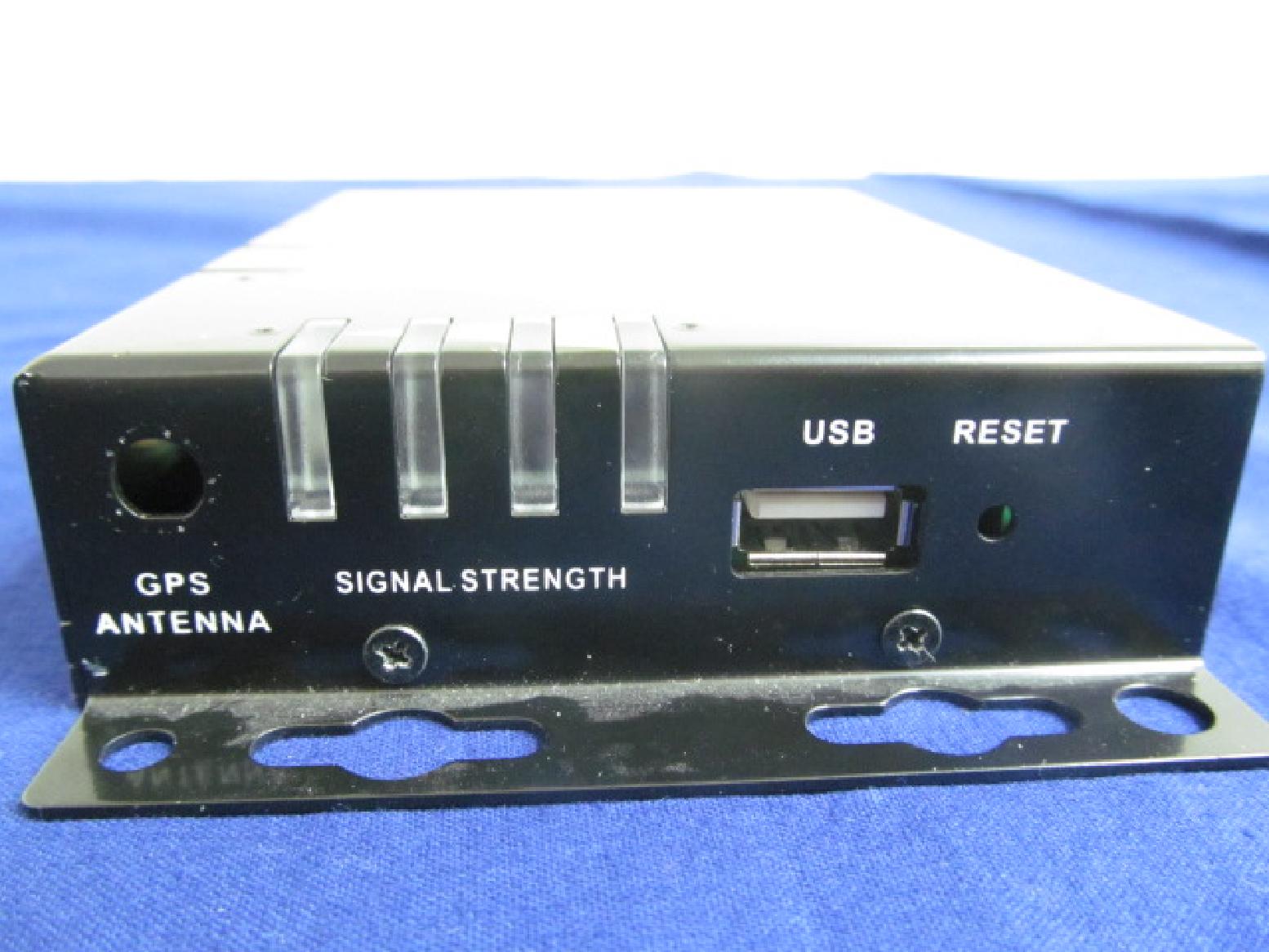

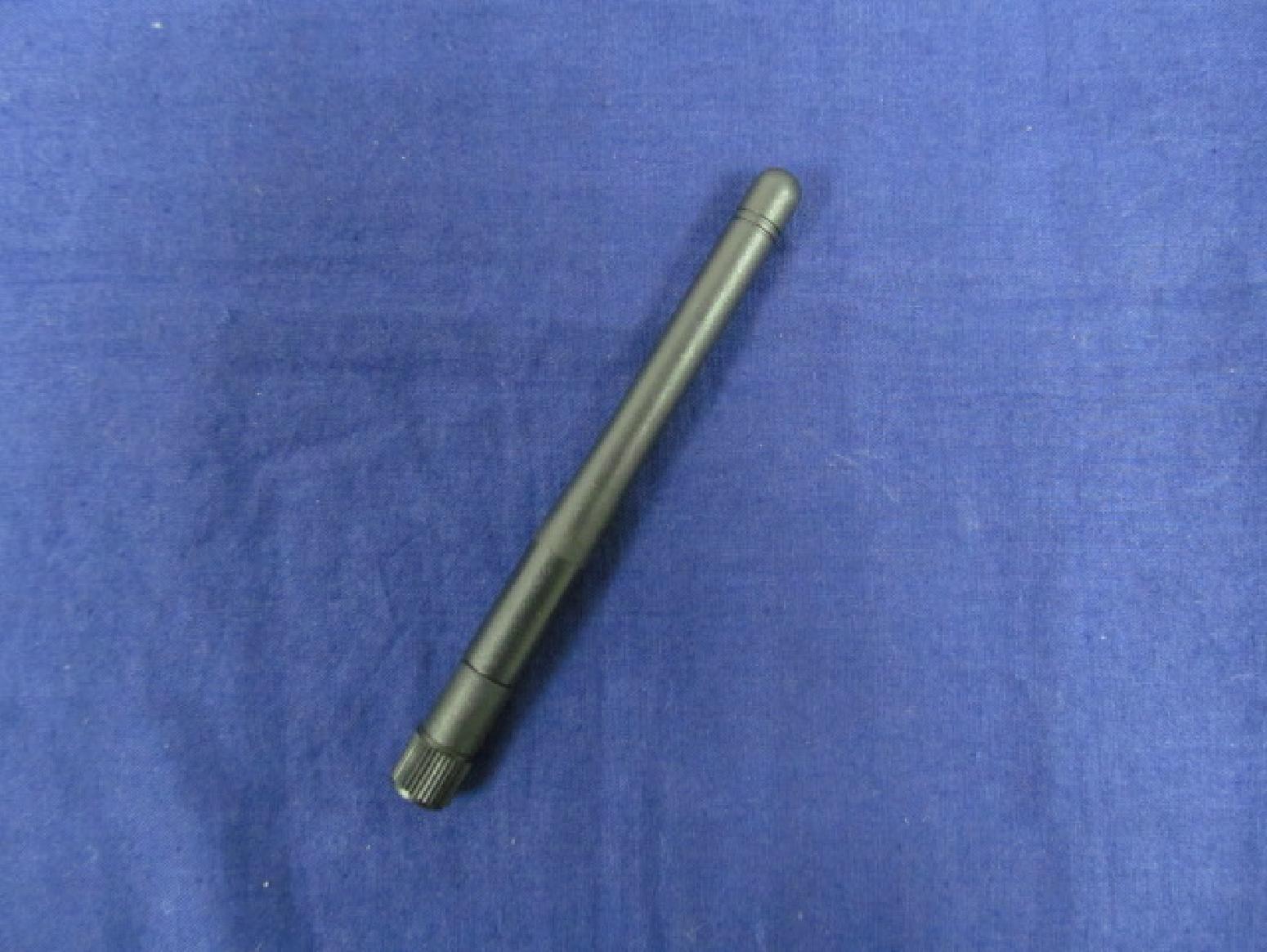

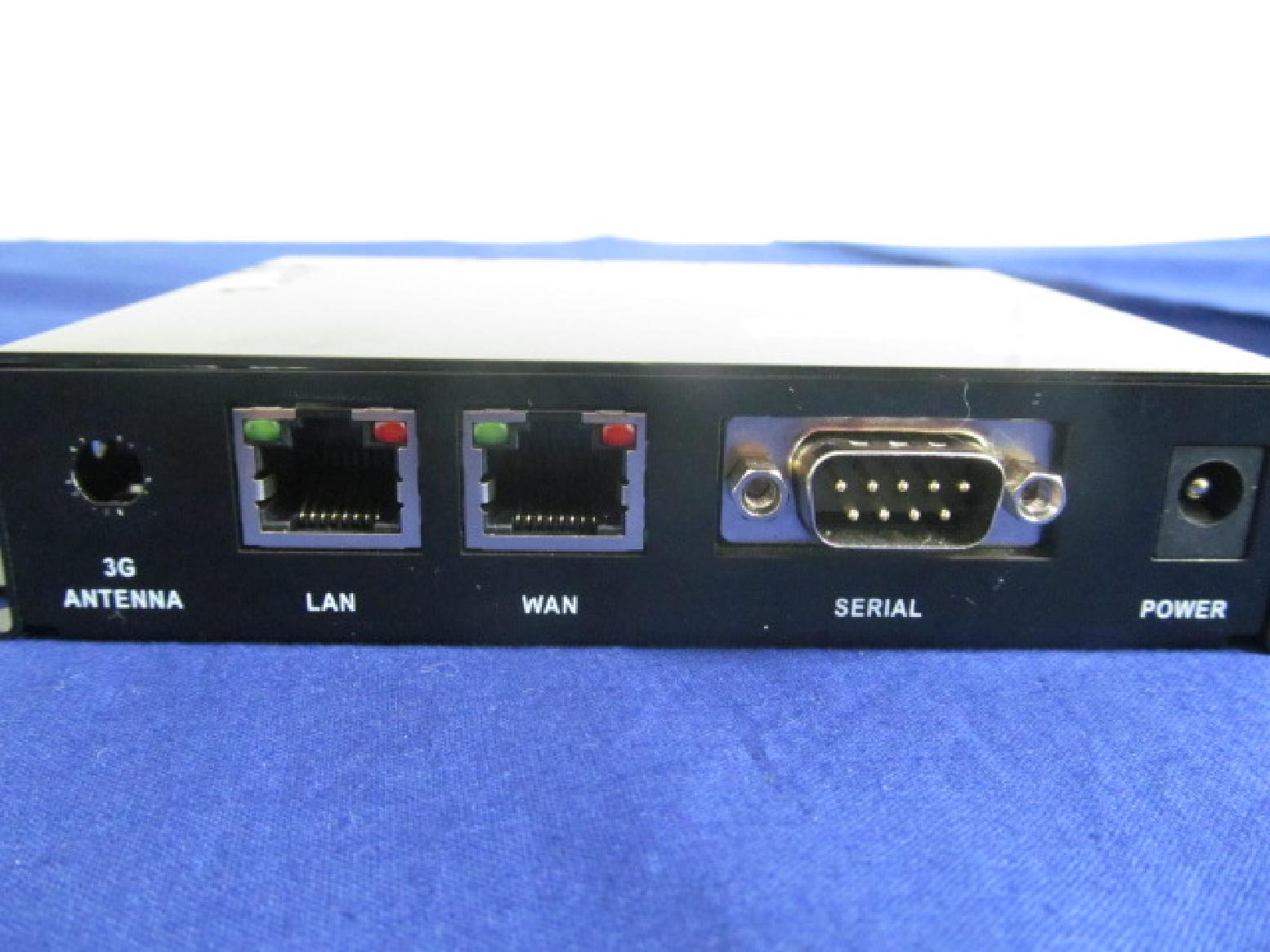

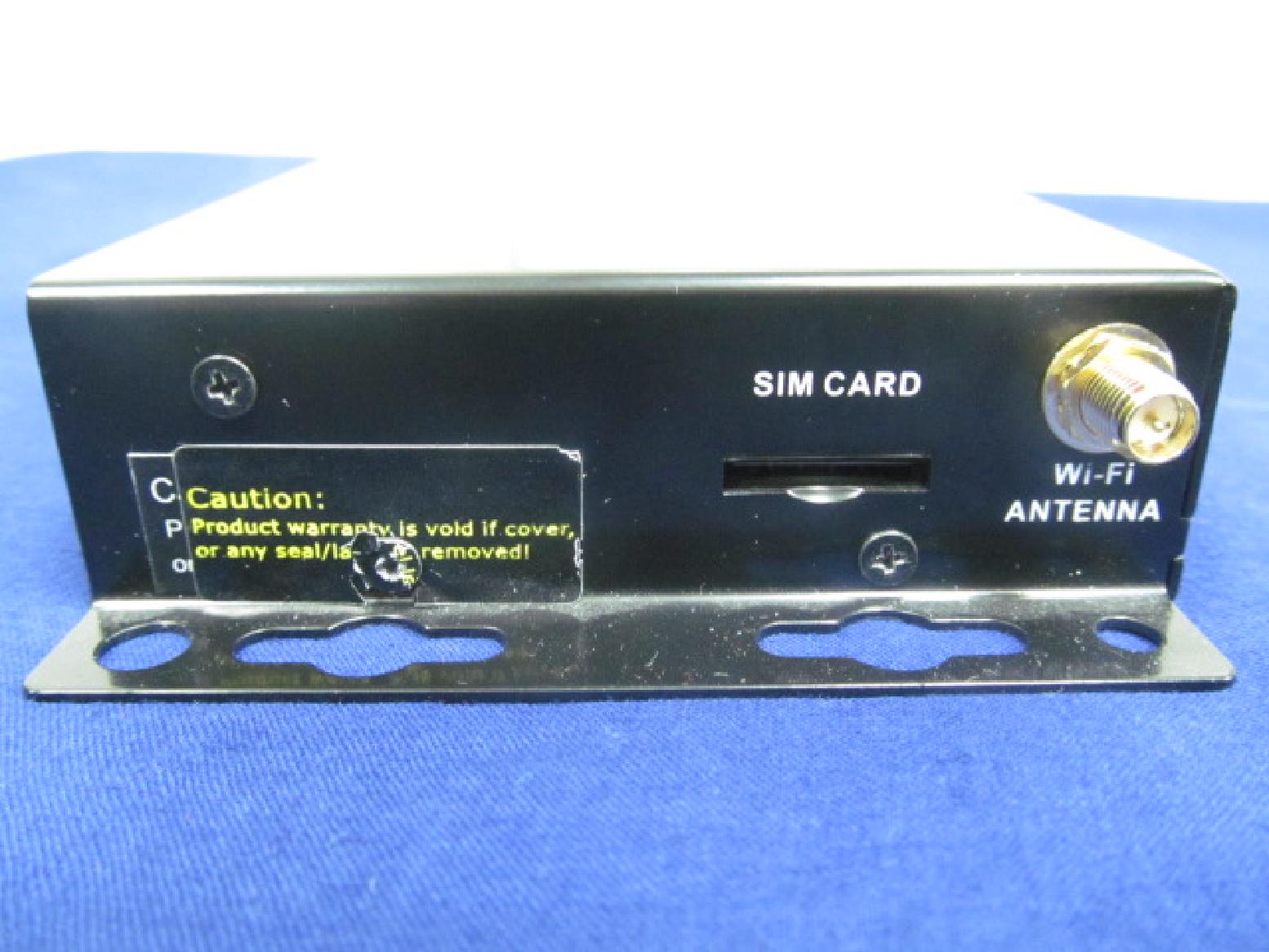

(1) EUT Photo (2) EUT Photo (3) EUT Photo (4) EUT Photo (5) EUT Photo (6) EUT Photo (7) EUT Photo (8) EUT Photo (9) EUT Photo (Antenna)

(1) EUT Photo (2) EUT Photo Report No: 12CS048R-RF-US-P05V01 Page: 2 of 2 (3) EUT Photo

RF Exposure Evaluation Declaration Product Name : 3G/4G Wireless Router Model No. : MB7900 FCC ID : RLI-MB7900 Applicant : Bellnet Technologies Co., Ltd Address : 51 Zhujiang Road, New District, Wuxi, China Date of Receipt : 24/11/2012 Issued Date : 28/12/2012 Report No. : 12CS048R-RF-US-P20V01 Report Version : V1.0 The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standard through the calibration of the equipment and evaluated measurement uncertainty herein. This report must not be used to claim product endorsement by TAF, CNAS or any agency of the Government. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No: 12CS048R-RF-US-P20V01 Page: 2 of 5 Test Report Certification Issued Date : 28/12/2012 Report No. : 12CS048R-RF-US-P20V01 Product Name : 3G/4G Wireless Router Applicant : Bellnet Technologies Co., Ltd Address : 51 Zhujiang Road, New District, Wuxi, China Manufacturer : Bellnet Technologies Co., Ltd Address : 51 Zhujiang Road, New District, Wuxi, China Model No. : MB7900 FCC ID : RLI-MB7900 EUT Voltage : DC 12V Brand Name : BELLNET Applicable Standard : FCC OET 65 Test Result : Complied Performed Location : Suzhou EMC Laboratory No.99 Hongye Rd., Suzhou Industrial Park Loufeng Hi-Tech Development Zone., Suzhou, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 FCC Registration Number: 800392 Documented By : (Engineering ADM: Alice Ni) Reviewed By : (Senior Engineer: Jame Yuan) Approved By : (Manager: Marlin Chen) Report No: 12CS048R-RF-US-P20V01 Page: 3 of 5 Laboratory Information We, QuieTek Corporation , are an independent EMC and safety consultancy that was established the whole facility in our laboratories. The test facility has been accredited/accepted(audited or listed) by the following related bodies in compliance with ISO 17025, EN 45001 and specified testing scope: The related certificate for our laboratories about the test site and management system can be downloaded from QuieTek Corporation’s Web Site :http://www.quietek.com/tw/ctg/cts/accreditations.htm The address and introduction of QuieTek Corporation’s laboratories can be founded in our Web site : http://www.quietek.com/ If you have any comments, Please don’t hesitate to contact us. Our contact information is as below: HsinChu Testing Laboratory : No.75-2, 3rd Lin, Wangye Keng, Yonghxing Tsuen, Qionglin Shiang, Hsinchu County 307, Taiwan, R.O.C. TEL:+886-3-592-8858 / FAX:+886-3-592-8859 E-Mail : [email protected] LinKou Testing Laboratory : No.5-22, Ruishukeng, Linkou Dist., New Taipei City 24451, Taiwan, R.O.C. TEL : 886-2-8601-3788 / FAX : 886-2-8601-3789 E-Mail : [email protected] Suzhou Testing Laboratory : No.99 Hongye Rd., Suzhou Industrial Park Loufeng Hi-Tech Development Zone., SuZhou, China TEL : +86-512-6251-5088 / FAX : 86-512-6251-5098 E-Mail : [email protected] Taiwan R.O.C. : BSMI, NCC, TAF Germany : TUV Rheinland Norway : Nemko, DNV USA : FCC, NVLAP Japan : VCCI China : CNAS Report No: 12CS048R-RF-US-P20V01 Page: 4 of 5 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm2) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r2) Where Pd = power density in mW/cm2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Report No: 12CS048R-RF-US-P20V01 Page: 5 of 5 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°Cand 78％ RH. 1.3. Test Result of RF Exposure Evaluation Product : 3G/4G Wireless Router Test Item : RF Exposure Evaluation Test Site : AC-6 Antenna Gain: Antenna Gain: The maximum Gain measured in fully anechoic chamber is 2dBi for 2.4GHz in logarithm scale. Output Power into Antenna & RF Exposure Evaluation Distance: Test Mode Frequency Band (MHz) Maximum Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 802.11b/g 2412~2462 142.5608 0.044950 Note: The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 1 mW/cm2.

Test Report FCC Part15 Subpart C Product Name : 3G/4G Wireless Router Model No. : MB7900 FCC ID : RLI-MB7900 Applicant : Bellnet Technologies Co., Ltd Address : 51 Zhujiang Road, New District, Wuxi, China Date of Receipt : 24/11/2012 Test Date : 24/11/2012~21/12/2012 Issued Date : 28/12/2012 Report No. : 12CS048R-RF-US-P05V01 Report Version : V1.2 The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standard through the calibration of the equipment and evaluated measurement uncertainty herein. This report must not be used to claim product endorsement by TAF, CNAS or any agency of the Government. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No: 12CS048R-RF-US-P05V01 Page: 2 of 65 Test Report Certification Issued Date : 28/12/2012 Report No. : 12CS048R-RF-US-P05V01 Product Name : 3G/4G Wireless Router Applicant : Bellnet Technologies Co., Ltd Address : 51 Zhujiang Road, New District, Wuxi, China Manufacturer : Bellnet Technologies Co., Ltd Address : 51 Zhujiang Road, New District, Wuxi, China Model No. : MB7900 FCC ID : RLI-MB7900 EUT Voltage : DC 12V Brand Name : BELLNET Applicable Standard : FCC CFR Title 47 Part 15 Subpart C: 2012 ANSI C63.4: 2009; ANSI C63.10: 2009 Test Result : Complied Performed Location : Suzhou EMC Laboratory No.99 Hongye Rd., Suzhou Industrial Park Loufeng Hi-Tech Development Zone., Suzhou, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 FCC Registration Number: 800392 Documented By : (Engineering ADM: Alice Ni) Reviewed By : (Senior Engineer: Jame Yuan) Approved By : (Manager: Marlin Chen) Report No: 12CS048R-RF-US-P05V01 Page: 3 of 65 Laboratory Information We, QuieTek Corporation, are an independent EMC and safety consultancy that was established the whole facility in our laboratories. The test facility has been accredited/accepted(audited or listed) by the following related bodies in compliance with ISO 17025, EN 45001 and specified testing scope: The related certificate for our laboratories about the test site and management system can be downloaded from QuieTek Corporation’s Web Site :http://www.quietek.com/tw/ctg/cts/accreditations.htm The address and introduction of QuieTek Corporation’s laboratories can be founded in our Web site : http://www.quietek.com/ If you have any comments, Please don’t hesitate to contact us. Our contact information is as below: HsinChu Testing Laboratory : No.75-2, 3rd Lin, Wangye Keng, Yonghxing Tsuen, Qionglin Shiang, Hsinchu County 307, Taiwan, R.O.C. TEL:+886-3-592-8858 / FAX:+886-3-592-8859 E-Mail : [email protected] LinKou Testing Laboratory : No.5-22, Ruishukeng, Linkou Dist., New Taipei City 24451, Taiwan, R.O.C. TEL : 886-2-8601-3788 / FAX : 886-2-8601-3789 E-Mail : [email protected] Suzhou Testing Laboratory : No.99 Hongye Rd., Suzhou Industrial Park Loufeng Hi-Tech Development Zone., SuZhou, China TEL : +86-512-6251-5088 / FAX : 86-512-6251-5098 E-Mail : [email protected] Taiwan R.O.C. :BSMI, NCC, TAF Germany :TUV Rheinland Norway :Nemko, DNV USA :FCC, NVLAP Japan :VCCI China :CNAS Report No: 12CS048R-RF-US-P05V01 Page: 4 of 65 TABLE OF CONTENTS Description Page 1. General Information .......................................................................................................6 1.1. EUT Description .........................................................................................................6 1.2. Mode of Operation .....................................................................................................8 1.3. Tested System Details................................................................................................9 1.4. Configuration of Tested System ...............................................................................10 1.5. EUT Exercise Software ............................................................................................ 11 2. Technical Test ..............................................................................................................12 2.1. Summary of Test Result ...........................................................................................12 2.2. Test Environment.....................................................................................................13 3. Conducted Emission ....................................................................................................14 3.1. Test Equipment ........................................................................................................14 3.2. Test Setup ................................................................................................................14 3.3. Limit..........................................................................................................................15 3.4. Test Procedure.........................................................................................................15 3.5. Uncertainty ...............................................................................................................15 3.6. Test Result...............................................................................................................16 4. Radiated Emission.......................................................................................................18 4.1. Test Equipment ........................................................................................................18 4.2. Test Setup ................................................................................................................19 4.3. Limit..........................................................................................................................20 4.4. Test Procedure.........................................................................................................20 4.5. Uncertainty ....................................................…

Text truncated - open the document above for the full version.

Test Setup Photograph Test Mode: Transmitting Description: Front View of Conducted Emission Test Setup Test Mode: Transmitting Description: Back View of Conducted Emission Test Setup Test Mode : Transmitting Description : Radiated Emission Test Setup for Below 1GHz Test Mode : Transmitting Description : Radiated Emission Test Setup for 1~18GHz Test Mode : Transmitting Description : Radiated Emission Test Setup for Above 18GHz
