RM7DTR100REV2-1DTR100 VHF Transmitter/Receiver
Morcom International, Inc.
Click to zoom
Application Details
- Equipment Class
- TNB - Licensed Non-Broadcast Station Transmitter
- Date of Grant
- Jun 22, 2004
- Application Purpose
- Original Equipment
- Date of Application
- Feb 03, 2004
- Equipment Note
- DTR100 VHF Transmitter/Receiver
- Frequency Range
- 118.00000000 - 136.97500000
- Company
- Morcom International, Inc.
- Country
- United States
Documents & Files
Document Text
Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.
Users Manual
OTE DTR100 Setting-up Guide 4bs-tz000009-e Rev. 01 DTR100 VHF Transceiver for ATC applications OTE S.p.A.- Via E. Barsanti 8, 50127 – Firenze, Italy 4bs-tz000009-e Issue 01 - May 2003 b 4bs-tz000009-e Issue 01 - May 2003 © OTE S.p.A. 2003 All copyright and industrial rights in this document and in the technical knowledge it contains are owned by OTE and/or the third parties rightfully concerned. No part of this document nor any data herein shall be disclosed, reproduced or used for any purpose whatsoever without the prior written consent of OTE as foreseen by the law. Drawings and specifications are subject to change. All trademarks and registered trademarks are the property of their respective holders. This document has been prepared to provide technical information on the product concerned. Whilst care has been taken in compiling the material, no responsibility can be accepted for errors or omissions in the text or in associated diagrams or tables. OTE reserves the right to change specifications, performance or features relevant to the product described without notice. Where this document is furnished in association with a quotation, tender or contract, the specifications, features, performance and availability dates which are relevant to such quotation, tender or contract shall be those specified in the schedule(s), specification(s), statement(s) of compliance or other documents specifically prepared for such purpose and shall not be assumed to be those stated or implied within this document. 4bs-tz000009-e Issue 01 - May 2003 4bs-tz000009-e Issue 01 – May 2003 c Information for the guide user: Before using the equipment, read all of the instructions contained in the manual and read those relative to safety with special care. Lue k‰yttˆohjeet ja erityisesti turvallisuuteen liittyvat ohjeet ennen laitteen k‰yttˆ‰. Alvorens over te gaan tot het gebruik van het apparaat lees met aandacht al de instructies van het handboek en let vooral op die die de veiligheid betreffen. Alvorens het apparaat in gebruik te nemen lees alle instructies van het handboek en vooral de voorschriften betreffende de veiligheid. Avant toute utilisation de líappareil, lire toutes les indications contenues dans le Manuel et avec une attention particuliËre celles relatives ‡ la sÈcuritÈ. L‰s alla instruktioner i denna manual innan ni anv‰nder apparaten och d s‰rskilt noggrannt de anvisningar som g‰ller s‰kerheten. LÊs alle de vejledninger, der er indeholdt i manualen med sÊrlig opmÊrksomhed p de vejledninger, der vedr ̄rer sikkerheden, f ̄r apparatet tages i brug. Vor Gebrauch des Ger‰ts alle in dieser Bedienungsanleitung enthaltenen Anweisungen und Vorschriften lesen. Den Sicherheitsbestimmungen ist dabei besondere Aufmerksamkeit zu widmen. Πριν χρησιμοποιήσετε τη συσκευή διαβάστε όλες τις οδηγίες που περιέχονται στο εγχειρίδιο και δώστε ιδιαίτερη προσοχή στης οδηγίες ασφαλείας. Prima di utilizzare líapparecchiatura leggere tutte le indicazioni contenute nel manuale e con particolare attenzione quelle relative alla sicurezza. 4bs-tz000009-e Issue 01 - May 2003 d 4bs-tz000009-e Issue 01 - May 2003 Antes de utilizar el equipo leer todas las instrucciones contenidas en el manual, poniendo particular atenciÛn a las de seguridad. Antes de utilizar o aparelho, leia todas as instruÁıes que constam no manual e com muita atenÁ„o as instruÁıes relativas ‡ seguranÁa. 4bs-tz000009-e Issue 01 - May 2003 4bs-tz000009-e Issue 01 – May 2003 e Table of contents 1. GENERAL .......................................................................................... 3 1.1PURPOSE OF THIS GUIDE............................................................................. 4 1.2INTRODUCTION............................................................................................ 4 1.3DECLARATION OF CE MARK CONFORMANCE ............................................... 5 1.4ECO-COMPATIBILITY ................................................................................... 5 1.5GUIDE ORGANISATION ................................................................................ 5 1.6GLOSSARY OF ACRONYMS ........................................................................... 6 2. SAFETY ........................................................................................... 11 2.1SAFETY RECOMMENDATIONS .................................................................... 11 2.2ESD ............................................................................................................. 15 2.2.1 ESD precautions.........................................................................................................15 3. OPERATION .................................................................................... 19 3.1OPERATING STATES AND EQUIPMENT ACCESS POINTS............................ 19 3.2DTR100 CONTROL, INDICATORS AND CONNECTORS ................................ 20 3.2.1 DTR100 front panel connectors..................................................................................22 3.2.2 DTR100 controls and indicators description...............................................................23 3.2.3 DTR100 Control Panel operating ...............................................................................25 3.2.3.1 About Baseline........................................................................................................31 3.2.4 DTR100 measurements environment.........................................................................31 3.3FREQUENCY INPUT AND DISPLAY FORMATS............................................. 32 3.4START-UP PROCEDURE .............................................................................. 33 4. SETTING-UP ................................................................................... 37 4.1INTERFACE CONNECTORS .......................................................................... 37 4.1.1 Signal and data..........................................................................…
Text truncated - open the document above for the full version.
Attestation Statements
0 us.Department 01Transportation FederalAviation Administration 800IndependenceAve.,SW. Washington.D.C.20591 NOV2 420n.3 Mr.AndyLeimer FederalCommunications Commission 7435OaklandMillsRoad Columbia,Maryland21046 DearMr.Leimer: WehavereviewedtheMarcomInternational,Inc.letterdatedSeptember12,2003,and havecompletedthesubjectreviewwithnoobjectiontoFederalCommunications Commission(FCC)CertificationapprovaloftheOTE-MarconiDTR-100 CommunicationequipmentforUSAARINCuse;FCCill:RM7DTR100REV2~1. If yourequireanyadditionalinformation,pleasecontactMs.AnnetteAllender,Spectrum PlanningandInternationalDivision,at (202)267-3893. Sincerely, ..,(;/j/'././''\ _/,--'J~~'.?:~~ GeorgeK.Sakai ProgramDirectorforSpectrumPolicy andManagement cc: Mr. ManuelOjeda 14210-BSullyfieldCircle Chantilly,Virginia20151 FAX:(703)263-9308
Attestation Statements
14210-B Sullyfield Circle ♦ Chantilly, Virginia 20151 ♦ U.S.A. Phone: (703)263-9305 ♦ Fax: (703) 263-9308 ♦ Web: www.morcom.com April 30, 2004 Federal Communications Commission 445 12 Th Street SW Washington D.C. 20554 Ref: FCC ID RM7DTR100REV2-1 Correspondence Reference Number 26736 Confidentality of Circuit Diagrams Dear Sirs: In reference to our above application we would like to confirm that we want the following submittals to remain confidential: Circuit Diagrams of the transceiver Please let me know if you need any additional information. Sincerely yours, Manuel A. Ojeda
Attestation Statements
JUN-23-~~~414:~~ r-l..,\",,:;)ruJ!) ~~~~~~~~,~ MorcomInternational,Inc. 14210-8SullyfieldCirCle Chantilly.Virginia20151.U.s.A. Phooe:(703)263-9305.Fax:(703)263-9308 WeD:www,mo~m.com IIW",("".";~j'~..,.,.1"'~...-:'""'7,'1 ~": . ~' . t'! \I\I\r ' I\ ;'J,. . :,~ . c.~'""""" I/ "! II "',", . ! . """"",,,: ,.,j"".,.'.;,'-"'.""", ~il'\J.t\""':';~.i.L""'IJ:f"l.l.Jln"""!"," illI.~..~..v,~"'"', INTERNATIONALINC. May12,2004 FederalCommunicationsCommission Att:Mr.JimShaffer 44512""StreetSW WashingtonD.C.20554 Ref:FCC10RM7DTR100REV2.1 Form731ContinnationNurnberEA623184 WaiverRequest DearMr.Shaffer: MorcomInternational,Inc.requestsa waiverofSection81.17(b)oftheCommission's Rulestopermittypeacceptanceofa VHFaircrafttransceivercapableoftransmitting boththe25KHzspacedchannelscurrentlyauthorizedpursuanttoSection87.173(b) andonthe8,33KHzspacedchannelsthatareusedincertainEuropeancountries. WearepresentlyseekingthiswaiverfortheOTEmodelDTR100REV2-1VHF Transceiverforwhichwecurrentlyhaveappliedfortypeacceptance.Pleaseletme knowif youneedanyadditionalinformation. Sincerelyyours. APPftOIED JUN?31004 ~~ TOTALP.02

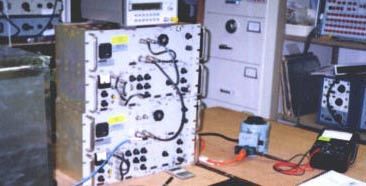

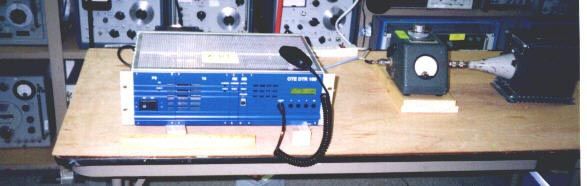

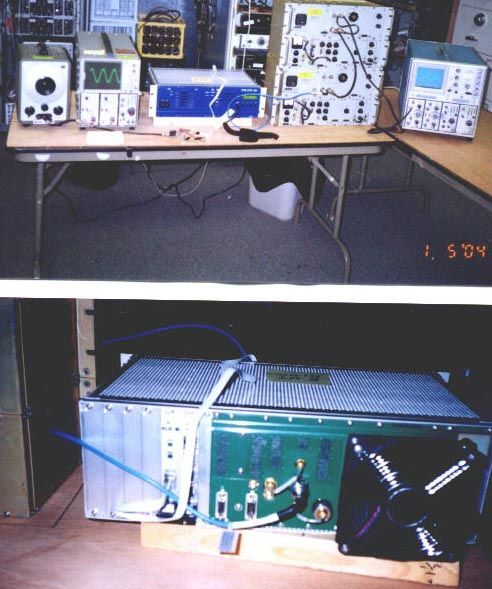

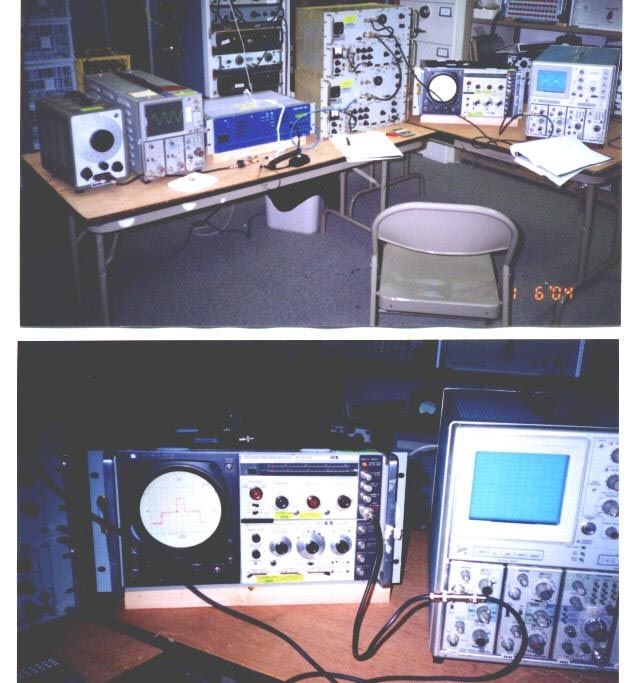

External Photos

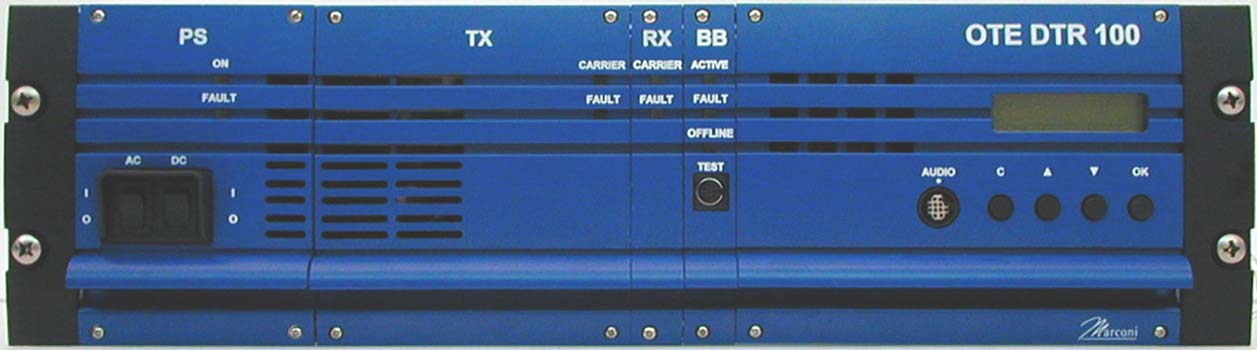

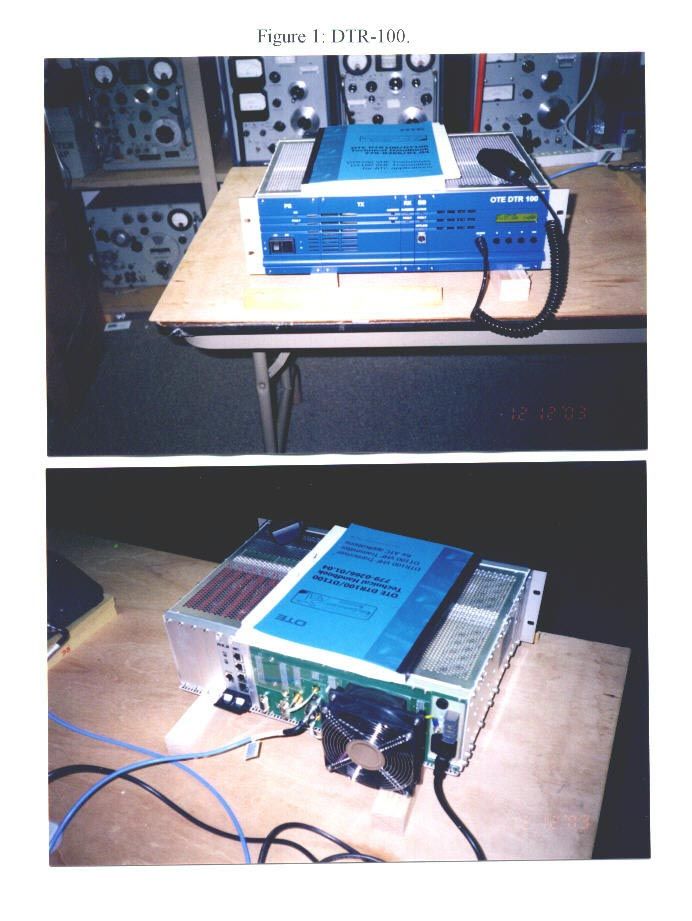

Figure 1 - DTR 100 – front view Figure 2 - DTR 100 – rear view
ID Label/Location Info
RM7DTR100REV2-1
Internal Photos
Figure 1 - Module RX – internal view of receiver Figure 2 - Module TX- - internal view of transmitter
Internal Photos
Figure 1 - ALB Board – internal side view of the ALB board Figure 2 - IMC Board – side view of the IMC board
Operational Description
DTR100 THEORY OF OPERATION • Frequency Band DTR100 operates in the 118 – 136.975 MHz band. • Modulation Scheme The equipment uses Double Side Band (DSB) Amplitude Modulation (AM) full carrier: 6K80A3EJN for 25 kHz, 5K00A3EJN for 8,33 kHz The equipment is designed to operate with a channel separation of 8,33 kHz or 25 kHz. • Occupied Bandwidth 3 dB Bandwidth is: ± 3.4 kHz from the carrier for 25 kHz ± 2.5 kHz from the carrier for 8.33 kHz The filtering of audio signals to meet required specifications is implemented by use of DSP-based filters within DTR100 BB module • Frequency Synthesis The transceiver allows the change of frequency in the whole band. Two different circuits sinthesises the frequency reference, one for transmission and one for reception functions. The frequency reference of both TX and RX functions is derived from a single reference source. • Antenna Connections DTR100 can operate both with one antenna connection (RX and TX with internal RF coaxial switch), or with separated connections • Audio interface DTR100 can be modulated both locally and remotely. For local operation, a headphone with PTT button is provided for connection on the front of the equipment. For remote operation, DTR100 uses a 4WE&M interface, located on the rear side of the equipment. E wire is used for PTT activation, while M wire is used for Squelch output DTR100 Principle of working
Parts List/Tune Up Info
DTR100 PART LISTS INDEX 770-0149/02 DTR100 TRANSCEIVER STD HMI_02 771-0263/02 DTR100 RX module 2V 771-0429/02 DTR100 sub assy. CS RX 2V 770-0177/02 DTR100 sub assy. VCO RX_RF 770-0177/04 DTR100 sub assy. VCO RX_IF 770-0196/01 DTR100 sub assy. TESTA RX 771-0264/02 DTR100 TX module 2V 771-0421/02 DTR100 sub assy. SINT_TX 2V 770-0177/03 DTR100 sub assy. VCO TX 771-0500/02 DTR100 sub assy. TX-PA 2V 770-0258/03 DTR100 sub assy. TX 3V 770-0258/02 DTR100 sub assy. PA 2V 771-0614/02 DTR100 BB module 2V 771_0613/02 DTR100 sub assy. CS BB 2V 770-0177/04 DTR100 sub assy. VCO BB 771-0952/01 Dxy100 CP_STD module 770-0144/01 DTR100 sub assy. CP_STD 771-0698/02 DTR100 CP_STD ins. Display 2 771-0536/03 DTR100 subrack assembly 3V
Parts List/Tune Up Info
+------------------------------------------------------------------------------+ | Marconi Mobile | L I S T A C O M P O N E N T I | +------------------------------------------------------------------------------+ | Cod. Documento: 770-0177/01.01A Revisione: 05 Stato Prod.LC: 3 | | | | COMPILATORE : maltese DATA : 22/01/2002 | | PROGETTAZIONE : maltese DATA : 04/02/2002 | | AQ : digoro DATA : 07/02/2002 | | PRODUZIONE : zienna DATA : 07/02/2002 | +------------------------------------------------------------------------------+ | CODICE ARTICOLO DESCRIZIONE ARTICOLO U.M. TP ST.PROD.| | 770-0177/01.01 DTR100 insieme VCO TX N D 3 | +------------------------------------------------------------------------------+ | N O T A | +------------------------------------------------------------------------------+ |R.Schema |Descrizione |Codice |P |UM| Q.ta' | |------------+-----------------------------+--------------------+--+--+--------| |1 | |DTR100 CS VCO |973-0154/01.02 |33| N| 1| |C01 | |Cap 1nF 10 50V CERAMIC 0603 |66380-13/539 |A1| N| 1| |C02 | |Cap 1uF 20 35V DRY TANTALUM 1|66470-82/211 |A2| N| 1| |C03 | |Cap 3.3uF 20 35V DRY TANTALUM|66470-82/226 |A1| N| 1| |C04 | |Cap 100pF 5 50V CERAMIC 0603 |66380-13/113 |A1| N| 1| |C05 | |Cap 100pF 5 50V CERAMIC 0603 |66380-13/113 |A1| N| 1| |C06 | |Cap 1nF 10 50V CERAMIC 0603 |66380-13/539 |A1| N| 1| |C07 | |Cap 100pF 5 50V CERAMIC 0603 |66380-13/113 |A1| N| 1| |C08 | |Cap 1nF 10 50V CERAMIC 0603 |66380-13/539 |A1| N| 1| |C09 | |Cap 22pF 5 50V CERAMIC 0603 |66380-13/019 |A1| N| 1| |C10 | |Cap 39pF 5 50V CERAMIC 0603 |66380-13/022 |A1| N| 1| |C11 | |Cap 22pF 5 50V CERAMIC 0603 |66380-13/019 |A1| N| 1| |C12 | |Cap 100pF 5 50V CERAMIC 0603 |66380-13/113 |A1| N| 1| |C13 | |Cap 100pF 5 50V CERAMIC 0603 |66380-13/113 |A1| N| 1| |C15 | |Cap 18pF 5 50V CERAMIC 0603 |66380-13/018 |A1| N| 1| |C16 | |Cap 2.7pF 9.259259259 50V CER|66380-13/008 |A1| N| 1| |C17 | |Cap 22pF 5 50V CERAMIC 0603 |66380-13/019 |A1| N| 1| |C18 | |Cap 100pF 5 50V CERAMIC 0603 |66380-13/113 |A1| N| 1| |C19 | |Cap 100pF 5 50V CERAMIC 0603 |66380-13/113 |A1| N| 1| |C20 | |Cap 100pF 5 50V CERAMIC 0603 |66380-13/113 |A1| N| 1| |C21 | |Cap 150pF 5 50V CERAMIC 0603 |66380-13/029 |A1| N| 1| |D01 | |Varicap _pF _V _W SOD-323 |69596-06/008 |C0| N| 1| |D02 | |Varicap _pF _V _W SOD-323 |69596-06/008 |C0| N| 1| |D03 | |Varicap _pF _V _W SOD-323 |69596-06/008 |C0| N| 1| |D04 | |Varicap _pF _V _W SOD-323 |69596-06/008 |C0| N| 1| |L01 | |Ind 68nH 10% _ 1008 |68286-48/015 |A2| N| 1| |L02 | |Ind 68nH 10% _ 1008 |68286-48/015 |A2| N| 1| |L03 | |Ind 47nH 10% _ 1008 |68286-48/013 |A1| N| 1| |L07 | |Ind 2.2uH 10% _ |68286-45/217 |A1| N| 1| |L08 | |Ind 2.2uH 10% _ |68286-45/217 |A1| N| 1| |R01 | |Res 3.9kohm 1% 63mW METALLIC |64440-12/587 |A1| N| 1| |R02 | |Res 270ohm 1% 63mW METALLIC L|64440-12/559 |A1| N| 1| |R03 | |Res 10ohm 1% 63mW METALLIC LA|64440-12/025 |A1| N| 1| |R04 | |Res 56ohm 1% 63mW METALLIC LA|64440-12/043 |A1| N| 1| |R05 | |Res 4.7kohm 1% 63mW METALLIC |64440-12/589 |A1| N| 1| |R06 | |Res 68ohm 1% 63mW METALLIC LA|64440-12/045 |A1| N| 1| |R07 | |Res 5.6kohm 1% 63mW METALLIC |64440-12/591 |A1| N| 1| |R08 | |Res 1.5kohm 1% 63mW METALLIC |64440-12/577 |A1| N| 1| +------------------------------------------------------------------------------+ |DTR100 insieme VCO TX | 770-0177/01.01A 05 | Pag. 1 / 2 | +------------------------------------------------------------------------------+ +------------------------------------------------------------------------------+ | Marconi Mobile | L I S T A C O M P O N E N T I | +------------------------------------------------------------------------------+ |R.Schema |Descrizione |Codice |P |UM| Q.ta' | |------------+-----------------------------+--------------------+--+--+--------| |R09 | |Res 22ohm 1% 63mW METALLIC LA|64440-12/033 |A1| N| 1| |R10 | |Res 100kohm 1% 63mW METALLIC |64440-12/821 |A1| N| 1| |R11 | |Res 39ohm 1% 63mW METALLIC LA|64440-12/039 |A1| N| 1| |R12 | |Res 330ohm 1% 63mW METALLIC L|64440-12/561 |A1| N| 1| |TR01 | |BJT Signal _ _ 200mW SEMICOND|69697-05/001 |A1| N| 1| |TR02 | |BJT RF signal _ 200mW SOT-23 |69697-12/001 |A1| N| 1| |TR03 | |FET Signal N-CH _ _ 225mW TO-|69687-42/011 |A2| N| 1| |TR04 | |BJT RF signal _ 200mW SOT-23 |69697-12/001 |A1| N| 1| +--------+---+-----------------------------+--------------------+--+--+--------+ | Quantita' Costo Lire Euro | +------------------------------------------------------------------------------+ |Componenti di Tipo : | | A 41 4645.94 2.399 | | C 4 2615.51 1.351 | |Parziali : Acquisto 45 7261.45 3.750 | | : Progettazione Interna 0 0.00 0.000 | |A costo nullo : Acquisto 0 | | : Progettazione Interna 1 | | | |Totale : 46 7261.45 3.750 | +------------------------------------------------------------------------------+ |DTR100 insieme VCO TX | 770-0177/01.01A 05 | Pag. 2 / 2 | +------------------------------------------------------------------------------+
Parts List/Tune Up Info
+------------------------------------------------------------------------------+ | Marconi Mobile | L I S T A C O M P O N E N T I | +------------------------------------------------------------------------------+ | Cod. Documento: 770-0177/02.01A Revisione: 06 Stato Prod.LC: 3 | | | | COMPILATORE : maltese DATA : 22/01/2002 | | PROGETTAZIONE : maltese DATA : 04/02/2002 | | AQ : digoro DATA : 07/02/2002 | | PRODUZIONE : zienna DATA : 07/02/2002 | +------------------------------------------------------------------------------+ | CODICE ARTICOLO DESCRIZIONE ARTICOLO U.M. TP ST.PROD.| | 770-0177/02.01 DTR100 insieme VCO RX_RF N D 3 | +------------------------------------------------------------------------------+ | N O T A | +------------------------------------------------------------------------------+ |R.Schema |Descrizione |Codice |P |UM| Q.ta' | |------------+-----------------------------+--------------------+--+--+--------| |1 | |DTR100 CS VCO |973-0154/01.02 |33| N| 1| |C01 | |Cap 1nF 10 50V CERAMIC 0603 |66380-13/539 |A1| N| 1| |C02 | |Cap 1uF 20 35V DRY TANTALUM 1|66470-82/211 |A2| N| 1| |C03 | |Cap 3.3uF 20 35V DRY TANTALUM|66470-82/226 |A1| N| 1| |C04 | |Cap 100pF 5 50V CERAMIC 0603 |66380-13/113 |A1| N| 1| |C05 | |Cap 100pF 5 50V CERAMIC 0603 |66380-13/113 |A1| N| 1| |C06 | |Cap 1nF 10 50V CERAMIC 0603 |66380-13/539 |A1| N| 1| |C07 | |Cap 100pF 5 50V CERAMIC 0603 |66380-13/113 |A1| N| 1| |C08 | |Cap 1nF 10 50V CERAMIC 0603 |66380-13/539 |A1| N| 1| |C09 | |Cap 18pF 5 50V CERAMIC 0603 |66380-13/018 |A1| N| 1| |C10 | |Cap 33pF 5 50V CERAMIC 0603 |66380-13/021 |A1| N| 1| |C11 | |Cap 18pF 5 50V CERAMIC 0603 |66380-13/018 |A1| N| 1| |C12 | |Cap 82pF 5 50V CERAMIC 0603 |66380-13/026 |A1| N| 1| |C13 | |Cap 100pF 5 50V CERAMIC 0603 |66380-13/113 |A1| N| 1| |C15 | |Cap 15pF 5 50V CERAMIC 0603 |66380-13/103 |A1| N| 1| |C16 | |Cap 1.8pF 13.88888889 50V CER|66380-13/006 |A1| N| 1| |C17 | |Cap 18pF 5 50V CERAMIC 0603 |66380-13/018 |A1| N| 1| |C18 | |Cap 100pF 5 50V CERAMIC 0603 |66380-13/113 |A1| N| 1| |C19 | |Cap 100pF 5 50V CERAMIC 0603 |66380-13/113 |A1| N| 1| |C20 | |Cap 100pF 5 50V CERAMIC 0603 |66380-13/113 |A1| N| 1| |C21 | |Cap 150pF 5 50V CERAMIC 0603 |66380-13/029 |A1| N| 1| |D01 | |Varicap _pF _V _W SOD-323 |69596-06/008 |C0| N| 1| |D02 | |Varicap _pF _V _W SOD-323 |69596-06/008 |C0| N| 1| |D03 | |Varicap _pF _V _W SOD-323 |69596-06/008 |C0| N| 1| |D04 | |Varicap _pF _V _W SOD-323 |69596-06/008 |C0| N| 1| |L01 | |IND.CHIP 56NH 1008CS-560 |60211000358 |E5| N| 1| |L02 | |IND.CHIP 56NH 1008CS-560 |60211000358 |E5| N| 1| |L03 | |Ind 39nH 10% _ |68286-45/094 |A2| N| 1| |L07 | |Ind 2.2uH 10% _ |68286-45/217 |A1| N| 1| |L08 | |Ind 2.2uH 10% _ |68286-45/217 |A1| N| 1| |R01 | |Res 3.9kohm 1% 63mW METALLIC |64440-12/587 |A1| N| 1| |R02 | |Res 270ohm 1% 63mW METALLIC L|64440-12/559 |A1| N| 1| |R03 | |Res 10ohm 1% 63mW METALLIC LA|64440-12/025 |A1| N| 1| |R04 | |Res 56ohm 1% 63mW METALLIC LA|64440-12/043 |A1| N| 1| |R05 | |Res 4.7kohm 1% 63mW METALLIC |64440-12/589 |A1| N| 1| |R06 | |Res 68ohm 1% 63mW METALLIC LA|64440-12/045 |A1| N| 1| |R07 | |Res 5.6kohm 1% 63mW METALLIC |64440-12/591 |A1| N| 1| |R08 | |Res 1.5kohm 1% 63mW METALLIC |64440-12/577 |A1| N| 1| +------------------------------------------------------------------------------+ |DTR100 insieme VCO RX_RF | 770-0177/02.01A 06 | Pag. 1 / 2 | +------------------------------------------------------------------------------+ +------------------------------------------------------------------------------+ | Marconi Mobile | L I S T A C O M P O N E N T I | +------------------------------------------------------------------------------+ |R.Schema |Descrizione |Codice |P |UM| Q.ta' | |------------+-----------------------------+--------------------+--+--+--------| |R09 | |Res 22ohm 1% 63mW METALLIC LA|64440-12/033 |A1| N| 1| |R10 | |Res 100kohm 1% 63mW METALLIC |64440-12/821 |A1| N| 1| |R11 | |Res 39ohm 1% 63mW METALLIC LA|64440-12/039 |A1| N| 1| |R12 | |Res 330ohm 1% 63mW METALLIC L|64440-12/561 |A1| N| 1| |TR01 | |BJT Signal _ _ 200mW SEMICOND|69697-05/001 |A1| N| 1| |TR02 | |BJT RF signal _ 200mW SOT-23 |69697-12/001 |A1| N| 1| |TR03 | |FET Signal N-CH _ _ 225mW TO-|69687-42/011 |A2| N| 1| |TR04 | |BJT RF signal _ 200mW SOT-23 |69697-12/001 |A1| N| 1| +--------+---+-----------------------------+--------------------+--+--+--------+ | Quantita' Costo Lire Euro | +------------------------------------------------------------------------------+ |Componenti di Tipo : | | A 39 3628.07 1.874 | | C 4 2615.51 1.351 | | E 2 741.98 0.383 | |Parziali : Acquisto 45 6985.56 3.608 | | : Progettazione Interna 0 0.00 0.000 | |A costo nullo : Acquisto 0 | | : Progettazione Interna 1 | | | |Totale : 46 6985.56 3.608 | +------------------------------------------------------------------------------+ |DTR100 insieme VCO RX_RF | 770-0177/02.01A 06 | Pag. 2 / 2 | +------------------------------------------------------------------------------+
Parts List/Tune Up Info
+------------------------------------------------------------------------------+ | Marconi Mobile | L I S T A C O M P O N E N T I | +------------------------------------------------------------------------------+ | Cod. Documento: 770-0196/01.01A Revisione: 13 Stato Prod.LC: 3 | | | | COMPILATORE : biagiotti_s DATA : 15/03/2002 | | PROGETTAZIONE : maltese DATA : 15/03/2002 | | AQ : digoro DATA : 19/03/2002 | | PRODUZIONE : zienna DATA : 19/03/2002 | +------------------------------------------------------------------------------+ | CODICE ARTICOLO DESCRIZIONE ARTICOLO U.M. TP ST.PROD.| | 770-0196/01.01 DTR100 insieme TESTA RX N D 3 | +------------------------------------------------------------------------------+ | N O T A | +------------------------------------------------------------------------------+ |R.Schema |Descrizione |Codice |P |UM| Q.ta' | |------------+-----------------------------+--------------------+--+--+--------| |1 | |DTR100 CS TESTA RX 2V |973-0153/02.01 |33| N| 1| |2 | |DTR100 RX-FE cavetto LOW_SENS|976-0443/01.01 |33| N| 1| |3 | |DTR100 RX-FE cavetto HIGH_SEN|976-0444/01.01 |33| N| 1| |4 | |Terminal |67373-07/077 |C0| N| 1| |5 | |Terminal |67373-07/076 |C0| N| 8| |6 | |FASCIA CS TESTA DTR100 |970-1063/01.01 |33| N| 1| |7 | |SEPARATORE CS TESTA DTR100 |970-1064/02.01 |33| N| 3| |8 | |SEPARATORE SMA CS TESTA DTR10|970-1704/02.01 |33| N| 1| |9 | |COP. FASCIA CS TESTA DTR100 |970-1705/01.01 |33| N| 1| |10 | |ETICH CARICHE ELETTROSTATICHE|970-0476/01.01 |33| N| 1| |C01 | |Cap 470pF 5 50V CERAMIC 0603 |66380-13/035 |A1| N| 1| |C02 | |Cap 470pF 5 50V CERAMIC 0603 |66380-13/035 |A1| N| 1| |C03 | |Cap 10pF 5 50V CERAMIC 0603 |66380-13/215 |A1| N| 1| |C04 | |Cap 10pF 5 50V CERAMIC 0603 |66380-13/215 |A1| N| 1| |C05 | |Cap 1nF 10 50V CERAMIC 0603 |66380-13/539 |A1| N| 1| |C08 | |Cap 12pF 5 50V CERAMIC 0603 |66380-13/016 |A1| N| 1| |C09 | |Cap 10pF 5 50V CERAMIC 0603 |66380-13/215 |A1| N| 1| |C12 | |Cap 10nF 10 50V CERAMIC 0603 |66380-13/551 |A1| N| 1| |C13 | |Cap 10nF 10 50V CERAMIC 0603 |66380-13/551 |A1| N| 1| |C14 | |Cap 1nF 10 50V CERAMIC 0603 |66380-13/539 |A1| N| 1| |C15 | |Cap 10pF 5 50V CERAMIC 0603 |66380-13/215 |A1| N| 1| |C16 | |Cap 10pF 5 50V CERAMIC 0603 |66380-13/215 |A1| N| 1| |C17 | |Cap 1nF 10 50V CERAMIC 0603 |66380-13/539 |A1| N| 1| |C18 | |Cap 470pF 5 50V CERAMIC 0603 |66380-13/035 |A1| N| 1| |C19 | |Cap 10pF 5 50V CERAMIC 0603 |66380-13/215 |A1| N| 1| |C20 | |Cap 10nF 10 50V CERAMIC 0603 |66380-13/551 |A1| N| 1| |C22 | |Cap 12pF 5 50V CERAMIC 0603 |66380-13/016 |A1| N| 1| |C24 | |Cap 10nF 10 50V CERAMIC 0603 |66380-13/551 |A1| N| 1| |C25 | |Cap 18pF 5 50V CERAMIC 0603 |66380-13/018 |A1| N| 1| |C26 | |Cap 33pF 5 50V CERAMIC 0603 |66380-13/021 |A1| N| 1| |C27 | |Cap 18pF 5 50V CERAMIC 0603 |66380-13/018 |A1| N| 1| |C28 | |Cap 470pF 5 50V CERAMIC 0603 |66380-13/035 |A1| N| 1| |C29 | |Cap 470pF 5 50V CERAMIC 0603 |66380-13/035 |A1| N| 1| |C30 | |Cap 470pF 5 50V CERAMIC 0603 |66380-13/035 |A1| N| 1| |C31 | |Cap 470pF 5 50V CERAMIC 0603 |66380-13/035 |A1| N| 1| |C32 | |Cap 470pF 5 50V CERAMIC 0603 |66380-13/035 |A1| N| 1| |C33 | |Cap 1nF 10 50V CERAMIC 0603 |66380-13/539 |A1| N| 1| |C34 | |Cap 1nF 10 50V CERAMIC 0603 |66380-13/539 |A1| N| 1| |C35 | |Cap 1nF 10 50V CERAMIC 0603 |66380-13/539 |A1| N| 1| |C36 | |Cap 1nF 10 50V CERAMIC 0603 |66380-13/539 |A1| N| 1| |C37 | |Cap 100pF 5 50V CERAMIC 0603 |66380-13/113 |A1| N| 1| +------------------------------------------------------------------------------+ |DTR100 insieme TESTA RX | 770-0196/01.01A 13 | Pag. 1 / 4 | +------------------------------------------------------------------------------+ +------------------------------------------------------------------------------+ | Marconi Mobile | L I S T A C O M P O N E N T I | +------------------------------------------------------------------------------+ |R.Schema |Descrizione |Codice |P |UM| Q.ta' | |------------+-----------------------------+--------------------+--+--+--------| |C38 | |Cap 100pF 5 50V CERAMIC 0603 |66380-13/113 |A1| N| 1| |C39 | |Cap 1nF 10 50V CERAMIC 0603 |66380-13/539 |A1| N| 1| |C40 | |Cap 1nF 10 50V CERAMIC 0603 |66380-13/539 |A1| N| 1| |C41 | |Cap 470pF 5 50V CERAMIC 0603 |66380-13/035 |A1| N| 1| |C42 | |Cap 100pF 5 50V CERAMIC 0603 |66380-13/113 |A1| N| 1| |C43 | |Cap 100pF 5 50V CERAMIC 0603 |66380-13/113 |A1| N| 1| |C44 | |Cap 470pF 5 50V CERAMIC 0603 |66380-13/035 |A1| N| 1| |C45 | |Cap 470pF 5 50V CERAMIC 0603 |66380-13/035 |A1| N| 1| |C46 | |Cap 1pF 25 50V CERAMIC 0603 |66380-13/003 |A1| N| 1| |C47 | |Cap 100nF 10 16V CERAMIC 0603|66380-13/749 |A1| N| 1| |C48 | |Cap 100nF 10 16V CERAMIC 0603|66380-13/749 |A1| N| 1| |C49 | |Cap 1nF 10 50V CERAMIC 0603 |66380-13/539 |A1| N| 1| |C50 | |Cap 1nF 10 50V CERAMIC 0603 |66380-13/539 |A1| N| 1| |C51 | |Cap 5.6pF 4.464285714 50V CER|66380-13/012 |A1| N| 1| |C52 | |Cap 1nF 10 50V CERAMIC 0603 |66380-13/539 |A1| N| 1| |C53 | |Cap 6.8pF 0,25PF 50V CERAMIC |66380-13/013 |A1| N| 1| |C54 | |Cap 6.8pF 0,25PF 50V CERAMIC |66380-13/013 |A1| N| 1| |C55 | |Cap 5.6pF 4.464285714 50V CER|66380-13/012 |A1| N| 1| |C56 | |Cap 10nF 10 50V CERAMIC 0603 |66380-13/551 |A1| N| 1| |C57 | |Cap 1nF 10 50V CERAMIC 0603 |66380-13/539 |A1| N| 1| |C58 | |Cap 1nF 10 50V CERAMIC 0603 |66380-13/539 |A1| N| 1| |D01 | |Varicap _pF _V _W SOD-323 |69596-06/008 |C0| N| 1| |D02 | |Varicap _pF _V _W SOD-323 |69596-06/008 |C0| N| 1| |D05 | |Varicap _pF _V _W SOD-323 |69596-06/008 |C0| N| 1| |D06 | |Varicap _pF _V _W SOD-323 |69596-06/008 |C0| N| 1| |D11 | |Varicap _pF _V _W SOD-323 |69596-06/008 |C0| N| 1| |D12 | |Varicap _pF _V _W SOD-323 |69596-06/008 |C0| N| 1| |D15 | |Varicap _pF _V _W SOD-323 |69596-06/008 |C0| N| 1| |D16 | |Varicap _pF _V _W SOD-323 |69596-06/008 |C0| N| 1| |D19 | |Varicap _pF _V _W SOD-323 |69596-06/008 |C0| N| 1| |D20 | |Varicap _pF _V _W SOD-323 |69596-06/008 |C0| N| 1| |D23 | |Varicap _pF _V _W SOD-323 |69596-06/008 |C0| N| 1| |D24 | |Varicap _pF _V _W SOD-323 |69596-06/008 |C0| N| 1| |D27 | |Varicap _pF _V _W …
Text truncated - open the document above for the full version.
Parts List/Tune Up Info
+------------------------------------------------------------------------------+ | Marconi Mobile | L I S T A C O M P O N E N T I | +------------------------------------------------------------------------------+ | Cod. Documento: 770-0258/03.01A Revisione: 05 Stato Prod.LC: 3 | | | | COMPILATORE : maltese DATA : 17/02/2003 | | PROGETTAZIONE : maltese DATA : 18/02/2003 | | AQ : digoro DATA : 19/02/2003 | | PRODUZIONE : manghetti DATA : 19/02/2003 | +------------------------------------------------------------------------------+ | CODICE ARTICOLO DESCRIZIONE ARTICOLO U.M. TP ST.PROD.| | 770-0258/03.01 DTR100 insieme TX 3V N D 3 | +------------------------------------------------------------------------------+ | N O T A | +------------------------------------------------------------------------------+ |R.Schema |Descrizione |Codice |P |UM| Q.ta' | |------------+-----------------------------+--------------------+--+--+--------| |1 | |DTR100 CS TX 3V |973-0278/03.02 |33| N| 1| |2 | |FASCIA CS TX DTR100 |970-1870/01.01 |33| N| 1| |5 | |ETICH CARICHE ELETTROSTATICHE|970-0476/01.01 |33| N| 1| |6 | |DTR100 TX insieme CS AD-DA |770-0428/01.01 |33| N| 1| |C01 | |Cap 1nF 10 50V CERAMIC 0603 |66380-13/539 |A1| N| 1| |C02 | |Cap 1nF 10 50V CERAMIC 0603 |66380-13/539 |A1| N| 1| |C03 | |Cap 100nF 10 16V CERAMIC 0603|66380-13/749 |A1| N| 1| |C04 | |Cap 100uF 20 16V DRY TANTALUM|66410-43/105 |A2| N| 1| |C05 | |Cap 1nF 10 50V CERAMIC 0603 |66380-13/539 |A1| N| 1| |C06 | |Cap 1nF 10 50V CERAMIC 0603 |66380-13/539 |A1| N| 1| |C07 | |Cap 1nF 10 50V CERAMIC 0603 |66380-13/539 |A1| N| 1| |C08 | |Cap 10nF 10 50V CERAMIC 0603 |66380-13/551 |A1| N| 1| |C09 | |Cap 1nF 10 50V CERAMIC 0603 |66380-13/539 |A1| N| 1| |C10 | |Cap 1nF 10 50V CERAMIC 0603 |66380-13/539 |A1| N| 1| |C11 | |Cap 330nF 20 16V CERAMIC 1206|66380-12/102 |A1| N| 1| |C12 | |Cap 10nF 10 50V CERAMIC 0603 |66380-13/551 |A1| N| 1| |C13 | |Cap 1nF 10 50V CERAMIC 0603 |66380-13/539 |A1| N| 1| |C14 | |Cap 1nF 10 50V CERAMIC 0603 |66380-13/539 |A1| N| 1| |C15 | |Cap 330nF 20 16V CERAMIC 1206|66380-12/102 |A1| N| 1| |C16 | |Cap 33pF 5 50V CERAMIC 0603 |66380-13/021 |A1| N| 1| |C17 | |Cap 180pF 5 50V CERAMIC 0603 |66380-13/030 |A1| N| 1| |C18 | |Cap 1nF 10 50V CERAMIC 0603 |66380-13/539 |A1| N| 1| |C19 | |Cap 1nF 10 50V CERAMIC 0603 |66380-13/539 |A1| N| 1| |C20 | |Cap 10nF 10 50V CERAMIC 0603 |66380-13/551 |A1| N| 1| |C21 | |Cap 3.9pF 6.41025641 50V CERA|66380-13/010 |A1| N| 1| |C22 | |Cap 18pF 5 50V CERAMIC 0603 |66380-13/018 |A1| N| 1| |C23 | |Cap 1nF 10 50V CERAMIC 0603 |66380-13/539 |A1| N| 1| |C24 | |Cap 1nF 10 50V CERAMIC 0603 |66380-13/539 |A1| N| 1| |C25 | |Cap 1nF 10 50V CERAMIC 0603 |66380-13/539 |A1| N| 1| |C26 | |Cap 100nF 10 16V CERAMIC 0603|66380-13/749 |A1| N| 1| |C27 | |Cap 100nF 10 16V CERAMIC 0603|66380-13/749 |A1| N| 1| |C28 | |Cap 10nF 10 50V CERAMIC 0603 |66380-13/551 |A1| N| 1| |C29 | |Cap 10nF 10 50V CERAMIC 0603 |66380-13/551 |A1| N| 1| |C30 | |Cap 10nF 10 50V CERAMIC 0603 |66380-13/551 |A1| N| 1| |C31 | |Cap 100nF 10 16V CERAMIC 0603|66380-13/749 |A1| N| 1| |C32 | |Cap 100nF 10 16V CERAMIC 0603|66380-13/749 |A1| N| 1| |C33 | |Cap 1nF 10 50V CERAMIC 0603 |66380-13/539 |A1| N| 1| |C34 | |Cap 100nF 10 16V CERAMIC 060…
Text truncated - open the document above for the full version.
Contact Information
Applicant
Manuel A. Ojeda
Technical Contact
Morcom International, Inc.Manuel A Ojeda
[email protected]703-263-9305
14210-B Sullyfield Circle · Chantilly, Virginia · United States
Non-Technical Contact
Morcom International, Inc.Manuel A Ojeda
[email protected]703-263-9305
Test Firm
Tempest Inc.Louis Gnecco
Technical Specifications
| # | Rule Parts | Frequency Range | Power Output | Emission | Tolerance |
|---|---|---|---|---|---|
| 1 | 87 | 118 MHz - 136.975 MHz | 50 W | 6K00A3E | 1.0000000000 ppm |
