RMLE03946PS3Pelvic Muscle Trainer (433.9MHz Tx)

Page 7 Output Isolation & Filter RF Amplifier Keyed Output Vcc SAW Oscillator Data In 300-5000 BPS 50 Ω RF OUT (Ant.) figure 11: LC Series Transmitter Block Diagram MODULE DESCRIPTION The LC-TXM is a low-cost, high-performance SAW-(Surface Acoustic Wave) based CPCA (Carrier-Present Carrier-Absent) transmitter capable of sending serial data at up to 5,000 bits/second. The LC’s compact surface-mount package integrates easily into existing designs and is equally friendly to prototype and volume production. The LC’s ultralow power consumption makes it ideally suited for battery powered products. When combined with a Linx LC series receiver a reliable RF link capable of transferring data over line-of-sight distances in excess of 300 feet (90M) is formed. THEORY OF OPERATION The LC-TXM transmits data using CPCA (Carrier-Present Carrier-Absent) modulation. This type of AM modulation is often referred to by other designations including CW and OOK. This type of modulation represents a logic low ‘0’ by the absence of a carrier and a logic high ‘1’ by the presence of a carrier. This modulation method affords numerous benefits. Three of the most important are: 1) Cost- effectiveness due to design simplicity. 2) No minimum data rate or mark/space ratio requirement. 3) Higher output power and thus greater range in countries (such as the US) where output power measurements are averaged over time. (Please refer to Linx application note #00130). The LC-TXM is based on a simple but highly optimized architecture which achieves a high fundamental output power with low harmonic content. This insures that most approval standards can be met without external filter components. The LC transmitter is exceptionally stable over time, temperature, and physical shock as a result of the precision SAW (Surface Acoustic Wave) frequency reference. Due to the of the SAW device most of the output power is concentrated in a narrow bandwidth. This allows the receiver’s pass opening can be quite narrow, thus increasing sensitivity and reducing susceptibility to near-band interference. The quality of components and overall architecture utilized in the LC series is unusual in a low-cost RF device and is one reason the LC transmitter is able to outperform far more expensive products. THE DATA INPUT A CMOS/TTL level data input is provided on pin 2. This pin is normally supplied with a serial bitstream input directly from a microprocessor, encoder, or UART. During standby or the input of a logic low, the carrier is fully suppressed and the transmitter consumes less than 2μA of current. During a logic high the transmitter generates a carrier to indicate to the receiver the presence of a logic 1. The applied data should not exceed a rate of 5,000 bits/sec. The data input pin should always be driven with a voltage common to the supply voltage present at pin 7 (Vcc). The data pin should never be allowed to exceed the supply voltage (Vcc).

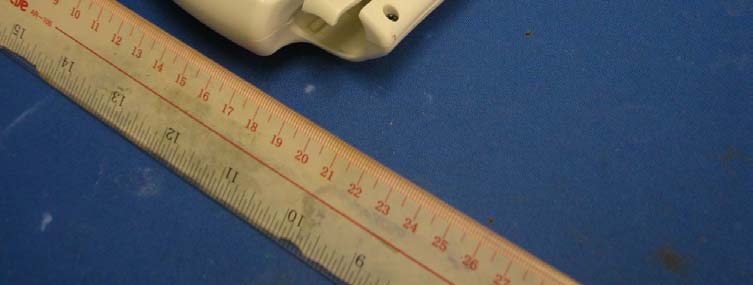

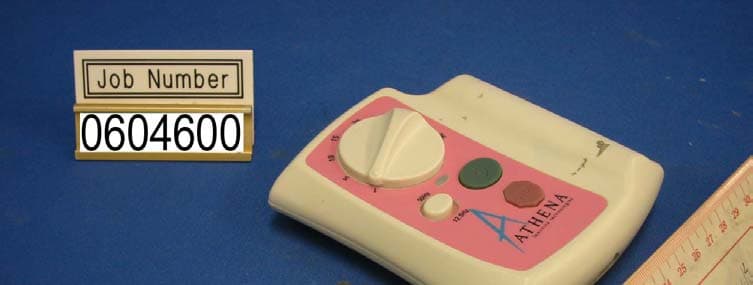

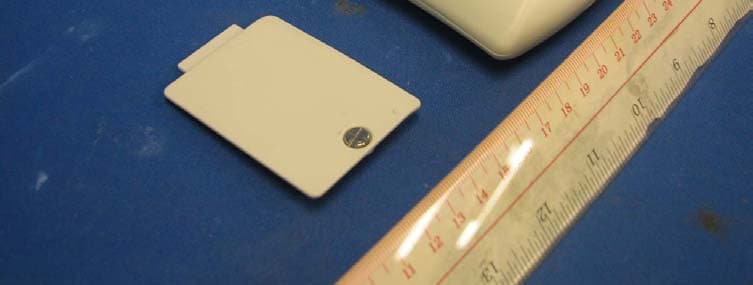

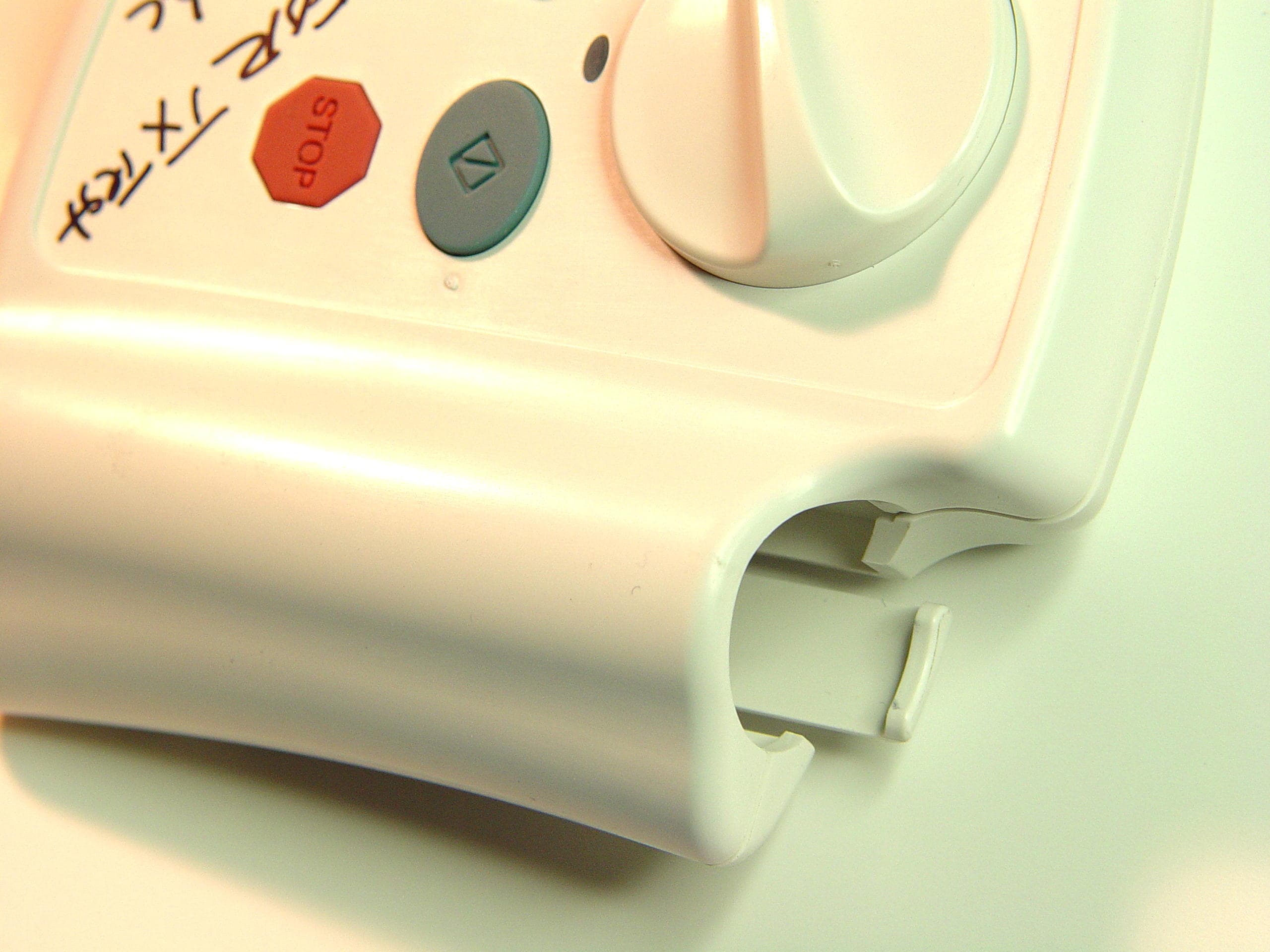

External Photo FCC ID : RMLE03946PS3 External Photo - front External Photo - rear

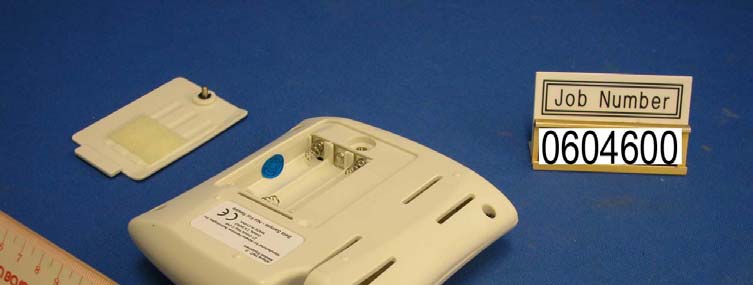

Internal Photo FCC ID : RMLE03946PS3 Internal Photo - 1 Internal Photo - 2 Internal Photo FCC ID : RMLE03946PS3 Internal Photo - 3

Critical Component Component Part Number Description MCU (U1) P87LPC768 Output Control U2 TXM-433-L-C 433MHz RF Module Y1 Oscillator Y1 6MHz Oscillator RX1 10K Voltage Selector TOP VIEW .360 .500 PINOUTS LC-SERIES TRANSMITTER MODULE DATA GUIDE ■Remote control ■Keyless entry ■Garage / Gate openers ■Lighting control ■Medical monitoring / Call systems ■Remote industrial monitoring ■Periodic data transfer ■Home / Industrial automation ■Fire / Security alarms ■Remote status / Position sensing ■Long-range RFID ■ Wire Elimination APPLICATIONS INCLUDE: ■Low Cost ■No External RF Components Required ■Ultra-low Power Consumption ■Compact Surface-Mount Package ■Stable SAW-based Architecture ■Supports Data Rates to 5,000 bps ■Wide Supply Range (2.7-5.2 VDC) ■Direct Serial Interface ■Low Harmonics ■No Production Tuning The LC Series is ideally suited for volume use in OEM applications such as remote control, security, identification, and periodic data transfer. Packaged in a compact SMD package, the LC transmitter utilizes a highly optimized SAW architecture to achieve an unmatched blend of performance, size, efficiency and cost. When paired with a matching LC-Series receiver, a highly reliable wireless link is formed, capable of transferring serial data at distances in excess of 300 feet. No external RF components, except an antenna, are required, making design integration straightforward, even for engineers lacking previous RF experience. TXM-315-LC TXM-418-LC TXM-433-LC PHYSICAL DIMENSIONS DESCRIPTION: FEATURES: Revised 10/3/2 PART# DESCRIPTION EVAL-***-LCBasic Evaluation Kit MDEV-***-LCMaster Development Kit TXM-315-LC Transmitter 315 MHZ TXM-418-LCTransmitter 418 MHZ TXM-433-LCTransmitter 433 MHZ RXM-315-LCReceiver 315 MHZ RXM-418-LCReceiver 418 MHZ RXM-433-LCReceiver 433 MHZ *** Insert Frequency Not covered in this manual LC Transmitters are supplied in tube packaging - 50 pcs. per tube. ORDERING INFORMATION

• The test results reported in this test report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report shall not be reproduced except in full without prior authorization from Intertek Testing Services Hong Kong Limited. • For Terms And Conditions of the services, it can be provided upon request. • The evaluation data of the report will be kept for 3 years from the date of issuance. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2371 0521 Website: www.hk.intertek-etlsemko.com Athena Feminine Technologies, Inc. Application For Certification (FCC ID: RMLE03946PS3) Transmitter 0604600 BH/ Sandy Lee November 30, 2006 INTERTEK TESTING SERVICES FCC ID: RMLE03946PS3 i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1: General Description EXHIBIT 2: System Test Configuration EXHIBIT 3: Emission Results EXHIBIT 4: Equipment Photographs EXHIBIT 5: Product Labelling EXHIBIT 6: Technical Specifications EXHIBIT 7: Instruction Manual EXHIBIT 8: Miscellaneous Information INTERTEK TESTING SERVICES FCC ID: RMLE03946PS3 ii MEASUREMENT/TECHNICAL REPORT Athena Feminine Technologies, Inc. - MODEL: Athena E03946001 FCC ID: RMLE03946PS3 November 30, 2006 This report concerns (check one:) Original Grant X Class II Change Equipment Type: Low Power Transmitter (example: computer, printer, modem, etc.) Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart C for intentional radiator - the new 47 CFR [04-05-05 Edition] provision. Report prepared by: Ho Wai Kin, Ben Intertek Testing Services Hong Kong Ltd. 2/F., Garment Center, 576, Castle Peak Road, Kowloon, Hong Kong. Phone: 852-2173-8505 Fax: 852-2371-0521 INTERTEK TESTING SERVICES FCC ID: RMLE03946PS3 iii Table of Contents 1.0 General Description............................................................................................ 2 1.1 Product Description ............................................................................................ 2 1.2 Related Submittal(s) Grants ............................................................................... 2 1.3 Test Methodology............................................................................................... 3 1.4 Test Facility........................................................................................................ 3 2.0 System Test Configuration ................................................................................. 5 2.1 Justification ........................................................................................................ 5 2.2 EUT Exercising Software.................................................................................... 5 2.3 Special Accessories ........................................................................................... 5 2.4 Equipment Modification ...................................................................................... 6 2.5 Measurement Uncertainty .................................................................................. 6 2.6 Support Equipment List and Description ............................................................. 6 3.0 Emission Results ................................................................................................ 8 3.1 Field Strength Calculation................................................................................... 9 3.2 Radiated Emission Configuration Photograph................................................... 10 3.3 Radiated Emission Data ................................................................................... 11 4.0 Equipment Photographs ................................................................................... 14 5.0 Product Labelling.............................................................................................. 16 6.0 Technical Specifications................................................................................... 18 7.0 Instruction Manual ............................................................................................ 20 8.0 Miscellaneous Information ............................................................................... 22 8.1 Measured Bandwidth........................................................................................ 23 8.2 Discussion of Pulse Desensitization.................................................................. 24 8.3 Calculation of Average Factor........................................................................... 25 8.4 Emissions Test Procedures .............................................................................. 26 INTERTEK TESTING SERVICES FCC ID: RMLE03946PS3 iv List of attached file Exhibit type File Description filename Test Report Test Report report.pdf Operation Description Technical Description descri.pdf Test Setup Photo Radiated Emission radiated photos.doc Test Report Bandwidth Plot bw.pdf External Photo External Photo external photos.doc Internal Photo Internal Photo internal photos.doc Block Diagram Block Diagram block.pdf Schematics Circuit Diagram circuit.pdf ID Label/Location Label Artwork and Location label.pdf User Manual User Manual manual.pdf Test Report Timing Diagram timing.pdf INTERTEK TESTING SERVICES FCC ID: RMLE03946PS3 1 EXHIBIT 1 GENERAL DESCRIPTION INTERTEK TESTING SERVICES FCC ID: RMLE03946PS3 2 1.0 General Description 1.1 Product Description The Equipment Under Test (EUT) is a Transmitter operating at 433.9MHz. The EUT is powered by 4.5V d.c. (3 x 1.5V “AAA” batteries). During normal use, it will transmit control level to the corresponding receiver after p…
