RMW2750Wireless Rain Gauge

User manual for Wireless Rain Gauge (1) Features - Digital Time (12/24hr selectable) - Date & Day - Rainfall per Day - Rainfall per Week, per Month, or Accumulated Rainfall - mm/inch selectable (2) Functions Key “SET” Used to set the time “+” Step Advanced/ Fast Advanced Or Reset the record of rainfall Or Cancel the registration of Rain Gauge “-“ Step backward/ Fast Backward Or Change mode of Rainfall per week/ per month/ accumulated record Or Change the units of Rainfall (3) Battery Installation - First to install the battery of Home Unit 2pcs AAA. - Open the battery door of Rain gauge by screwdriver, insert 2pcs AA battery and close it with screwdriver. It should be placed near the Home unit. - It is important to install the battery for Home unit first in order to have a good reception for the signal for registration. (4) Registration : (a) Automatic Registration started after installation of battery for both rain gauge and home unit. The LCD of home unit will show zero “0” or a number for the rainfall if registration success. Otherwise, please re-install the batteries of the Rain gauge again. (b) You can cancel the registration by pressing and holding the button “+” for 3 seconds. The LCD will show flashing “- - - -“. (5) Place of Rain Gauge In order to have precise reading, you are highly recommended to put the rain gauge on horizontal place, no rock or other thing on the ground. Besides, there should be no any obstacle around the gauge within 3m such as building, trees, house and etc, which will affect the reading of the rain gauge. Noted : You need to change the position of Rain Gauge if the rainfall shows "- - - -". It means that the reception of signal fail in last hour, which may be affected by other signal or interference. (6) Setting for Home unit : Before any setting, check the home unit is worked properly and receipt the signal from the Rain gauge. If reception is successful, the LCD will show the data information for rainfall either “zero” or a number. If show flashing “- - - - “, it means reception failure. Then you need to re-install the battery again for Home unit (follow #8). If all OK, you need to reset the readings of Home unit by pressing button “+”. Afterward, you can set the time according to the following steps : Press “Set” button and hold 3 seconds to enter TIME SETTING mode To adjust the time by pressing "+” or “-" buttons (You can hold the button for fast advance/fast backward) Setting sequence: 12/24 hr -> year -> month -> day -> hour -> minute -> press “set” to confirm within a few seconds. (7) Mode & units for Rainfall : (a) Mode for “per week”/ “per month”/ ”accumulated rainfall” Press “-“ button for selection (b) Mode for units (mm/ inch) Press and hold “-“ button for 3 seconds to select the units (mm/ inch) (8) Changing Battery of Rain Gauge & Home unit If you find the reception of the signal (1) Rain Gauge : If the unit is out of power, please first cancel the registration of Home unit before changing battery (follow the procedure (4b) mentioned in above), which is to make sure the rain gauge can be registered after changing battery. Then you can start to change the battery for the rain gauge. (2) Home Unit : Change the battery and then follow the steps (3) in the beginning for setting and registration. Technical Specification Daily : 0mm - 999mm (0 inch - 39.33 inch) Weekly & Monthly : 0mm - 9999mm (0 inch - 393.66 inch) Resolution : 1mm /0.04 inch Transmission range : 30m (open area) Battery operated : 2pcs AAA for Home unit 2pcs AA for Rain Gauge FCC DISCLAIMER This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. Modifications not authorized by the manufacturer may void users authority to operate this device. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help.

:E ORFNG LDJUDP 0LFURFRQWUROOHU 5DLQIDOO FRXQWHU 5) WUDQVPLWWLQJ FLUFXLW 5DLQIDOO FROOHFWRU

PHOTOGRAPH OF THE PRODUCT FRONT VIEW OF THE PRODUCT REAR VIEW OF THE PRODUCT

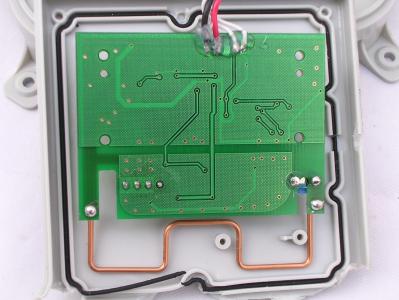

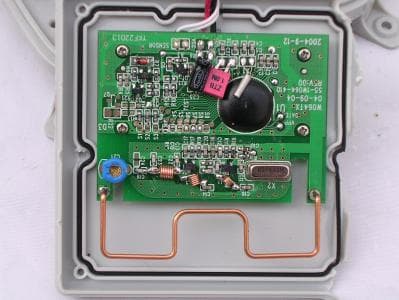

PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT TOP VIEW INNER CIRCUIT BOTTOM VIEW

FCC ID: RMW2750 Circuit Description The 433MHz crystal oscillator drives the base of Q5 the final/buffer amplifier. The modulation provided by IC. The output of Q5 has the matching network consisting of Q21 and C24 that limit the harmonic content and effect the proper coupling of the antenna to the output stage. Antenna, Ground and Power Source There is no external antenna. There is no external ground connection. The ground is only that of the printed circuit board. Electric current is supplied by a 3 Volt (“AA” size battery x 2) primary battery

香 港 標 準 及 檢 定 中 心 Hong Kong Standards and Testing Centre Date : 2004-10-21 TEST REPORT Page 1 of 1 No. : HM152615 This report shall not be reproduced unless with prior written approval from the Hong Kong Standards and Testing Centre. 香港新界大埔工業村大宏街10號 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of STC: www.hkstc.org (the section “Application and Quotation”). Applicant: Taylor Precision Products, LLC 2311 West 22nd, Suite 103, Oak Brook, IL 60523 Description of Samples: Model name: Wireless Rain Gauge Model no.: 2750 Brand name: Taylor FCC ID: RMW2750 Date Samples Received: 2004-10-04 Date Tested: 2004-10-13 Investigation Requested: FCC Part 15 Subpart C Conclusions: The submitted product was deemed to have COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Remarks: ---- KC Lee, EMC DAR Approved Signatory 香 港 標 準 及 檢 定 中 心 Hong Kong Standards and Testing Centre Date : 2004-10-21 TEST REPORT Page 2 of 2 No. : HM152615 香港新界大埔工業村大宏街10號 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of STC: www.hkstc.org (the section “Application and Quotation”). CONTENT: Cover Page 1 of 21 Content Page 2-3 of 21 1.0 General Details 1.1 Test Laboratory Page 4 of 21 1.2 Applicant Details Page 4 of 21 Applicant HKSTC Code Number for Applicant Manufacturer 1.3 Equipment Under Test [EUT] Page 5 of 21 Description of EUT operation 1.4 Date of Order Page 5 of 21 1.5 Submitted Samples Page 5 of 21 1.6 Test Duration Page 5 of 21 1.7 Country of Origin Page 5 of 21 1.8 Additional Information of EUT Page 6 of 21 2.0 Technical Details 2.1 Investigations Requested Page 7 of 21 2.2 Test Standards and Results Summary Page 7 of 21 3.0 Test Results 3.1 Emission Page 8-12 of 21 3.2 Bandwidth Measurement Page 13-14 of 21 香 港 標 準 及 檢 定 中 心 Hong Kong Standards and Testing Centre Date : 2004-10-21 TEST REPORT Page 3 of 3 No. : HM152615 香港新界大埔工業村大宏街10號 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of STC: www.hkstc.org (the section “Application and Quotation”). Appendix A List of Measurement Equipment Page 15 of 21 Appendix B Duty Cycle Correction During 100 msec Page 16-17 of 21 Appendix C Periodic Operation Page 18-19 of 21 Appendix D Photographs Page 20-21 of 21 香 港 標 準 及 檢 定 中 心 Hong Kong Standards and Testing Centre Date : 2004-10-21 TEST REPORT Page 4 of 4 No. : HM152615 香港新界大埔工業村大宏街10號 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of STC: www.hkstc.org (the section “Application and Quotation”). 1.0 General Details 1.1 Test Laboratory The Hong Kong Standards and Testing Centre Ltd. EMC Laboratory 10 Dai Wang Street, Taipo Industrial Estate New Territories, Hong Kong Telephone: 852 2666 1888 Fax: 852 2664 4353 1.2 Applicant Details Applicant Taylor Precision Products, LLC 2311 West 22nd, Suite 103, Oak Brook, IL 60523 HKSTC Code Number for Applicant ANE001 Manufacturer N/A 香 港 標 準 及 檢 定 中 心 Hong Kong Standards and Testing Centre Date : 2004-10-21 TEST REPORT Page 5 of 5 No. : HM152615 香港新界大埔工業村大宏街10號 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of STC: www.hkstc.org (the section “Application and Quotation”). 1.3 Equipment Under Test [EUT] Description of Sample Product: Wireless Rain Gauge Manufacturer: N/A Brand Name: Taylor Model Number: 2750 Input Voltage: 3Vd.c (“AA” size battery x 2) 1.3.1 Description of EUT Operation The Equipment Under Test (EUT) is an Taylor Precision Products, LLC, Wireless Rain Gauge. The transmitter is an automatic transmitter. The EUT is to transmit RF signal while temperature measurement is changed. The EUT is for data transmission, Modulation by Data Code. Tape is pulses modulation. 1.4 Date of Order 2004-10-04 1.5 Submitted Sample(s): 3 Samples per model 1.6 Test Duration 2004-10-13 1.7 Country of Origin China 香 港 標 準 及 檢 定 中 心 Hong Kong Standards and Testing Centre Date : 2004-10-21 TEST REPORT Page 6 of 6 No. : HM152615 香港新界大埔工業村大宏街10號 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of STC: www.hkstc.org (the section “Application and Quotation”). 1.8 Additional Information of EUT Submitted Not Available User Manual Part List Circuit Diagram Printed Circuit Board [PCB] Layout Block diagram FCC ID Label 香 港 標 準 及 檢 定 中 心 Hong Kong Standards and Testing Centre Date : 2004-10-21 TEST REPORT Page 7 of 7 No. : HM152615 香港新界大埔工業村大宏街10號 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of STC: www.hkstc.org (the section “Application and Quotation”). 2.0 Technical Details 2.1 Investigations…

Text truncated - open the document above for the full version.

TEST SET UP PHOTOGRAPH OF THE PRODUCT MEASUREMENT OF RADIATED EMISSION TEST SET UP
