RNCMAIL-1100Mail Chime

Jaltel, LLC DBA Mail Chime
Mail Chime - FCC ID RNCMAIL-1100 - Jaltel, LLC DBA Mail Chime
Click to zoom

Application Details

Equipment Class
DSC - Part 15 Security/Remote Control Transmitter
Date of Grant
Jan 14, 2004
Application Purpose
Original Equipment
Date of Application
Jan 14, 2004
Equipment Note
Mail Chime
Frequency Range
315.00000000 - 315.00000000
Company
Jaltel, LLC DBA Mail Chime
Country
United States

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

Operational Description

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

External Photos

ETC Report No.: ET92S-11-114-01Page A1 of A1 FCC ID: RNCMAIL-1100 ANNEX A: EXTERNAL CONSTRUCTION PHOTOS OF EUT 1. Outside view 1 of EUT 2. Outside view 2 of EUT

ID Label/Location Info

MODEL NO: MAIL-1100 LABEL DATA CODE:200300001 MODEL NO:MAIL-1100 FCC ID:RNCMAIL-1100 Hanna Product Inc MADE IN CHINA 106mm 25mm DATA CODE:200300001 MODEL NO:MAIL-1100 FCC ID:RNCMAIL-1100 Hanna Product Inc MADE IN CHINA 30mm 12mm Label

Internal Photos

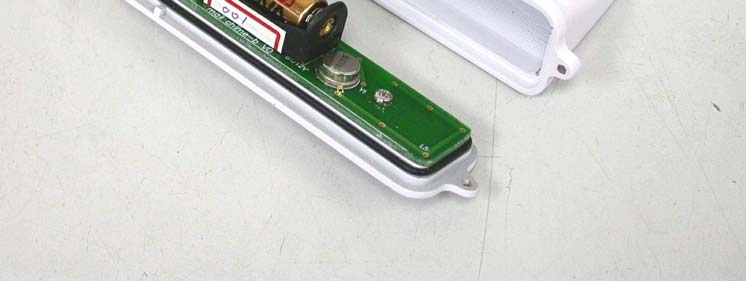

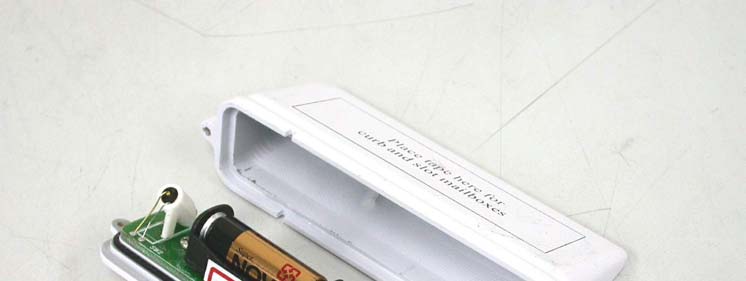

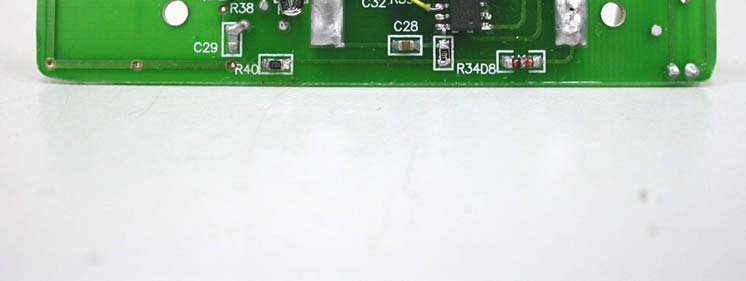

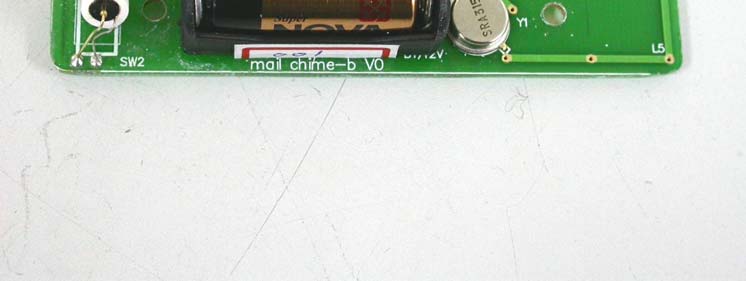

ETC Report No.: ET92S-11-114-01 Page B1 of B2 FCC ID: RNCMAIL-1100 ANNEX B: INTERNAL CONSTRUCTION PHOTOS OF EUT 1. Inside 1 of EUT 2. Inside 2 of EUT ETC Report No.: ET92S-11-114-01 Page B2 of B2 FCC ID: RNCMAIL-1100 3. Front view of PCB1 4. Rear view of PCB1

Operational Description

Principle of Active - Mail Chime 1. The Transmitter is mounted to the door of the mailbox. 2. The Receiver is plugged into the home electrical system by the use of a 12 volt AC transformer. 3. As the door of the mailbox is opened, a ball tilt switch in the Transmitter makes circuitry contact. 4. The Transmitter emits a RF signal to the Receiver in the home. 5. When the Receiver receives the RF signal, it engages a red LED light and sounds four short beeps. 6. The Receiver is reset by pushing down on the reset button on the top of the Receiver

Test Report

FCC ID.: RNCMAIL-1100 Rev. No 1.0 FCC Part 15 Subpart C EMI TEST REPORT of E.U.T. : Mail Chime FCC ID. : RNCMAIL-1100 MODEL : MAIL-1100 Working Frequency : 315 MHz for APPLICANT : Hanna Products ADDRESS: 2602 37 th Street, Rock Island, IL 61201 Test Performed by ELECTRONICS TESTING CENTER, TAIWAN NO. 8, LANE 29, WEN-MING RD., LO-SHAN TSUN, KUI-SHAN HSIANG, TAOYUAN HSIEN 333, TAIWAN, R.O.C. Tel: (03) 3276170-3276174 Fax: (03) 3276188 Report Number: ET92S-11-114-01 ETC Report No.:ET92S-11-114-01FCC ID.: RNCMAIL-1100 Rev. No 1.0 TEST REPORT CERTIFICATION Applicant: Hanna Products 2602 37 th Street, Rock Island, IL 61201 Manufacturer:SUPER STAR TECHNOLOGY CO., LTD. NO. 7, Lane 306.Sec. 2, Tai-Lin Rd., Tai-Shan Shiang, Taipei Hsien, Taiwan, R.O.C. Description of EUT : a) Type of EUT: Mail Chime b) Model No.: MAIL-1100 c) Serial No.: ---- d) FCC ID: RNCMAIL-1100 e) Working Frequency : 315 MHz f) Power Supply: 12VDC Battery Regulation Applied: FCC Rules and Regulations Part 15 Subpart C (2003) I HEREBY CERTIFY THAT; The data shown in this report were made in accordance with the procedures given in ANSI C63.4 and the energy emitted by the device was founded to be within the limits applicable. I assume full responsibility for accuracy and completeness of these data. Note:1.The results of the testing report relate only to the items tested. 2.The testing report shall not be reproduced except in full, without the written approval of ETC. 3.The report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government. Issue Date : Dec 29,2004 Test Engineer : Approve & Authorized Signer : Win-Po Tsai, Manager, NVLAP Signatory EMC Dept. of ELECTRONICS TESTING CENTER, TAIWAN ETC Report No.:ET92S-11-114-01FCC ID.: RNCMAIL-1100 Rev. No 1.0 Table of Contents Page 1. GENERAL INFORMATION ...................................................................................................................................... 1 1.1 P RODUCT DESCRIPTION................................................................................................................................................. 1 1.2 C HARACTERISTICS OF DEVICE: ...................................................................................................................................... 1 1.3 T EST METHODOLOGY.................................................................................................................................................... 1 1.4 T EST FACILITY............................................................................................................................................................... 1 2. DEFINITION AND LIMITS ....................................................................................................................................... 2 2.1 D EFINITION.................................................................................................................................................................... 2 2.2 R ESTRICTED BANDS OF OPERATION.............................................................................................................................. 2 2.3 L IMITATION................................................................................................................................................................... 3 2.4 L ABELING REQUIREMENT.............................................................................................................................................. 4 2.5 U SER INFORMATION...................................................................................................................................................... 4 3. RADIATED EMISSION MEASUREMENT ............................................................................................................. 5 3.1 A PPLICABLE STANDARD................................................................................................................................................ 5 3.2 M EASUREMENT PROCEDURE.......................................................................................................................................... 5 3.3 T EST DATA.................................................................................................................................................................... 7 3.4 F IELD STRENGTH CALCULATION................................................................................................................................. 10 3.5 R ADIATED TEST EQUIPMENT....................................................................................................................................... 10 3.6 M EASURING INSTRUMENT SETUP................................................................................................................................15 3.7 R ADIATED MEASUREMENT PHOTOS............................................................................................................................. 16 4. BANDWIDTH OF EMISSION AND DUTY FACTOR.......................................................................................... 17 4.1 A PPLICABLE STANDARD PLOT GRAPHIC OF BANDWIDTH AND DUTY FACTOR............................................................. 17 4.2 T EST EQUIPMENT......................................................................................................................................................... 17 4.3 T EST RESULT............................................................................................................................................................... 17 5. CONDUCTED EMISSION MEASUREMENT ........................................................................................................ 20 5.1 S TANDARD APPLICABLE.............................................................................................................................................. 20 6. LIMIT OF TRANSMISSION TIME ....................…

Text truncated - open the document above for the full version.

Test Setup Photos

ETC Report No.:ET92S-11-114-01Sheet 1 of 1 Sheets FCC ID.: RNCMAIL-1100 3.7 Radiated Measurement Photos

Contact Information

Applicant

Pradeep Jaltota(Manager)
[email protected]309-788-1982Fax: 949-480-1177

Test Firm

Electronics Testing Center, TaiwanWin-Po Tsai
[email protected]886-3-3276172Fax: 886-3-3276188

Technical Specifications

#Rule PartsFrequency RangePower Output
115.231315 MHz - 315 MHz-
Confidentiality
Long Term
