RNMAKHFIH0530KInduction Heating Unit

Ｄｅｃ．２０１２ Ａ２０３４ ＜＞ ＜＞ ＜＞ ＜＞（） ＜＞（） ＜＞（） Ω ～°C ～％（） ～ｋ M ore than30 m m M ore than80 m m M ore than80 m m M ore than30 m m （ ｍ㎡ OUTPUT TERMINAL WC 1,WC 2 【】【】 【】【】 【】【】 【】【】【】 【】【】～ φφ

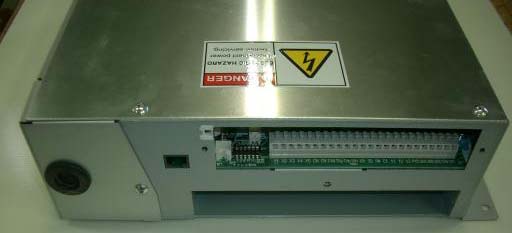

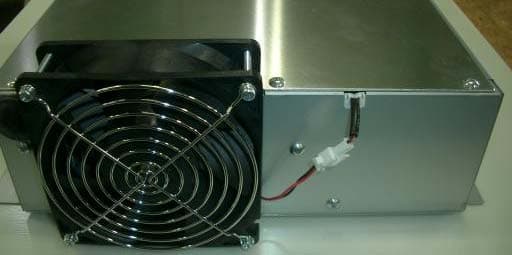

Photograph of exterior FRONT BACK TOP BOTTOM RIGHT LEFT

FCC ID： RNMAKHFIH0530K Model： AKHFR5.0C11K-2 Serial No. A-2034 AKAI ELECTRONIC INDUSTRY CO.,LTD. Made in Japan

Control UNITOscilation UNIT Oscilation UNIT FRONT Oscilation UNIT BACK Control UNIT FRONT Control UNIT BACK

Test report No. : 4786000990H-R2 Page : 2 of 12 Issued date : January 18, 2013 Revised date : February 6, 2013 FCC ID : RNMAKHFIH0530K UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 REVISION HISTORY Original Test Report No.: 4786000990H Revision Test report No. Date Page revised Contents - (Original) 4786000990H January 18, 2013 - - 1 4786000990H-R1 February 6, 2013 P. 5 Corrected worst margin of Radiated emission 1 4786000990H-R1 February 6, 2013 P. 8 1. Added test distance: 3m in clause 5.3 2. Added test procedure explanation in clause 5.4 1 4786000990H-R1 February 6, 2013 P. 10 Replaced test data 2 4786000990H-R2 February 6, 2013 P. 10 Corrected calculation formula Test report No. : 4786000990H-R2 Page : 3 of 12 Issued date : January 18, 2013 Revised date : February 6, 2013 FCC ID : RNMAKHFIH0530K UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 CONTENTS PAGE SECTION 1: Customer information ...................................................................................... 4 SECTION 2: Equipment under test (E.U.T.) ........................................................................ 4 SECTION 3: Test specification, procedures & results ......................................................... 5 SECTION 4: Operation of E.U.T. during testing .................................................................. 7 SECTION 5: Radiated Emission ............................................................................................ 8 APPENDIX 1: Data of EMI test ........................................................................................... 10 Radiated Emission ....................................................................................................................... 10 APPENDIX 2: Test instruments ........................................................................................... 11 APPENDIX 3: Photographs of test setup ............................................................................. 12 Radiated Emission ....................................................................................................................... 12 Test report No. : 4786000990H-R2 Page : 4 of 12 Issued date : January 18, 2013 Revised date : February 6, 2013 FCC ID : RNMAKHFIH0530K UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 1: Customer information Company Name : AKAI ELECTRONIC INDUSTRY CO., LTD. Address : 148-8 Hazukashikamogawa-cho, fushimi-ku, Kyoto-shi, Kyoto, 612-8484, Japan Telephone Number : +81-75-922-7980 Facsimile Number : +81-75-922-7982 Contact Person : Yutaka Machino SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Induction Heating Unit Model No. : AKHFR5.0C11K-2 Serial No. : A-2034-02 Rating : AC200-220V/60Hz Receipt Date of Sample : November 30, 2012 Country of Mass-production : Japan Condition of EUT : Production model Modification of EUT : No Modification by the test lab 2.2 Product Description Model No: AKHFR5.0C11K-2 is the Induction Heating Unit. Clock frequency in the system : 4MHz Operating frequency : 30kHz Feature of EUT : This unit is a device which applies the principle of induction heating, to heat the metal. Test report No. : 4786000990H-R2 Page : 5 of 12 Issued date : January 18, 2013 Revised date : February 6, 2013 FCC ID : RNMAKHFIH0530K UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 3: Test specification, procedures & results 3.1 Test specification Test Specification : FCC Part 18 2002, final revised on July 10, 2002 Title : FCC 47CFR Part18 Industrial, scientific, and medical equipment 3.2 Procedures and results Item Test Procedure & Limits Deviation Worst margin Result Radiated emission Section 18.305 FCC/OST MP-5 N/A 12.6 dB 0.02863MHz, AV, 45 deg. Complied Conducted emission Section 18.307 FCC/OST MP-5 N/A N/A *1) N/A *Note: UL Japan, Inc.’s EMI Work Procedure 13-EM-W0420. *1) The test is not applicable since the EUT is not the device that is designed to be connected to the public utility (AC) power line. 3.3 Addition to standard Other than above, no addition, exclusion nor deviation has been made from the standard. 3.4 Uncertainty EMI The following uncertainties have been calculated to provide a confidence level of 95% using a coverage factor k=2. Test room (semi- anechoic chamber) Radiated emission (10m*)(+dB) 9kHz -30MHz 30MHz -300MHz 300MHz -1GHz No.1 4.2dB 5.0dB 4.8dB No.2 - - - No.3 - - - No.4 - - - *10m = Measurement distance Radiated emission test(10m) The data listed in this test report has enough margin, more than the site margin. Test report No. : 4786000990H-R2 Page : 6 of 12 Issued date : January 18, 2013 Revised date : February 6, 2013 FCC ID : RNMAKHFIH0530K UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 3.5 Test Location UL Japan, Inc. Head Office EMC Lab. *NVLAP Lab. code: 200572-0 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 FCC Registration Number IC Registration Number Width x Depth x Height (m) Size of reference ground plane (m) / horizontal conducting plane Other rooms No.1 semi-anechoic chamber 313583 2973C-1 19.2 x 11.2 x 7.7m 7.0 x 6.0m No.1 Power source room No.2 semi-anechoic chamber 655103 2973C-2 7.5 x 5.8 x 5.2m 4.0 x 4.0m - No.3 semi-anechoic chamber 148738 2973C-3 12.0 x 8.5 x 5.9m 6.8 x 5.75m No.3 Preparation room No.3 shielded room - - 4.0 x 6.0 x 2.7m N/A - No.4 semi-anechoic chamber 134570 2973C-4 12.0 x 8.5 x 5.9m 6.8 x 5.75m No.4 Preparation room No.4 shielded room - - 4.0 x 6.0 x 2.7m N/A - No.…

Text truncated - open the document above for the full version.

Test report No. : 4786000990H-R2 Page : 12 of 12 Issued date : January 18, 2013 Revised date : February 6, 2013 FCC ID : RNMAKHFIH0530K UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 APPENDIX 3: Photographs of test setup Radiated Emission Photo 1 Photo 2 End of Report
